Nissan Pathfinder (2008 year). Manual - part 563

BCM (BODY CONTROL MODULE)

SEC-137

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

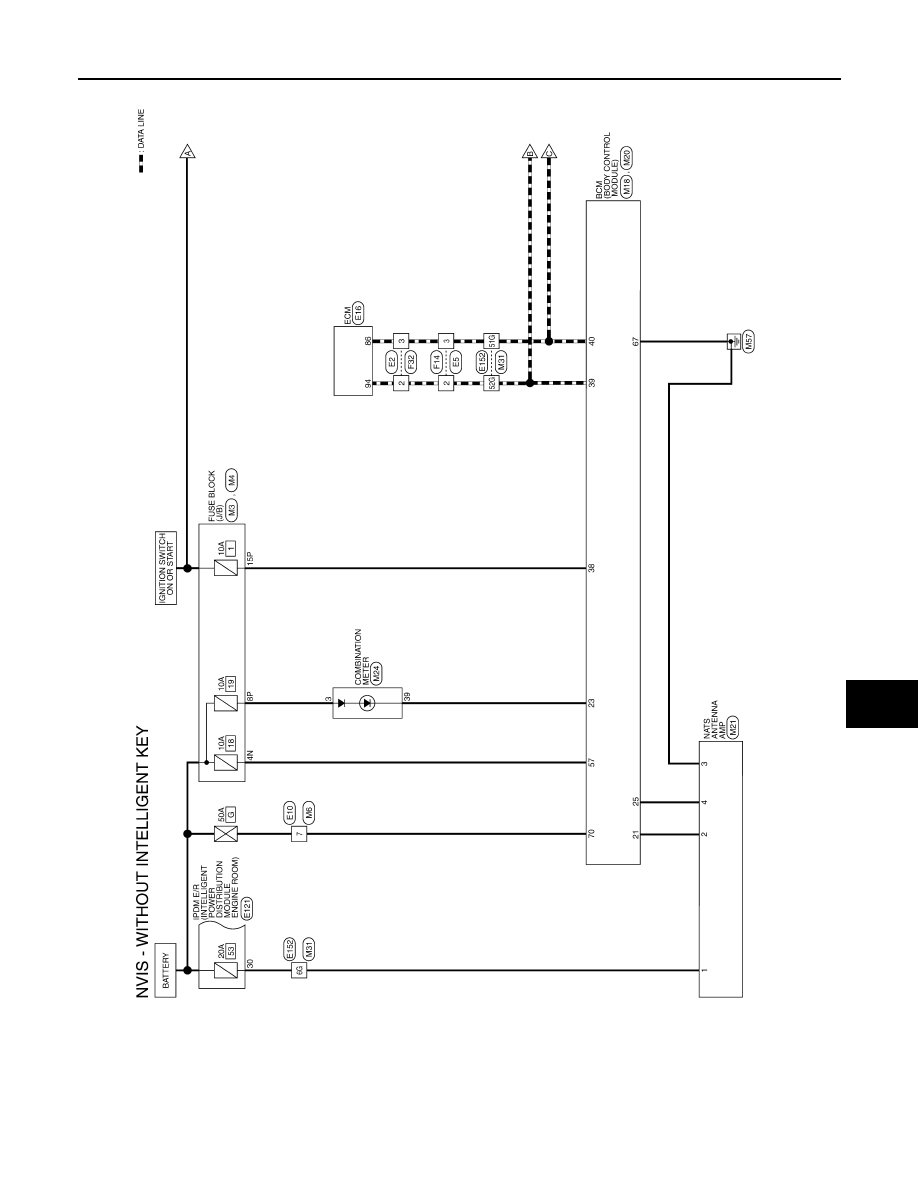

Wiring Diagram - NVIS -

INFOID:0000000001689637

ALKWA0135GB

SEC-138

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

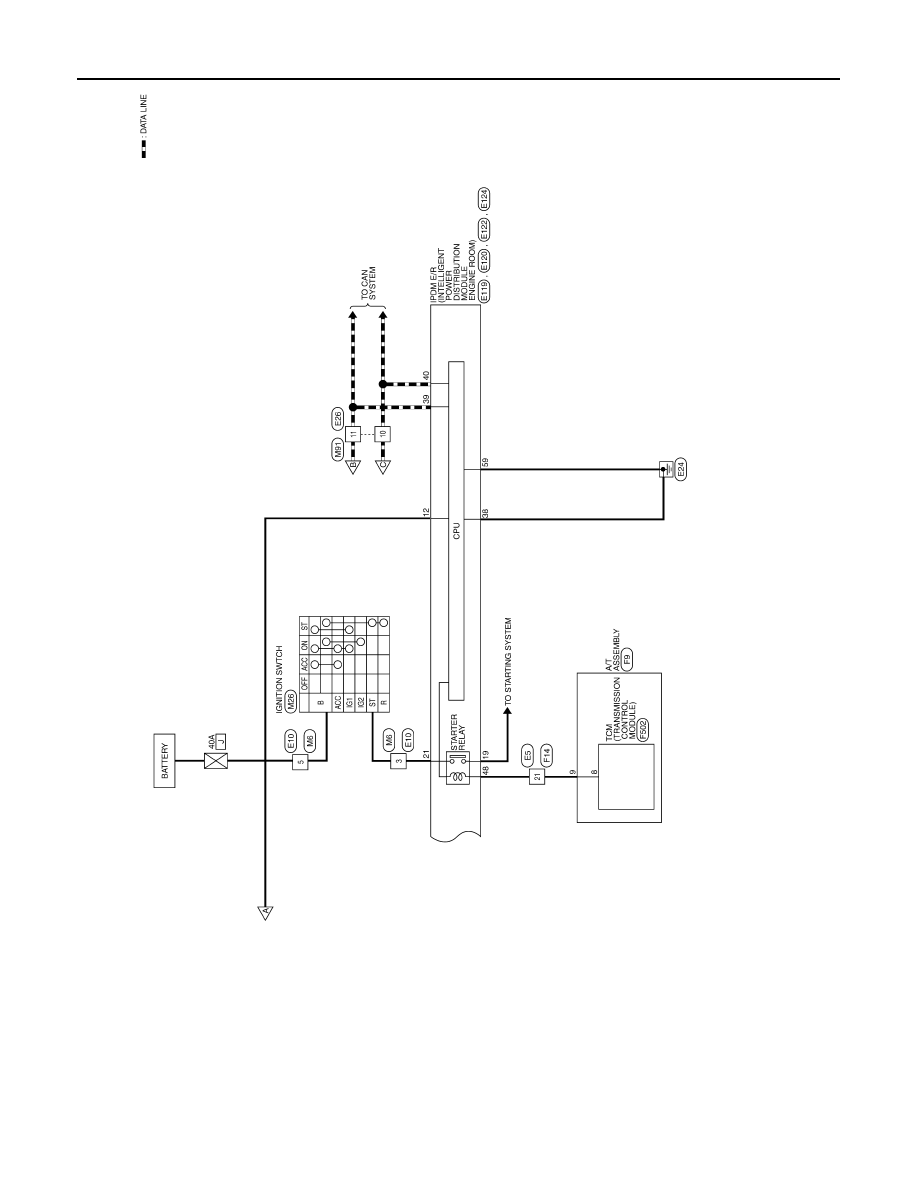

ALKWA0136GB

BCM (BODY CONTROL MODULE)

SEC-139

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

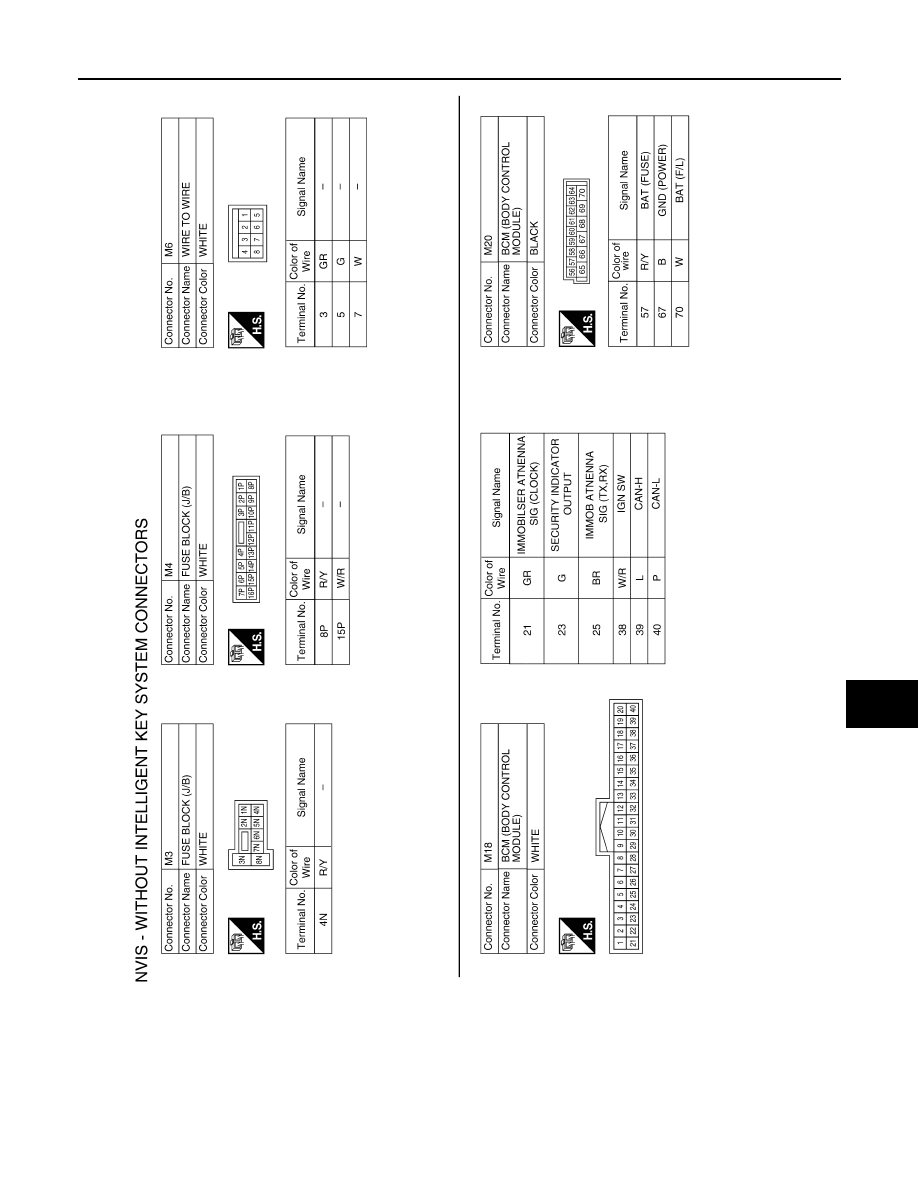

ALKIA0930GB

SEC-140

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

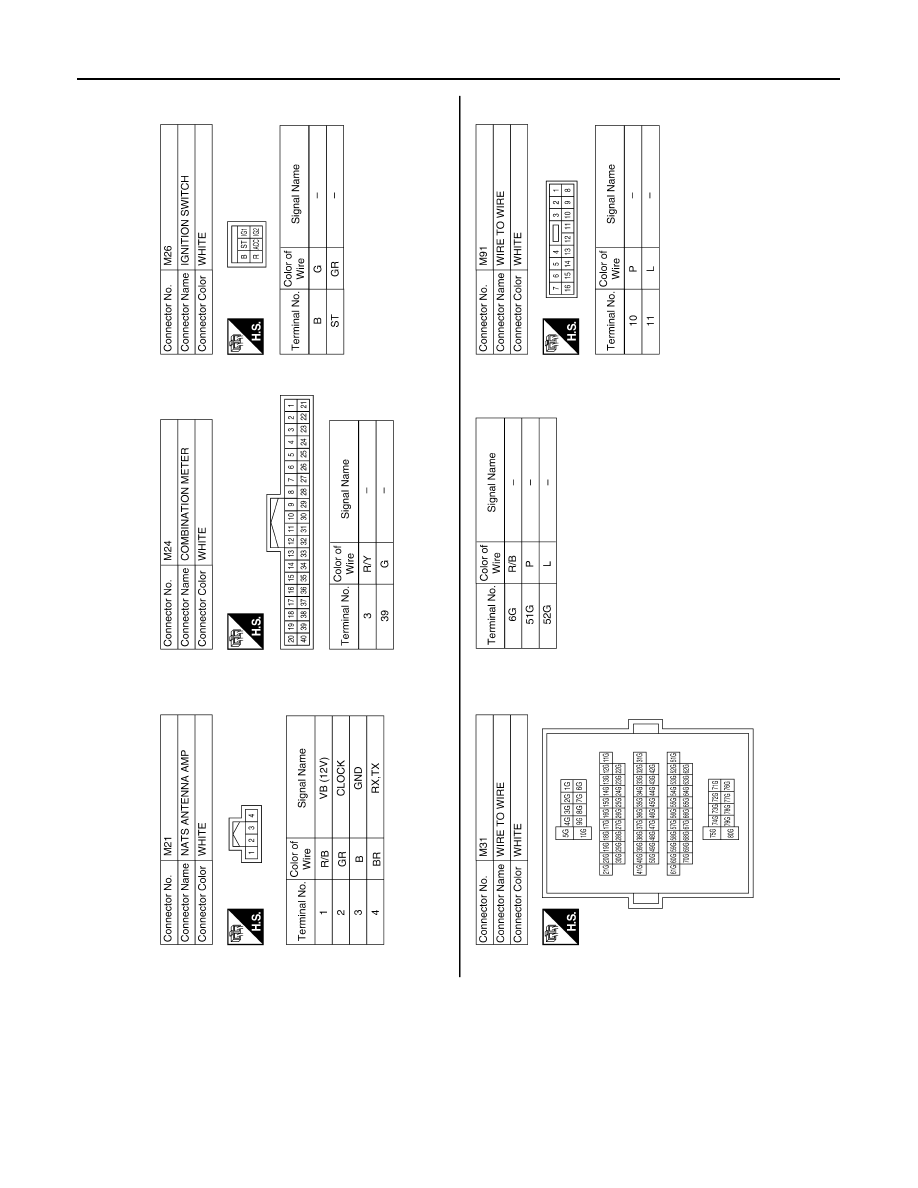

ALKIA0931GB

BCM (BODY CONTROL MODULE)

SEC-141

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

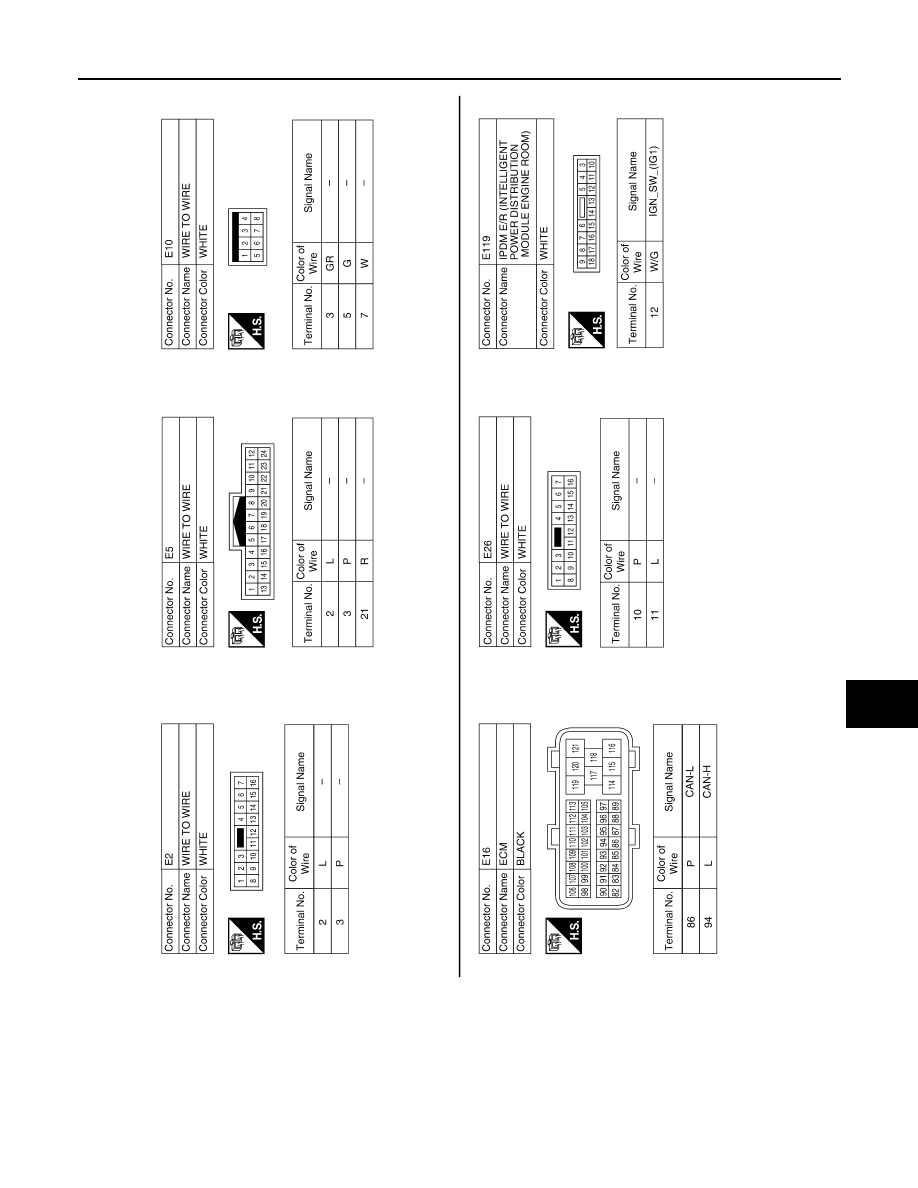

ALKIA0932GB

SEC-142

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

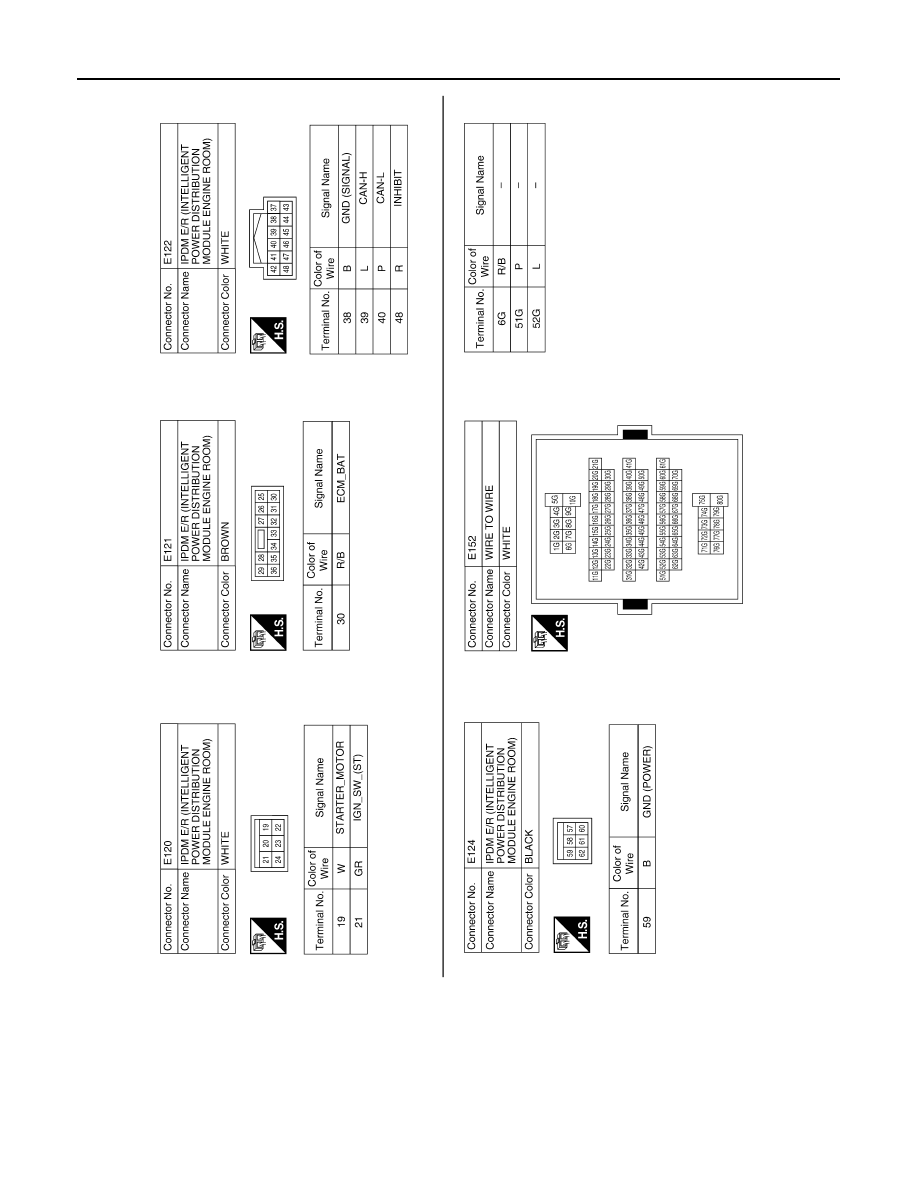

ALKIA0933GB

BCM (BODY CONTROL MODULE)

SEC-143

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

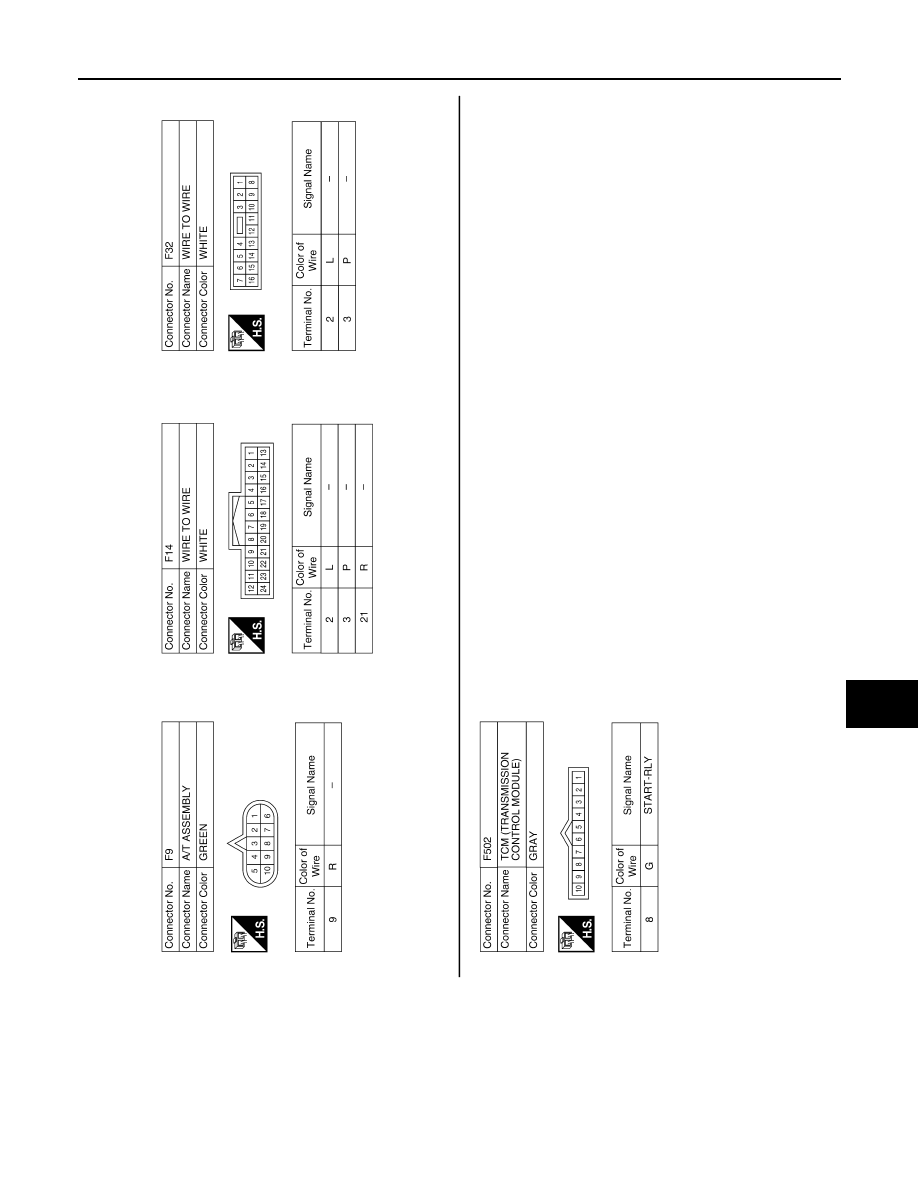

ALKIA0934GB

SEC-144

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

DTC Inspection Priority Chart

INFOID:0000000001689639

DTC Index

INFOID:0000000001689640

NOTE:

Details of time display

• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-

tion switch OFF

→

 ON again.

• PAST: Displays when there is a malfunction that is detected in the past and stored.
• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1

→

 2

→

 3...38

→

 39 after returning to the normal condition whenever ignition switch OFF

→

 ON. The counter

remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
OFF

→

 ON after returning to the normal condition if the malfunction is detected again.

Priority

DTC

1

• U1000: CAN COMM CIRCUIT
• U1010: CONTROL UNIT (CAN)

2

• B2190: NATS ANTENNA AMP
• B2191: DIFFERNCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM

CONSULT display

TIME

Fail-safe

Refer to

No DTC is detected.
further testing
may be required.

—

—

—

—

U1000: CAN COMM CIRCUIT

0

1 - 39

—

SEC-109

U1010: CONTROL UNIT (CAN)

0

1 - 39

—

SEC-110

B2190: NATS ANTENNA AMP

CRNT

PAST

×

SEC-111

B2191: DIFFERENCE OF KEY

CRNT

PAST

×

SEC-114



B2192: ID DISCORD BCM-ECM

CRNT

PAST

×

SEC-115

B2193: CHAIN OF BCM-ECM

CRNT

PAST

×

SEC-117
