FUNCTION DIAGNOSIS

POWER WINDOW SYSTEM

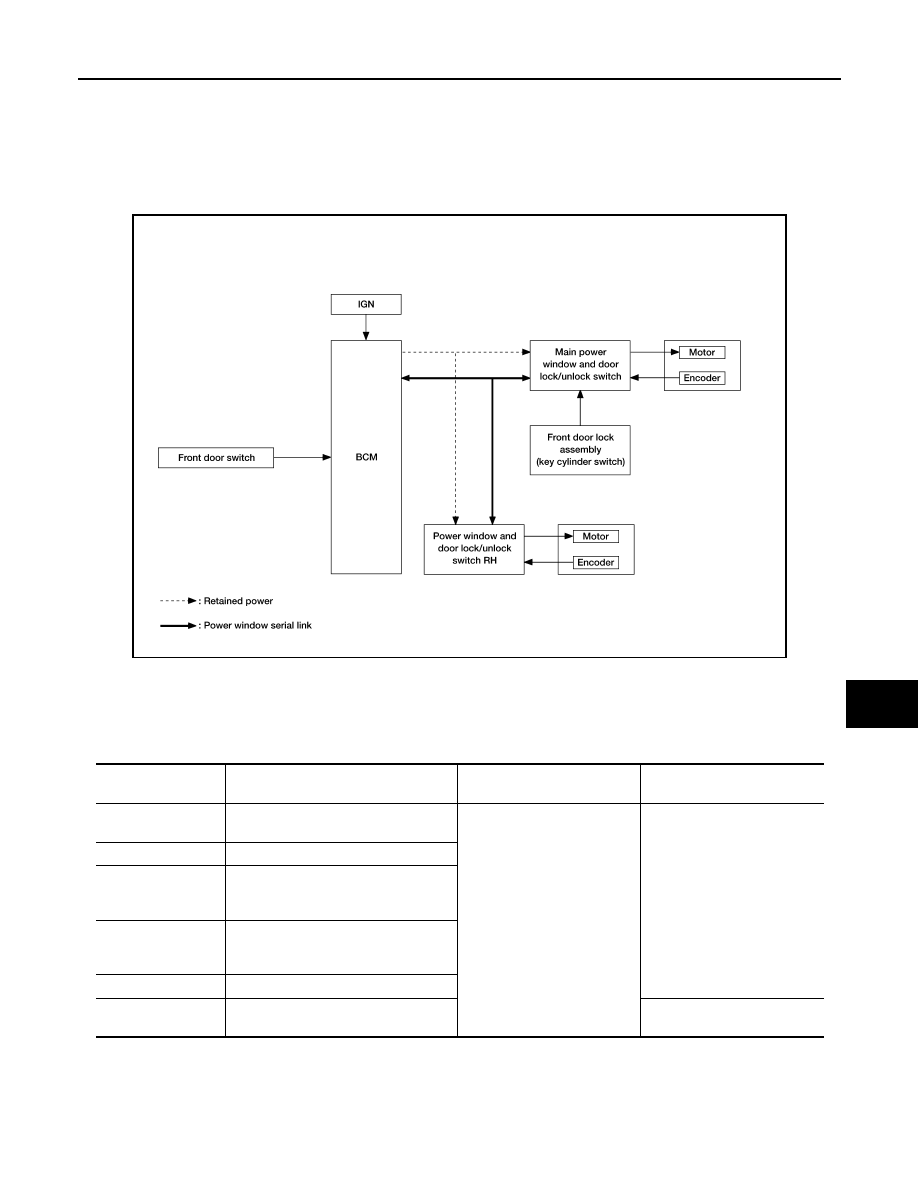

System Diagram

INFOID:0000000001702335

FRONT WINDOW ANTI-PINCH SYSTEM

System Description

INFOID:0000000001702336

POWER WINDOW MAIN SWITCH

INPUT/OUTPUT SIGNAL CHART

POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

INPUT/OUTPUT SIGNAL CHART

ALCIA0038GB

Item

Input signal to main power window and

door lock/unlock switch

Main power window and door

lock/unlock switch function

Actuator

Key cylinder switch

LOCK/UNLOCK signal (more than 1.5
seconds over)

Power window control

Front power window motor

Encoder

Encoder pulse signal

Main power window
and door lock/unlock
switch

Front power window motor LH UP/
DOWN signal

Power window and
door lock/unlock
switch RH

Front power window motor RH UP/
DOWN signal

BCM

RAP signal

Rear power window
switch

Rear power window motor UP/DOWN
signal

Rear power window motor

PWC-6

< FUNCTION DIAGNOSIS >

POWER WINDOW SYSTEM

POWER WINDOW OPERATION

• Power window system is operable during the retained power operation timer after turning ignition switch ON

and OFF.

• Main power window and door lock/unlock switch can open/close all windows.
• Power window and door lock unlock switch RH & rear power window switches LH and RH can open/close

the corresponding windows.

POWER WINDOW AUTO-OPERATION (FRONT LH & RH)

• AUTO UP/DOWN operation can be performed when main power window and door lock/unlock switch &

power window and door lock/unlock switch RH turns to AUTO.

• Encoder continues detecting the movement of power window motor and transmits to power window switch

as the encoder pulse signal while power window motor is operating.

• Power window switch reads the changes of encoder signal and stops AUTO operation when door glass is at

fully opened/closed position.

• Power window motor is operable in case encoder is malfunctioning.

RETAINED POWER OPERATION

• Retained power operation is an additional power supply function that enables power window system to oper-

ate during the 45 seconds even when ignition switch is turned OFF

Retained power function cancel conditions

• Front door CLOSE (door switch OFF)

→

OPEN (door switch ON).

• When ignition switch is ON.
• When timer time passes. (45 seconds)

POWER WINDOW LOCK

Ground circuit inside main power window and door lock/unlock switch shuts off when power window lock
switch is ON. This inhibits power window switch operation except with the main power window and door lock/
unlock switch.

ANTI-PINCH OPERATION (FRONT LH & RH)

• Pinch foreign material in the door glass during AUTO-UP operation, and it is the anti-pinch function that low-

ers the door glass 150 mm (5.91 in) or 2 seconds when detected.

• Encoder continues detecting the movement of power window motor and transmits to power window switch

as the encoder pulse signal while power window motor is operating.

• Resistance is applied to the power window motor rotation that changes the frequency of encoder pulse sig-

nal if foreign material is trapped in the door glass.

• Power window switch controls to lower the window glass for 150 mm (5.91 in) or 2 seconds after it detects

encoder pulse signal frequency change.

OPERATION CONDITION
• When all door glass AUTO-UP operation is performed (anti-pinch function does not operate just before the

door glass closes and is fully closed)

NOTE:
Depending on environment and driving conditions, if a similar impact or load is applied to the door glass, it
may lower.

KEY CYLINDER SWITCH OPERATION

Hold the door key cylinder to the LOCK or UNLOCK direction for more than 1 second to OPEN or CLOSE front
power windows when ignition switch is OFF. In addition, it stops when key position is moved to NEUTRAL
when operating.
OPERATION CONDITION
• Ignition switch OFF

Item

Input signal to front power window

switch

Front power window switch

function

Actuator

Power window and
door lock/unlock
switch RH

Front power window motor RH UP/
DOWN signal

Power window control

Front power window motor RH

Encoder

Encoder pulse signal

BCM

RAP signal

POWER WINDOW SYSTEM

PWC-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

• Hold door key cylinder to LOCK position for more than 1 second to perform CLOSE operation of the door

glass.

• Hold door key cylinder to UNLOCK position for more than 1 second to perform OPEN operation of the door

glass.

KEYLESS POWER WINDOW DOWN OPERATION (FRONT LH & RH)

Front power windows open when the unlock button on Intelligent Key or keyfob is activated and kept pressed
for more than 3

(NOTE)

 seconds with the ignition switch OFF. The windows keep opening if the unlock button is

continuously pressed.
The power window opening stops when the following operations are performed:
• When the unlock button is kept pressed more than 15 seconds.
• When the ignition switch is turned ON while the power window opening is operated.
• When the unlock button is released.
While retained power operation activate, keyless power window down function cannot be operated.
NOTE:
Keyless power window down operation mode can be changed by “PW DOWN SET” mode in “WORK SUP-
PORT”. Refer to

DLK-36, "CONSULT-III Function (INTELLIGENT KEY)"

 with Intelligent Key or

DLK-208,

"REMOTE KEYLESS ENTRY : CONSULT-III Function (BCM - RKE)"

 with remote keyless entry system.

NOTE:
Use CONSULT-III to change settings.
MODE1 (3sec)/MODE2 (OFF)/MODE3 (5sec)

Component Parts Location

INFOID:0000000001702337

Component Description

INFOID:0000000001702338

FRONT WINDOW ANTI-PINCH SYSTEM

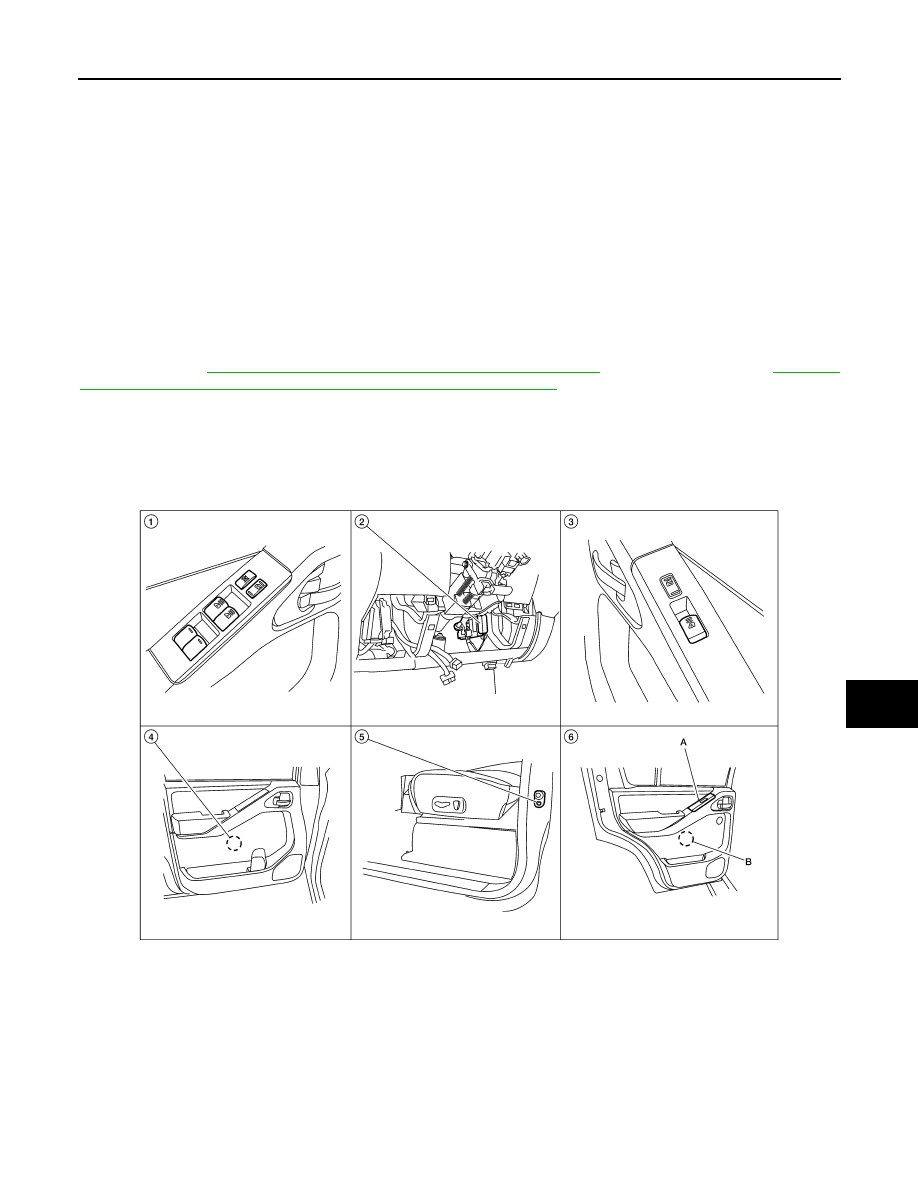

LIIA2390E

1.

Main power window and door lock/
unlock switch D7, D8

2.

BCM M18, M19, M20 (view with in-
strument lower panel LH removed)

3.

Power window  and door lock/unlock
switch RH D105

4.

Front power window motor LH D9,
RH D104

5.

Front door switch LH B8, RH B108

6.

A. Rear power window switch LH
D203, RH D303
B. Rear power window motor LH
D204, RH D304

PWC-8

< FUNCTION DIAGNOSIS >

POWER WINDOW SYSTEM

Component

Function

BCM

• Supplies power supply to power window switch.
• Controls retained power.

Main power window and door lock/un-
lock switch

• Directly controls all power window motor of all doors.
• Controls anti-pinch operation of front power window LH.

Power window and door lock/unlock
switch RH

• Controls front power window motor RH.
• Controls anti-pinch operation of front power window RH.

Rear power window switch

• Controls rear power window motors LH and RH.

Front power window motor LH

• Integrates the ENCODER POWER and WINDOW MOTOR.
• Starts operating with signals from main power window and door lock/unlock switch.
• Transmits power window motor rotation as a pulse signal to main power window and

door lock/unlock switch.

Front power window motor RH

Starts operating with signals from main power window and door lock/unlock switch &
power window and door lock/unlock switch RH.

Rear power window motor

Starts operating with signals from main power window and door lock/unlock switch &
rear power window switch.

Front door lock assembly LH (key cylin-
der switch)

Transmits operation condition of key cylinder switch to power window main switch.

Front door switch LH or RH

Detects door open/close condition and transmits to BCM.

DIAGNOSIS SYSTEM (BCM)

PWC-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000001702339

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

RETAINED PWR

RETAINED PWR : CONSULT-III Function (BCM - RETAINED PWR)

INFOID:0000000001702340

Data monitor

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-51, "DTC Index"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

This function is not used even though it is displayed.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

BCM

BCM

×

RAP system

RETAINED PWR

×

Monitor Item

Description

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch LH.

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch RH.

PWC-10

< COMPONENT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

COMPONENT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

POWER WINDOW MAIN SWITCH

POWER WINDOW MAIN SWITCH : Description

INFOID:0000000001702341

• BCM supplies power.
• It operates each power window motor via corresponding power window switch and makes window move up/

down when main power window and door lock/unlock switch is operated.

POWER WINDOW MAIN SWITCH : Component Function Check

INFOID:0000000001702342

Main Power Window And Door Lock/Unlock Switch

1.

 CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH FUNCTION

Does power window motor operate with main power window and door lock/unlock switch operation?
Is the inspection result normal?

YES

>> Main power window and door lock/unlock switch power supply and ground circuit are OK.

NO

>> Refer to

PWC-10, "POWER WINDOW MAIN SWITCH : Diagnosis Procedure"

.

POWER WINDOW MAIN SWITCH : Diagnosis Procedure

INFOID:0000000001702343

Main Power Window And Door Lock/Unlock Switch Power Supply Circuit Check

1.

 CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch ON.

2.

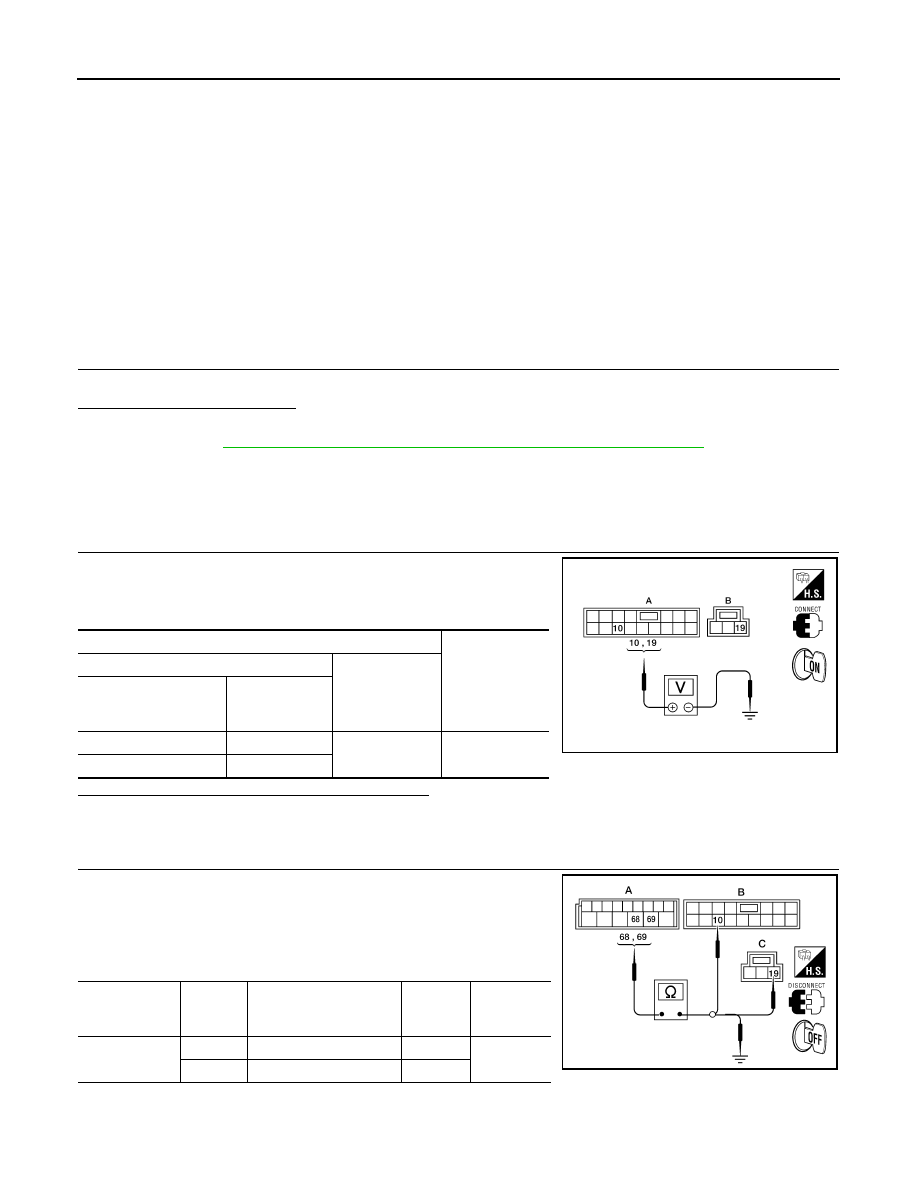

Check voltage between main power window and door lock/
unlock switch connectors (A and B) and ground.

Is the measurement value within the specification?

YES

>> GO TO 3

NO

>> GO TO 2

2.

 CHECK HARNESS CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect BCM and main power window and door lock/unlock
switch.

3.

Check continuity between BCM connector (A) and main power
window and door lock/unlock switch connectors (B and C).

4.

Check continuity between BCM connector (A) and ground.

Terminal

Voltage (V)

(Approx.)

(+)

(–)

Main power window and

door lock/unlock switch

connector

Terminal

D7 (A)

10

Ground

Battery voltage

D8 (B)

19

ALKIA0273ZZ

BCM connector

Terminal

Main power window and

door lock/unlock switch

connector

Terminal

Continuity

M20 (A)

68

D7 (B)

10

Yes

69

D8 (C)

19

LIIA2215E

POWER SUPPLY AND GROUND CIRCUIT

PWC-11

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

3.

 CHECK GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect main power window and door lock/unlock switch.

3.

Check continuity between main power window and door lock/
unlock switch connector and ground.

Is the inspection result normal?

YES

>> Replace main power window and door lock/unlock

switch. Refer to

PWC-70, "Removal and Installation"

.

NO

>> Repair or replace harness.

4.

 CHECK BCM OUTPUT SIGNAL

1.

Connect BCM.

2.

Turn ignition switch ON.

3.

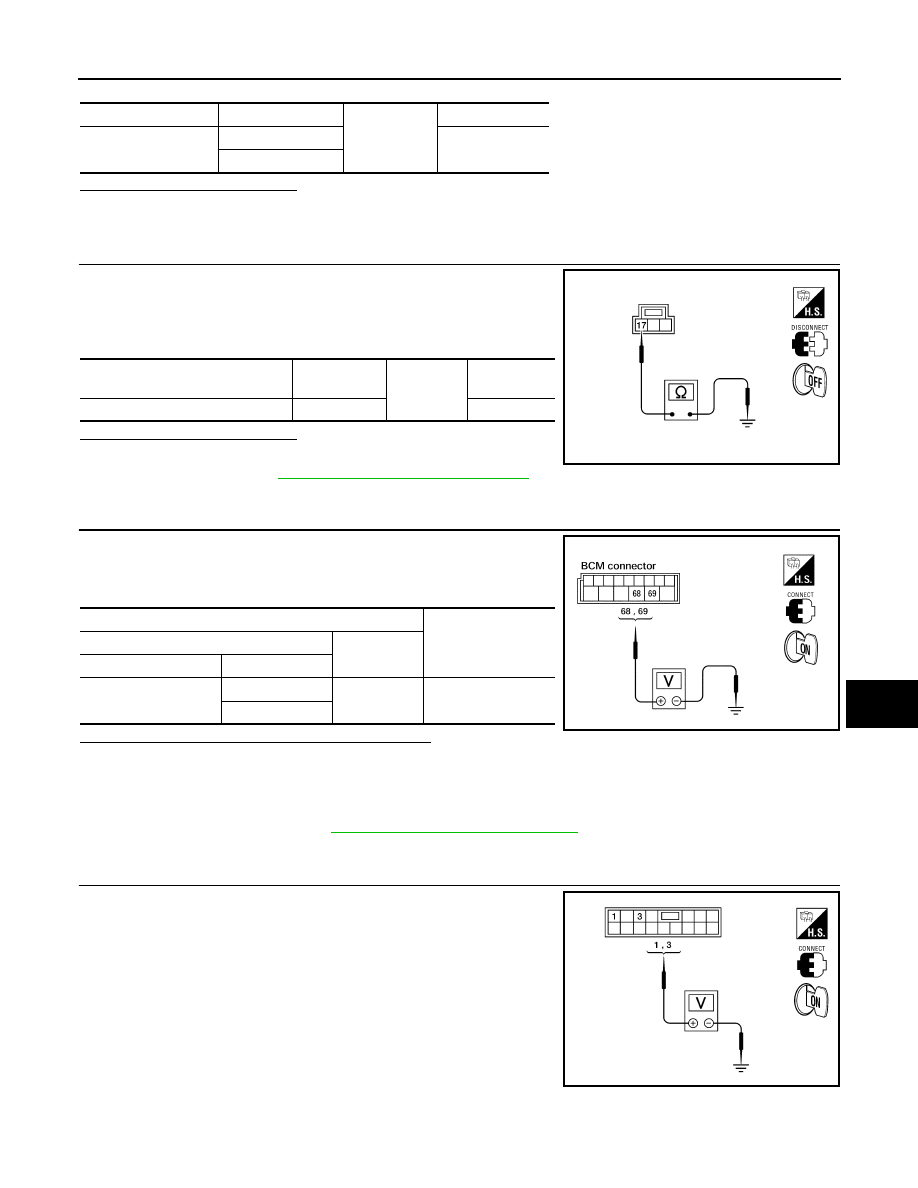

Check voltage between BCM connector and ground.

Is the measurement value within the specification?

YES

>> Check main power window and door lock/unlock switch output signal (rear power window switch

LH) GO TO 5

YES

>> Check main power window and door lock/unlock switch output signal (rear power window switch

RH) GO TO 6

NO

>> Replace BCM. Refer to

BCS-54, "Removal and Installation"

.

5.

 CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH OUTPUT SIGNAL (REAR POW-

ER WINDOW SWITCH LH)

1.

Turn ignition switch ON.

2.

Check voltage between main power window and door lock/
unlock switch connector and ground.

BCM connector

Terminal

Ground

Continuity

M20 (A)

68

No

69

Main power window and door lock/

unlock switch connector

Terminal

Ground

Continuity

D8

17

Yes

ALKIA0275ZZ

Terminals

Voltage (V)

(Approx.)

(+)

(–)

BCM connector

Terminal

M20

68

Ground

Battery voltage

69

LIIA0917E

ALKIA0276ZZ

PWC-12

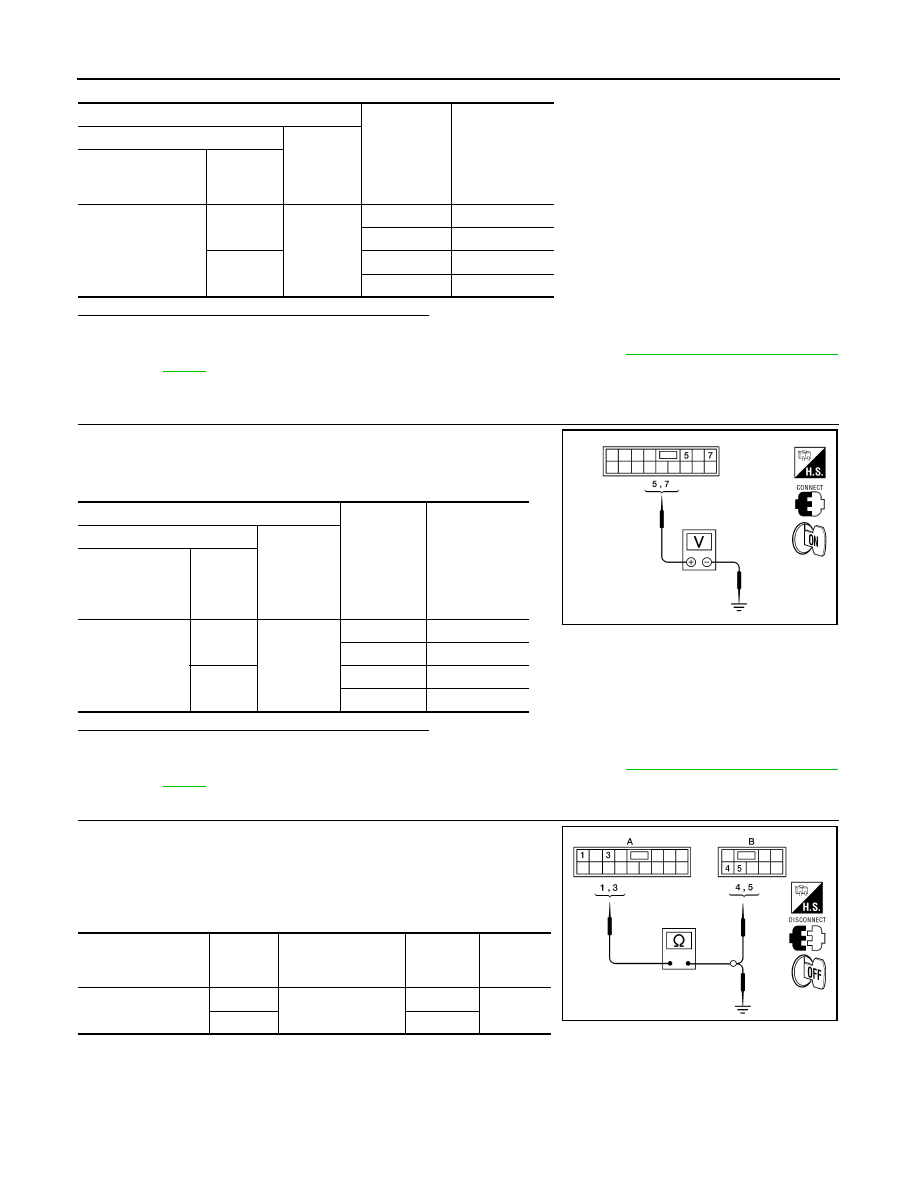

< COMPONENT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

Is the measurement value within the specification?

YES

>> GO TO 7

NO

>> Replace main power window and door lock/unlock switch. Refer to

PWC-70, "Removal and Instal-

lation"

.

6.

 CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH OUTPUT SIGNAL (REAR POW-

ER WINDOW SWITCH RH)

1.

Turn ignition switch ON.

2.

Check voltage between main power window and door lock/
unlock switch connector and ground.

Is the measurement value within the specification?

YES

>> GO TO 8

NO

>> Replace main power window and door lock/unlock switch. Refer to

PWC-70, "Removal and Instal-

lation"

.

7.

 CHECK HARNESS CONTINUITY (REAR POWER WINDOW SWITCH LH)

1.

Turn ignition switch OFF.

2.

Disconnect rear power window switch LH.

3.

Check continuity between main power window and door lock/
unlock switch connector and rear power window switch LH con-
nector.

4.

Check continuity between main power window and door lock/unlock switch connector and ground.

Terminal

Window

condition

Voltage (V)

(Approx.)

(+)

(–)

Main power window

and door lock/unlock

switch connector

Terminal

D7

1

Ground

UP

Battery voltage

DOWN

0

3

UP

0

DOWN

Battery voltage

Terminal

Window

condition

Voltage (V)

(Approx.)

(+)

(–)

Main power win-

dow and door

lock/unlock

switch connector

Terminal

D7

7

Ground

UP

Battery voltage

DOWN

0

5

UP

0

DOWN

Battery voltage

ALKIA0277ZZ

Main power window

and door lock/unlock

switch connector

Terminal

Rear power window

switch LH connector

Terminal

Continuity

D7

1

D203

4

Yes

3

5

LIIA2230E
