Nissan Pathfinder (2008 year). Manual - part 518

PG

FUSE AND FUSIBLE LINK BOX

PG-71

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

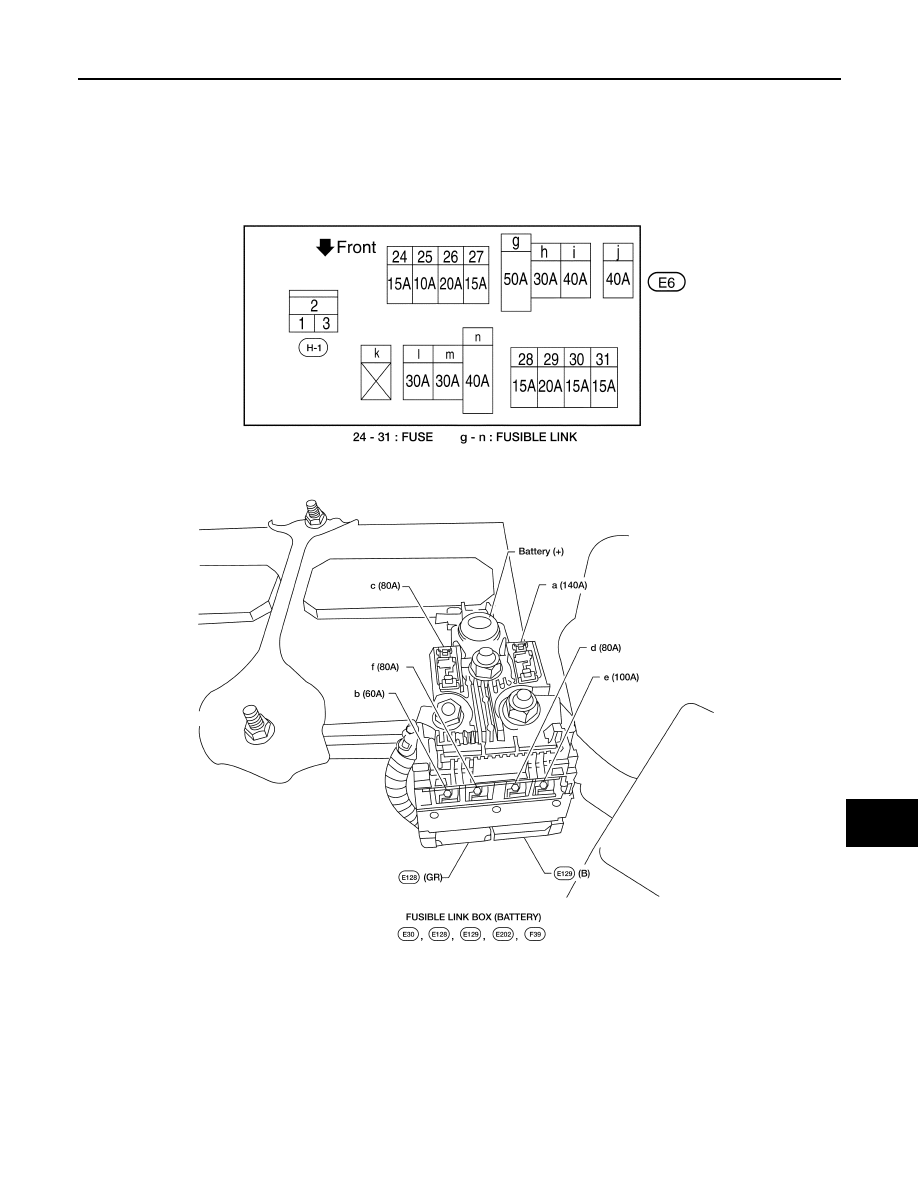

FUSE AND FUSIBLE LINK BOX

Terminal Arrangement

INFOID:0000000001731020

WKIA5013E

PG-72

< COMPONENT DIAGNOSIS >

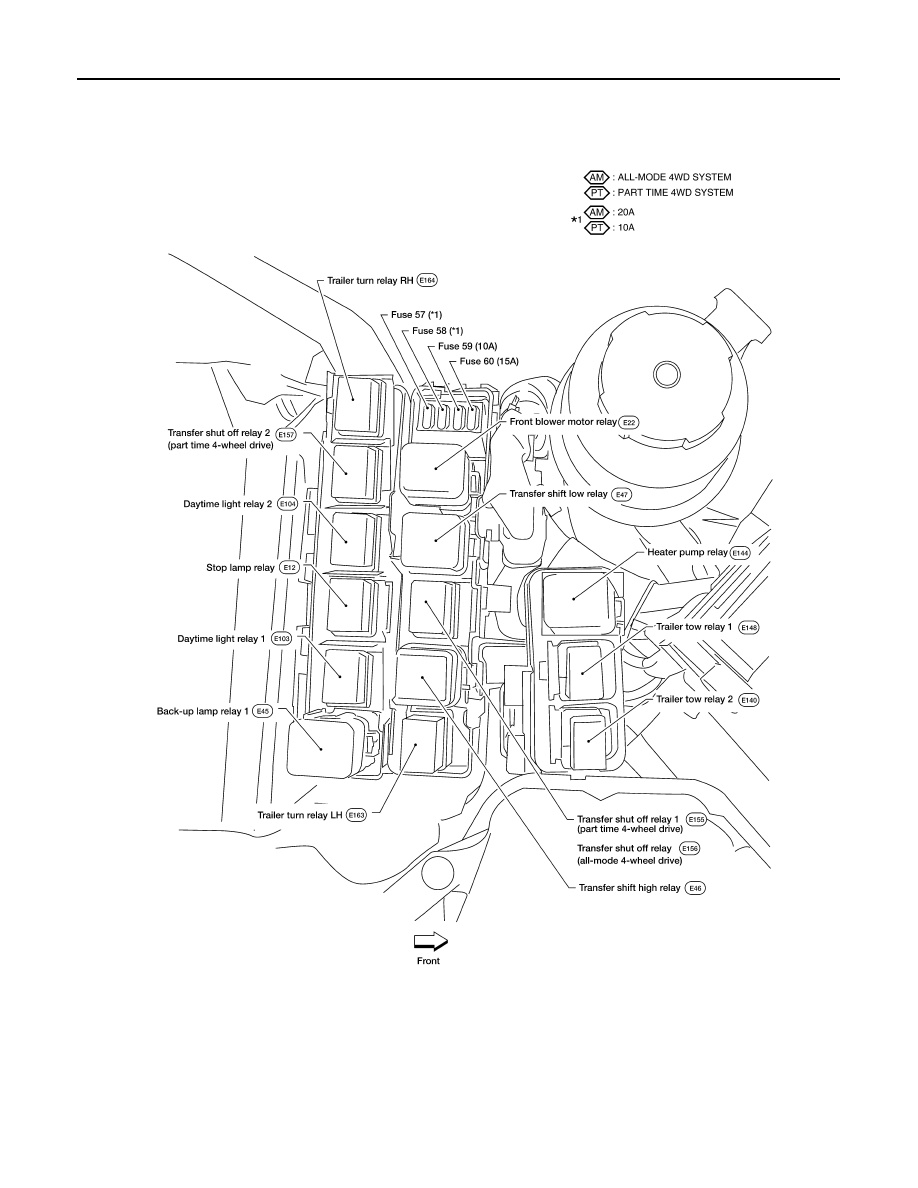

FUSE AND RELAY BOX

FUSE AND RELAY BOX

Terminal Arrangement

INFOID:0000000001731021

WKIA5870E

PG

BATTERY

PG-73

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ON-VEHICLE REPAIR

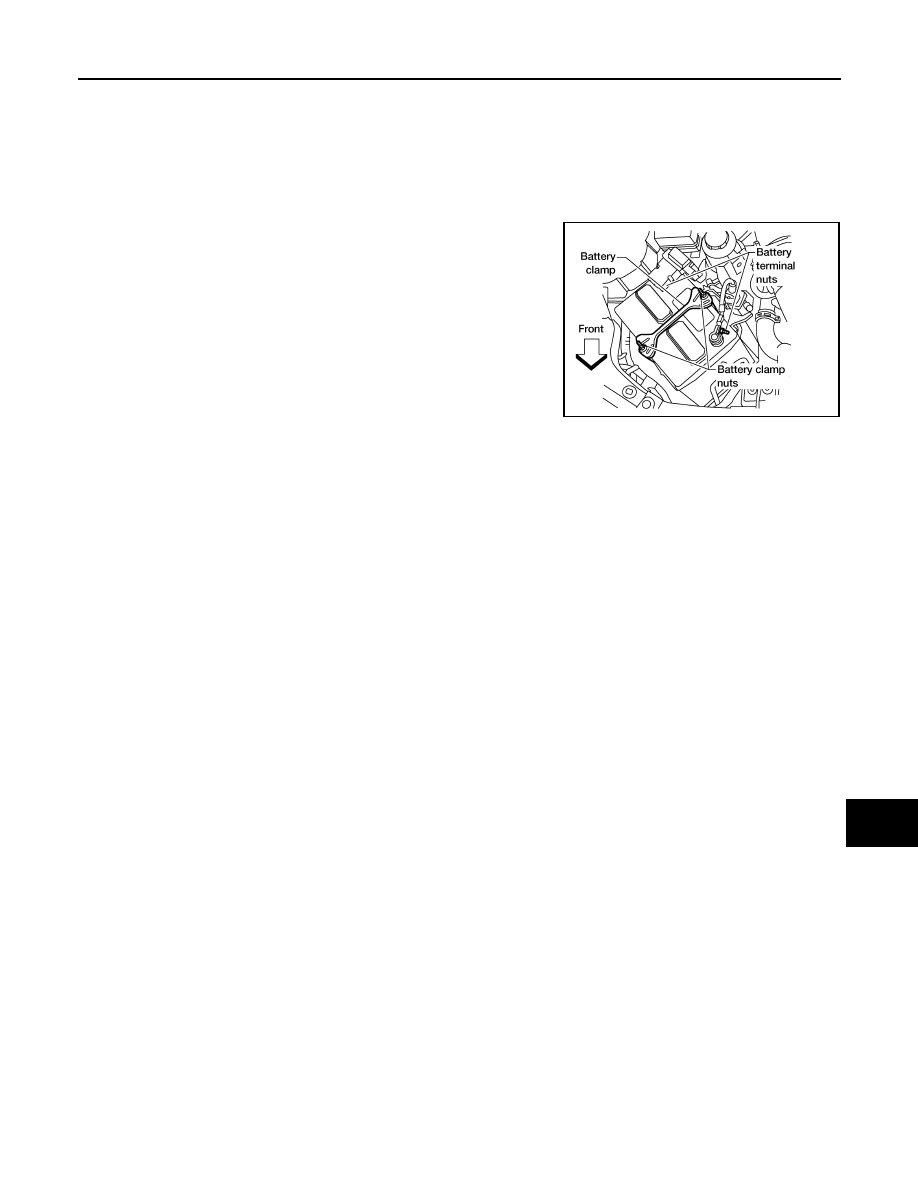

BATTERY

Removal and Installation

INFOID:0000000001547054

REMOVAL

1.

Disconnect both negative and positive battery terminal.

CAUTION:

Remove negative battery terminal first.

2.

Remove battery clamp nuts and battery clamp.

3.

Remove battery.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Install positive battery terminal first.

WKIA3188E

Battery clamp nuts

: 3.4 N·m (0.35 kg-m, 30 in-lb)

Battery terminal nut

: 3.4 N·m (0.35 kg-m, 30 in-lb)

PG-74

< SERVICE DATA AND SPECIFICATIONS (SDS)

BATTERY

SERVICE DATA AND SPECIFICATIONS (SDS)

BATTERY

Battery

INFOID:0000000001547053

Standard battery

Type

Gr. 24

Capacity (20 HR) minimum

V-AH

63

Cold cranking current

A

(For reference value)

550

PWC-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

PWC

A

B

PWC

N

O

P

CONTENTS

POWER WINDOW CONTROL SYSTEM

BASIC INSPECTION  ....................................

4

DIAGNOSIS AND REPAIR WORKFLOW  ..........

4

Work Flow  .................................................................

4

FUNCTION DIAGNOSIS ...............................

5

POWER WINDOW SYSTEM ...............................

5

System Diagram .......................................................

5

System Description  ...................................................

5

Component Parts Location ......................................

7

Component Description .............................................

7

DIAGNOSIS SYSTEM (BCM)  .............................

9

COMMON ITEM  ...........................................................

9

COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .......................................................

9

RETAINED PWR  .........................................................

9

RETAINED PWR : CONSULT-III Function (BCM -
RETAINED PWR)  .....................................................

9

COMPONENT DIAGNOSIS  .........................

10

POWER SUPPLY AND GROUND CIRCUIT ......

10

POWER WINDOW MAIN SWITCH ............................

10

POWER WINDOW MAIN SWITCH : Description ....

10

POWER WINDOW MAIN SWITCH : Component
Function Check  .......................................................

10

POWER WINDOW MAIN SWITCH : Diagnosis
Procedure ................................................................

10

POWER WINDOW MAIN SWITCH : Component
Inspection ................................................................

13

FRONT POWER WINDOW SWITCH  ........................

14

FRONT POWER WINDOW SWITCH : Descrip-
tion ..........................................................................

14

FRONT POWER WINDOW SWITCH : Compo-
nent Function Check  ...............................................

14

FRONT POWER WINDOW SWITCH : Diagnosis
Procedure ................................................................

14

REAR POWER WINDOW SWITCH  ...........................

16

REAR POWER WINDOW SWITCH : Description ....

16

REAR POWER WINDOW SWITCH : Component
Function Check ........................................................

16

REAR POWER WINDOW SWITCH : Diagnosis
Procedure ................................................................

16

REAR POWER WINDOW SWITCH : Component
Inspection ................................................................

18

POWER WINDOW MOTOR  ..............................

19

DRIVER SIDE .............................................................

19

DRIVER SIDE : Description .....................................

19

DRIVER SIDE : Component Function Check  ..........

19

DRIVER SIDE : Diagnosis Procedure  .....................

19

DRIVER SIDE : Component Inspection ...................

20

PASSENGER SIDE ....................................................

20

PASSENGER SIDE : Description ............................

20

PASSENGER SIDE : Component Function Check

....

20

PASSENGER SIDE : Diagnosis Procedure  ............

20

PASSENGER SIDE : Component Inspection ..........

21

REAR LH ....................................................................

22

REAR LH : Description  ............................................

22

REAR LH : Component Function Check  .................

22

REAR LH : Diagnosis Procedure .............................

22

REAR LH : Component Inspection  ..........................

23

REAR RH  ...................................................................

23

REAR RH : Description  ...........................................

23

REAR RH : Component Function Check .................

23

REAR RH : Diagnosis Procedure  ............................

24

REAR RH : Component Inspection  .........................

25

ENCODER .........................................................

26

DRIVER SIDE .............................................................

26

DRIVER SIDE : Description .....................................

26

DRIVER SIDE : Component Function Check  ..........

26

DRIVER SIDE : Diagnosis Procedure  .....................

26

PWC-2

PASSENGER SIDE ...................................................

28

PASSENGER SIDE : Description ...........................

28

PASSENGER SIDE : Component Function Check

...

28

PASSENGER SIDE : Diagnosis Procedure  ...........

28

DOOR SWITCH  .................................................

32

Description ..............................................................

32

Component Function Check  ...................................

32

Diagnosis Procedure  ..............................................

32

Component Inspection ............................................

33

DOOR KEY CYLINDER SWITCH ......................

34

Description ..............................................................

34

Component Function Check  ...................................

34

Diagnosis Procedure  ..............................................

34

Component Inspection ............................................

35

POWER WINDOW SERIAL LINK  .....................

37

POWER WINDOW MAIN SWITCH  ...........................

37

POWER WINDOW MAIN SWITCH : Description ...

37

POWER WINDOW MAIN SWITCH : Component
Function Check .......................................................

37

POWER WINDOW MAIN SWITCH : Diagnosis
Procedure ...............................................................

37

FRONT POWER WINDOW SWITCH ........................

38

FRONT POWER WINDOW SWITCH : Descrip-
tion ..........................................................................

38

FRONT POWER WINDOW SWITCH : Compo-
nent Function Check ...............................................

38

FRONT POWER WINDOW SWITCH : Diagnosis
Procedure ...............................................................

39

POWER WINDOW LOCK SWITCH ...................

41

Description ..............................................................

41

Component Function Check  ...................................

41

ECU DIAGNOSIS  ........................................

42

BCM (BODY CONTROL MODULE)  ..................

42

Reference Value  .....................................................

42

POWER WINDOW MAIN SWITCH ....................

43

Reference Value  .....................................................

43

Wiring Diagram  .......................................................

45

Fail Safe .................................................................

52

FRONT POWER WINDOW SWITCH  ................

54

Reference Value  .....................................................

54

Wiring Diagram  .......................................................

55

Fail Safe .................................................................

55

SYMPTOM DIAGNOSIS  .............................

56

NONE OF THE POWER WINDOWS CAN BE
OPERATED USING ANY SWITCH  ...................

56

Diagnosis Procedure  ..............................................

56

DRIVER SIDE POWER WINDOW ALONE
DOES NOT OPERATE  ......................................

57

Diagnosis Procedure ...............................................

57

FRONT PASSENGER SIDE POWER WIN-
DOW ALONE DOES NOT OPERATE ...............

58

Diagnosis Procedure ...............................................

58

REAR LH SIDE POWER WINDOW ALONE
DOES NOT OPERATE  ......................................

59

Diagnosis Procedure ...............................................

59

REAR RH SIDE POWER WINDOW ALONE
DOES NOT OPERATE  ......................................

60

Diagnosis Procedure ...............................................

60

ANTI-PINCH SYSTEM DOES NOT OPERATE
NORMALLY (DRIVER SIDE)  ............................

61

Diagnosis Procedure ...............................................

61

ANTI-PINCH SYSTEM DOES NOT OPERATE
NORMALLY (PASSENGER SIDE)  ...................

62

Diagnosis Procedure ...............................................

62

AUTO OPERATION DOES NOT OPERATE
BUT MANUAL OPERATE NORMALLY
(DRIVER SIDE)  ..................................................

63

Diagnosis Procedure ...............................................

63

AUTO OPERATION DOES NOT OPERATE
BUT MANUAL OPERATE NORMALLY (PAS-
SENGER SIDE)  .................................................

64

Diagnosis Procedure ...............................................

64

POWER WINDOW RETAINED POWER OP-
ERATION DOES NOT OPERATE PROPERLY

...

65

Diagnosis Procedure ...............................................

65

DOES NOT OPERATE BY KEY CYLINDER
SWITCH .............................................................

66

Diagnosis Procedure ...............................................

66

KEYLESS POWER WINDOW DOWN DOES
NOT OPERATE  .................................................

67

Diagnosis Procedure ...............................................

67

POWER WINDOW LOCK SWITCH DOES
NOT FUNCTION  ................................................

68

Diagnosis Procedure ...............................................

68

PRECAUTION ............................................

69

PRECAUTIONS  .................................................

69

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

69

ON-VEHICLE REPAIR  ...............................

70

POWER WINDOW MAIN SWITCH  ...................

70

Removal and Installation .........................................

70

PWC-3

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

FRONT POWER WINDOW SWITCH  .................

71

Removal and Installation .........................................

71

REAR POWER WINDOW SWITCH  ..................

72

Removal and Installation - Rear Door Switch ..........

72

PWC-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000001702334

DETAILED FLOW

1.

 OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-
tion occurred) as much as possible when the customer brings the vehicle in.

>> GO TO 2

2.

 REPRODUCE THE MALFUNCTION INFORMATION

Check the malfunction on the vehicle that the customer describes.
Inspect the relation of the symptoms and the condition when the symptoms occur.

>> GO TO 3

3.

 IDENTIFY THE MALFUNCTIONING SYSTEM WITH “SYMPTOM DIAGNOSIS”

Use “Symptom diagnosis” from the symptom inspection result in step 2 and then identify where to start per-
forming the diagnosis based on possible causes and symptoms.

>> GO TO 4

4.

 IDENTIFY THE MALFUNCTIONING PARTS WITH “COMPONENT DIAGNOSIS”

Perform the diagnosis with “Component diagnosis” of the applicable system.

>> GO TO 5

5.

 REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the specified malfunctioning parts.

>> GO TO 6

6.

 FINAL CHECK

Check that malfunctions are not reproduced when obtaining the malfunction information from the customer,
referring to the symptom inspection result in step 2.

Are the malfunctions corrected?

YES

>> INSPECTION END

NO

>> GO TO 3
