SERVICE DATA AND SPECIFICATIONS (SDS)

PB-9

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Parking Drum Brake

INFOID:0000000001297774

Unit: mm (in)

Parking Brake Control

INFOID:0000000001297775

Type

Drum

Brake lining

Standard thickness (new)

5.15

±

 0.25 (0.203

±

 0.010)

Wear limit thickness

0.5 (0.020)

Drum inner diameter (disc)

Standard inner diameter (new)

205

±

 0.13 (8.07

±

 0.01)

Wear limit of inner diameter

205.7 (8.10)

Control type

Foot pedal

Number of notches [under force of 196 N (20.0 kg-f, 44.1 lb-f)]

4 – 5 notches

Number of notches when warning lamp switch comes on

1 notch

PCS

PCS-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

PCS

A

O

P

N

CONTENTS

POWER  CONTROL SYSTEM

IPDM E/R

FUNCTION DIAGNOSIS ...............................

3

RELAY CONTROL SYSTEM  ..............................

3

System Diagram ........................................................

3

System Description  ...................................................

4

Component Parts Location ........................................

5

POWER CONTROL SYSTEM  .............................

6

System Diagram ........................................................

6

System Description  ...................................................

6

SIGNAL BUFFER SYSTEM  ................................

7

System Diagram ........................................................

7

System Description  ...................................................

7

POWER CONSUMPTION CONTROL SYS-
TEM .....................................................................

8

System Diagram ........................................................

8

System Description  ...................................................

8

Component Parts Location ........................................

9

DIAGNOSIS SYSTEM (IPDM E/R) .....................

10

Diagnosis Description  .............................................

10

CONSULT - III Function (IPDM E/R) .......................

12

COMPONENT DIAGNOSIS  .........................

15

U1000 CAN COMM CIRCUIT .............................

15

Description ..............................................................

15

DTC Logic  ...............................................................

15

Diagnosis Procedure ...............................................

15

POWER SUPPLY AND GROUND CIRCUIT ......

16

Diagnosis Procedure ...............................................

16

ECU DIAGNOSIS .........................................

17

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM)  .................

17

Reference Value  .....................................................

17

Terminal Layout  ......................................................

19

Physical Values  .......................................................

19

Wiring Diagram ........................................................

23

Fail Safe ..................................................................

26

DTC Index ...............................................................

28

PRECAUTION ..............................................

29

PRECAUTIONS .................................................

29

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

29

REMOVAL AND INSTALLATION  ...............

30

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM)  ................

30

Removal and Installation of IPDM E/R  ....................

30

POWER DISTRIBUTION SYSTEM

BASIC INSPECTION  ...................................

31

DIAGNOSIS AND REPAIR WORKFLOW  ........

31

Work Flow ................................................................

31

FUNCTION DIAGNOSIS ..............................

34

POWER DISTRIBUTION SYSTEM  ...................

34

System Description ..................................................

34

Component Parts Location  ......................................

34

Component Description ..........................................

34

DIAGNOSIS SYSTEM (BCM)  ...........................

35

COMMON ITEM  .........................................................

35

COMMON ITEM : Diagnosis Description  ................

35

COMMON ITEM : CONSULT-III Function  ...............

35

INTELLIGENT KEY ....................................................

35

INTELLIGENT KEY : CONSULT-III Function
(BCM - INTELLIGENT KEY) ....................................

35

COMPONENT DIAGNOSIS .........................

36

PCS-2

U1000 CAN COMM CIRCUIT  ............................

36

Description ..............................................................

36

DTC Logic ...............................................................

36

Diagnosis Procedure  ..............................................

36

POWER SUPPLY AND GROUND CIRCUIT  .....

37

BCM ...........................................................................

37

BCM : Diagnosis Procedure  ...................................

37

BCM : Special Repair Requirement ........................

37

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM)  .............................

37

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) : Diagnosis Pro-
cedure .....................................................................

37

ECU DIAGNOSIS  ........................................

38

BCM (BODY CONTROL MODULE)  ..................

38

Reference Value  .....................................................

38

Terminal Layout  ......................................................

38

Physical Values  ......................................................

38

Wiring Diagram  .......................................................

38

DTC Inspection Priority Chart ...............................

38

DTC Index ..............................................................

38

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) .................

39

Reference Value  .....................................................

39

Terminal Layout  ......................................................

39

Physical Values .......................................................

39

Wiring Diagram  .......................................................

39

Fail Safe .................................................................

39

DTC Index ..............................................................

39

ON-VEHICLE MAINTENANCE ..................

40

PRE-INSPECTION FOR DIAGNOSTIC  ............

40

Basic Inspection ......................................................

40

ON-VEHICLE REPAIR  ...............................

41

BCM (BODY CONTROL MODULE)  ..................

41

Removal and Installation .........................................

41

PCS

RELAY CONTROL SYSTEM

PCS-3

< FUNCTION DIAGNOSIS >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

FUNCTION DIAGNOSIS

RELAY CONTROL SYSTEM

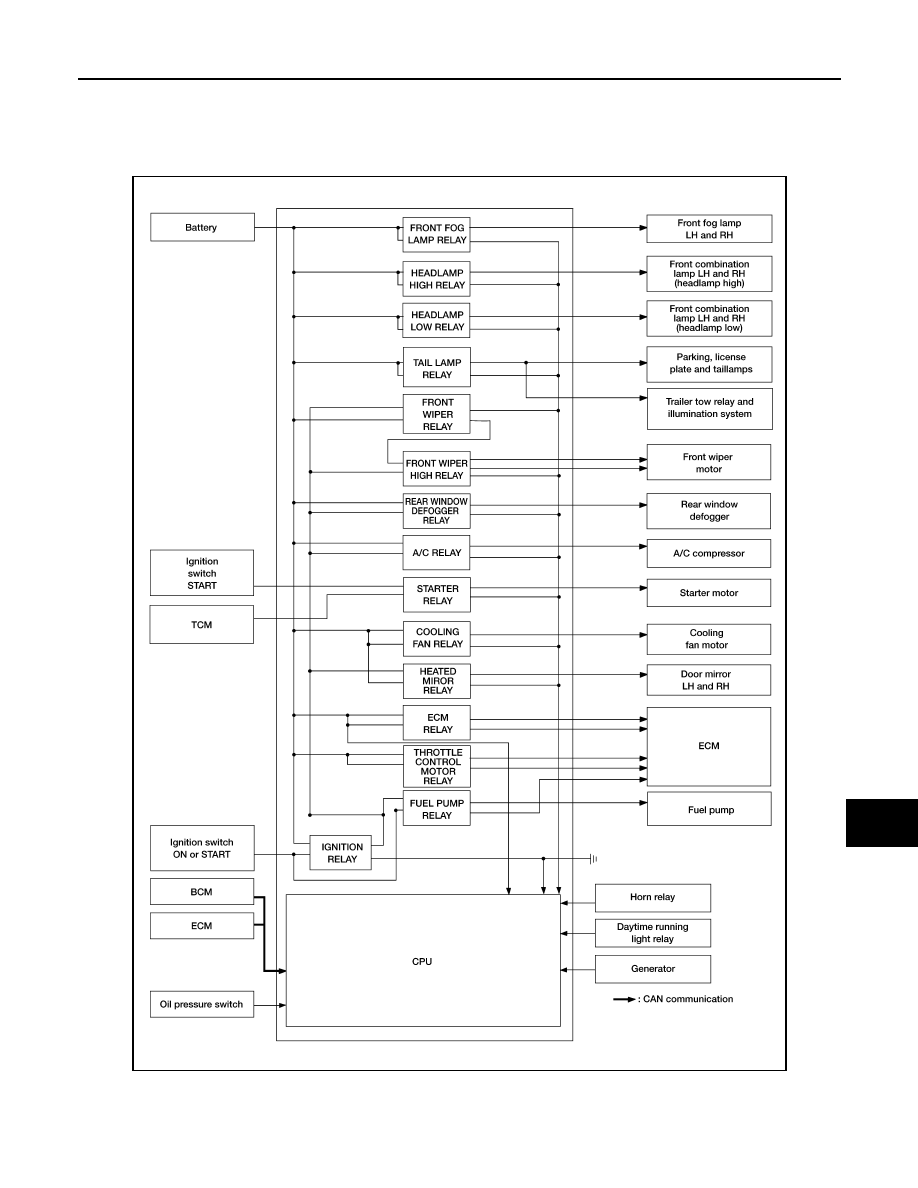

System Diagram

INFOID:0000000001712732

AWMIA0020GB

PCS-4

< FUNCTION DIAGNOSIS >

[IPDM E/R]

RELAY CONTROL SYSTEM

System Description

INFOID:0000000001712733

IPDM E/R activates the internal control circuit to perform the relay ON-OFF control according to the input sig-
nals from various sensors and the request signals received from control units via CAN communication.

CAUTION:

IPDM E/R integrated relays cannot be removed.

Control relay

Input/output

Transmit unit

Control part

Reference

page

Front fog lamp relay

Front fog lamp request signal

BCM (CAN)

Front fog lamps

EXL-30

• Headlamp high relay
• Headlamp low relay

• High beam request signal
• Low beam request signal

BCM (CAN)

• Headlamp high
• Headlamp low

EXL-26
EXL-28

Tail lamp relay

Position light request signal

BCM (CAN)

• Parking  lamps
• License plate lamps
• Tail lamps
• Trailer tow relay
• Illumination system

EXL-32

• Front wiper relay
• Front wiper high relay

Front wiper request signal

BCM (CAN)

Front wiper motor

WW-4

Rear window defogger re-
lay

Rear window defogger re-
quest signal

BCM (CAN)

Rear window defogger

DEF-4

A/C relay

A/C request signal

• BCM  (CAN)
• ECM  (CAN)

A/C compressor

HAC-67

Starter relay

Ignition switch START signal

TCM

Starter motor

STR-7

Cooling fan relay

Cooling fan request signal

ECM (CAN)

Cooling fan relay

CO-8

Heated mirror relay

Heated mirror request signal

BCM (CAN)

Door mirrors

DEF-13

ECM relay

ECM relay control signal

ECM (CAN)

ECM relay

EC-29

Throttle control motor relay

Throttle control motor control
signal

ECM (CAN)

Throttle control motor re-
lay

EC-37

Fuel pump relay

Fuel pump request signal

ECM (CAN)

Fuel pump

EC-396

Ignition relay

Ignition switch ON signal

Ignition switch

Ignition relay

EC-40

PCS

RELAY CONTROL SYSTEM

PCS-5

< FUNCTION DIAGNOSIS >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

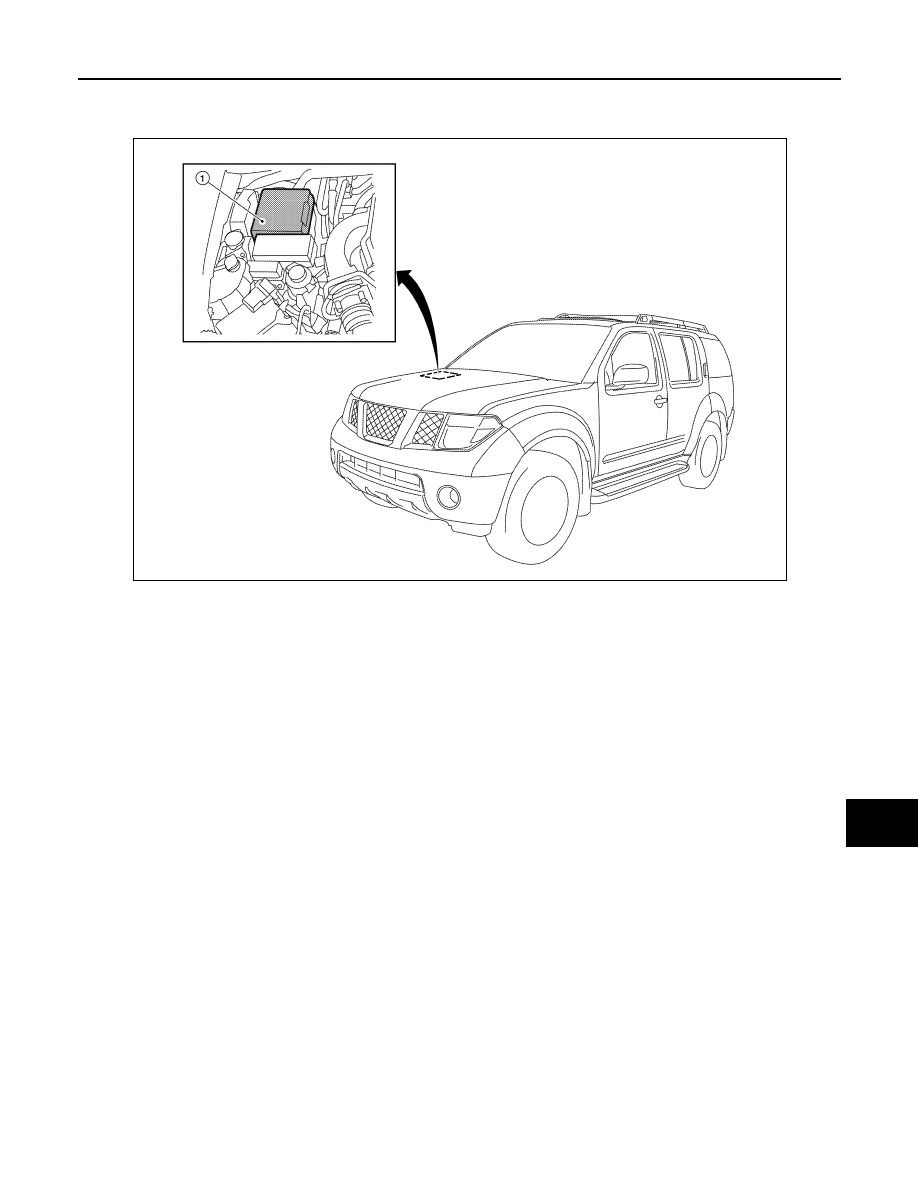

Component Parts Location

INFOID:0000000001712734

1.

IPDM E/R E118, E119, E120, E121,
E122, E123, E124

ALMIA0310ZZ

PCS-6

< FUNCTION DIAGNOSIS >

[IPDM E/R]

POWER CONTROL SYSTEM

POWER CONTROL SYSTEM

System Diagram

INFOID:0000000001712735

System Description

INFOID:0000000001712736

COOLING FAN CONTROL

IPDM E/R controls the cooling fan according to the status of the cooling fan speed request signal received
from ECM via CAN communication. Refer to

EC-45, "Description"

.

ALMIA0111GB

PCS

SIGNAL BUFFER SYSTEM

PCS-7

< FUNCTION DIAGNOSIS >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SIGNAL BUFFER SYSTEM

System Diagram

INFOID:0000000001712737

System Description

INFOID:0000000001712738

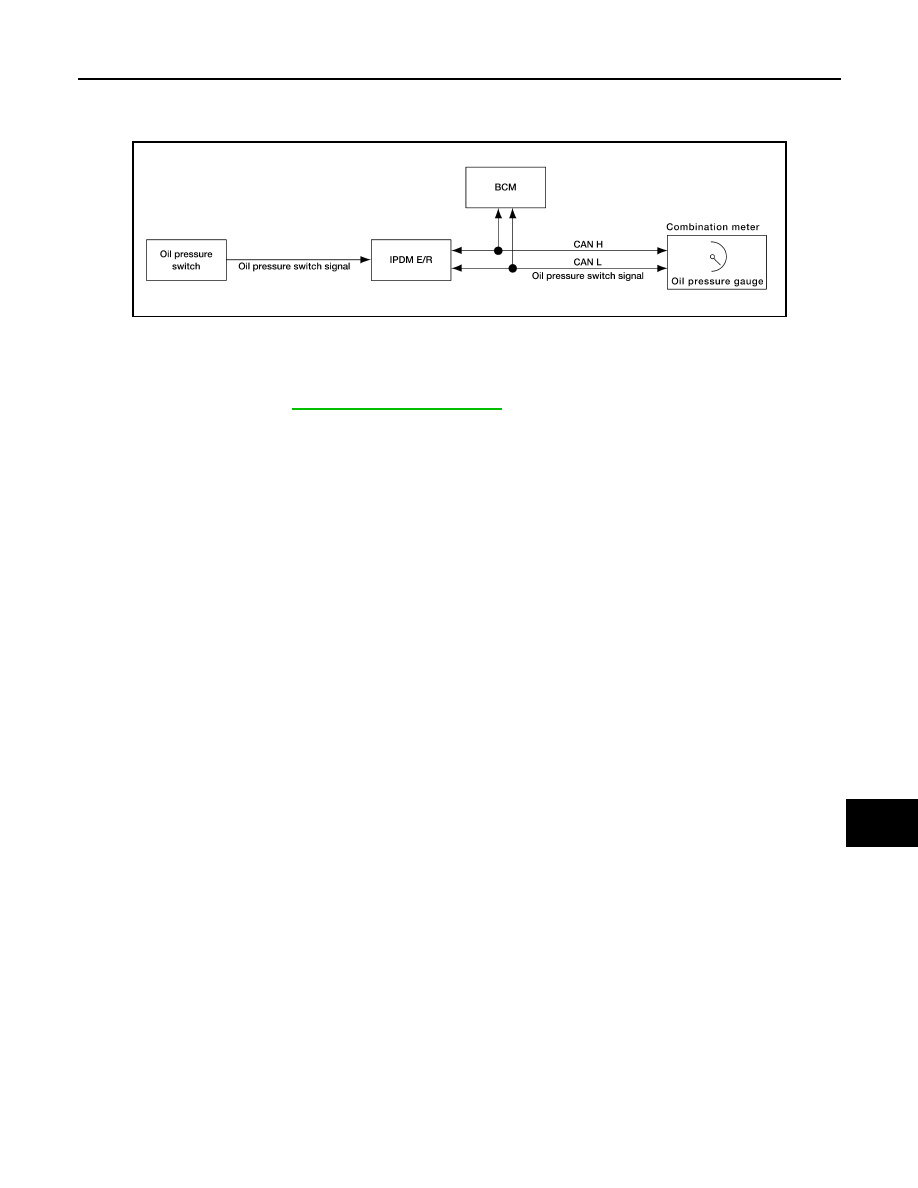

IPDM E/R reads the status of the oil pressure switch and transmits the oil pressure switch signal to BCM via
CAN communication. Refer to

BCS-12, "System Description"

.

AWNIA0174GB
