DTC Index

INFOID:0000000001712785

NOTE:
The details of TIME display are as follows.
• CRNT: The malfunctions that are detected now
• 1 - 39: The number is indicated when it is normal at present and a malfunction was detected in the past. It

increases like 0

→

 1

→

 2 ··· 38

→

 39 after returning to the normal condition whenever IGN OFF

→

 ON. It is

fixed to 39 until the self-diagnosis results are erased if it is over 39. It returns to 0 when a malfunction is
detected again in the process.

CONSULT-III display

Fail-safe

TIME

NOTE

Refer to

No DTC is detected.
further testing
may be required.

—

—

—

—

U1000: CAN COMM CIRCUIT

×

CRNT

1 – 39

PCS-15

MWI-88

< SYMPTOM DIAGNOSIS >

THE FUEL GAUGE POINTER DOES NOT MOVE

SYMPTOM DIAGNOSIS

THE FUEL GAUGE POINTER DOES NOT MOVE

Description

INFOID:0000000001702304

Fuel gauge needle will not move from a certain position.

Diagnosis Procedure

INFOID:0000000001702305

1.

CHECK COMBINATION METER INPUT SIGNAL

1.

Select “METER/M&A” on CONSULT-III.

2.

Using “FUEL METER” of “DATA MONITOR”, compare the monitor value with the fuel gauge reading on
the combination meter. Refer to

MWI-32, "Component Function Check"

.

Does monitor value match fuel gauge reading?

YES

>> GO TO 2

NO

>> Replace combination meter. Refer to

MWI-94, "Removal and Installation"

.

2.

CHECK FUEL LEVEL SENSOR SIGNAL CIRCUIT

Check the fuel level sensor signal circuit. Refer to

MWI-32, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair harness or connector.

3.

CHECK FUEL LEVEL SENSOR UNIT

Perform a unit check for the fuel level sensor unit. Refer to

MWI-33, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Replace fuel level sensor unit. Refer to

FL-11, "Removal and Installation"

.

4.

CHECK FLOAT INTERFERENCE

Check that the float arm does not interfere or bind with any of the components in the fuel tank.
Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-94, "Removal and Installation"

.

NO

>> Repair or replace malfunctioning parts.

MWI

THE FUEL GAUGE POINTER DOES NOT MOVE TO "F" WHEN REFUELING

MWI-89

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

THE FUEL GAUGE POINTER DOES NOT MOVE TO "F" WHEN REFUEL-
ING

Description

INFOID:0000000001702306

The fuel gauge needle will not move to “F” position when refueling.

Diagnosis Procedure

INFOID:0000000001702307

1.

OBSERVE FUEL GAUGE

Does it take a long time for the pointer to move to FULL position?

YES or NO

YES

>> GO TO 2

NO

>> GO TO 3

2.

IDENTIFY FUELING CONDITION

Was the vehicle fueled with the ignition switch ON?

YES or NO

YES

>> Be sure to fuel the vehicle with the ignition switch OFF. Otherwise, it will take a long time to move

to FULL position because of the characteristic of the fuel gauge.

NO

>> GO TO 3

3.

OBSERVE VEHICLE POSITION

Is the vehicle parked on an incline?

YES or NO

YES

>> Check the fuel level indication with vehicle on a level surface.

NO

>> GO TO 4

4.

OBSERVE FUEL GAUGE POINTER

During driving, does the fuel gauge pointer move gradually toward EMPTY position?
YES or NO

YES

>> Check the components. Refer to

MWI-33, "Component Inspection"

.

NO

>> The float arm may interfere or bind with any of the components in the fuel tank.

MWI-90

< SYMPTOM DIAGNOSIS >

THE OIL PRESSURE WARNING LAMP DOES NOT TURN ON

THE OIL PRESSURE WARNING LAMP DOES NOT TURN ON

Description

INFOID:0000000001702308

The oil pressure warning lamp stays off when the ignition switch is turned ON.

Diagnosis Procedure

INFOID:0000000001702309

1.

CHECK OIL PRESSURE WARNING LAMP

Perform IPDM E/R auto active test. Refer to

PCS-10, "Diagnosis Description"

.

Is oil pressure warning lamp illuminated?

YES

>> GO TO 2

NO

>> Replace combination meter. Refer to

MWI-94, "Removal and Installation"

.

2.

CHECK OIL PRESSURE SWITCH SIGNAL CIRCUIT

Check the oil pressure switch signal circuit. Refer to

MWI-34, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair harness or connector.

3.

CHECK OIL PRESSURE SWITCH UNIT

Perform a unit check for the oil pressure switch. Refer to

MWI-34, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-30, "Removal and Installation of IPDM E/R"

.

NO

>> Replace oil pressure switch.

MWI

THE OIL PRESSURE WARNING LAMP DOES NOT TURN OFF

MWI-91

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

THE OIL PRESSURE WARNING LAMP DOES NOT TURN OFF

Description

INFOID:0000000001702310

The oil pressure warning lamp remains illuminated while the engine is running (normal oil pressure).

Diagnosis Procedure

INFOID:0000000001702311

1.

CHECK OIL PRESSURE WARNING LAMP

Perform IPDM E/R auto active test. Refer to

PCS-10, "Diagnosis Description"

.

Is oil pressure warning lamp illuminated?

YES

>> GO TO 2

NO

>> Replace combination meter. Refer to

MWI-94, "Removal and Installation"

.

2.

CHECK IPDM E/R OUTPUT VOLTAGE

1.

Turn ignition switch OFF.

2.

Disconnect the oil pressure switch connector.

3.

Turn ignition switch ON.

4.

Check voltage between the oil pressure switch harness connec-
tor E208 (VQ40DE) or F4 (VK56DE) terminal 1 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> GO TO 4

3.

CHECK OIL PRESSURE SWITCH

Perform a unit check for the oil pressure switch. Refer to

MWI-34, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-30, "Removal and Installation of IPDM E/R"

.

NO

>> Replace oil pressure switch.

4.

CHECK OIL PRESSURE SWITCH SIGNAL CIRCUIT

Check the oil pressure switch signal circuit. Refer to

MWI-34, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-30, "Removal and Installation of IPDM E/R"

.

NO

>> Repair harness or connector.

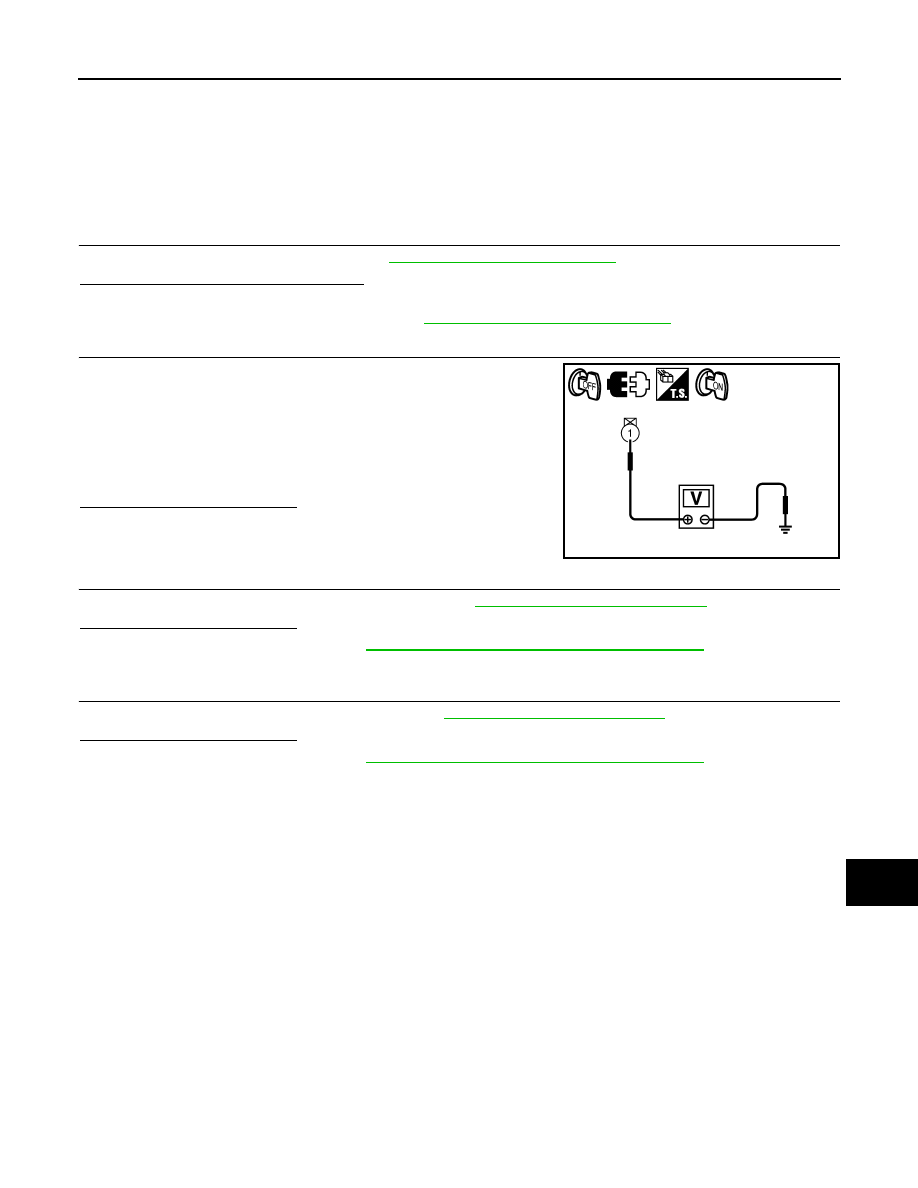

1 – Ground

: Approx. 12V

PKIC1144E

MWI-92

< SYMPTOM DIAGNOSIS >

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

COMPASS

COMPASS : Description

INFOID:0000000001702322

COMPASS

• The electronic compass is highly protected from changes in most magnetic fields. However, some large

changes in magnetic fields can affect it. Some examples are (but not limited to): high tension power lines,
large steel buildings, subways, steel bridges, automatic car washes, large piles of scrap metal, etc. While
this does not happen very often, it is possible.

• During normal operation, the Compass Mirror will continuously update the compass calibration to adjust for

gradual changes in the vehicle's magnetic "remnant" field. If the vehicle is subjected to high magnetic influ-
ences, the compass may appear to indicate false headings, become locked, or appear that it is unable to be
calibrated. If this occurs, perform the calibration procedure.

• If at any time the compass continually displays the incorrect direction or the reading is erratic or locked, ver-

ify the correct zone variance.

Symptom Chart

Symptom

Cause

Solution / Reference

The compass display reads "C".

• Compass is not calibrated.
• Incorrect zone variance setting.
• Large change in magnetic field (Steel

bridges, subways, concentrations of
metal, car washes, etc.)

• Compass was calibrated incorrectly or

in the presence of a strong magnetic
field.

Perform Calibration. Refer to

MWI-21,

"Description"

.

Compass shows the wrong direction.

Compass does not change direction ap-
pears "Locked".

Compass does not show all the directions,
one or more is missing.

The compass was calibrated but it "loses"
calibration.

On long trips the compass shows the
wrong direction.

Perform Zone Variation Setting if correct
reading is desired in that location. Refer to

MWI-21, "Description"

.

MWI

PRECAUTIONS

MWI-93

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PRECAUTION

PRECAUTIONS

Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSION-
ER"

INFOID:0000000001702323

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

MWI-94

< ON-VEHICLE REPAIR >

COMBINATION METER

ON-VEHICLE REPAIR

COMBINATION METER

Removal and Installation

INFOID:0000000001678362

REMOVAL

1.

Disconnect the negative battery terminal.

2.

Remove the cluster lid A, using power tool. Refer to

IP-10, "Removal and Installation"

.

3.

Remove the combination meter screws, using power tool.

4.

Pull out the combination meter and disconnect the combination meter electrical connector.

INSTALLATION

Installation is in the reverse order of removal.

1.

Combination meter

2.

Combination meter screws

3.

Cluster lid A

4.

Ignition key lamp assembly

5.

Steering lock escutcheon

6.

Cluster lid A screws

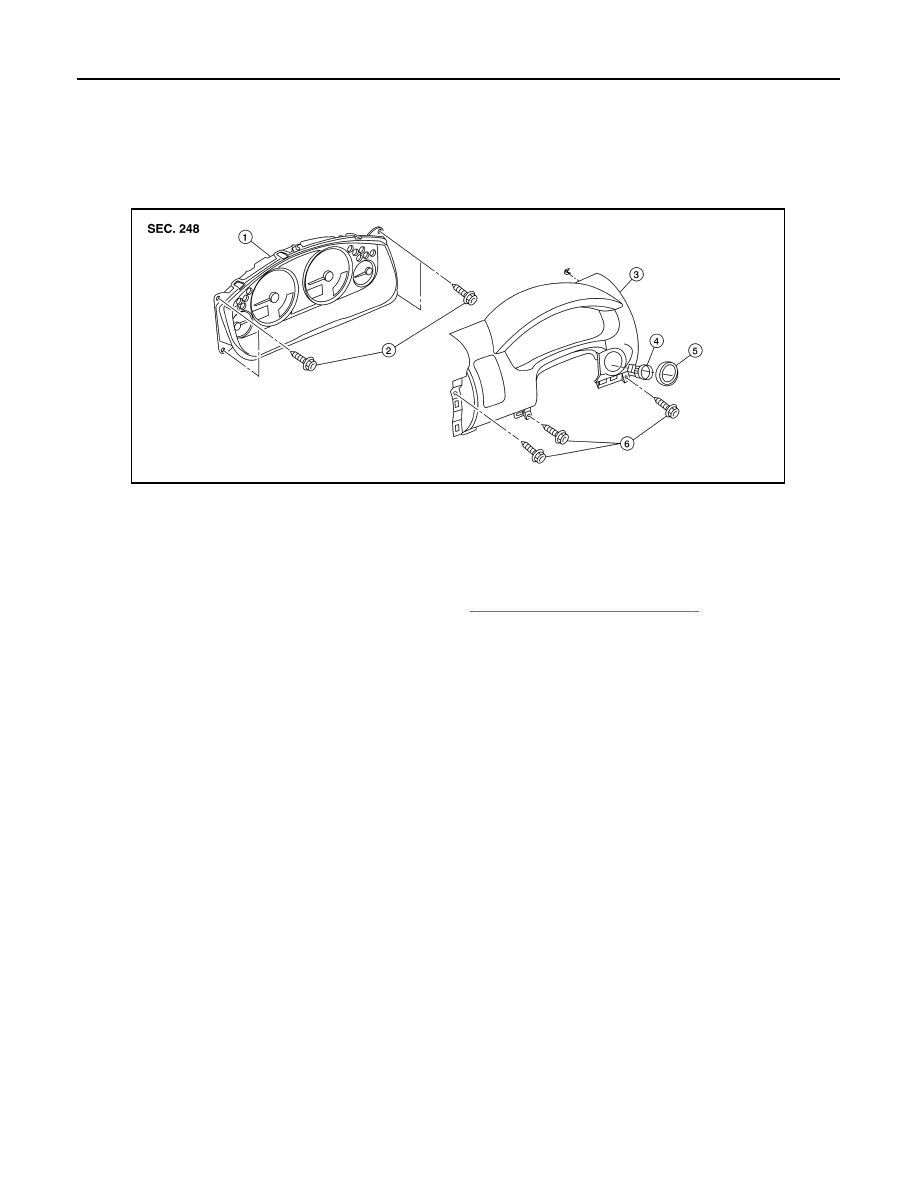

WIIA1053E
