DOOR MIRROR

Door Mirror Assembly

INFOID:0000000001712339

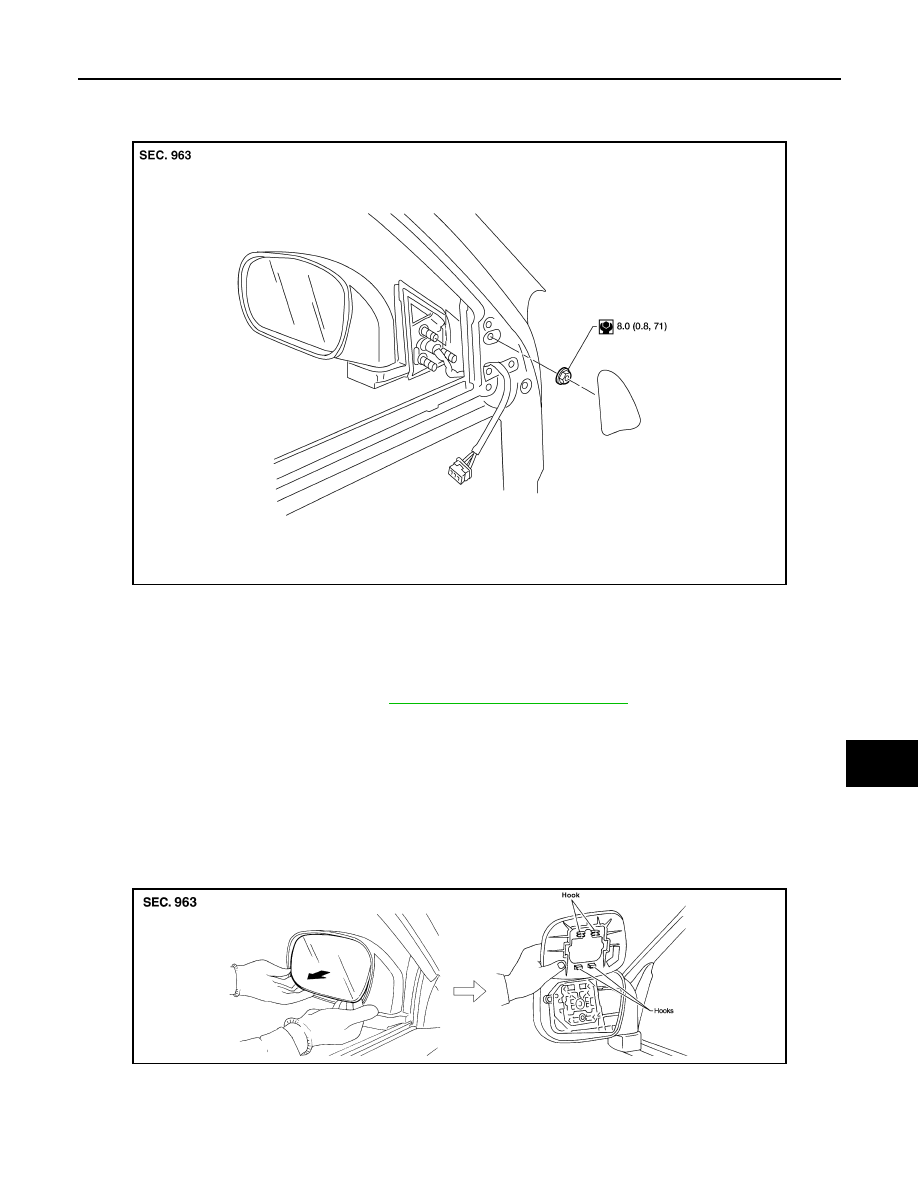

REMOVAL

NOTE:
Be careful not to damage the mirror bodies.
1.

Remove the adhesive front door sash cover.

2.

Remove the front door finisher. Refer to

INT-10, "Removal and Installation"

.

3.

Position the front door seal aside.

4.

Disconnect the door mirror harness connector.

5.

Remove the nuts and the door mirror assembly.

INSTALLATION

Installation is in the reverse order of removal.

Door Mirror Glass

INFOID:0000000001712340

REMOVAL AND INSTALLATION

1.

Angle the mirror fully up.

2.

Remove the mirror.
• Pull from the bottom to disengage the clips.
• Continue to pivot the mirror upward from the bottom to separate the hooks.

WIIA1036E

ALLIA0647ZZ

MIR-14

< SERVICE INFORMATION >

DOOR MIRROR

Installation is in the reverse order of removal.

MWI

MWI-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

MWI

A

O

P

CONTENTS

METER, WARNING LAMP & INDICATOR

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORKFLOW  ..........

3

Work Flow  .................................................................

3

FUNCTION DIAGNOSIS ...............................

4

METER SYSTEM .................................................

4

METER SYSTEM  .........................................................

4

METER SYSTEM : System Diagram ........................

4

METER SYSTEM : System Description  ....................

4

METER SYSTEM : Arrangement of Combination
Meter .........................................................................

5

METER SYSTEM : Component Parts Location  ........

6

METER SYSTEM : Component Description  .............

6

SPEEDOMETER ..........................................................

7

SPEEDOMETER : System Diagram  .........................

7

SPEEDOMETER : System Description .....................

7

SPEEDOMETER : Component Parts Location  .........

7

SPEEDOMETER : Component Description  ..............

8

TACHOMETER ............................................................

8

TACHOMETER : System Diagram  ...........................

8

TACHOMETER : System Description  .......................

8

TACHOMETER : Component Parts Location  ...........

9

TACHOMETER : Component Description  ................

9

ENGINE COOLANT TEMPERATURE GAUGE  ..........

9

ENGINE COOLANT TEMPERATURE GAUGE :
System Diagram ........................................................

9

ENGINE COOLANT TEMPERATURE GAUGE :
System Description  .................................................

10

ENGINE COOLANT TEMPERATURE GAUGE :
Component Parts Location ......................................

10

ENGINE COOLANT TEMPERATURE GAUGE :
Component Description ...........................................

10

FUEL GAUGE ............................................................

10

FUEL GAUGE : System Diagram  ...........................

11

FUEL GAUGE : System Description  .......................

11

FUEL GAUGE : Component Parts Location  ...........

11

FUEL GAUGE : Component Description .................

12

ENGINE OIL PRESSURE GAUGE ............................

12

ENGINE OIL PRESSURE GAUGE : System Dia-
gram ........................................................................

12

ENGINE OIL PRESSURE GAUGE : System De-
scription ...................................................................

12

ENGINE OIL PRESSURE GAUGE : Component
Parts Location ..........................................................

12

ENGINE OIL PRESSURE GAUGE : Component
Description ...............................................................

13

VOLTAGE GAUGE  ....................................................

13

VOLTAGE GAUGE : System Diagram  ....................

13

VOLTAGE GAUGE : System Description ................

13

VOLTAGE GAUGE : Component Parts Location ....

14

VOLTAGE GAUGE : Component Description  .........

14

ODO/TRIP METER .....................................................

14

ODO/TRIP METER : System Diagram  ....................

14

ODO/TRIP METER : System Description ................

15

ODO/TRIP METER : Component Parts Location ....

15

ODO/TRIP METER : Component Description  .........

15

SHIFT POSITION INDICATOR  ..................................

15

SHIFT POSITION INDICATOR : System Diagram ....

16

SHIFT POSITION INDICATOR : System Descrip-
tion ...........................................................................

16

SHIFT POSITION INDICATOR : Component
Parts Location ..........................................................

16

SHIFT POSITION INDICATOR : Component De-
scription ...................................................................

17

WARNING LAMPS/INDICATOR LAMPS  ..................

17

WARNING LAMPS/INDICATOR LAMPS : System
Diagram ...................................................................

17

WARNING LAMPS/INDICATOR LAMPS : System
Description ...............................................................

17

WARNING LAMPS/INDICATOR LAMPS : Com-
ponent Parts Location ..............................................

17

WARNING LAMPS/INDICATOR LAMPS : Com-
ponent Description ...................................................

18

MWI-2

TRIP COMPUTER  .....................................................

18

TRIP COMPUTER : System Diagram  ....................

18

TRIP COMPUTER : System Description  ................

18

TRIP COMPUTER : Component Parts Location  ....

19

TRIP COMPUTER : Component Description  .........

19

COMPASS .........................................................

21

Description ..............................................................

21

DIAGNOSIS SYSTEM (METER)  .......................

23

Diagnosis Description  .............................................

23

CONSULT-III Function (METER/M&A) ...................

24

COMPONENT DIAGNOSIS  ........................

27

DTC U1000 CAN COMMUNICATION  ...............

27

DTC Logic ...............................................................

27

Diagnosis Procedure .............................................

27

DTC B2205 VEHICLE SPEED CIRCUIT  ...........

28

Description ..............................................................

28

DTC Logic ...............................................................

28

Diagnosis Procedure .............................................

28

POWER SUPPLY AND GROUND CIRCUIT  .....

29

COMBINATION METER  ...........................................

29

COMBINATION METER : Diagnosis Procedure  ....

29

BCM (BODY CONTROL MODULE)  .........................

29

BCM (BODY CONTROL MODULE) : Diagnosis
Procedure ...............................................................

29

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM)  .............................

30

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) : Diagnosis Pro-
cedure .....................................................................

30

FUEL LEVEL SENSOR SIGNAL CIRCUIT  .......

32

Description ..............................................................

32

Component Function Check  ...................................

32

Diagnosis Procedure .............................................

32

Component Inspection ............................................

33

OIL PRESSURE SWITCH SIGNAL CIRCUIT ...

34

Description ..............................................................

34

Component Function Check  ...................................

34

Diagnosis Procedure  ..............................................

34

Component Inspection ............................................

34

COMPASS .........................................................

35

Wiring Diagram - With HomeLink® Universal
Transceiver - ...........................................................

35

Wiring Diagram - Without HomeLink® Universal
Transceiver - ...........................................................

38

ECU DIAGNOSIS  ........................................

41

COMBINATION METER  ....................................

41

Reference Value  .....................................................

41

Wiring Diagram  .......................................................

43

Fail Safe ..................................................................

58

DTC Index ...............................................................

60

BCM (BODY CONTROL MODULE)  ..................

61

Reference Value  .....................................................

61

Terminal Layout  ......................................................

64

Physical Values .......................................................

64

Wiring Diagram  .......................................................

70

DTC Inspection Priority Chart ...............................

73

DTC Index ..............................................................

74

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) .................

76

Reference Value  .....................................................

76

Terminal Layout  ......................................................

78

Physical Values .......................................................

78

Wiring Diagram  .......................................................

82

Fail Safe .................................................................

85

DTC Index ..............................................................

87

SYMPTOM DIAGNOSIS  ............................

88

THE FUEL GAUGE POINTER DOES NOT
MOVE .................................................................

88

Description ..............................................................

88

Diagnosis Procedure ...............................................

88

THE FUEL GAUGE POINTER DOES NOT
MOVE TO "F" WHEN REFUELING  ..................

89

Description ..............................................................

89

Diagnosis Procedure ...............................................

89

THE OIL PRESSURE WARNING LAMP
DOES NOT TURN ON .......................................

90

Description ..............................................................

90

Diagnosis Procedure ...............................................

90

THE OIL PRESSURE WARNING LAMP
DOES NOT TURN OFF .....................................

91

Description ..............................................................

91

Diagnosis Procedure ...............................................

91

NORMAL OPERATING CONDITION  ................

92

COMPASS .................................................................

92

COMPASS : Description  .........................................

92

PRECAUTION ............................................

93

PRECAUTIONS  .................................................

93

Supplemental Restraint System (SRS) "AIR BAG"
and "SEAT BELT PRE-TENSIONER"  ....................

93

ON-VEHICLE REPAIR  ...............................

94

COMBINATION METER  ....................................

94

Removal and Installation .........................................

94

MWI

DIAGNOSIS AND REPAIR WORKFLOW

MWI-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000001702211

DETAILED FLOW

1.

CONFIRM SYMPTOM

Confirm symptom or customer complaint.

>> GO TO 2

2.

CHECK SELF-DIAGNOSIS OPERATION OF COMBINATION METER

Perform self-diagnosis of combination meter. Refer to

MWI-23, "Diagnosis Description"

.

Does self-diagnosis mode operate?

YES

>> GO TO 3

NO

>> Check power supply and ground circuit of combination meter. Refer to

MWI-29, "COMBINATION

METER : Diagnosis Procedure"

. Then, GO TO 4

3.

CHECK COMBINATION METER (CONSULT-III)

Select “METER/M&A” on CONSULT-III and perform “SELF-DIAGNOSIS” of combination meter. Refer to

MWI-

24, "CONSULT-III Function (METER/M&A)"

.

Self-diagnostic results content

No malfunction detected>>Repair or replace the cause of symptom. Then, GO TO 4
Malfunction detected>>Refer to

MWI-60, "DTC Index"

. Then, GO TO 4

4.

CONFIRM OPERATION

Does the combination meter operate normally?

YES or NO

YES

>> Inspection End.

NO

>> GO TO 1

MWI-4

< FUNCTION DIAGNOSIS >

METER SYSTEM

FUNCTION DIAGNOSIS

METER SYSTEM

METER SYSTEM

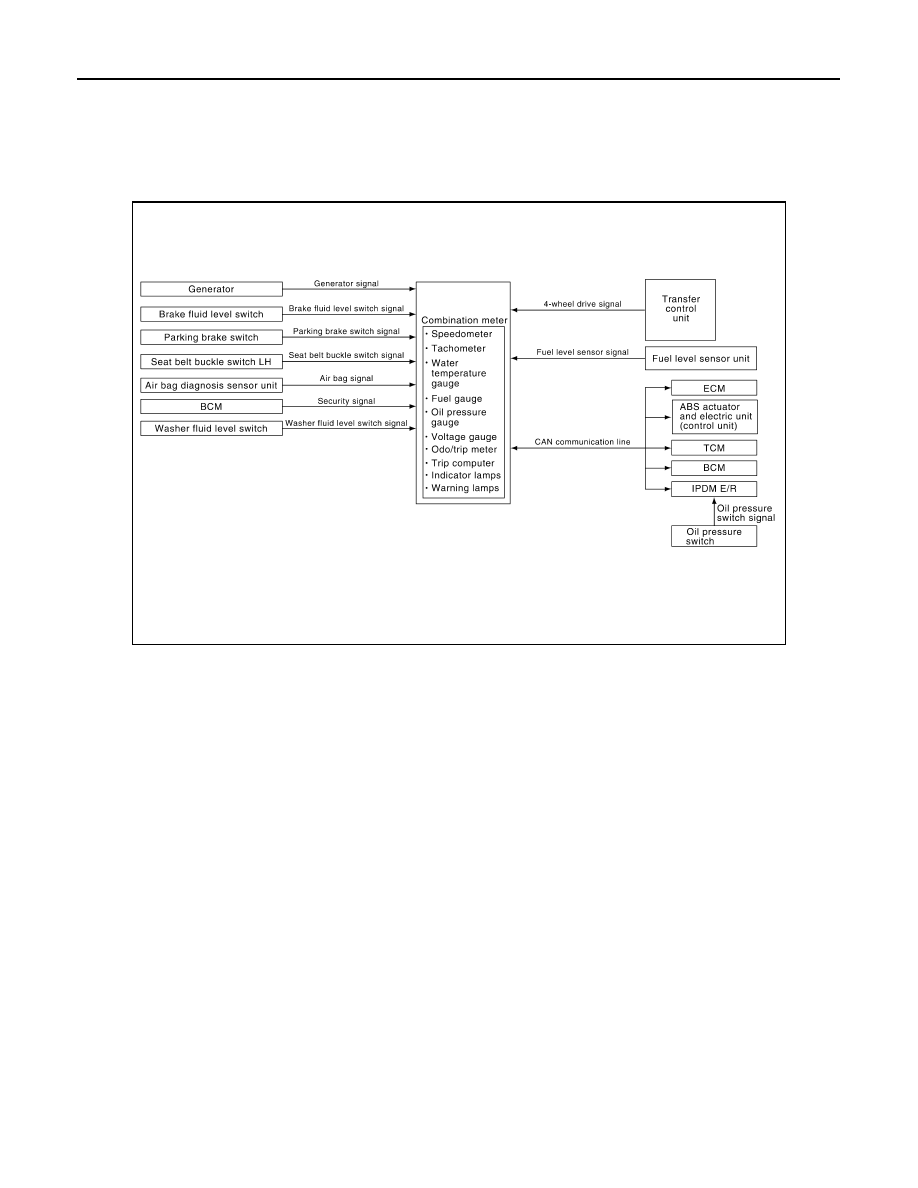

METER SYSTEM : System Diagram

INFOID:0000000001702212

METER SYSTEM : System Description

INFOID:0000000001702213

COMBINATION METER

• Speedometer, odo/trip meter, tachometer, fuel gauge, engine coolant temperature gauge, engine oil pres-

sure gauge, voltage gauge and trip computer are controlled by the unified meter control unit, which is built
into the combination meter.

• Warning and indicator lamps are controlled by the unified meter control unit and by components connected

directly to the combination meter.

• Digital meter is adopted for odo/trip meter*, as well as the A/T position indicator display.

*The record of the odometer is kept even if the battery cable is disconnected. The record of the trip meter is
erased when the battery cable is disconnected.

• Odo/trip meter and A/T indicator segments can be checked in diagnosis mode.
• Meter/gauge can be checked in diagnosis mode.
NOTE:
Under the following conditions, the meters will perform a homing function. The meter pointers will move down
slightly and then move back to the resting position. This is a normal design condition.
• Approximately 60 seconds after turning the ignition switch from the ON to the OFF position
• If the battery is disconnected and then reconnected

AWNIA0215GB

MWI

METER SYSTEM

MWI-5

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

METER SYSTEM : Arrangement of Combination Meter

INFOID:0000000001702214

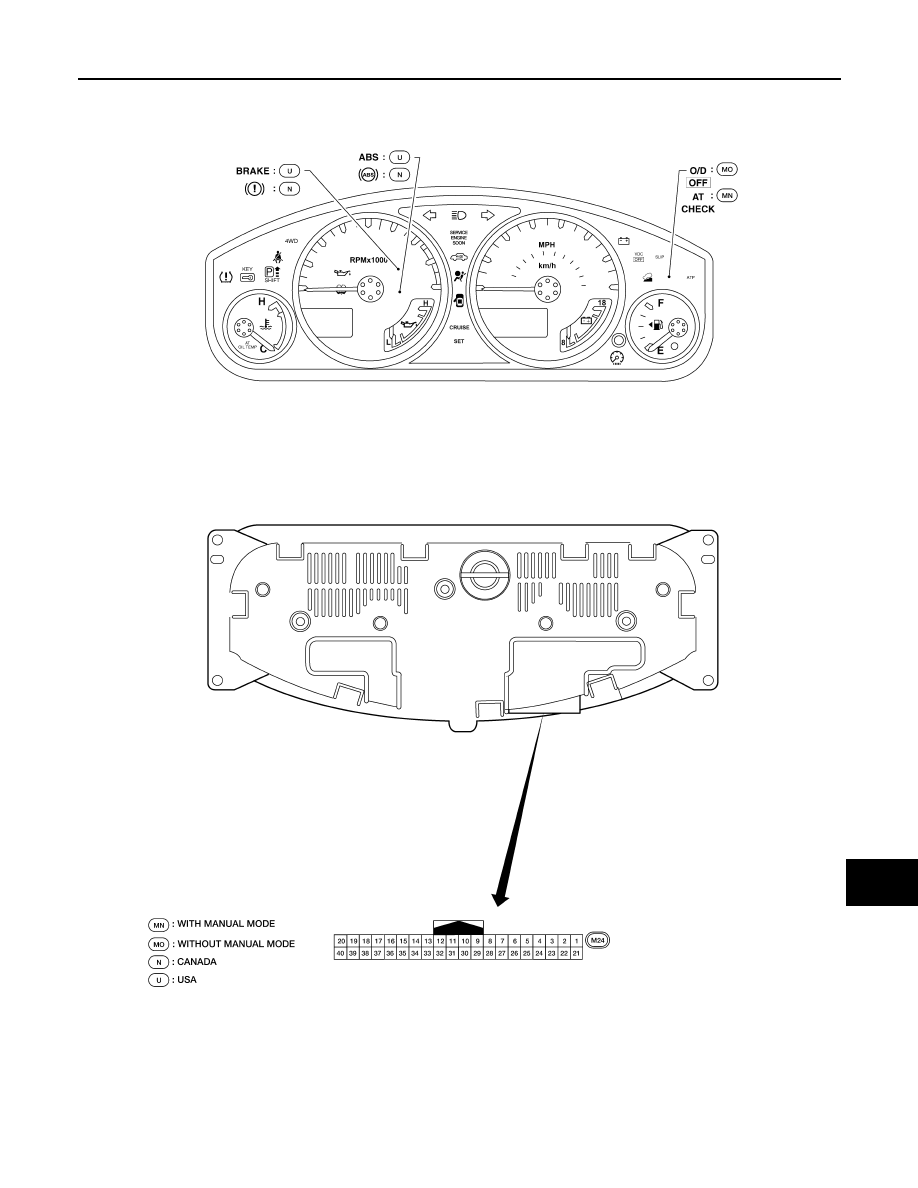

AWNIA0216GB

MWI-6

< FUNCTION DIAGNOSIS >

METER SYSTEM

METER SYSTEM : Component Parts Location

INFOID:0000000001702215

METER SYSTEM : Component Description

INFOID:0000000001702216

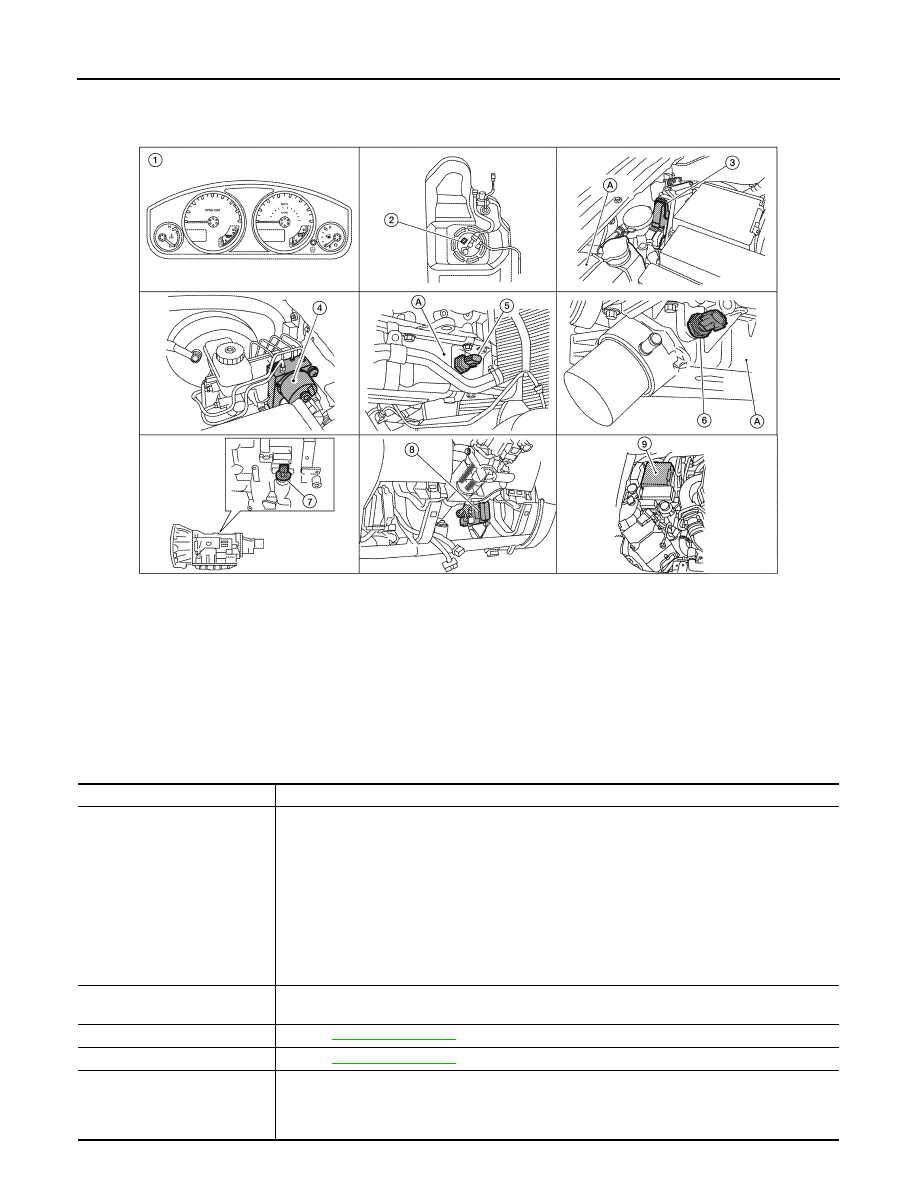

AWNIA0217ZZ

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM E16 (view with ECM cover re-
moved)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit) E125

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly F9

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

Unit

Description

Combination meter

Controls the following with the signals received from each unit via CAN communication and the sig-
nals from switches and sensors.

• Speedometer

• Tachometer

• Engine coolant temperature gauge

• Fuel gauge

• Engine oil pressure gauge

• Odo/trip meter

• Voltage gauge

• Indicator lamps

• Warning lamps

• Warning chime

• Trip computer

IPDM E/R

IPDM E/R reads the ON/OFF signals of the oil pressure switch and transmits the oil pressure switch
signal to the combination meter via BCM with CAN communication line.

Fuel level sensor unit

Refer to

MWI-32, "Description"

.

Oil pressure switch

Refer to

MWI-34, "Description"

.

ECM

Transmits the following signals to the combination meter with CAN communication line.

• Engine speed signal

• Engine coolant temperature signal

• Fuel consumption monitor signal
