DOOR MIRROR

MIR-5

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

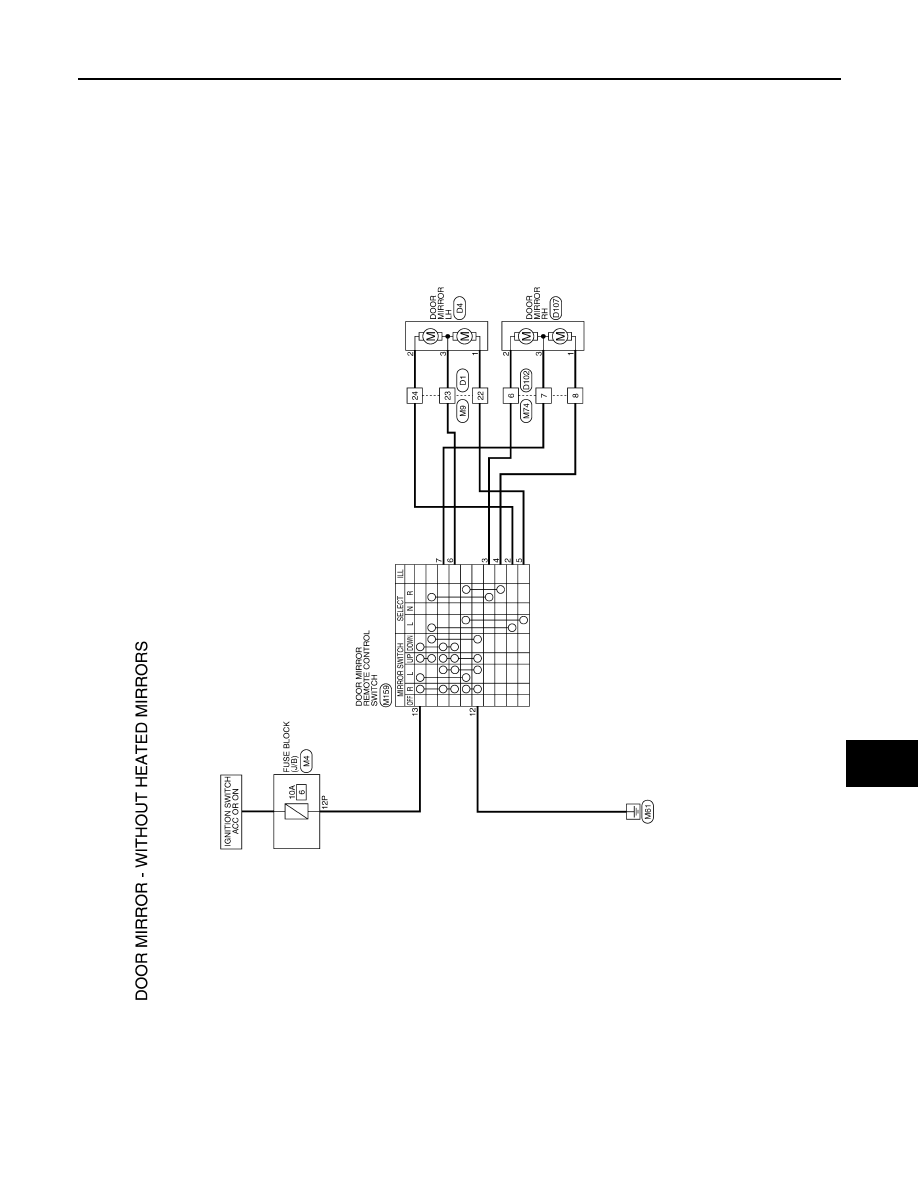

Wiring Diagram — Door Mirror (Without Heated Mirrors) —

INFOID:0000000001716869

ALLWA0038GB

MIR-6

< COMPONENT DIAGNOSIS >

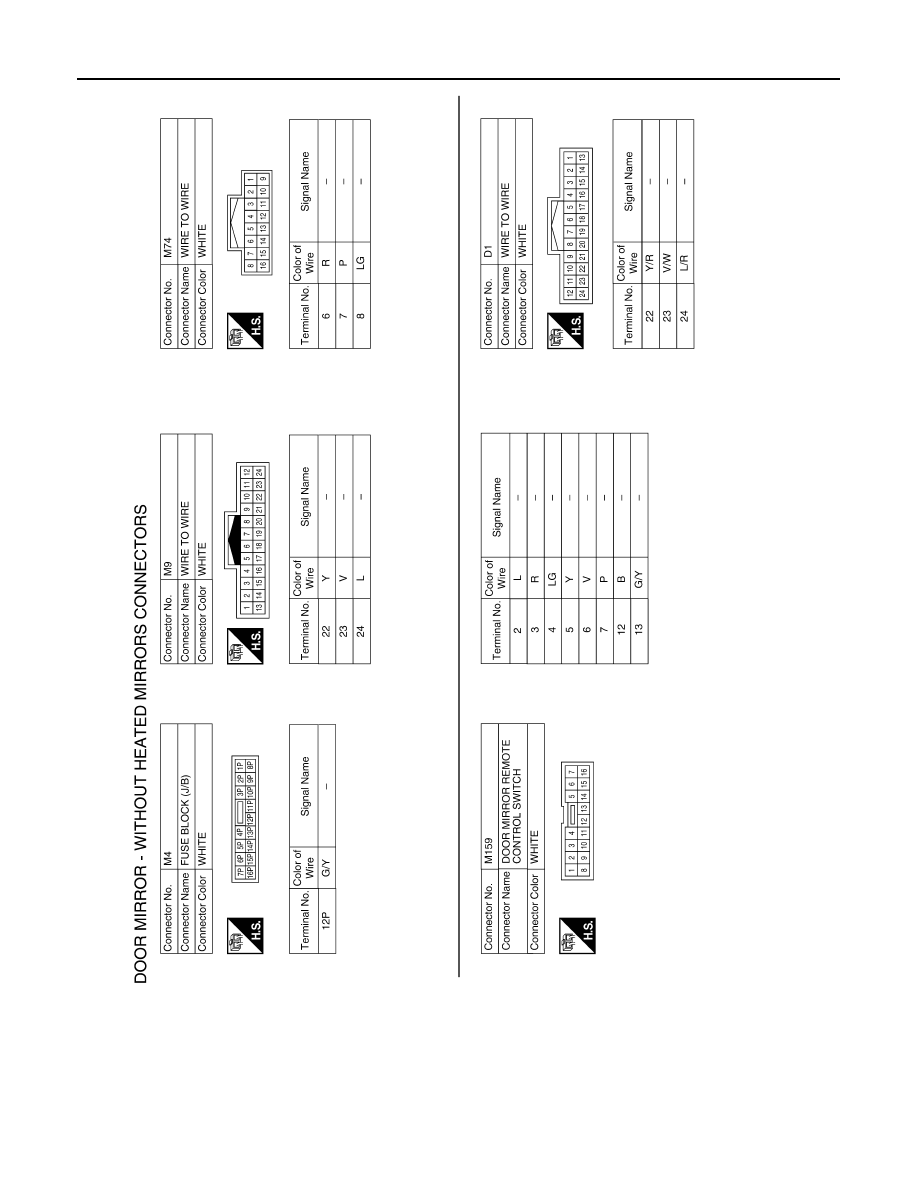

DOOR MIRROR

ALLIA0229GB

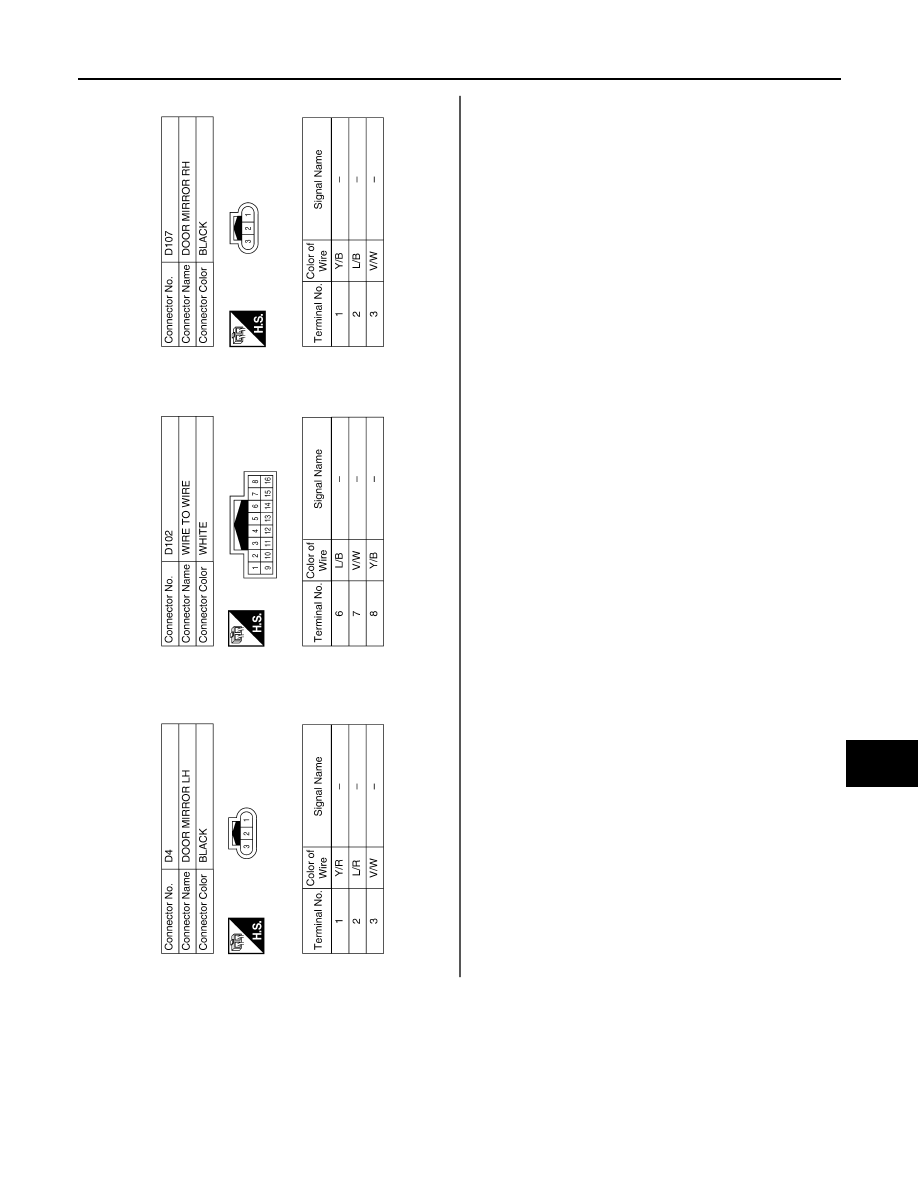

DOOR MIRROR

MIR-7

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

ALLIA0230GB

MIR-8

< COMPONENT DIAGNOSIS >

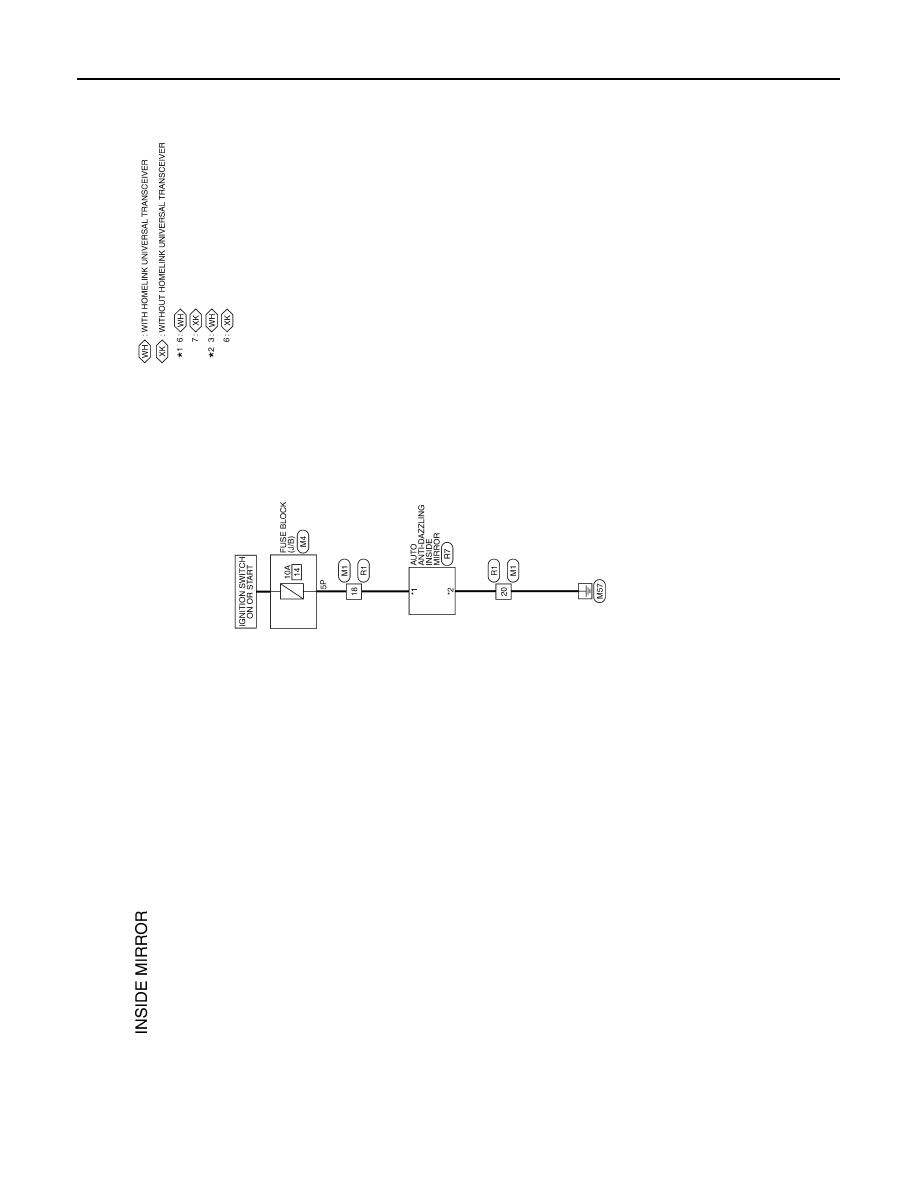

INSIDE MIRROR

INSIDE MIRROR

Wiring Diagram

INFOID:0000000001716870

ALLWA0040GB

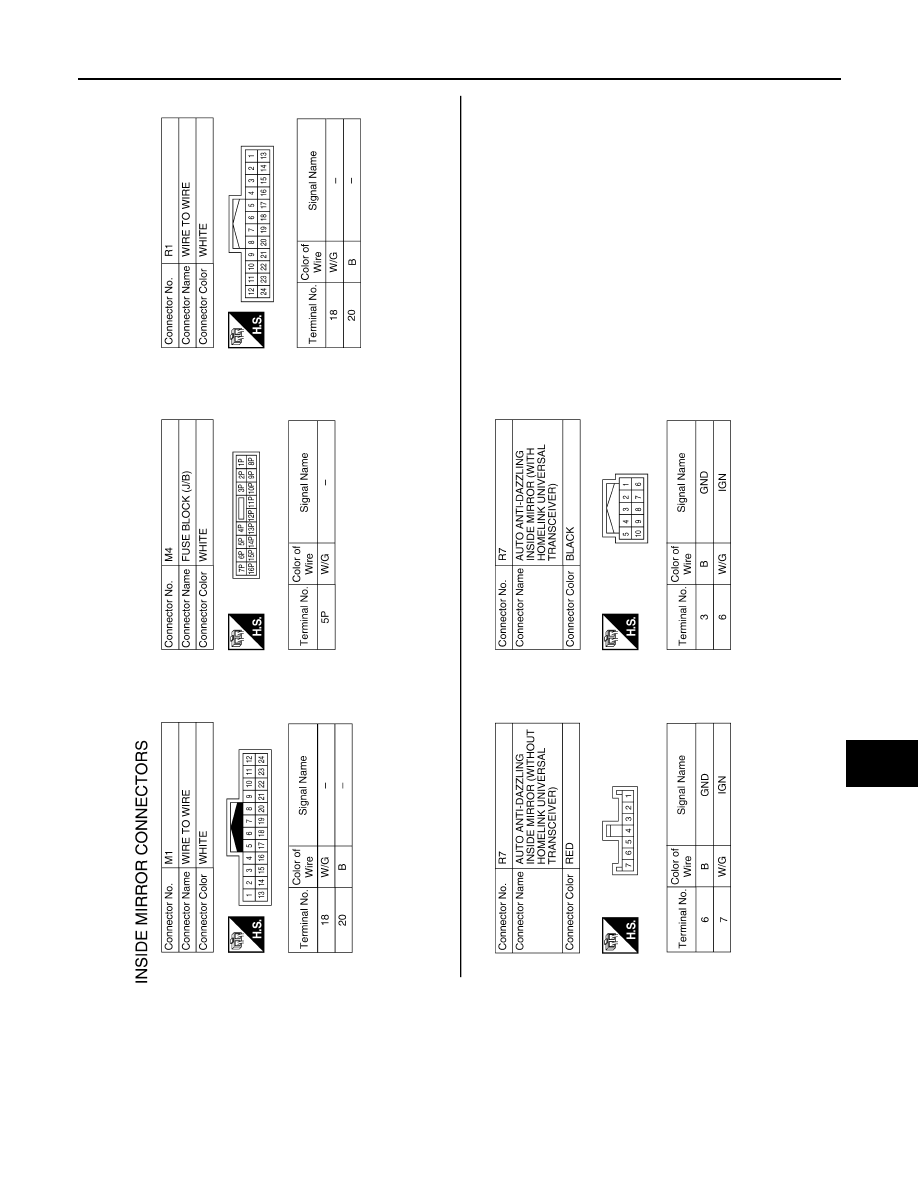

INSIDE MIRROR

MIR-9

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

ALLIA0265GB

MIR-10

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001716872

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PREPARATION

MIR-11

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

SERVICE INFORMATION

PREPARATION

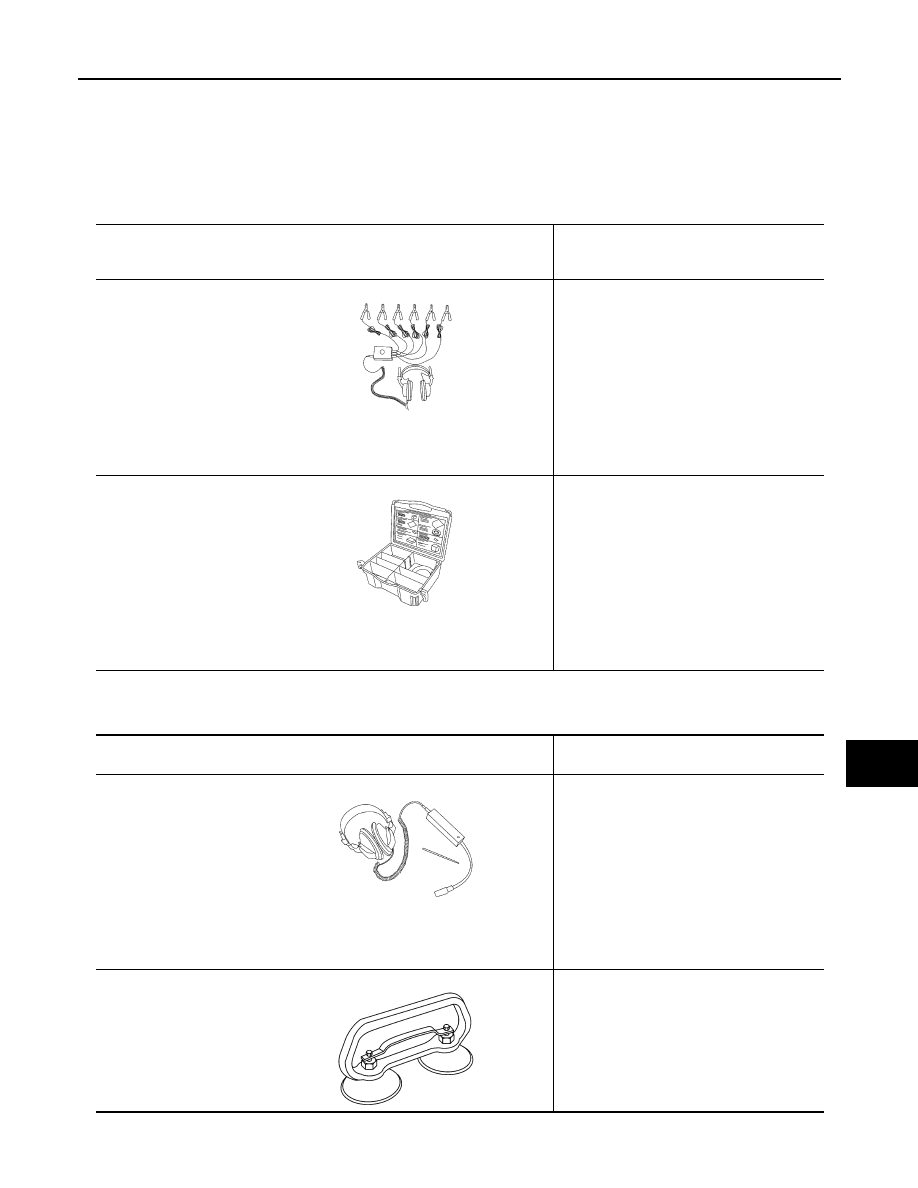

Special Service Tool

INFOID:0000000001712799

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000001712800

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-39570)
Chassis ear

Locating the noise

—

(J-43980)
NISSAN Squeak and Rat-
tle Kit

Repairing the cause of noise

SIIA0993E

SIIA0994E

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine ear

Locating the noise

(

—

)

Suction Lifter

Holding door glass

SIIA0995E

LIIA1991E

MIR-12

< SERVICE INFORMATION >

INSIDE MIRROR

INSIDE MIRROR

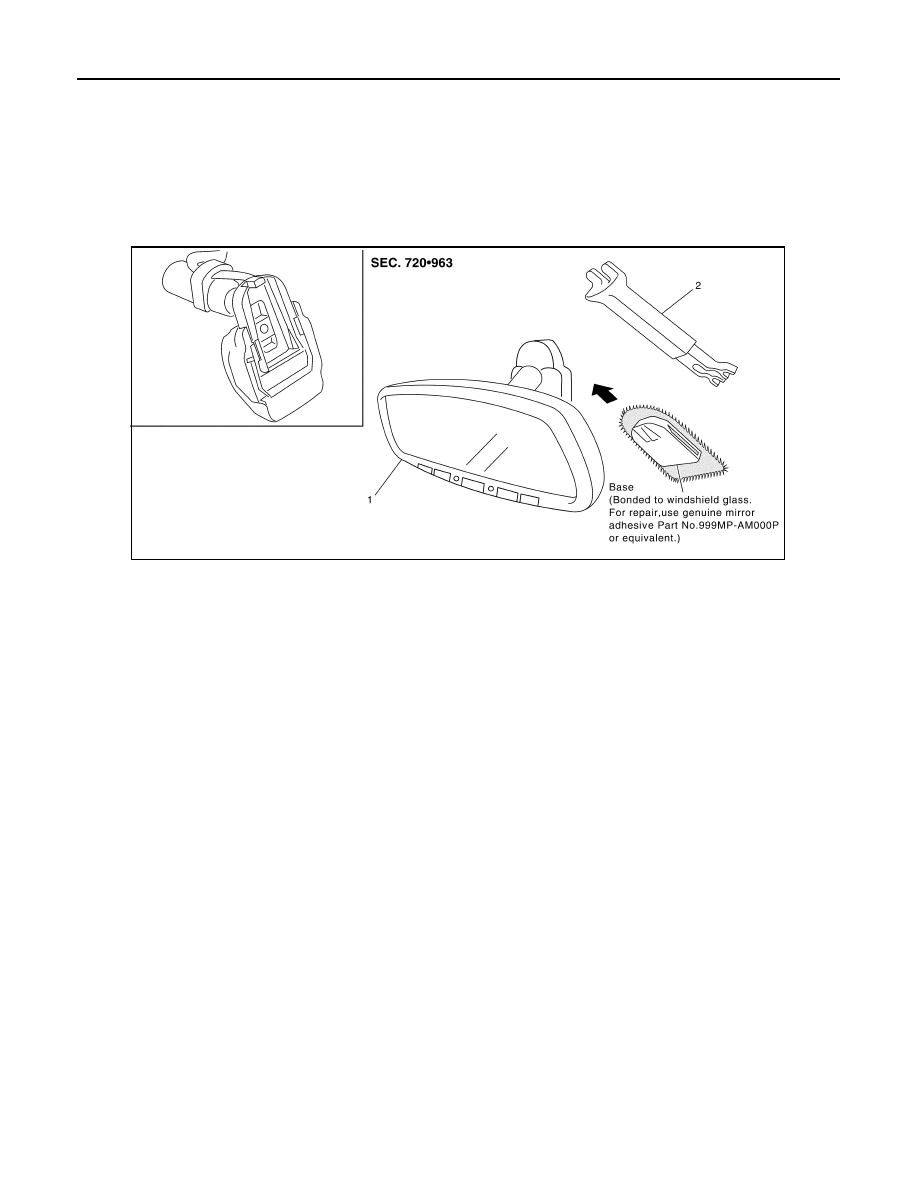

Removal and Installation

INFOID:0000000001712342

INSIDE MIRROR

1.

Remove inside mirror finisher.

2.

Slide the mirror upward to remove.

3.

Disconnect the connector.

Installation is in the reverse order of removal.

1.

Inside mirror

2.

Inside mirror finisher

LIIA0277E
