COMBINATION SWITCH

EXL-19

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

COMBINATION SWITCH

System Description

INFOID:0000000001712369

For information regarding the combination switch, refer to

BCS-7, "System Description"

.

EXL-20

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : Diagnosis Description

INFOID:0000000001712370

BCM CONSULT-III FUNCTION

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.

COMMON ITEM : CONSULT-III Function

INFOID:0000000001712371

ECU IDENTIFICATION

Displays the BCM part No.

SELF-DIAG RESULT

Refer to

BCS-51, "DTC Index"

.

EXTERNAL LAMP

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

This function is not used even though it is displayed.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

Air conditioner

AIR CONDITONER

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

AIR PRESSURE MONITOR

×

×

×

DIAGNOSIS SYSTEM (BCM)

EXL-21

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

EXTERNAL LAMP : CONSULT-III Function

INFOID:0000000001712372

WORK SUPPORT

1 : Initial setting

2 : With auto light system

DATA MONITOR

Service item

Setting item

Setting

BATTERY SAVER SET

ON

1

With the exterior lamp battery saver function

OFF

Without the exterior lamp battery saver function

ILL DELAY SET

2

MODE 1

1

45 sec.

Sets delay timer function timer operation time
(All doors closed)

MODE 2

Without the func-
tion

MODE 3

30 sec.

MODE 4

60 sec.

MODE 5

90 sec.

MODE 6

120 sec.

MODE 7

150 sec.

MODE 8

180 sec.

CUSTOM A/LIGHT

SETTING

2

MODE 1

1

Normal

MODE 2

More sensitive setting than normal setting (Turns ON earlier than normal operation.)

MODE 3

More sensitive setting than MODE 2 (Turns ON earlier than MODE 2.)

MODE 4

Less sensitive setting than normal setting (Turns ON later than normal operation.)

Monitor item

[Unit]

Description

IGN ON SW
[ON/OFF]

The switch status input from ignition switch

ACC ON SW
[ON/OFF]

The switch status input from ignition switch

TURN SIGNAL R
[ON/OFF]

Each switch status that BCM judges from the combination switch reading function

TURN SIGNAL L
[ON/OFF]

HI BEAM SW
[ON/OFF]

HEAD LAMP SW1
[ON/OFF]

HEAD LAMP SW2
[ON/OFF]

LIGHT SW 1ST
[ON/OFF]

AUTO LIGHT SW
[ON/OFF]

PASSING SW
[ON/OFF]

FR FOG SW
[ON/OFF]

CARGO LAMP SW
[ON/OFF]

EXL-22

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

1: The item is indicated, not monitored

2: With auto light system

ACTIVE TEST

1: The item is indicated, not monitored.

FLASHER

FLASHER : CONSULT-III Function (BCM - FLASHER)

INFOID:0000000001712373

DATA MONITOR

RR FOG SW

1

[ON/OFF]

—

DOOR SW-DR
[ON/OFF]

The switch status input from front door switch LH

DOOR SW-AS
[ON/OFF]

The switch status input from front door switch RH

DOOR SW-RR
[ON/OFF]

The switch status input from rear door switch RH

DOOR SW- RL
[ON/OFF]

The switch status input from rear door switch LH

DOOR SW-BK
[ON/OFF]

The switch status input from the back door switch

OPTICAL SENSOR

[V]

2

The value of exterior brightness voltage input from the optical sensor

Monitor item

[Unit]

Description

Test item

Operation

Description

TAIL LAMP

ON

Transmits the position light request signal to IPDM E/R via CAN commu-
nication to turn the tail lamp ON.

OFF

Stops the tail lamp request signal transmission.

HEAD LAMP

HI

Transmits the high beam request signal via CAN communication to turn
the headlamp (HI)

LO

Transmits the low beam request signal via CAN communication to turn
the headlamp (LO).

OFF

Stops the high & low beam request signal transmission.

FR FOG LAMP

ON

Transmits the front fog lamp light request signal to IPDM E/R via CAN
communication to turn the front fog lamp ON.

OFF

Stops the front fog lamp request signal transmission.

CORNERING LAMP

1

RH

—

LH

OFF

CARGO LAMP

ON

Tramsmits the cargo lamp request signal to the IPDM E/R via CAN com-
munication to turn on the cargo lamp.

OFF

Stops the cargo lamp request signal transmission.

Monitor item

[Unit]

Description

IGN ON SW
[ON/OFF]

The switch status input from the ignition switch

HAZARD SW
[ON/OFF]

The switch status input from the hazard warning switch

DIAGNOSIS SYSTEM (BCM)

EXL-23

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ACTIVE TEST

TURN SIGNAL R
[ON/OFF]

Each switch condition that BCM judges from the combination switch reading function

TURN SIGNAL L
[ON/OFF]

BRAKE SW
[ON/OFF]

The switch status input from the brake switch

Monitor item

[Unit]

Description

Test item

Operation

Description

FLASHER

RH

Blinks right turn signal lamp.

LH

Blinks left turn signal lamp.

OFF

Turns turn signal lamps (right and left) OFF.

EXL-24

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (IPDM E/R)

DIAGNOSIS SYSTEM (IPDM E/R)

CONSULT - III Function (IPDM E/R)

INFOID:0000000001712374

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with IPDM E/R.

DATA MONITOR

Monitor item

ACTIVE TEST

Test item

Diagnosis mode

Description

Self Diagnostic Result

Displays the diagnosis results judged by IPDM E/R.

Data Monitor

Displays the real-time input/output data from IPDM E/R input/output data.

Active Test

IPDM E/R can provide a drive signal to electronic components to check their operations.

CAN Diag Support Monitor

The results of transmit/receive diagnosis of CAN communication can be read.

Monitor Item

[Unit]

MAIN SIG-

NALS

Description

TAIL & CLR REQ
[Off/On]

×

Displays the status of the tail and clearance lamp request signal received from
BCM via CAN communication.

HL LO REQ
[Off/On]

×

Displays the status of the low beam request signal received from BCM via CAN
communication.

HL HI REQ
[Off/On]

×

Displays the status of the high beam request signal received from BCM via CAN
communication.

FR FOG REQ
[Off/On]

×

Displays the status of the front fog light request signal received from BCM via
CAN communication.

IGN RLY
[Off/On]

×

Displays the status of the ignition relay judged by the IPDM E/R-.

DTRL REQ
[Off]

×

Displays the status of the daytime light request signal received from the BCM via
CAN communication.

Test item

Operation

Description

EXTERNAL LAMPS

Off

OFF

TAIL

Operates the tail lamp relay.

Lo

Operates the headlamp low relay.

Hi

Operates the headlamp low relay and ON/OFF the headlamp high relay at 1 sec-
ond intervals.

Fog

Operates the front fog lamp relay.

POWER SUPPLY AND GROUND CIRCUIT

EXL-25

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

COMPONENT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

BCM (BODY CONTROL MODULE)

BCM (BODY CONTROL MODULE) : Diagnosis Procedure

INFOID:0000000001712375

For BCM power supply and ground circuit information, refer to

BCS-32, "Diagnosis Procedure"

.

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) : Di-
agnosis Procedure

INFOID:0000000001712376

For IPDM E/R power supply and ground circuit information, refer to

PCS-16, "Diagnosis Procedure"

 .

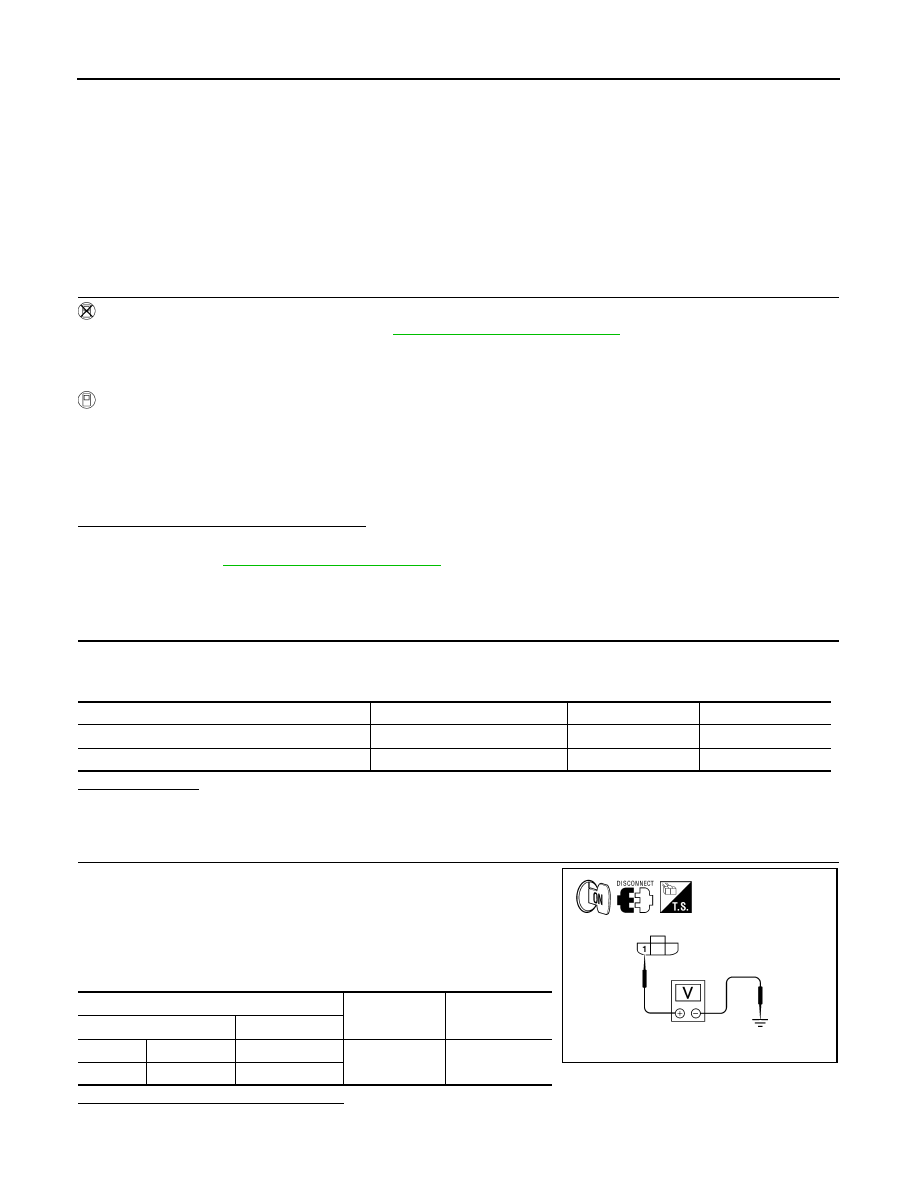

EXL-26

< COMPONENT DIAGNOSIS >

HEADLAMP (HI) CIRCUIT

HEADLAMP (HI) CIRCUIT

Description

INFOID:0000000001712377

The IPDM E/R (intelligent power distribution module engine room) controls the headlamp high relay based on
inputs from the BCM via the CAN communication lines. When the headlamp high relay is energized, power
flows through fuses 34 and 35, located in the IPDM E/R. Power then flows to the front combination lamps to
the headlamp high beam.

Component Function Check

INFOID:0000000001712378

1.

CHECK HEADLAMP (HI) OPERATION

WITHOUT CONTULT-III

1.

Start IPDM E/R auto active test. Refer to

PCS-10, "Diagnosis Description"

.

2.

Check that the headlamp switches to the high beam.
NOTE:
HI/LO is repeated 1 second each when using the IPDM E/R auto active test.

CONSULT-III

1.

Select "EXTERNAL LAMP" of IPDM E/R active test item.

2.

With the test item operating, check that the headlamp switches to high beam.

Does the headlamp switch to high beam?

YES

>> Headlamp (HI) circuit is normal.

NO

>> Refer to

EXL-26, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001712379

1.

CHECK HEADLAMP (HI) FUSES

1.

Turn the ignition switch OFF.

2.

Check that the following fuses are not open.

Is the fuse open?

YES

>> Repair the harness and replace the fuse.

NO

>> GO TO 2

2.

CHECK HEADLAMP (HI) OUTPUT VOLTAGE

1.

Turn the ignition switch OFF.

2.

Disconnect the front combination lamp connector E11 or E107.

3.

Turn the ignition switch ON.

4.

Turn the high beam headlamps ON.

5.

With the high beam headlamps ON, check the voltage between
the combination lamp connector and ground.

Are the voltage readings as specified?

YES

>> GO TO 4

NO

>> GO TO 3

HI

: Headlamp switches to the high beam.

OFF

: Headlamp OFF

Unit

Location

Fuse No.

Capacity

Headlamp HI (LH)

IPDM E/R

34

10A

Headlamp HI (RH)

IPDM E/R

35

10A

(+)

(

−

)

Voltage

Connector

Terminal

LH

E11

1

Ground

Battery voltage

RH

E107

1

WKIA4989E
