EXHAUST MANIFOLD AND THREE WAY CATALYST

EM-171

< ON-VEHICLE REPAIR >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

b.

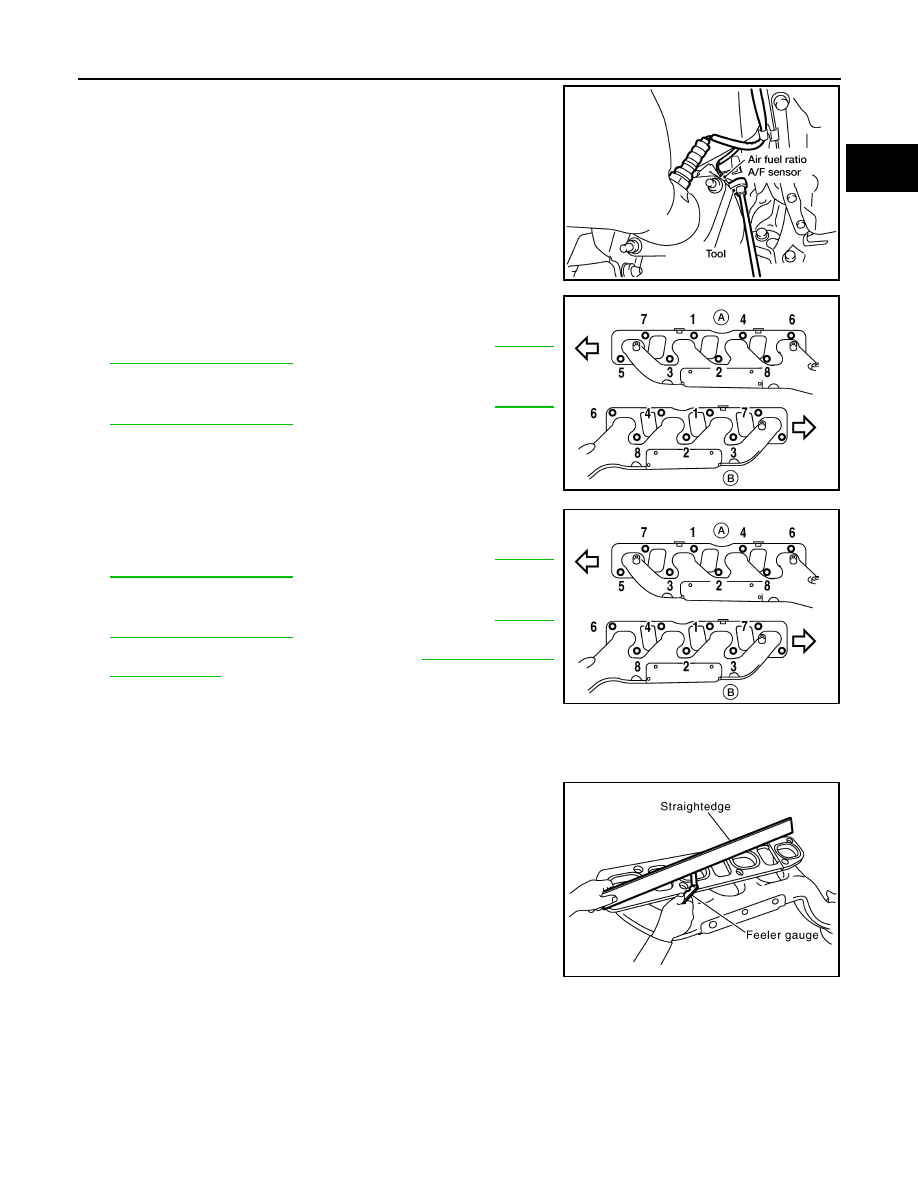

Remove the air fuel ratio A/F sensors from both LH and RH
exhaust manifolds using Tool.

CAUTION:

• Do not damage the air fuel ratio A/F sensors
• Discard any air fuel ratio A/F sensor which has been

dropped from a height of more than 0.5m (19.7 in) onto a
hard surface such as a concrete floor. Replace it with a
new one.

9.

Support the engine using a suitable tool.

10. Remove the exhaust manifold (LH) (A) following the steps

below.

a.

Remove the engine mounting insulator. Refer to

EM-218,

"Removal and Installation"

.

b.

Remove the exhaust manifold cover.

c.

Remove the engine mounting bracket. Refer to

EM-218,

"Removal and Installation"

.

d.

Loosen the nuts in reverse order as shown using power tool.

e.

Remove the exhaust manifold (LH).

11. Remove the exhaust manifold (RH) (B) following the steps

below.

a.

Remove the engine mounting insulator. Refer to

EM-218,

"Removal and Installation"

.

b.

Remove the exhaust manifold cover.

c.

Remove the engine mounting bracket. Refer to

EM-218,

"Removal and Installation"

.

d.

Remove the oil level gauge guide. Refer to

EM-173, "Removal

and Installation"

.

e.

Loosen the nuts in reverse order as shown using power tool.

f.

Remove the exhaust manifold (RH).

INSPECTION AFTER REMOVAL

Surface Distortion

• Check the flatness of each exhaust manifold flange surface using

suitable tools.

• If measurement exceeds the limit, replace the exhaust manifold.

INSTALLATION

Installation is in the reverse order of removal.
• Install new exhaust manifold gasket with the top of the triangular up mark on it facing up and its coated face

(gray side) toward the exhaust manifold side.

Tool number

 (J-44626)

WBIA0630E

WBIA0696E

WBIA0696E

Flatness limit

: 0.3 mm (0.012 in)

KBIA2504E

EM-172

< ON-VEHICLE REPAIR >

[VK56DE]

EXHAUST MANIFOLD AND THREE WAY CATALYST

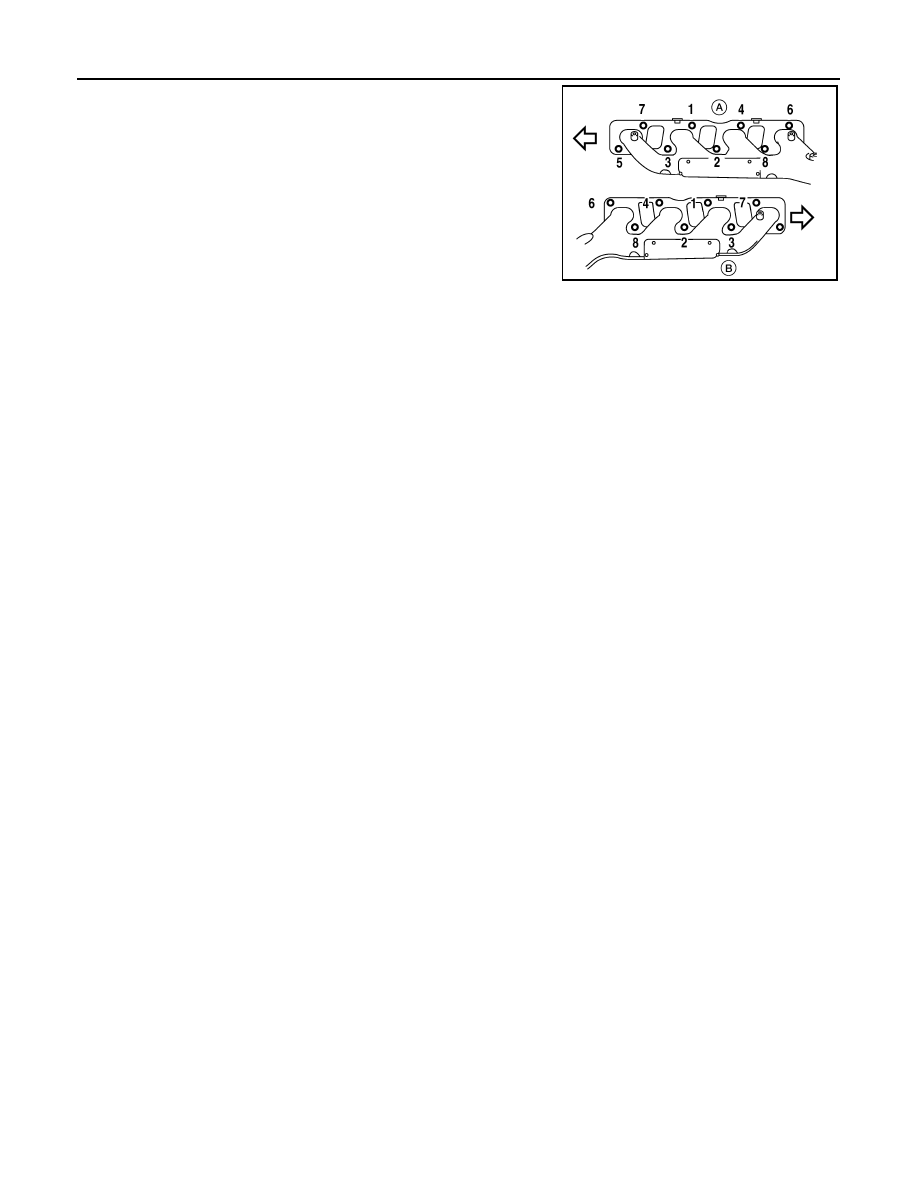

• Tighten the exhaust manifold nuts LH (A) and RH (B) in the numer-

ical order shown. Then recheck the torque of the nuts.

• Before installing new air fuel ration A/F sensors, clean the exhaust system threads using Tool and apply anti-

seize lubricant.

Heated Oxygen Sensor

CAUTION:

• Do not over tighten the air fuel ratio A/F sensors. Doing so may cause damage to the sensor, result-

ing in the MIL coming on.

WBIA0696E

Tool number

: —  (J-43879-12)

: —  (J-43897-18)

OIL PAN AND OIL STRAINER

EM-173

< ON-VEHICLE REPAIR >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

OIL PAN AND OIL STRAINER

Removal and Installation

INFOID:0000000001282021

REMOVAL

WARNING:

To avoid the danger of being scalded, never drain the engine oil when the engine is hot.
1.

Remove the engine. Refer to

EM-218, "Removal and Installation"

.

2.

Remove the oil pan (lower) using the following steps.

a.

Remove the oil pan (lower) bolts using power tool.

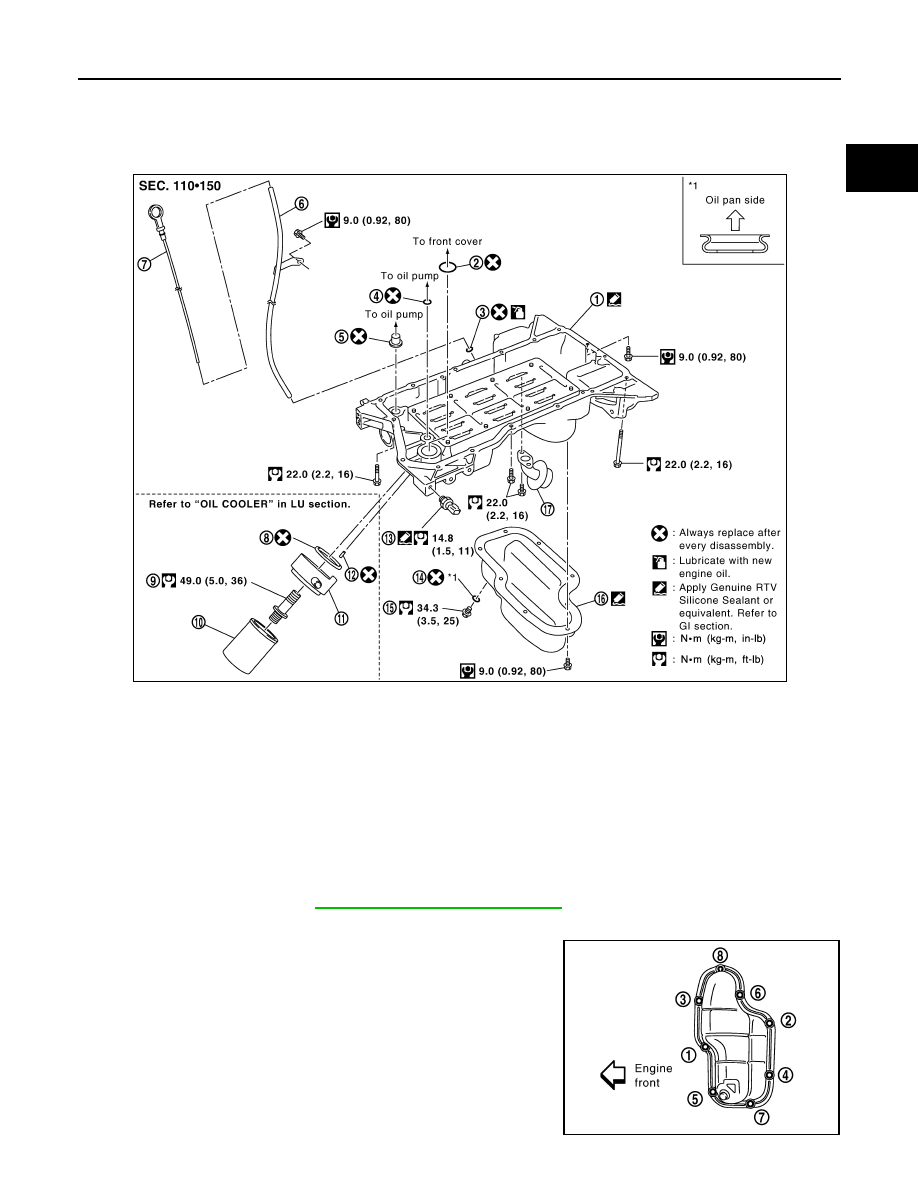

1.

Oil pan (upper)

2.

O-ring

3.

O-ring

4.

O-ring

5.

O-ring (with collar)

6.

Oil level gauge guide

7.

Oil level gauge

8.

O-ring

9.

Connector bolt

10.

Oil filter

11.

Oil cooler

12.

Relief valve

13.

Oil pressure switch

14. Gasket

15.

Drain plug

16.

Oil pan (lower)

17. Oil strainer

KBIA2465E

KBIA2466E

EM-174

< ON-VEHICLE REPAIR >

[VK56DE]

OIL PAN AND OIL STRAINER

b.

Insert Tool between the lower oil pan and the upper oil pan.

CAUTION:

• Be careful not to damage the mating surface.
• Do not insert a screwdriver, this will damage the mating surfaces.

c.

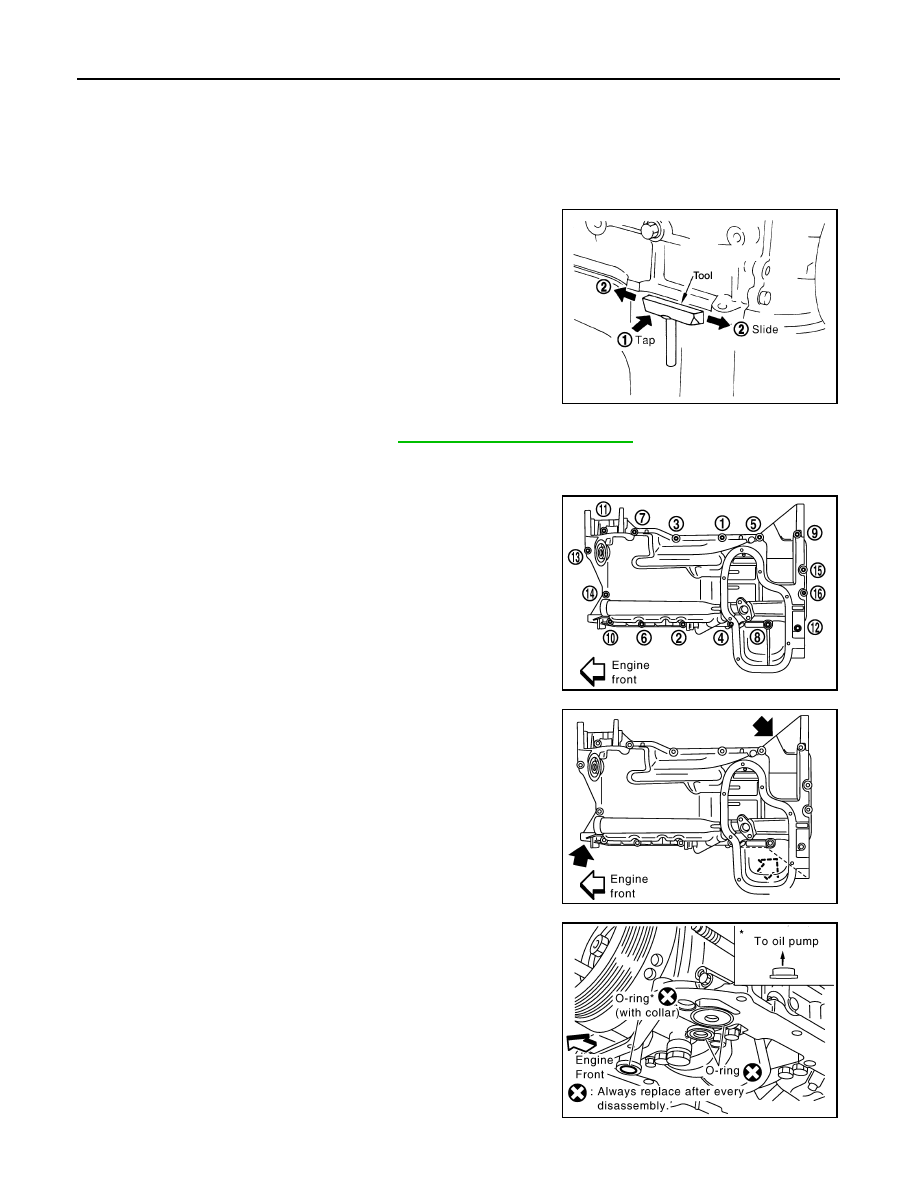

Tap seal cutter to insert it (1) and then slide it by tapping on the
side (2) of the tool as shown.

3.

Remove the oil cooler assembly. Refer to

LU-28, "Removal and Installation"

.

4.

Remove the oil strainer from the oil pan (upper).

5.

Remove the oil pan (upper) using the following steps.

a.

Remove the oil pan (upper) bolts as shown.

b.

Remove the oil pan (upper) from the cylinder block by prying it at
the points shown, using suitable tool.

CAUTION:

Do not damage mating surface.

6.

Remove the O-rings from the oil pump and front cover.
NOTE:
Do not reuse O-rings.

INSPECTION AFTER REMOVAL

Tool number

: KV10111100 (J-37228)

WBIA0566E

KBIA2467E

KBIA2468E

KBIA2469E

OIL PAN AND OIL STRAINER

EM-175

< ON-VEHICLE REPAIR >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Clean the oil strainer.

INSTALLATION

1.

Install the oil pan (upper) using the following steps.

a.

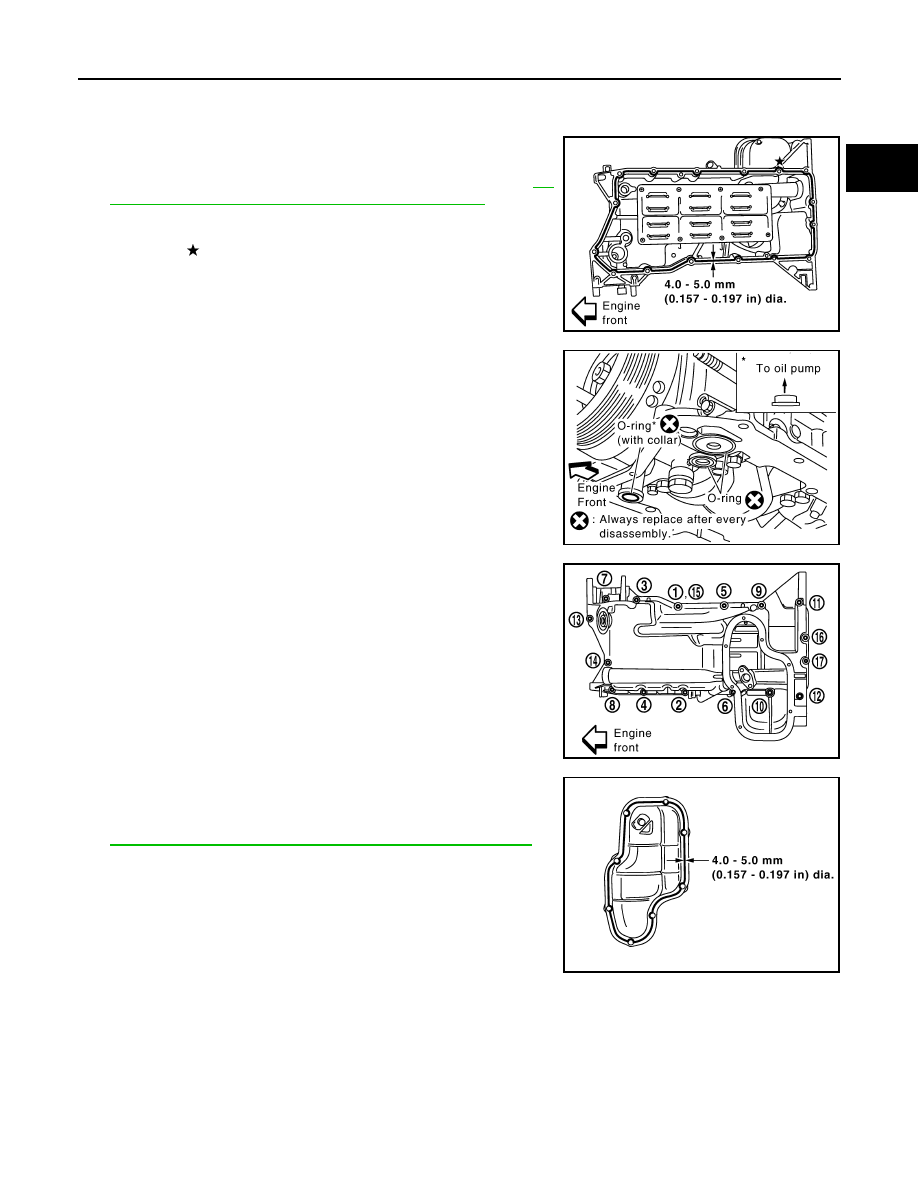

Apply liquid gasket thoroughly as shown.
Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-

26, "Recommended Chemical Products and Sealants"

.

CAUTION:

Apply liquid gasket to outside of bolt hole for the hole
shown by  .

b.

Install new O-rings to the oil pump and front cover side.

c.

Tighten the bolts in numerical order as shown.

2.

Install the oil strainer to the oil pan (upper).

3.

Install the oil pan (lower).

a.

Apply liquid gasket thoroughly as shown.
Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-26, "Recommended Chemical Products and Sealants"

CAUTION:

Attaching should be done within 5 minutes after coating.

KBIA2470E

KBIA2469E

M6

×

 30 mm (1.18 in)

: No. 15, 16

M8

×

 25 mm (0.98in)

: No. 1, 3, 5, 7, 11, 13

M8

×

 45 mm (1.77 in)

: No. 2, 4, 6, 8, 10, 14

M8

×

 123 mm (4.84in)

: No. 9, 12

PBIC2553E

KBIA2471E

EM-176

< ON-VEHICLE REPAIR >

[VK56DE]

OIL PAN AND OIL STRAINER

b.

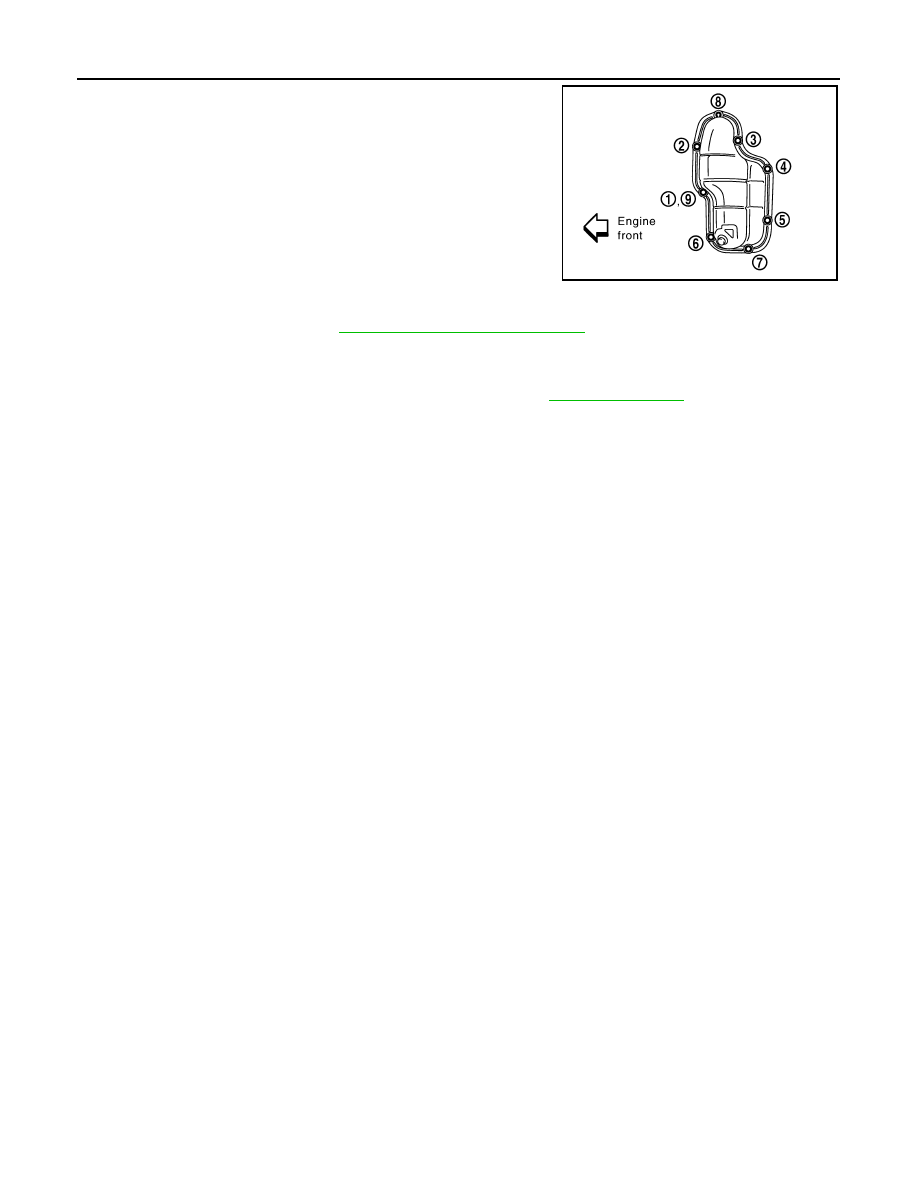

Tighten the oil pan (lower) bolts in numerical order as shown.

4.

Install the oil pan drain plug.

5.

Install engine assembly. Refer to

EM-218, "Removal and Installation"

.

• Do not fill the engine with oil for at least 30 minutes after oil pan is installed.

INSPECTION AFTER INSTALLATION

1.

Check engine oil level and add engine oil if necessary. Refer to

LU-24, "Inspection"

.

2.

Start the engine, and check for leaks of engine oil.

3.

Stop engine and wait for 10 minutes.

4.

Check engine oil level again.

PBIC2595E

IGNITION COIL

EM-177

< ON-VEHICLE REPAIR >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

IGNITION COIL

Removal and Installation

INFOID:0000000001282022

REMOVAL

1.

Remove the engine room cover using power tool. Refer to

EM-164, "Removal and Installation"

.

2.

Remove the air duct and resonator assembly. Refer to

EM-165, "Removal and Installation"

.

3.

Disconnect the harness connector from the ignition coil.

4.

Remove the ignition coil.

CAUTION:

Do not shock ignition coil.

INSTALLATION

Installation is in the reverse order of removal.

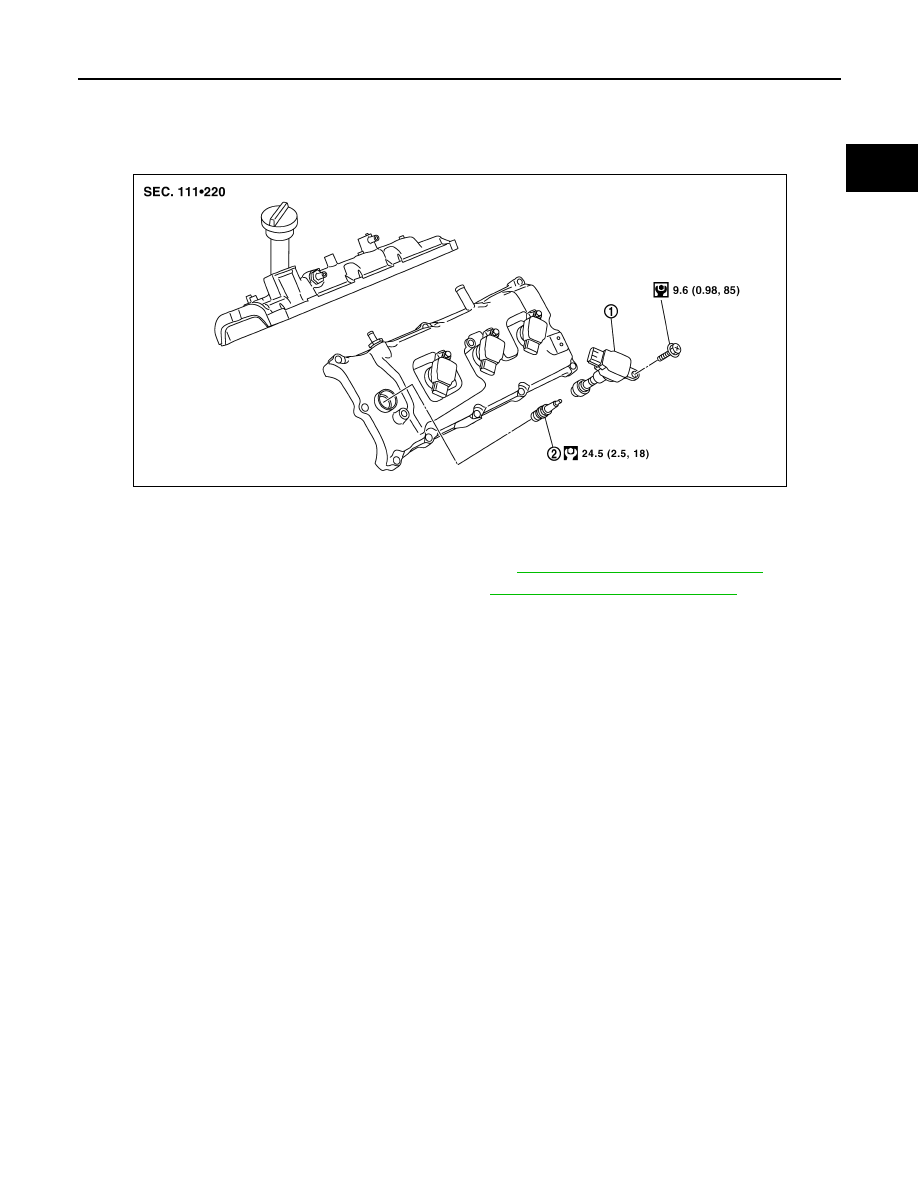

1.

Ignition coil

2.

Spark plug

WBIA0796E

EM-178

< ON-VEHICLE REPAIR >

[VK56DE]

ROCKER COVER

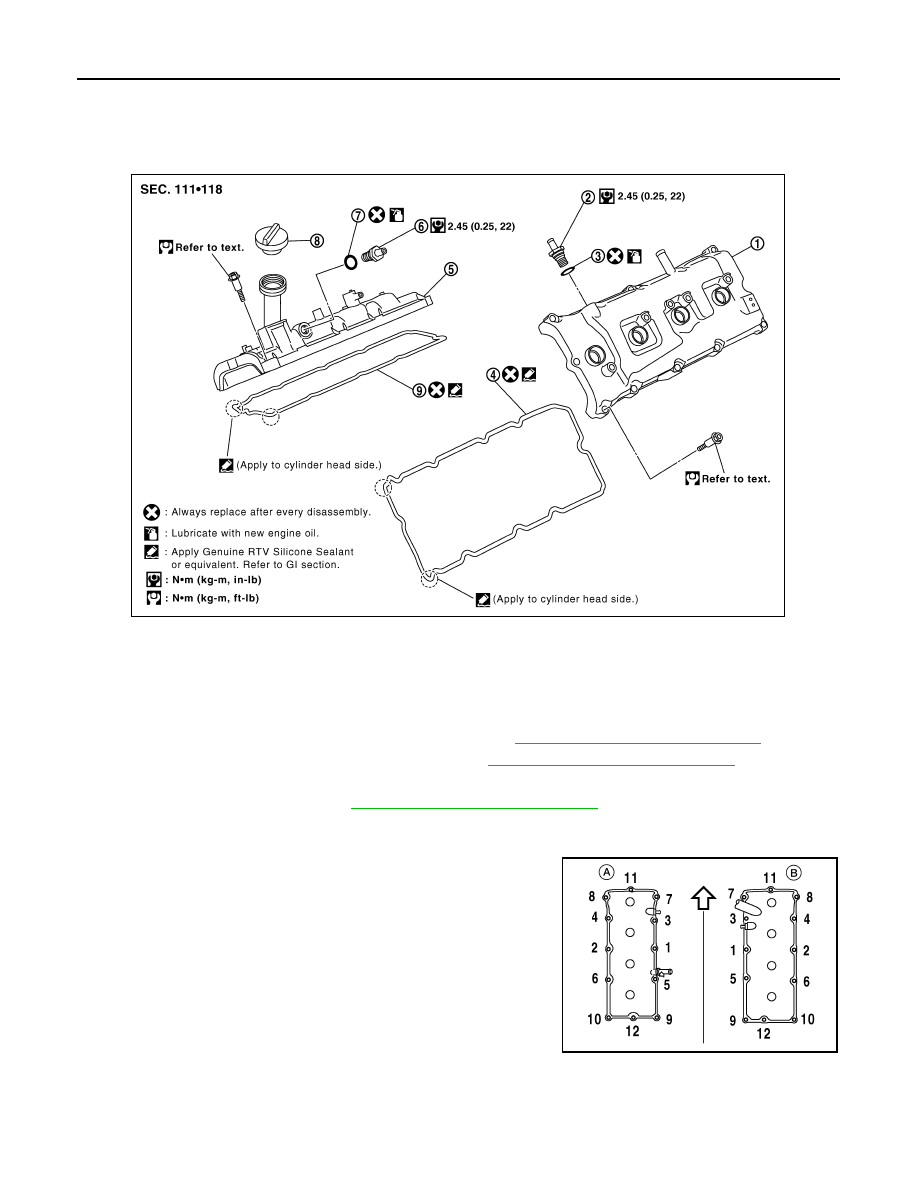

ROCKER COVER

Removal and Installation

INFOID:0000000001282025

REMOVAL

1.

Remove the engine room cover using power tool. Refer to

EM-164, "Removal and Installation"

.

2.

Remove the air duct and resonator assembly. Refer to

EM-165, "Removal and Installation"

.

3.

Move the harness on the upper rocker cover and its peripheral aside.

4.

Remove the ignition coils. Refer to

EM-177, "Removal and Installation"

.

5.

Remove the PCV hose from the PCV control valves.

: Engine front

6.

Loosen the bolts in reverse order shown using power tool for
rocker cover (LH) (A) or (RH) (B).

CAUTION:

Do not hold the rocker cover (RH) (B) by the oil filler neck.

INSTALLATION

1.

Rocker cover (LH)

2.

PCV control valve

3.

O-ring

4.

Rocker cover gasket (LH)

5.

Rocker cover (RH)

6.

PCV control valve

7.

O-ring

8.

Oil filler cap

9.

Rocker cover gasket (RH)

KBIA2508E

WBIA0697E
