ECM

EC-893

< ECU DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

48

SB

Sensor power supply
(EVAP control system pres-
sure sensor)

[Ignition switch: ON]

Approximately 5V

49

P

Sensor power supply
(Refrigerant pressure sensor)

[Ignition switch: ON]

Approximately 5V

50

W

Throttle position sensor 1

[Ignition switch: ON]
• Engine: Stopped
• Selector lever: D
• Accelerator pedal: Fully released

More than 0.36V

[Ignition switch: ON]
• Engine: Stopped
• Selector lever: D
• Accelerator pedal: Fully depressed

Less than 4.75V

51

P

Mass air flow sensor

[Engine is running]
• Warm-up condition
• Idle speed

1.0 - 1.3V

[Engine is running]
• Warm-up condition
• Engine speed: 2,500 rpm

1.7 - 2.1V

53

L

Intake valve timing control po-
sition sensor (Bank 2)

[Engine is running]
• Warm-up condition
• Idle speed

0 - 1.0V

[Engine is running]
• Engine speed: 2,000 rpm

0 - 1.0V

55

G

Heated oxygen sensor 2
(bank 1)

[Engine is running]
• Revving engine from idle to 3,000 rpm

quickly after the following conditions are
met.

- Engine: After warming up
- Keeping the engine speed between 3,500

and 4,000 rpm for 1 minute and at idle for 1
minute under no load

0 - Approximately 1.0V

56

W

A/F sensor 1 (bank 1)

[Ignition switch: ON]

Approximately 2.2V

TER-

MI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

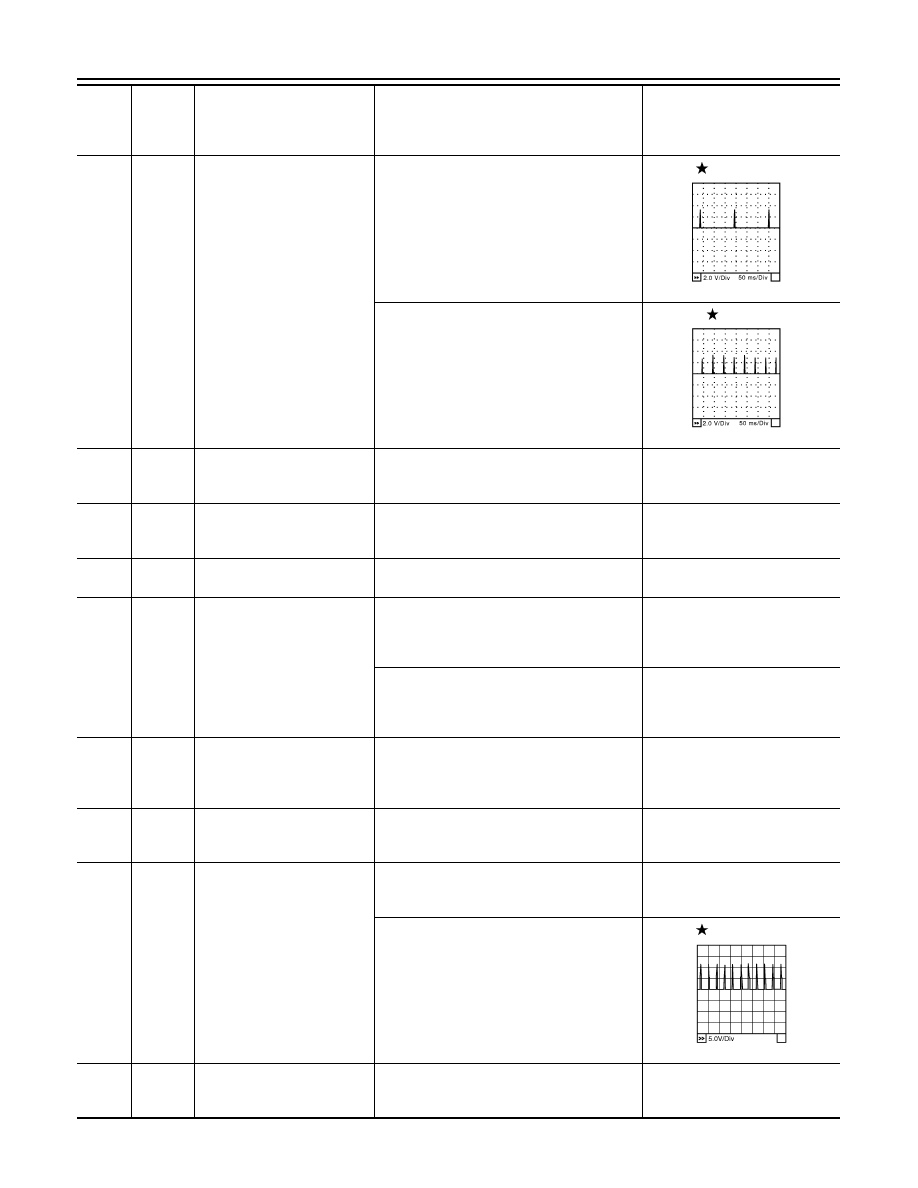

PBIB2046E

EC-894

< ECU DIAGNOSIS >

[VK56DE]

ECM

65
79
80
81

GR
P
GR
G

Ignition signal No. 8
Ignition signal No. 6
Ignition signal No. 4
Ignition signal No. 2

[Engine is running]
• Warm-up condition
• Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle

0 - 0.3V

[Engine is running]
• Warm-up condition
• Engine speed: 2,500 rpm

0.1 - 0.6V

66

B

Sensor ground
(Throttle position sensor)

[Engine is running]
• Warm-up condition
• Idle speed

Approximately 0V

67

B

Sensor ground

[Engine is running]
• Warm-up condition
• Idle speed

Approximately 0V

68

G

Sensor power supply
(PSP sensor)

[Ignition switch: ON]

Approximately 5V

69

R

Throttle position sensor 2

[Ignition switch: ON]
• Engine: Stopped
• Selector lever: D
• Accelerator pedal: Fully released

Less than 4.75V

[Ignition switch: ON]
• Engine: Stopped
• Selector lever: D
• Accelerator pedal: Fully depressed

More than 0.36V

70

BR

Refrigerant pressure sensor

[Engine is running]
• Warm-up condition
• Both A/C switch and blower fan switch: ON

(Compressor: Operates.)

1.0 - 4.0V

71

R

Battery current sensor

[Engine is running]
• Battery: Fully charged*
• Idle speed

Approximately 2.6 - 3.5V

72

Y

Intake valve timing control po-
sition sensor (Bank 1)

[Engine is running]
• Warm-up condition
• Idle speed

0 -1.0V

[Engine is running]
• Engine speed: 2,000rpm

0 - 1.0V

73

Y

Engine coolant temperature
sensor

[Engine is running]

Approximately 0 - 4.8V
Output voltage varies with engine
coolant temperature.

TER-

MI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

SEC986C

SEC987C

PBIB2046E

ECM

EC-895

< ECU DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

74

SB

Heated oxygen sensor 2
(bank 2)

[Engine is running]
• Revving engine from idle to 3,000 rpm

quickly after the following conditions are
met.

- Engine: After warming up
- Keeping the engine speed between 3,500

and 4,000 rpm for 1 minute and at idle for 1
minute under no load

0 - Approximately 1.0V

75

P

A/F sensor 1 (bank 2)

[Ignition switch: ON]

Approximately 2.2V

78

GR

Sensor ground
(Heated oxygen sensor 2)

[Engine is running]
• Warm-up condition
• Idle speed

Approximately 0V

82

B

Sensor ground
(APP sensor 1)

[Engine is running]
• Warm-up condition
• Idle speed

Approximately 0V

83

B

Sensor ground
(APP sensor 2)

[Engine is running]
• Warm-up condition
• Idle speed

Approximately 0V

86

P

CAN communication line

90

L

Sensor power supply
(APP sensor 1)

[Ignition switch: ON]

Approximately 5V

91

G

Sensor power supply
(APP sensor 2)

[Ignition switch: ON]

Approximately 5V

94

L

CAN communication line

98

GR

Accelerator pedal position
sensor 2

[Ignition switch: ON]
• Engine: Stopped
• Accelerator pedal: Fully released

0.28 - 0.48V

[Ignition switch: ON]
• Engine: Stopped
• Accelerator pedal: Fully depressed

More than 2.0V

99

SB

ASCD steering switch

[Ignition switch: ON]
• ASCD steering switch: OFF

Approximately 4V

[Ignition switch: ON]
• MAIN switch: Pressed

Approximately 0V

[Ignition switch: ON]
• CANCEL switch: Pressed

Approximately 1V

[Ignition switch: ON]
• RESUME/ACCELERATE switch: Pressed

Approximately 3V

[Ignition switch: ON]
• SET/COAST switch: Pressed

Approximately 2V

101

LG

Stop lamp switch

[Ignition switch: OFF]
• Brake pedal: Fully released

Approximately 0V

[Ignition switch: OFF]
• Brake pedal: Slightly depressed

BATTERY VOLTAGE
(11 - 14V)

102

G

PNP switch

[Ignition switch: ON]
• Selector lever: P or N

Approximately 0V

[Ignition switch: ON]
• Except the above gear position

BATTERY VOLTAGE
(11 - 14V)

104

O

Throttle control motor relay

[Ignition switch: OFF]

BATTERY VOLTAGE
(11 - 14V)

[Ignition switch: ON]

0 - 1.0V

TER-

MI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

EC-896

< ECU DIAGNOSIS >

[VK56DE]

ECM

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

*:Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to

PG-4, "How to Handle Battery"

.

106

R

Accelerator pedal position
sensor 1

[Ignition switch: ON]
• Engine: Stopped
• Accelerator pedal: Fully released

0.65 - 0.87V

[Ignition switch: ON]
• Engine: Stopped
• Accelerator pedal: Fully depressed

More than 4.3V

107

Y

Fuel tank temperature sensor

[Engine is running]

Approximately 0 - 4.8V
Output voltage varies with fuel
tank temperature.

108

LG

ASCD brake switch

[Ignition switch: ON]
• Brake pedal: Slightly depressed

Approximately 0V

[Ignition switch: ON]
• Brake pedal: Fully released

BATTERY VOLTAGE
(11 - 14V)

109

W/R

Ignition switch

[Ignition switch: OFF]

0V

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

111

BR

ECM relay
(Self shut-off)

[Engine is running]
[Ignition switch: OFF]
• For a few seconds after turning ignition

switch OFF

0 - 1.5V

[Ignition switch: OFF]
• More than a few seconds after turning igni-

tion switch OFF

BATTERY VOLTAGE
(11 - 14V)

113

V

Fuel pump relay

[Ignition switch: ON]
• For 1 second after turning ignition switch

ON

[Engine is running]

0 - 1.5V

[Ignition switch: ON]
• More than 1 second after turning ignition

switch ON

BATTERY VOLTAGE
(11 - 14V)

115
116

B
GR

ECM ground

[Engine is running]
• Idle speed

Body ground

117

G

EVAP canister vent control
valve

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

119

120

R
P

Power supply for ECM

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

121

R/B

Power supply for ECM
(Back-up)

[Ignition switch: OFF]

BATTERY VOLTAGE
(11 - 14V)

TER-

MI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

ECM

EC-897

< ECU DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

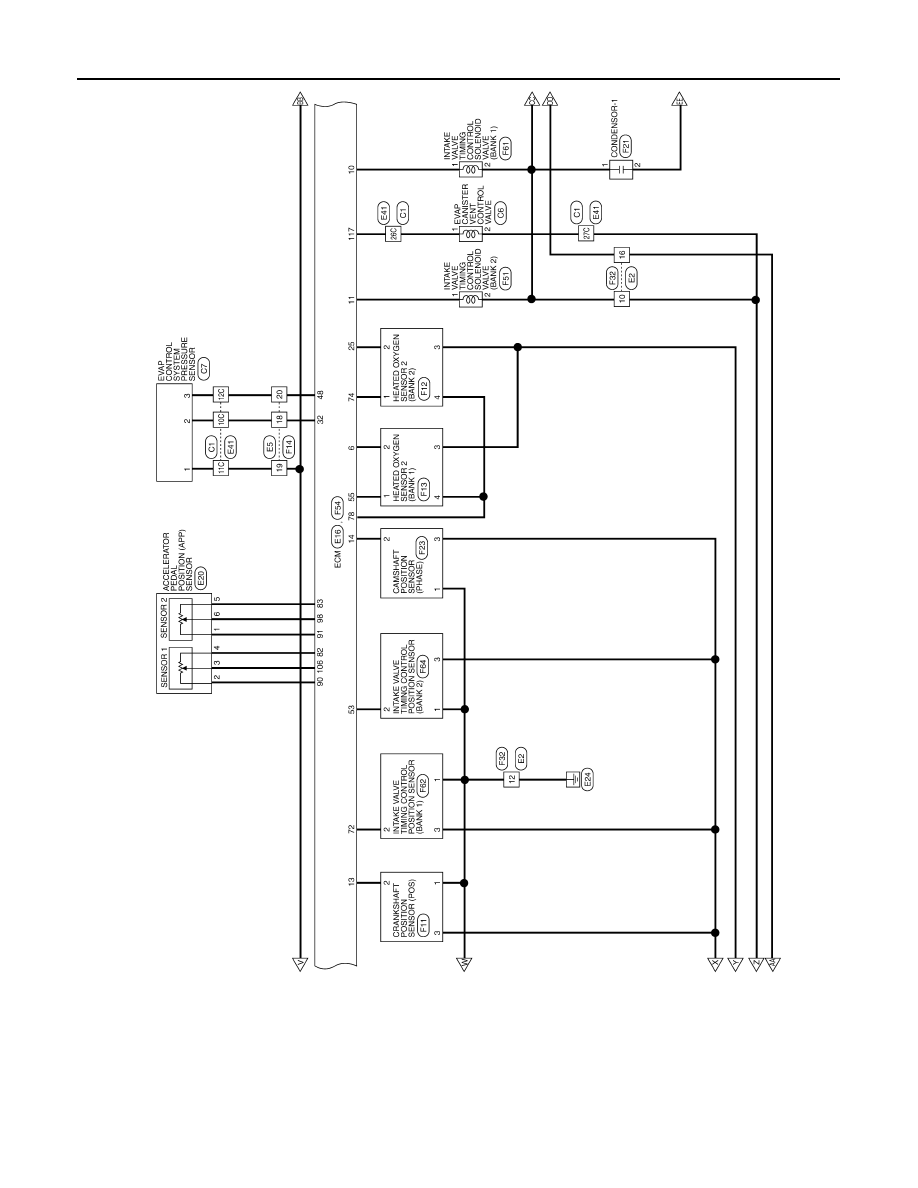

Wiring Diagram - ENGINE CONTROL SYSTEM -

INFOID:0000000001538016

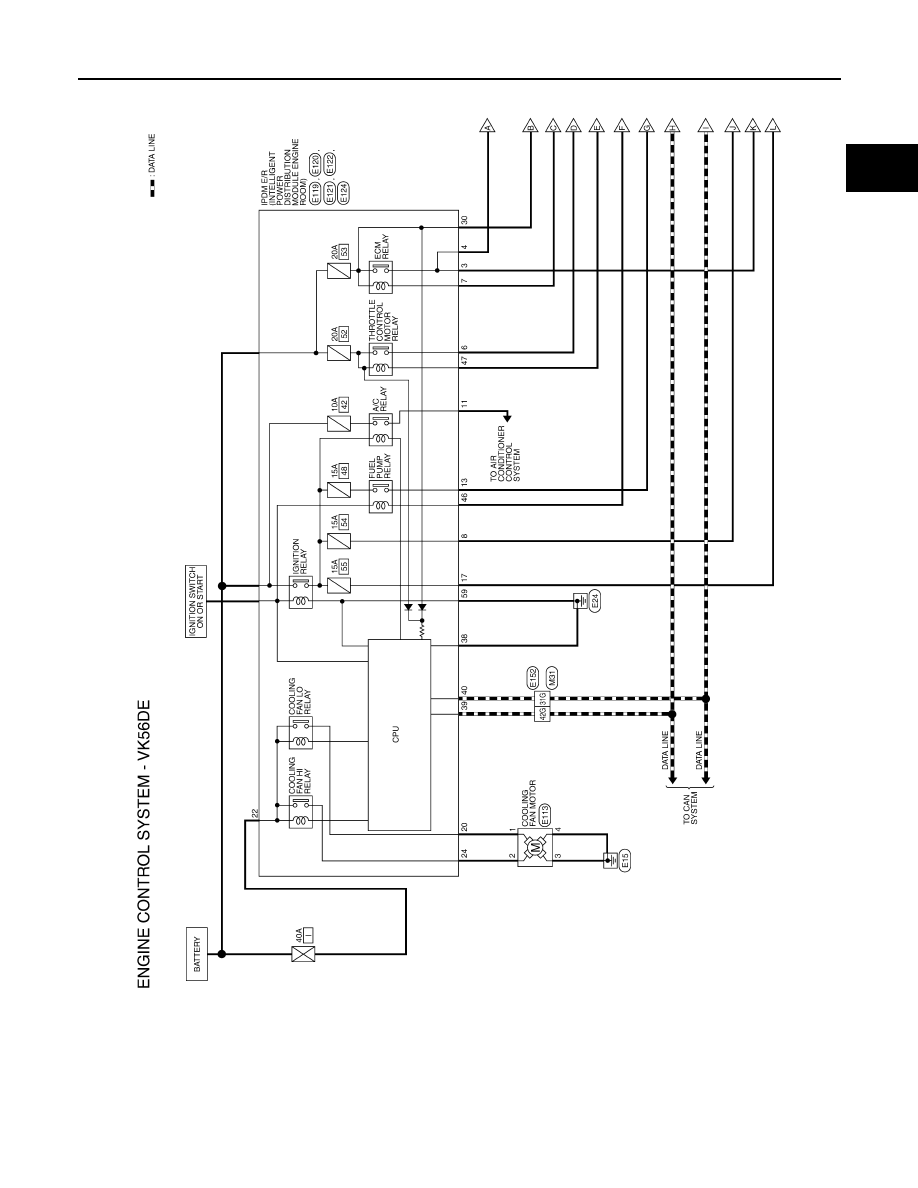

ALBWA0156GB

EC-898

< ECU DIAGNOSIS >

[VK56DE]

ECM

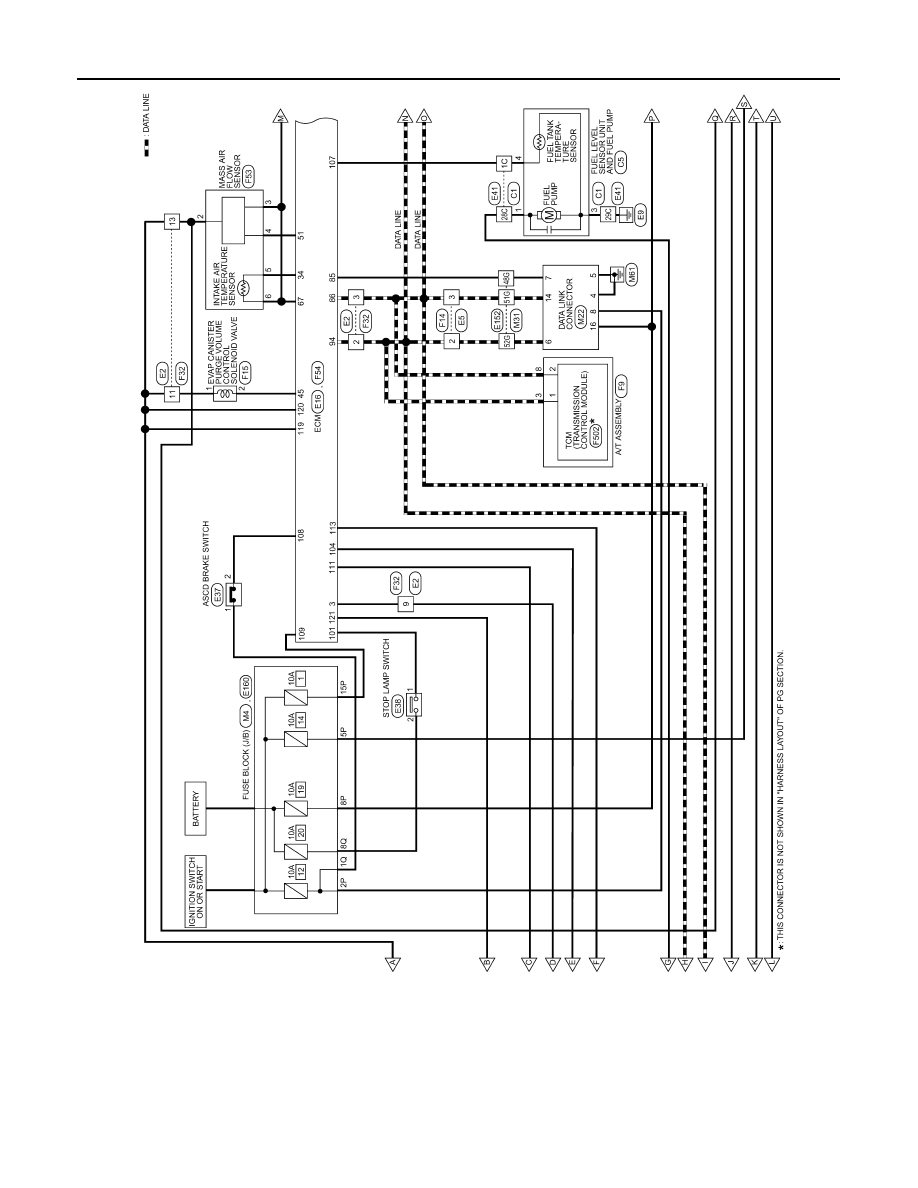

ALBWA0157GB

ECM

EC-899

< ECU DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

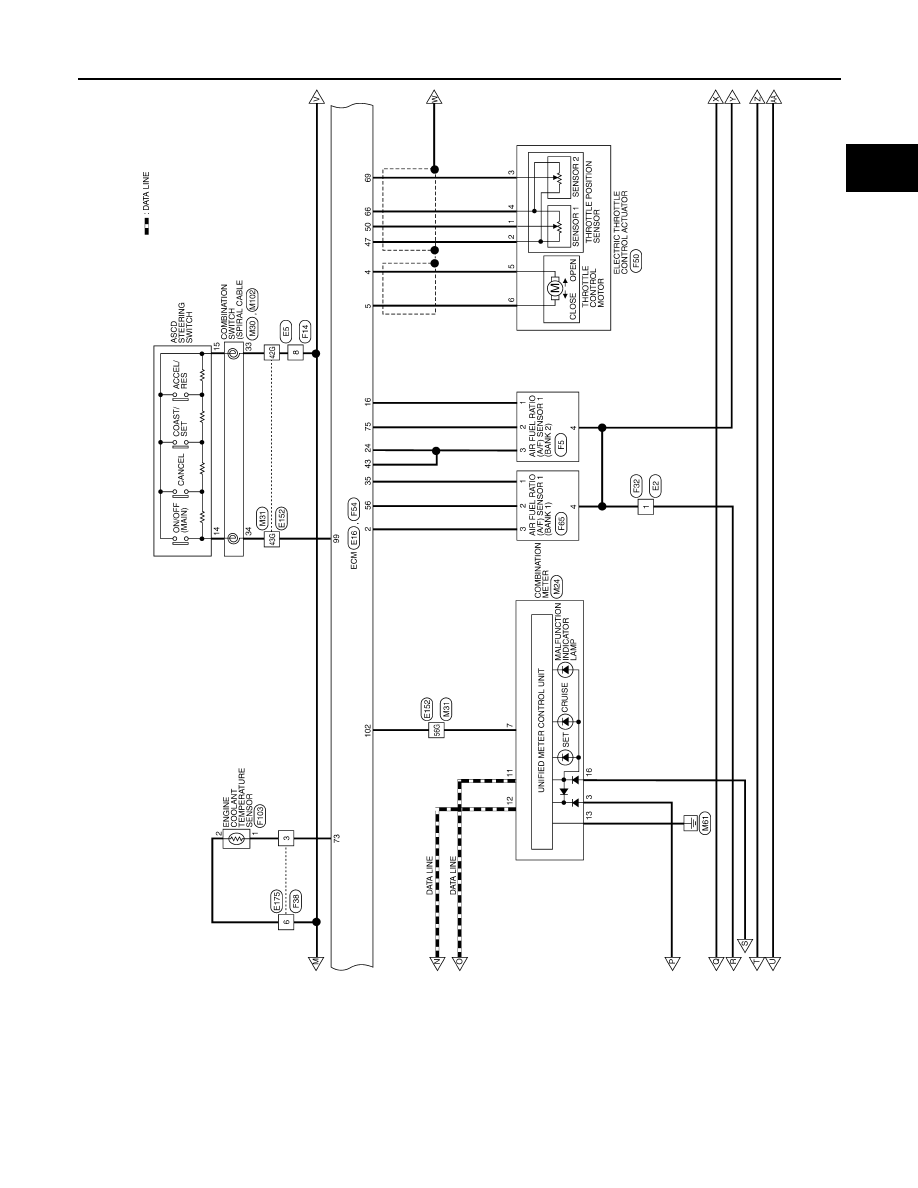

ALBWA0158GB

EC-900

< ECU DIAGNOSIS >

[VK56DE]

ECM

ALBWA0159GB
