Nissan Pathfinder (2008 year). Manual - part 228

DLN-408

< ON-VEHICLE REPAIR >

[REAR FINAL DRIVE: R200]

SIDE OIL SEAL

CAUTION:

Check the differential gear oil level after installation. Refer to

DLN-404, "Checking Differential Gear

Oil"

.

CARRIER COVER

DLN-409

< ON-VEHICLE REPAIR >

[REAR FINAL DRIVE: R200]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

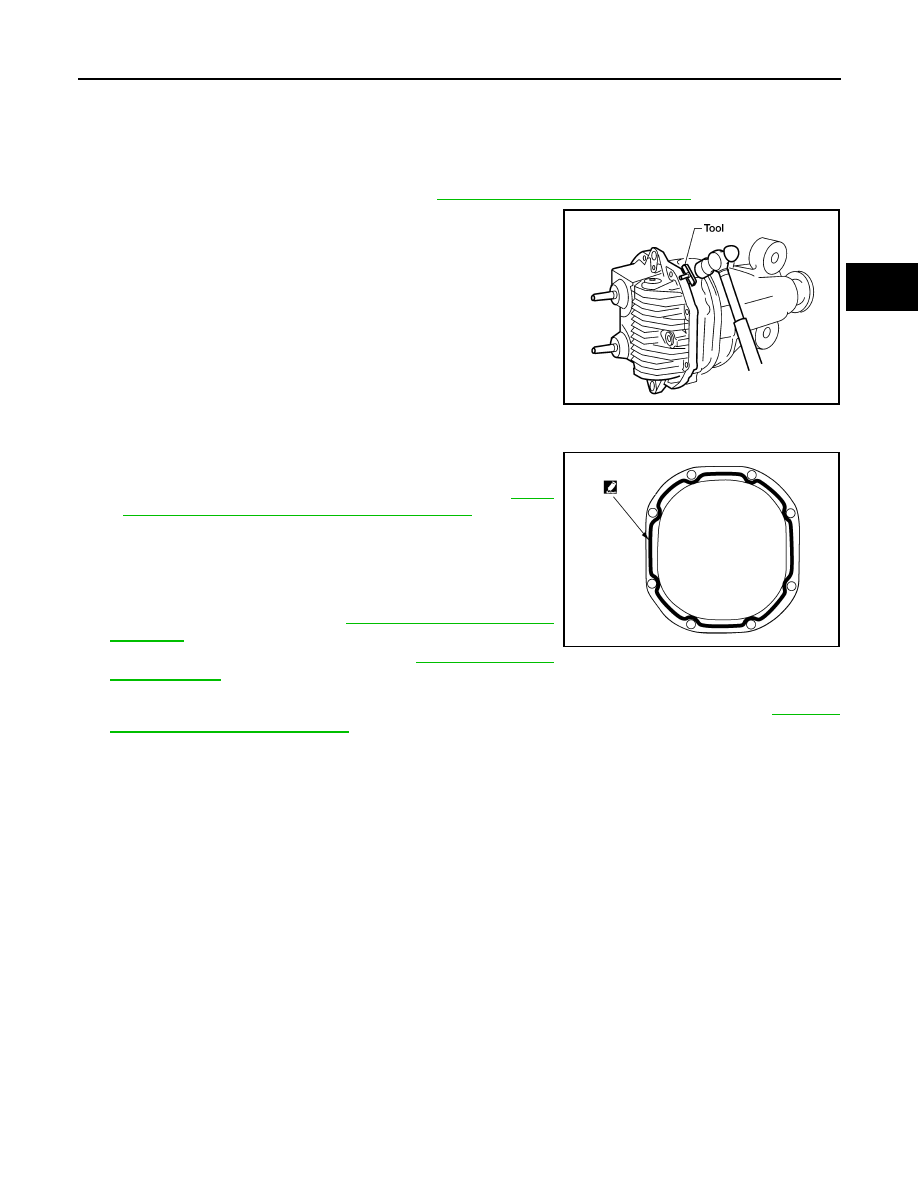

CARRIER COVER

Removal and Installation

INFOID:0000000001297293

REMOVAL

1.

Remove the rear final drive assembly. Refer to

DLN-410, "Removal and Installation"

.

2.

Remove the carrier cover bolts and separate the carrier cover
from the gear carrier using Tool.

CAUTION:

• Do not damage the mating surface.
• Do not insert flat-bladed screwdriver, this will damage the

mating surface.

INSTALLATION

1.

Apply a 3 mm (0.12 in) bead of sealant to the mating surface of
the carrier cover as shown.
• Use Genuine Silicone RTV or equivalent. Refer to

GI-26,

"Recommended Chemical Products and Sealants"

.

CAUTION:

Remove any old sealant adhering to the mating surfaces.
Also remove any moisture, oil, or foreign material adhering
to the application and mating surfaces.

2.

Install the carrier cover to the gear carrier. Tighten the bolts to
the specified torque. Refer to

DLN-413, "Disassembly and

Assembly"

.

3.

Install the rear final drive assembly. Refer to

DLN-410, "Removal

and Installation"

.

CAUTION:

Fill the rear final drive assembly with recommended differential gear oil. Refer to

DLN-404,

"Changing Differential Gear Oil"

.

Tool number

: KV10111100 (J-37228)

WDIA0123E

WDIA0282E

DLN-410

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: R200]

REAR FINAL DRIVE

REMOVAL AND INSTALLATION

REAR FINAL DRIVE

Removal and Installation

INFOID:0000000001297294

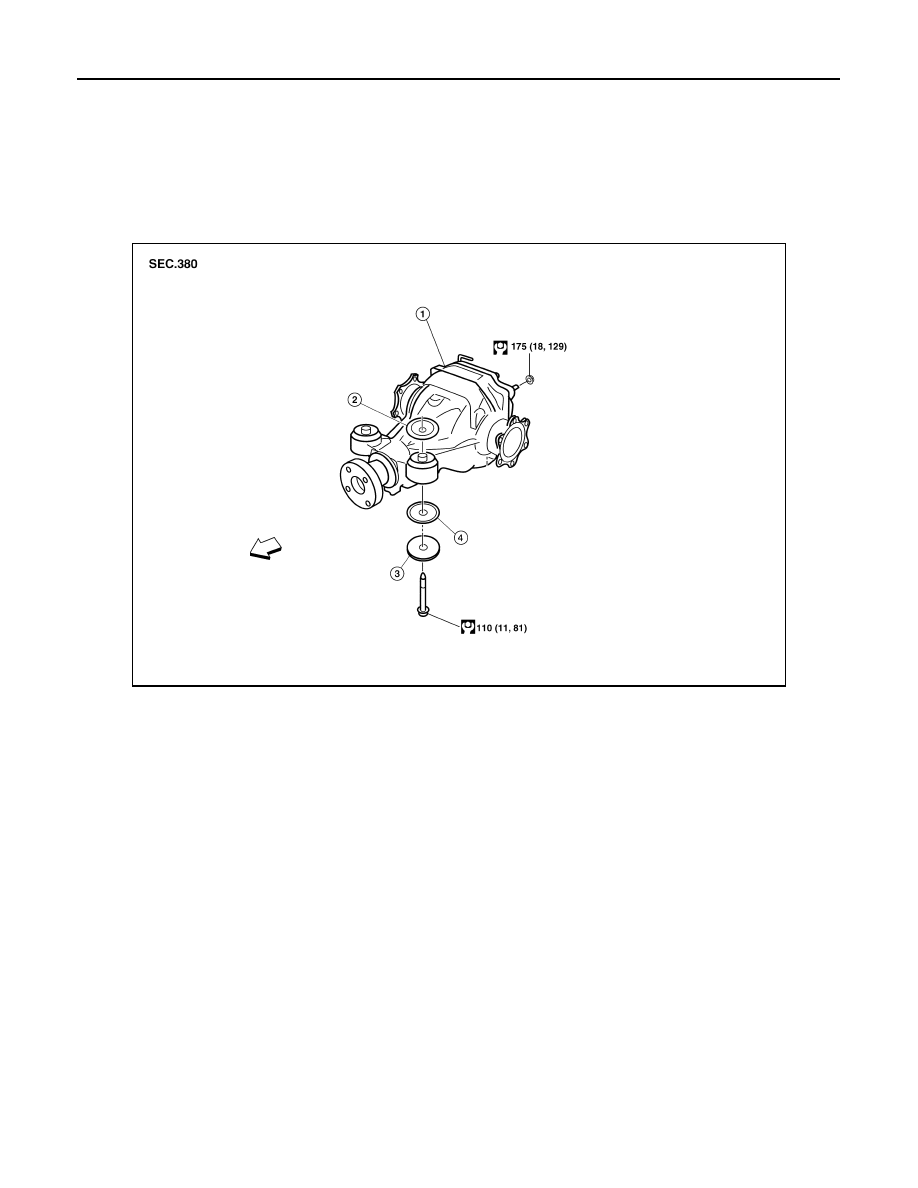

COMPONENTS

Rear Final Drive

WDIA0383E

1.

Rear final drive assembly

2.

Upper stopper

3.

Washer

4.

Lower stopper

⇐

:

Front

REAR FINAL DRIVE

DLN-411

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: R200]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

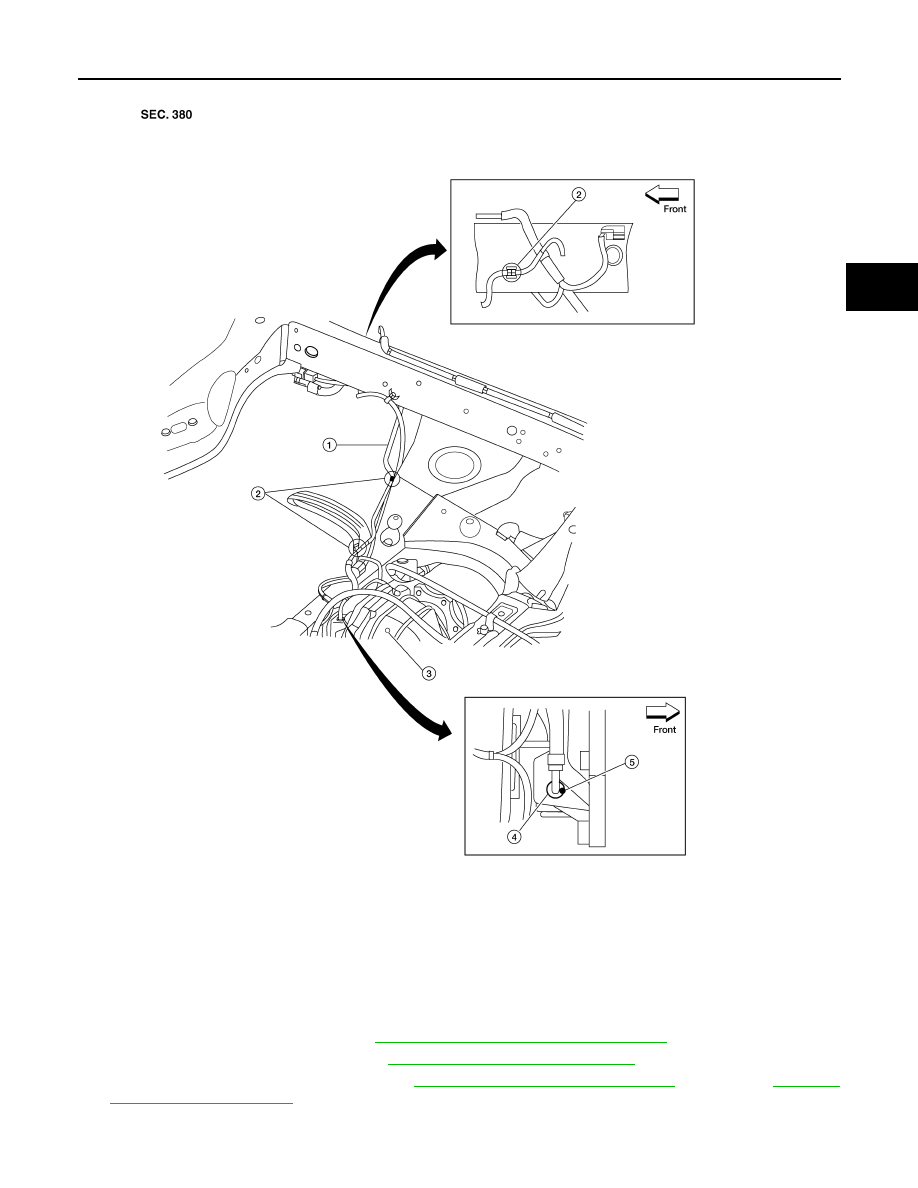

Rear Final Drive Breather Hose

REMOVAL

1.

Remove the spare tire.

2.

Drain the differential gear oil. Refer to

DLN-404, "Changing Differential Gear Oil"

.

3.

Remove the rear stabilizer bar. Refer to

RSU-21, "Removal and Installation"

.

4.

Remove the rear propeller shaft. Refer to

DLN-316, "Removal and Installation"

 (2S1330) or

DLN-325,

"Removal and Installation"

 (2S1350).

LDIA0166E

1.

Breather hose

2.

Plastic connectors

3.

Rear final drive assembly

4.

Metal connector

5.

Paint mark

DLN-412

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: R200]

REAR FINAL DRIVE

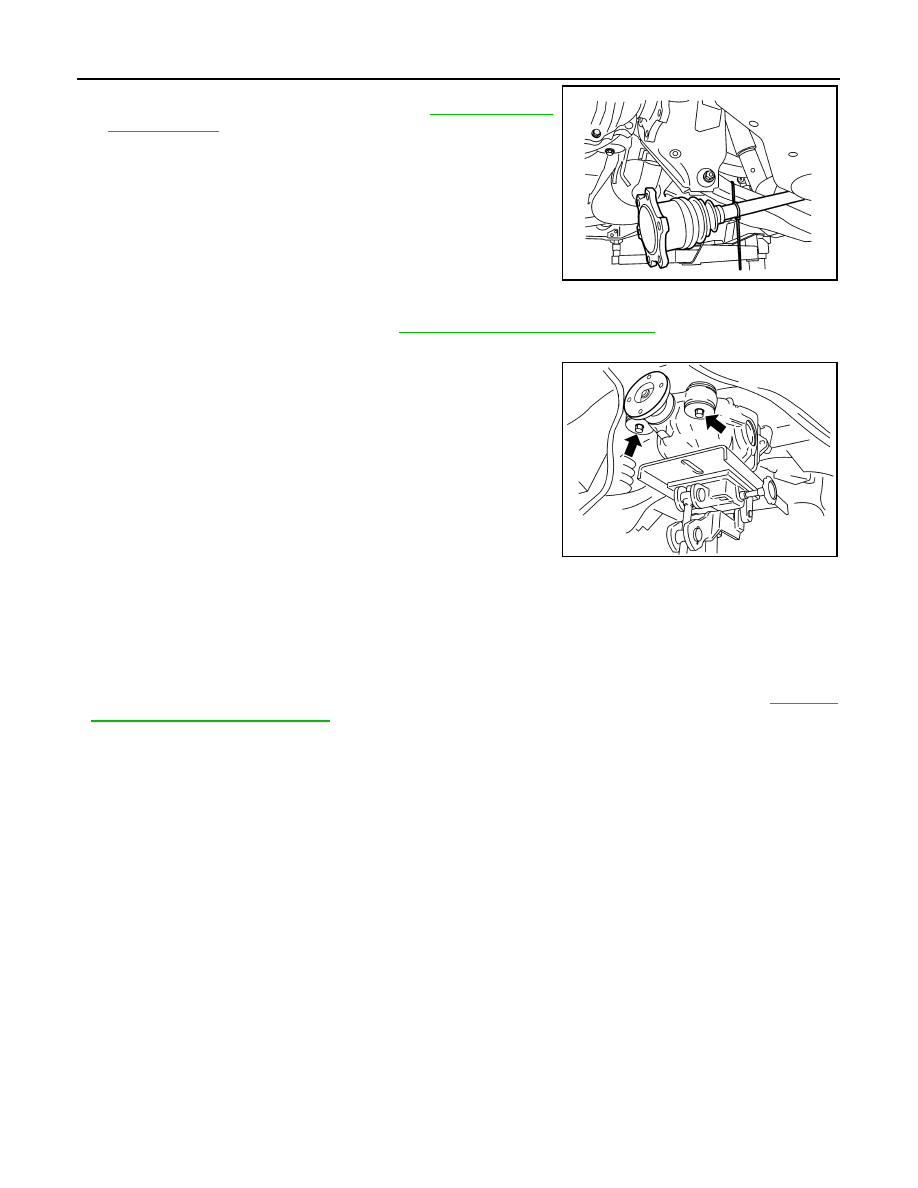

5.

Remove the rear drive shafts from the rear final drive assembly
and support them using suitable wire. Refer to

RAX-9, "Removal

and Installation"

.

6.

Disconnect the breather hose from the rear final drive assembly.

7.

Remove the rear wheel sensors. Refer to

BRC-121, "Removal and Installation"

.

8.

Place a suitable jack under the rear final drive assembly.

CAUTION:

Do not place the jack on the carrier cover.

9.

Remove the nuts and bolts and remove the rear final drive
assembly.

CAUTION:

Secure rear final drive assembly to the jack while removing
it.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When installing the breather hose make sure the painted marking on the metal end of breather hose

is to the front of the vehicle and there are no pinched or restricted areas on the breather hose
caused by folding or bending when installing it.

• Make sure the breather hose plastic connectors are in the appropriate holes.
• Fill the front final drive assembly with differential gear oil after installation. Refer to

DLN-404,

"Changing Differential Gear Oil"

.

LDIA0164E

WDIA0117E

REAR FINAL DRIVE

DLN-413

< DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R200]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

DISASSEMBLY AND ASSEMBLY

REAR FINAL DRIVE

Disassembly and Assembly

INFOID:0000000001297295

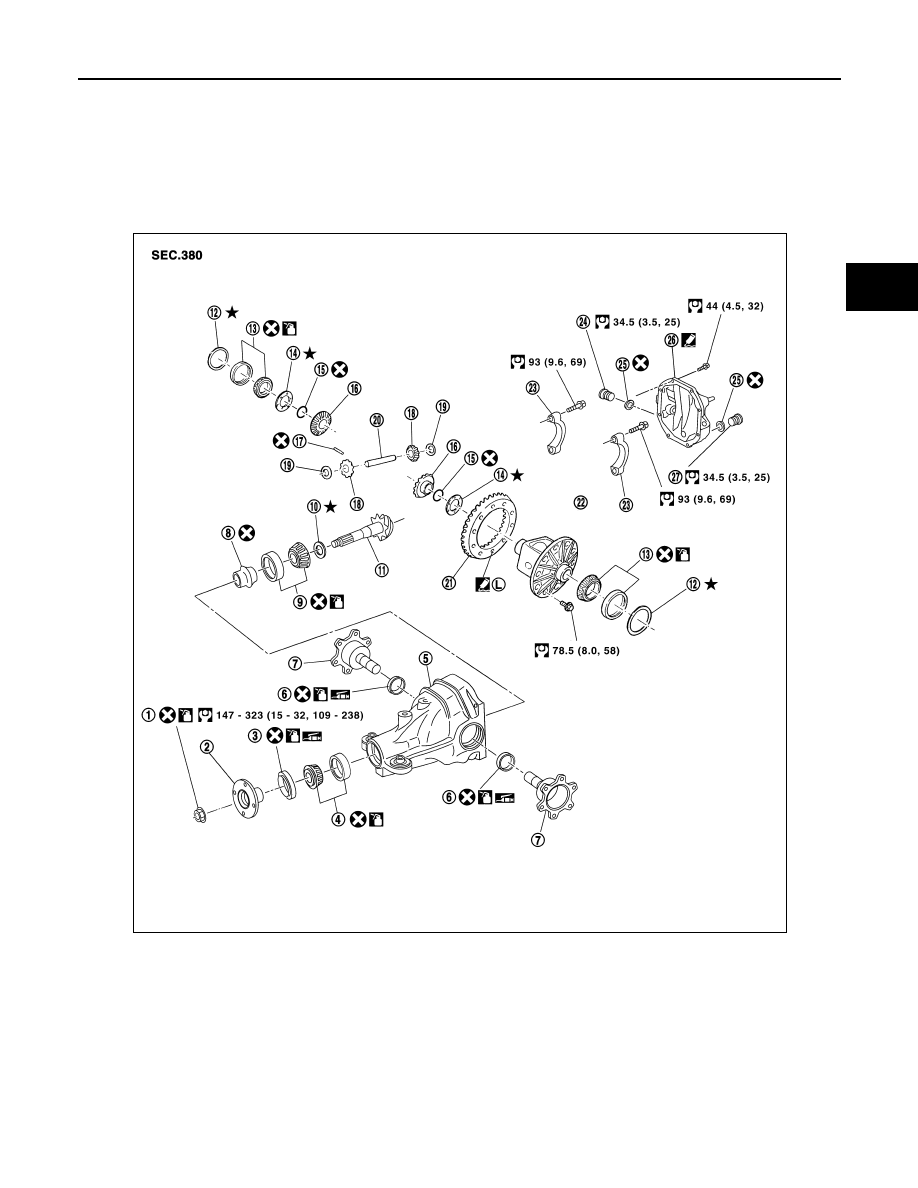

COMPONENTS

1.

Drive pinion lock nut

2.

Companion flange

3.

Front oil seal

4.

Drive pinion front bearing

5.

Gear carrier

6.

Side oil seal

7.

Side flange

8.

Collapsible spacer

9.

Drive pinion rear bearing

10. Drive pinion height adjusting

washer

11.

Drive pinion

12. Side bearing adjusting washer

13. Side bearing

14. Side gear thrust washer

15. Circular clip

16. Side gear

17. Lock pin

18. Pinion mate gear

19. Pinion mate thrust washer

20. Pinion mate shaft

21. Drive gear

22. Differential case

23. Side bearing cap

24. Filler plug

25. Gasket

26. Carrier cover

27. Drain plug

WDIA0295E

DLN-414

< DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R200]

REAR FINAL DRIVE

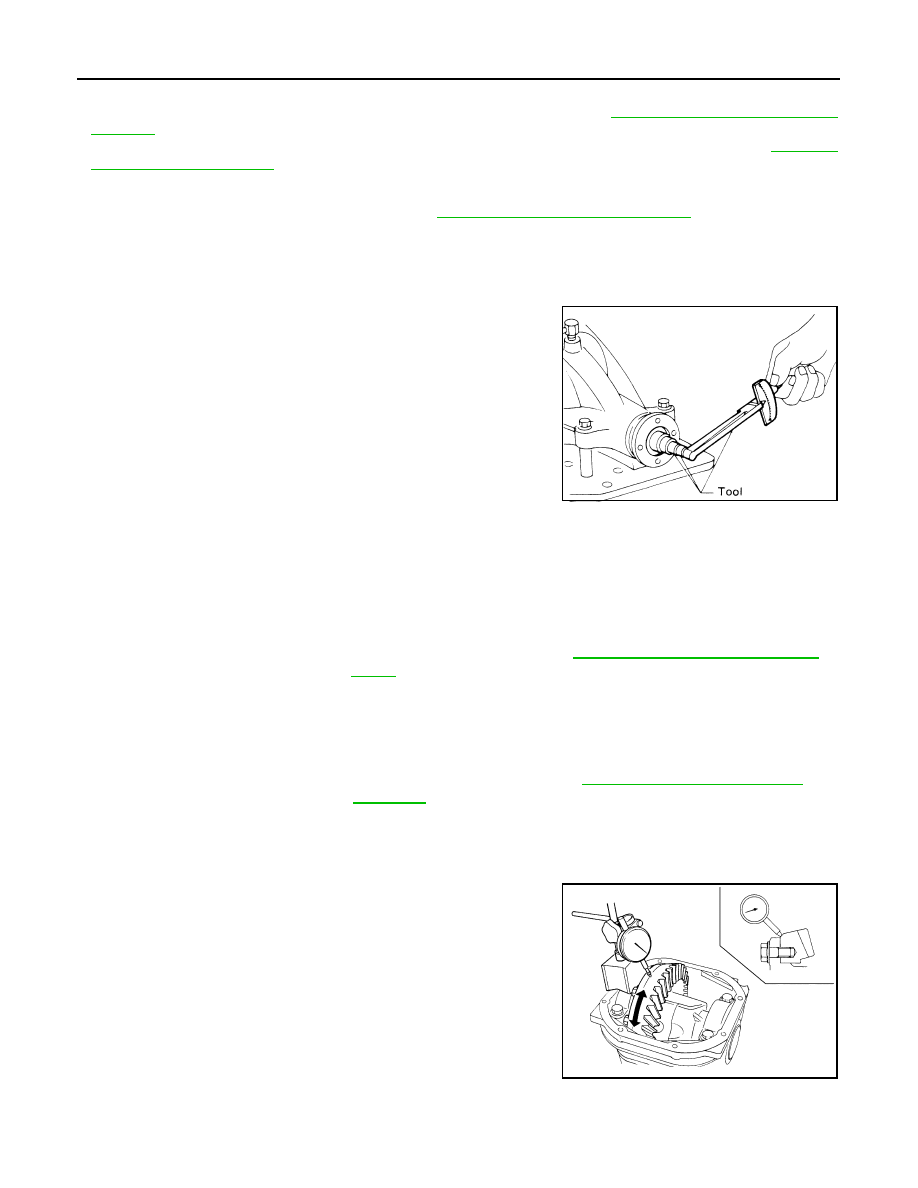

ASSEMBLY INSPECTION AND ADJUSTMENT

• Drain the differential gear oil before inspection and adjustment. Refer to

DLN-404, "Changing Differential

Gear Oil"

.

• Remove and install the carrier cover as necessary for inspection and adjustment. Refer to

DLN-409,

"Removal and Installation"

.

Total Preload Torque

1.

Remove the side flanges if necessary. Refer to

DLN-407, "Removal and Installation"

.

CAUTION:

The side flanges shaft must removed in order to measure total preload torque.

2.

Rotate the drive pinion back and forth 2 to 3 times to check for unusual noise and rotation malfunction.

3.

Rotate the drive pinion at least 20 times to check for smooth operation of the bearings.

4.

Measure total preload torque using Tool.

NOTE:
Total preload torque = Drive pinion bearing preload torque +
Side bearing preload torque

• If the measured value is out of the specification, check and adjust each part. Adjust the drive pinion

bearing preload torque first, then adjust the side bearing preload torque.

CAUTION:

Select a side bearing adjusting washer for right and left individually.

Drive Gear Runout

1.

Fit a dial indicator to the drive gear back face.

2.

Rotate the drive gear to measure runout.

• If the runout is outside of the limit, check the condition of the drive

gear assembly. Foreign material may be caught between the drive
gear and differential case, or the differential case or drive gear may
be deformed.

CAUTION:

Replace drive gear and drive pinion as a set.

Tooth Contact

Tool number

: ST3127S000 (J-25765-A)

Total preload torque:

2.84 - 3.75 N·m (0.29 - 0.38 kg-m, 26 - 33 in-lb)

SPD884

If the total preload torque is greater than specification

On drive pinion bearings:

Replace the collapsible spacer.

On side bearings:

Use thinner side bearing adjusting washers by the same
amount on each side. Refer to

DLN-432, "Inspection and Adjust-

ment"

.

If the total preload torque is less than specification

On drive pinion bearings:

Tighten the drive pinion lock nut.

On side bearings:

Use thicker side bearing adjusting washers by the same
amount on each side. Refer to

DLN-432, "Inspection and Ad-

justment"

.

Runout limit

: 0.05 mm (0.0020 in) or less

SPD886

REAR FINAL DRIVE

DLN-415

< DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R200]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

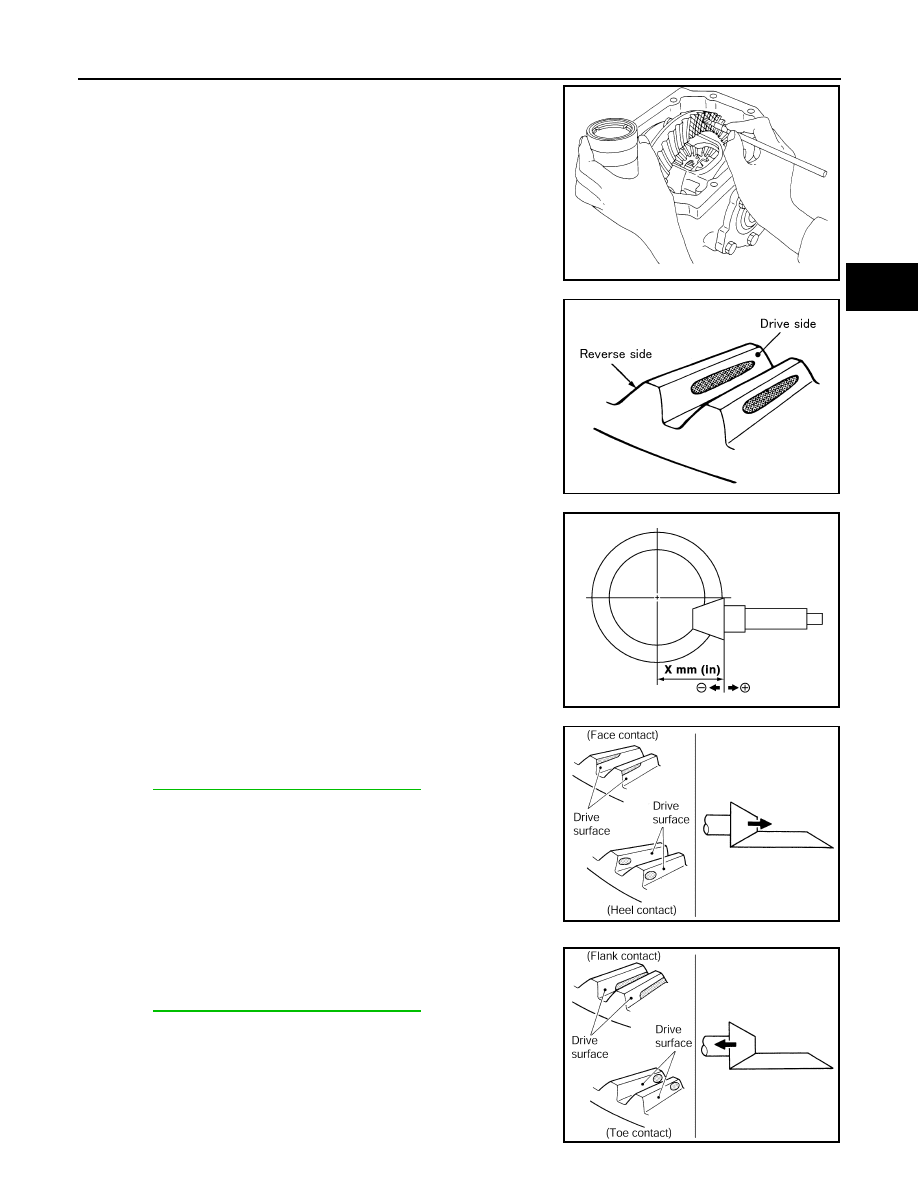

1.

Apply red lead to the drive gear.
NOTE:
Apply red lead to both faces of three to four gears, at four loca-
tions evenly spaced on the drive gear.

2.

Rotate the drive gear back and forth several times. Then check
for correct drive pinion to drive gear tooth contact as shown.

CAUTION:

Check tooth contact on drive side and reverse side.

3.

If the tooth contact is improperly adjusted, follow the procedure
below to adjust the pinion height (dimension X).

• If the tooth contact is near the face (face contact), or near the heel

(heel contact), use a thicker drive pinion height adjusting washers
to move the drive pinion closer to the drive gear.
Refer to

DLN-432, "Inspection and Adjustment"

.

• If the tooth contact is near the flank (flank contact), or near the toe

(toe contact), use a thinner drive pinion height adjusting washers to
move the drive pinion farther from the drive gear.
Refer to

DLN-432, "Inspection and Adjustment"

.

SPD357

SDIA0570E

SDIA0517E

PDIA0440E

PDIA0441E
