DLN-280

< ON-VEHICLE REPAIR >

[TRANSFER: TX15B]

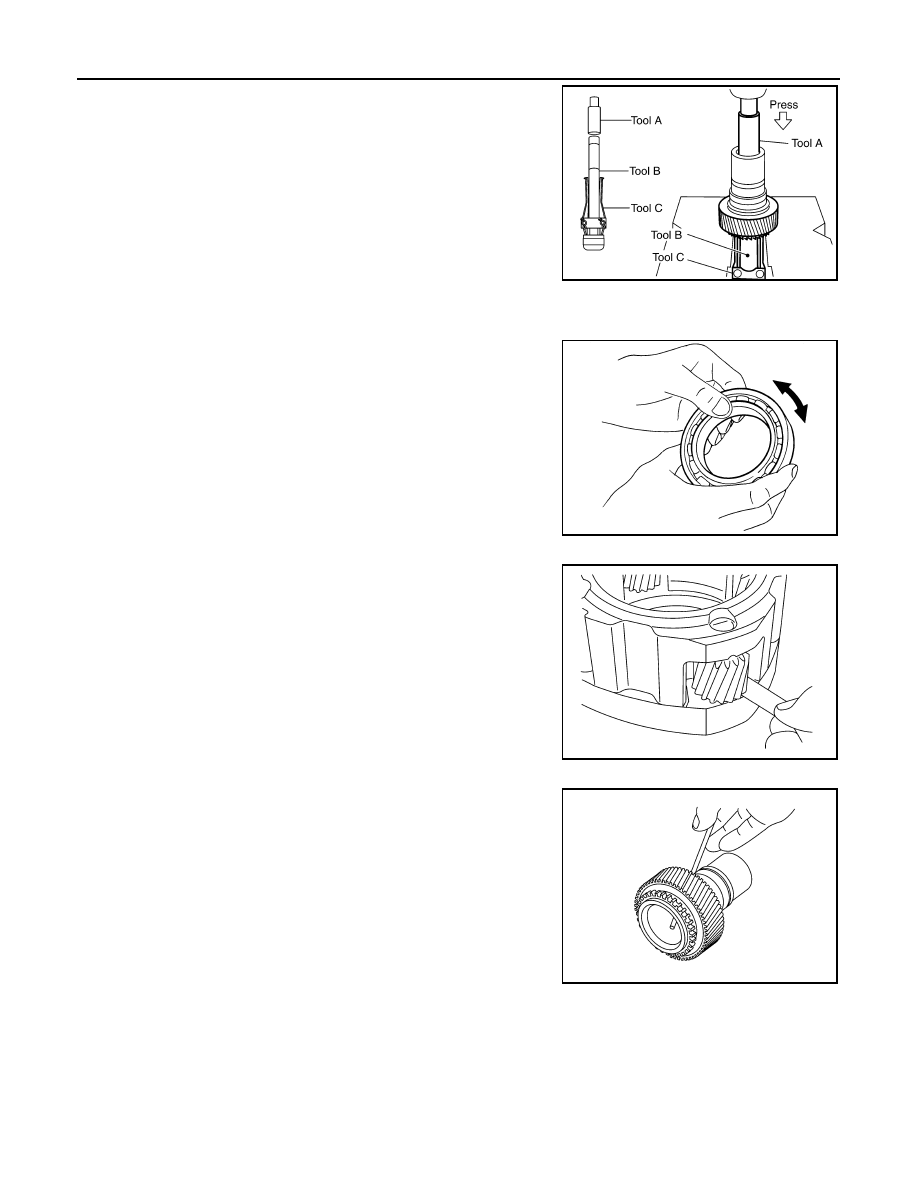

PLANETARY CARRIER

6.

Remove the metal bushing from the sun gear using Tools.

INSPECTION AFTER DISASSEMBLY

Bearing

Check the bearing for damage and rough rotation. If necessary,
replace the bearing with a new one.

Planetary Carrier

• Measure the end play of each pinion gear. If it is out of specifica-

tion, replace the planetary carrier assembly with new one.

• Check the working face of each gear and bearing for damage,

burrs, partial wear, dents and other abnormality. If any is found,
replace the planetary carrier assembly with a new one.

Sun Gear

• Check if the oil passage of the sun gear assembly is clogged. For

this, try to pass a 3.6 mm (0.142 in) dia. wire through the oil pas-
sage as shown.

• Check the sliding and contact surface of each gear and bearing for

damage, burrs, partial wear, dents and other abnormality. If any is
found, replace the sun gear assembly with a new one.

Internal Gear

Tool number

A: ST33710000 (

—

)

B: ST35325000 (

—

)

C: ST33290001 (J-34286)

SDIA2168E

MTF0041D

Pinion gear end play

: 0.1 - 0.7 mm (0.004 - 0.028 in)

PDIA0146E

PDIA0147E

PLANETARY CARRIER

DLN-281

< ON-VEHICLE REPAIR >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

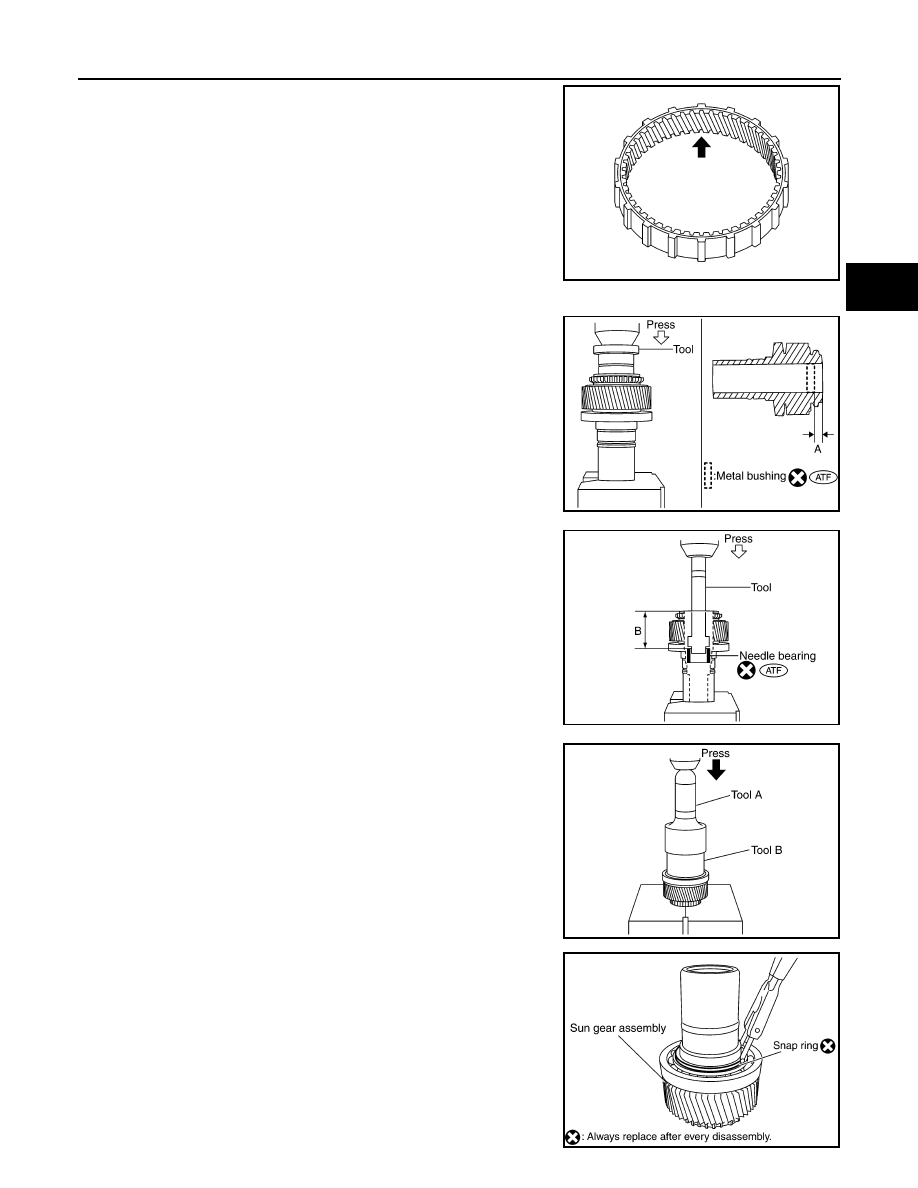

Check the internal gear teeth for damage, partial wear, dents or
other abnormality. If any is found, replace the internal gear with a
new one.

ASSEMBLY

1.

Apply ATF to the new metal bushing, then install the new metal
bushing until it becomes “Dimension A” using Tool.

CAUTION:

Do not reuse metal bushing.

2.

Apply ATF to the new needle bearing, then install the new nee-
dle bearing until it becomes “Dimension B” using Tool.

CAUTION:

Do not reuse needle bearing.

3.

Install the carrier bearing to the sun gear using Tools.

4.

Install the new snap ring to the sun gear assembly using suitable
tool.

CAUTION:

Do not reuse snap ring.

PDIA0157E

Tool number

: ST35300000 (

—

)

Dimension A

: 7.7 - 8.3mm (0.303 - 0.327in)

SDIA3189E

Tool number

: ST33220000 (

—

)

Dimension B

: 62.5 - 63.1mm (2.461 - 2.484in)

SDIA3190E

Tool number

A: ST30720000 (J-25405)

B: ST27863000 (

—

)

PDIA0149E

SDIA2353E

DLN-282

< ON-VEHICLE REPAIR >

[TRANSFER: TX15B]

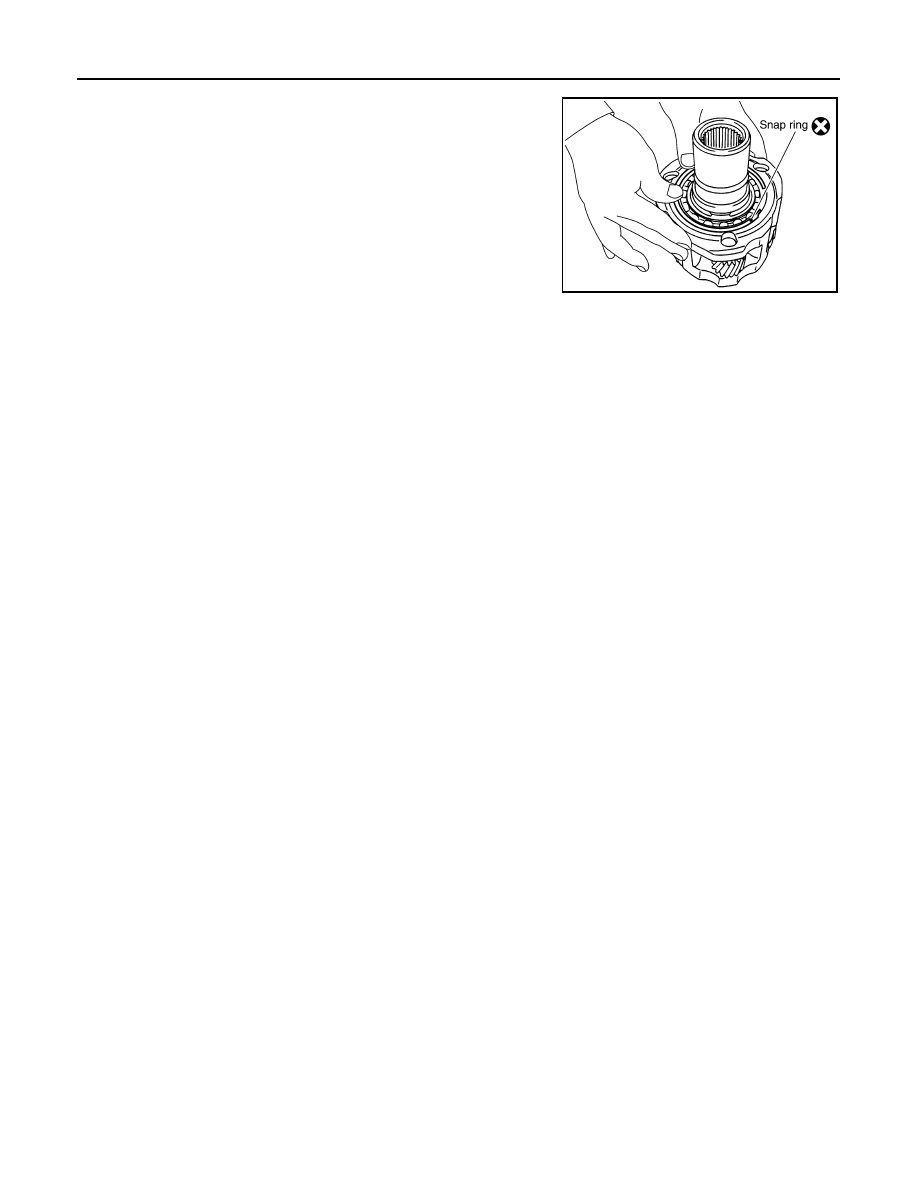

PLANETARY CARRIER

5.

Install the sun gear assembly to the planetary carrier assembly.

6.

Install the new snap ring to the planetary carrier assembly.

CAUTION:

Do not reuse snap ring.

SDIA2794E

FRONT DRIVE SHAFT

DLN-283

< ON-VEHICLE REPAIR >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

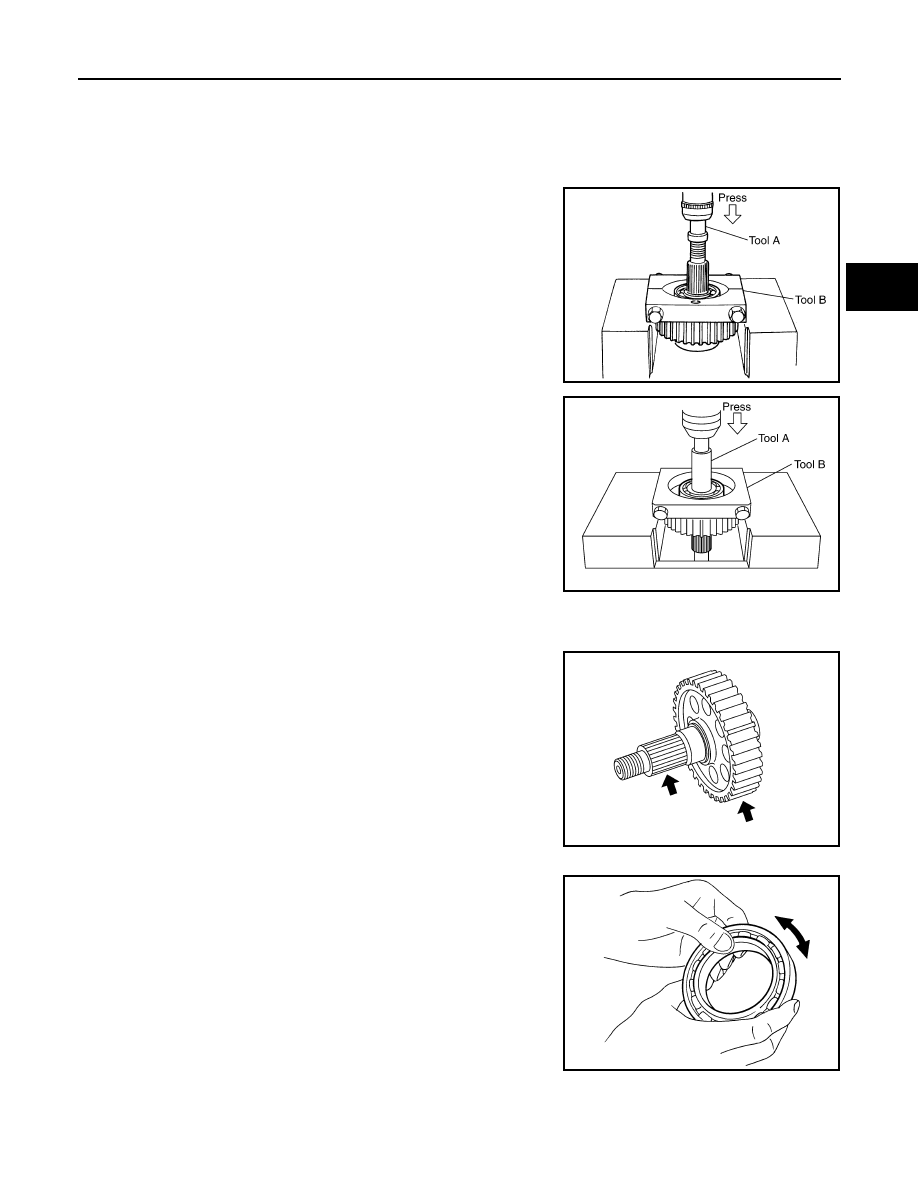

FRONT DRIVE SHAFT

Disassembly and Assembly

INFOID:0000000001282323

DISASSEMBLY

1.

Remove the front bearing using Tools.

2.

Remove the rear bearing using Tools.

INSPECTION AFTER DISASSEMBLY

Front Drive Shaft

Check the items below. If necessary, replace them with new ones.
• Damage, peeling, dent, uneven wear and bending of the shaft.
• Excessive wear, damage and peeling of the gear.

Bearing

Check the bearing for damage and rough rotation. If necessary,
replace the bearing with a new one.

ASSEMBLY

Tool number

A: ST35300000 (

—

)

B: ST30021000 (J-22912-01)

SDIA2106E

Tool number

A: ST33710000 (

—

)

B: ST30021000 (J-22912-01)

PDIA0153E

PDIA0154E

MTF0041D

DLN-284

< ON-VEHICLE REPAIR >

[TRANSFER: TX15B]

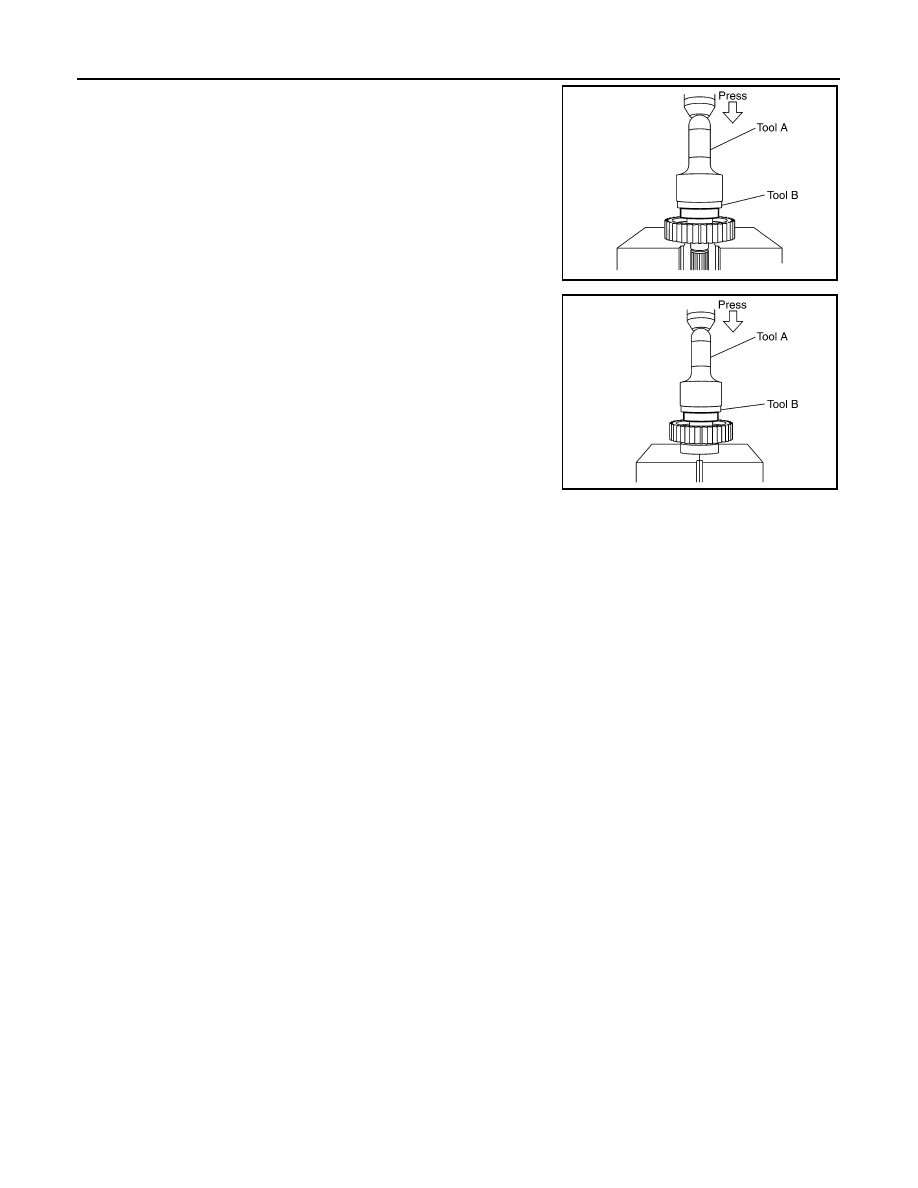

FRONT DRIVE SHAFT

1.

Install the rear bearing using Tools.

2.

Install the front bearing using Tools.

Tool number

A: KV38100500 (

—

)

B: ST30901000 (J-26010-01)

PDIA0155E

Tool number

A: KV38100500 (

—

)

B: ST30901000 (J-26010-01)

PDIA0156E

SHIFT CONTROL

DLN-285

< ON-VEHICLE REPAIR >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

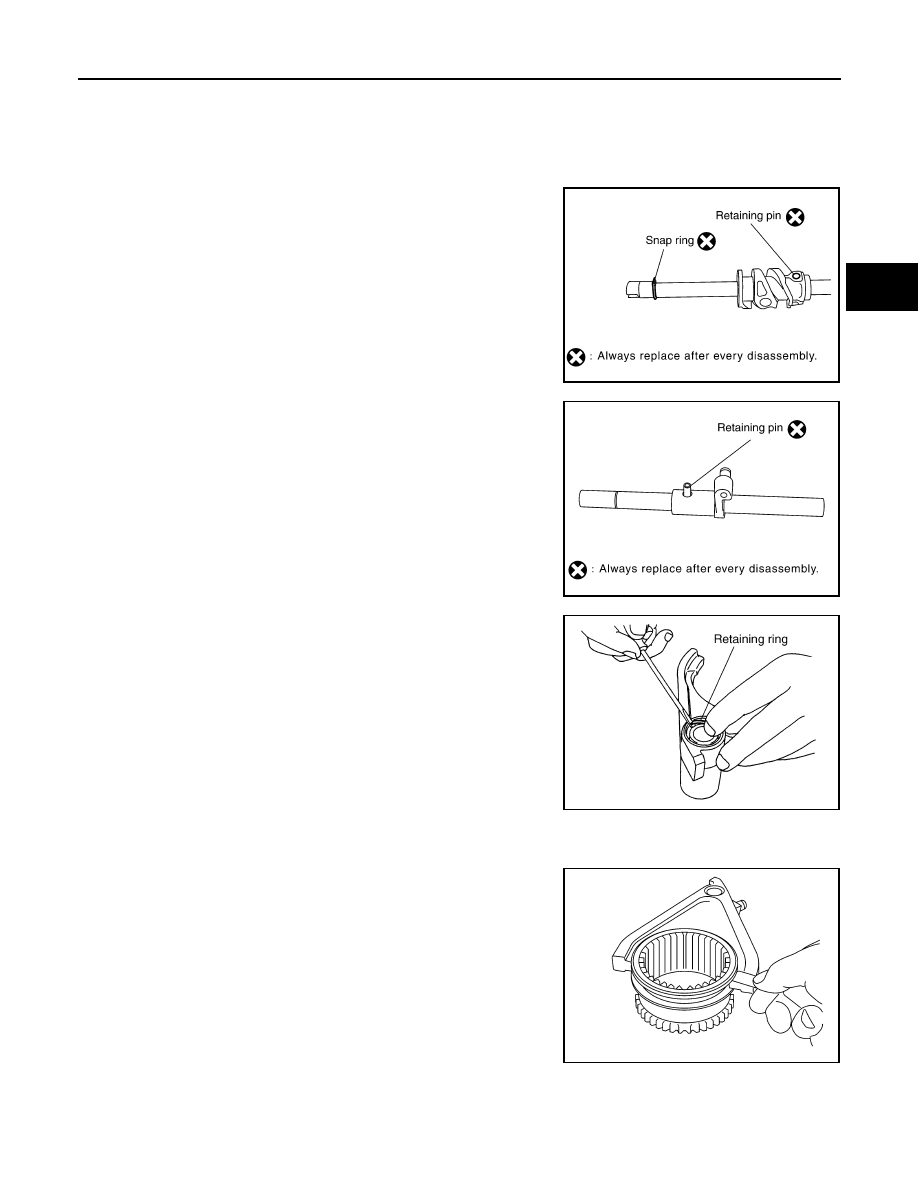

SHIFT CONTROL

Disassembly and Assembly

INFOID:0000000001282324

DISASSEMBLY

1.

Remove the snap ring.

2.

Remove the retaining pin.

3.

Remove the drum cam from the control shift rod.

4.

Remove the retaining pin from the L-H shift rod.

5.

Remove the 2-4 shift bracket.

6.

Remove the retaining ring from the 2-4 shift fork using suitable
tool.

7.

Remove the fork guide collar and 2-4 shift fork spring from the 2-
4 shift fork.

INSPECTION AFTER DISASSEMBLY

Shift Fork

• Measure the clearance between the shift fork and sleeve. If it is out

of specification, replace it with a new one.

Shift Rod and Fork Components

PDIA0122E

PDIA0125E

WDIA0226E

Standard value

2-4

: Less than 0.46 mm (0.018 in)

L-H

: Less than 0.46 mm (0.018 in)

PDIA0134E

DLN-286

< ON-VEHICLE REPAIR >

[TRANSFER: TX15B]

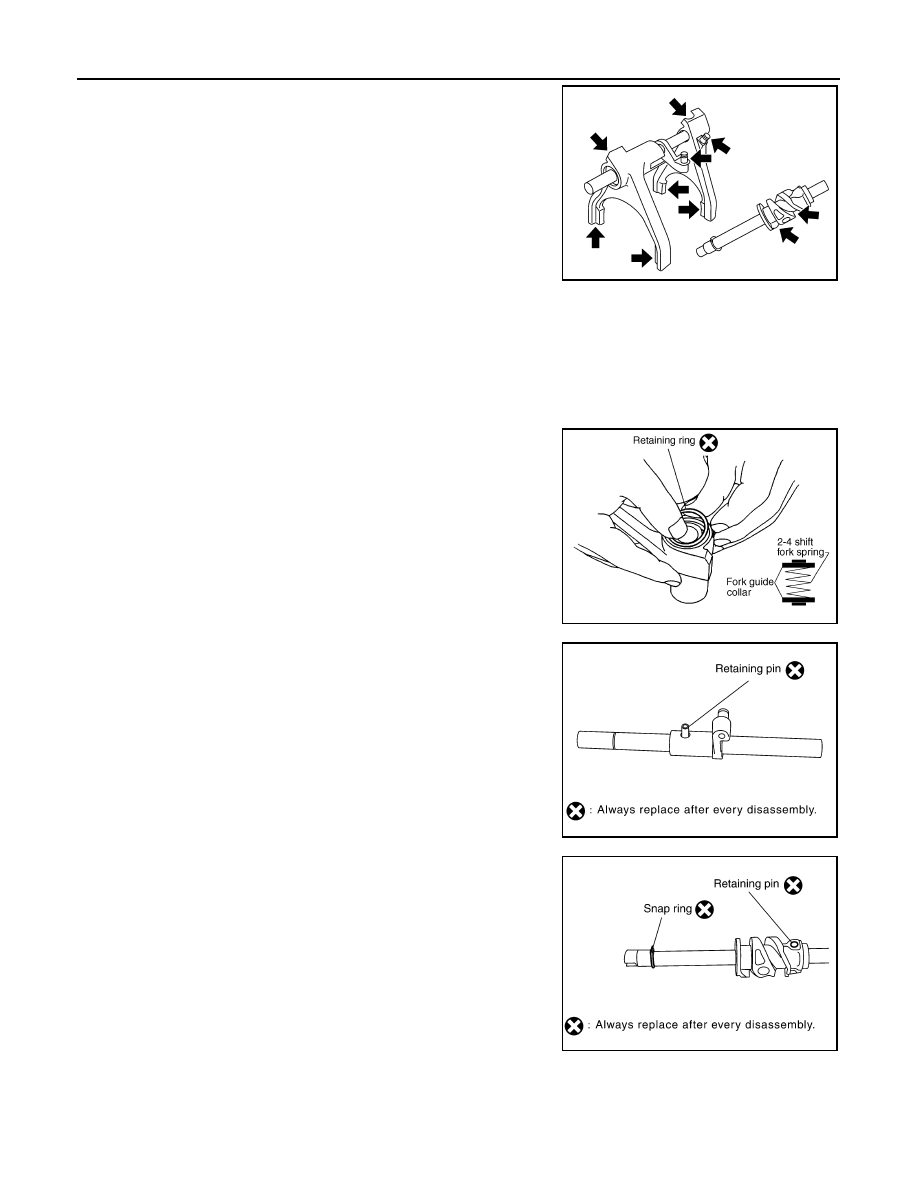

SHIFT CONTROL

• Check the working face of the shift rod and fork for wear, partial

wear, abrasion, bending and other abnormality. If any is found,
replace with a new one.

ASSEMBLY

1.

Install clevis pin and shift collar to L-H shift fork after assembling them.

CAUTION:

Use caution when installing L-H shift fork, clevis pin or shift collar.

2.

Install clevis pin and shift collar to 2-4 shift bracket after assembling them.

CAUTION:

Use caution when installing 2-4 shift bracket.

3.

Install guide fork collar and 2-4 shift fork spring to the 2-4 shift
fork, and then secure it with the new retaining ring.

CAUTION:

• Do not reuse retaining ring.
• Be careful with orientation.

4.

Install the 2-4shift bracket to the L-H shift rod.

5.

Install the new retaining pin evenly to the L-H shift rod.

CAUTION:

Do not reuse retaining pin.

6.

Install the drum cam to the control shift rod, and then secure it
with the new retaining pin.

CAUTION:

Do not reuse retaining pin.

7.

Install the new snap ring to the control shift rod.

CAUTION:

Do not reuse snap ring.

PDIA0135E

SDIA3391E

PDIA0125E

PDIA0122E

TRANSFER ASSEMBLY

DLN-287

< REMOVAL AND INSTALLATION >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

REMOVAL AND INSTALLATION

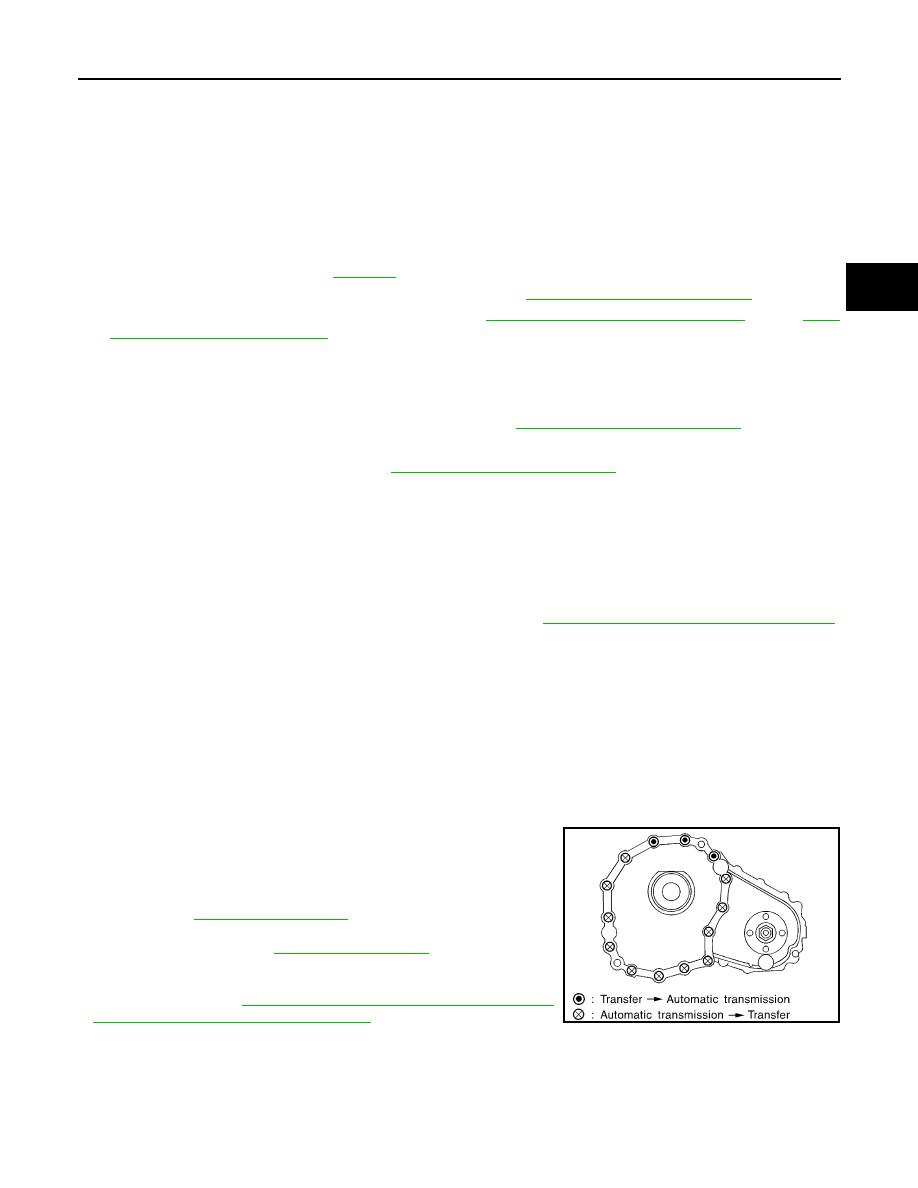

TRANSFER ASSEMBLY

Removal and Installation

INFOID:0000000001282320

REMOVAL

1.

Switch 4WD shift switch to 2WD and set transfer assembly to 2WD.

2.

Remove the undercovers using power tool.

3.

Drain the transfer fluid. Refer to

DLN-269

.

4.

Remove the center exhaust tube and main muffler. Refer to

EX-5, "Removal and Installation"

.

5.

Remove the front and rear propeller shafts. Refer to

DLN-308, "Removal and Installation"

 (front),

DLN-

316, "Removal and Installation"

 (rear).

CAUTION:

Do not damage spline, sleeve yoke and rear oil seal when removing rear propeller shaft.
NOTE:
Insert a plug into the rear oil seal after removing the rear propeller shaft.

6.

Remove the A/T nuts from the A/T crossmember. Refer to

TM-228, "4WD : Exploded View"

.

7.

Position two suitable jacks under the A/T and transfer assembly.

8.

Remove the A/T crossmember. Refer to

TM-228, "4WD : Exploded View"

.

WARNING:

Support A/T and transfer assembly using two suitable jacks while removing A/T crossmember.

9.

Disconnect the electrical connectors from the following:
• ATP switch
• 4LO switch
• Wait detection switch
• Transfer control device

10. Disconnect each air breather hose from the following. Refer to

TM-220, "4WD : Removal and Installation"

.

• Transfer control device
• Breather tube (transfer)

11. Remove the transfer to A/T and A/T to transfer bolts.

12. Remove the transfer assembly.

WARNING:

support transfer assembly with suitable jack while removing it.

CAUTION:

Do not damage rear oil seal (A/T).

INSTALLATION

Installation is in the reverse order of removal.
• Tighten the bolts to specification.

• Fill the transfer with new fluid and check for fluid leakage and fluid

level. Refer to

DLN-269, "Inspection"

.

• Start the engine for one minute. Then stop the engine and recheck

the transfer fluid. Refer to

DLN-269, "Inspection"

.

• After the installation, check the 4WD shift indicator pattern. If NG,

adjust the position between the transfer assembly and transfer
control unit. Refer to

DLN-262, "Precaution for Transfer Assembly

and Transfer Control Unit Replacement"

.

Tightening torque

: 36 N·m (3.7kg-m, 27 ft-lb)

SMT872C
