Nissan Pathfinder (2008 year). Manual

DOOR LOCK FUNCTION

DLK-21

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DLK

Keyless power window down operation mode can be changed by PW DOWN SET mode in “WORK SUP-
PORT”. Refer to

DLK-33, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

ROOM LAMP ILLUMINATION OPERATION

When the following conditions are met:
• Condition of interior lamp switch is in DOOR position
• Door switch OFF (all the doors are closed)
Intelligent Key system turns on interior lamp (for 30 seconds) by receiving UNLOCK signal from Intelligent
Key. For detailed description, refer to

DLK-19, "INTELLIGENT KEY : System Description"

LIST OF OPERATION RELATED PARTS

Parts marked with

are the parts related to operation.

INTELLIGENT KEY : Component Parts Location

INFOID:0000000001563457

Refer to

DLK-17, "DOOR REQUEST SWITCH : Component Parts Location"

INTELLIGENT KEY : Component Description

INFOID:0000000001563458

Remote keyless entry functions

lli

nt Key

lli

nt Key

Key s

itc

d i

iti

swi

tch

Doo

r req

t swi

tch (Dri

sse

Doo

r swi

tch

or l

tua

lli

nt Key

warn

g buz

CAN co

ati

tem

BCM

ati

Hazard warning lamp

Horn

Head lamp

Door lock/unlock function by remote control button

Hazard and horn reminder function

Selective unlock function

Keyless power window down (open) function

Auto door lock function

Panic alarm function

Item

Function

BCM

Controls the door lock function and room lamp function.

Door lock actuator

Receives lock/unlock signal from BCM and locks/unlocks each door.

Remote keyless entry receiver

Receives lock/unlock signal from the Intelligent Key, and then transmits to Intelligent Key unit.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

Intelligent Key unit

Receives button operation from remote keyless entry receiver and transmits to BCM.

Intelligent key warning buzzer

Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound.

DLK-22

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR OPENER FUNCTION

BACK DOOR OPENER FUNCTION

BACK DOOR SWITCH

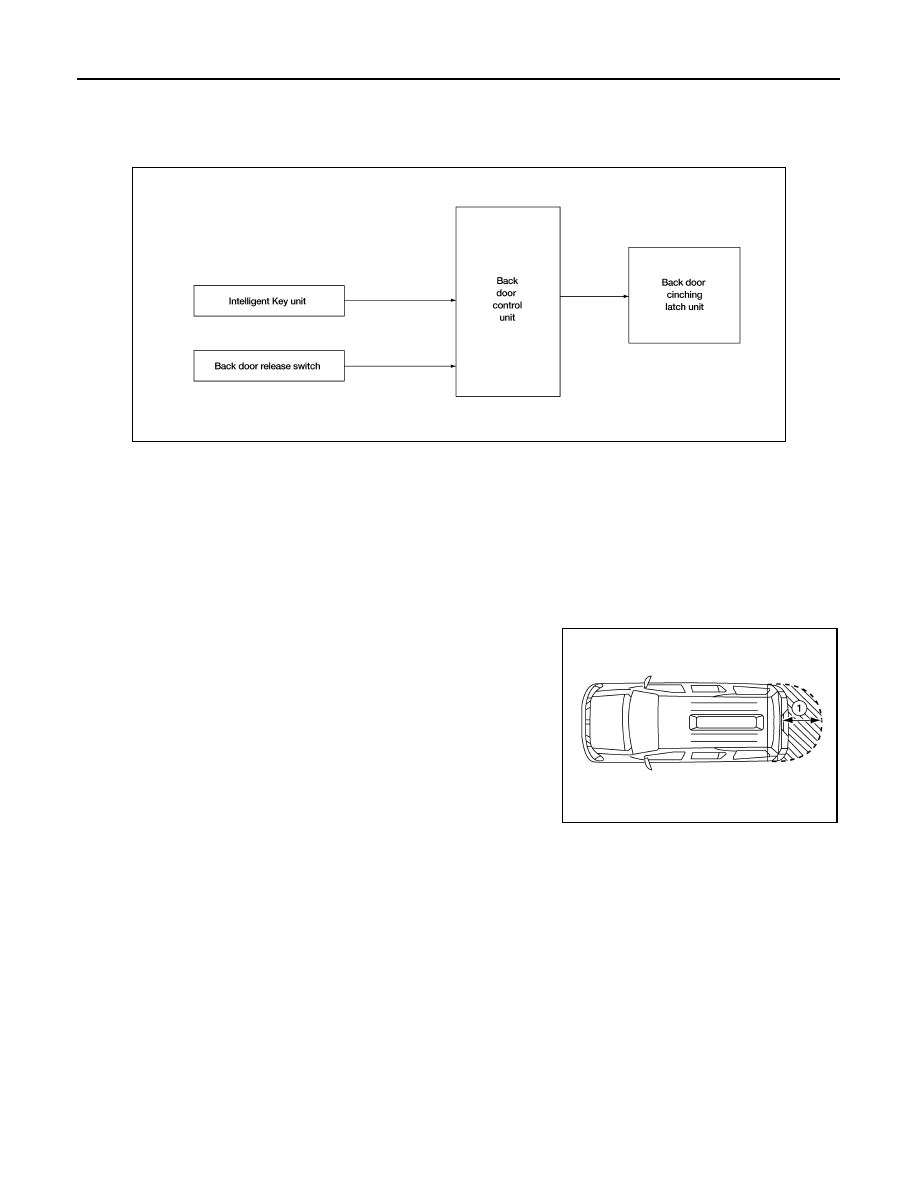

BACK DOOR SWITCH : System Diagram

INFOID:0000000001563459

BACK DOOR SWITCH : System Description

INFOID:0000000001563460

BACK DOOR RELEASE SWITCH OPERATION

The back door system consists of two units, the back door control unit and the back door cinching latch unit.
• Back door auto closure

When the back door is closed to the halfway state (half-latch) position, the motor automatically drives to
rotate the latch lever and pull it in from half latched to full latched.

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of back door open function
is in the range of approximately 80 cm (31.50 in) surrounding rear
bumper request switch (1). However, this operating range depends
on the ambient conditions.

OPERATION DESCRIPTION

Back Door Release Switch Opening Operation

• When the back door release switch is pressed, the Intelligent Key unit terminal 24 receives signal from the

back door release switch terminal 1.

• The back door control unit checks the park/neutral switch position and vehicle speed. If the back door oper-

ating enable conditions are met, it sends a signal through terminal 23 to the back door control unit terminal 6.

• When the back door control unit receives the signal, if the back door operating enable conditions are met, it

sends a signal through terminals 2 and 3 to operate the cinch latch motor to open the back door to the half-
latch position.

• When the back door reaches the half-latch state, the half-latch switch detects this and the signal is sent to

the back door control unit terminal 7. Continue to press the back door release switch and pull the back door
to the full open position.

• When the back door is open, the neutral position sends a signal to the back door control unit terminal 9.

Back Door Release Switch Closing Operation

• When the back door is pulled toward the close position and when it reaches half-latch, the back door cinch-

ing latch unit half switch sends a signal from terminal 6.

• The back door control unit receives this signal and checks door position through terminal 7.

ALKIA1168GB

ALKIA0581ZZ

BACK DOOR OPENER FUNCTION

DLK-23

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DLK

• When the back door control unit receives the signal, if the back door operating enable conditions are met, it

sends a signal through terminals 2 and 3 to operate the cinch latch motor to close the back door.

• When the back door latch operates and full close is detected through terminal 8 of the back door control unit,

the cinch latch motor reverses to the neutral position and the back door auto closure operation ends and the
door is fully closed.

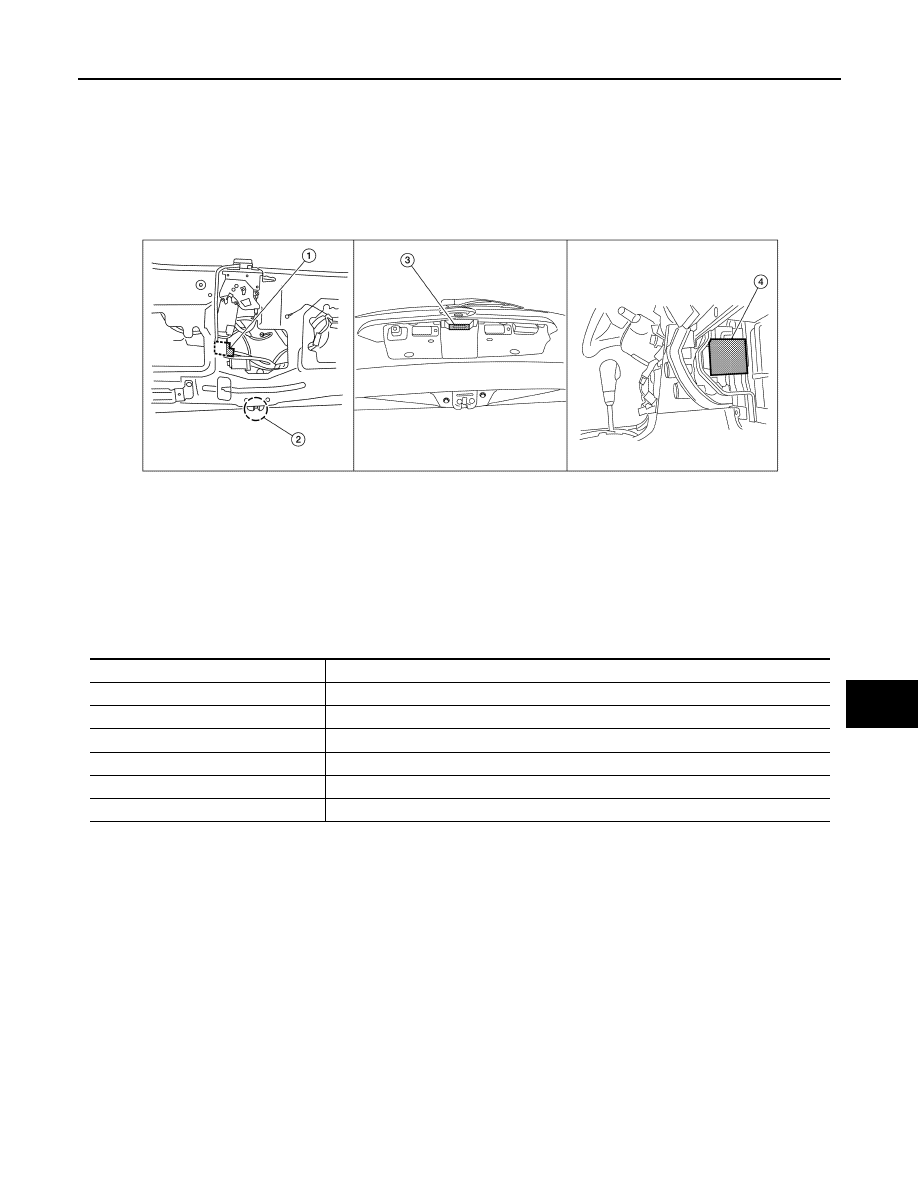

BACK DOOR SWITCH : Component Parts Location

INFOID:0000000001563461

BACK DOOR SWITCH : Component Description

INFOID:0000000001563462

INTELLIGENT KEY

ALKIA1169ZZ

Back door control unit D509
(view with back door panel removed)

Back door cinching latch unit D502

Back door release switch D510

Intelligent Key unit M164
(view with glove box removed)

Item

Function

Back door release switch

Transmits back door open operation signal to Intelligent Key unit.

Intelligent Key unit

Transmits back door open operation signal to back door control unit.

Back door control unit

Transmits back door open operation to back door motor.

Back door close switch

Transmits back door close signal to back door control unit.

Back door half switch

Transmits back door half-latch signal to back door control unit.

Back door neutral switch

Transmits back door neutral position to back door control unit.

DLK-24

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR OPENER FUNCTION

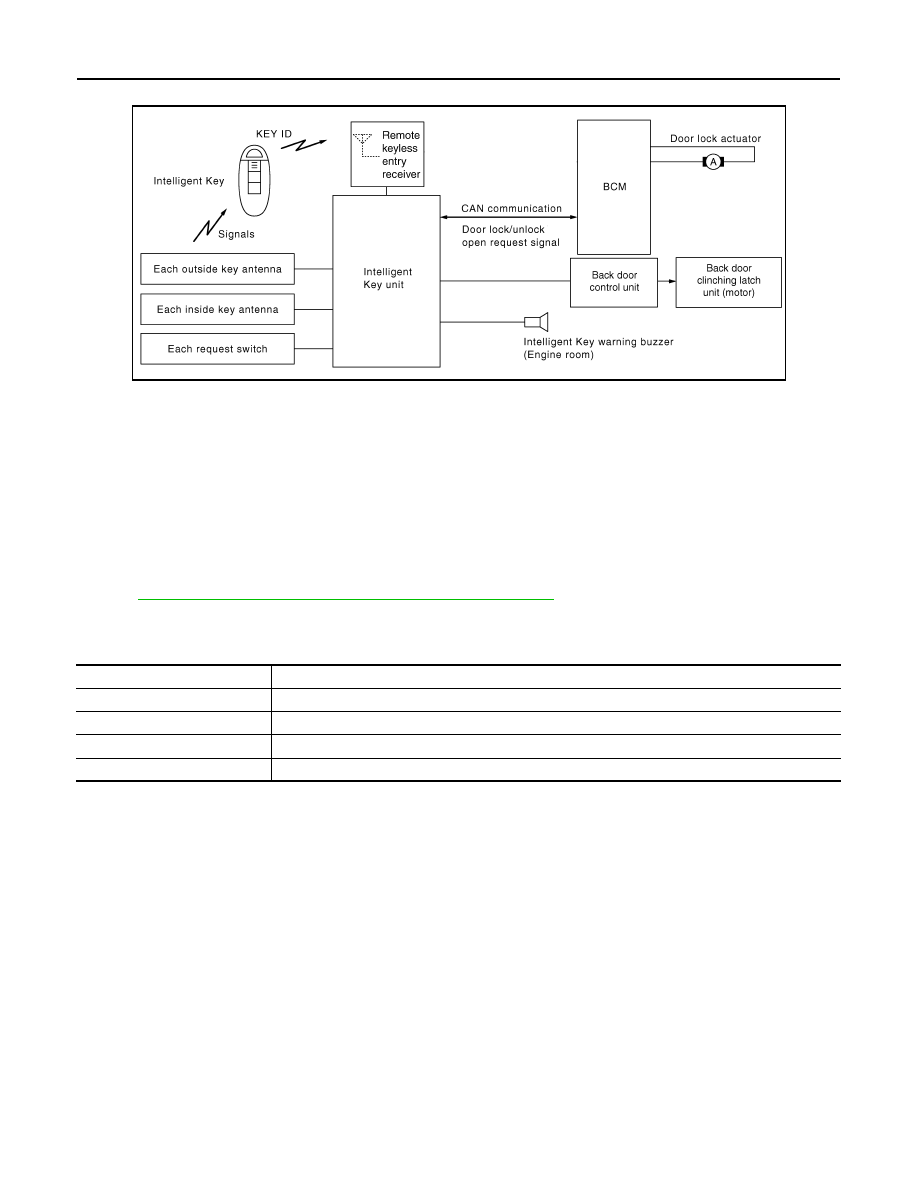

INTELLIGENT KEY : System Diagram

INFOID:0000000001563463

INTELLIGENT KEY : System Description

INFOID:0000000001563464

The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the
same manner as the remote controller by operating the back door open button.

OPERATION DESCRIPTION/BACK DOOR OPEN FUNCTION

• When the door unlock button of the Intelligent Key is pressed twice, the back door release switch will be

enabled and capable of opening the back door when depressed.

INTELLIGENT KEY : Component Parts Location

INFOID:0000000001563465

Refer to

DLK-21, "INTELLIGENT KEY : Component Parts Location"

INTELLIGENT KEY : Component Description

INFOID:0000000001563466

ALKIA1164GB

Item

Function

Remote keyless entry receiver

Receives back door open signal from the Intelligent Key, and then transmits to Intelligent Key unit.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

Intelligent Key unit

Receives button operation from remote keyless entry receiver and transmits to back door control unit.

Back door control unit

Receives button operation from Intelligent Key unit and operates the back door.

WARNING FUNCTION

DLK-25

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DLK

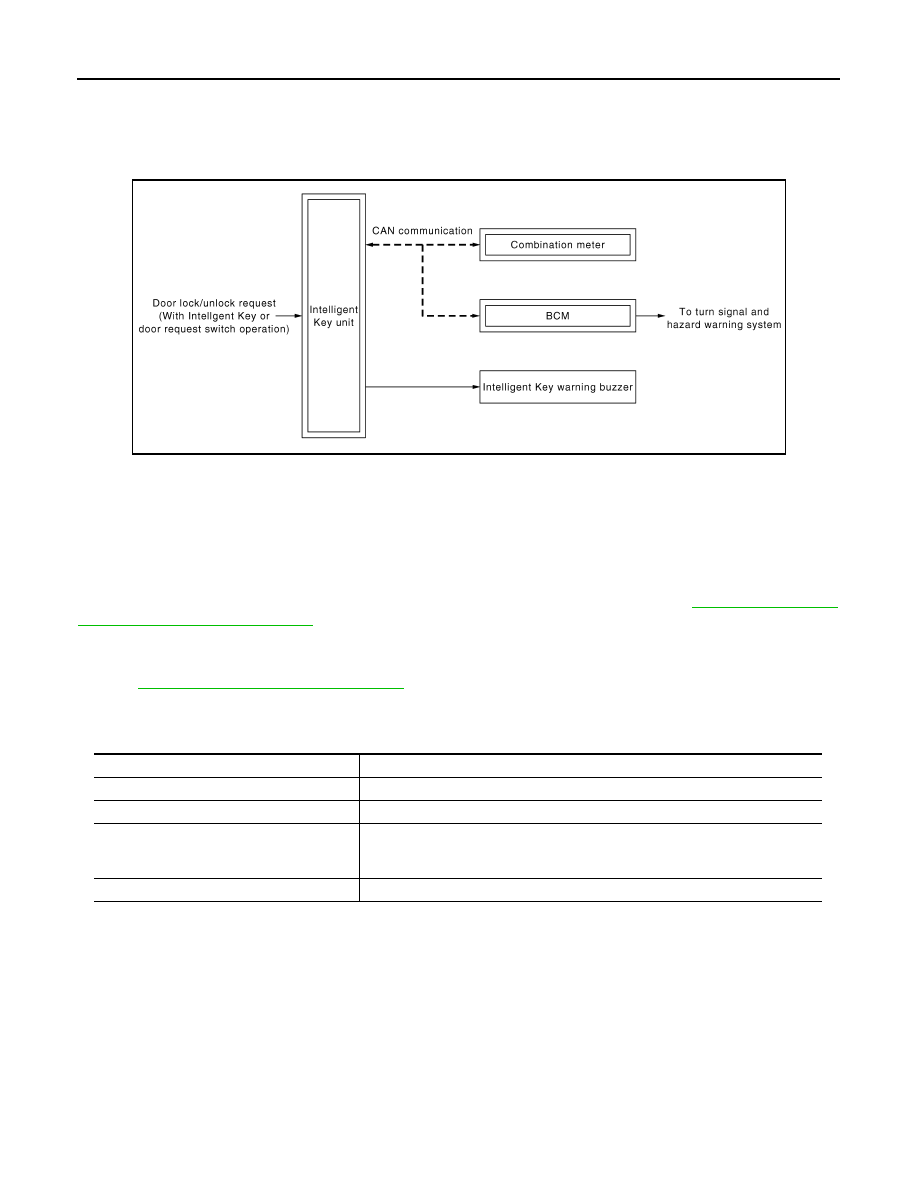

WARNING FUNCTION

System Description

INFOID:0000000001563467

WARNING CHIME/BUZZER/LAMPS FUNCTION

Operation Description

The following warning chime (combination meter), intelligent key warning buzzer (front of vehicle), and warn-
ing lamps "KEY" and “P-SHIFT” (combination meter) are given to the user as warning information while using
the intelligent key system.
• Ignition switch warning chime
• Ignition key warning chime
• OFF position warning chime
• OFF position warning chime (after door closed)
• Take away warning chime
• Take away warning chime (from window)
• Door lock operation warning chime
• Intelligent key low battery warning
• P position warning

NOTE:
For key-in-ignition warning chime related issues only, refer to XX-XX, "*****".

Operation Condition

List of Operation Related Parts

Parts marked with

are the parts related to operation.

Operation

Condition

Intelligent Key warning

sound

Warning lamp il-

luminates

Ignition switch warning chime

• Key switch is OFF.
• Ignition switch is in the ACC, OFF or LOCK position.

[ignition switch is pressed (ignition knob switch is
ON)].

• Driver door is open.

Chime

(Instrument panel)

—

Ignition key warning chime
(When mechanical key is used)

• Mechanical key is inserted in ignition switch (key

switch is ON).

• Ignition switch is in the ACC, OFF or LOCK position.
• Driver door is open.

Chime

(Instrument panel)

—

OFF position warning chime

• Ignition switch is turned from ACC to OFF.

[ignition switch is pressed (ignition knob switch is
ON)].

• Ignition switch is in the LOCK position and pressed

for 1 second.

Chime

(Instrument panel)

—

OFF position warning chime
(after door closed)

When driver door is opened and then closed while the
OFF position warning chime above is operating.

Buzzer

(front of vehicle)

—

Take away warning chime

• Engine is running.
• Door open to close.
• Intelligent Key is not found inside vehicle.

Buzzer

(front of vehicle)

“KEY” (red)

blinking

Take away warning chime
(from window)

• Engine is running.
• Door is closed.
• Intelligent Key is not found inside vehicle.

Chime

(Instrument panel)

“KEY” (red)

blinking

Door lock operation warning
chime

When request switch is pushed under the following
conditions:
• All door are closed.
• Door is unlocked.
• Intelligent Key is inside vehicle.

Buzzer

(front of vehicle)

—

Intelligent Key low battery warn-
ing

When Intelligent Key battery is low, Intelligent Key unit
is detected after ignition switch is turned ON.

—

“KEY” (green)

blinking

P position warning

When selector lever is in other than P position, ignition
switch is turned from ON to OFF.

—

“P-SHIFT”

DLK-26

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

WARNING FUNCTION

Component Parts Location

INFOID:0000000001563468

Refer to

DLK-21, "INTELLIGENT KEY : Component Parts Location"

Warning and alarm functions

llige

t Key

swi

tch

iti

on kn

iti

swi

tch

ACC p

siti

t sig

iti

swi

tch

ON po

itio

inp

t si

or swit

or requ

y an

ten

Fro

t ou

a (L

)

ar bum

llige

t Key

rnin

llige

t Key

CAN co

ati

tem

ati

CVT d

(de

ten

tio

swi

tch

Ignition switch warning chime

Ignition key warning chime
(When mechanical key used)

OFF position warning chime

OFF position warning chime
(after door close)

Take away warning chime

Take away warning chime (from window)

Door lock operation warning chime

Intelligent Key low battery warning

P position warning

KEY REMINDER FUNCTION

DLK-27

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DLK

KEY REMINDER FUNCTION

System Description

INFOID:0000000001563469

Key reminder is the function that prevents the key from being left in the vehicle.
Key reminder has the following 3 functions.

*:If the door closing impact shocks the door lock knob, or contacts against baggage with the door lock knob might activate the door locks
accidentally but unlock operation will be perform in these cases.

CAUTION:

• The above function operates when the Intelligent Key is inside the vehicle. However, there may be

times when the Intelligent Key cannot be detected, and this function will not operate when the Intelli-
gent Key is on the instrument panel, rear of vehicle, or in the glove box. Also, this system sometimes
does not operate if the Intelligent Key is in the door pocket for the open door.

• When the key reminder function is operated when the trunk is open/closed and the buzzers sound, if

the following operations are performed, the key reminder function is cleared and buzzer sounds are
stopped.

- Remote controller door lock button operation of Intelligent Key
- Remote controller door unlock button operation of Intelligent Key
- When the liftgate is closed, the Intelligent Key is not inside the vehicle
- When any door is open

Component Parts Location

INFOID:0000000001563470

Refer to

DLK-21, "INTELLIGENT KEY : Component Parts Location"

Key reminder function

Operation condition

Operation

Driver door closed*

Right after driver side door is closed under the following conditions
• Door lock operation is performed
• Driver side door is opened
• Driver side door is in unlock state

All doors unlock

Door is open or closed

Right after all doors are closed under the following conditions
• Intelligent Key is inside the vehicle
• Any door is opened
• All doors are locked by door lock and unlock switch or door lock knob

• All doors unlock
• Sounds Intelligent Key warning

buzzer

Back door is closed

Right after trunk is closed under the following conditions
• Intelligent Key is inside luggage compartment
• All doors are closed
• All doors are locked

• Back door open
• Sounds Intelligent Key warning

buzzer

DLK-28

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

HAZARD AND BUZZER REMINDER FUNCTION

HAZARD AND BUZZER REMINDER FUNCTION

System Diagram

INFOID:0000000001563471

HAZARD & BUZZER REMINDER FUNCTION

System Description

INFOID:0000000001563472

HAZARD AND BUZZER REMINDER FUNCTION

When door is locked or unlocked by Intelligent Key or door request switch, Intelligent Key unit sounds buzzer
and sends hazard request signal to BCM via CAN communication. Then BCM flashes hazard warning lamps
as a reminder.
NOTE:
Hazard and buzzer reminder function mode can be changed with CONSULT-III. Refer to

DLK-36, "CONSULT-

III Function (INTELLIGENT KEY)"

Component Parts Location

INFOID:0000000001563473

Refer to

DLK-27, "Component Parts Location"

Component Description

INFOID:0000000001563474

JMKIA0506GB

Item

Function

BCM

Controls the hazard and buzzer reminder function (without Intelligent Key).

Intelligent Key unit

Controls the hazard and buzzer reminder function (with Intelligent Key).

Combination meter

Turns ON the LOCK indicator, KEY indicator, turn signal indicator and buzzer
(built in combination meter) by the request from Intelligent Key unit via CAN com-
munication.

Intelligent Key warning buzzer

Sounds by the request signal from Intelligent Key unit via CAN communication.

Nissan Pathfinder (2008 year). Manual - part 140
