Nissan Pathfinder (2008 year). Manual - part 139

DOOR LOCK FUNCTION

DLK-13

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DLK

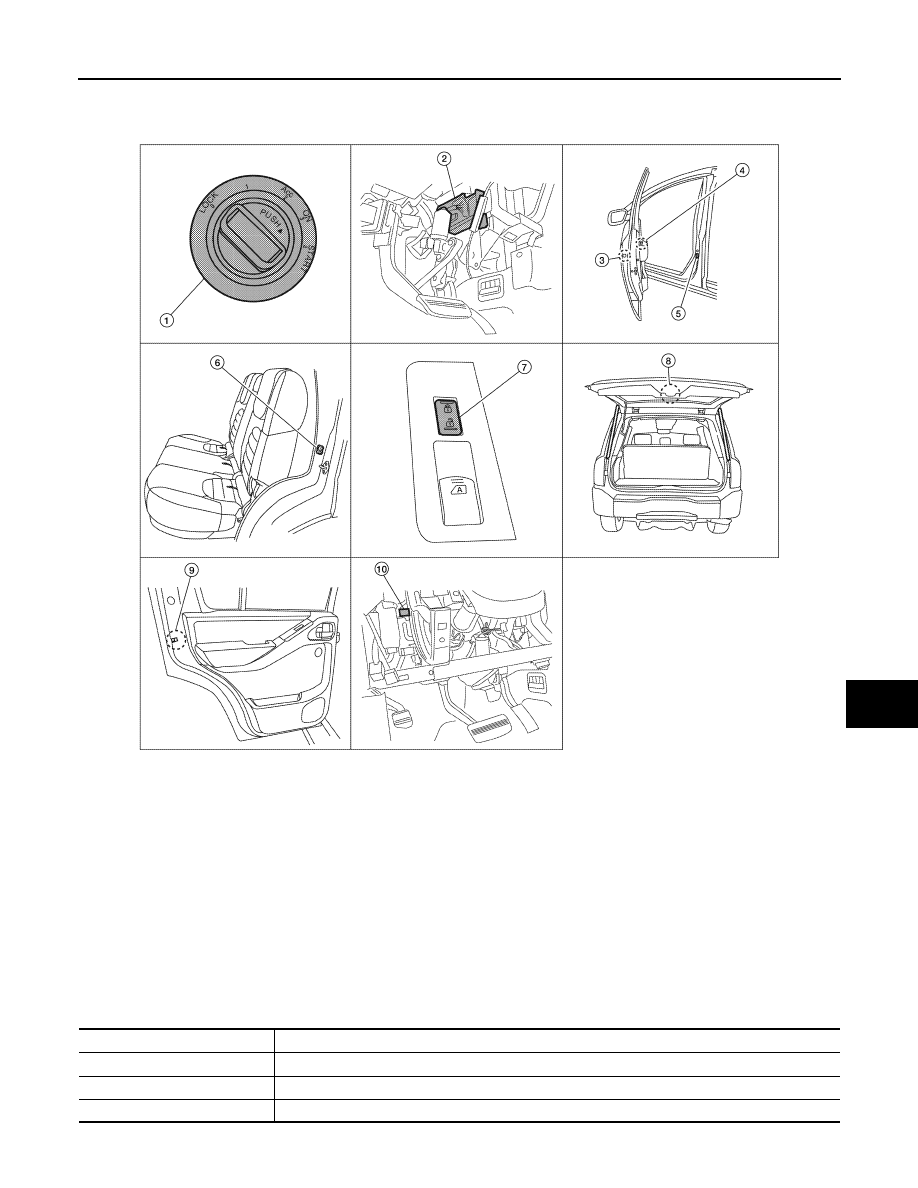

DOOR LOCK AND UNLOCK SWITCH : Component Parts Location

INFOID:0000000001563449

DOOR LOCK AND UNLOCK SWITCH : Component Description

INFOID:0000000001563450

Key switch and ignition knob switch M66 2.

BCM M18, M19, M20
(view with instrument panel removed)

Front door lock assembly LH (key
cylinder switch) D14
Front door lock actuator RH D114

Main power window and door lock/un-
lock switch D7, D8

Front door switch
LH B8
RH B108

Rear door switch
LH B18
RH B116

Power window and door lock/unlock
switch RH D105

Back door cinching latch unit (door
ajar switch) D502
Back door lock actuator D508

Rear door lock actuator
LH D205
RH D305

10. Passenger select unlock relay M11

(view with instrument panel LH removed)

ALKIA1165ZZ

Item

Function

BCM

Controls the door lock function and room lamp function.

Door lock and unlock switch

Transmits lock or unlock signal to BCM.

Door lock actuator

Receives lock/unlock signal from BCM and locks/unlocks each door.

DLK-14

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DOOR LOCK FUNCTION

DOOR REQUEST SWITCH

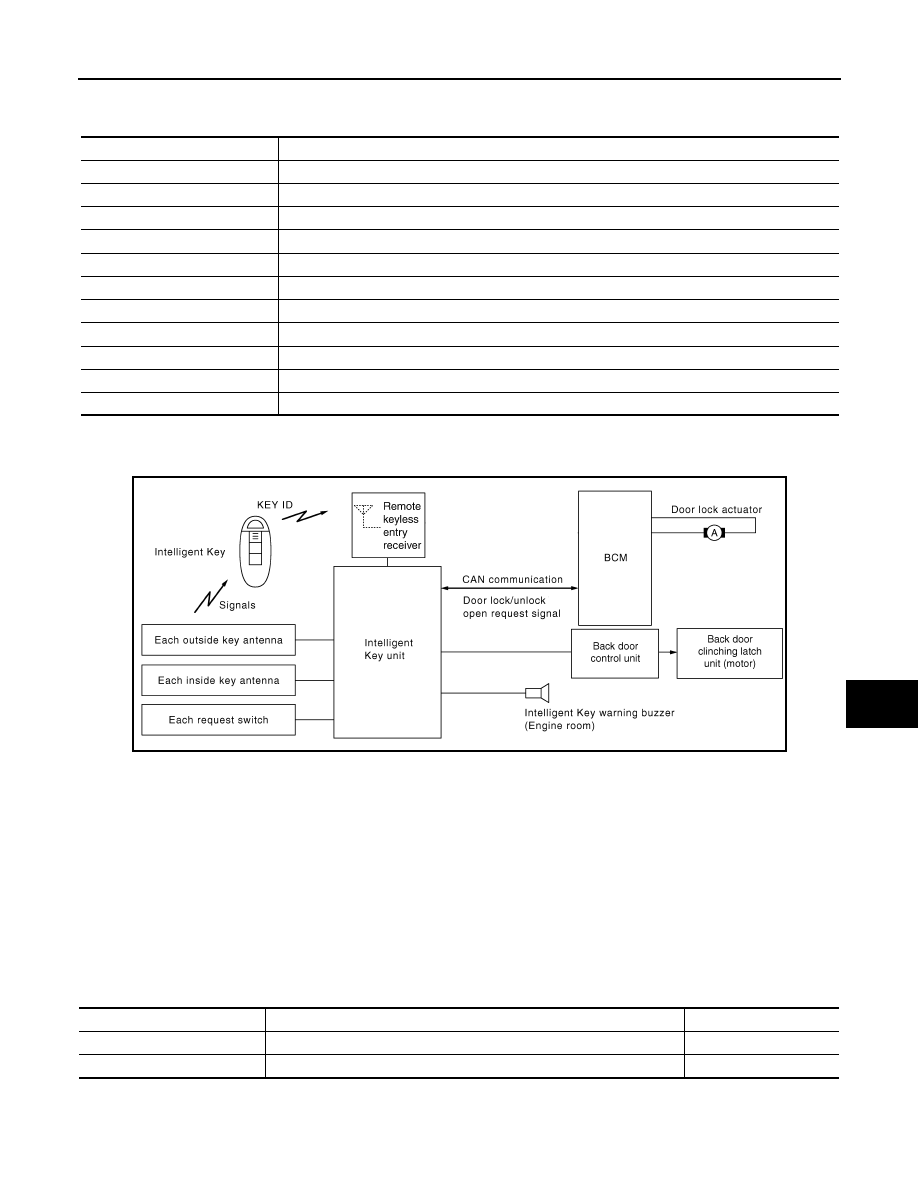

DOOR REQUEST SWITCH : System Diagram

INFOID:0000000001563451

DOOR REQUEST SWITCH : System Description

INFOID:0000000001563452

Only when pressing the request switch, it is possible to lock and unlock the door by carrying the Intelligent
Key.
• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/

unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-
tion using two-way communications between the Intelligent Key and the vehicle (BCM).

CAUTION:

The driver should always carry the Intelligent Key

• If an action that does not meet the operating conditions of the Intelligent Key system is taken, the buzzer

goes off to inform the driver (Warning chime function).

• When a door lock is locked or unlocked with request switch or remote controller button operation, the hazard

lamps flash and the Intelligent Key warning buzzer or horn sounds (Hazard and buzzer/horn reminder func-
tion).

• The settings for each function can be changed with the CONSULT-III.
• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with the CONSULT-III.

OPERATION DESCRIPTION/DOOR LOCK/UNLOCK

• When the BCM detects that each door request switch is pressed, it starts the outside key antenna and inside

key antenna corresponding to the pressed door request switch and transmits the request signal to the Intelli-
gent Key. And then, check that the Intelligent Key is near the door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.
• BCM sends the door lock/unlock signal and sounds Intelligent Key buzzer warning (lock: 2 times, unlock: 1

time) at the same time as a reminder.

OPERATION CONDITION

If the following conditions are not satisfied, door lock/unlock operation is not performed even if the request
switch is operated.

Door switch

Transmits door open/close condition to BCM.

Passenger select unlock relay

Enables or disables the unlocking of rear doors when this Intelligent Key option is selected.

Item

Function

ALKIA1164GB

DOOR LOCK FUNCTION

DLK-15

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DLK

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.

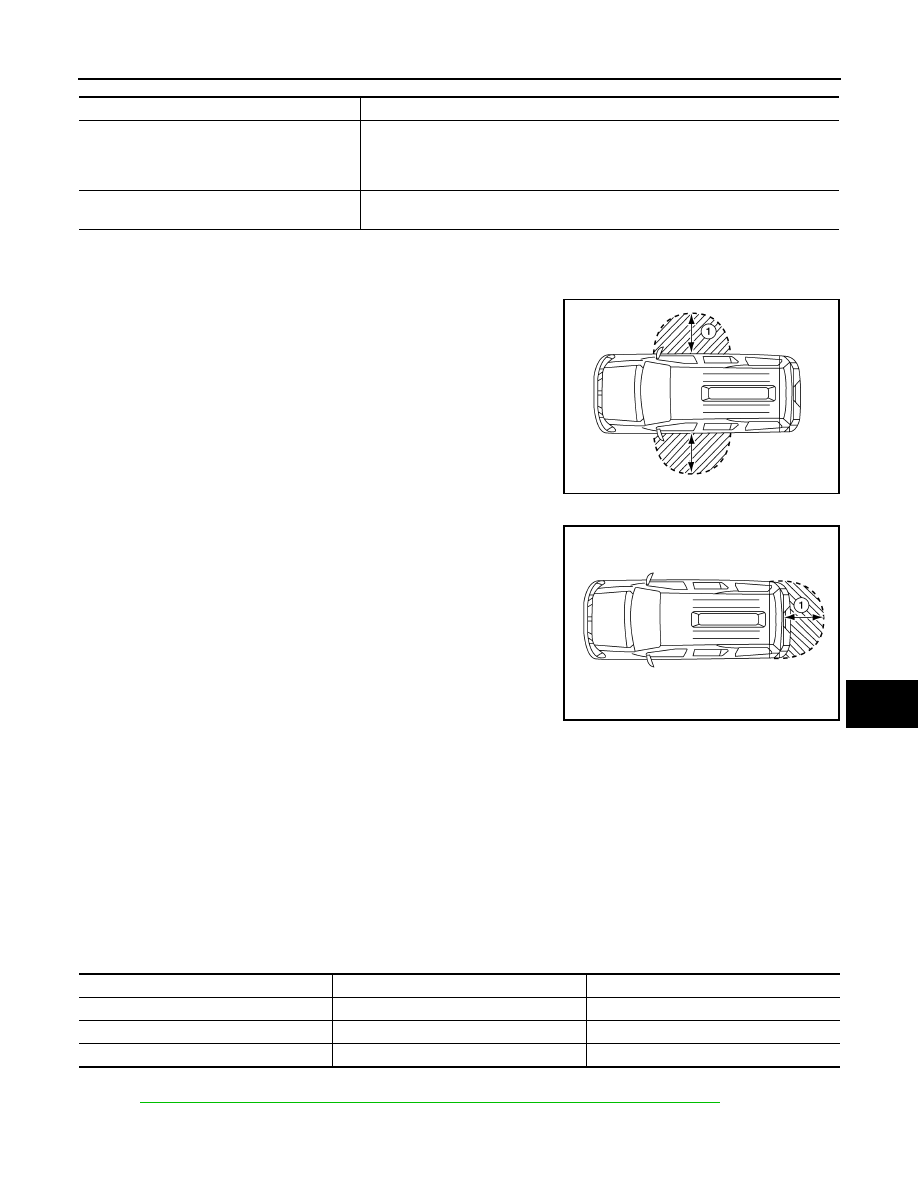

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock/unlock function
is in the range of approximately 80 cm (31.50 in) surrounding the
driver and passenger door handles (1).

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of back door lock/unlock
function is in the range of approximately 80 cm (31.50 in) surround-
ing the back door handle (1).

SELECTIVE UNLOCK FUNCTION

When a LOCK signal is sent from door request switch (driver side or passenger side), all doors will be locked.
When an UNLOCK signal is sent from door request switch (driver side or passenger side) once, driver's door
will be unlocked.
Then, if an UNLOCK signal is sent from door request switch (driver side and passenger side) again within 5
seconds, all other doors will be unlocked.

HAZARD AND BUZZER REMINDER FUNCTION

During lock or unlock operation by each request switch, the hazard warning lamps and Intelligent Key warning
buzzer will blink or honk as a reminder.
When doors are locked, unlocked by each request switch, IPDM E/R honks Intelligent Key warning buzzer as
a reminder and transmits hazard request signal to BCM via CAN communication line.
BCM flashes hazard warning lamps as a reminder.

Operating function of hazard warning lamps and buzzer reminder

How to change hazard and buzzer reminder mode
Refer to

DLK-33, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

AUTO DOOR LOCK FUNCTION

Each request switch operation

Operation condition

Lock operation

• All doors are closed
• Ignition switch is in OFF position
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area

Unlock Operation

• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area *

ALKIA0582ZZ

ALKIA0581ZZ

Operation

Hazard warning lamps flash

Intelligent Key warning buzzer sounds

Unlock

Once

Lock

Twice

Trunk open

—

Four times

DLK-16

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DOOR LOCK FUNCTION

When all doors are locked, ignition switch is in OFF position and key switch is OFF, doors are unlocked with
door request switch
When BCM does not receive the following signals within 60 seconds, all doors are locked.
• Door switch is ON (door is opened)
• Door is locked
• Ignition switch is ON (ignition switch is pressed)
• Key switch is ON
Auto door lock mode can be changed by “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-33,

"INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

ROOM LAMP OPERATION

When the following conditions are met:
• Condition of interior lamp switch is in DOOR position
• Door switch OFF (all the doors are closed)
Intelligent Key system turns on interior lamp (for up to 30 seconds maximum) by receiving UNLOCK signal
from door request switch. For detailed description, refer to

DLK-12, "DOOR LOCK AND UNLOCK SWITCH :

System Description"

LIST OF OPERATION RELATED PARTS

Parts marked with

are the parts related to operation.

Door lock function

tel

lig

t Ke

Ign

iti

y swi

tch

s en

try rec

or swi

tch

or req

st sw

itch

(Driv

Doo

r lo

tuat

de ke

y an

ten

a (Dri

sse

er)

tel

lig

t Ke

warn

ing

zze

CAN co

ati

sys

tem

BCM

Hazard warning lamp

Door lock/unlock function by request switch

Hazard and buzzer reminder function for door lock/unlock
operation

Key reminder function

Selective unlock function by request switch
(Driver side)

Selective unlock function by request switch
(Passenger side)

Auto door lock function

DOOR LOCK FUNCTION

DLK-17

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DLK

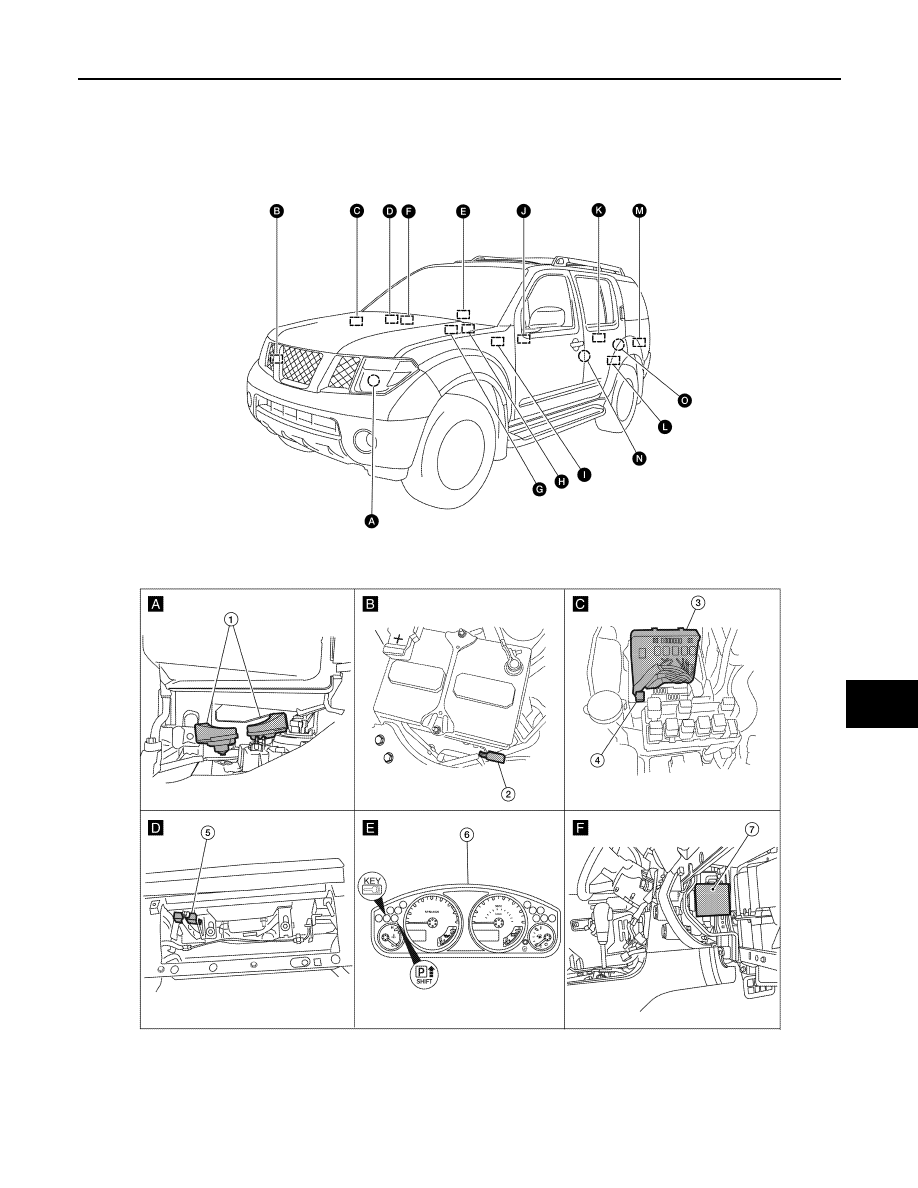

DOOR REQUEST SWITCH : Component Parts Location

INFOID:0000000001563453

ALKIA1166ZZ

DLK-18

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DOOR LOCK FUNCTION

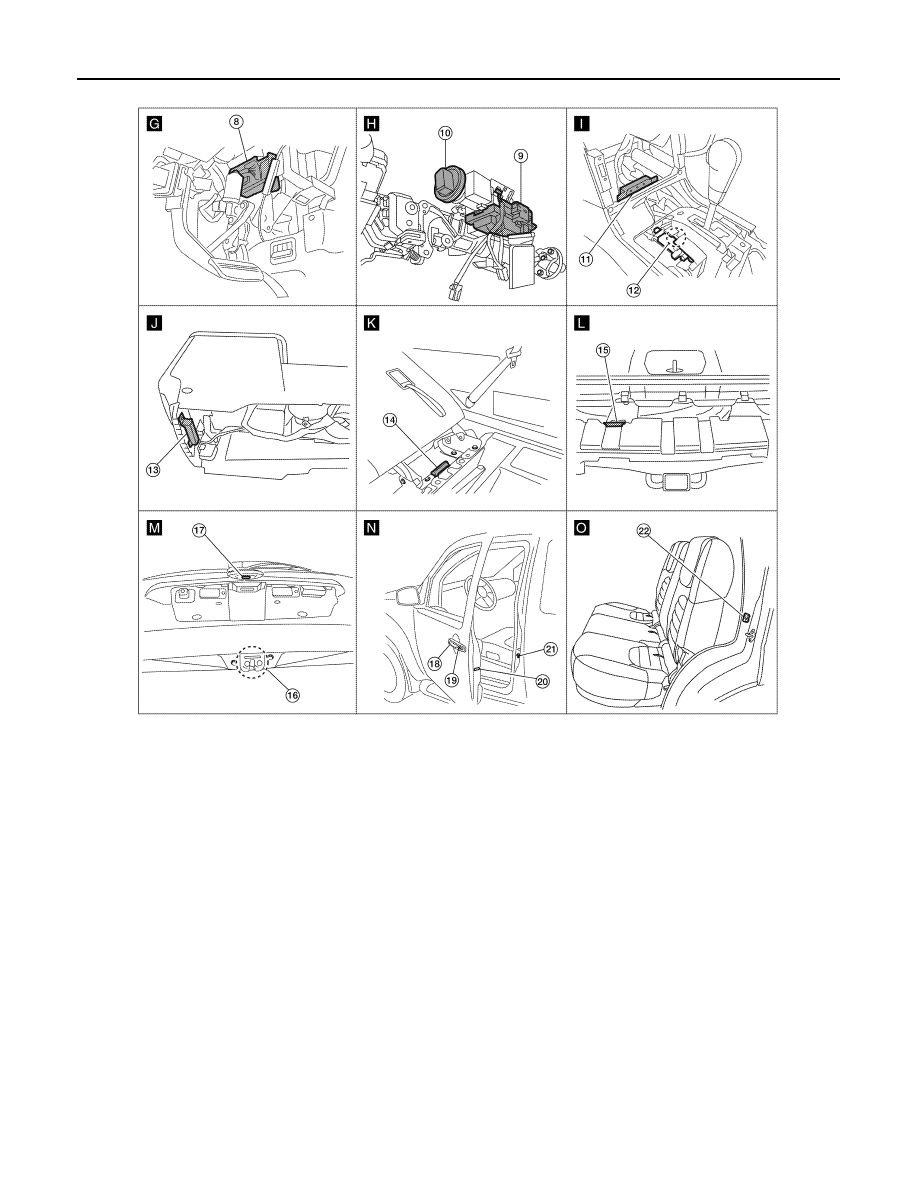

Horn E3
(Behind front combination lamp LH)

Intelligent key warning buzzer E60

IPDM E/R E122, E124
(view with cover removed)

Horn relay H-1

Remote keyless entry receiver M67
(view with glove box removed)

Combination meter M24

Intelligent Key unit M164
(view with glove box removed)

BCM M18, M19, M20
(view with instrument panel LH removed)

Steering lock solenoid M65
(view with steering column removed)

10. Key switch and ignition knob switch

M66

11. Inside key antenna 1 (instrument panel)

M68
(view with center console cover removed)

12. A/T device (park position switch)

M156

13. Inside key antenna 3 (center console)

M212 (view with center console re-
moved)

14. Inside key antenna 2 (luggage compart-

ment) B129
(behind right side of 3rd row seat)

15. Rear bumper antenna C127

(view with rear bumper removed)

16. Back door open switch D511

17. Back door request switch D552

18. Front outside antenna LH D15

Front outside antenna RH D115

19. Front door request switch LH D16

Front door request switch RH D116

20. Front door lock assembly LH (door un-

lock sensor) D14

21. Front door switch LH B8

RH B108

22. Rear door switch LH B18

RH B116

ALKIA1167ZZ

DOOR LOCK FUNCTION

DLK-19

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DLK

DOOR REQUEST SWITCH : Component Description

INFOID:0000000001563454

INTELLIGENT KEY

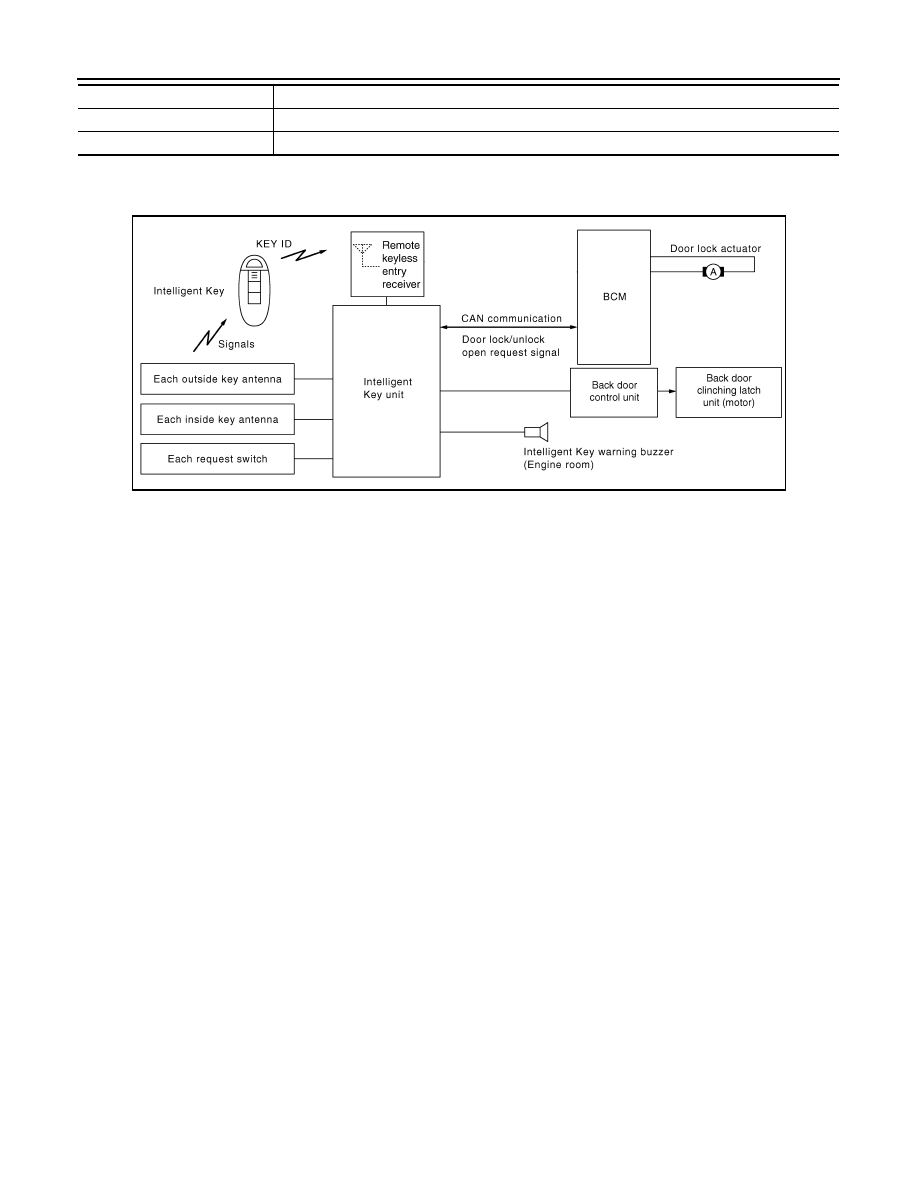

INTELLIGENT KEY : System Diagram

INFOID:0000000001563455

INTELLIGENT KEY : System Description

INFOID:0000000001563456

The Intelligent Key has the same functions as the remote control entry system. In addition to other safety fea-
tures, it can be used to lock and unlock all doors including the back door.

OPERATION DESCRIPTION/DOOR LOCK/UNLOCK FUNCTION

• When door lock/unlock button of the Intelligent Key is pressed, lock signal or unlock signal is transmitted

from Intelligent Key to BCM via remote keyless entry receiver and Intelligent Key unit.

• When BCM receives the door lock/unlock signal, it operates door lock actuator, flashes the hazard lamp

(lock: 2 times, unlock: 1 time) and horn chirp signal to IPDM E/R at the same time as a reminder.

• IPDM E/R honks horn (lock: 2 times) as a reminder

OPERATION CONDITION

OPERATION AREA

• Operating Range

Item

Function

Intelligent Key unit

Receives lock/unlock signal from remote keyless entry receiver, and then transmits to BCM.

BCM

Controls the door lock function and room lamp function.

Door lock and unlock switch

Transmits lock or unlock signal to BCM.

Door lock actuator

Receives lock/unlock signal from BCM and locks/unlocks each door.

Door switch

Transmits door open/close condition to BCM.

Remote keyless entry receiver

Receives lock/unlock signal from the Intelligent Key, and then transmits to Intelligent Key unit.

Request switch

Transmits lock/unlock operation to Intelligent Key unit.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

Outside key antenna

Detects if Intelligent Key is outside the vehicle.

Inside key antenna

Detects if Intelligent Key is inside the vehicle.

Intelligent Key warning buzzer

Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound.

ALKIA1164GB

Remote controller operation

Operation condition

Operation

Lock

• All doors closed

All doors lock

Unlock

• Intelligent Key is out of the ignition key cylinder

All doors unlock

DLK-20

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DOOR LOCK FUNCTION

• To ensure the Intelligent Key works effectively, use within 80 cm range of each doors, however the operable

range may differ according to surroundings.

SELECTIVE UNLOCK FUNCTION

When a LOCK signal is transmitted from Intelligent Key, all doors will be locked.
When an UNLOCK signal is transmitted from Intelligent Key once, driver's door will be unlocked.
Then, if an UNLOCK signal is transmitted from Intelligent Key again within 5 seconds, all other doors will be
unlocked.

HAZARD AND HORN REMINDER FUNCTION

When doors are locked or unlocked by Intelligent Key, BCM flashes hazard warning lamps as a reminder and
sends horn chirp signal to IPDM E/R. IPDM E/R sounds horn as a reminder.
The hazard and horn reminder has a horn chirp mode (C mode) and a non-horn chirp mode (S mode).

Operating function of hazard and horn reminder

Hazard and horn reminders do not operate if any door switch is ON (any door is OPEN).
How to change hazard and horn reminder mode

With CONSULT-III

Refer to

DLK-33, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

Without CONSULT-III

Refer to Owner's Manual for instructions.

AUTO DOOR LOCK FUNCTION

Auto Door Lock Function

When all doors are locked, ignition switch is OFF (ignition switch is not pressed) and key switch is OFF, doors
are unlocked with Intelligent Key button. When BCM does not receive the following signals within 30 seconds,
all doors are locked.
• Door switch is ON (door is opened)
• Door is locked
• Ignition switch is ON
• Key switch is ON (mechanical key is inserted in ignition key cylinder)
Auto door lock mode can be changed by DOOR LOCK-UNLOCK SET mode in “WORK SUPPORT”. Refer to

DLK-30, "DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)"

PANIC ALARM FUNCTION

When ignition switch is OFF (ignition switch is not pressed) and key switch is OFF, BCM receives PANIC
ALARM signal from Intelligent Key through the remote keyless entry receiver and the Intelligent Key unit.
BCM turns on and off headlamp intermittently and transmits theft warning horn signal to IPDM E/R. Then,
IPDM E/R turns on and off horn intermittently.
The headlamp flashes and the horn sounds intermittently.
The alarm automatically turns off:
• After 25 seconds
• When BCM receives any signal from Intelligent Key
Panic alarm function mode can be changed by PANIC ALARM SET mode in “WORK SUPPORT”. Refer to

DLK-33, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

KEYLESS POWER WINDOW DOWN (OPEN) FUNCTION

Front power windows (with left and right front power window anti-pinch system) open when the unlock button
on Intelligent Key is activated and kept pressed for more than 3 seconds with the ignition switch OFF. The win-
dows keep opening if the unlock button is continuously pressed.
The power window opening stops when the following operations are performed:
• When the unlock button is kept pressed more than 15 seconds.
• When the ignition switch is turned ON while the power window opening is operated.
• When the unlock button is released.
While retained power operation activate, Keyless power window down (open) function cannot be operated.

C mode

S mode

Intelligent Key operation

Lock

Unlock

Back door

open

Lock

Unlock

Back door

open

Hazard warning lamp flash

Twice

Once

—

Twice

—

Horns sound

Once

—

Content .. 137 138 139 140 ..
