FRONT DISC BRAKE

BR-35

< DISASSEMBLY AND ASSEMBLY >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

2.

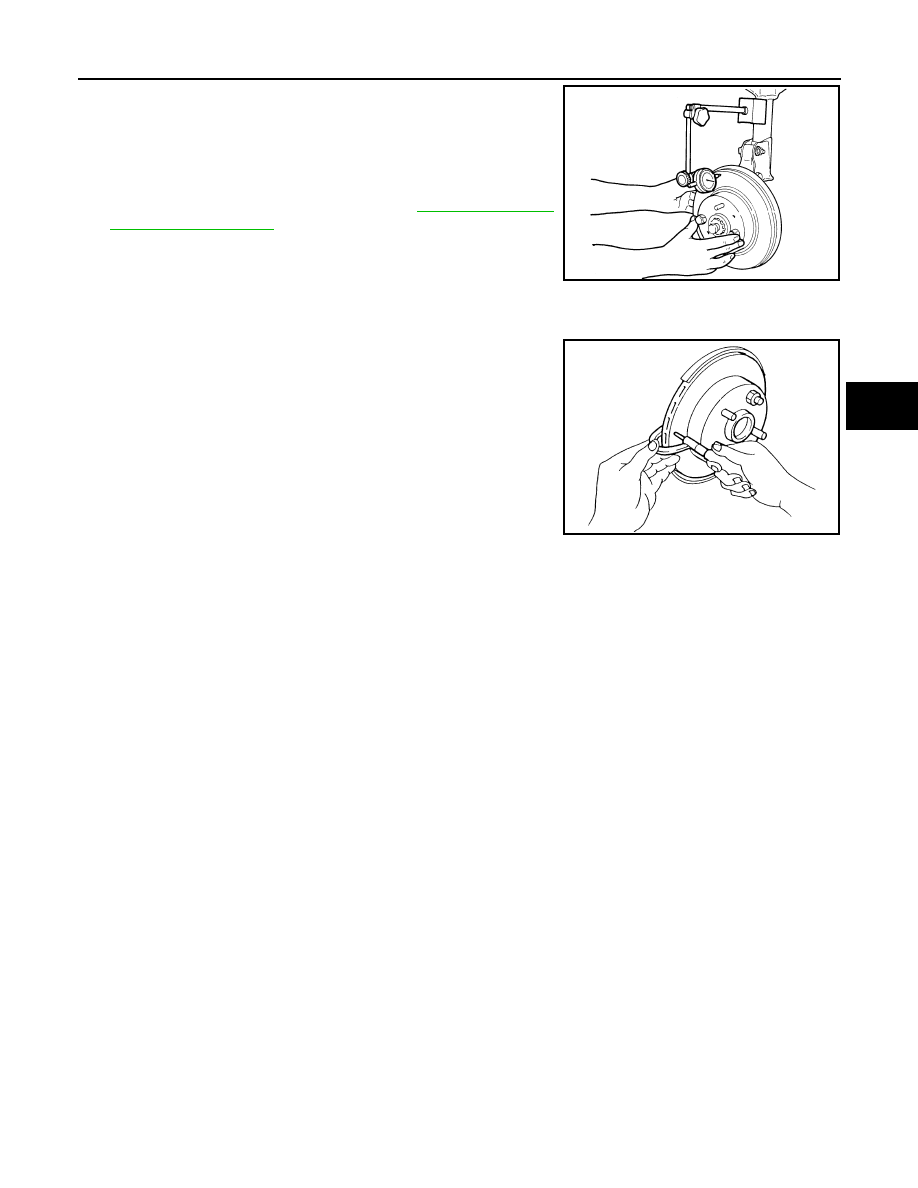

Inspect runout using a dial gauge. [Measured at 10 mm (0.39 in)
inside the disc edge.]

NOTE:
Make sure that wheel bearing axial end play is within the specifi-
cations before measuring runout. Refer to

FAX-5, "On-Vehicle

Inspection and Service"

.

3.

If runout is outside the limit, find the minimum runout point by
shifting mounting positions of disc rotor and wheel hub by one
hole.

4.

If runout still out of specification, turn rotor with on-car brake lathe.

Thickness Inspection

Using a micrometer, check thickness of disc rotor. If thickness is
either at or below the wear limit, or exceeds maximum uneven wear,
replace disc rotor.

Runout limit (on vehicle)

: 0.05 mm (0.0020 in)

BRA0013D

Standard thickness

: 28.0 mm (1.102 in)

Repair limit thickness

: 26.0 mm (1.024 in)

Maximum uneven wear
(Measured at 8 positions)

: 0.015 mm (0.0006 in)

SBR020B

BR-36

< DISASSEMBLY AND ASSEMBLY >

REAR DISC BRAKE

REAR DISC BRAKE

Component

INFOID:0000000001297662

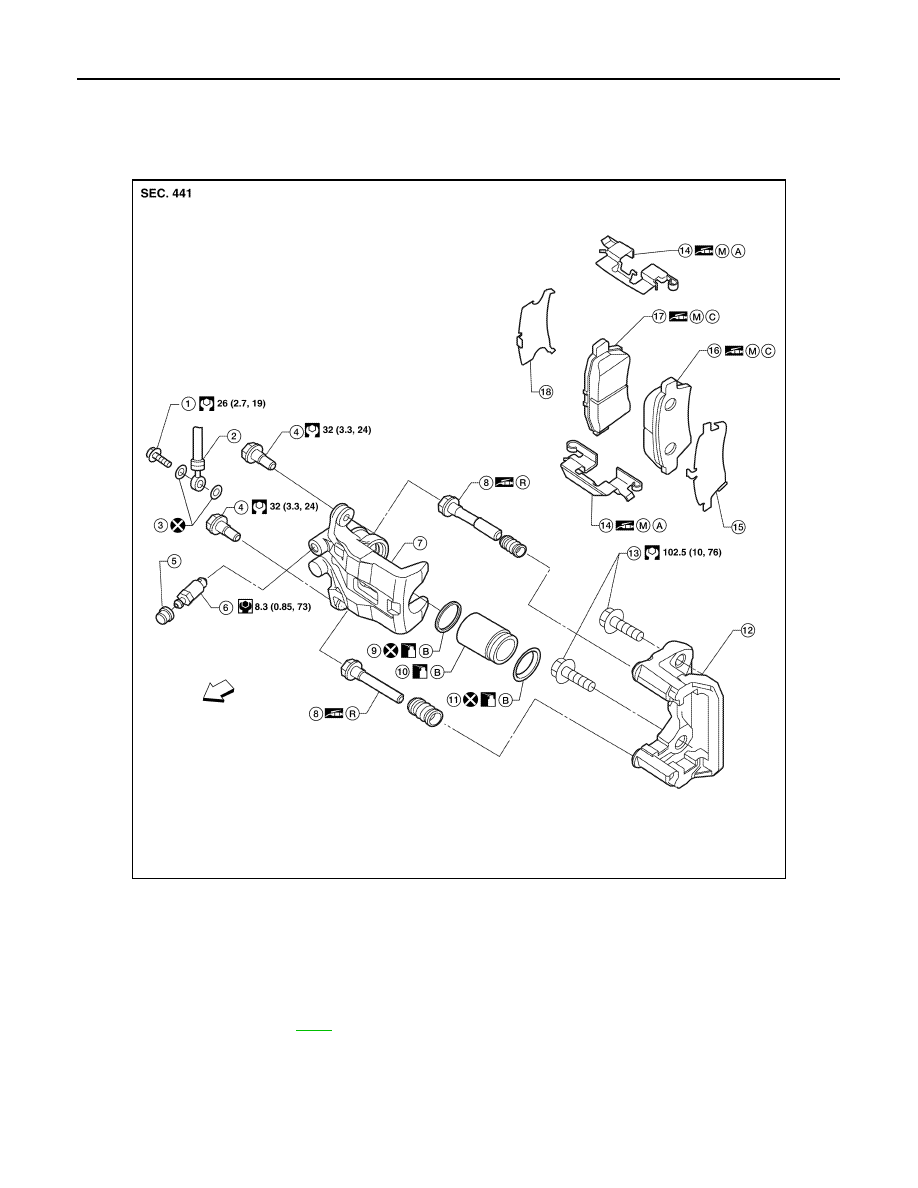

Rear Disc Brake Caliper and Pads

WARNING:

Clean dust on caliper and brake pad with a vacuum dust collector to minimize the hazard of airborne
particles or other materials.

AWFIA0038GB

1.

Union bolt

2.

Brake hose

3.

Copper washers

4.

Sliding pin bolt

5.

Cap

6.

Bleed valve

7.

Cylinder body

8.

Sliding pin

9.

Piston seal

10.

Piston

11. Piston boot

12. Torque member

13.

Torque member bolt

14. Pad retainer

15. Outer shim

16.

Outer brake pad

17. Inner brake pad

18. Inner shim

A.

Molykote 7439 refer to

BR-13



for application areas

B.

Brake fluid

C.

Molykote 77

R.

Rubber grease

⇐

: Front

REAR DISC BRAKE

BR-37

< DISASSEMBLY AND ASSEMBLY >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

CAUTION:

• While removing cylinder body, never depress brake pedal because piston will pop out.
• It is not necessary to remove bolts on torque member and brake hose except for disassembly or

replacement of cylinder body. In this case, hang cylinder body with a wire so as not to stretch brake
hose.

• Do not damage piston boot.
• Burnish brake contact surface after refinishing or replacing rotors, after replacing pads, or it a soft

pedal occurs at very low mileage. Refer to

BR-14, "Brake Burnishing"

.

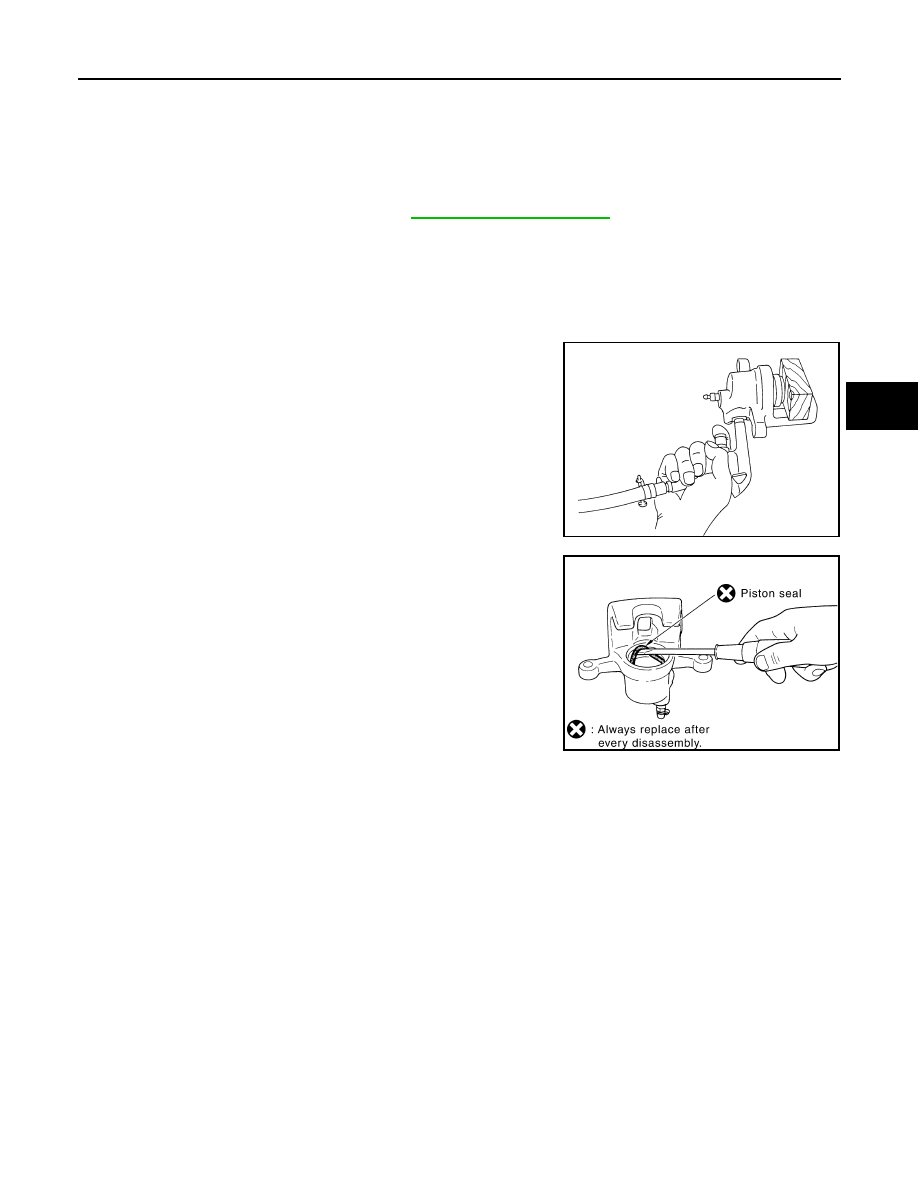

Disassembly and Assembly of Brake Caliper

INFOID:0000000001297488

DISASSEMBLY

1.

Remove pads from cylinder body.

2.

Remove sliding sleeve and boot from cylinder body.

3.

Place a wooden block as shown, and blow air from union bolt
hole to remove piston and piston boot.

CAUTION:

Do not get your fingers caught in piston.

4.

Remove piston seal from cylinder body, using a suitable tool.

CAUTION:

Be careful not to damage cylinder inner wall.

CALIPER INSPECTION

Cylinder Body

CAUTION:

• Use new brake fluid to clean. Do not use mineral oils such as gasoline or kerosene.
• Check inside surface of cylinder for score, rust wear, damage or foreign materials. If any of the

above conditions are observed, replace cylinder body.

• Minor damage from rust or foreign materials may be eliminated by polishing surface with a fine

emery paper. Replace cylinder body if necessary.

Torque Member

Check for wear, cracks, and damage. If damage or deformation is present, replace the affected part.

Piston

CAUTION:

• Piston sliding surface is plated, do not polish with emery paper even if rust or foreign materials are

stuck to sliding surface.

• Check piston for score, rust, wear, damage or presence of foreign materials. Replace if any of the

above conditions are observed.

Sliding Pin Bolts and Sliding Pin Boots

Make sure there is no wear, damage, or cracks in sliding sleeve and sliding sleeve boots, and if there are,
replace them.

BRD0041D

PFIA0269E

BR-38

< DISASSEMBLY AND ASSEMBLY >

REAR DISC BRAKE

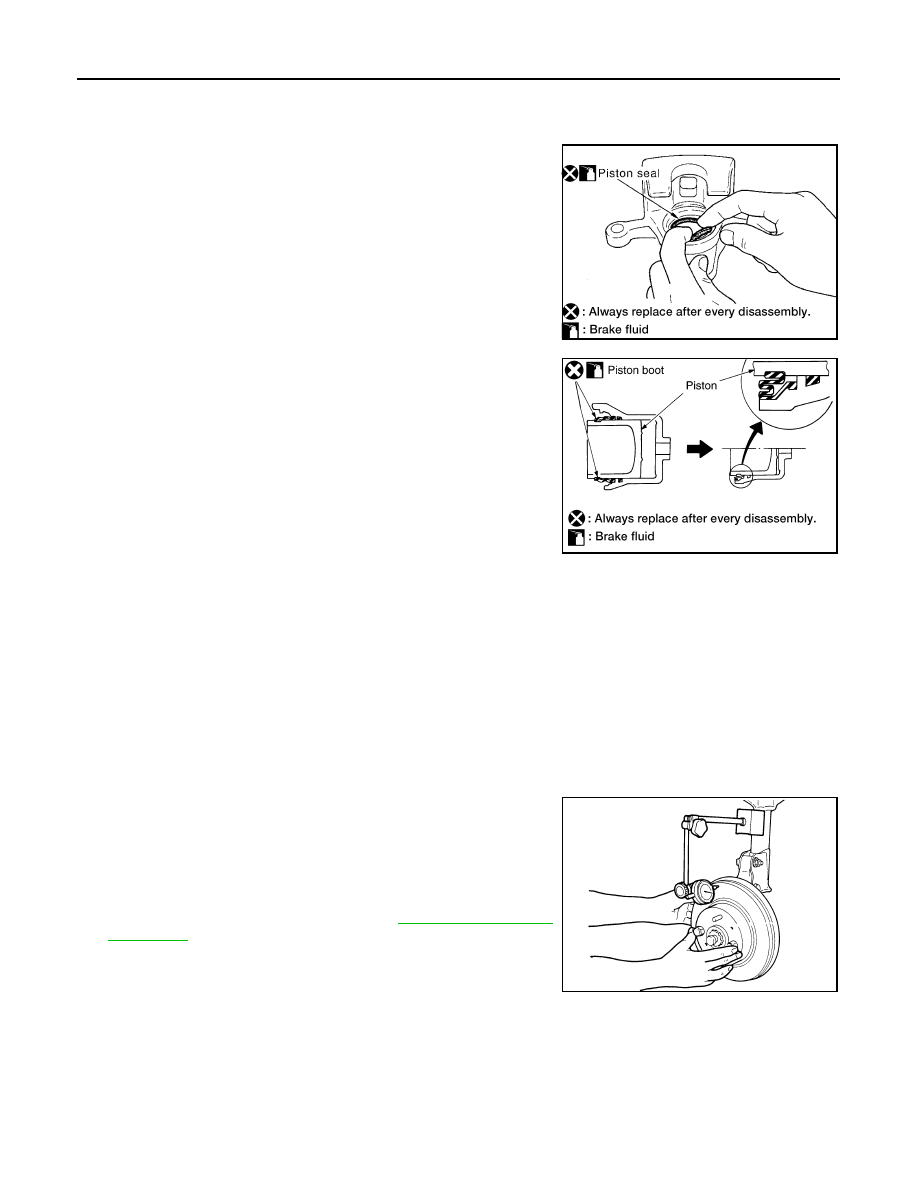

ASSEMBLY

CAUTION:

Do not use NISSAN Rubber Grease (KRE00 00010, KRE00 00010 01) when assembling.

1.

Apply clean brake fluid to new piston seal and insert into groove
on cylinder body.

CAUTION:

Do not reuse piston seal.

2.

Apply brake fluid to piston and to piston boot, then install piston
boot into piston groove.

CAUTION:

Do not reuse piston boot.

3.

Insert into cylinder body by hand and insert piston boot piston-side lip into piston groove.

CAUTION:

Press piston evenly and vary the pressing point to prevent cylinder inner wall from being rubbed.

4.

Install sliding boots and sleeves to cylinder body.

DISC ROTOR INSPECTION

Visual Inspection

Check surface of disc rotor for uneven wear, cracks, and serious damage. If any non-standard condition is
detected, replace applicable part.

Runout Inspection

1.

Install disc rotor to wheel hub in 2 or more positions, using wheel nuts.

2.

Inspect runout using a dial gauge. [Measured at 10 mm (0.39 in)
inside disk edge.]

NOTE:
Make sure that wheel bearing axial end play is within the specifi-
cation before measuring runout. Refer to

RAX-8, "Removal and

Installation"

.

3.

If runout is outside the limit, find the minimum runout point by
shifting mounting positions of disc rotor and wheel hub by one
hole.

4.

If runout still out of specification, turn rotor with on-car brake lathe.

Thickness Inspection

WFIA0210E

WFIA0211E

Runout limit (on vehicle)

: 0.05 mm (0.0020 in)

BRA0013D

REAR DISC BRAKE

BR-39

< DISASSEMBLY AND ASSEMBLY >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

Check thickness of disc rotor, using a micrometer. If thickness is
either at or below the wear limit, or exceeds maximum uneven wear,
replace disc rotor.

Standard thickness

: 18.0 mm (0.709 in)

Wear limit

: 16.0 mm (0.630 in)

Maximum uneven wear
(measured at 8 positions)

: 0.015 mm (0.0006 in)

SBR020B

BR-40

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

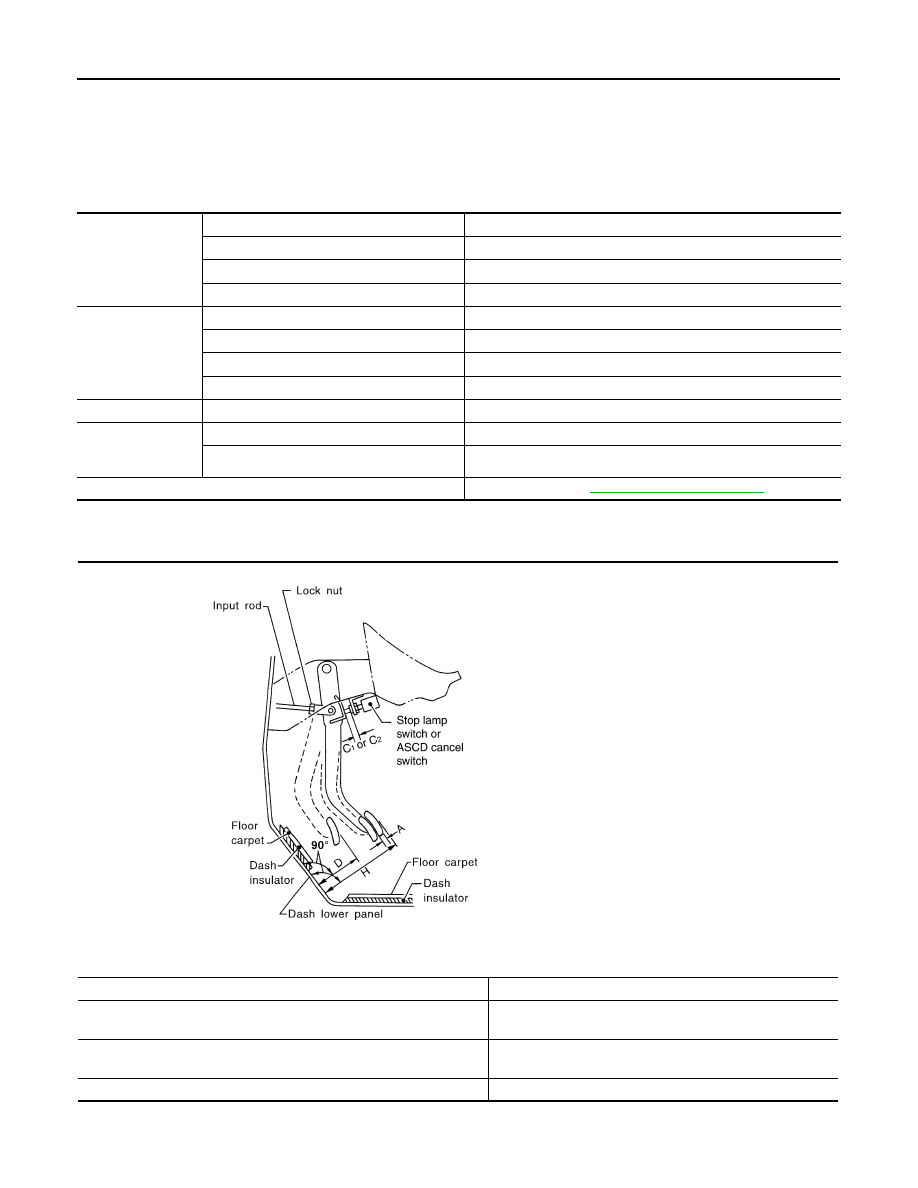

General Specification

INFOID:0000000001297423

Unit: mm (in)

Brake Pedal

INFOID:0000000001297424

Unit: mm (in)

Front brake

Brake model

CLZ33VB

Rotor outer diameter

×

 thickness

296

×

 28 (11.654

×

 1.102)

Pad Length

×

 width

×

 thickness

111.0

×

 73.5

×

 10.0 (4.73

×

 2.894

×

 0.394)

Cylinder bore diameter (each)

46.4 (1.83)

Rear brake

Brake model

CLZ14VB

Rotor outer diameter

×

 thickness

308

×

 18 (12.126

×

 0.709)

Pad Length

×

 width

×

 thickness

83.0

×

 33.0

×

 11.0 (3.268

×

 1.299

×

 0.433)

Cylinder bore diameter

38.1 (1.50)

Control valve

Valve model

Electric brake force distribution

Brake booster

Booster model

C215T

Diaphragm diameter

215 (8.46)

Recommended brake fluid

Refer to

MA-10, "Fluids and Lubricants"

.

Free height "H"

182.1 - 192.1 (7.17 - 7.56)

Depressed pedal height ("D" [under a force of 490 N (50 kg, 110 lb) with
engine running]

105 - 115 (4.13 - 4.53)

Clearance between pedal stopper and threaded end of stop lamp switch
and ASCD switch "C

1

" or “C

2

”

0.74 - 1.96 (0.029 - 0.077)

Pedal play "A"

3 - 11 (0.12 - 0.43)

WFIA0160E

SERVICE DATA AND SPECIFICATIONS (SDS)

BR-41

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

Brake Booster

INFOID:0000000001297425

Unit: mm (in)

Check Valve

INFOID:0000000001297426

Front Disc Brake

INFOID:0000000001297427

Unit: mm (in)

Rear Disc Brake

INFOID:0000000001297428

Unit: mm (in)

Input rod installation standard dimension

150 (5.91)

Vacuum leakage
[at vacuum of -66.7 kPa(-500 mmHg, -19.69 inHg)]

Within 1.3 kPa (10 mmHg, 0.39 inHg) of vacuum for 15 seconds

Brake model

CLZ33VB

Brake pad

Standard thickness (new)

10.0 (0.394)

Repair limit thickness

2.0 (0.079)

Disc rotor

Standard thickness (new)

28.0 (1.102)

Repair limit thickness

26.0 (1.024)

Maximum uneven wear (measured at 8 positions)

0.015 (0.0006)

Runout limit (with it attached to the vehicle)

0.05 (0.0020)

Brake model

CLZ14VB

Brake pad

Standard thickness (new)

11.0 (0.433)

Repair limit thickness

2.0 (0.079)

Disc rotor

Standard thickness (new)

18.0 (0.709)

Repair limit thickness

16.0 (0.630)

Maximum uneven wear (measured at 8 positions)

0.015 (0.0006)

Runout limit (with it attached to the vehicle)

0.05 (0.0020)
