BCS

DIAGNOSIS SYSTEM (BCM)

BCS-17

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BCM : CONSULT-III Function (BCM - BCM)

INFOID:0000000001712663

WORK SUPPORT

DOOR LOCK

DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)

INFOID:0000000001712664

WORK SUPPORT

DATA MONITOR

1: With remote keyless entry system

2: With Intelligent Key

ACTIVE TEST

REAR WINDOW DEFOGGER

Item

Description

RESET SETTING VALUE

Return a value set with WORK SUPPORT of each system to a default value in factory shipment.

Work Item

Description

DOOR LOCK-UNLOCK SET

• ON
• OFF

ANTI-LOCK OUT SET

• ON
• OFF

Monitor Item

[Unit}

Description

IGN ON SW [ON/OFF]

Indicates condition of ignition switch in ON position

KEY ON SW [ON/OFF]

Indicates condition of key switch

CDL LOCK SW [ON/OFF]

Indicates condition of door lock and unlock switch

CDL UNLOCK SW [ON/OFF]

Indicates condition of door lock and unlock switch

DOOR SW-DR [ON/OFF]

Indicates condition of front door switch LH

DOOR SW-AS [ON/OFF]

Indicates condition of front door switch RH

DOOR SW-RR [ON/OFF]

Indicates condition of rear door switch RH

DOOR SW-RL [ON/OFF]

Indicates condition of rear door switch LH

BACK DOOR SW [ON/OFF]

Indicates condition of back door switch

KEY CYL LK-SW [ON/OFF]

Indicates condition of lock signal from door key cylinder switch

KEY CYL UN-SW [ON/OFF]

Indicates condition of unlock signal from door key cylinder switch

KEYLESS LOCK

1

 [ON/OFF]

Indicates condition of lock signal from keyfob

KEYLESS UNLOCK

1

 [ON/OFF]

Indicates condition of unlock signal from keyfob

I-KEY LOCK

2

 [ON/OFF]

Indicates condition of lock signal from Intelligent Key

I-KEY UNLOCK

2

 [ON/OFF]

Indicates condition of unlock signal from Intelligent Key

Test Item

Description

DOOR LOCK

This test is able to check door lock operation [ALL LOCK/ALL UNLOCK/DR UNLOCK/
OTHER UNLOCK].

TRUNK/BACK DOOR

This test is able to check trunk/back door lock operation [LOCK (SET)/UNLOCK (RE-
LEASE)].

BCS-18

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

REAR WINDOW DEFOGGER : CONSULT-III Function (BCM - REAR DEFOGGER)

INFOID:0000000001712665

DATA MONITOR

BUZZER

BUZZER : CONSULT-III Function (BCM - BUZZER)

INFOID:0000000001712666

DATA MONITOR

ACTIVE TEST

INT LAMP

INT LAMP : CONSULT-III Function (BCM - INT LAMP)

INFOID:0000000001712667

WORK SUPPORT

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Indicates condition of ignition switch in ON position

IGN ACC SW [ON/OFF]

Indicates condition of ignition switch in ACC position

REAR DEF SW [ON/OFF]

Displays “Press (ON)/other (OFF)” status determined with the rear window defogger switch

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Ignition switch (ON) status judged by ignition power supply input

KEY ON SW [ON/OFF]

Key switch status

DOOR SW -DR [ON/OFF]

Front door switch (driver side) status judged by BCM

LIGHT SW 1ST [ON/OFF]

Lighting switch status judged by the lighting switch signal read with combination switch reading func-
tion

BUCKLE SW [ON/OFF]

Seat belt buckle switch status

Test Item

Description

LIGHT WARN ALM

The light reminder warning operation can be checked by operating the relevant function (On/Off).

IGN KEY WARN ALM

The key reminder warning operation can be checked by operating the relevant function (On/Off).

SEAT BELT WARN TEST

The seat belt warning operation can be checked by operating the relevant function (On/Off).

DOOR WARNING IND

The door open warning operation can be checked by operating the relevant function (On/Off).

JPLIA0093GB

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-19

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

* : Initial setting

DATA MONITOR

1: With remote keyless entry

2: With Intelligent Key

ACTIVE TEST

Work Item

Setting item

Setting

SET I/L D-UNLCK INTCON

ON*

With the interior room lamp timer function

OFF

Without the interior room lamp timer function

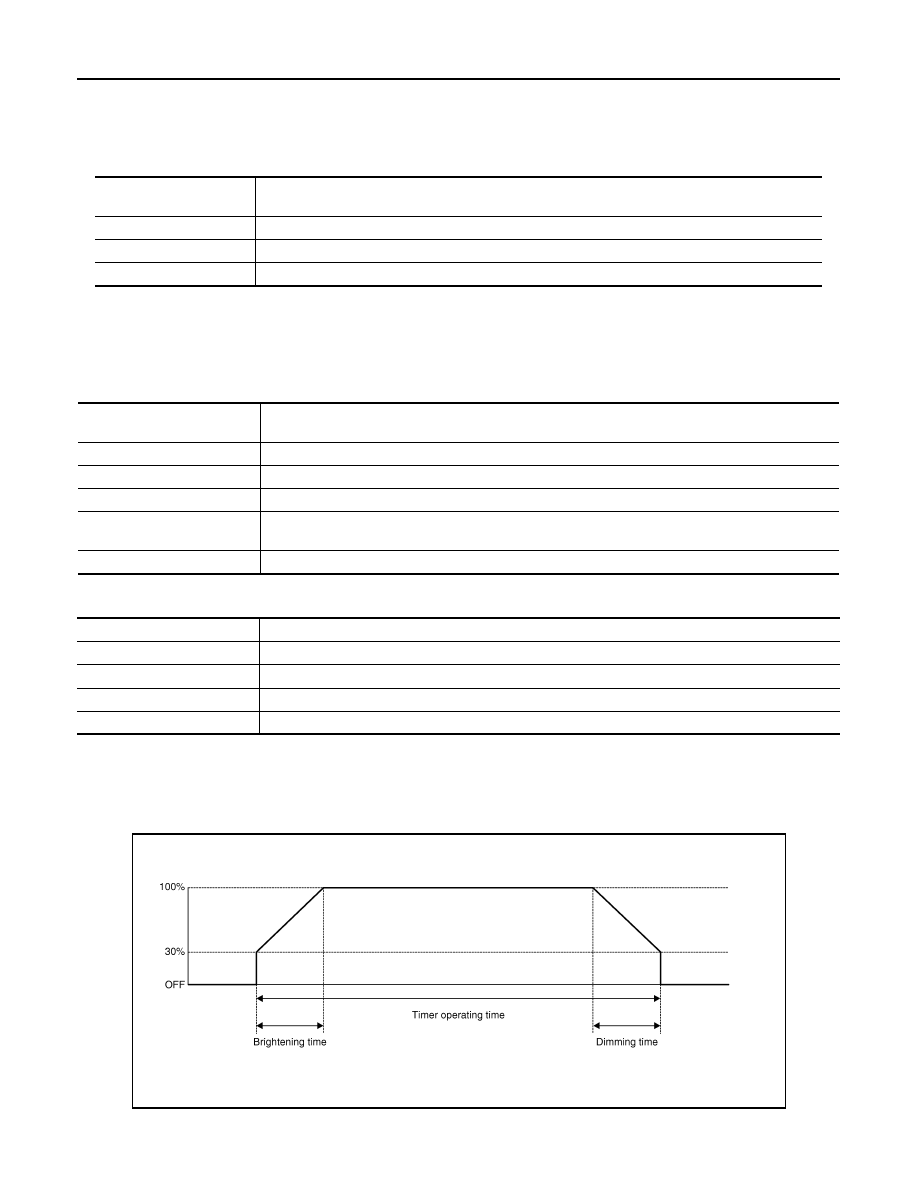

ROOM LAMP ON TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual brightening time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

0 sec.

ROOM LAMP OFF TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual dimming time.

MODE 2

1 sec.

MODE 3

2 sec.

MODE 4*

3 sec.

MODE 5

0 sec.

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Ignition switch (ON) status judges from IGN signal (ignition power supply)

KEY ON SW [ON/OFF]

The switch status input from key switch

DOOR SW-DR [ON/OFF]

The switch status input from front door switch LH

DOOR SW-AS [ON/OFF]

The switch status input from front door switch RH

DOOR SW-RR [ON/OFF]

The switch status input from rear door switch RH

DOOR SW- RL [ON/OFF]

The switch status input from rear door switch LH

BACK DOOR SW [ON/OFF]

The switch status input from back door switch

KEY CYL LK-SW [ON/OFF]

Lock switch status input from door lock and unlock switch

KEY CYL UN-SW [ON/OFF]

Lock switch status input from door lock and unlock switch

CDL LOCK SW [ON/OFF]

Lock switch status input from door lock and unlock switch

CDL UNLOCK SW [ON/OFF]

Unlock switch status input from door lock and unlock switch

KEYLESS LOCK

1

 [ON/OFF]

Lock signal status received from remote keyless entry receiver (integrated in the
BCM)

KEYLESS UNLOCK

1

 [ON/OFF]

Unlock signal status received from remote keyless entry receiver (integrated in the
BCM)

I-KEY LOCK

2

 [ON/OFF]

Lock signal status received from Intelligent Key unit by CAN communication

I-KEY UNLOCK

2

 [ON/OFF]

Unlock signal status received from Intelligent Key unit by CAN communication

Test Item

Operation

Description

INT LAMP

ON

Outputs the interior room lamp control signal to turn the interior room lamps ON.

OFF

Stops the interior room lamp control signal to turn the interior room lamps OFF.

IGN ILLUM

ON

Outputs the ignition keyhole illumination control signal to turn the ignition keyhole il-
lumination lamp ON.

OFF

Stops the ignition keyhole illumination control signal to turn the ignition keyhole illu-
mination lamp OFF.

BCS-20

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

MULTIREMOTE ENT

MULTIREMOTE ENT : CONSULT-III Function (BCM - MULTIREMOTE ENT)

INFOID:0000000001712668

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

HEADLAMP

HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)

INFOID:0000000001712669

WORK SUPPORT

STEP LAMP TEST

ON

Outputs the step lamp control signal to turn the step lamps ON.

OFF

Stops the step lamp control signal to turn the step lamps OFF.

LUGGAGE LAMP TEST

ON

Outputs the luggage lamp control signal to turn the luggage lamp ON.

OFF

Stops the luggage lamp control signal to turn the luggage lamp OFF.

Test Item

Operation

Description

Work Item

Description

HAZARD LAMP SET

Answer back function (hazard) mode can be changed in this mode.
For the detail of the setting, refer to

BCS-22, "FLASHER : CONSULT-III Function (BCM -

FLASHER)"

.

Monitor Item

[Unit}

Condition

IGN ON SW [ON/OFF]

Indicates condition of ignition switch in ON position

KEY SW [ON/OFF]

Indicates condition of key switch

KEYLESS LOCK [ON/OFF]

Indicates condition of lock signal from keyfob

KEYLESS UNLOCK [ON/OFF]

Indicates condition of unlock signal from keyfob

DOOR SW-DR [ON/OFF]

Indicates condition of front door switch LH

DOOR SW-AS [ON/OFF]

Indicates condition of front door switch RH

DOOR SW-RR [ON/OFF]

Indicates condition of rear door switch RH

DOOR SW-RL [ON/OFF]

Indicates condition of rear door switch LH

BACK DOOR SW [ON/OFF]

Indicates condition of back door switch

CDL LOCK SW [ON/OFF]

Indicates condition of door lock and unlock switch

CDL UNLOCK SW [ON/OFF]

Indicates condition of door lock and unlock switch

RKE LOCK AND UNLOCK

This item is indicated, but not monitored

Test Item

Description

DOOR LOCK

This test is able to check warning chime in combination meter operation. [ALL LOCK/ALL UN-
LOCK/DR UNLOCK/OTHER UNLOCK]

INT LAMP

This test is able to check interior lamp operation [ON/OFF].

FLASHER

This test is able to check flasher operation [LH/RH/OFF].

Work Item

Setting item

Setting

BATTERY SAVER SET

ON*

With the exterior lamp battery saver function

OFF

Without the exterior lamp battery saver function

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-21

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

*: Initial setting

DATA MONITOR

ACTIVE TEST

WIPER

CUSTOM A/LIGHT SET-
TING

MODE1*

Normal

MODE2

More sensitive setting than normal setting (Turns ON earlier than normal operation.)

MODE3

More sensitive setting than MODE 2 (Turns ON earlier than MODE 2.)

MODE4

Less sensitive setting than normal setting (Turns ON later than normal operation.)

ILL DELAY SET

MODE1*

45 sec.

Sets delay timer function timer operation time
(All doors closed)

MODE2

Without the func-
tion

MODE3

30 sec.

MODE4

60 sec.

MODE5

90 sec.

MODE6

120 sec.

MODE7

150 sec.

MODE8

180 sec.

Work Item

Setting item

Setting

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Ignition switch (ON) status judged from IGN signal (ignition power supply)

HI BEAM SW [ON/OFF]

Each switch status that BCM judges from the combination switch reading function

H/L SW POS [ON/OFF]

LIGHT SW 1ST [ON/OFF]

PASSING SW [ON/OFF]

AUTO LIGHT SW [ON/OFF]

FR FOG SW [ON/OFF]

DOOR SW-DR [ON/OFF]

The switch status input from front door switch LH

AUT LIGHT SYS [ON/OFF]

Auto light system status that BCM judges from the vehicle condition

Test Item

Operation

Description

TAIL LAMP

ON

Transmits the position light request signal to IPDM E/R with CAN com-
munication to turn the tail lamp ON.

OFF

Stops the tail lamp request signal transmission.

HEAD LAMP

HI

Transmits the high beam request signal with CAN communication to turn
the headlamp (HI).

LO

Transmits the low beam request signal with CAN communication to turn
the headlamp (LO).

OFF

Stops the high & low beam request signal transmission.

FR FOG LAMP

ON

Transmits the front fog lights request signal to IPDM E/R with CAN com-
munication to turn the front fog lamp ON.

OFF

Stops the front fog lights request signal transmission.

DAYTIME RUNNING LIGHT

ON

Transmits the day time running light request signal to IPDM E/R with
CAN communication to turn the each lamps ON.

OFF

Stops the day time running light request signal transmission.

BCS-22

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

WIPER : CONSULT-III Function (BCM - WIPER)

INFOID:0000000001712670

WORK SUPPORT

*: Factory setting

DATA MONITOR

ACTIVE TEST

FLASHER

FLASHER : CONSULT-III Function (BCM - FLASHER)

INFOID:0000000001712671

DATA MONITOR

Work Item

Setting

Item

Description

WIPER SPEED
SETTING

ON*

With vehicle speed
(Front wiper intermittent time linked with the vehicle speed and wiper intermittent dial position)

OFF

Without vehicle speed
(Front wiper intermittent time linked with the wiper intermittent dial position)

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Ignition switch ON status judged from ignition power supply

FR WIPER HI [ON/OFF]

Each switch status that BCM judges from the combination switch reading function

FR WIPER LOW [ON/OFF]

FR WIPER INT [ON/OFF]

FR WASHER SW [ON/OFF]

INT VOLUME [1 - 7]

Each switch status that BCM judges from the combination switch reading function

FR WIPER STOP [ON/OFF]

Front wiper motor (stop position) status received from IPDM E/R with CAN communica-
tion

VEHICLE SPEED [km/h]

The value of the vehicle speed signal received from combination meter with CAN com-
munication

RR WIPER ON [ON/OFF]

Each switch status that BCM judges from the combination switch reading function

RR WIPER INT [ON/OFF]

RR WASHER SW [ON/OFF]

RR WIPER STOP [ON/OFF]

Rear wiper motor (stop position) status input from the rear wiper motor

Test Item

Operation

Description

FR WIPER

HI

Transmits the front wiper request signal (HI) to IPDM E/R with CAN communication to op-
erate the front wiper HI operation.

LO

Transmits the front wiper request signal (LO) to IPDM E/R with CAN communication to
operate the front wiper LO operation.

INT

Transmits the front wiper request signal (INT) to IPDM E/R with CAN communication to
operate the front wiper INT operation.

OFF

Stops transmitting the front wiper request signal to stop the front wiper operation.

RISE UP WIPER
TEST

ON

Outputs the voltage to operate the rear wiper motor.

OFF

Stops the voltage to stop.

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-23

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ACTIVE TEST

AIR CONDITIONER

AIR CONDITIONER : CONSULT-III Function (BCM - AUTO AIR CONDITIONER)

INFOID:0000000001712672

DATA MONITOR

INTELLIGENT KEY

INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)

INFOID:0000000001712673

DATA MONITOR

COMB SW

COMB SW : CONSULT-III Function (BCM - COMB SW)

INFOID:0000000001712674

DATA MONITOR

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Ignition switch (ON) status judged from IGN signal (ignition power supply)

HAZARD SW [ON/OFF]

The switch status input from the hazard switch

TURN SIGNAL R [ON/OFF]

Each switch condition that BCM judges from the combination switch reading function

TURN SIGNAL L [ON/OFF]

BRAKE SW [ON/OFF]

The switch status input from the brake switch

Test Item

Operation

Description

FLASHER

RH

Outputs the voltage to turn the right side turn signal lamps ON.

LH

Outputs the voltage to turn the left side turn signal lamps ON.

OFF

Stops the voltage to turn the turn signal lamps OFF.

Monitor Item

[Unit]

Contents

IGN ON SW [ON/OFF]

Display [ignition switch position (On)/(Off), ACC position (Off)] status as judged from ignition
switch signal

FAN ON SIG [ON/OFF]

Display [FAN (On)/FAN (Off)] status as judged form blower fan motor switch signal

AIR COND SW [ON/OFF]

Display [COMP (On)/COMP (Off)] status as judged form air conditioner switch signal

Monitor Item

[Unit]

Condition

PUSH SW [ON/OFF]

Indicates condition of ignition knob switch

I-KEY LOCK [ON/OFF]

Indicates condition of lock signal from Intelligent Key

I-KEY UNLOCK [ON/OFF]

Indicates [condition of unlock signal from Intelligent Key

I-KEY PW DWN [ON/OFF]

Indicates condition of all power window signal from Intelligent Key

I-KEY TRUNK [ON/OFF]

Indicates condition of trunk open signal from Intelligent Key

I-KEY PANIC [ON/OFF]

Indicates condition of panic signal from Intelligent Key

BCS-24

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

IMMU

IMMU : CONSULT-III Function (BCM - IMMU)

INFOID:0000000001712675

DATA MONITOR

ACTIVE TEST

BATTERY SAVER

Monitor Item

[Unit]

Description

TURN SIGNAL R
[OFF/ON]

Displays the status of the TURN RH switch in combination switch judged by BCM with the combination switch
reading function

TURN SIGNAL L
[OFF/ON]

Displays the status of the TURN LH switch in combination switch judged by BCM with the combination switch
reading function

HI BEAM SW
[OFF/ON]

Displays the status of the HI BEAM switch in combination switch judged by BCM with the combination switch
reading function

HEADLAMP SW1
[OFF/ON]

Displays the status of the HEADLAMP switch in combination switch judged by BCM with the combination
switch reading function

HEADLAMP SW2
[OFF/ON]

Displays the status of the HEADLAMP switch in combination switch judged by BCM with the combination
switch reading function

LIGHT SW 1ST
[OFF/ON]

Displays the status of the HEADLAMP switch in combination switch judged by BCM with the combination
switch reading function

PASSING SW
[OFF/ON]

Displays the status of the PASSING switch in combination switch judged by BCM with the combination switch
reading function

AUTO LIGHT SW
[OFF/ON]

Displays the status of the AUTO LIGHT switch in combination switch judged by BCM with the combination
switch reading function

FR FOG SW
[OFF/ON]

Displays the status of the FR FOG switch in combination switch judged by BCM with the combination switch
reading function

FR WIPER HI
[OFF/ON]

Displays the status of the FR WIPER HI switch in combination switch judged by BCM with the combination
switch reading function

FR WIPER LOW
[OFF/ON]

Displays the status of the FR WIPER LOW switch in combination switch judged by BCM with the combination
switch reading function

FR WIPER INT
[OFF/ON]

Displays the status of the FR WIPER INT switch in combination switch judged by BCM with the combination
switch reading function

FR WASHER SW
[OFF/ON]

Displays the status of the FR WASHER switch in combination switch judged by BCM with the combination
switch reading function

INT VOLUME
[1 - 7]

Displays the status of wiper intermittent dial position judged by BCM with the combination switch reading
function

RR WIPER ON
[OFF/ON]

Displays the status of the RR WIPER switch in combination switch judged by BCM with the combination
switch reading function

RR WIPER INT
[OFF/ON]

Displays the status of the RR WIPER INT switch in combination switch judged by BCM with the combination
switch reading function

RR WASHER SW
[OFF/ON]

Displays the status of the RR WASHER switch in combination switch judged by BCM with the combination
switch reading function

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Indicates condition of ignition switch in ON position.

Test Item

Description

THEFT IND

This test is able to check security indicator operation [ON/OFF].
