When replacing BCM, save or print current vehicle specification with CONSULT-III configuration before
replacement.
Configuration has three functions as follows
• READ CONFIGURATION is the function to read (extract) vehicle configuration of current BCM.
• WRITE CONFIGURATION - Manual selection is the function to select and write vehicle configuration on

BCM manually.

• WRITE CONFIGURATION - Config file is the function to write vehicle configuration with the data extracted

from current BCM.

CAUTION:

• When replacing BCM, you must perform WRITE CONFIGURATION with CONSULT-III.
• Complete the procedure of WRITE CONFIGURATION in order.
• If you set incorrect WRITE CONFIGURATION, incidents will occur.
• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000001712649

SAVING VEHICLE SPECIFICATION

Perform “READ CONFIGURATION” with CONSULT-III to save or print current vehicle specification.

>> GO TO 2

REPLACE BCM

Replace BCM. Refer to

BCS-54, "Removal and Installation"

>> GO TO 3

WRITING VEHICLE SPECIFICATION

Perform “WRITE CONFIGURATION - Config file” or “WRITE CONFIGURATION - Manual selection” with
CONSULT-III to write vehicle specification. Refer to

BCS-3, "ADDITIONAL SERVICE WHEN REPLACING

CONTROL UNIT : Special Repair Requirement"

>> GO TO 4

INITIALIZE BCM (NATS)

Perform BCM initialization. (NATS)

>> WORK END

CONFIGURATION

CONFIGURATION : Description

INFOID:0000000001712650

Vehicle specification needs to be written with CONSULT-III because it is not written after replacing BCM.
Configuration has three functions as follows
• READ CONFIGURATION is the function to read (extract) vehicle configuration of current BCM.
• WRITE CONFIGURATION - Manual selection is the function to select and write vehicle configuration on

BCM manually.

• WRITE CONFIGURATION - Config file is the function to write vehicle configuration with the data extracted

from current BCM.

CAUTION:

BCS-4

< BASIC INSPECTION >

INSPECTION AND ADJUSTMENT

CONFIGURATION : Special Repair Requirement

INFOID:0000000001712651

WRITING VEHICLE SPECIFICATION

Perform “WRITE CONFIGURATION” with CONSULT-III.

When writing saved data>>GO TO 2
When writing manually>>GO TO 3

PERFORM “WRITE CONFIGURATION - CONFIG FILE”

Perform “WRITE CONFIGURATION - Config file” with CONSULT-III.

>> WORK END

PERFORM “WRITE CONFIGURATION - MANUAL SELECTION”

For “WRITE CONFIGURATION - Manual selection”, using the following flow chart, identify the correct model
and configuration list.
Confirm and/or change setting value for each item according to the configuration list.
Depending on CONSULT-III software version being used, some or all of the write configuration items shown in
the following configuration lists may be displayed. If an item does not display on the CONSULT-III “WRITE
CONFIGURATION - Manual selection” screen, then it is an auto setting item and it cannot be manually set or
changed.

*: Do not apply MODE1, MODE3 or MODE4
NOTE:
Confirm vehicle model. Refer to

GI-32, "Model Variation"

>> WORK END

MANUAL SETTING ITEM

Items

Setting value

FR FOG LAMP

WITH

⇔

WITHOUT

DTRL

WITH

⇔

WITHOUT

SPEED SENS WIP

WITH

⇔

WITHOUT

DISPLAY STYLE

MODE2*

THEFT ALARM

WITH

⇔

WITHOUT

BCS

BODY CONTROL SYSTEM

BCS-5

< FUNCTION DIAGNOSIS >

FUNCTION DIAGNOSIS

BODY CONTROL SYSTEM

System Description

INFOID:0000000001712652

OUTLINE

• BCM (Body Control Module) controls the various electrical components. It inputs the information required to

the control from CAN communication and the signal received from each switch and sensor.

• BCM has combination switch reading function for reading the operation status of combination switches (light,

turn signal, wiper and washer) in addition to a function for controlling the operation of various electrical com-
ponents. It also has the signal transmission function as the passed point of signal and the power consump-
tion control function that reduces the power consumption with the ignition switch OFF.

• BCM is equipped with the diagnosis function that performs the diagnosis with CONSULT-III and various set-

tings.

BCM control function list

System

Refer to

Combination switch reading system

BCS-7, "System Diagram"

Signal buffer system

BCS-12, "System Diagram"

Power consumption control system

BCS-13, "System Diagram"

Auto light system

EXL-11, "System Diagram"

Turn signal and hazard warning lamp system

EXL-15, "System Diagram"

Headlamp system

EXL-7, "System Diagram"

Front fog lamp system (if equipped)

EXL-14, "System Diagram"

Daytime running light system

EXL-9, "System Diagram"

Interior room lamp control system

INL-6, "System Diagram"

Step lamp system

INL-6, "System Diagram"

Interior room lamp battery saver system

INL-13, "BATTERY SAVER : CONSULT-III Function"

Front wiper and washer system

WW-4, "System Diagram"

Rear wiper and washer system

WW-8, "System Diagram"

Warning chime system

WCS-4, "WARNING CHIME SYSTEM : System Diagram"

Door lock system

• WITH INTELLIGENT KEY SYSTEM:

DLK-12, "DOOR LOCK AND UN-

LOCK SWITCH : System Diagram"

• WITHOUT INTELLIGENT KEY SYSTEM:

DLK-199, "DOOR LOCK AND

UNLOCK SWITCH : System Diagram"

(NATS) Nissan anti-theft system

• WITH INTELLIGENT KEY SYSTEM:

SEC-13, "System Diagram"

• WITHOUT INTELLIGENT KEY SYSTEM:

SEC-101, "System Diagram"

Vehicle security system

• WITH INTELLIGENT KEY SYSTEM:

SEC-17, "System Diagram"

• WITHOUT INTELLIGENT KEY SYSTEM:

SEC-104, "System Diagram"

Rear window defogger system

DEF-4, "System Diagram"

Remote keyless entry system

DLK-201, "REMOTE KEYLESS ENTRY : System Diagram"

Intelligent Key system (if equipped)

DLK-19, "INTELLIGENT KEY : System Diagram"

Power window system

PWC-5, "System Diagram"

RAP (retained accessory power) system

PWC-9, "RETAINED PWR : CONSULT-III Function (BCM - RETAINED
PWR)"

TPMS (tire pressure monitoring system)

WT-8, "System Diagram"

BCS-6

< FUNCTION DIAGNOSIS >

BODY CONTROL SYSTEM

Component Parts Location

INFOID:0000000001712653

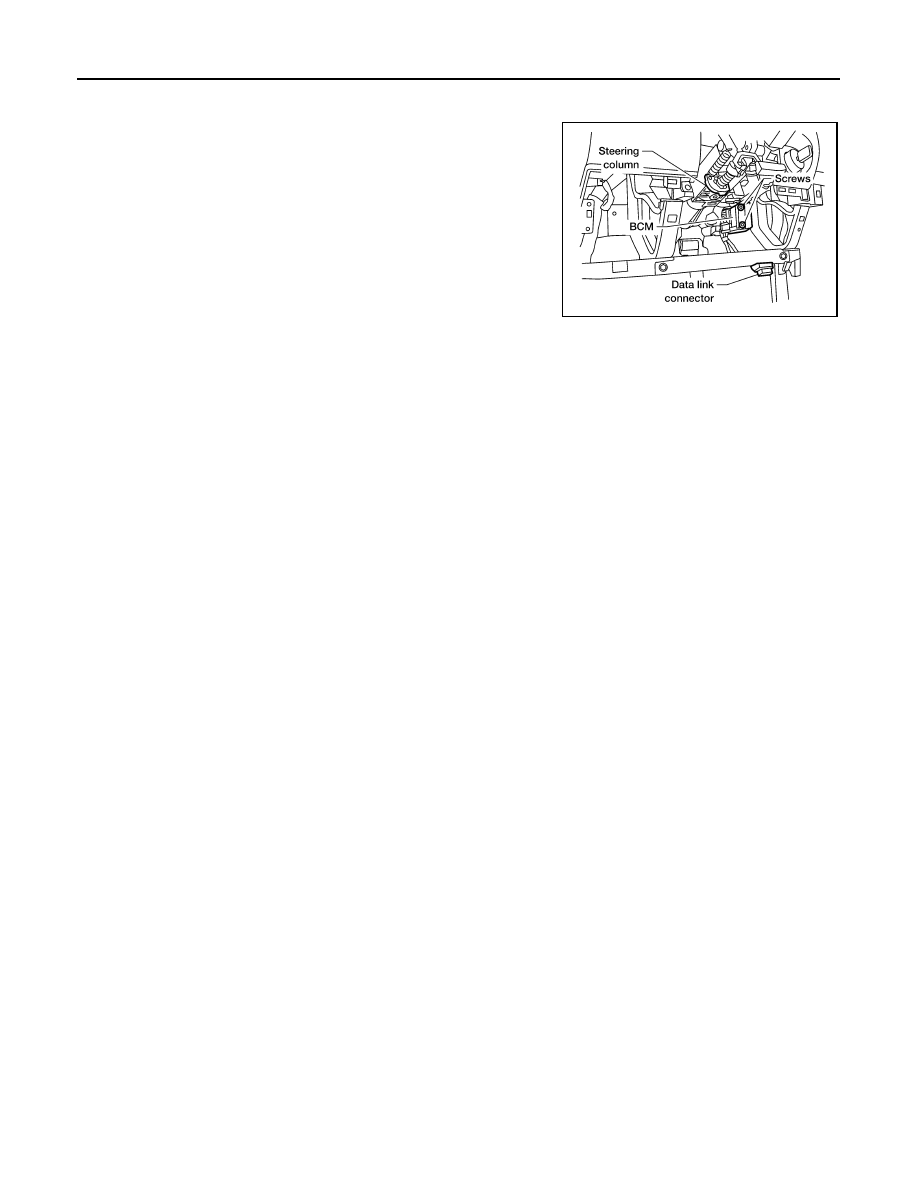

• BCM M18, M19, M20 (view with instrument panel removed)

LKIA0564E

BCS

COMBINATION SWITCH READING SYSTEM

BCS-7

< FUNCTION DIAGNOSIS >

COMBINATION SWITCH READING SYSTEM

System Diagram

INFOID:0000000001712654

System Description

INFOID:0000000001712655

OUTLINE

• BCM reads the status of the combination switch (light, turn signal, wiper and washer) and recognizes the

status of each switch.

• BCM is a combination of 5 output terminals (OUTPUT 1 - 5) and 5 input terminals (INPUT 1 - 5). It reads a

maximum of 20 switch status.

COMBINATION SWITCH MATRIX

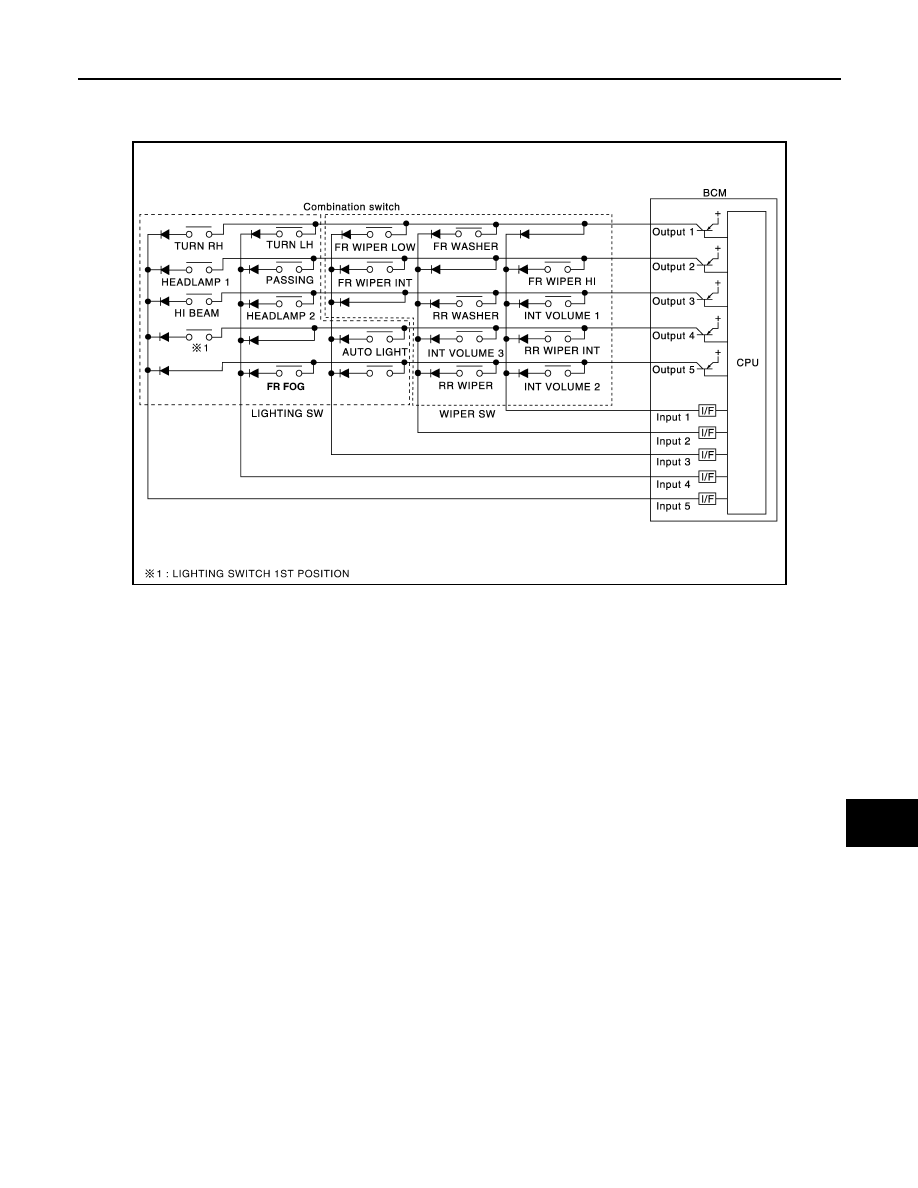

LIIA0757E

BCS-8

< FUNCTION DIAGNOSIS >

COMBINATION SWITCH READING SYSTEM

Combination switch circuit

Combination switch INPUT-OUTPUT system list

NOTE:

Headlamp has a dual system switch.

COMBINATION SWITCH READING FUNCTION

Description

• BCM reads the status of the combination switch at 10 ms interval normally.

NOTE:
BCM reads the status of the combination switch at 20 ms interval when BCM is controlled at low power con-
sumption control mode.

• BCM operates as follows and judges the status of the combination switch.

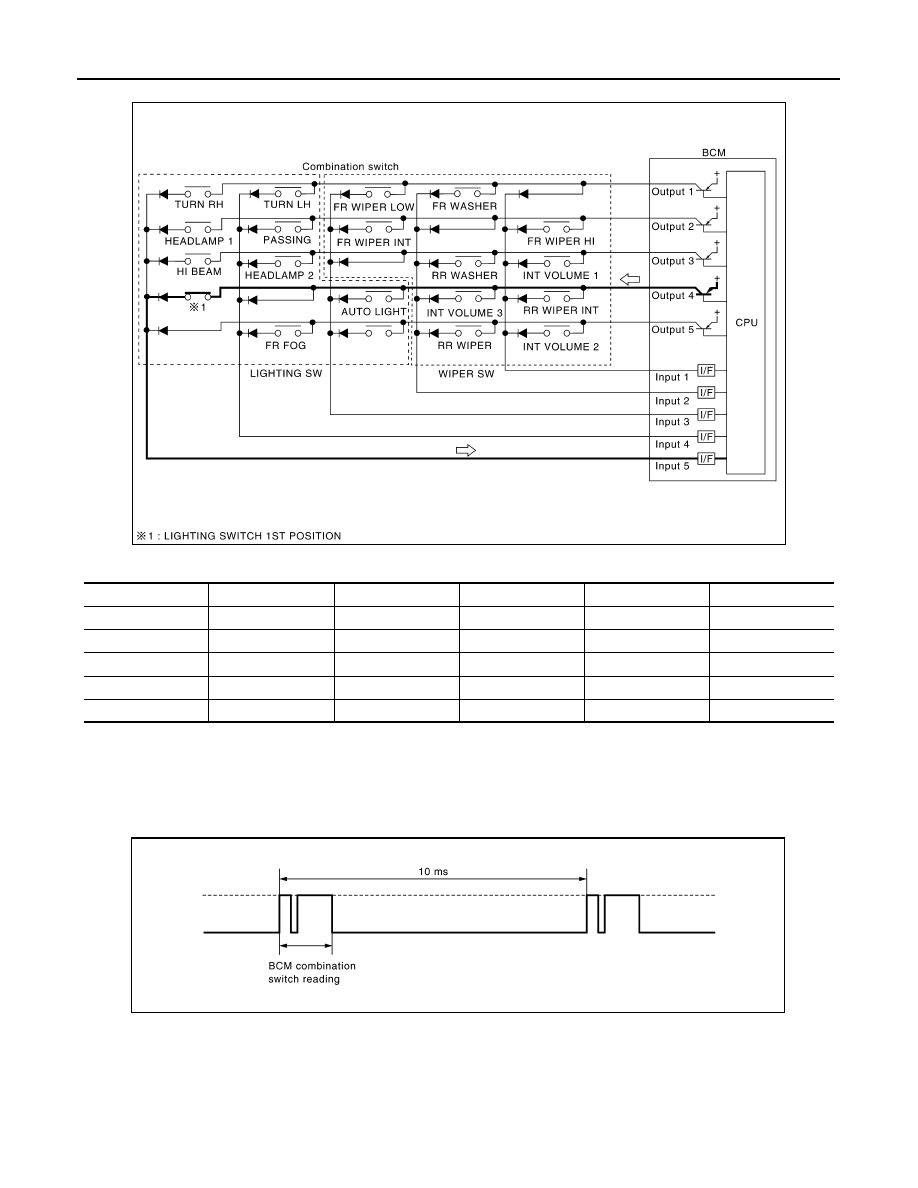

- INPUT 1 - 5 outputs the voltage waveforms of 5 systems simultaneously.
- It operates the transistor on OUTPUT side in the following order: OUTPUT 5

→

System

OUTPUT 1

OUTPUT 2

OUTPUT 3

OUTPUT 4

OUTPUT 5

INPUT 1

—

FR WASHER

FR WIPER LOW

TURN LH

TURN RH

INPUT 2

FR WIPER HI

—

FR WIPER INT

PASSING

HEADLAMP 1

INPUT 3

INT VOLUME 1

RR WASHER

—

HEADLAMP 2

HI BEAM

INPUT 4

RR WIPER INT

INT VOLUME 3

AUTO LIGHT

—

TAIL LAMP

INPUT 5

INT VOLUME 2

RR WIPER

—

FR FOG

—

LIIA0760E

JPMIA0067GB
