Nissan Pathfinder (2008 year). Manual - part 74

AV-432

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

GPS ANTENNA

GPS ANTENNA

Removal and Installation

INFOID:0000000001316082

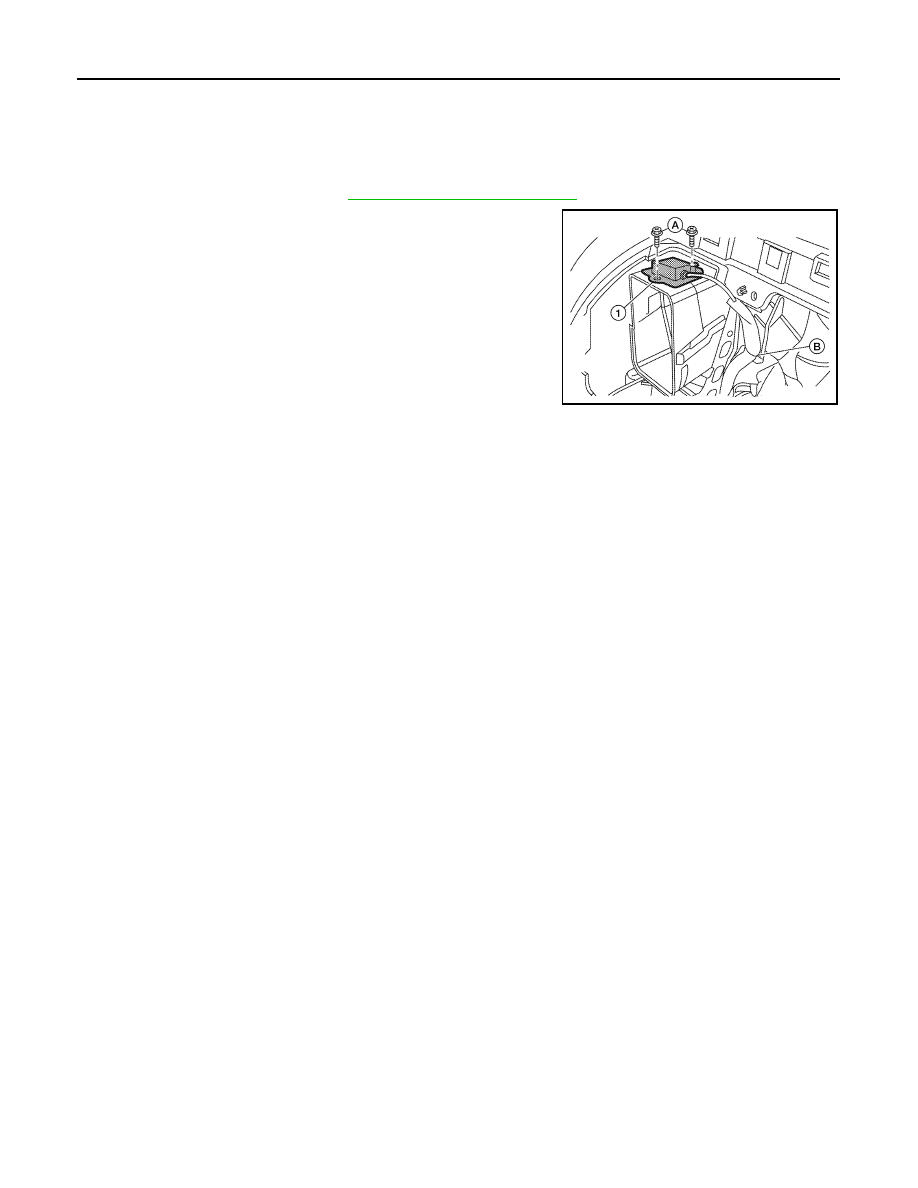

REMOVAL

1.

Remove the cluster lid C. Refer to

IP-10, "Removal and Installation"

.

2.

Remove the GPS antenna screws (A), detach the GPS antenna
harness clip (B).

3.

Remove GPS antenna and feeder assembly out of the instru-
ment panel.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0378ZZ

AV

NAVI CONTROL UNIT

AV-433

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

NAVI CONTROL UNIT

Removal and Installation

INFOID:0000000001679759

NAVI CONTROL UNIT

REMOVAL

CAUTION:

To avoid damage, eject map DVD-ROM before removing the NAVI control unit.

1.

Remove the passenger front seat. Refer to

SE-29, "Removal and Installation"

.

2.

Remove the NAVI control unit kick shield screws.

3.

Disconnect the NAVI control unit connectors.

4.

Remove the NAVI control unit screws and remove the NAVI control unit.

INSTALLATION

Installation is in the reverse order of removal.

1.

Kick shield

2.

Kick shield screws

3.

NAVI control unit self-tapping screws

4.

NAVI control unit

5.

Connectors

WKIA3715E

AV-434

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

SATELLITE RADIO ANTENNA

SATELLITE RADIO ANTENNA

Removal and Installation

INFOID:0000000001329002

For removal and installation, refer to

AV-144, "Removal and Installation"

.

AV

STEERING SWITCH

AV-435

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH

Removal and Installation

INFOID:0000000001316090

For removal and installation, refer to

AV-140, "Removal and Installation"

.

AV-436

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

MICROPHONE

MICROPHONE

Removal and Installation

INFOID:0000000001316091

REMOVAL

1.

Remove the front roof console finisher. Refer to

INT-16, "Removal and Installation"

.

2.

Detach the Bluetooth microphone (1) from the front console fin-
isher tabs (A).

3.

Detach the Bluetooth microphone connector (B) and remove the
Bluetooth microphone (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0379ZZ

AV

TEL ANTENNA

AV-437

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

TEL ANTENNA

Removal and Installation

INFOID:0000000001679843

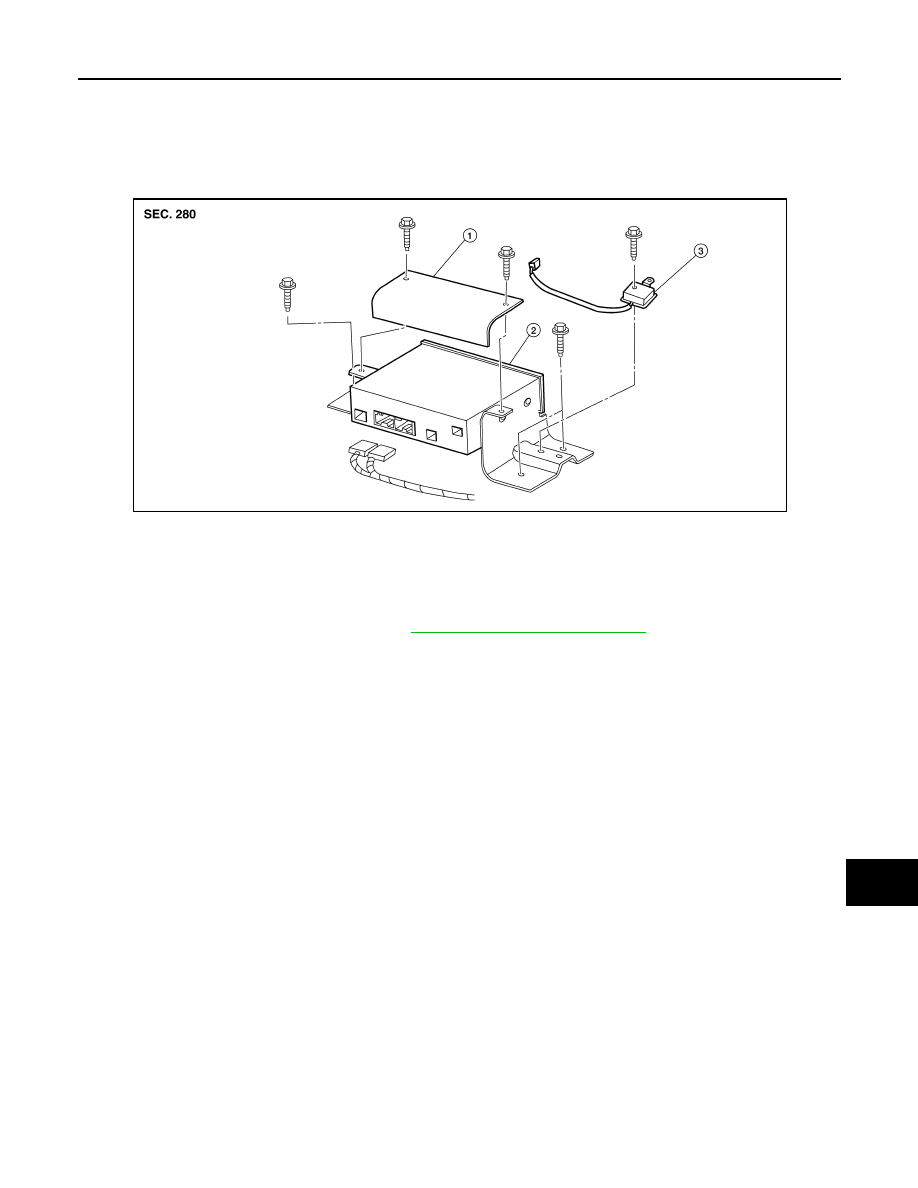

BLUETOOTH ANTENNA

REMOVAL

CAUTION:

To avoid damage, eject map DVD-ROM before removing the NAVI control unit.

1.

Remove the passenger front seat. Refer to

SE-29, "Removal and Installation"

.

2.

Remove the NAVI control unit kick shield screws and remove the kick shield.

3.

Disconnect the Bluetooth antenna connector.

4.

Remove the Bluetooth antenna screw and remove the Bluetooth antenna.

INSTALLATION

Installation is in the reverse order of removal.

1.

Kick shield

2.

NAVI control unit

3.

Bluetooth antenna

AWNIA0192ZZ

AV-438

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

REAR VIEW CAMERA

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000001316140

For removal and installation, refer to

AV-146, "Removal and Installation"

.

AV

REAR VIEW CAMERA CONTROL UNIT

AV-439

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR VIEW CAMERA CONTROL UNIT

Removal and Installation

INFOID:0000000001316141

For removal and installation, refer to

AV-147, "Removal and Installation"

.
