AV-224

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

AV CONTROL UNIT

98

(B)

99

(W)

DVD player audio signal LH

Input

Ignition

switch

ON

With DVD player operating

100

—

Shield

—

—

—

—

101

(GR)

Ground

A/C and AV switch assem-
bly ground

—

Ignition

switch

ON

—

0V

103

(SB)

Ground

CD eject signal

Input

—

Pressing the eject switch

0V

Except for above

3.3V

104

(W/G)

Ground

Ignition signal

Input

Ignition

switch

ON

—

Battery voltage

105
(W)

Ground

Reverse signal

Input

Ignition

switch

ON

R position

12V

Other than R position

0V

106

(G)

Ground

Parking brake signal

Input

Ignition

switch

ON

Parking brake ON

0V

Parking brake OFF

12V

107

(LG)

Ground

Vehicle speed signal
 (8-pulse)

Input

Ignition

switch

ON

When vehicle speed is ap-
prox. 40 km/h (25MPH)

108

(R)

114

(B)

Rear RH pre-amp. audio
signal

Output

Ignition
switch
ON

Audio output

109

(G)

115
(W)

Front RH pre-amp. audio
signal

Output

Ignition
switch
ON

Audio output

110

(SB)

Ground

Amp. ON signal

Output

Ignition
switch
ON

Audio output

12V

111

—

Shield

—

—

—

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIA6649J

SKIB3609E

SKIB3609E

AV

AV CONTROL UNIT

AV-225

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

112

(L)

118

(Y)

Rear LH pre-amp. audio
signal

Output

Ignition
switch
ON

Audio output

113

(R)

119

(B)

Front LH pre-amp. audio
signal

Output

Ignition
switch
ON

Audio output

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

AV-226

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

AV CONTROL UNIT

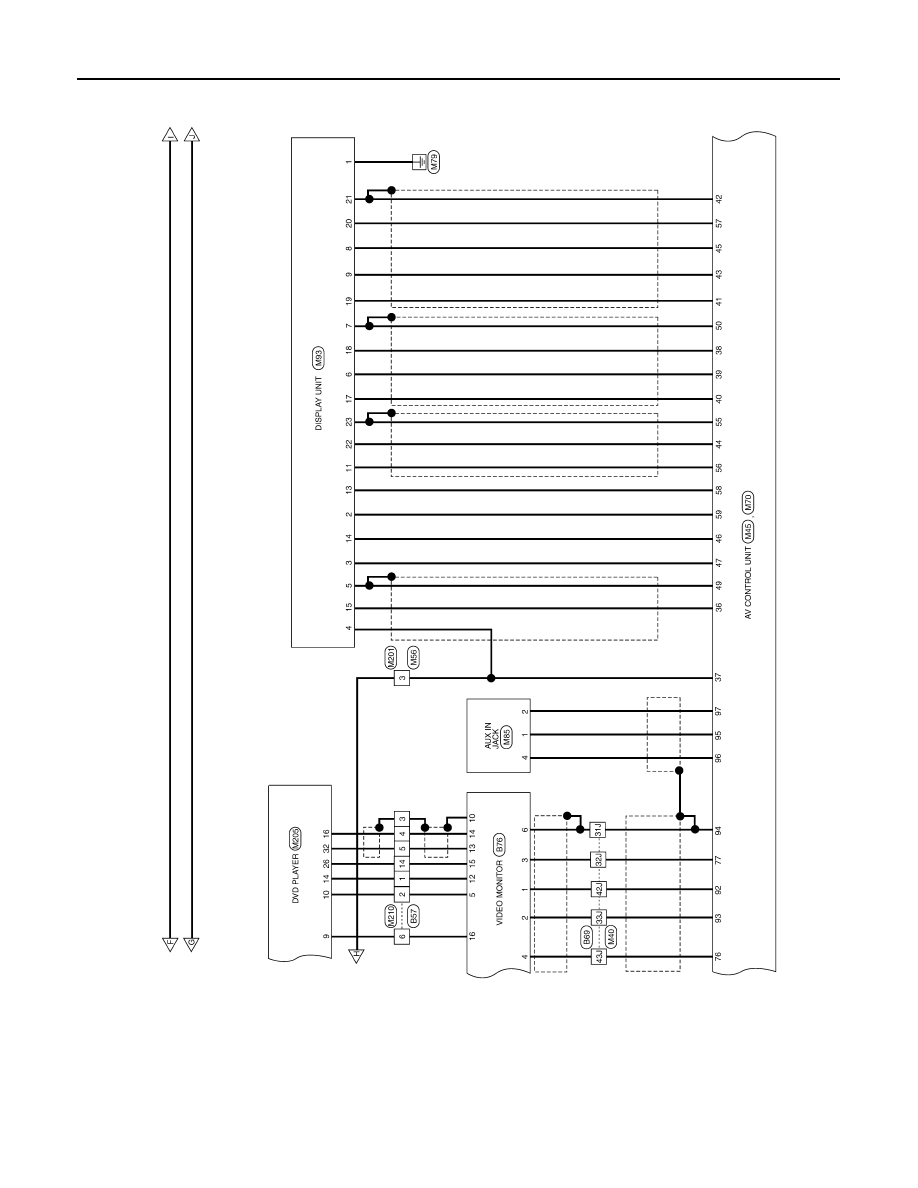

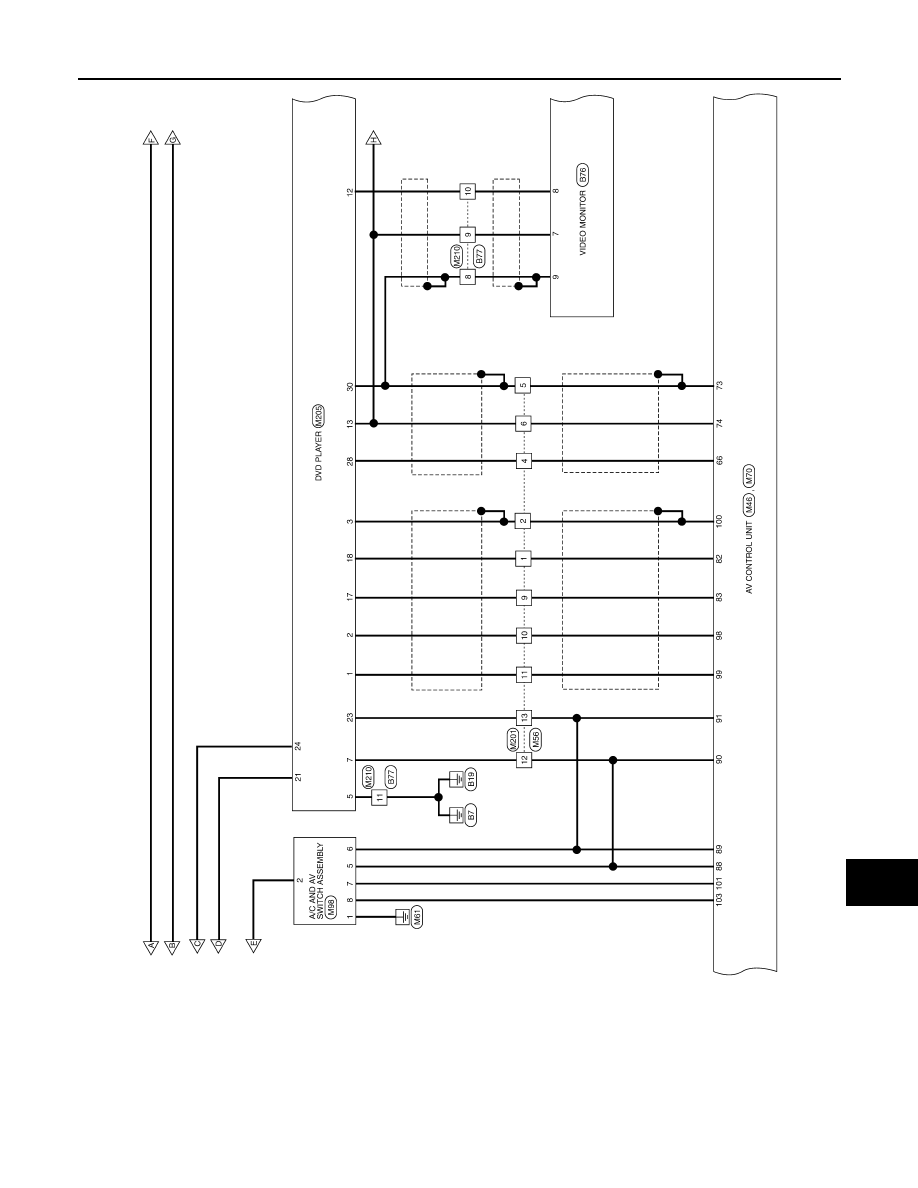

Wiring Diagram

INFOID:0000000001450753

ALNWA0057GB

AV

AV CONTROL UNIT

AV-227

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ALNWA0058GB

AV-228

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

AV CONTROL UNIT

ALNWA0059GB

AV

AV CONTROL UNIT

AV-229

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ALNWA0060GB

AV-230

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

AV CONTROL UNIT

ALNWA0061GB

AV

AV CONTROL UNIT

AV-231

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ALNIA0588GB
