Nissan Pathfinder (2008 year). Manual - part 46





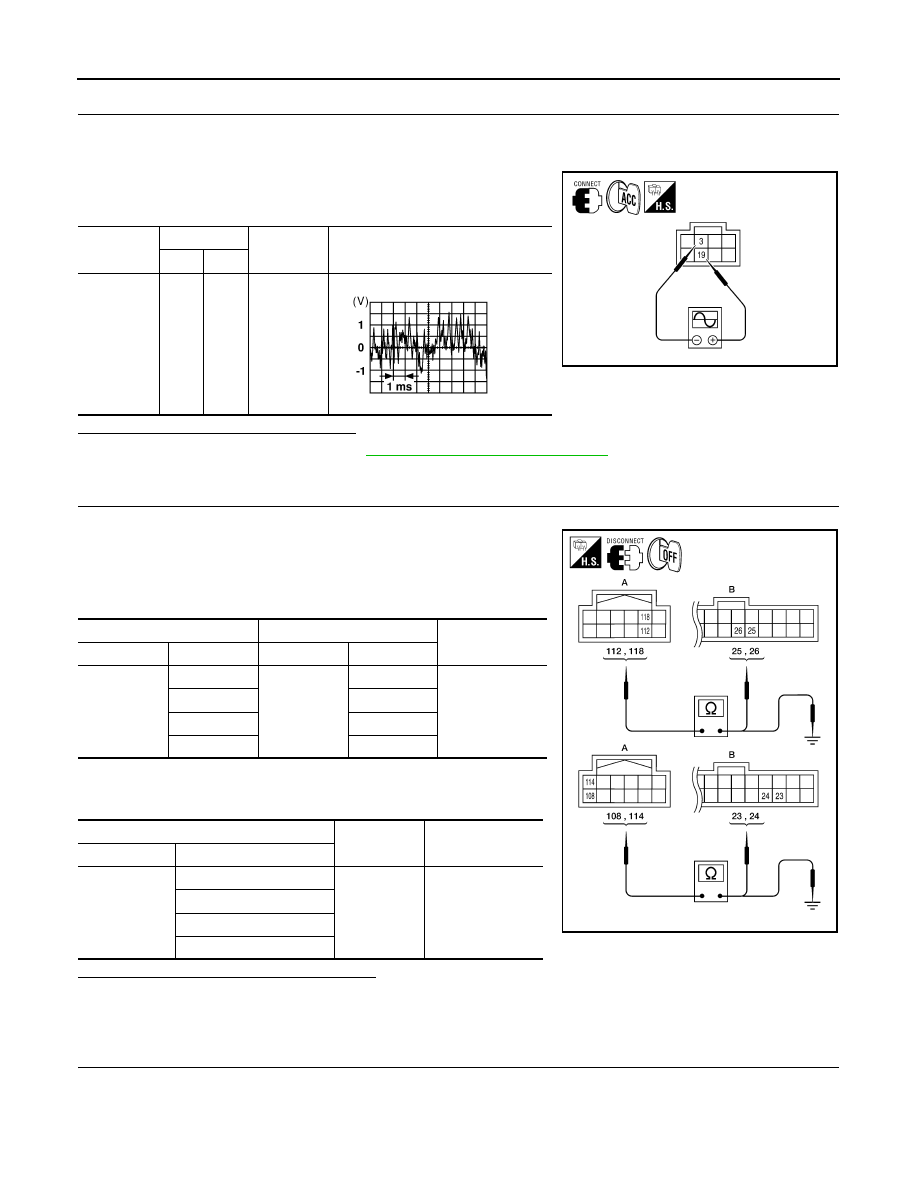

AV-208

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

WOOFER

4.

SUBWOOFER AUDIO SIGNAL CHECK

1.

Connect BOSE speaker amp. connectors and subwoofer connector.

2.

Turn ignition switch to ACC.

3.

Push “POWER” switch.

4.

Check the signal between BOSE speaker amp. harness connec-
tor B74 terminals with CONSULT-III or oscilloscope.

Is the audio signal voltage as specified?

YES

>> Replace subwoofer. Refer to

AV-273, "Removal and Installation"

.

NO

>> GO TO 5

5.

HARNESS CHECK

1.

Turn ignition switch OFF.

2.

Disconnect AV control unit connector M69 and BOSE speaker
amp. connector B75.

3.

Check continuity between AV control unit harness connector
M69 (A) and BOSE speaker amp. harness connector B75 (B).

4.

Check continuity between AV control unit harness connector
M69 (A) and ground.

Are the continuity test results as specified?

YES

>> GO TO 6

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

6.

BACK DOOR SPEAKER SIGNAL CHECK

Connector

Terminals

Condition

Reference

signal

(+)

(-)

B74

19

3

Receive au-
dio signal

ALNIA0879GB

SKIA0177E

A

B

Continuity

Connector

Terminal

Connector

Terminal

M69

112

B75

26

Yes

118

25

108

24

114

23

A

—

Continuity

Connector

Terminal

M69

112

Ground

No

118

108

114

ALNIA0538GB

AV

WOOFER

AV-209

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

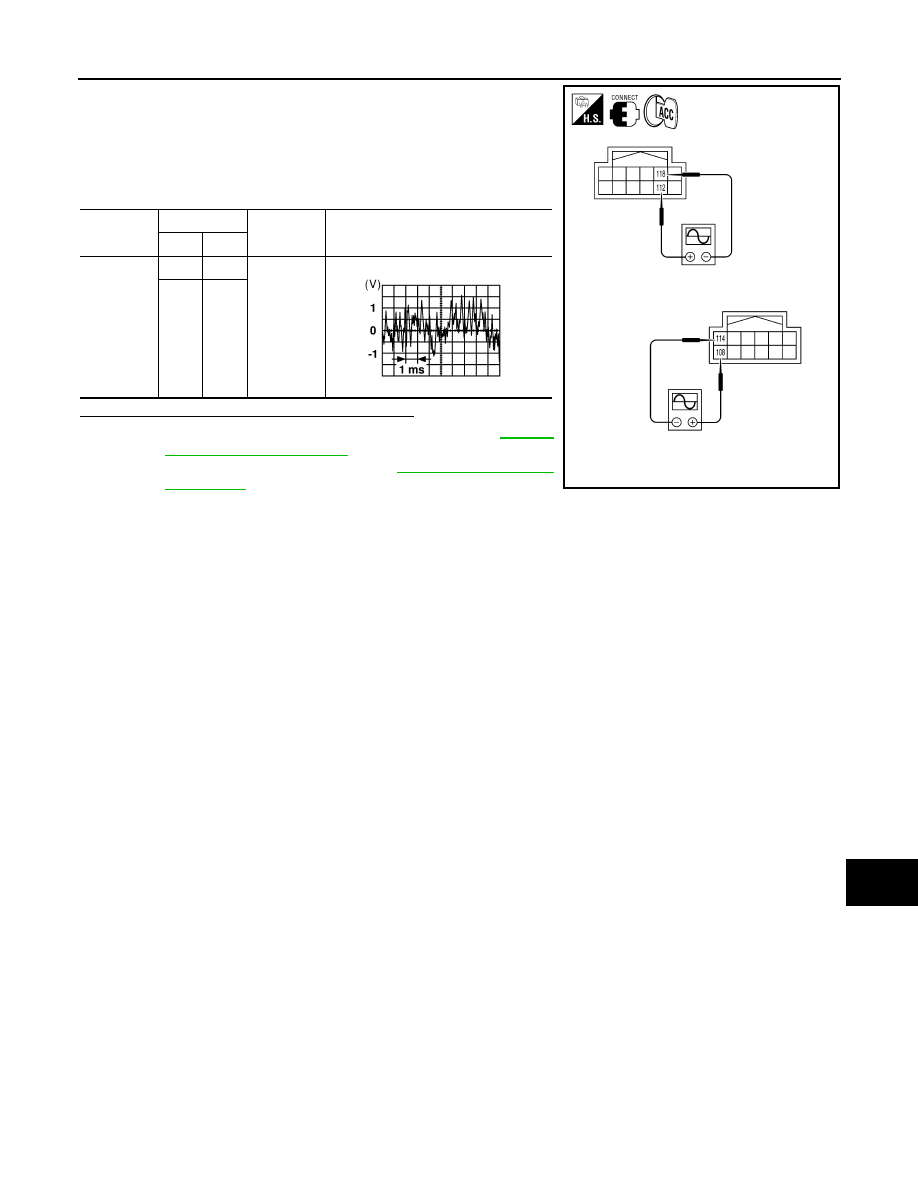

1.

Connect AV control unit connector M69 and BOSE speaker
amp. connector B75.

2.

Turn ignition switch to ACC.

3.

Push “POWER” switch.

4.

Check the signal between AV control unit harness connector
M69 terminals with CONSULT-III or oscilloscope.

Is the audio signal voltage reading as specified?

YES

>> Replace BOSE speaker amp. Refer to

AV-272,

"Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-266, "Removal and

Installation"

.

Connector

Terminals

Condition

Reference

signal

(+)

(-)

M69

112

118

Receive
audio sig-
nal

108

114

ALNIA0356GB

SKIA0177E

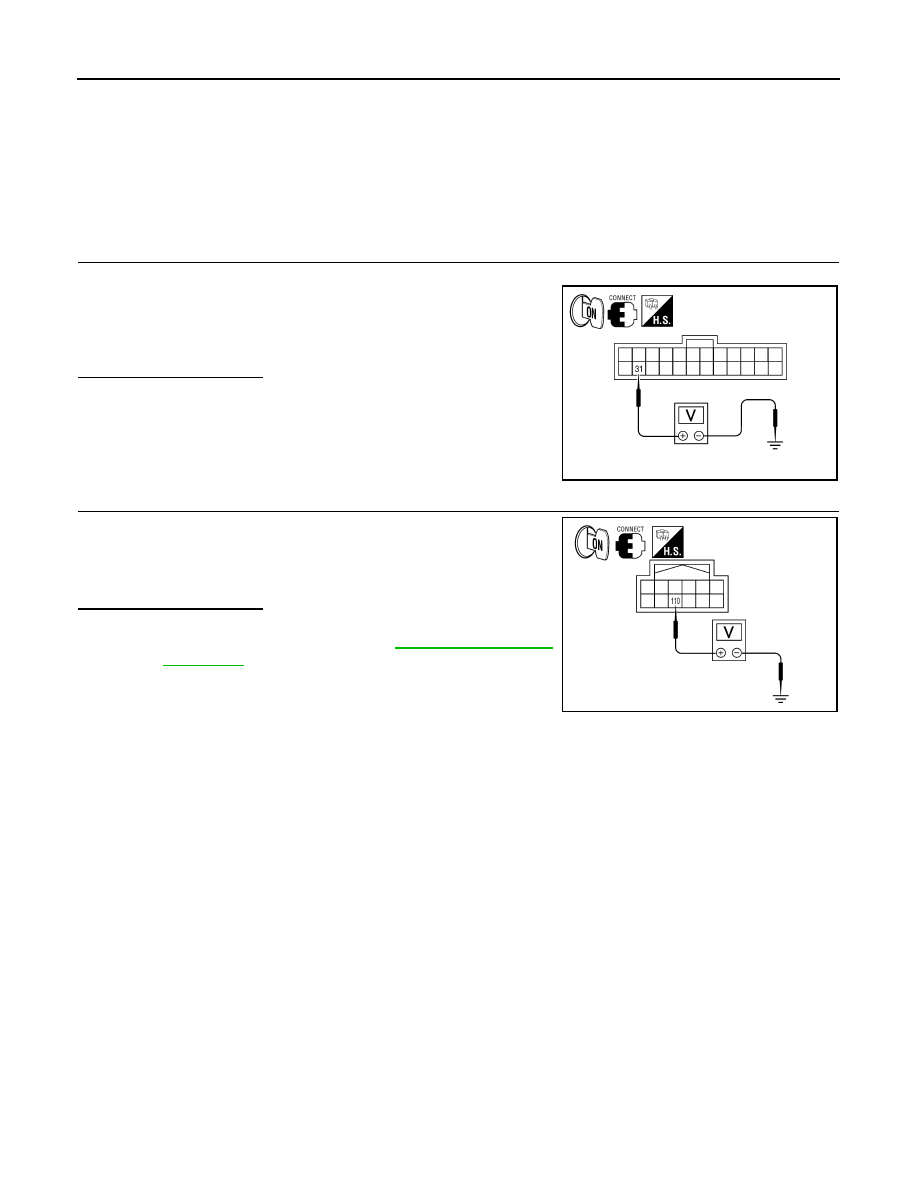

AV-210

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

AMP ON SIGNAL CIRCUIT

AMP ON SIGNAL CIRCUIT

Description

INFOID:0000000001450742

When the audio system is turned on, a voltage signal is supplied from the AV control unit to the BOSE speaker
amp. When this signal is received, the BOSE speaker amp. will turn on.

Diagnosis Procedure

INFOID:0000000001450743

1.

CHECK AMP ON SIGNAL (BOSE SPEAKER AMP)

1.

Turn audio system ON.

2.

Check voltage between BOSE speaker amp. harness connector
B75 terminal 31 and ground.

Is battery voltage present?

YES

>> Inspection End.

NO

>> GO TO 2

2.

CHECK AMP ON SIGNAL (AV CONTROL UNIT)

Check voltage between AV control unit harness connector M69 ter-
minal 110 and ground.

Is battery voltage present?

YES

>> Repair harness or connector.

NO

>> Replace AV control unit. Refer to

AV-266, "Removal and

Installation"

.

31 - Ground

: Battery voltage

ALNIA0539GB

110 - Ground

: Battery voltage

ALNIA0370GB

AV

STEERING SWITCH

AV-211

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

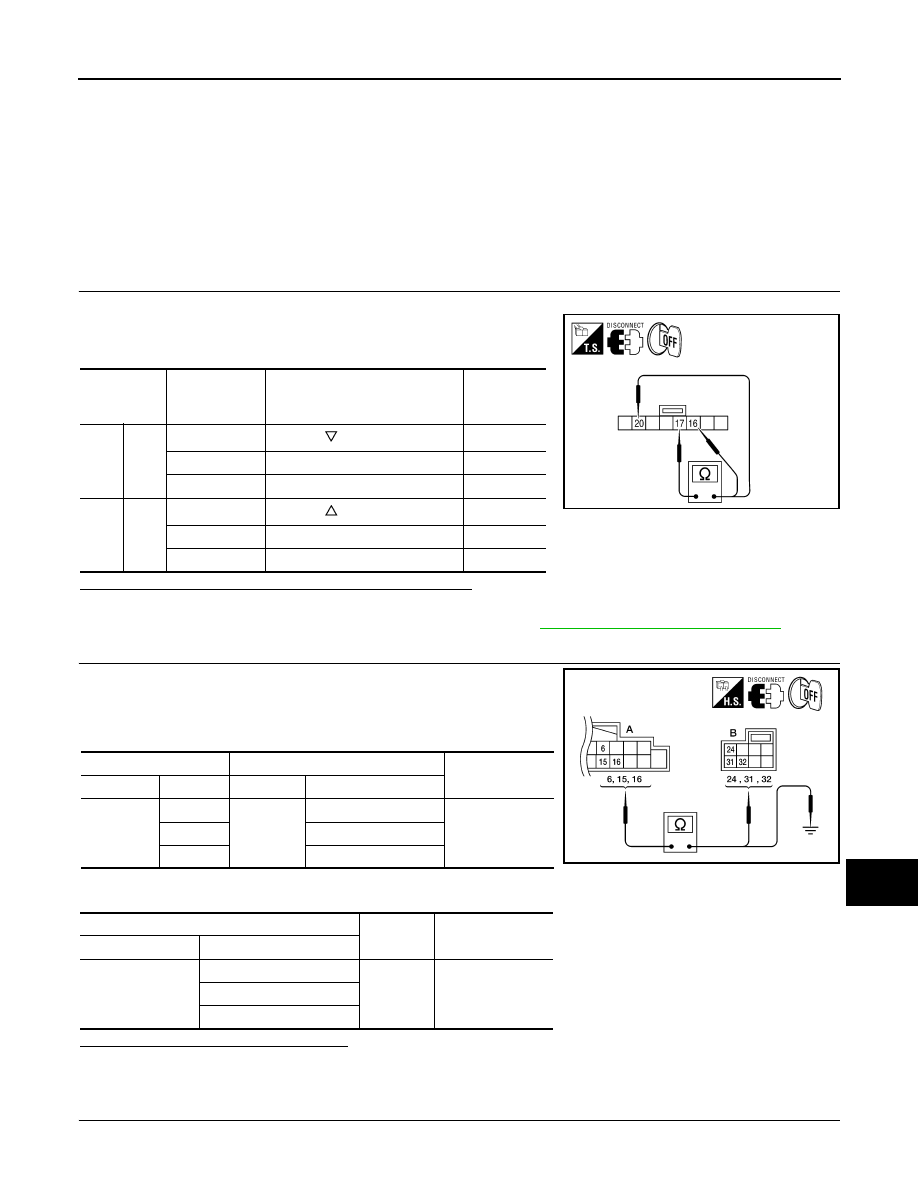

STEERING SWITCH

Description

INFOID:0000000001450744

When one of the steering wheel AV control switches is pushed, the resistance in the steering wheel AV control
switch circuit changes depending on which button is pushed.

Diagnosis Procedure

INFOID:0000000001450745

1.

CHECK STEERING WHEEL AUDIO CONTROL SWITCH RESISTANCE

1.

Turn ignition switch OFF.

2.

Disconnect steering wheel audio control switch connector M102.

3.

Check resistance between steering switch connector terminals.

Do the steering wheel audio control switches check OK?

YES

>> GO TO 2

NO

>> Replace steering wheel audio control switch. Refer to

AV-271, "Removal and Installation"

.

2.

CHECK HARNESS

1.

Disconnect AV control unit connector M42 and spiral cable con-
nector M30.

2.

Check continuity between AV control unit harness connector
M42 (A) and spiral cable harness connector M30 (B).

3.

Check continuity between AV control unit connector M42 (A) and ground.

Are the continuity results as specified?

YES

>> GO TO 3

NO

>> Repair harness.

3.

SPIRAL CABLE CHECK

Terminal

Signal name

Condition

Resistance

(

Ω

)

(Approx.)

16

17

Seek (down)

Depress

switch.

165

Volume (down)

Depress VOL down switch.

487

Mode

Depress MODE switch.

0

20

17

Seek (up)

Depress

switch.

165

Volume (up)

Depress VOL up switch.

487

Power

Depress PWR switch.

0

WKIA4457E

A

B

Continuity

Connector

Terminal

Connector

Terminal

M42

6

M30

24

Yes

15

31

16

32

A

—

Continuity

Connector

Terminal

M42

6

Ground

No

15

16

ALNIA0332GB

AV-212

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

STEERING SWITCH

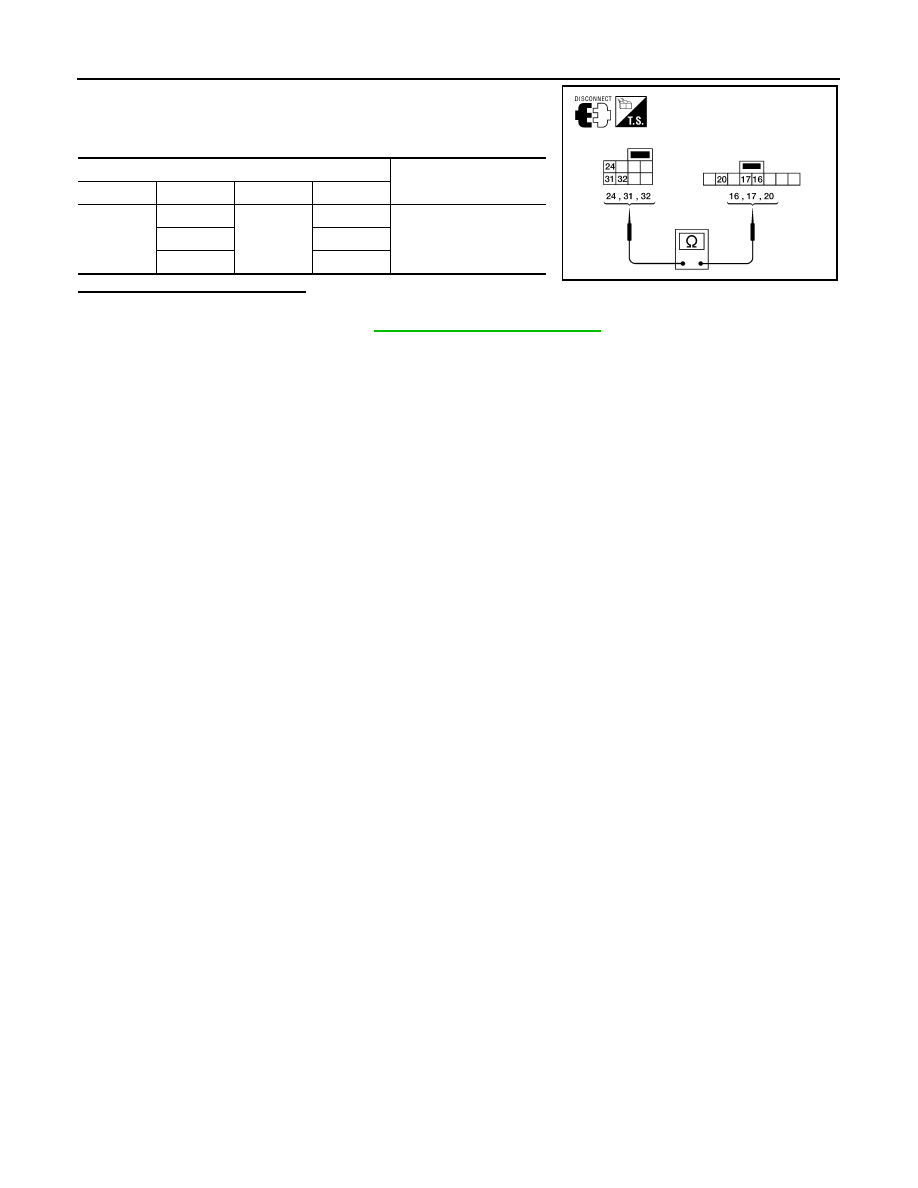

1.

Disconnect spiral cable connector M102.

2.

Check continuity between spiral cable harness connector M30
(A) and M102 (B).

Does the spiral cable check OK?

YES

>> Inspection End.

NO

>> Replace spiral cable. Refer to

SR-6, "Removal and Installation"

.

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M30

24

M102

20

Yes

31

17

32

16

ALNIA0333GB

AV

COMMUNICATION SIGNAL CIRCUIT

AV-213

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

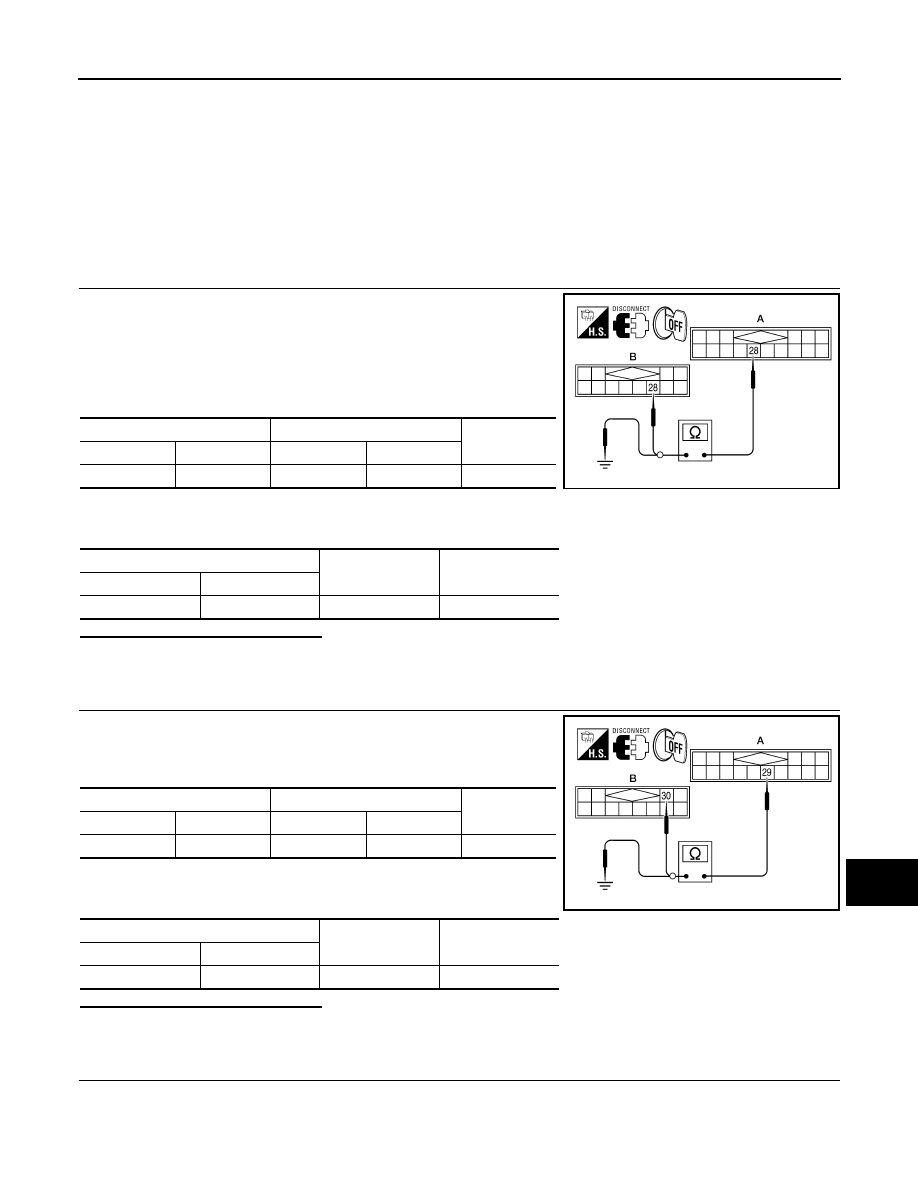

COMMUNICATION SIGNAL CIRCUIT

SATELLITE RADIO TUNER

SATELLITE RADIO TUNER : Description

INFOID:0000000001450746

Communication signals are exchanged between the AV control unit and satellite radio tuner using the commu-
nication circuits.

SATELLITE RADIO TUNER : Diagnosis Procedure

INFOID:0000000001450747

1.

CHECK HARNESS - 1

1.

Turn ignition switch OFF.

2.

Disconnect satellite radio tuner (factory installed) connector M41
and AV control unit connector M43.

3.

Check continuity between satellite radio tuner (factory installed)
harness connector M41 (A) terminal 28 and AV control unit har-
ness connector M43 (B) terminal 28.

4.

Check continuity between satellite radio tuner (factory installed)
harness connector M41 (A) terminal 28 and ground.

Are continuity results as specified?

YES

>> GO TO 2

NO

>> Repair harness or connector.

2.

CHECK HARNESS - 2

1.

Check continuity between satellite radio tuner (factory installed)
harness connector M41 (A) terminal 29 and AV control unit har-
ness connector M43 (B) terminal 30.

2.

Check continuity between satellite radio tuner (factory installed)
harness connector M41 (A) terminal 29 and ground.

Are continuity results as specified?

YES

>> GO TO 3

NO

>> Repair harness or connector.

3.

CHECK HARNESS - 3

A

B

Continuity

Connector

Terminal

Connector

Terminal

M41

28

M43

28

Yes

A

—

Continuity

Connector

Terminal

M41

28

Ground

No

ALNIA0334GB

A

B

Continuity

Connector

Terminal

Connector

Terminal

M41

29

M43

30

Yes

A

—

Continuity

Connector

Terminal

M41

29

Ground

No

ALNIA0335GB

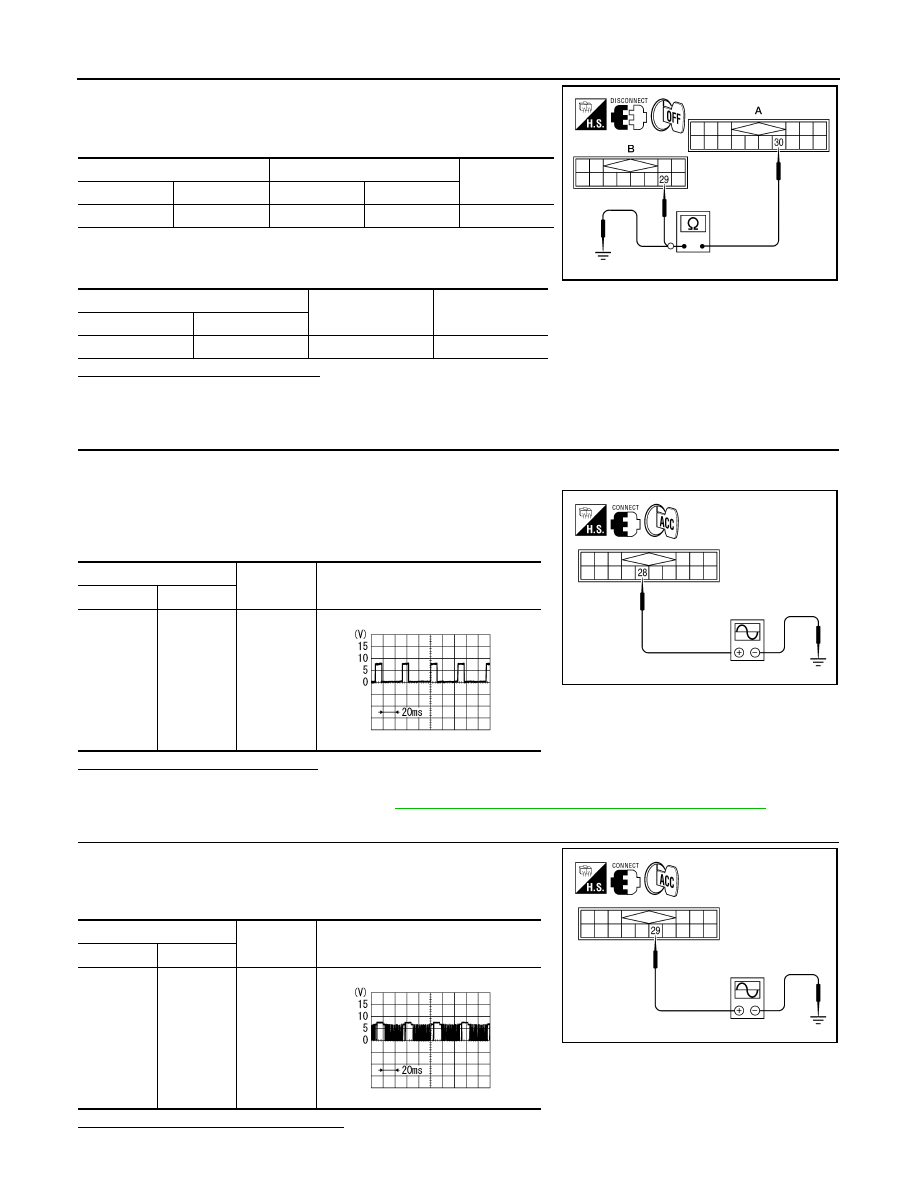

AV-214

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

COMMUNICATION SIGNAL CIRCUIT

1.

Check continuity between satellite radio tuner (factory installed)
harness connector M41 (A) terminal 30 and AV control unit har-
ness connector M43 (B) terminal 29.

2.

Check continuity between satellite radio tuner (factory installed)
harness connector M41 (A) terminal 30 and ground.

Are continuity results as specified?

YES

>> GO TO 4

NO

>> Repair harness or connector.

4.

CHECK REQ1 SIGNAL

1.

Connect satellite radio tuner (factory installed) connector and AV control unit connector.

2.

Turn ignition switch to ACC

3.

Check signal between satellite radio tuner (factory installed) har-
ness connector M41 terminal 28 and ground with CONSULT-III
or oscilloscope.

Are voltage readings as specified?

YES

>> GO TO 5

NO

>> Replace AV control unit. Refer to

AV-178, "AV CONTROL UNIT : Diagnosis Procedure"

.

5.

CHECK TXD SIGNAL

Check signal between satellite radio tuner (factory installed) harness
connector M41 terminal 29 and ground with CONSULT-III or oscillo-
scope.

Are the voltage readings as specified?

A

B

Continuity

Connector

Terminal

Connector

Terminal

M41

30

M43

29

Yes

A

—

Continuity

Connector

Terminal

M41

30

Ground

Yes

ALNIA0336GB

(+)

(-)

Reference signal

Connector

Terminal

M41

28

Ground

WKIA4544E

SKIB3825E

(+)

(-)

Reference signal

Connector

Terminal

M41

29

Ground

WKIA4545E

SKIB3824E

AV

COMMUNICATION SIGNAL CIRCUIT

AV-215

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

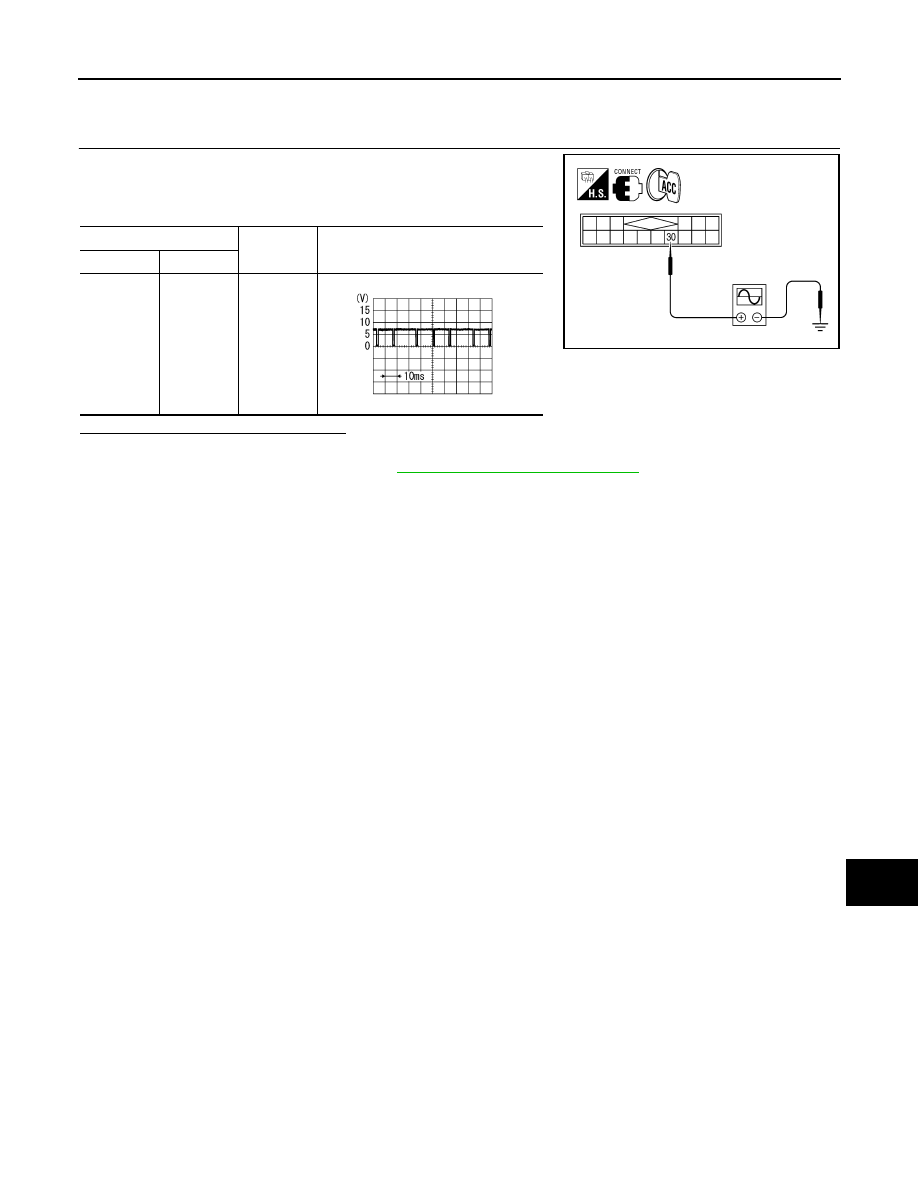

YES

>> GO TO 6

NO

>> Replace satellite radio tuner.

6.

CHECK RXD SIGNAL

Check signal between satellite radio tuner (factory installed) harness
connector M41 terminal 30 and ground with CONSULT-III or oscillo-
scope.

Are the voltage readings as specified?

YES

>> Replace satellite radio tuner.

NO

>> Replace AV control unit. Refer to

AV-266, "Removal and Installation"

.

(+)

(-)

Reference signal

Connector

Terminal

M41

30

Ground

WKIA4546E

SKIB3826E
