DTC P0335 CKP SENSOR (POS)
PFP:23731

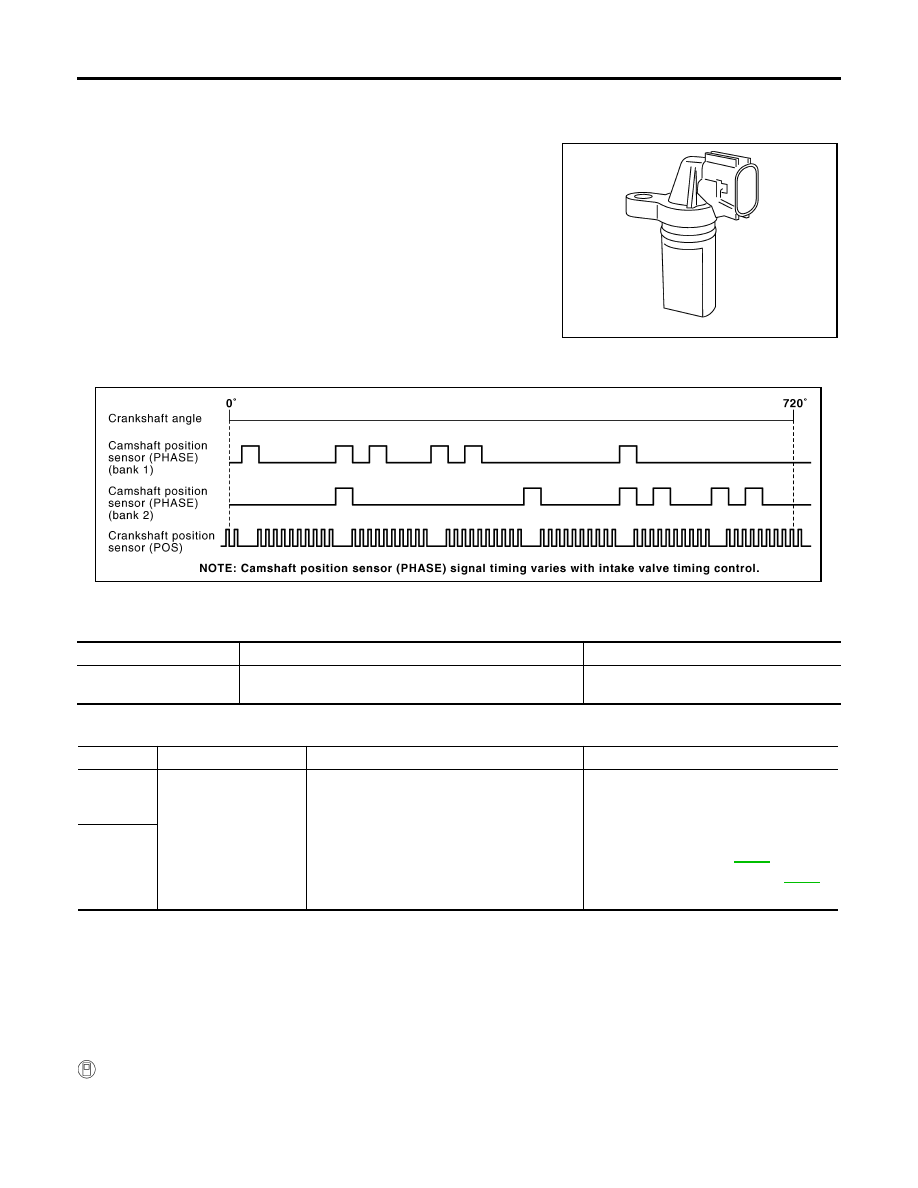

Component Description
UBS00K8E
The crankshaft position sensor (POS) is located on the oil pan facing
the gear teeth (cogs) of the signal plate. It detects the fluctuation of
the engine revolution.
The sensor consists of a permanent magnet and Hall IC.
When the engine is running, the high and low parts of the teeth
cause the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor
changes.
The ECM receives the voltage signal and detects the fluctuation of
the engine revolution.

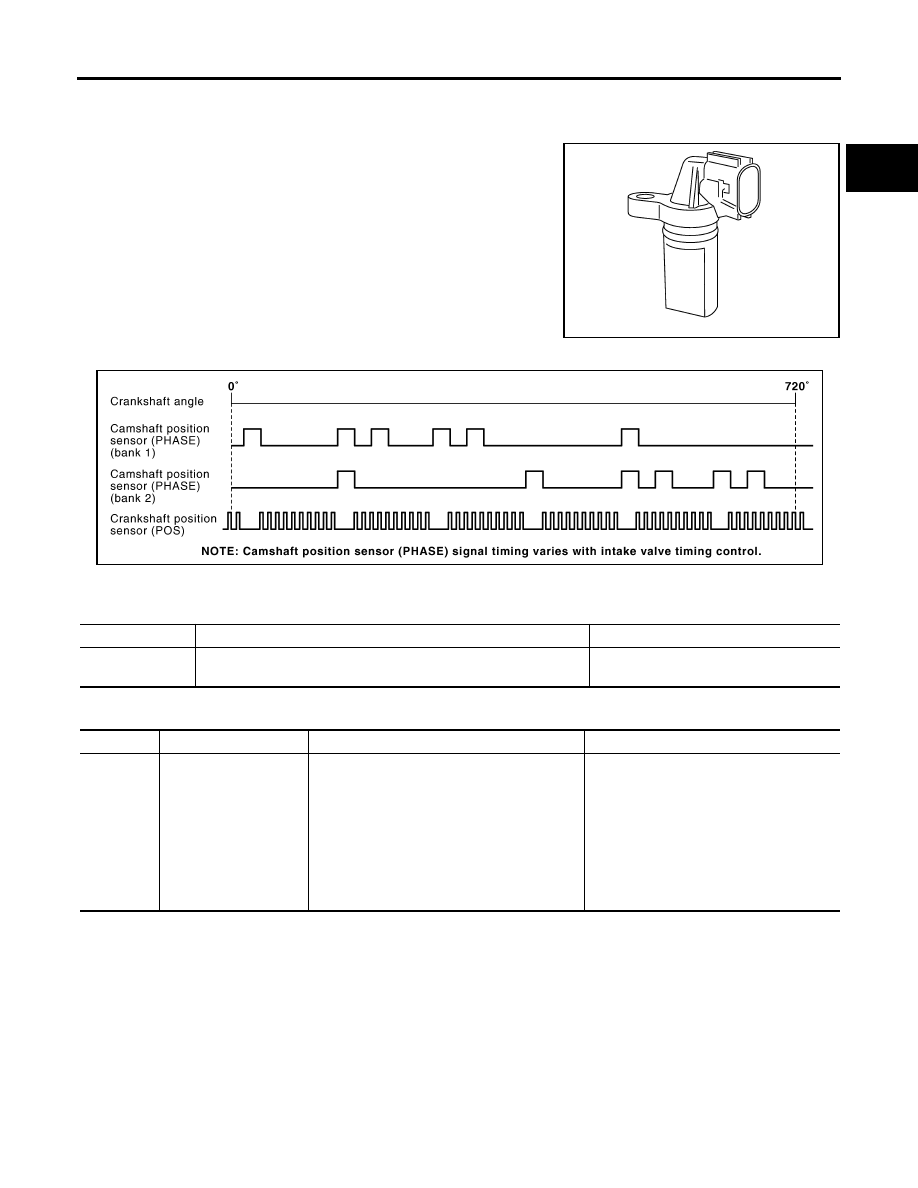

ECM receives the signals as shown in the figure.
CONSULT-II Reference Value in Data Monitor Mode
UBS00K8F
Specification data are reference values.
On Board Diagnosis Logic
UBS00K8G

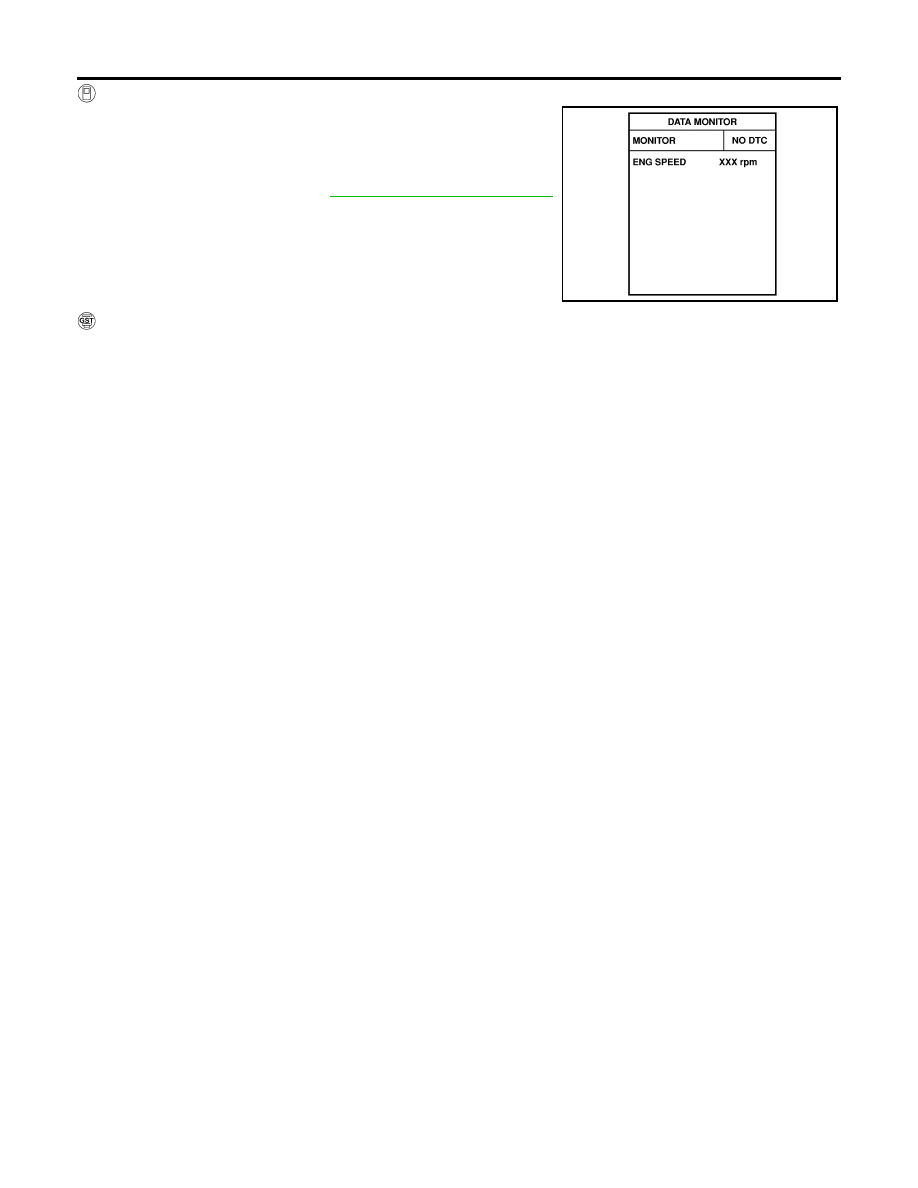

DTC Confirmation Procedure
UBS00K8H
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V with igni-
tion switch ON.
PBIB0562E
PBIB2744E
MONITOR ITEM
CONDITION
SPECIFICATION
ENG SPEED
●
Run engine and compare CONSULT-II value with the tachometer
indication.
Almost the same speed as the tachometer
indication.
DTC No.
Trouble diagnosis name
DTC detecting condition
Possible cause
P0335
0335
Crankshaft position
sensor (POS) circuit
●
The crankshaft position sensor (POS) signal
is not detected by the ECM during the first
few seconds of engine cranking.
●
The proper pulse signal from the crankshaft
position sensor (POS) is not sent to ECM
while the engine is running.
●
The crankshaft position sensor (POS) signal
is not in the normal pattern during engine
running.
●

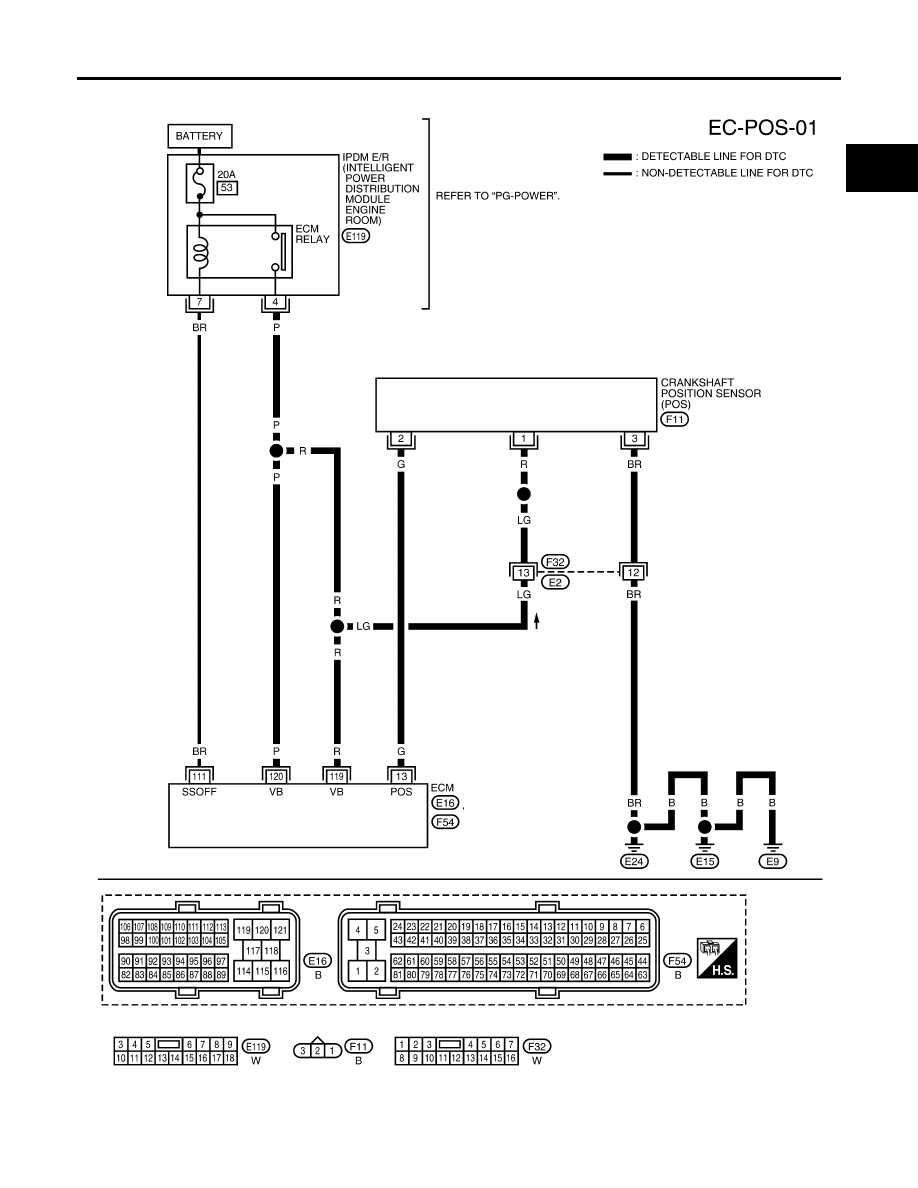

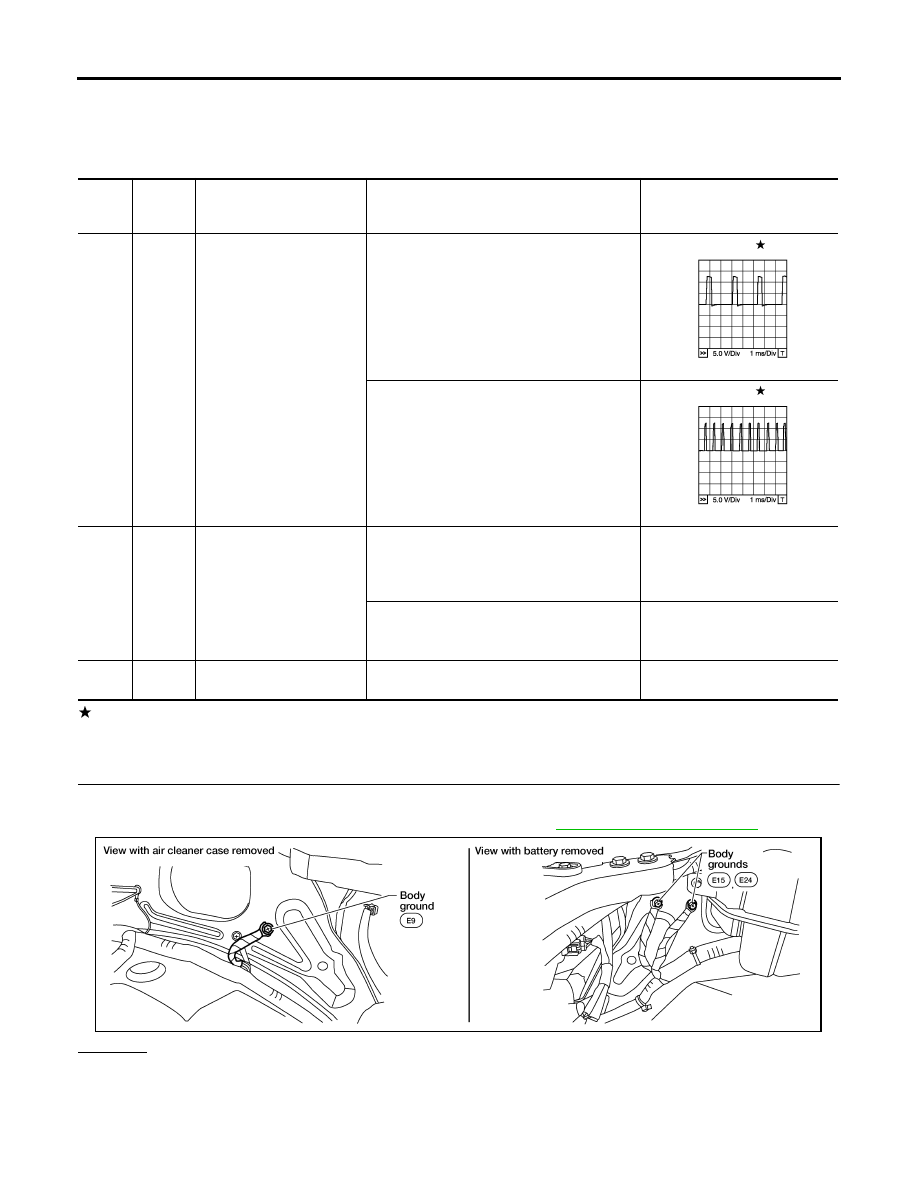

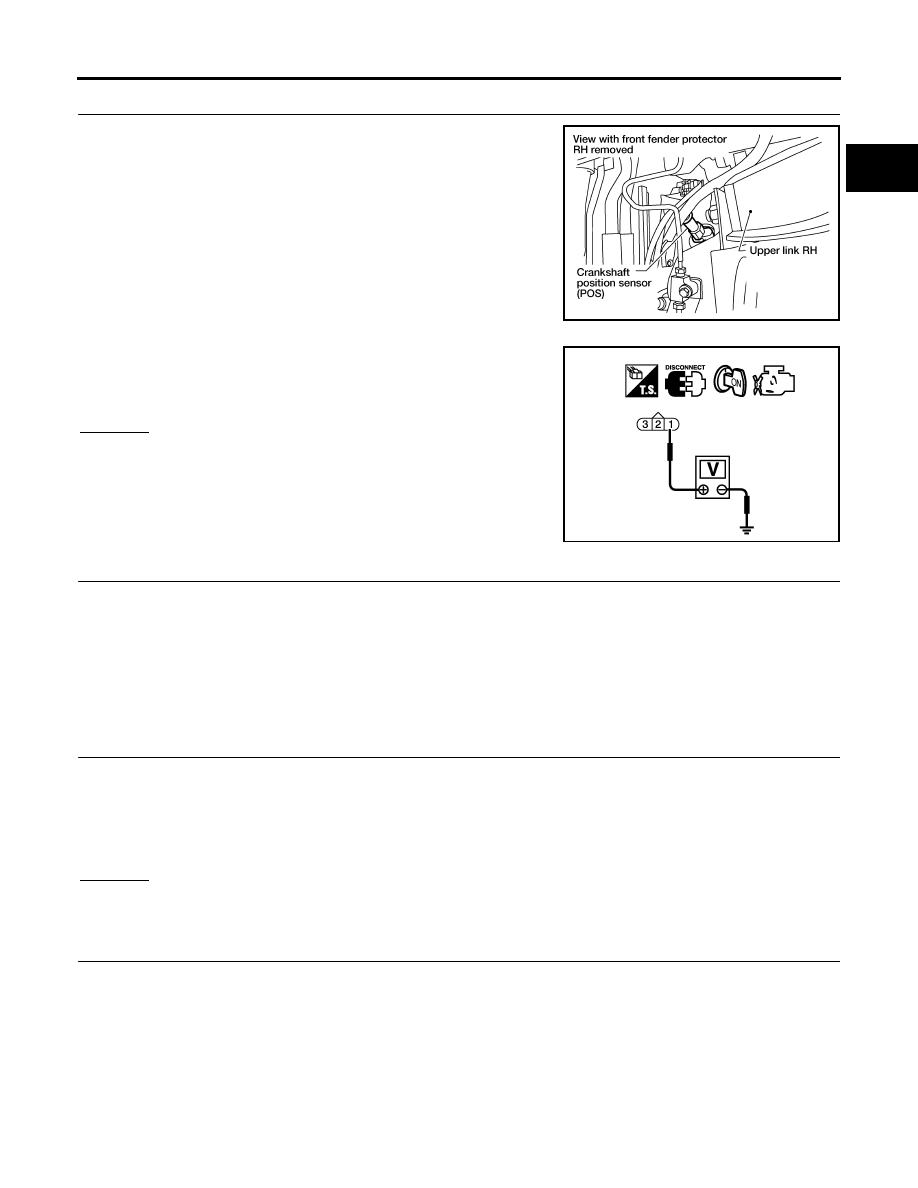

Harness or connectors
(The sensor circuit is open or shorted)
●

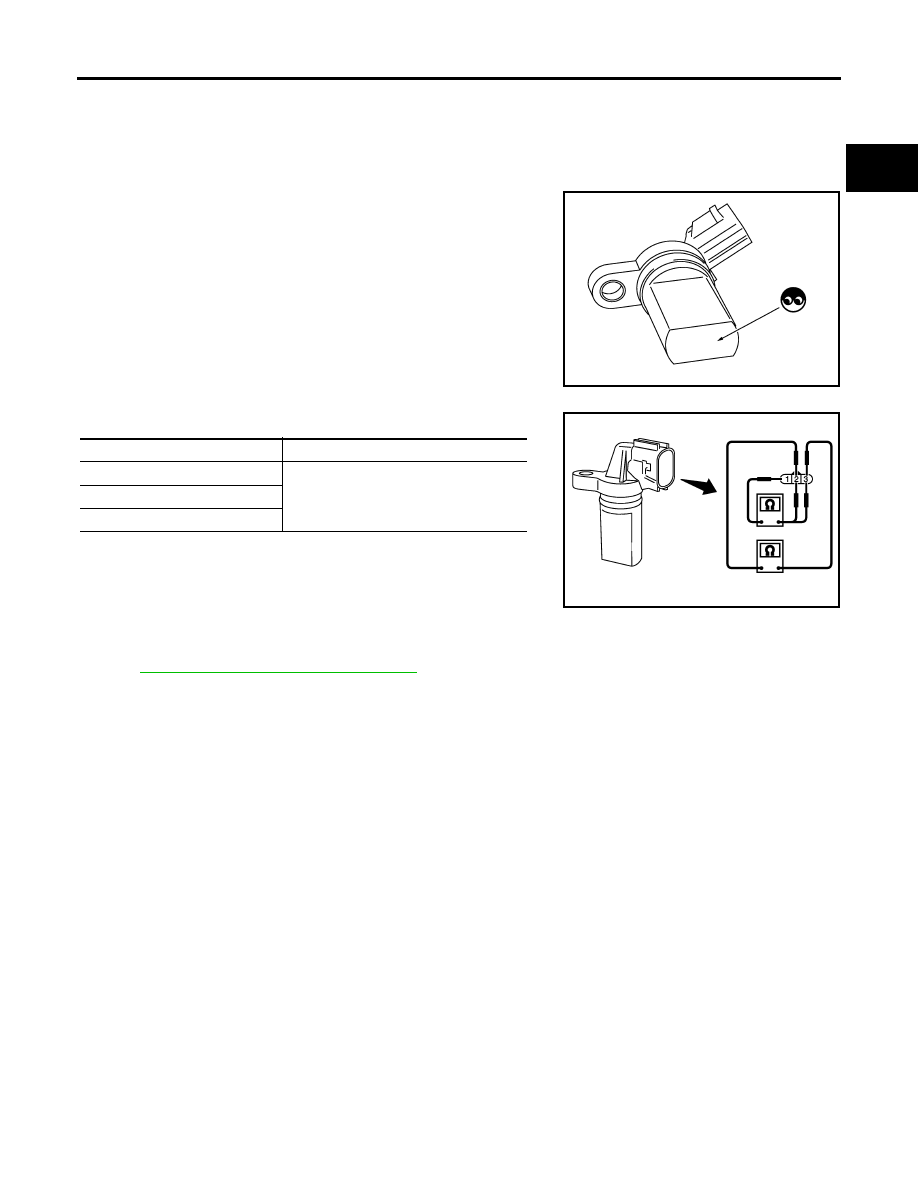

Crankshaft position sensor (POS)
●
Signal plate
