DTC P0300 - P0306 MULTIPLE CYLINDER MISFIRE, NO. 1 - 6 CYLINDER MIS-

FIRE

EC-347

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

9.

CHECK SPARK PLUG

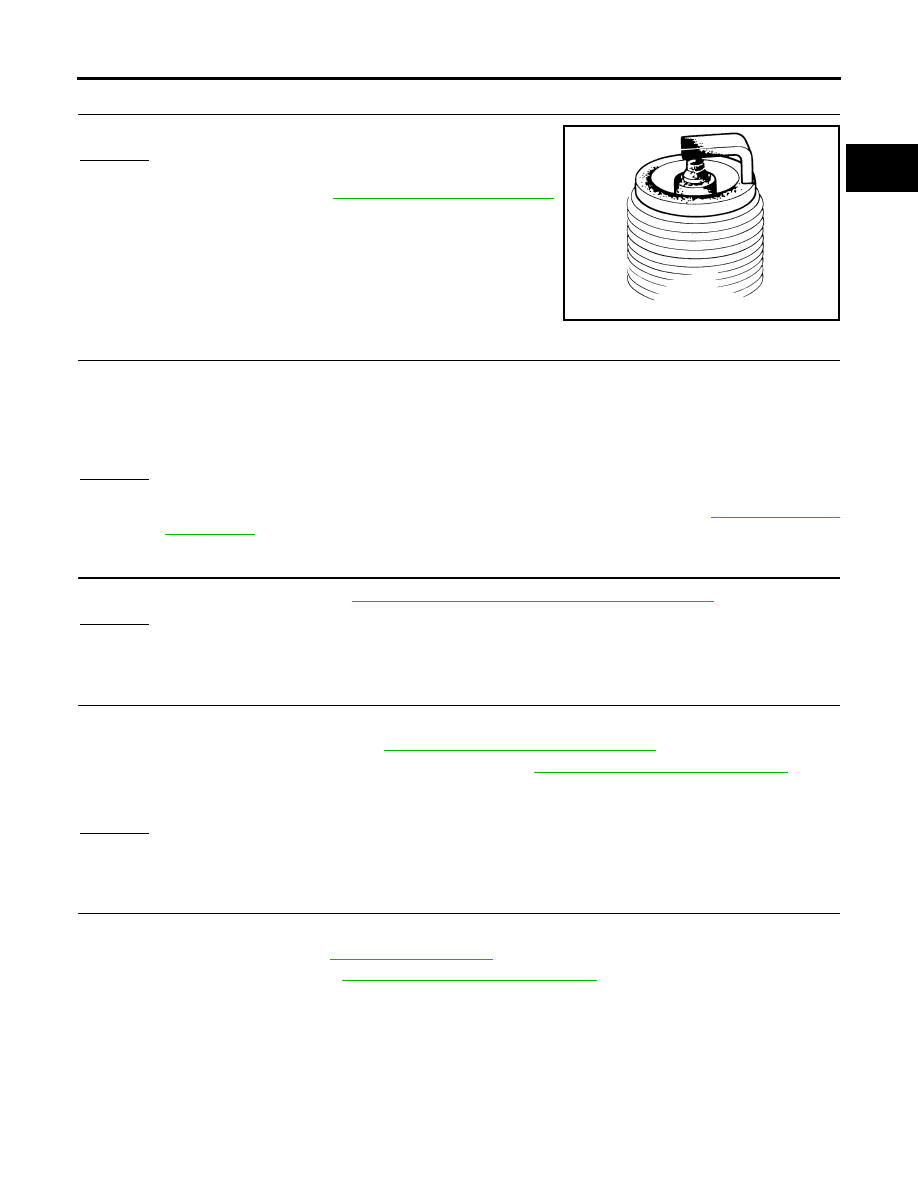

Check the initial spark plug for fouling, etc.

OK or NG

OK

>> Replace spark plug(s) with standard type one(s). For

spark plug type, refer to

MA-19, "Changing Spark Plugs"

.

NG

>> 1. Repair or clean spark plug.

2. GO TO 10.

10.

CHECK FUNCTION OF IGNITION COIL-III

1.

Reconnect the initial spark plugs.

2.

Crank engine for about three seconds, and recheck whether spark is generated between the spark plug
and the grounded portion.

OK or NG

OK

>> INSPECTION END

NG

>> Replace spark plug(s) with standard type one(s). For spark plug type, refer to

MA-19, "Changing

Spark Plugs"

 .

11.

CHECK COMPRESSION PRESSURE

Check compression pressure. Refer to

EM-92, "CHECKING COMPRESSION PRESSURE"

 .

OK or NG

OK

>> GO TO 12.

NG

>> Check pistons, piston rings, valves, valve seats and cylinder head gaskets.

12.

CHECK FUEL PRESSURE

1.

Install all removed parts.

2.

Release fuel pressure to zero. Refer to

EC-79, "FUEL PRESSURE RELEASE"

 .

3.

Install fuel pressure gauge and check fuel pressure. Refer to

EC-80, "FUEL PRESSURE CHECK"

 .

OK or NG

OK

>> GO TO 14.

NG

>> GO TO 13.

13.

DETECT MALFUNCTIONING PART

Check the following.

●

Fuel pump and circuit (Refer to

EC-637, "FUEL PUMP"

 .)

●

Fuel pressure regulator (Refer to

EC-80, "FUEL PRESSURE CHECK"

 .)

●

Fuel lines

●

Fuel filter for clogging

>> Repair or replace.

SEF156I

Spark should be generated.

At idle: Approx. 350 kPa (3.57 kg/cm

2

 , 51 psi)

EC-348

DTC P0300 - P0306 MULTIPLE CYLINDER MISFIRE, NO. 1 - 6 CYLINDER MIS-

FIRE

2007 Pathfinder

14.

CHECK IGNITION TIMING

Check the following items. Refer to

EC-70, "Basic Inspection"

 .

OK or NG

OK

>> GO TO 15.

NG

>> Follow the

EC-70, "Basic Inspection"

 .

15.

CHECK A/F SENSOR 1 INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect A/F sensor 1 harness connector.

3.

Disconnect ECM harness connector.

4.

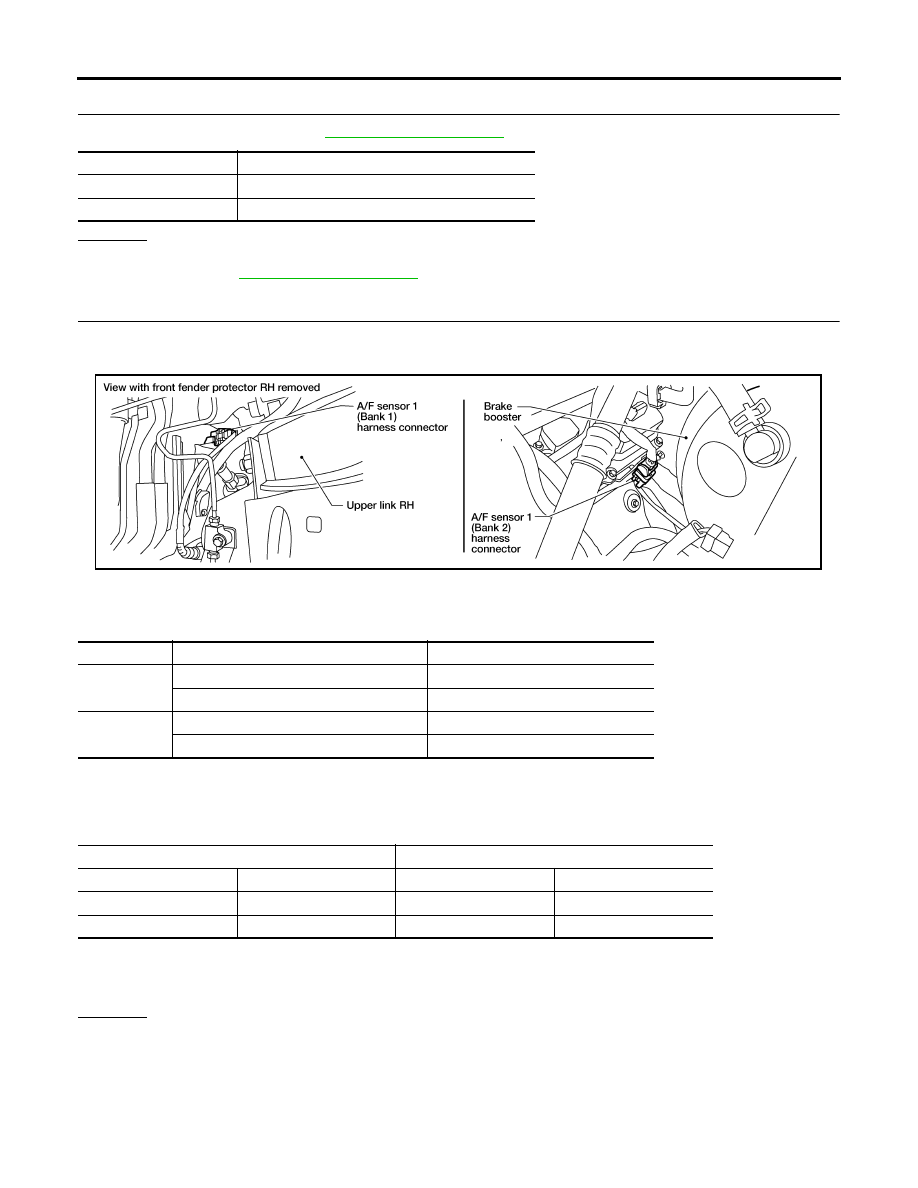

Check harness continuity between A/F sensor 1 terminal and ECM terminal as follows.
Refer to Wiring Diagram.

5.

Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.

6.

Also check harness for short to power.

OK or NG

OK

>> GO TO 16.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors between ECM

and A/F sensor 1.

Items

Specifications

Target idle speed

625

±

 50 rpm (in P or N position)

Ignition timing

15

±

 5

°

 BTDC (in P or N position)

A/F sensor 1 terminal

ECM terminal

Bank 1

1

35

2

56

Bank 2

1

16

2

75

Continuity should exist.

Bank 1

Bank 2

A/F sensor 1 terminal

ECM terminal

A/F sensor 1 terminal

ECM terminal

1

35

1

16

2

56

2

75

Continuity should not exist.

BBIA0544E

DTC P0300 - P0306 MULTIPLE CYLINDER MISFIRE, NO. 1 - 6 CYLINDER MIS-

FIRE

EC-349

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

16.

CHECK A/F SENSOR 1 HEATER

Refer to

EC-170, "Component Inspection"

 .

OK or NG

OK

>> GO TO 18.

NG

>> GO TO 17.

17.

REPLACE A/F SENSOR 1

Replace malfunctioning A/F sensor 1.

CAUTION:

●

Discard any A/F sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a
hard surface such as a concrete floor; use a new one.

●

Before installing new A/F sensor, clean exhaust system threads using Heated Oxygen Sensor
Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.

>> INSPECTION END

18.

CHECK MASS AIR FLOW SENSOR

 With CONSULT-II

Check mass air flow sensor signal in “DATA MONITOR” mode with CONSULT-II.

 With GST

Check mass air flow sensor signal in Service $01 with GST.

OK or NG

OK

>> GO TO 19.

NG

>> Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or

ground. Refer to

EC-187

 .

19.

CHECK SYMPTOM MATRIX CHART

Check items on the rough idle symptom in

EC-91, "Symptom Matrix Chart"

 .

OK or NG

OK

>> GO TO 20.

NG

>> Repair or replace.

20.

ERASE THE 1ST TRIP DTC

Some tests may cause a 1st trip DTC to be set.
Erase the 1st trip DTC from the ECM memory after performing the tests. Refer to

EC-60, "HOW TO ERASE

EMISSION-RELATED DIAGNOSTIC INFORMATION"

 .

>> GO TO 21.

21.

CHECK INTERMITTENT INCIDENT

Refer to

EC-145, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

2.0 - 6.0 g·m/sec:

at idling

7.0 - 20.0 g·m/sec:

at 2,500 rpm

2.0 - 6.0 g·m/sec:

at idling

7.0 - 20.0 g·m/sec:

at 2,500 rpm

EC-350

DTC P0327, P0328, P0332, P0333 KS

2007 Pathfinder

DTC P0327, P0328, P0332, P0333 KS

PFP:22060

Component Description

UBS00K87

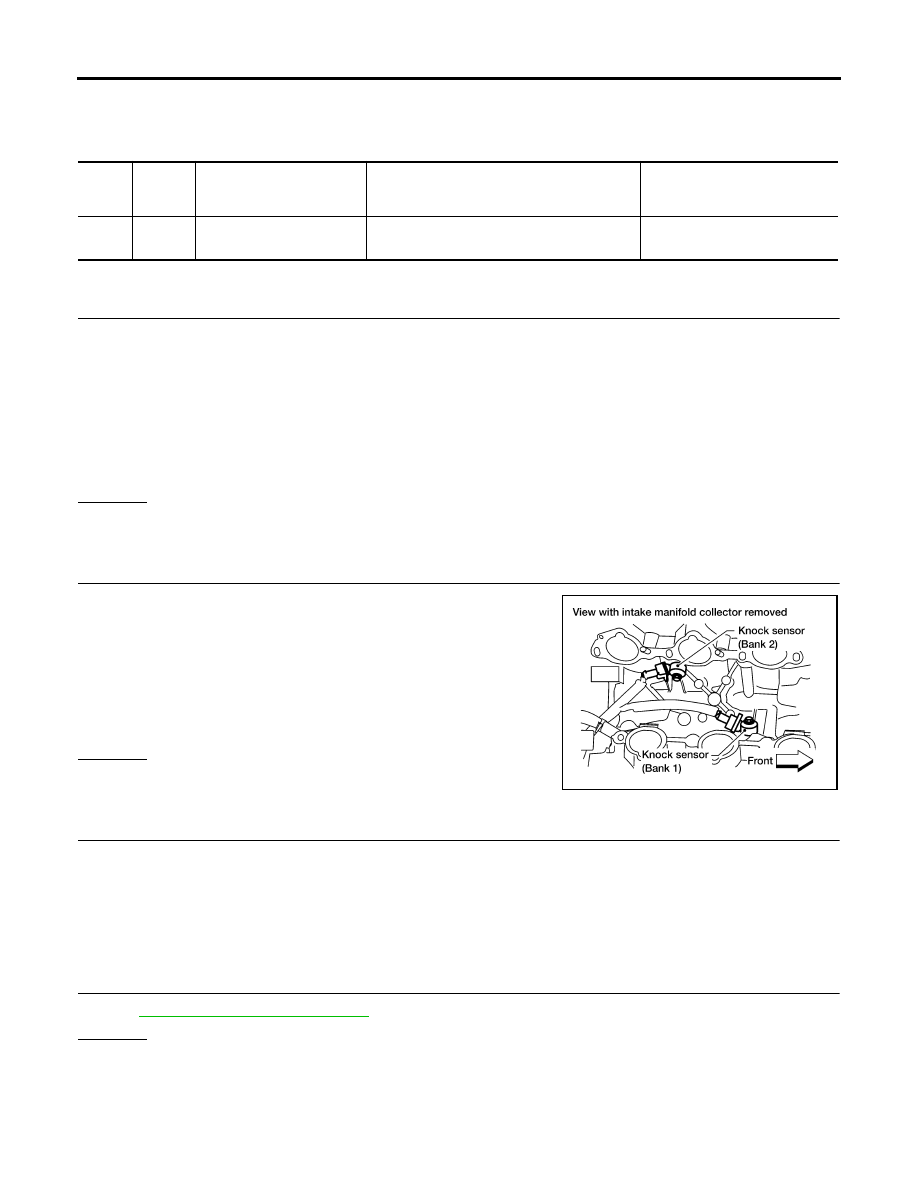

The knock sensor is attached to the cylinder block. It senses engine
knocking using a piezoelectric element. A knocking vibration from
the cylinder block is sensed as vibrational pressure. This pressure is
converted into a voltage signal and sent to the ECM.

On Board Diagnosis Logic

UBS00K88

The MIL will not light up for these diagnoses.

DTC Confirmation Procedure

UBS00K89

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

 WITH CONSULT-II

1.

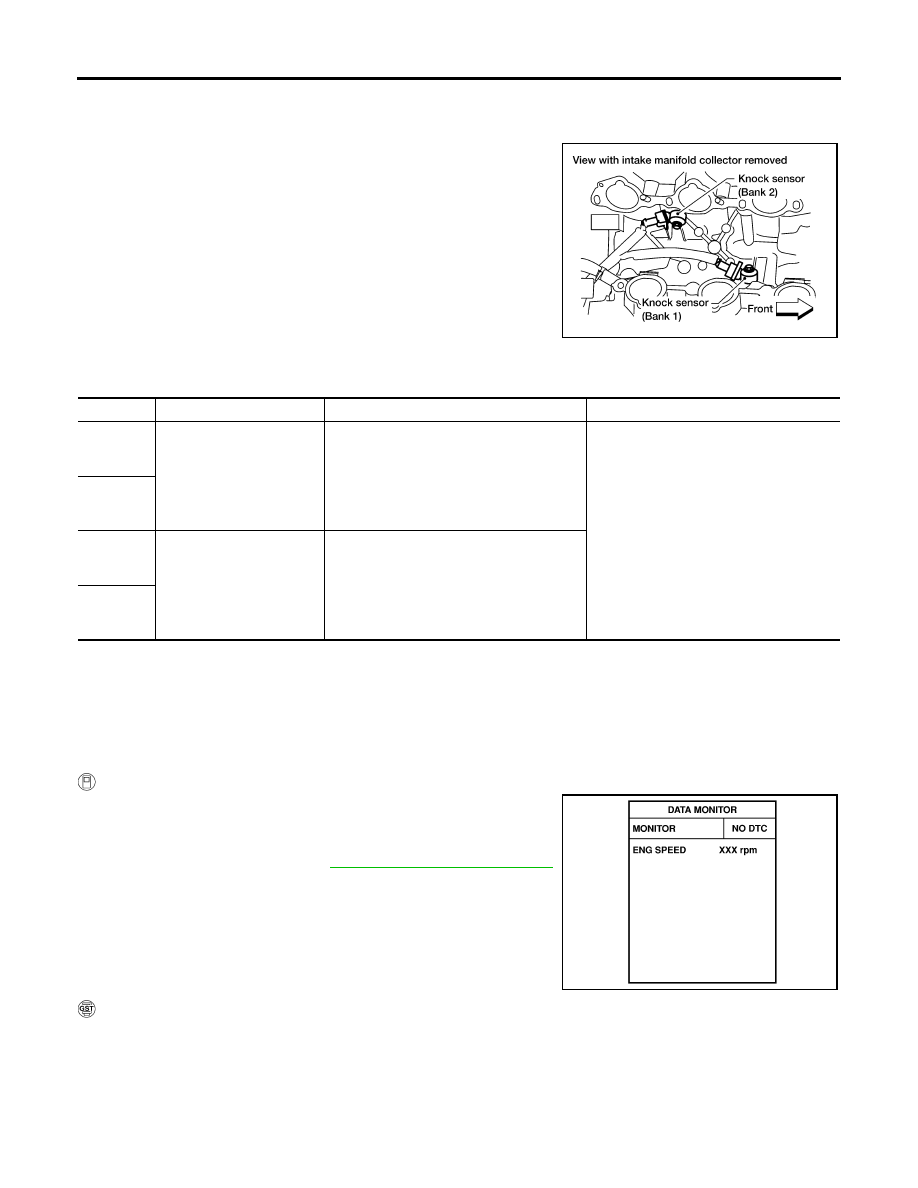

Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.

2.

Start engine and run it for at least 5 seconds at idle speed.

3.

If 1st trip DTC is detected, go to

EC-352, "Diagnostic Procedure"

.

 WITH GST

Follow the procedure “WITH CONSULT-II” above.

BBIA0547E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0327
0327
(Bank 1)

Knock sensor circuit low
input

An excessively low voltage from the sensor
is sent to ECM.

●

Harness or connectors
(The sensor circuit is open or shorted.)

●

Knock sensor

P0332
0332
(Bank 2)

P0328
0328
(Bank 1)

Knock sensor circuit high
input

An excessively high voltage from the sensor
is sent to ECM.

P0333
0333
(Bank 2)

SEF058Y

DTC P0327, P0328, P0332, P0333 KS

EC-351

C

D

E

F

G

H

I

J

K

L

M

A

EC

2007 Pathfinder

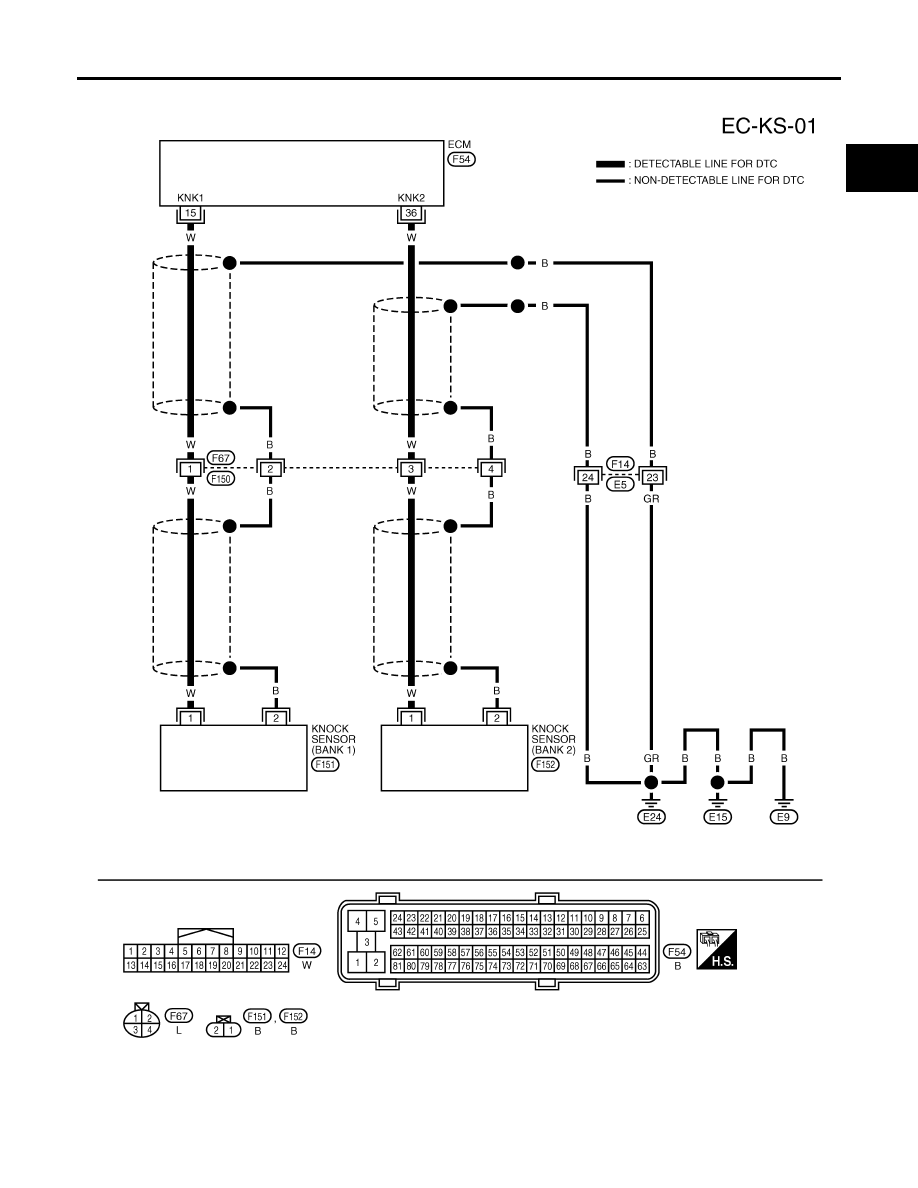

Wiring Diagram
