TROUBLE DIAGNOSIS FOR SYMPTOMS

AT-211

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

A/T Does Not Shift: 2nd gear

→

 1st gear

ECS00ELI

SYMPTOM:

When shifted from 2

2

  to 1

1

  position, does not downshift from 2nd to 1st gears.

DIAGNOSTIC PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

Perform self-diagnosis. Refer to

AT-88, "SELF-DIAGNOSTIC RESULT MODE"

 .

Is any malfunction detected by self-diagnostic results?

YES

>> Check the malfunctioning system. Refer to

AT-88, "SELF-DIAGNOSTIC RESULT MODE"

 .

NO

>> GO TO 2.

2.

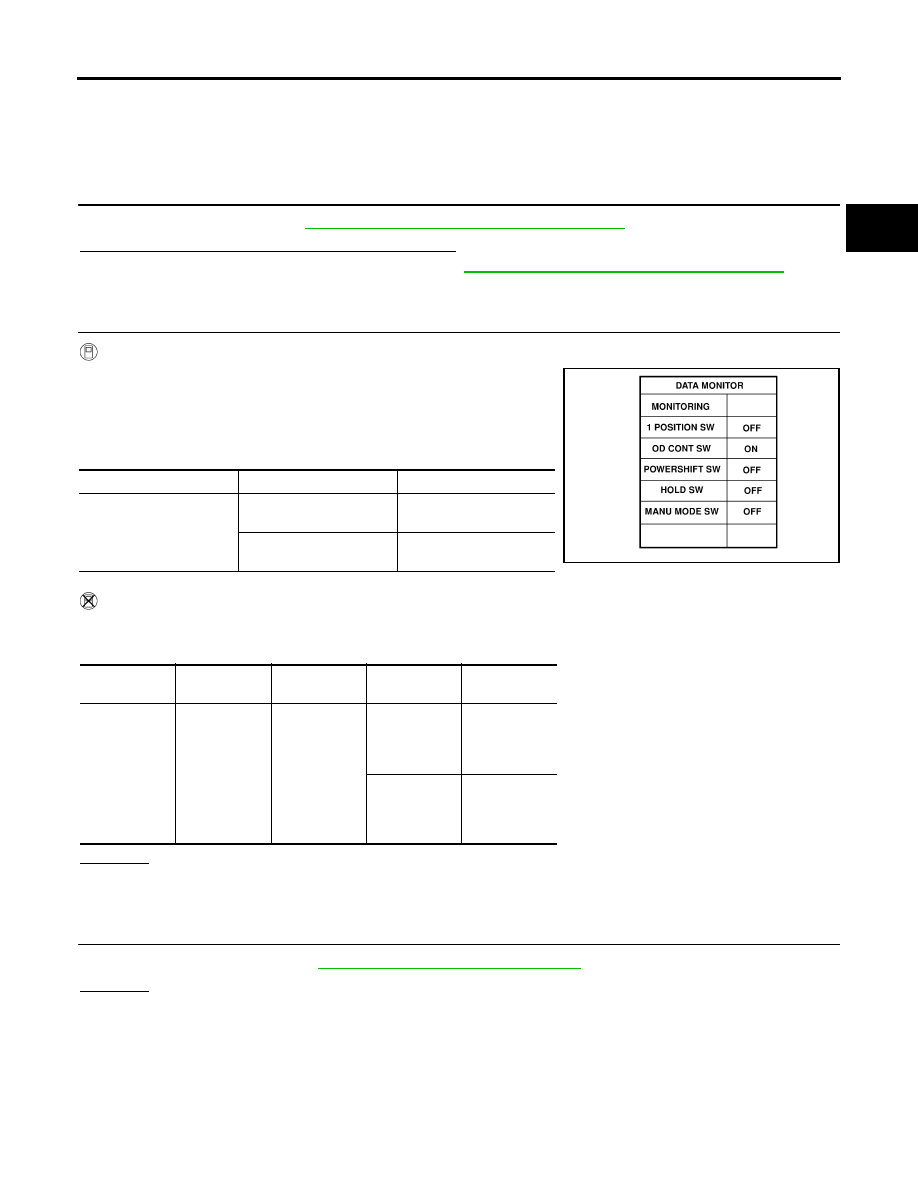

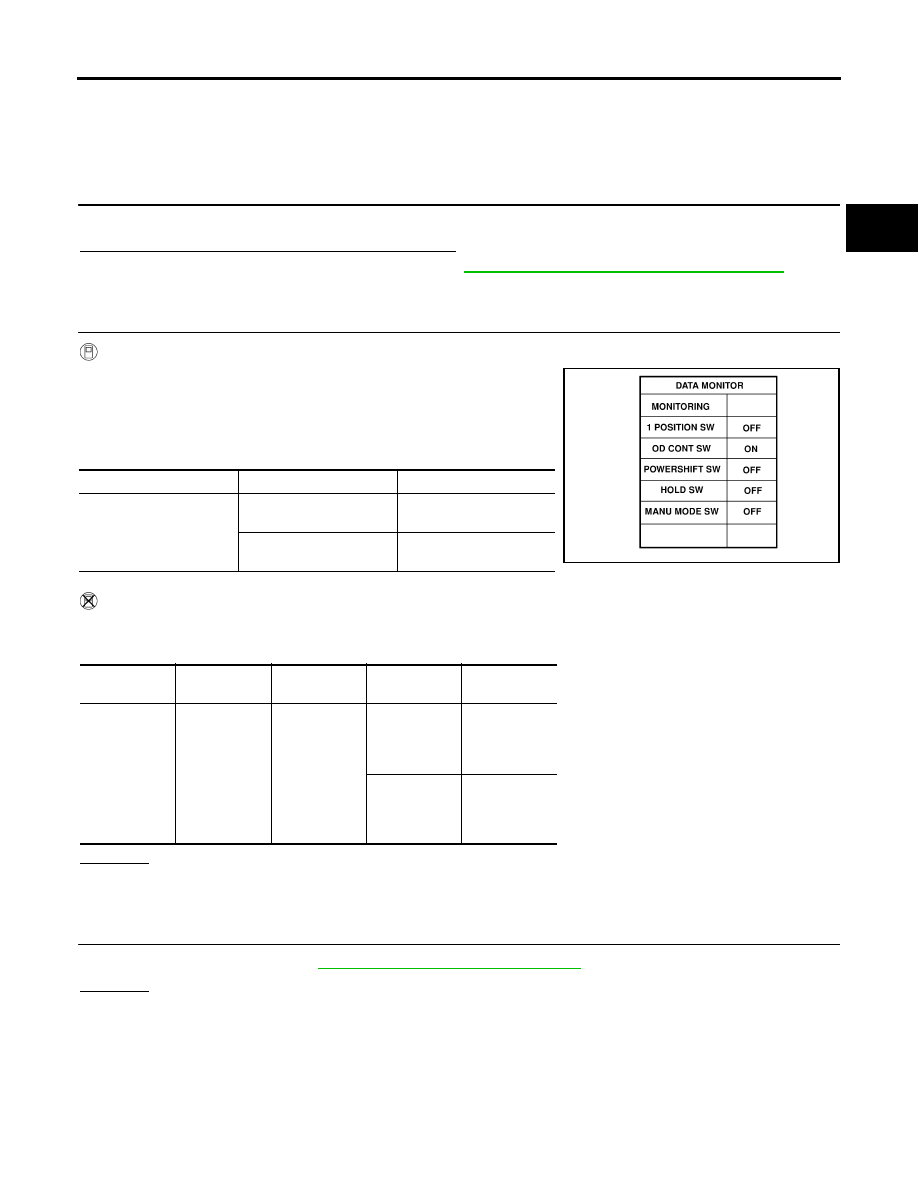

CHECK 1ST POSITION SWITCH CIRCUIT

 With CONSULT-II

1.

Turn ignition switch “ON”.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

Read out “1 POSITION SW” switch moving selector lever to
each position.

 Without CONSULT-II

1.

Turn ignition switch “ON”. (Do not start engine)

2.

Check voltage between A/T device harness connector terminal and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

CHECK A/T FLUID LEVEL

Check the A/T fluid level. Refer to

AT-12, "Checking the A/T Fluid (ATF)"

 .

OK or NG

OK

>> GO TO 4.

NG

>> Refill ATF.

Monitor item

Condition

Display value

1 POSITION SW

When setting the selector
lever to “1” position.

ON

When setting selector
lever to other positions.

OFF

LCIA0339E

Item

Connector No.

Terminal No.

Condition

Data

(Approx.)

1st position

switch

M156

9 - Ground

When setting
the selector
lever to “1”
position.

0V

When setting
selector lever
to other posi-
tions.

Battery volt-

age

AT-212

TROUBLE DIAGNOSIS FOR SYMPTOMS

2007 Pathfinder

4.

CHECK CONTROL CABLE

Check the control cable.

●

Refer to

AT-216, "Checking of A/T Position"

 .

OK or NG

OK

>> GO TO 5.

NG

>> Adjust control cable. Refer to

AT-216, "Adjustment of A/T Position"

 .

5.

CHECK A/T FLUID CONDITION

1.

Remove oil pan. Refer to

AT-227, "Control Valve With TCM and A/T Fluid Temperature Sensor 2"

 .

2.

Check A/T fluid condition. Refer to

AT-52, "Fluid Condition Check"

 .

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 9.

6.

DETECT MALFUNCTIONING ITEM

●

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to

AT-63,

"Symptom Chart"

  (Symptom No.17).

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace damaged parts.

7.

CHECK SYMPTOM

Check again. Refer to

AT-60, "Cruise Test - Part 3"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 8.

8.

PERFORM TCM INSPECTION

1.

Perform TCM input/output signals inspection. Refer to

AT-85, "TCM Input/Output Signal Reference Val-

ues"

 .

2.

If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness
connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

9.

DETECT MALFUNCTIONING ITEM

●

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to

AT-63,

"Symptom Chart"

  (Symptom No.17).

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace damaged parts.

TROUBLE DIAGNOSIS FOR SYMPTOMS

AT-213

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

Vehicle Does Not Decelerate By Engine Brake

ECS00ELJ

SYMPTOM:

No engine brake is applied when the gear is shifted from the 2

2

  to 1

1

 .

DIAGNOSTIC PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

Perform self-diagnosis.

Is any malfunction detected by self-diagnostic results?

YES

>> Check the malfunctioning system. Refer to

AT-88, "SELF-DIAGNOSTIC RESULT MODE"

 .

NO

>> GO TO 2.

2.

CHECK 1ST POSITION SWITCH CIRCUIT

 With CONSULT-II

1.

Turn ignition switch “ON”.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

Read out “1 POSITION SW” moving switch selector lever to
each position.

 Without CONSULT-II

1.

Turn ignition switch “ON”. (Do not start engine)

2.

Check voltage between A/T device harness connector terminal and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

CHECK A/T FLUID LEVEL

Check the A/T fluid level. Refer to

AT-12, "Checking the A/T Fluid (ATF)"

 .

OK or NG

OK

>> GO TO 4.

NG

>> Refill ATF.

Monitor item

Condition

Display value

1 POSITION SW

When setting the selector
lever to “1” position.

ON

When setting selector
lever to other positions.

OFF

LCIA0339E

Item

Connector No.

Terminal No.

Condition

Data

(Approx.)

1st position

switch

M156

9 - Ground

When setting
the selector
lever to “1”
position.

0V

When setting
selector lever
to other posi-
tions.

Battery volt-

age

AT-214

TROUBLE DIAGNOSIS FOR SYMPTOMS

2007 Pathfinder

4.

CHECK CONTROL CABLE

Check the control cable.

●

Refer to

AT-216, "Checking of A/T Position"

 .

OK or NG

OK

>> GO TO 5.

NG

>> Adjust control cable. Refer to

AT-216, "Adjustment of A/T Position"

 .

5.

CHECK A/T FLUID CONDITION

1.

Remove oil pan. Refer to

AT-227, "Control Valve With TCM and A/T Fluid Temperature Sensor 2"

 .

2.

Check A/T fluid condition. Refer to

AT-52, "Fluid Condition Check"

 .

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 9.

6.

DETECT MALFUNCTIONING ITEM

●

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to

AT-63,

"Symptom Chart"

  (Symptom No.53).

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace damaged parts.

7.

CHECK SYMPTOM

Check again. Refer to

AT-60, "Cruise Test - Part 3"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 8.

8.

PERFORM TCM INSPECTION

1.

Perform TCM input/output signals inspection. Refer to

AT-85, "TCM Input/Output Signal Reference Val-

ues"

 .

2.

If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness
connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

9.

DETECT MALFUNCTIONING ITEM

●

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to

AT-63,

"Symptom Chart"

  (Symptom No.53).

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace damaged parts.

SHIFT CONTROL SYSTEM

AT-215

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

SHIFT CONTROL SYSTEM

PFP:34901

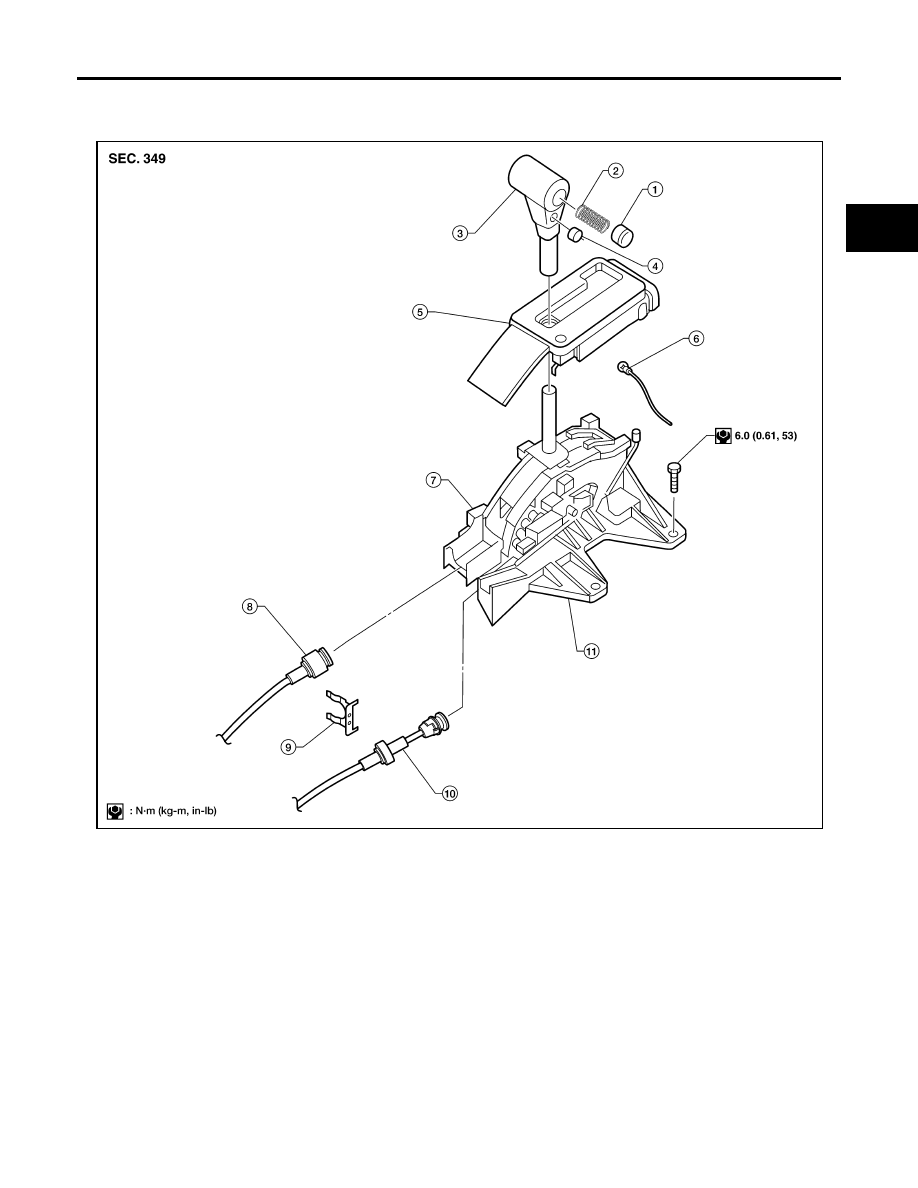

Control Device Removal and Installation

ECS00ELK

1.

Selector button

2.

Selector spring

3.

Selector lever

4.

Overdrive control switch

5.

Position indicator

6.

Position lamp

7.

A/T device harness connector

8.

A/T selector control cable

9.

Lock plate

10.

A/T key interlock cable

11.

A/T control device assembly

WCIA0503E

AT-216

SHIFT CONTROL SYSTEM

2007 Pathfinder

REMOVAL

1.

Remove the A/T finisher. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

2.

Disconnect the following from the A/T control device assembly.

●

A/T selector control cable

●

A/T key interlock cable

●

A/T device connector

3.

Remove the A/T control device assembly.

INSTALLATION

Installation is in reverse order of removal.

Adjustment of A/T Position

ECS00ELL

1.

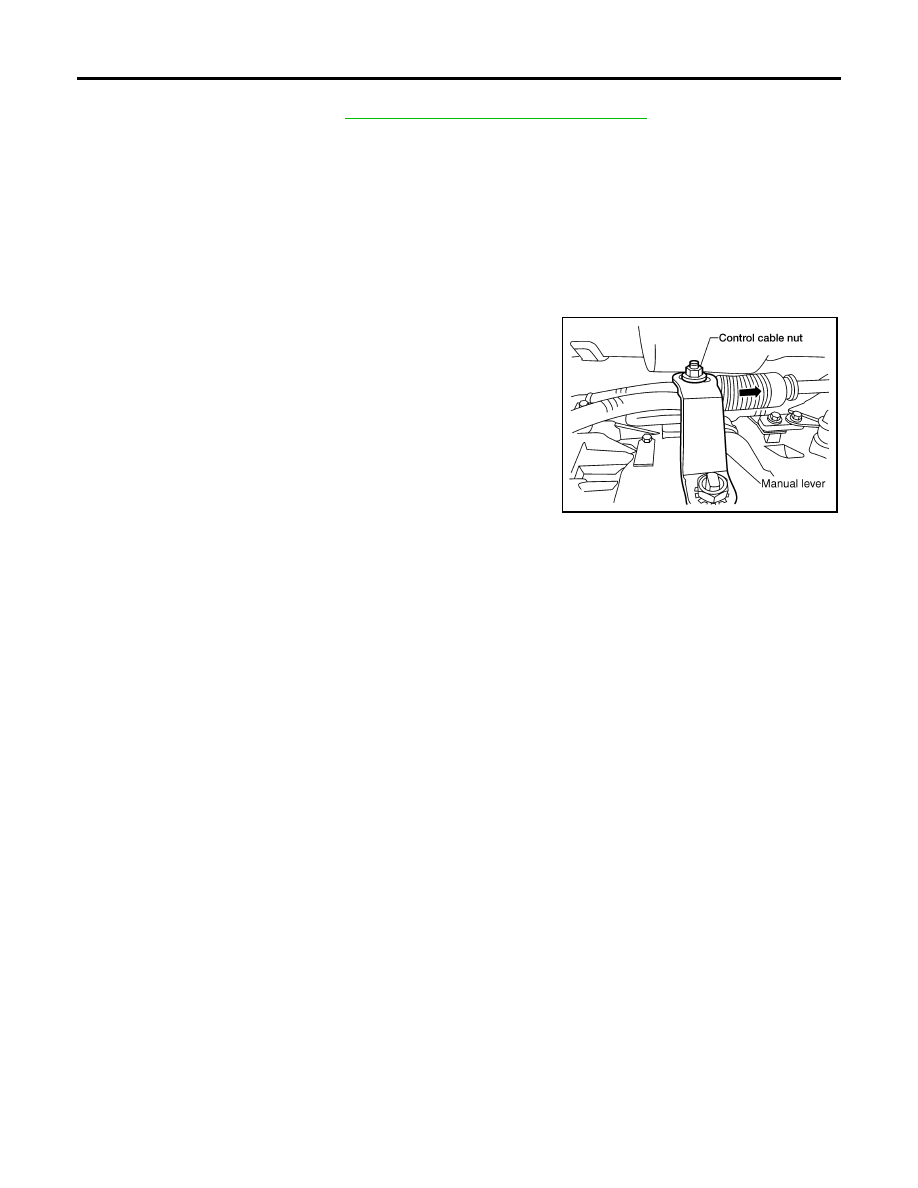

Loosen nut of control cable.

2.

Place the manual lever and selector lever in “P” position.

3.

Push the control cable in the direction shown with a force of 9.8
N (1kg, 2.2 lb), and release it. This is in the natural state, tighten
control cable nut to specifications.

Checking of A/T Position

ECS00ELM

With the selector lever in the “P” position, turn the ignition switch to the ON position with the engine OFF.
Confirm that the following conditions apply.

●

The selector lever can be shifted from the “P” position only when the brake pedal is depressed.

●

The selector lever stops at each position with the feel of engagement when it is moved through all the
positions.

●

There is no excessive effort, sticking, noise or rattle.

●

The actual position of the selector lever matches the position shown by the shift position indicator and the
A/T body.

●

The back-up lamps illuminate only when the selector lever is placed in the “R” position.

●

The back-up lamps do not illuminate when the selector lever is pushed against the “R” position when in
the “P” or “N” position.

●

The engine can only be started with the selector lever in the “P” and “N” positions.

●

The A/T is locked completely when in the “P” position.

Control cable nut

: 14.5 N·m (1.5 kg-m, 11 ft-lb)

SCIA6532E

A/T SHIFT LOCK SYSTEM

AT-217

D

E

F

G

H

I

J

K

L

M

A

B

AT

2007 Pathfinder

A/T SHIFT LOCK SYSTEM

PFP:34950

Description

ECS00ELN

●

The mechanical key interlock mechanism also operates as a shift lock:
With the ignition switch turned to ON, the selector lever cannot be shifted from “P” (parking) to any other
position unless the brake pedal is depressed.
With the key removed, the selector lever cannot be shifted from “P” to any other position.
The key cannot be removed unless the selector lever is placed in “P” position.

●

The shift lock and key interlock mechanisms are controlled by the ON-OFF operation of the shift lock sole-
noid and by the operation of the rotator and slider located inside the key cylinder, respectively.

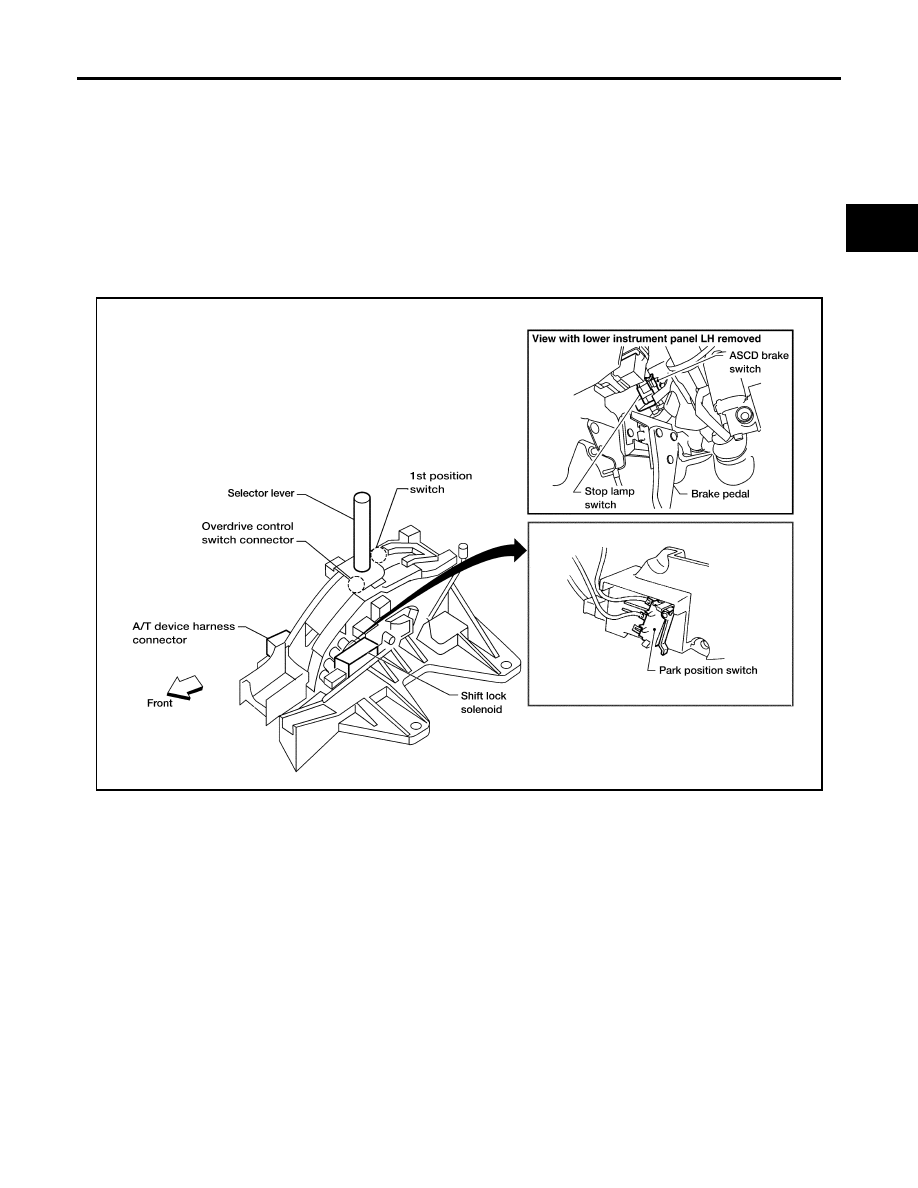

Shift Lock System Electrical Parts Location

ECS00ELO

WCIA0528E

AT-218

A/T SHIFT LOCK SYSTEM

2007 Pathfinder

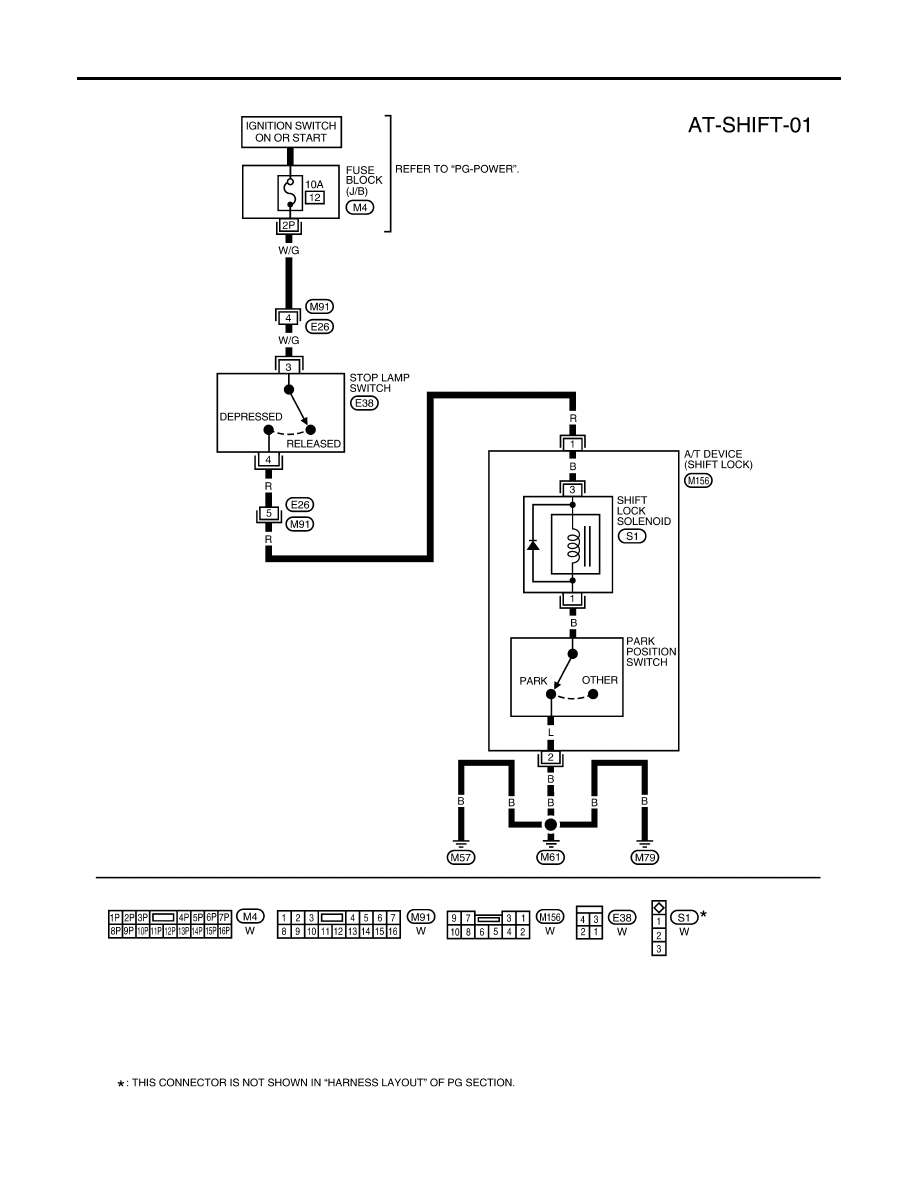

Wiring Diagram — A/T — SHIFT

ECS00ELP

BCWA0712E
