AUTOMATIC DRIVE POSITIONER

SE-11

2005 Pathfinder

AUTOMATIC DRIVE POSITIONER

PFP:28491

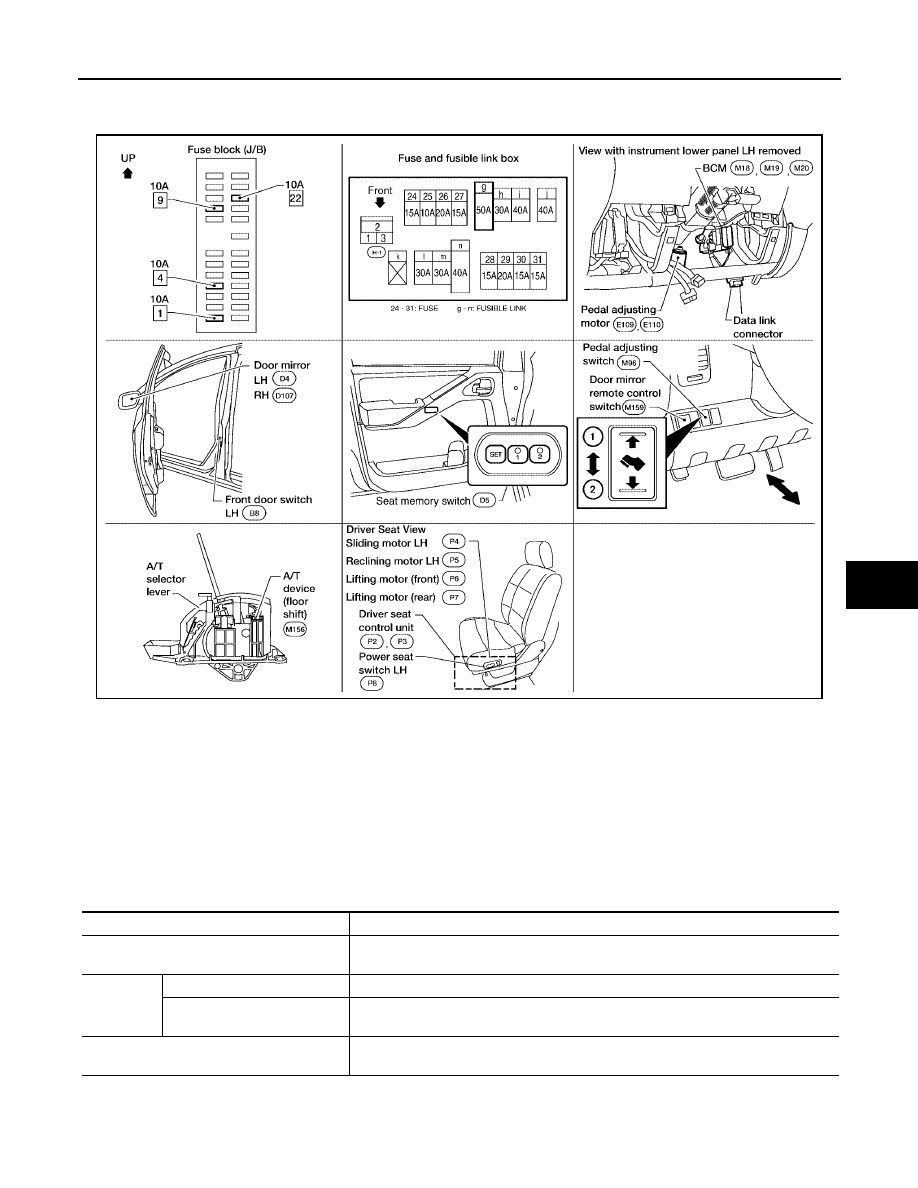

Component Parts And Harness Connector Location

EIS00450

Manual Operation

EIS00451

The driving position [seat position, pedal position (accelerator, brake) and door mirror position] can be
adjusted with the power seat switch LH, pedal adjusting switch or door mirror remote control switch.

NOTE:

●

The door mirrors can be manually operated with the ignition switch turned ACC or ON.

●

Adjustable pedal can operate only when A/T selector lever is in P position.

●

If A/T device (detent switch) error is detected, manual adjustable pedal operation cannot be performed
when ignition switch turns ON.

Automatic Operation

EIS00452

NOTE:

●

Disconnecting the battery erases the stored memory.

LIIA1753E

Function

Description

Memory operation

The seat, pedal (accelerator, brake) and door mirror move to the stored driving posi-
tion by pushing seat memory switch (1 or 2).

Entry/Exit-
ing function

Exiting operation

At exit, the seat moves backward. (Exiting position)

Entry operation

At entry, the seat returns from Exiting position to the previous driving position before
the Exiting operation.

Keyfob interlock operation

Perform memory operation, turnout operation and return operation by pressing key-
fob unlock button.

SE-12

AUTOMATIC DRIVE POSITIONER

2005 Pathfinder

●

After connecting the battery, insert the key into the ignition cylinder and turn the front door switch LH ON (open)

→

OFF (close)

→

(open), the Entry/ Exiting function becomes possible.

●

After Exiting operation is carried out, return operation can be performed.

NOTE:
During automatic operation, if the ignition switch is turned ON

→

START, the automatic operation is suspended. When the ignition switch

returns to ON, it resumes.

System Description

EIS00453

●

The system automatically moves the front seat to facilitate entry/exit to/from the vehicle. The driver seat
control unit can also store the optimum driving positions (front seat, pedal position and door mirror posi-
tion) for 2 people. If the front seat position is changed, one-touch operation allows changing to the other
driving position.

●

The automatic sliding seat function entry/exit can be turned ON/OFF using the display unit (with NAVI) in
the center of the instrument panel. The set content is transmitted by CAN communication, from display
control unit (with NAVI) to driver seat control unit.

●

Using CONSULT-ll, the seat slide distance at entry/exit setting can be changed.

Auto operation temporary stop
conditions.

When ignition switch is turned to START during seat memory switch operation and return
operation, seat memory switch operation and return operation is stopped.

Auto operation stop conditions.

●

When the vehicle speed becomes 7 km/h (4 MPH) or higher (memory switch operation
and entry operation).

●

When the setting switch, seat memory switch 1, or 2 are pressed.

●

When A/T selector lever is in any position other than P position.

●

When the door mirror switch is operated (when ignition switch turned to ON).

●

When power seat switch turned ON.

●

When pedal adjusting switch turned ON.

●

When front seat sliding Entry/Exiting setting is OFF (entry/exiting operation).

AUTOMATIC DRIVE POSITIONER

SE-13

2005 Pathfinder

FAIL-SAFE MODE

An "output error" is judged if any seat or pedal motor movement is detected for T2 or longer while no manual
or automatic operations are in process.

CANCEL OF FAIL-SAFE MODE

The mode is cancelled when the A/T selector lever is shifted to P position from any other position.

OPERATED PORTION

Seat sliding

Approx. 0.1 sec.

Seat reclining

Same as above

Seat lifting (Front)

Same as above

Seat lifting (Rear)

Same as above

Pedal adjust

Same as above

SE-14

AUTOMATIC DRIVE POSITIONER

2005 Pathfinder

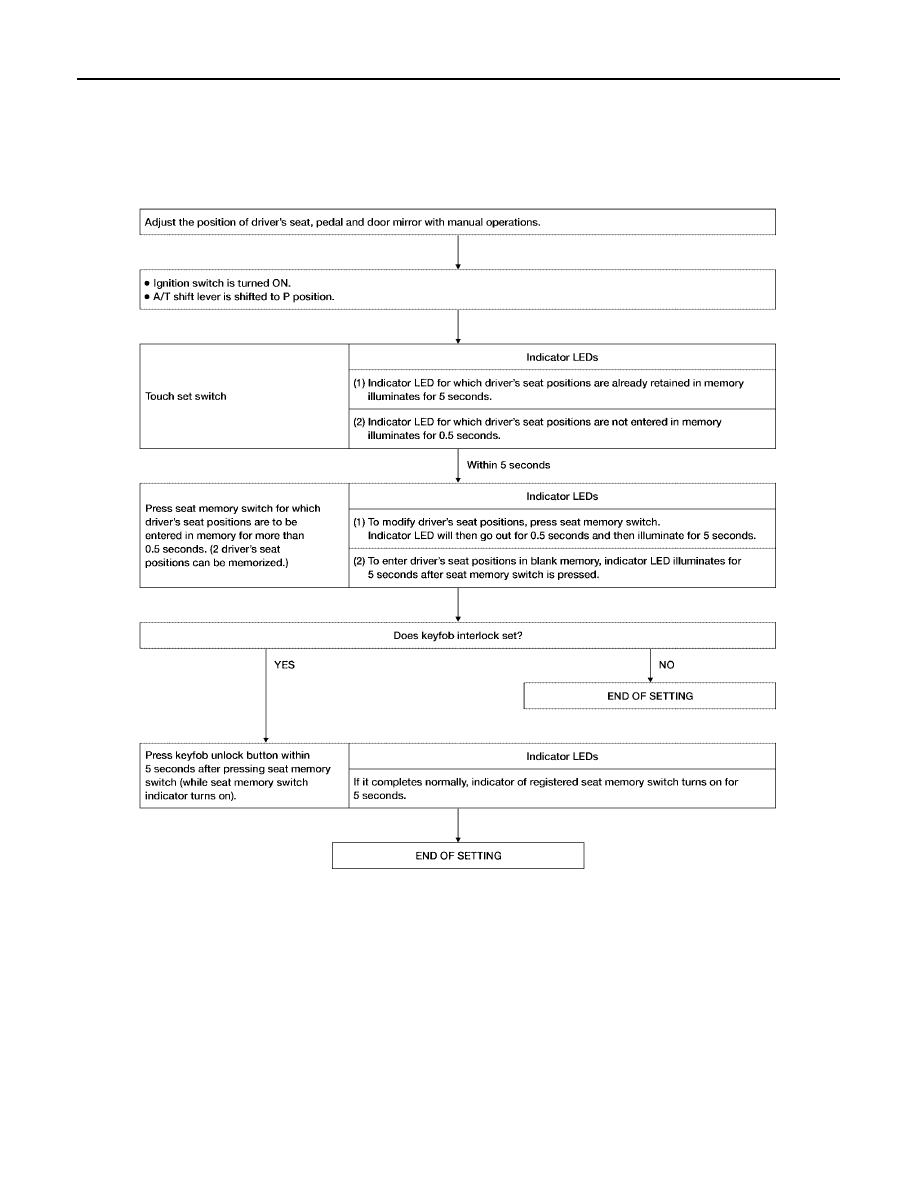

MEMORY STORING AND KEYFOB INTERLOCK STORING

●

Stores the 2 driving positions and shifts to the stored driving position with the memory switch.

●

Keyfob interlock function is set simultaneously with setting driving position memory. It can set driving posi-
tion to memory position.

NOTE:

●

If another keyfob interlock function setting is performed by same key, the newly registered setting is valid.

●

If a memory position is modified and re-saved, the keyfob interlock function is cancelled.

●

If the keyfob has not been previously programmed to the vehicle, keyfob interlock function cannot set.

LIIA1666E

AUTOMATIC DRIVE POSITIONER

SE-15

2005 Pathfinder

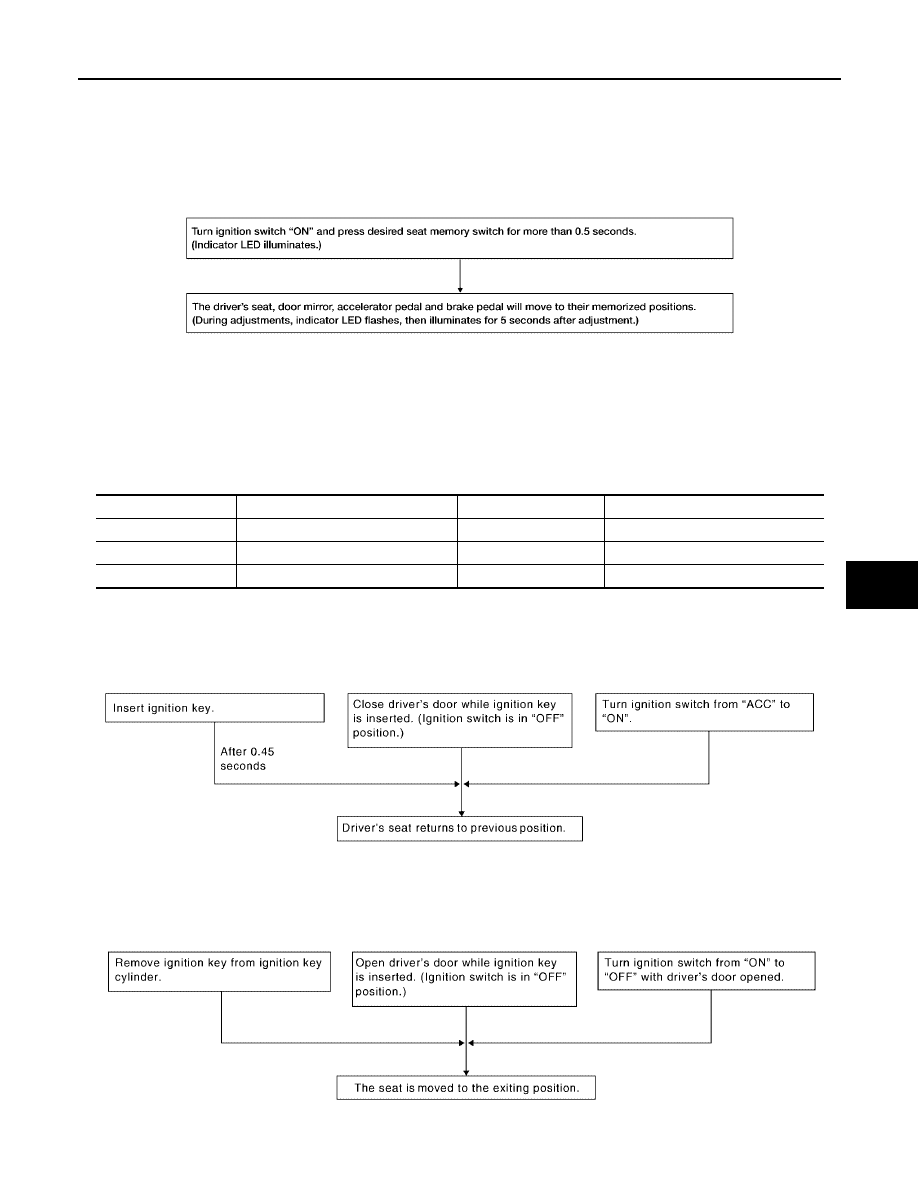

MEMORY OPERATION

Selecting the memorized position.

NOTE:
The front seat position and pedal adjustment functions (see the following table) operate simultaneously in the
order of priority.

*: In conjunction with sliding the seat, the door mirrors are positioned.

ENTRY OPERATION

When the seat is in the exiting positions, the following operation moves the seat to the previous position before
the exiting operation.

EXITING OPERATION

At Entry/Exiting, the seat is automatically moved to the exiting position.

Priority

Function

Priority

Function

Seat sliding, (door mirror LH/RH)*

Seat lifter-FR

Pedal

Seat lifter-RR

Seat reclining

LIIA0693E

LIIA0855E

LIIA0856E

SE-16

AUTOMATIC DRIVE POSITIONER

2005 Pathfinder

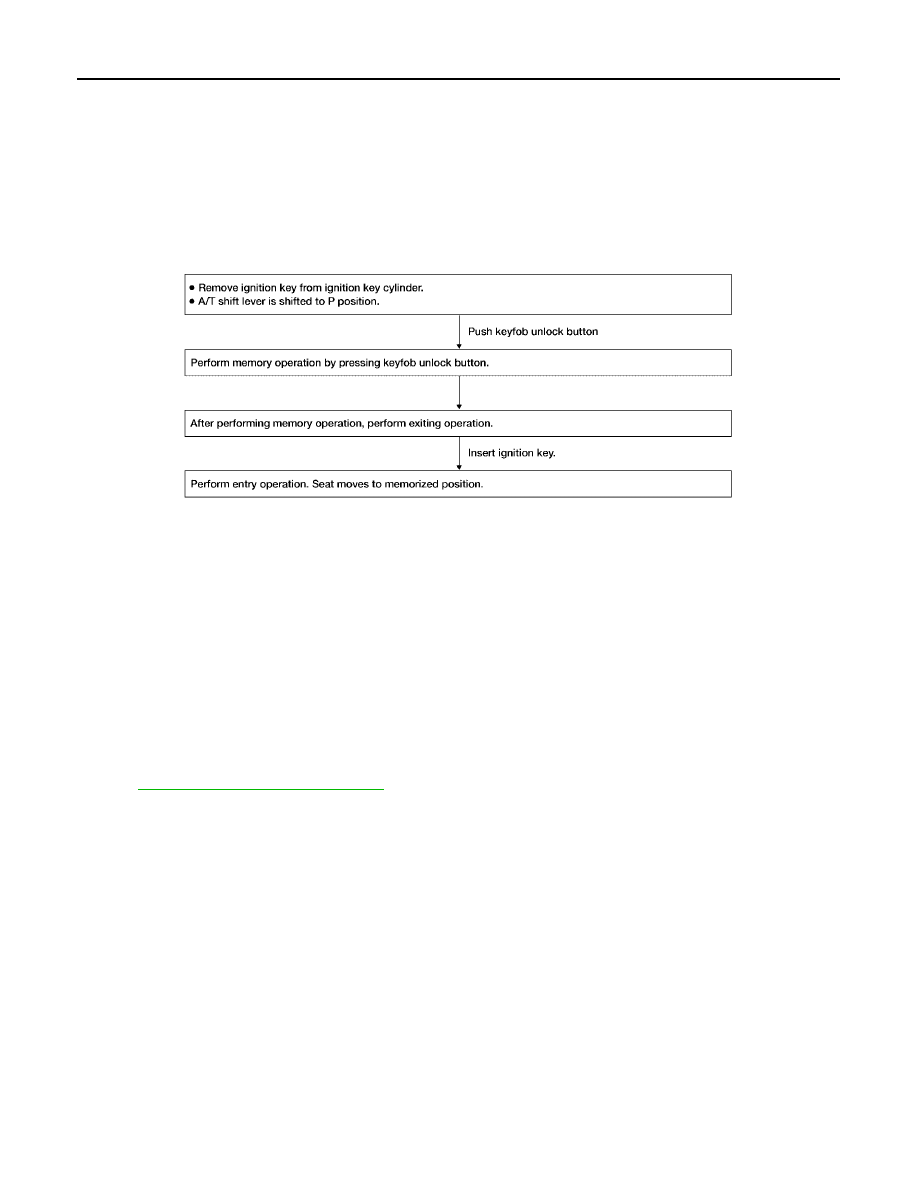

KEYFOB INTERLOCK OPERATION

●

The system performs memory operation, exiting operation and return operation by pressing keyfob unlock
button.

NOTE:

●

If Entry/Exiting operation is cancelled, the system performs memory operation only.

●

If ignition switch turns ON in the middle of memory operation, the system does not perform exiting opera-
tion after memory operation.

●

If ignition switch turns ON in the middle of exiting operation, entry operation starts at that time.

CAN Communication System Description

EIS00454

Refer to

LAN-24, "CAN COMMUNICATION"

LIIA1667E

AUTOMATIC DRIVE POSITIONER

SE-17

2005 Pathfinder

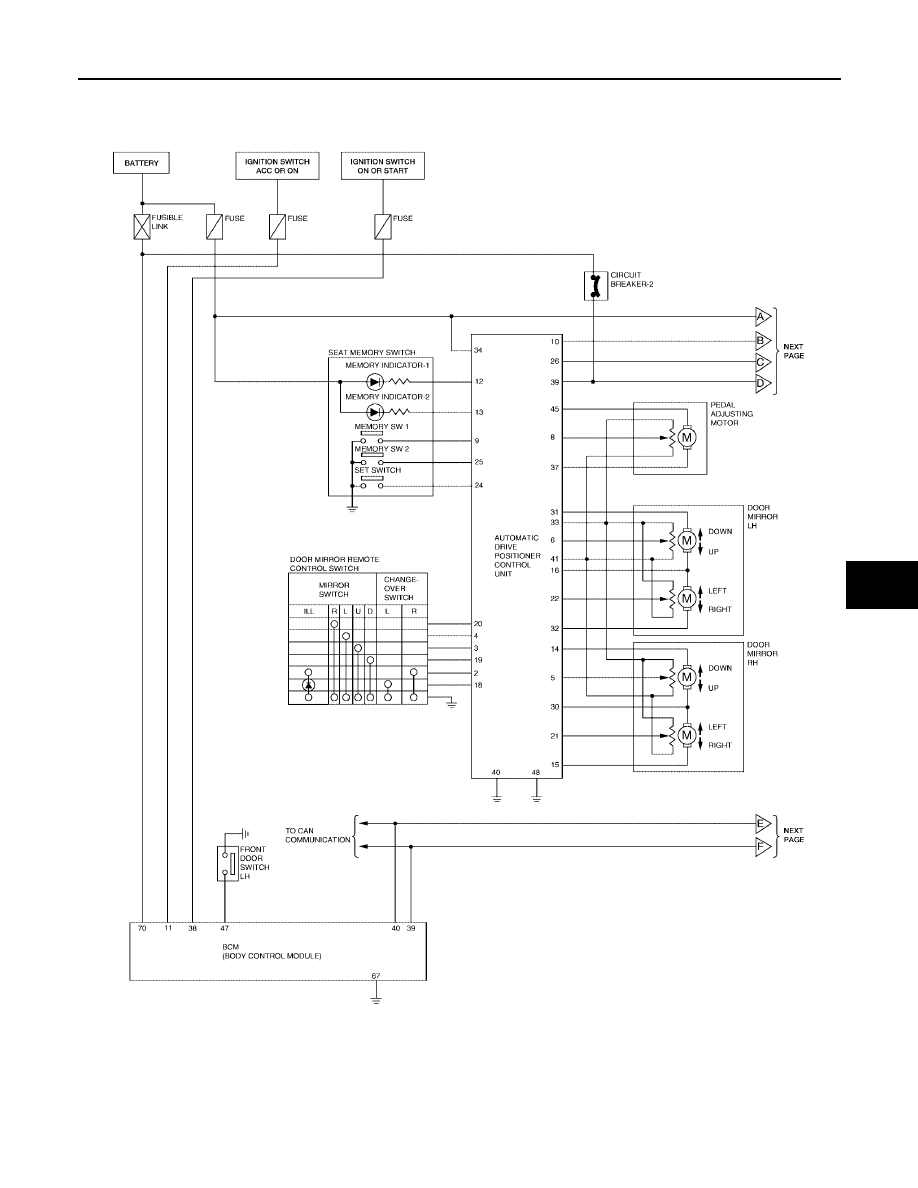

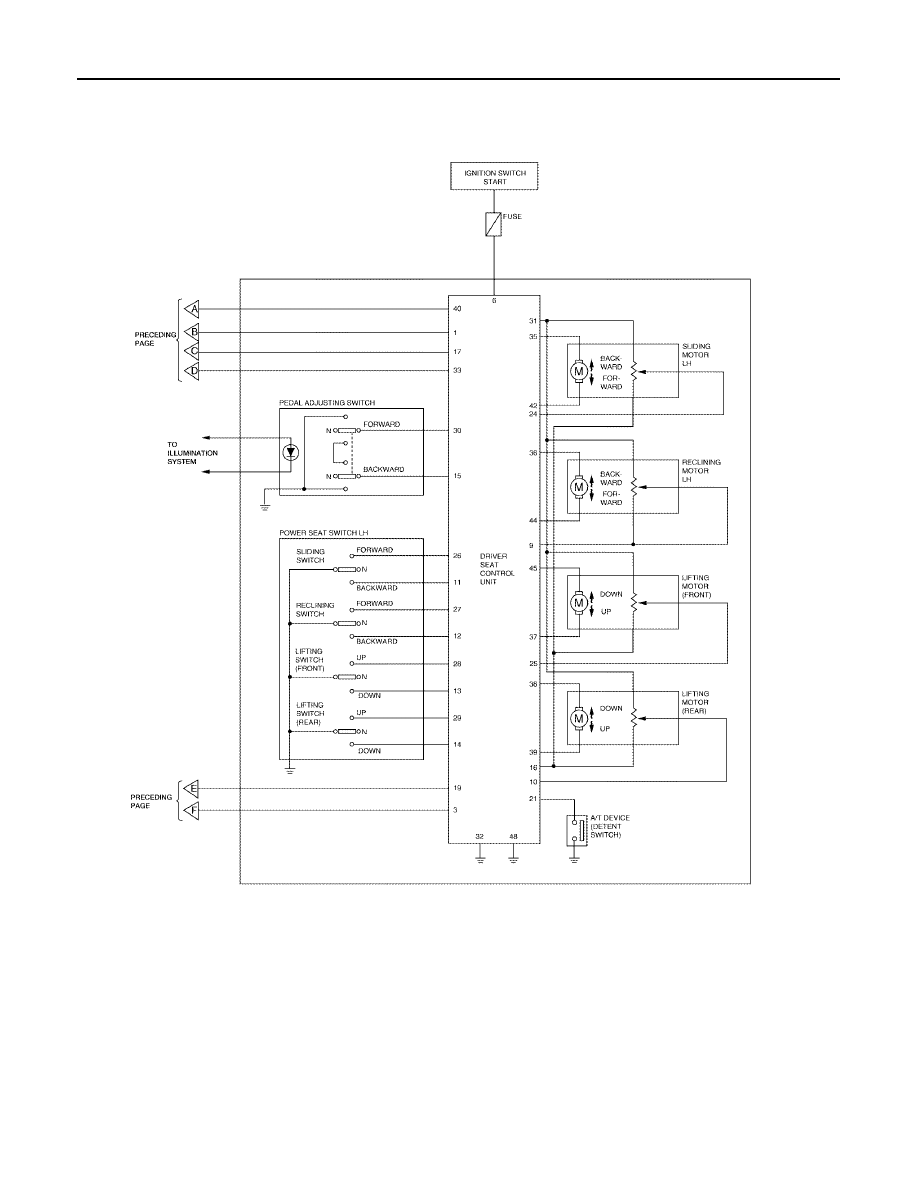

Schematic

EIS00455

WIWA0554E

SE-18

AUTOMATIC DRIVE POSITIONER

2005 Pathfinder

WIWA0555E
