SB-14

< REMOVAL AND INSTALLATION >

SECOND ROW SEAT BELT

1. Remove the lower anchor bolt cover then remove the lower anchor bolt.

CAUTION:

Before removing the lower anchor bolt, note the positions of washers and spacers for correct

installation.

2. Remove the rear pillar finisher. Refer to

INT-30, "REAR PILLAR FINISHER : Removal and Installation"

.

3. Remove the D-ring anchor nut.

CAUTION:

Before removing the D-ring anchor nut, note the positions of washers and spacers for correct

installation.

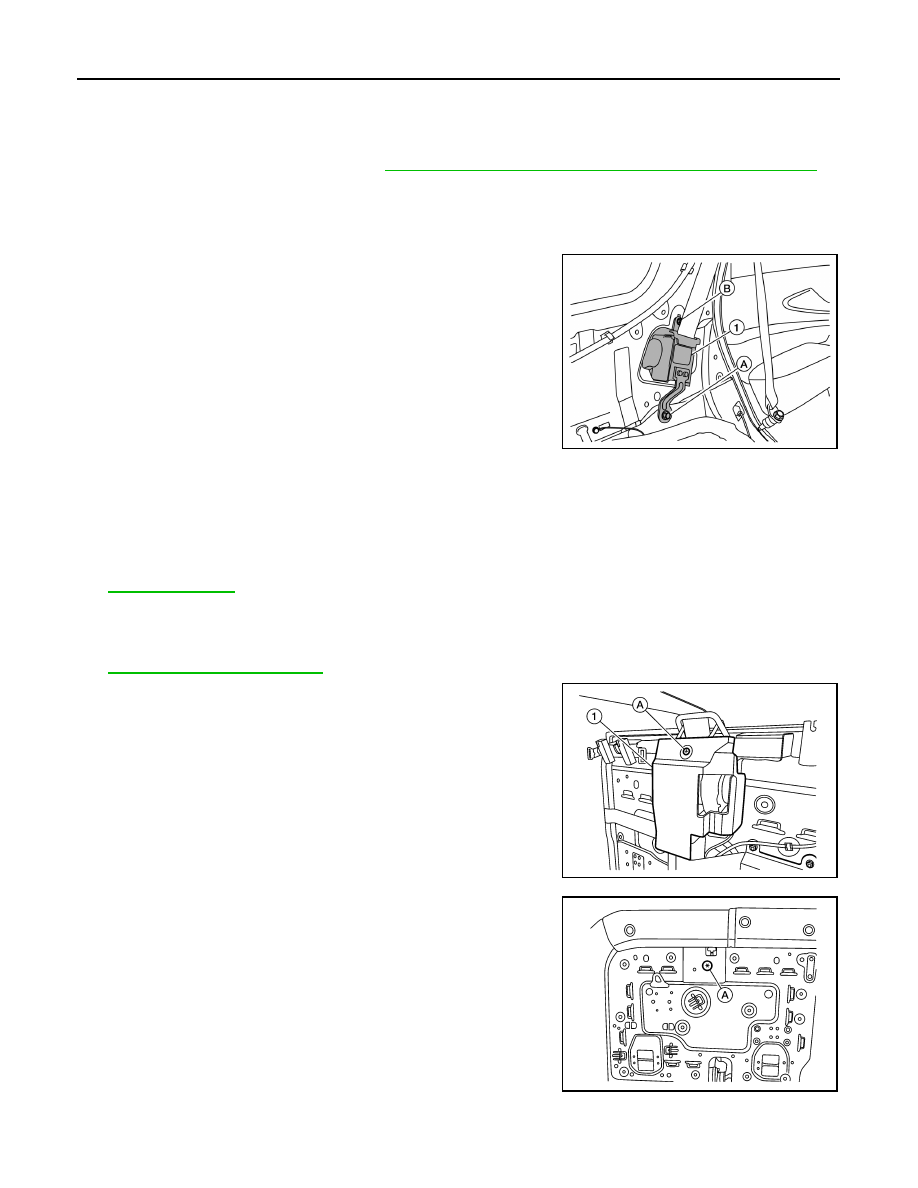

4. Remove the upper bolt (B), then bolt (A) and the seat belt retrac-

tor (1).

Installation

Installation is in the reverse order of removal.

• Make sure that the seat belt height adjuster is locked in the lowest position and is aligned with the finisher

opening during installation.

• Tighten the D-ring anchor bolt, seat belt retractor bolts, and lower anchor bolt to specification.

• Make sure both the D-ring anchor and seat belt height adjuster operate freely.

• Always perform an inspection after repair to make sure the system is functioning within specifications. Refer

to

SB-5, "Inspection"

.

Removal - Seat Belt Retractor (center)

1. Remove the LH seatback pad and seatback trim as an assembly from the seat frame assembly. Refer to

SE-126, "LH SEAT : Seatback"

.

2. Remove screw (A) and seat belt retractor finisher (1).

3. Remove bolt (A) and the seat belt retractor (center).

Installation

ALHIA0239GB

ALHIA0322ZZ

ALHIA0323ZZ

SECOND ROW SEAT BELT

SB-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

Installation is in the reverse order of removal.

• Tighten the seat belt retractor bolt to specification.

• Always perform an inspection after repair to make sure the system is functioning within specifications. Refer

to

SB-5, "Inspection"

.

SEAT BELT HEIGHT ADJUSTER

Removal

1. Remove the rear pillar finisher. Refer to

INT-30, "REAR PILLAR FINISHER : Removal and Installation"

.

2. Remove the D-ring anchor nut.
3. Remove the seat belt height adjuster bolts and the seat belt height adjuster.

Installation

Installation is in the reverse order of removal.

• Make sure that the seat belt height adjuster is locked in the lowest position and is aligned with the finisher

opening during installation.

• Make sure both the D-ring anchor and seat belt height adjuster operate freely.

SEAT BELT BUCKLE (RH)

Removal

1. Slide the second row LH seat to the full forward position and move the second row RH seat to the full rear-

ward position.

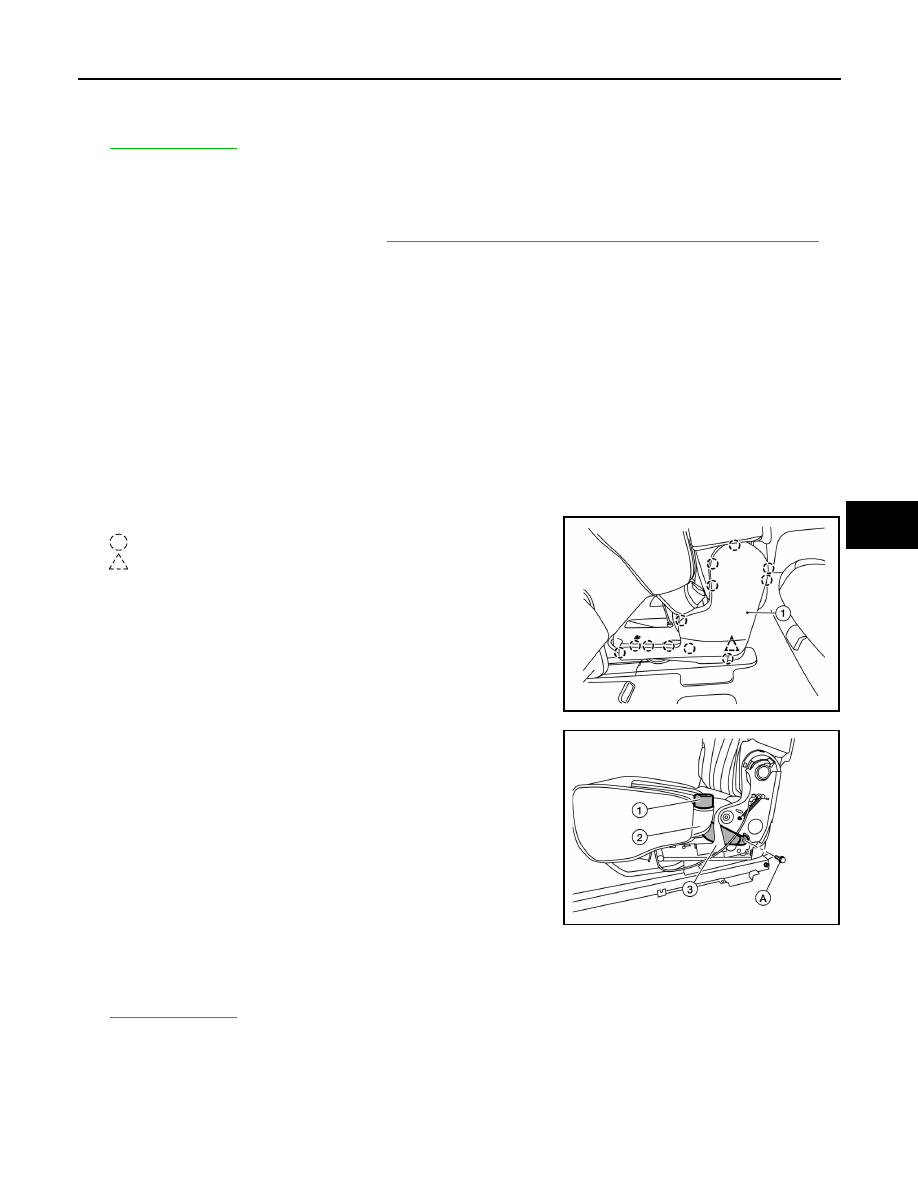

2. Remove outer finisher (LH) (1).

: Pawl
: Clip

3. Remove seat belt buckle (RH) anchor bolt (A).
4. Route the seat belt buckle (RH) (1) through the opening in the

seat cushion trim (2) and behind inner finisher (LH) (3).

Installation

Installation is in the reverse order of removal.

• Tighten the seat belt buckle anchor bolt to specification.

• Always perform an inspection after repair to make sure the system is functioning within specifications. Refer

to

SB-5, "Inspection"

.

SEAT BELT BUCKLE (center)

Removal

ALJIA0852ZZ

ALHIA0237GB

SB-16

< REMOVAL AND INSTALLATION >

SECOND ROW SEAT BELT

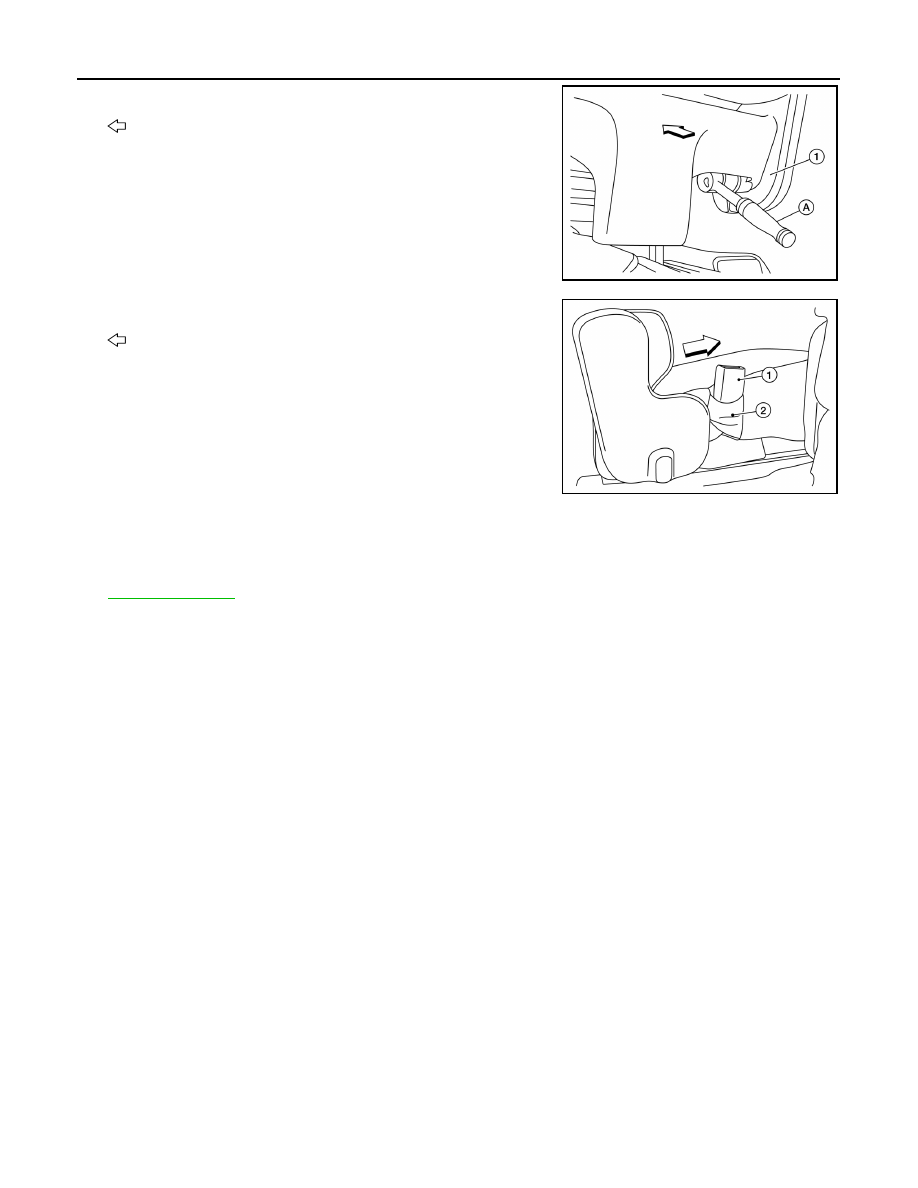

1. Remove the seat belt buckle (center) anchor bolt from behind

the LH seat (1) using a suitable tool (A).

: Front

2. Route the seat belt buckle (center) (1) through the opening in

the seat cushion trim (2) and remove.

: Front

Installation

Installation is in the reverse order of removal.

• Tighten the seat belt buckle anchor bolt to specification.

• Always perform an inspection after repair to make sure the system is functioning within specifications. Refer

to

SB-5, "Inspection"

.

ALHIA0236GB

ALHIA0235GB

THIRD ROW SEAT BELT

SB-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

THIRD ROW SEAT BELT

Third Row Seat Belt

INFOID:0000000009176922

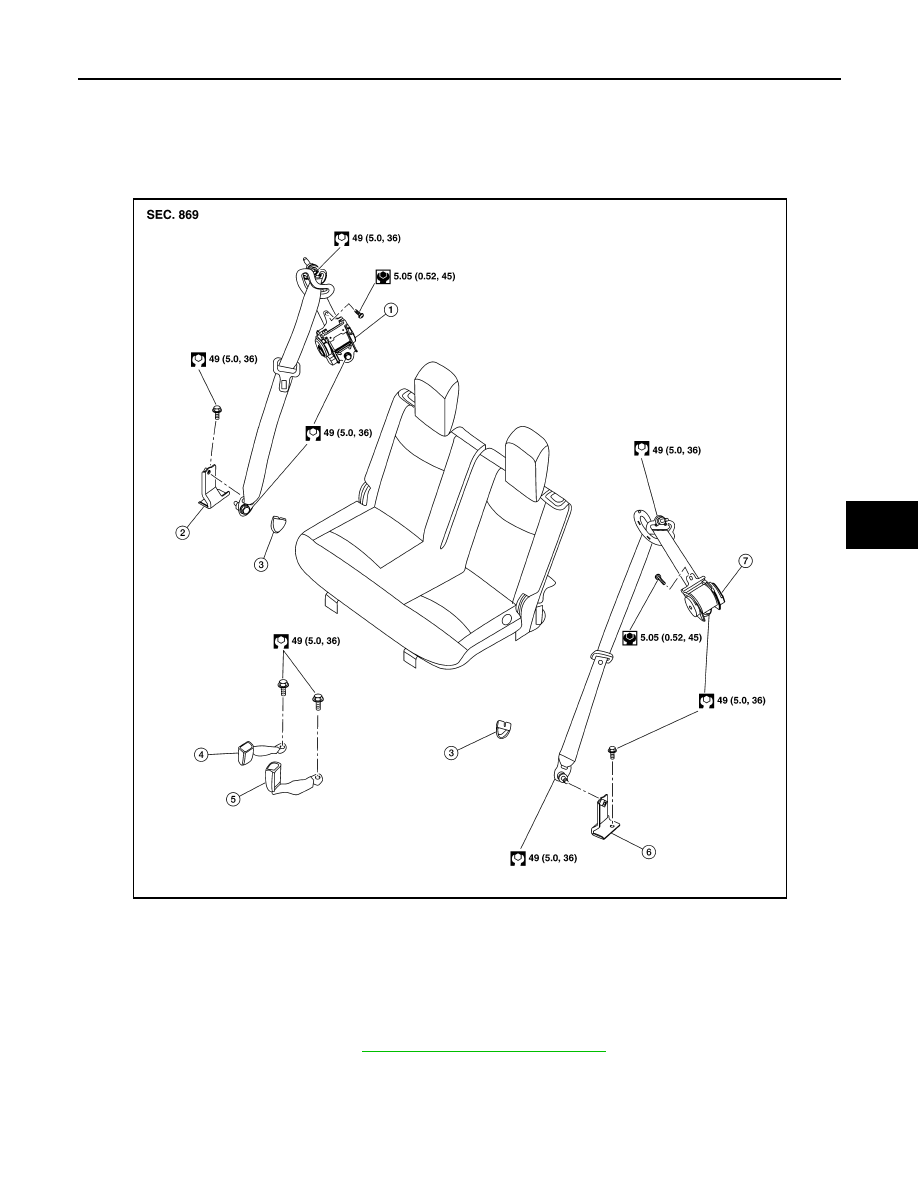

EXPLODED VIEW

SEAT BELT RETRACTOR

Removal

1. Remove the third row seat. Refer to

SE-107, "Removal and Installation"

.

2. Pull back the lower anchor bolt cover and remove the seat belt lower anchor bolt.

CAUTION:

Before removing the seat belt lower anchor bolt, note the positions of washers and spacers for

correct installation.

1.

Seat belt retractor (RH)

2.

Lower anchor bracket (RH)

3.

Lower anchor bolt cover (LH/RH)

4.

Seat belt buckle (RH)

5.

Seat belt buckle (LH)

6.

Lower anchor bracket (LH)

7.

Seat belt retractor (LH)

AWHIA0558ZZ
