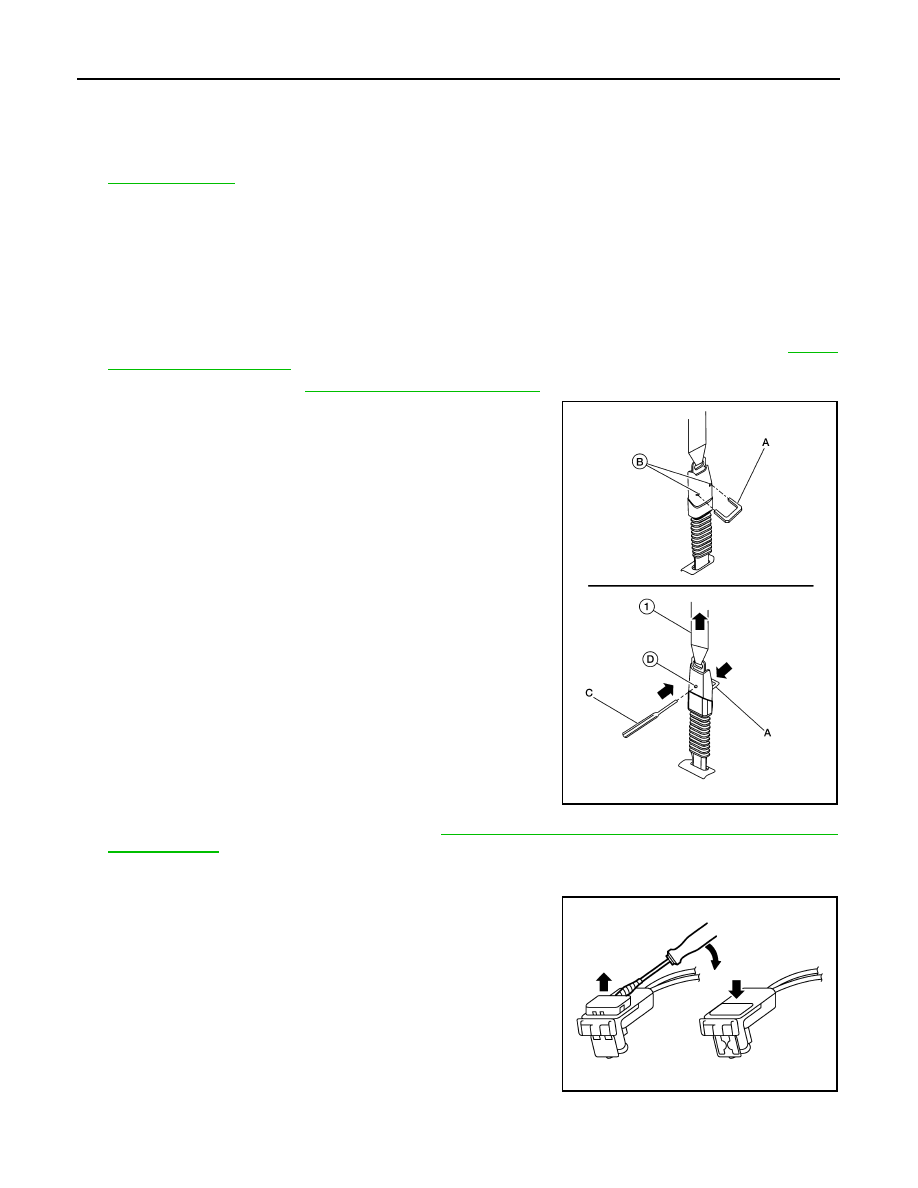

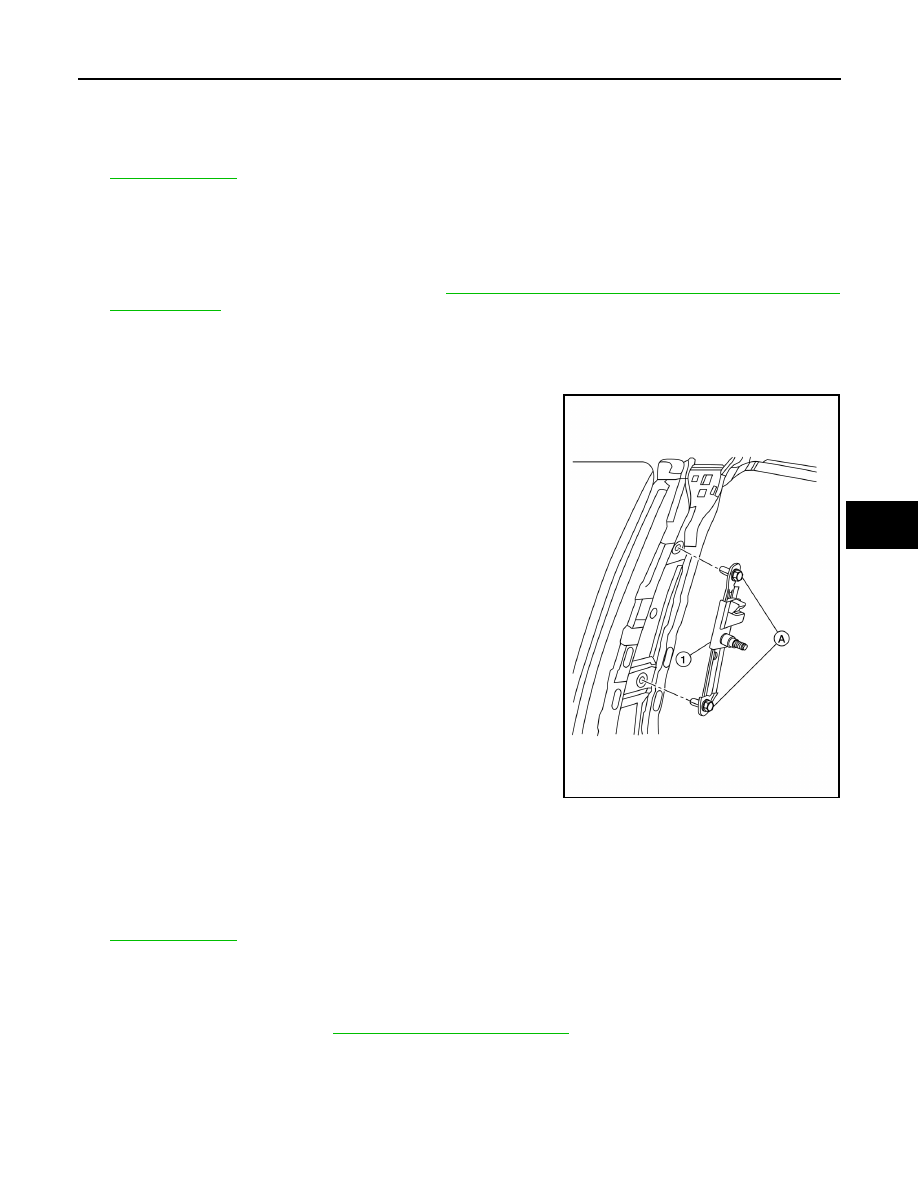

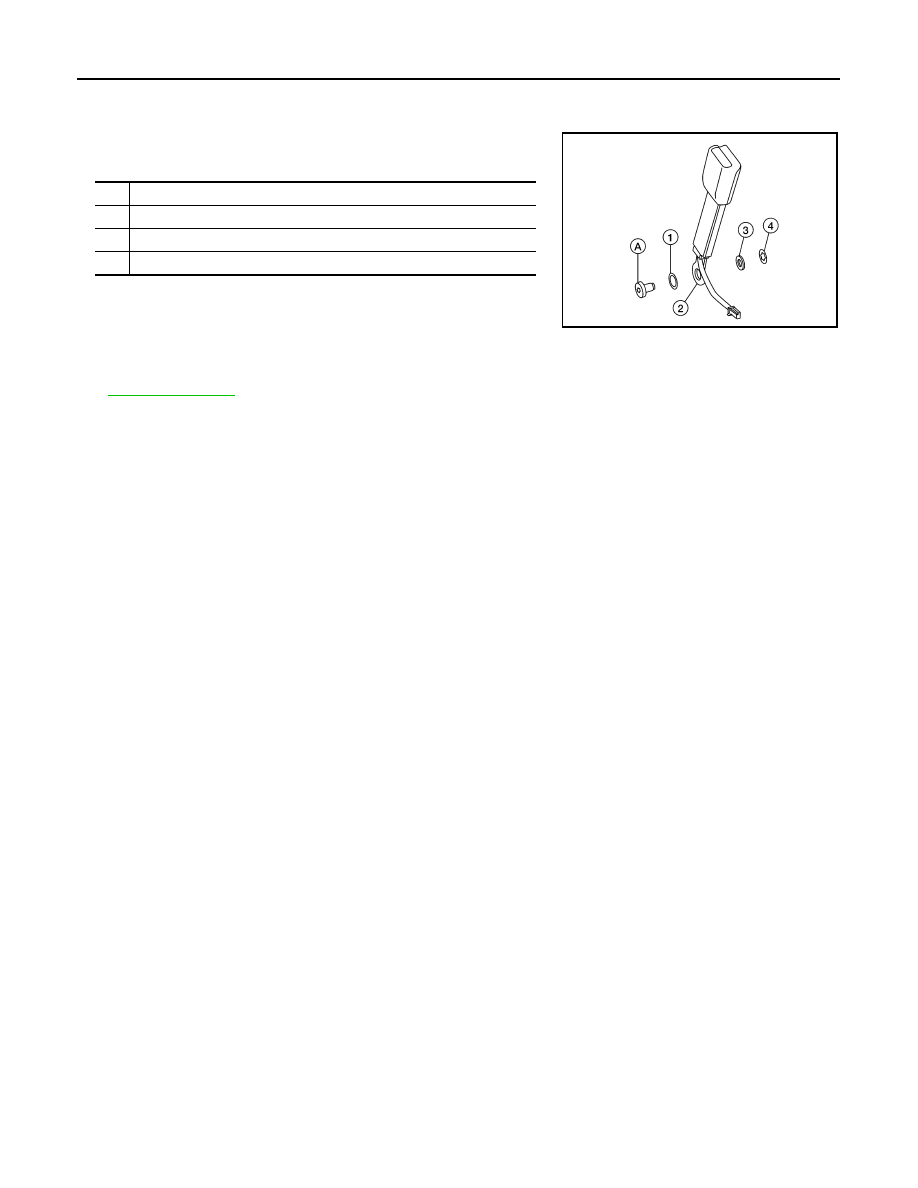

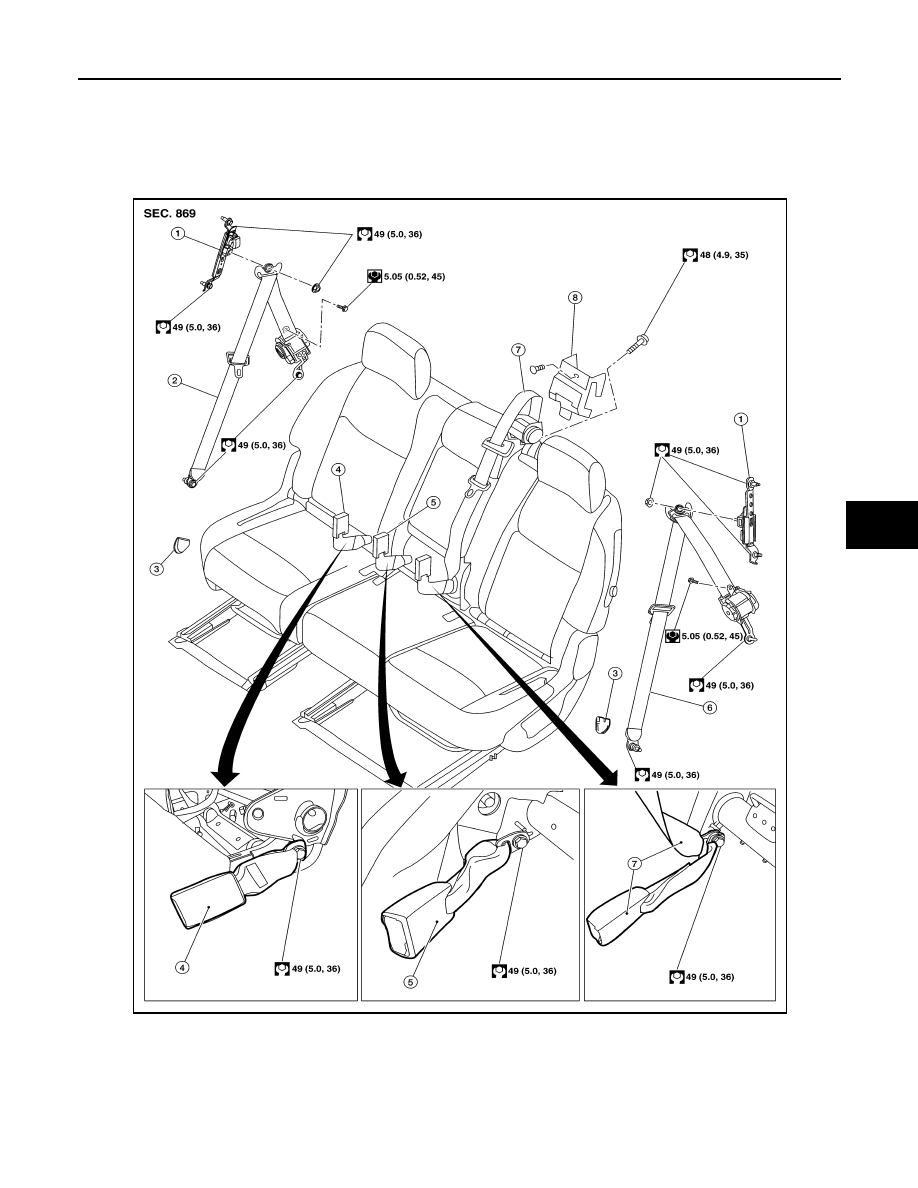

SB-10 < REMOVAL AND INSTALLATION > FRONT SEAT BELT • Tighten the D-ring anchor nut and seat belt retractor bolts to specification. • Make sure that the seat belt height adjuster is locked in the lowest position and is aligned with the finisher opening during installation. • Make sure both the D-ring anchor and seat belt height adjuster operate freely. • Always perform an inspection after repair to make sure the system is functioning within specifications. Refer LAP BELT PRETENSIONER Removal WARNING: • Before servicing the SRS, turn the ignition switch off, disconnect both battery terminals then wait at least three minutes. • Do not drop the lap belt pretensioner. Always handle it with care. • Always point pretensioner cylinder away from body when handling. 2. Remove front seat. Refer to SE-86, "Removal and Installation" . 3. Release seat belt retractor (1) from the lap belt pretensioner. Depress suitable tools (A) and (C) at the same time and remove seat belt retractor (1) as shown. 4. Remove the center pillar lower finisher. Refer to INT-21, "CENTER PILLAR LOWER FINISHER : Removal 5. Position floor trim aside and disconnect the harness connector from the lap belt pretensioner. CAUTION: • For removing/installing the shoulder belt pre-tensioner harness connector, insert a thin screwdriver wrapped in tape into the notch, then lift the lock and remove the har- ness connector as shown. • Install the harness connector with the lock raised, and push the lock into the harness connector as shown. • After installing the harness connector, check that the lock is pushed in securely. 6. Remove floor bracket bolt and floor bracket. ALHIA0321ZZ PHIA0953J |
