MOONROOF SWITCH

Removal and Installation

INFOID:0000000009176323

REMOVAL

1. Remove front room/map lamp assembly. Refer to

INL-58, "Removal and Installation"

.

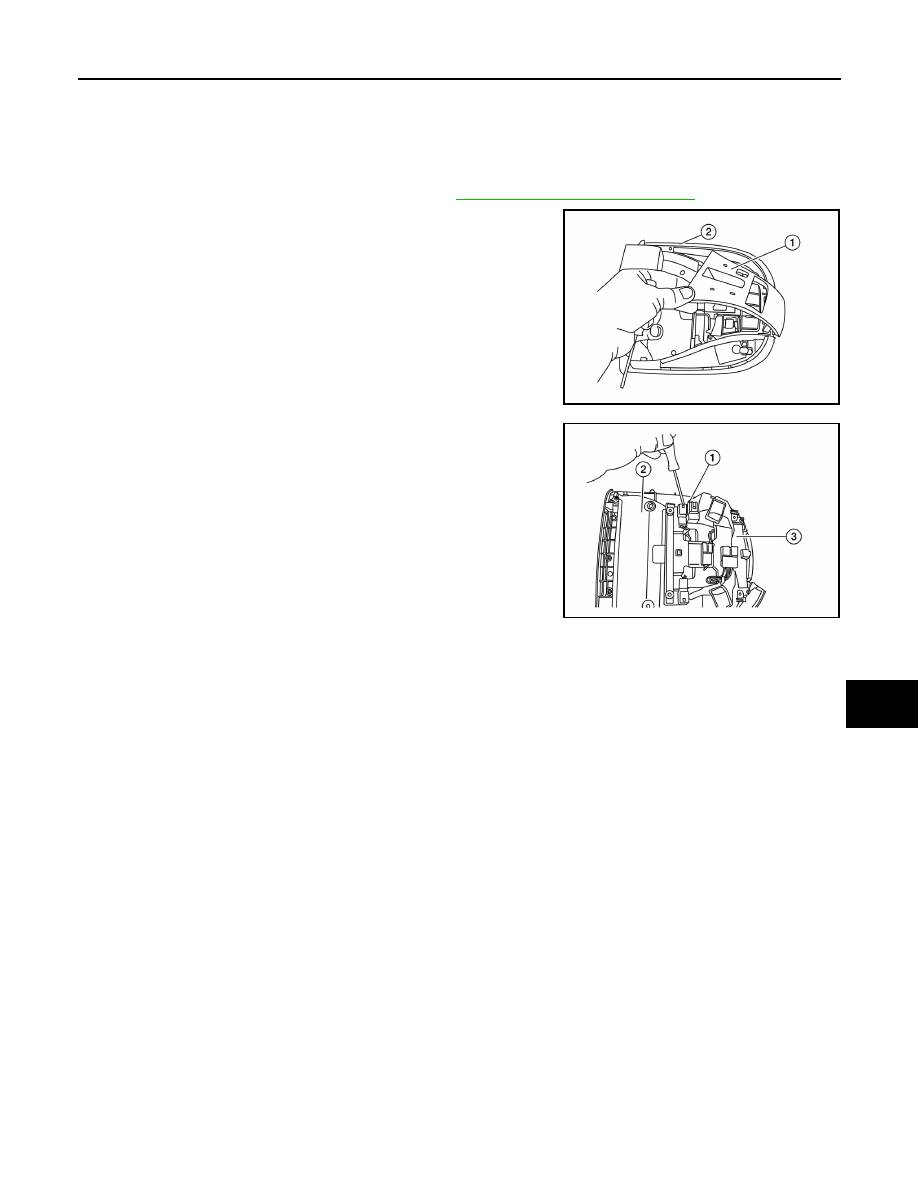

2. Remove switch cover (1) from the front room/map lamp assem-

bly (2).

3. Disconnect harness connector (1) using a suitable tool, remove

harness connector plate (3) from front room/map lamp assembly

(2) and release tabs to remove moonroof switch.

INSTALLATION

Installation is in reverse order of removal.

ALKIA2397ZZ

ALKIA2398ZZ

RF-62

< REMOVAL AND INSTALLATION >

SUNSHADE SWITCH

SUNSHADE SWITCH

Removal and Installation

INFOID:0000000009176324

REMOVAL

1. Remove the headlining. Refer to

INT-27, "Removal and Installation"

.

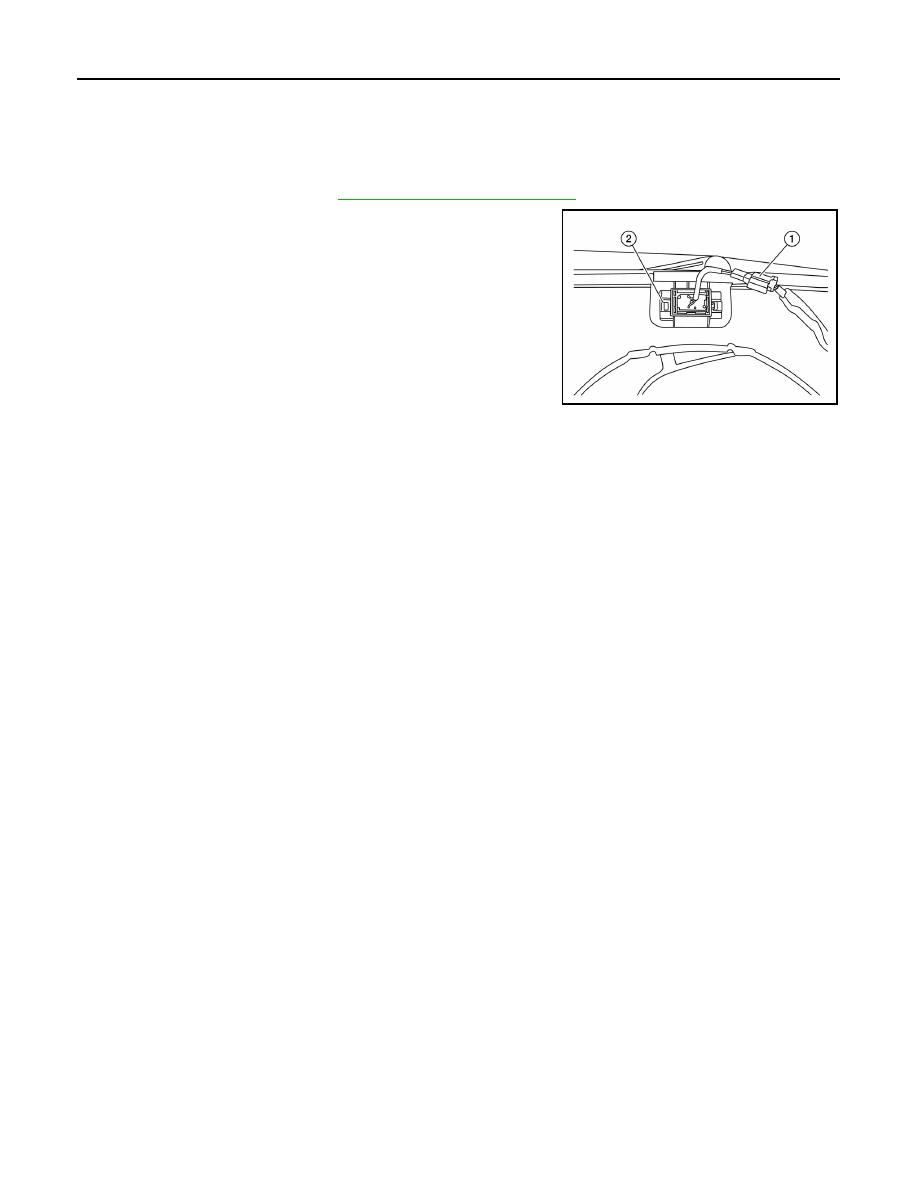

2. Disconnect harness connector (1) from sunshade switch (2) and

use a suitable tool to remove.

INSTALLATION

Installation is in reverse order of removal.

ALKIA2400ZZ
