SUNSHADE

RF-57

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNSHADE

FRONT MOONROOF
FRONT MOONROOF : Removal and Installation

INFOID:0000000009176319

REMOVAL

1. Remove moonroof unit assembly. Refer to

RF-55, "Removal and Installation"

.

2. Remove glass lid. Refer to

RF-49, "Removal and Installation"

.

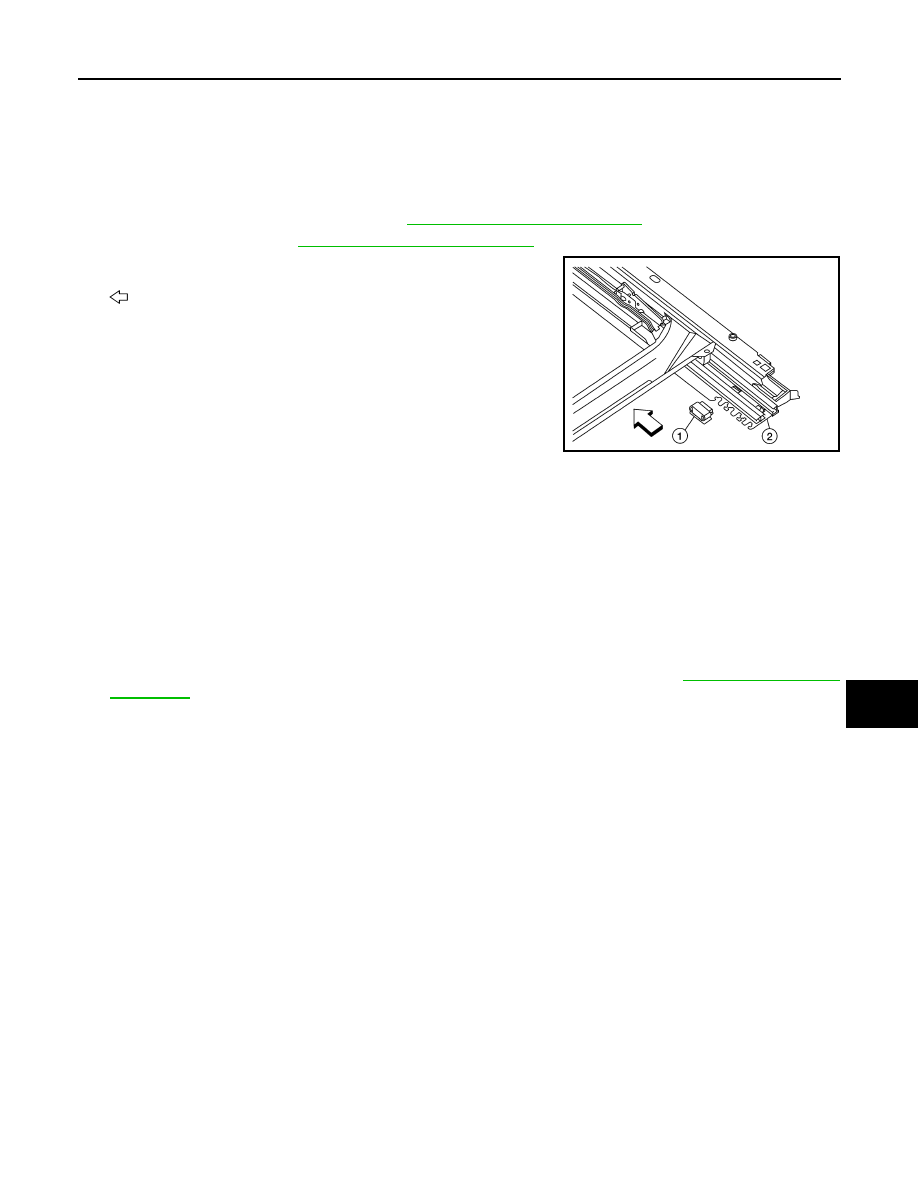

3. Remove the sunshade stoppers (1) (LH/RH) from the moonroof

unit assembly side rails (2).

: Front

4. Slide sunshade rearward past moonroof unit assembly side rail

ends to remove.

INSTALLATION

1. Move moonroof motor assembly laterally little by little so that the gear is completely engaged into the wire

on the moonroof unit assembly, and the mounting surfaces become parallel. Install the moonroof motor

assembly screws and tighten.

CAUTION:

Before installing the motor, be sure to place the link and wire assembly in the symmetrical and

fully closed position.

NOTE:

If necessary, insert a suitable tool into the drive key and rotate right or left slightly to assist in complete

moonroof motor gear alignment.

2. Remainder of installation is in the reverse order of removal.
3. Synchronize moonroof motor assembly with moonroof unit assembly. Refer to

RF-50, "Removal and

Installation"

.

REAR SUNSHADE UNIT

LIIA2347E

RF-58

< REMOVAL AND INSTALLATION >

SUNSHADE

REAR SUNSHADE UNIT : Removal and Installation

INFOID:0000000009176320

REMOVAL

1. Remove the headlining. Refer to

INT-27, "Removal and Installation"

.

2. Disconnect the harness connector from the sunshade motor assembly.
3. Remove the nuts that retain the rear sunshade unit.
4. Slide rear sunshade unit (2) rearward and remove through the

back door opening (1).

INSTALLATION

Installation is in the reverse order of removal.

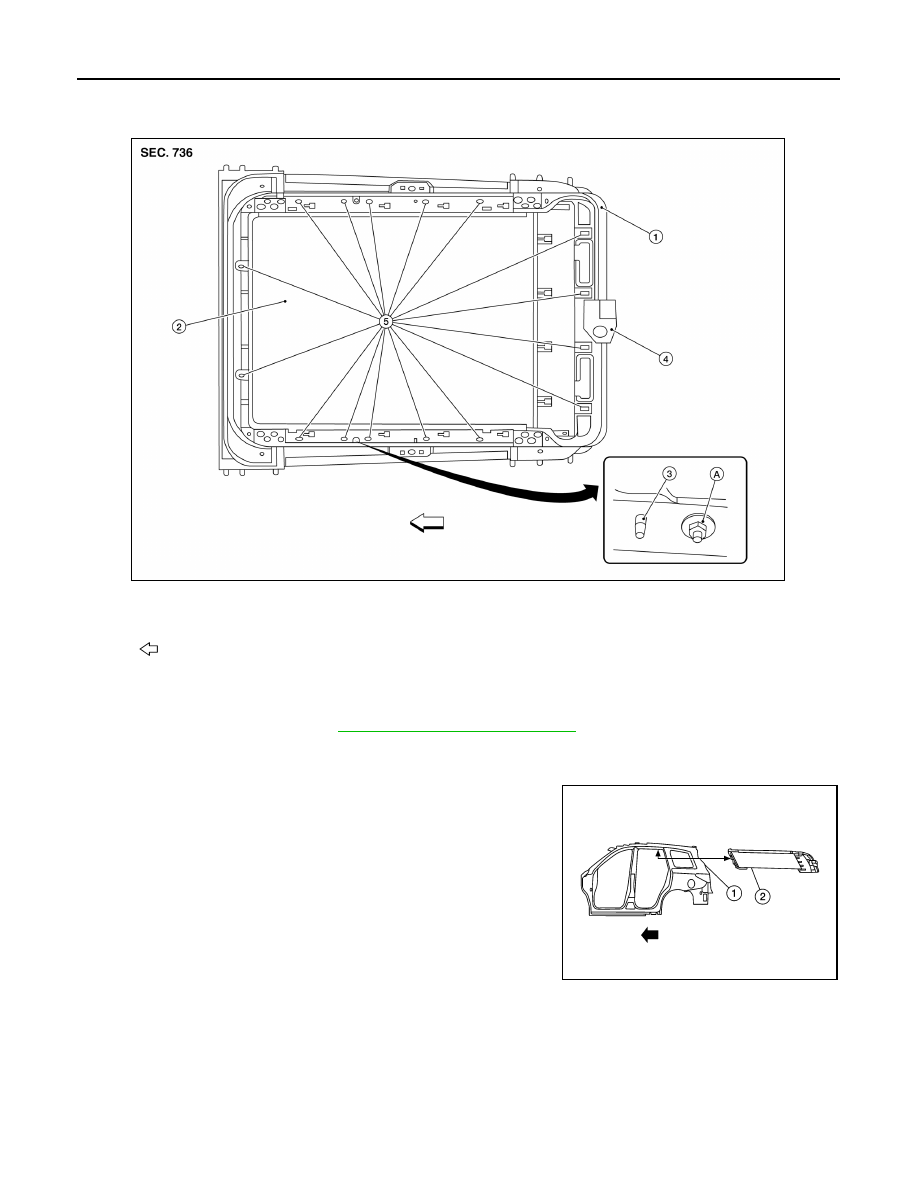

1.

Rear sunshade unit

2.

Rear sunshade

3.

Locator pin

4.

Sunshade motor assembly

5.

Nut locations

A.

Nut

Front

ALKIA2393ZZ

ALKIA2914ZZ

SUNSHADE MOTOR ASSEMBLY

RF-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNSHADE MOTOR ASSEMBLY

REAR SUNSHADE UNIT
REAR SUNSHADE UNIT : Removal and Installation

INFOID:0000000009176321

REMOVAL

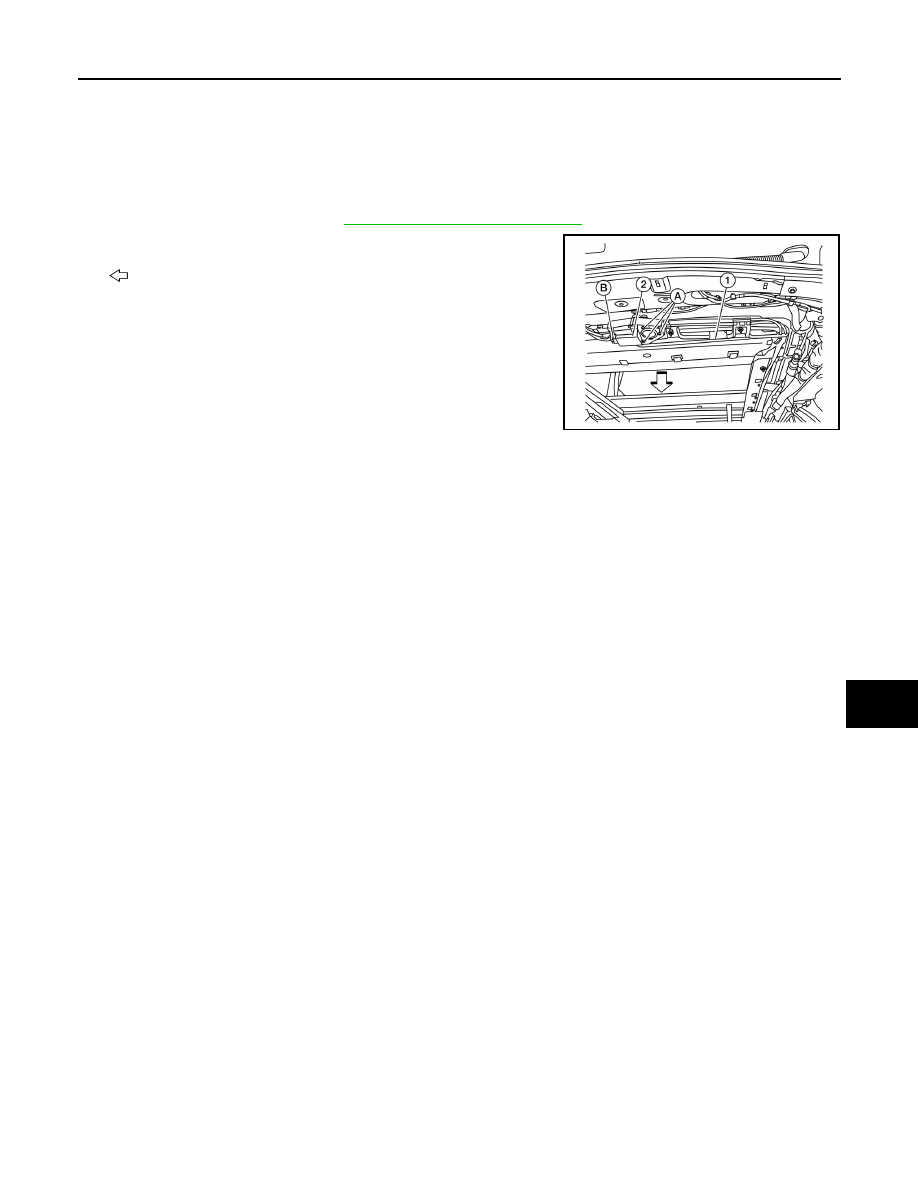

1. Remove the headlining. Refer to.

INT-27, "Removal and Installation"

.

2. Disconnect the harness connector (B) from the sunshade motor

assembly (2).

: Front

3. Remove sunshade motor assembly screws (A).
4. Remove the sunshade motor assembly (2) from the rear sun-

shade unit (1).

INSTALLATION

Installation is in the reverse order of removal.

ALKIA2395ZZ

RF-60

< REMOVAL AND INSTALLATION >

WIND DEFLECTOR

WIND DEFLECTOR

Removal and Installation

INFOID:0000000009176322

REMOVAL

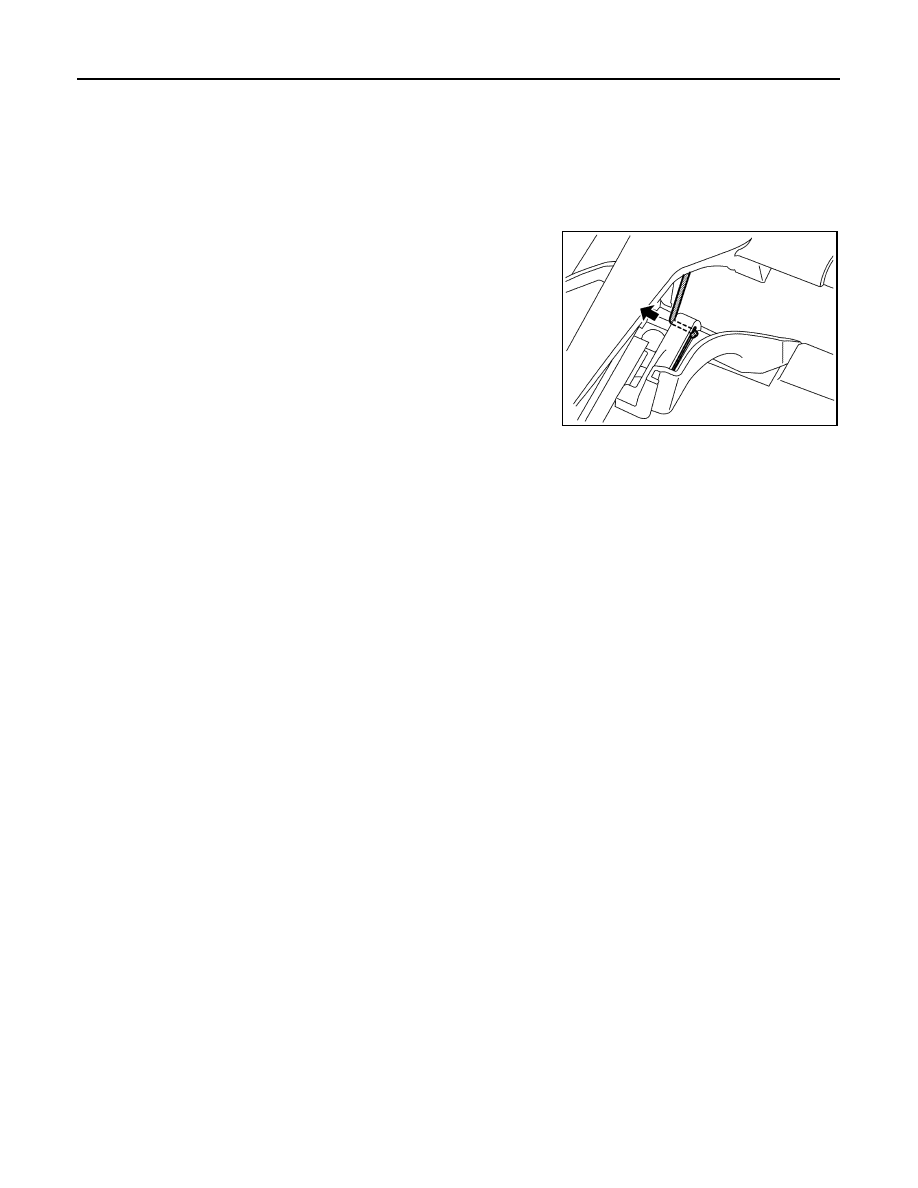

1. Open the glass lid to view the wind deflector installation point on the moonroof slide rail.
2. Remove two screws then remove the wind deflector link base.
3. Rotate wind deflector, then remove the spring from wind deflec-

tor spring base.

INSTALLATION

Installation is in the reverse order of removal.

JMKIA6154ZZ
