MOONROOF SWITCH

RF-33

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the harness.

4.

CHECK MOONROOF SWITCH

Check moonroof switch.

Refer to

RF-33, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace moonroof switch. Refer to

RF-61, "Removal and Installation"

.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-49, "Intermittent Incident"

.

>> Inspection End.

Component Inspection

INFOID:0000000009176299

MOONROOF SWITCH

1.

 CHECK MOONROOF SWITCH

1. Turn ignition switch OFF.

2. Disconnect moonroof switch.

3. Check continuity between moonroof switch terminals.

Is the inspection result normal?

YES

>> Moonroof switch is OK.

NO

>> Replace moonroof switch. Refer to

RF-61, "Removal and Installation"

.

Moonroof switch

Ground

Continuity

 Connector

Terminal

R108

6

Yes

Terminals

Condition

Continuity

3

6

Moonroof switch is operated TILT DOWN or SLIDE OPEN
OPEN

Yes

Other than above

No

10

Moonroof switch is operated TILT UP or SLIDE CLOSE
CLOSE

Yes

Other than above

No

RF-34

< DTC/CIRCUIT DIAGNOSIS >

SUNSHADE SWITCH

SUNSHADE SWITCH

Description

INFOID:0000000009176300

Transmits switch operation signal to sunshade motor assembly.

Diagnosis Procedure

INFOID:0000000009176301

Regarding Wiring Diagram information, refer to

RF-16, "Wiring Diagram"

.

1.

CHECK SUNSHADE SWITCH INPUT SIGNAL

1. Turn ignition switch ON.

2. Check voltage between sunshade motor assembly harness connector and ground.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> GO TO 2.

2.

CHECK SUNSHADE SWITCH CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect sunshade motor assembly connector and sunshade switch connector.

3. Check continuity between sunshade motor assembly harness connector and sunshade switch harness

connector.

4. Check continuity between sunshade motor assembly harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or the replace harness.

3.

CHECK SUNSHADE SWITCH GROUND CIRCUIT

Check continuity between sunshade switch harness connector and ground.

(+)

(–)

Condition

Voltage

(Approx.)

Sunshade motor assembly

Connector

Terminals

B85

6

Ground

Sunshade switch is operated
OPEN (1st)

0

Other than above

Battery voltage

2

Sunshade switch is operated
CLOSE (2nd)

0

Other than above

Battery voltage

Sunshade motor assembly

Sunshade switch

Continuity

Connector

Terminal

 Connector

Terminal

B85

2

R110

3

Yes

6

1

Sunshade motor assembly

Ground

Continuity

 Connector

Terminal

B85

2

No

6

SUNSHADE SWITCH

RF-35

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the harness.

4.

CHECK SUNSHADE SWITCH

Check sunshade switch.

Refer to

RF-35, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace sunshade switch. Refer to

RF-62, "Removal and Installation"

.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-49, "Intermittent Incident"

.

>> Inspection End.

Component Inspection

INFOID:0000000009176302

SUNSHADE SWITCH

1.

 CHECK SUNSHADE SWITCH

1. Turn ignition switch OFF.

2. Disconnect sunshade switch.

3. Check continuity between sunshade switch terminals.

Is the inspection result normal?

YES

>> Sunshade switch is OK.

NO

>> Replace sunshade switch. Refer to

RF-62, "Removal and Installation"

.

Sunshade switch

Ground

Continuity

 Connector

Terminal

R110

2

Yes

Terminals

Condition

Continuity

1

2

Sunshade switch is operated
OPEN

Yes

Other than above

No

3

Sunshade switch is operated
CLOSE

Yes

Other than above

No

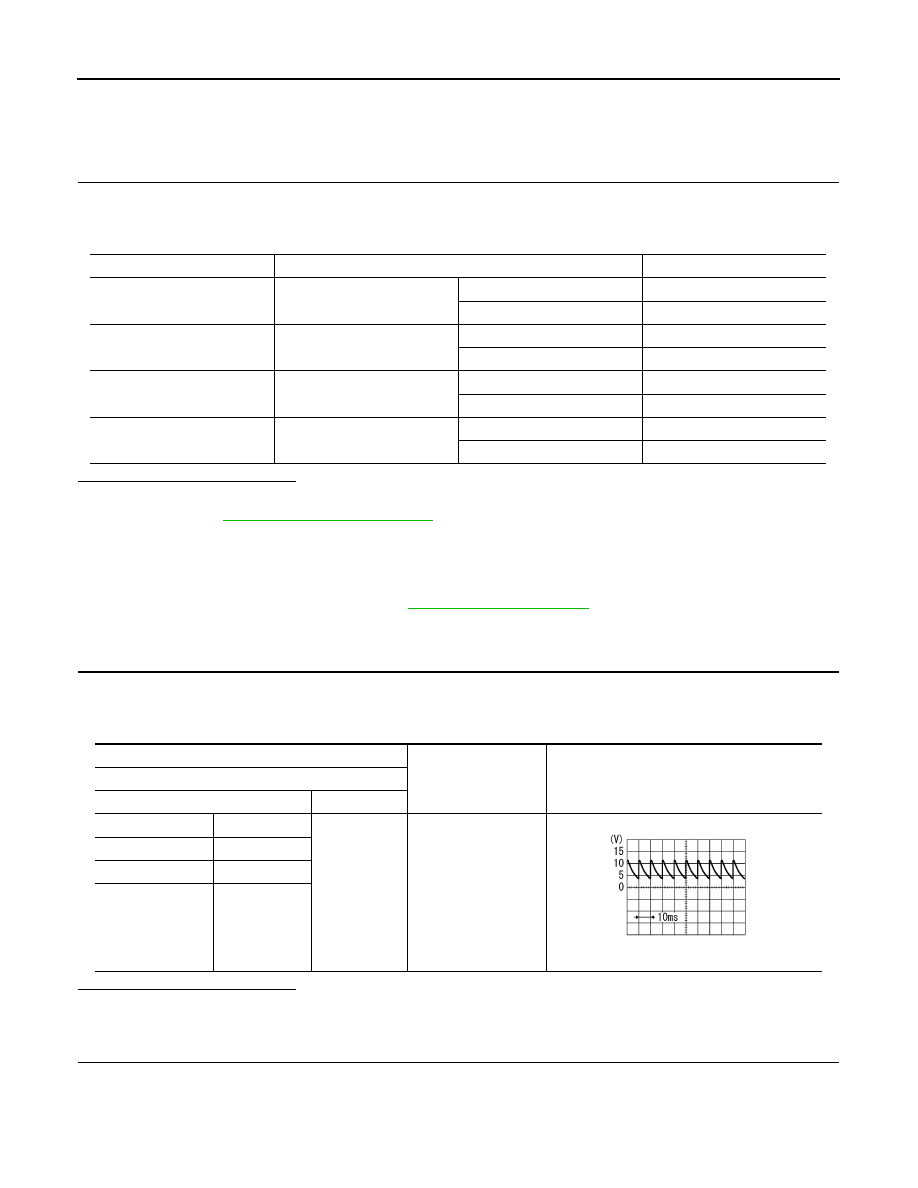

RF-36

< DTC/CIRCUIT DIAGNOSIS >

DOOR SWITCH

DOOR SWITCH

Component Function Check

INFOID:0000000009764008

1.

CHECK FUNCTION

1. Select DOOR LOCK of BCM using CONSULT.

2. Select DOOR SW-DR, DOOR SW-AS, DOOR SW-RL, DOOR SW-RR, in DATA MONITOR mode.

3. Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

RF-36, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009764009

Regarding Wiring Diagram information, refer to

DLK-74, "Wiring Diagram"

.

1.

CHECK DOOR SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect malfunctioning door switch connector.

3. Check signal between malfunctioning door switch harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK DOOR SWITCH CIRCUIT

1. Disconnect BCM connector.

2. Check continuity between door switch harness connector and BCM harness connector.

Monitor item

Condition

Status

DOOR SW-DR

Driver side door

Open

On

Closed

Off

DOOR SW-AS

Passenger side door

Open

On

Closed

Off

DOOR SW-RL

Rear door LH

Open

On

Closed

Off

DOOR SW-RR

Rear door RH

Open

On

Closed

Off

(+)

(–)

Signal

(Reference value)

Door switch

Connector

Terminal

Driver side

B8

3

Ground

7.0 - 8.0 V

Passenger side

B108

Rear LH

B18

Rear RH

B116
