ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

List of ECU Reference

INFOID:0000000009176283

ECU

Reference

BCM

BCS-30, "Reference Value"

BCS-50, "Fail Safe"

BCS-50, "DTC Inspection Priority Chart"

BCS-52, "DTC Index"

RF-14

< ECU DIAGNOSIS INFORMATION >

MOONROOF MOTOR ASSEMBLY

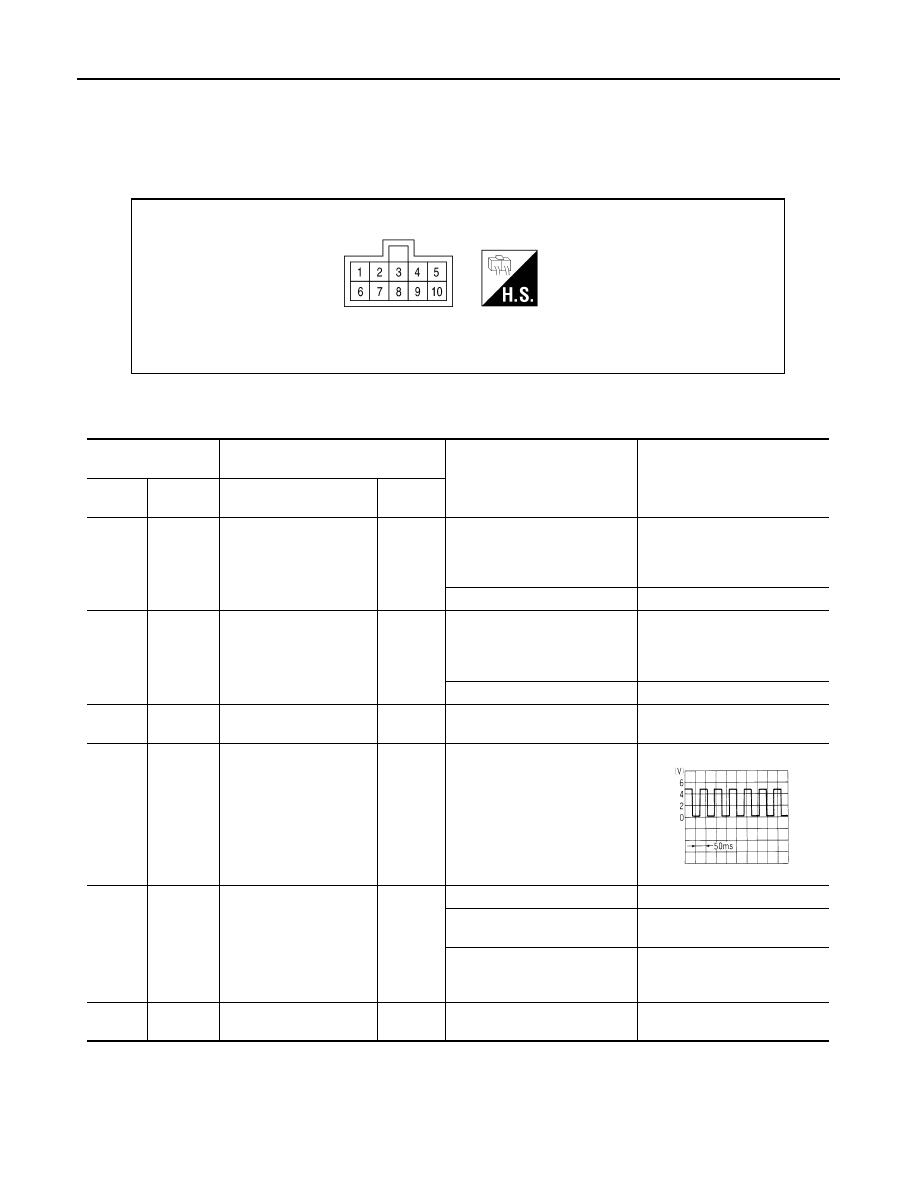

MOONROOF MOTOR ASSEMBLY

Reference Value

INFOID:0000000009176284

TERMINAL LAYOUT

PHYSICAL VALUES

AWKIA1980ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage

(Approx.)

+

-

Signal name

Input/

Output

1

(BR)

Ground

Moonroof close switch
signal

Input

Moonroof switch in following po-
sition
• TILT  UP
• SLIDE CLOSE

0

Other than above

Battery voltage

5

(V)

Ground

Moonroof open switch
signal

Input

Moonroof switch in following po-
sition
• TILT  DOWN
• SLIDE  OPEN

0

Other than above

Battery voltage

7

(LG)

Ground

Moonroof power supply

Input

—

Battery voltage

8

(SB)

Ground

Vehicle speed signal (2-
pulse)

Input

Speedometer operated [When
vehicle speed is approx.40km/ h
(25MPH)]

9

(Y)

Ground

RAP signal

Input

Ignition switch ON

Battery voltage

Within 45 seconds after ignition
switch is turned to OFF.

Battery voltage

When driver side or passenger
side door is opened during re-
tained power operation.

0

10

(B)

Ground

Ground

—

—

0

ELF1080D

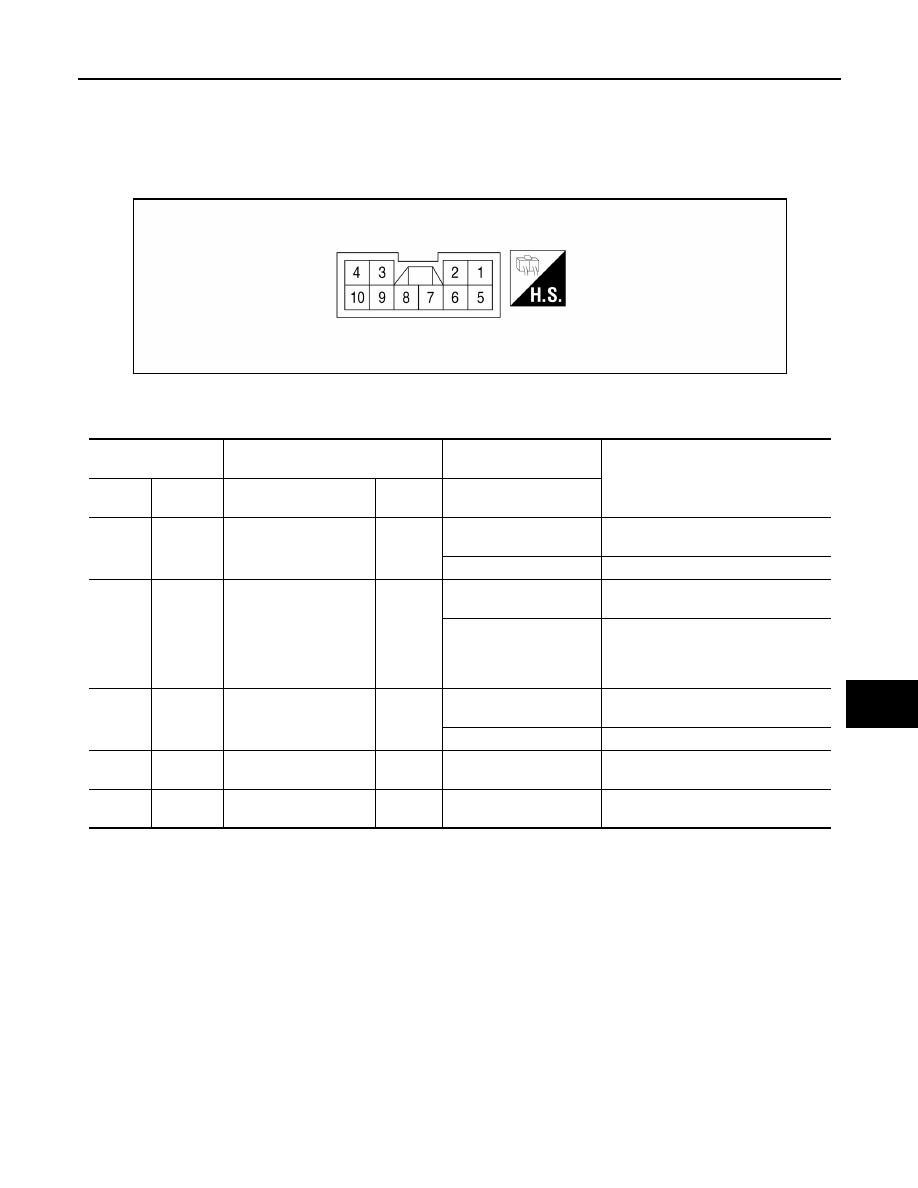

SUNSHADE MOTOR ASSEMBLY

RF-15

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNSHADE MOTOR ASSEMBLY

Reference Value

INFOID:0000000009176285

TERMINAL LAYOUT

PHYSICAL VALUES

AWKIA2047ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage

(Approx.)

+

-

Signal name

Input/

Output

2

(LG)

Ground

Sunshade close switch
signal

Input

Sunshade switch is in the
close position

0

Other than above

Battery voltage

4

(LG)

Ground

RAP signal

Input

Within 45 seconds after
the ignition is turned off

Battery voltage

When the driver side or
passenger side door is
opened during retained
power operation.

0

6

(Y)

Ground

Sunshade open switch
signal

Input

Sunshade switch is in the
open position

0

Other than above

Battery voltage

8

(B)

Ground

Ground

—

—

0

10

(Y)

Ground

Sunshade power supply

—

—

Battery voltage

RF-16

< WIRING DIAGRAM >

MOONROOF SYSTEM

WIRING DIAGRAM

MOONROOF SYSTEM

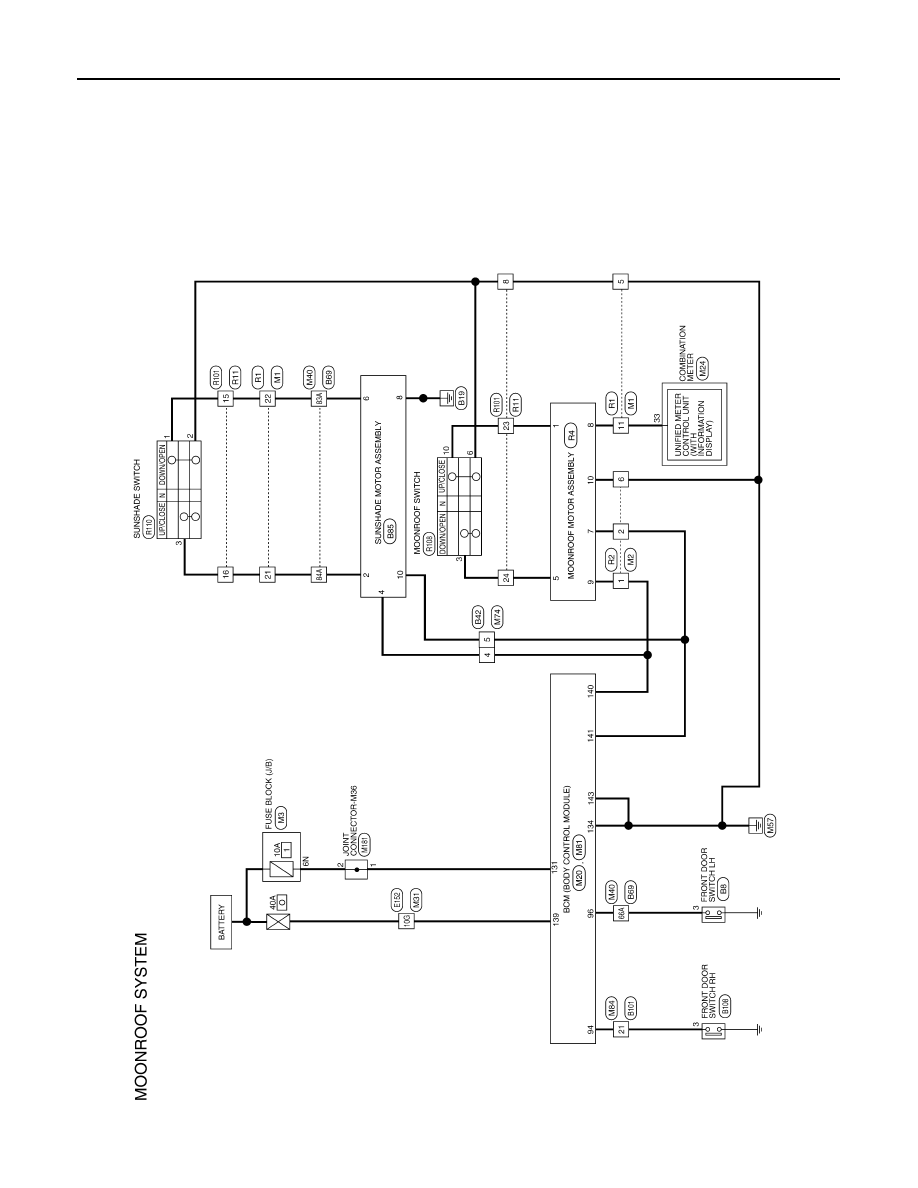

Wiring Diagram

INFOID:0000000009176286

ABKWA2166GB
