Nissan Pathfinder. Manual - part 976

SYSTEM

RF-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

• Door CLOSE (door switch OFF)

→OPEN (door switch ON).

• When ignition switch is ON again.

• When timer time passes (45 seconds).

ANTI-PINCH FUNCTION

The moonroof motor’s built in CPU monitors the moonroof motor operation and position.

If a restriction is detected during the slide closed or tilt down operation the moonroof motor will move the glass

in the open positions. The moonroof will operate until full up position (when tilt down operates) or 125 mm

(4.92 in.) or more in the open direction.

SUNSHADE

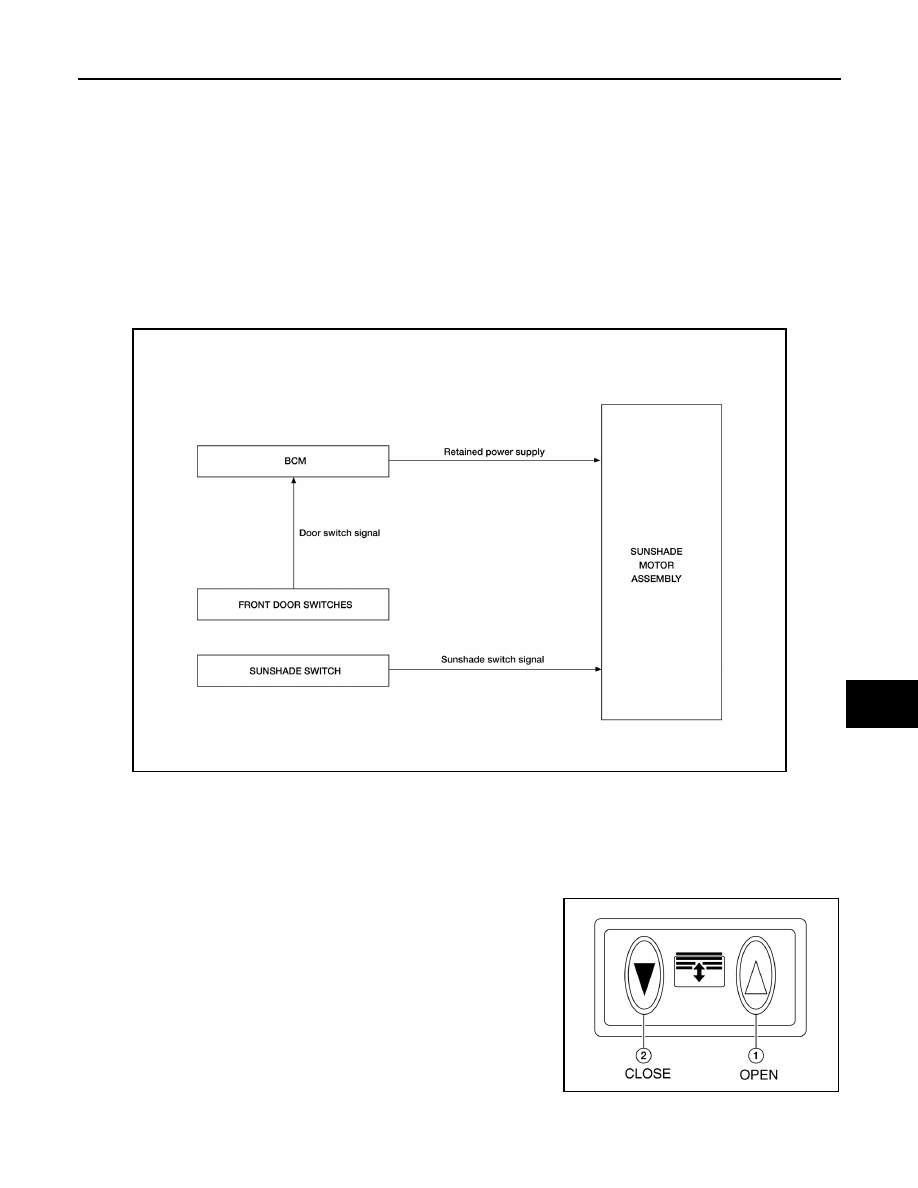

SUNSHADE : System Diagram

INFOID:0000000009176279

SUNSHADE

SUNSHADE : System Description

INFOID:0000000009176280

DESCRIPTION

• The BCM supplies power to the sunshade motor assembly while the ignition is ON or retained power is oper-

ating.

• The sunshade switch can be operated in the directions of open (1) and close (2).

AUTO OPERATION

AWKIA1976ZZ

AWKIA1977ZZ

RF-10

< SYSTEM DESCRIPTION >

SYSTEM

Sunshade moves to the fully-open or fully-close position by pressing and releasing the sunshade switch.

OPEN (1) or CLOSE (2) position.

RETAINED POWER OPERATION

Retained power operation is an additional power supply function that enables the sunshade system to operate

for 45 seconds after ignition switch is turned OFF.

Retained power function cancel conditions

• Front door CLOSE (door switch OFF)

→OPEN (door switch ON)

• Ignition switch is ON again.

• Timer passed (45 seconds)

ANTI-PINCH FUNCTION

CAUTION:

There are some small distances immediately before the closed position which cannot be detected.

• The CPU is built inside the sunshade motor assembly. It monitors the sunshade condition by the signals

from sunshade motor. When the sunshade motor assembly detects an interruption during auto close opera-

tion, a signal is sent to the CPU to open the sunshade.

DIAGNOSIS SYSTEM (BCM)

RF-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000009763999

CAUTION:

After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must

be cycled OFF

→ ON (for at least 5 seconds) → OFF. If this step is not performed, the BCM may not go

to ”sleep mode”, potentially causing a discharged battery and no-start condition.

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

Direct Diagnostic Mode

Description

Ecu Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

Ecu I

de

nti

ficat

ion

Se

lf Di

ag

no

sti

c

Res

ult

Dat

a Monitor

Active T

e

st

W

ork su

pp

ort

Co

nf

ig

ur

at

io

n

CAN Diag

Su

pp

ort

 Mn

tr

Door lock

DOOR LOCK

×

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEADLAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITIONER

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

Back door open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

RF-12

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

RETAINED PWR
RETAINED PWR : CONSULT Function (BCM - RETAINED PWR)

INFOID:0000000009764000

CAUTION:

After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must

be cycled OFF

→ ON (for at least 5 seconds) → OFF. If this step is not performed, the BCM may not go

to ”sleep mode”, potentially causing a discharged battery and no-start condition.

DATA MONITOR

Signal buffer system

SIGNAL BUFFER

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

System

Sub System

Direct Diagnostic Mode

E

cu

 Id

en

tifi

ca

tio

n

Se

lf Di

ag

no

st

ic Re

su

lt

Da

ta

 Mo

ni

tor

A

cti

ve

 T

est

W

o

rk

 su

pp

ort

Co

nf

igu

rat

ion

CAN Diag

Support Mntr

Monitor Item [Unit]

Description

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

DOOR SW-AS [On/Off]

Indicates condition of front door switch RH.
