• To prevent damage to the parts, connect the battery cable to the positive terminal first.

• After connecting battery cables, to securely supply battery voltage, ensure that they are tightly

clamped to battery terminals for good contact.

• To securely supply battery voltage, check battery terminal for poor connection caused by corrosion.

Reset electronic systems as necessary. Refer to

PG-89, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

.

PG-92

< REMOVAL AND INSTALLATION >

BATTERY TRAY

BATTERY TRAY

Removal and Installation

INFOID:0000000009175306

REMOVAL

1. Remove battery and battery tray liner. Refer to

PG-90, "Removal and Installation"

.

2. Remove air cleaner assembly. Refer to

EM-24, "Removal and Installation"

.

3. Disconnect harness connector and then remove ECM.
4. Disconnect the harness connector from the transmission control module (TCM). Refer to

TM-195,

"Removal and Installation"

.

5. Remove the ECM bracket.
6. Remove the battery tray bolts and battery tray.
7. Remove the battery tray support bolts and battery tray support.

INSTALLATION

Installation is in the reverse order of removal.

Reset electronic systems as necessary. Refer to

PG-89, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

.

PG

BATTERY TERMINAL WITH FUSIBLE LINK

PG-93

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BATTERY TERMINAL WITH FUSIBLE LINK

Exploded View

INFOID:0000000009729268

Removal and Installation

INFOID:0000000009729269

REMOVAL

1. Disconnect both battery negative and positive terminals. Refer to

PG-90, "Exploded View"

.

CAUTION:

To prevent damage to the parts, disconnect the battery negative terminal first.

2. Disconnect positive cable from fusible link box (battery).
3. Disconnect harness connectors and separate positive terminal from fusible link box (battery).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the fusible link box battery if it has been dropped or sustained and impact.

To install the battery, carefully read the following instructions:

• To prevent damage to the parts, connect the battery cable to the positive terminal first.

• After connecting battery cables, to securely supply battery voltage, ensure that they are tightly

clamped to battery terminals for good contact.

• To securely supply battery voltage, check battery terminal for poor connection caused by corrosion.

Reset electronic systems as necessary. Refer to

PG-89, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

.

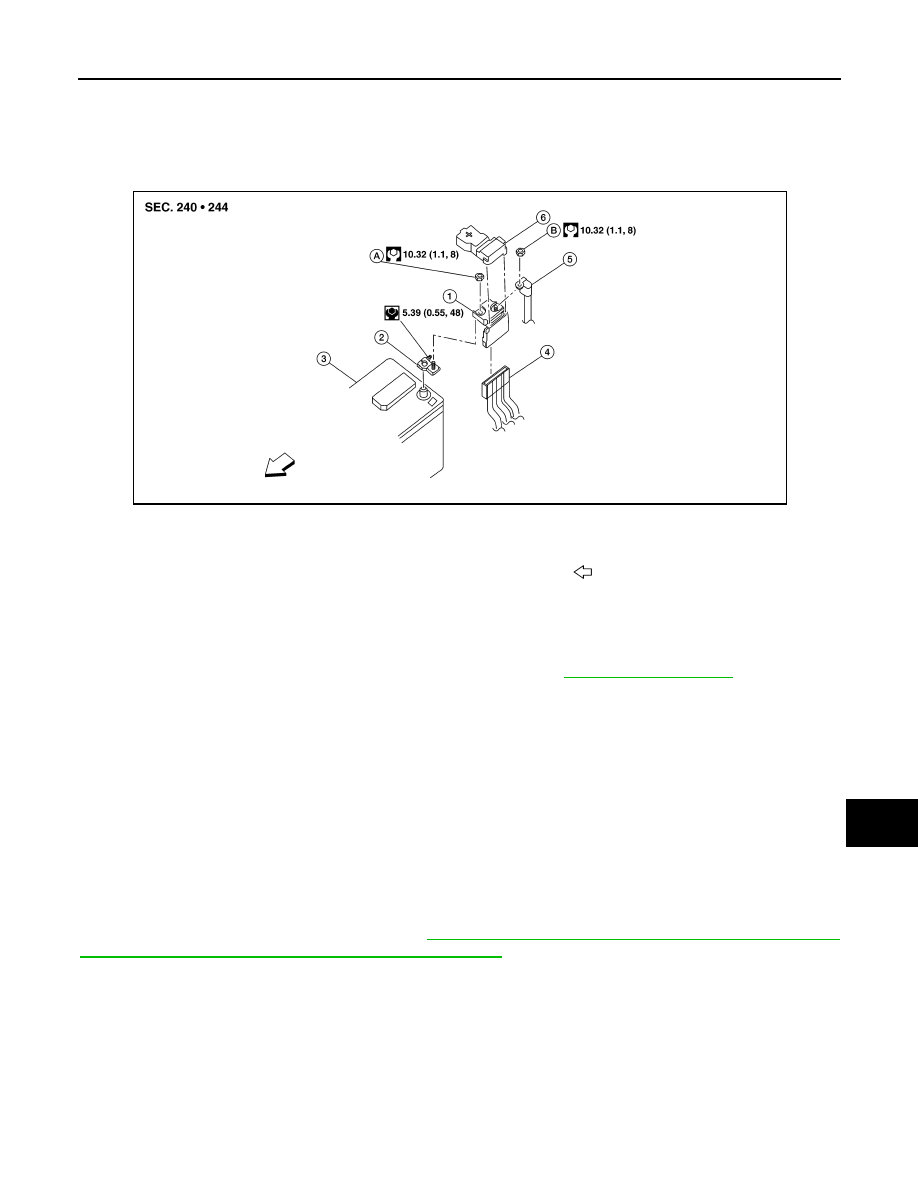

1.

Fusible link box (battery)

2.

Terminal

3.

Battery

4.

Harness connectors

5.

Positive cable

6.

Cover

A. Fusible link box (battery) nut

B. Positive cable nut

Front

AWMIA1450ZZ

PG-94

< REMOVAL AND INSTALLATION >

BATTERY CURRENT SENSOR

BATTERY CURRENT SENSOR

Exploded View

INFOID:0000000009729270

Removal and Installation

INFOID:0000000009729271

REMOVAL

1. Disconnect negative terminal from the battery. Refer to

PG-90, "Exploded View"

.

2. Disconnect harness connector from current sensor.
3. Remove nut and separate current sensor from the negative terminal.
4. Remove nut and separate negative cable from the current sensor and remove the current sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the battery current sensor if it has been dropped or sustained and impact.

To install the battery, carefully read the following instructions:

• To prevent damage to the parts, connect the battery cable to the positive terminal first.

• After connecting battery cables, to securely supply battery voltage, ensure that they are tightly

clamped to battery terminals for good contact.

• To securely supply battery voltage, check battery terminal for poor connection caused by corrosion.

Reset electronic systems as necessary. Refer to

PG-89, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

.

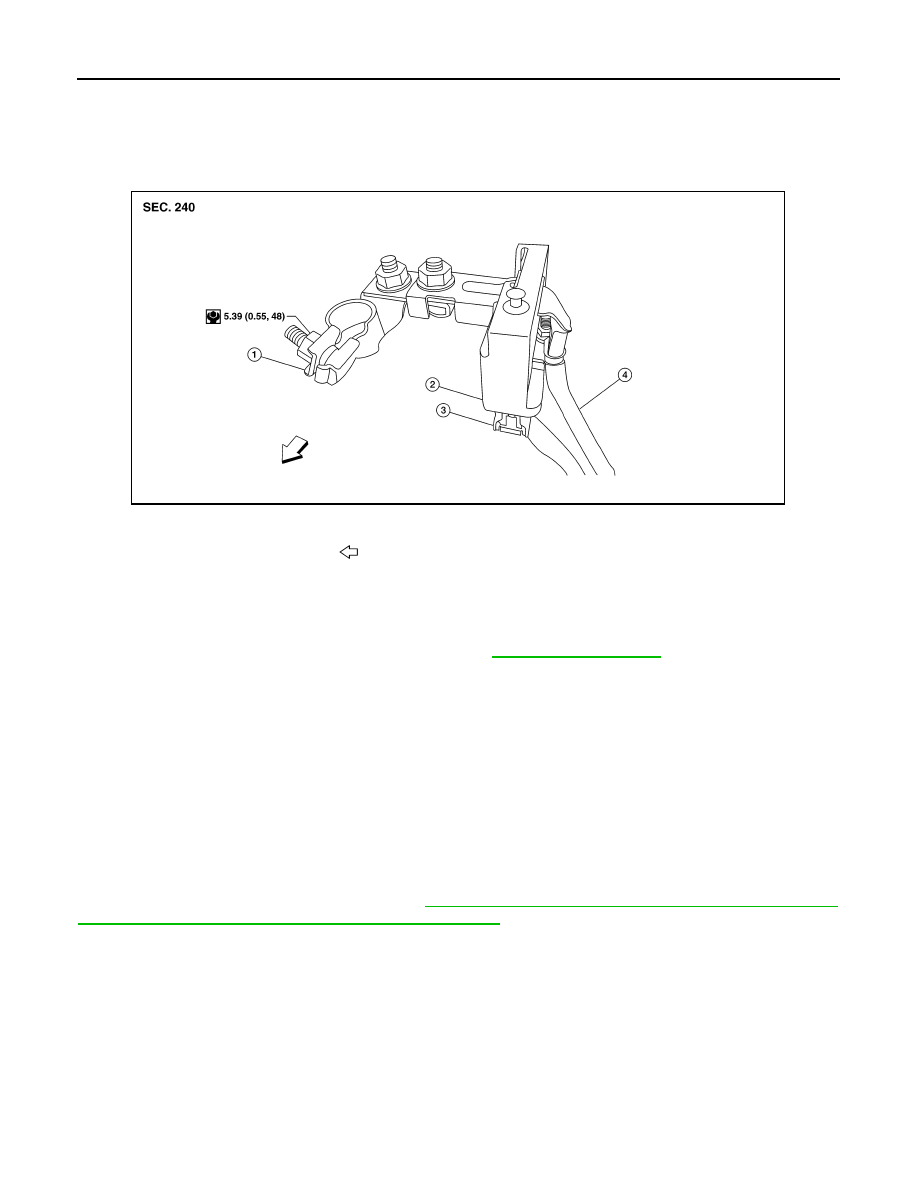

1. Terminal

2. Current sensor

3. Harness connector

4. Negative cable

Front

AWMIA1449ZZ
