Nissan Pathfinder. Manual - part 924

PG

BATTERY

PG-87

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

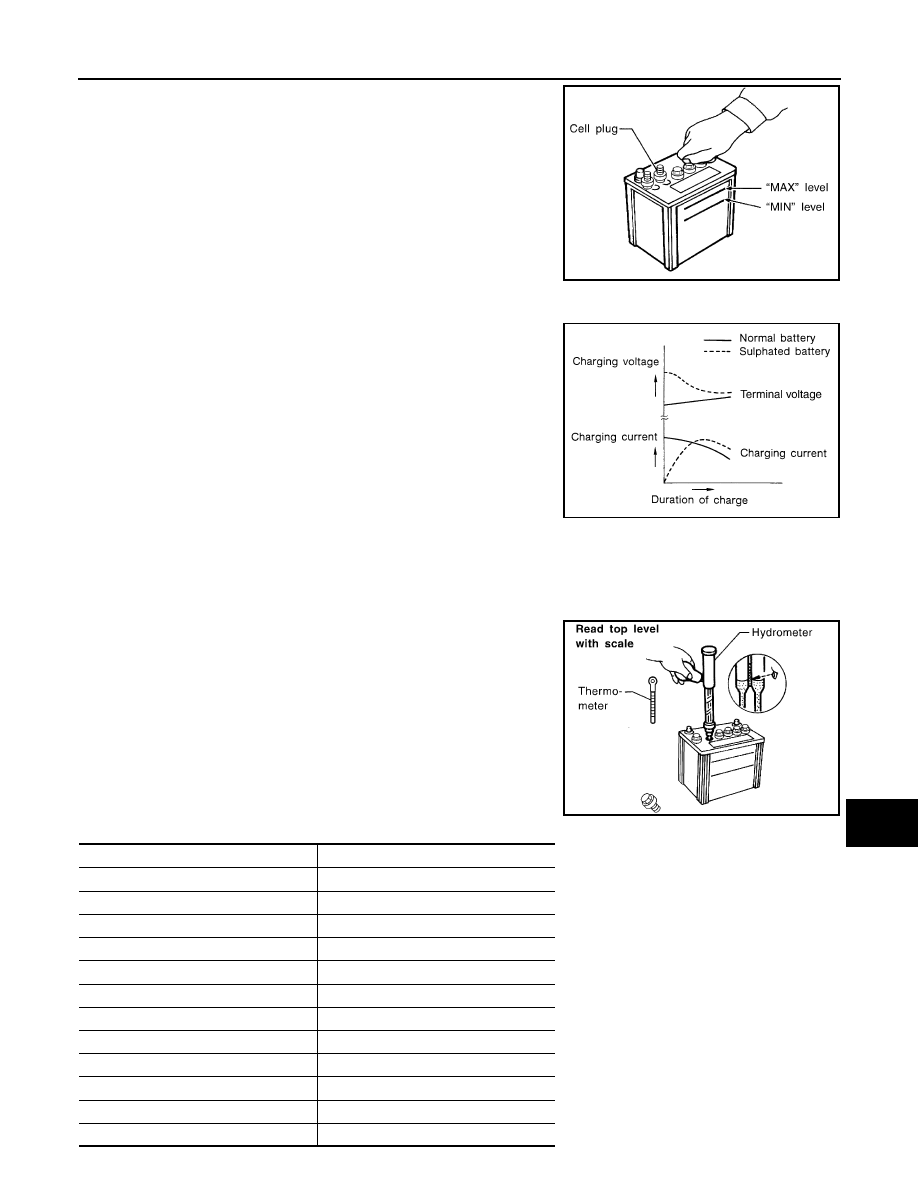

• Remove the cell plug using a suitable tool.

• Add distilled water up to the MAX level.

SULFATION

• A battery will be completely discharged if it is left unattended

for a long time and the specific gravity will become less than

1.100. This may result in sulfation on the cell plates.

• To determine if a battery has been “sulfated”, note its voltage

and current when charging it. As shown in the figure, less cur-

rent and higher voltage are observed in the initial stage of

charging sulfated batteries.

• A sulfated battery may sometimes be brought back into ser-

vice by means of a long, slow charge, 12 hours or more, fol-

lowed by a battery capacity test.

Specific Gravity Check

NOTE:

Check the charge condition of the battery.

Periodically check the specific gravity of the electrolyte. Keep a close check on charge condition to prevent

over-discharge.
1. Read hydrometer and thermometer indications at eye level.
2. Use the chart below to correct your hydrometer reading accord-

ing to electrolyte temperature.

Hydrometer Temperature Correction

MEL043F

PKIA2353E

MEL042FA

Battery electrolyte temperature [

°C (°F)]

Add to specific gravity reading

71 (160)

0.032

66 (150)

0.028

60 (140)

0.024

54 (130)

0.020

49 (120)

0.016

43 (110)

0.012

38 (100)

0.008

32 (90)

0.004

27 (80)

0

21 (70)

−0.004

16 (60)

−0.008

10 (50)

−0.012

PG-88

< BASIC INSPECTION >

BATTERY

Charging The Battery

CAUTION:

• Never “quick charge” a fully discharged battery.

• Keep the battery away from open flame while it is being charged.

• When connecting the charger, connect the leads first, then turn on the charger. Never turn on the

charger first, as this may cause a spark.

• If battery electrolyte temperature rises above 55

°C (131 °F), stop charging. Always charge battery at

a temperature below 55

°C (131 °F).

Charging Rates (Standard Charge)

Charging Rates (Quick Charge)

NOTE:

The ammeter reading on your battery charger will automatically decrease as the battery charges. This indi-

cates that the voltage of the battery is increasing normally as the state of charge improves. The charging amps

indicated above refer to initial charge rate.

• If, after charging, the specific gravity of any two cells varies more than 0.050, the battery should be replaced.

4 (40)

−0.016

−1 (30)

−0.020

−7 (20)

−0.024

−12 (10)

−0.028

−18 (0)

−0.032

Battery electrolyte temperature [

°C (°F)]

Add to specific gravity reading

Corrected specific gravity

Approximate charge condition

1.260 - 1.280

Fully charged

1.230 - 1.250

3/4 charged

1.200 - 1.220

1/2 charged

1.170 - 1.190

1/4 charged

1.140 - 1.160

Almost discharged

1.110 - 1.130

Completely discharged

Approximate charge condi-

tion

Charge current (A)

Charge time (h)

Fully charged

7

2

3/4 charged

2.5

1/2 charged

5

1/4 charged

7.5

Almost discharged

9

Completely discharged

10

Approximate charge condi-

tion

Charge current (A)

Charge time (h)

Fully charged

—

—

3/4 charged

16

0.5

1/2 charged

33

1/4 charged

Almost discharged

Completely discharged

—

—

PG

INSPECTION AND ADJUSTMENT

PG-89

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL
ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Spe-
cial Repair Requirement

INFOID:0000000009175303

Required Procedure After Battery Disconnection

System

Item

Reference

Engine Control System

Idle Air Volume Learning

EC-143

Brake Control System

Steering Angle Sensor Neutral Position

BRC-55

Door & Lock

Calibration Of Automatic Back Door Position Information

DLK-114

Power Window Control System

Power Window System Initialization

PWC-93

Roof

Moonroof Memory Reset/Initialization
Sunshade Memory Reset/Initialization

RF-25

Automatic Drive Positioner

Automatic Drive Positioner System Initialization

Refer to Owner's Manual.

Heater & Air Conditioning Control
System

Temperature Setting Trimmer (front)

HAC-78

Temperature Setting Trimmer (rear)

HAC-79

Foot Position Setting Trimmer

HAC-78

Inlet Port Memory Function (FRE)

HAC-79

Inlet Port Memory Function (REC)

HAC-79

Audio, Visual & Navigation System

Audio (Radio Preset)

Refer to Owner's Manual.

Navigation System

Refer to Owner's Manual.

PG-90

< REMOVAL AND INSTALLATION >

BATTERY

REMOVAL AND INSTALLATION

BATTERY

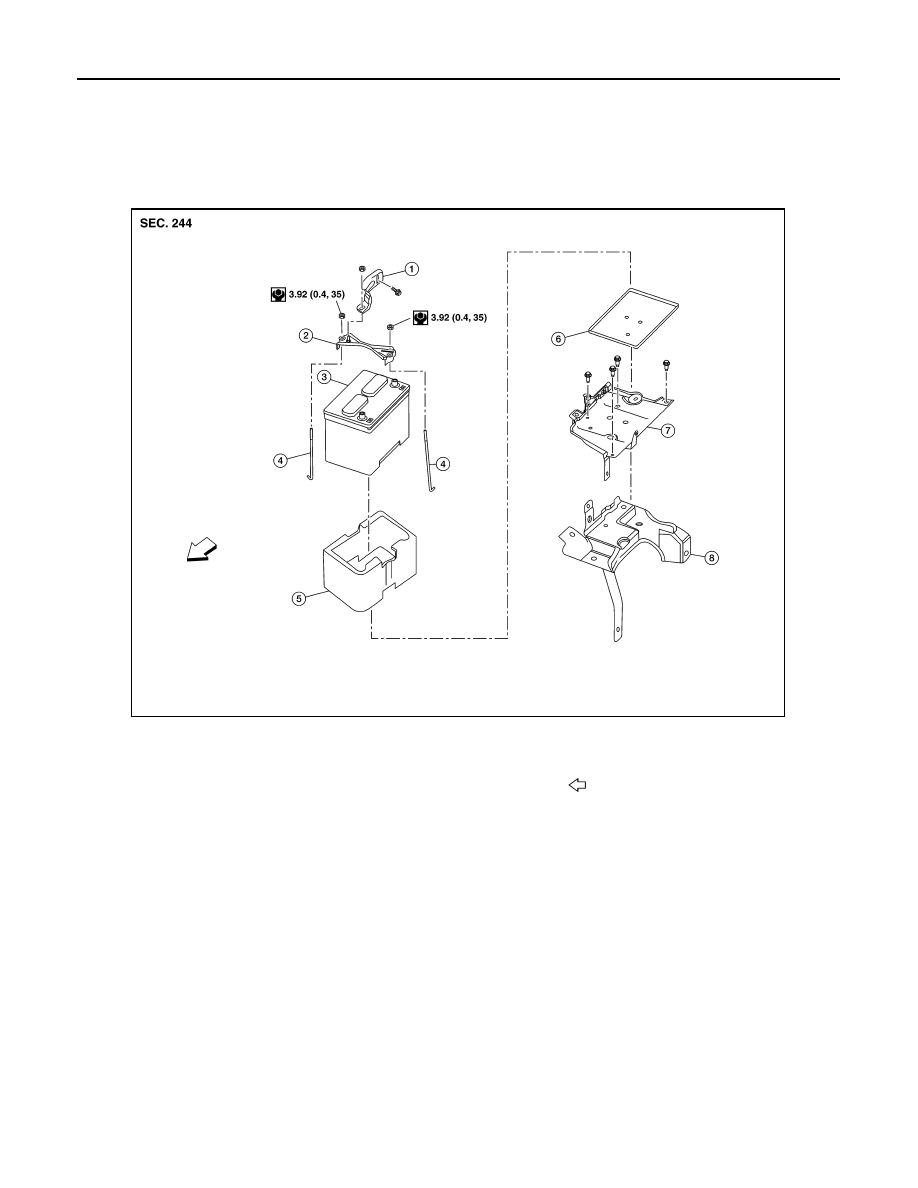

Exploded View

INFOID:0000000009175304

Removal and Installation

INFOID:0000000009175305

REMOVAL

1. Remove cover of battery positive terminal.
2. Loosen battery terminal nuts and disconnect both battery negative and positive terminals.

CAUTION:

When disconnecting, disconnect the battery negative terminal first.

3. Remove upper ECM bracket bolts and upper ECM bracket.
4. Remove battery frame nuts and battery frame and battery rods.
5. Remove battery cover.
6. Remove battery.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the battery if it has been dropped or sustained and impact.

To install the battery, carefully read the following instructions:

1.

Upper ECM bracket

2.

Battery frame

3.

Battery

4.

Battery rods

5.

Battery cover

6.

Battery tray liner

7.

Battery tray

8.

Battery tray support

Front

AWMIA1279ZZ
