POWER SUPPLY ROUTING CIRCUIT

PG-23

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

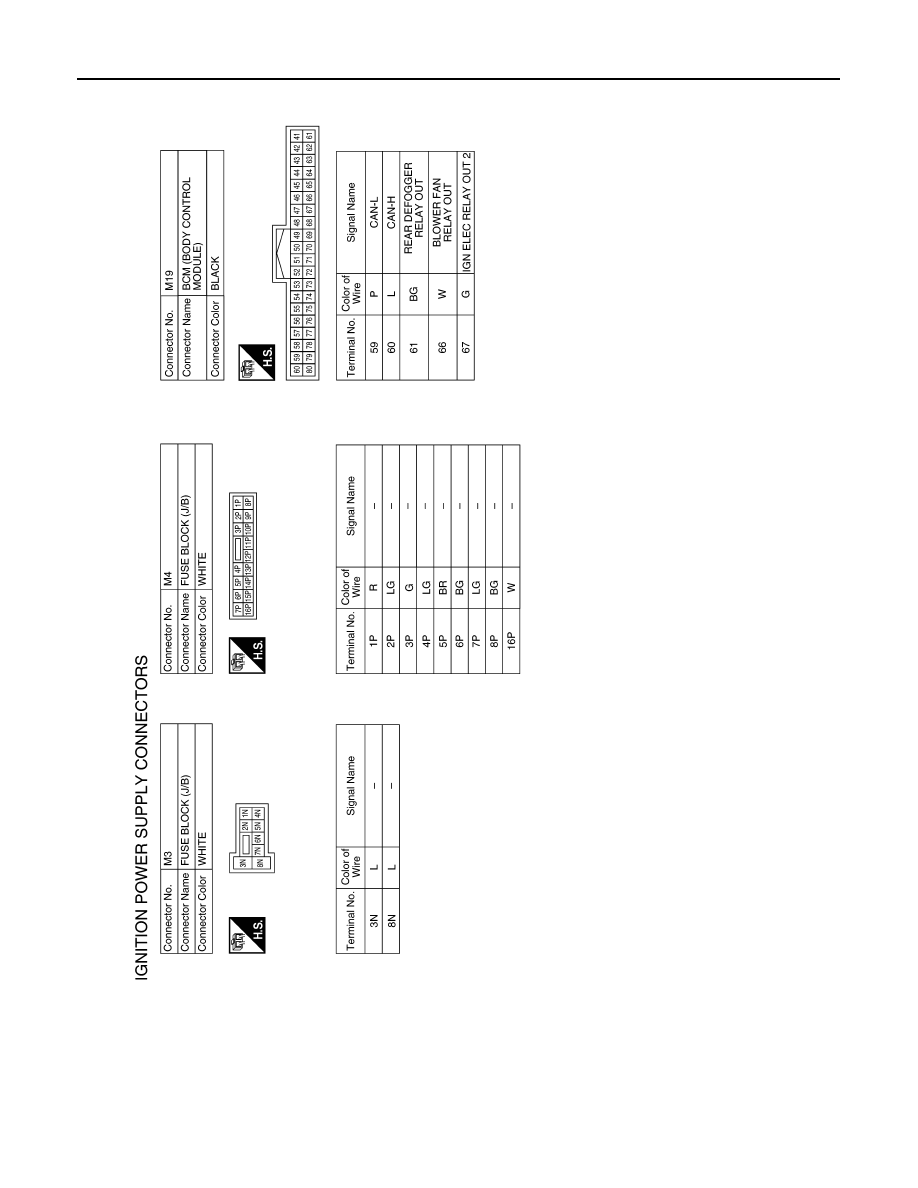

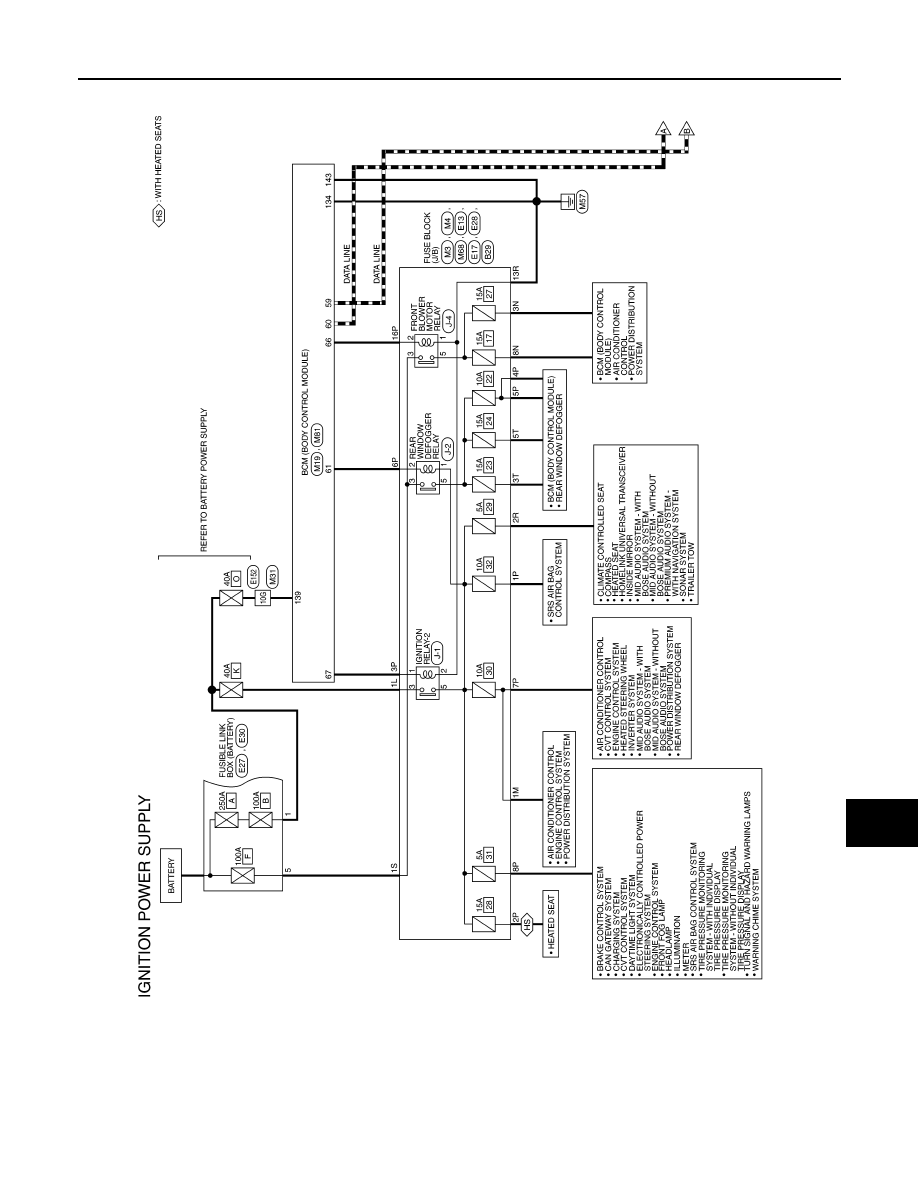

Wiring Diagram - IGNITION POWER SUPPLY -

INFOID:0000000009175292

ABMWA2121GB

PG-24

< WIRING DIAGRAM >

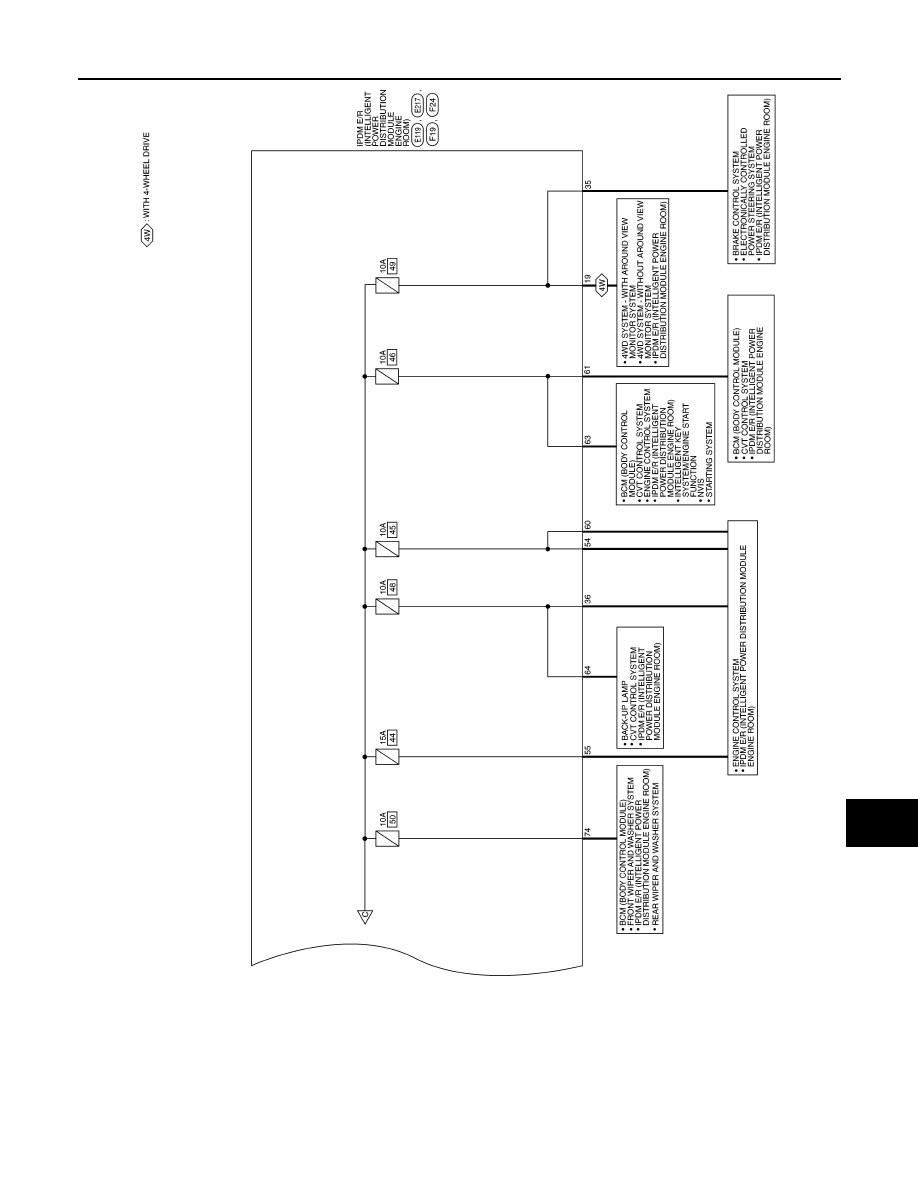

POWER SUPPLY ROUTING CIRCUIT

ABMWA2122GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-25

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

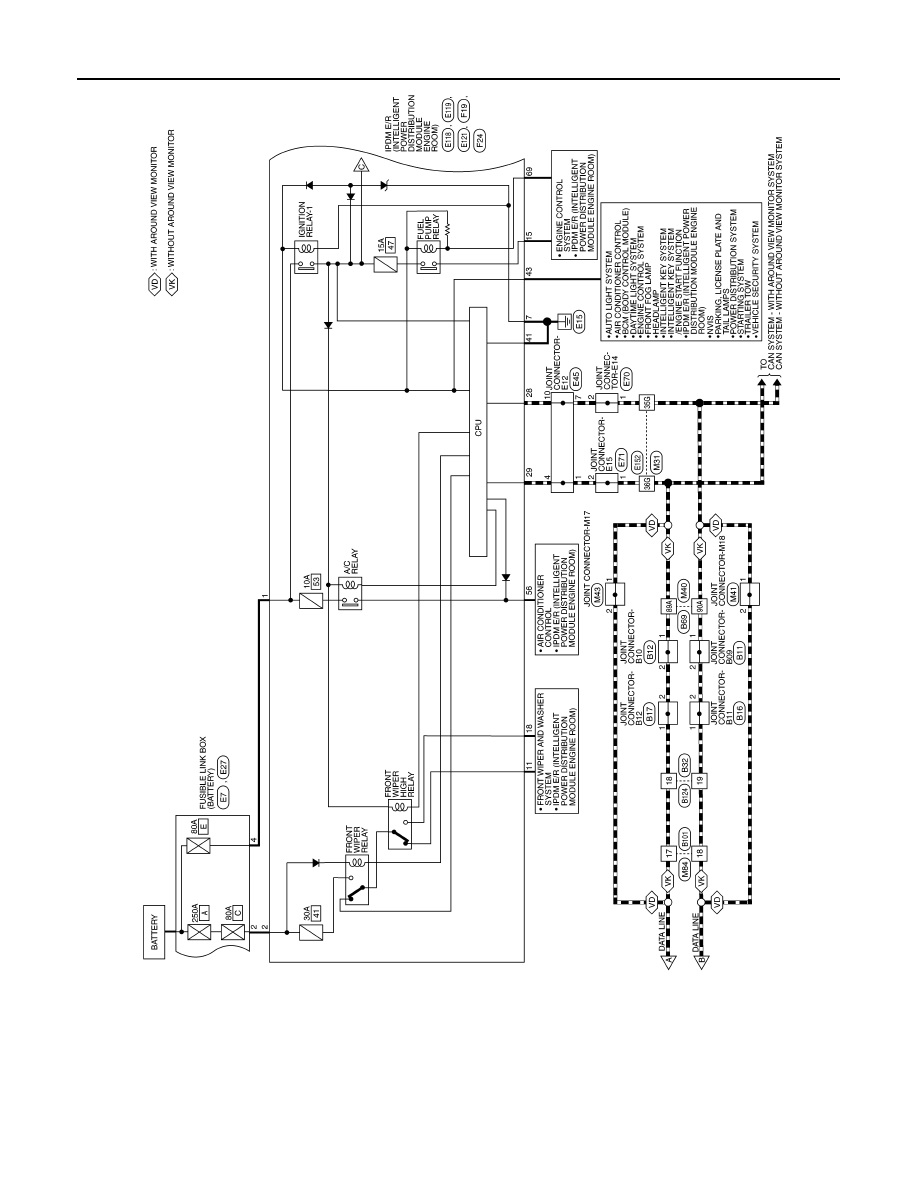

ABMWA2123GB

PG-26

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

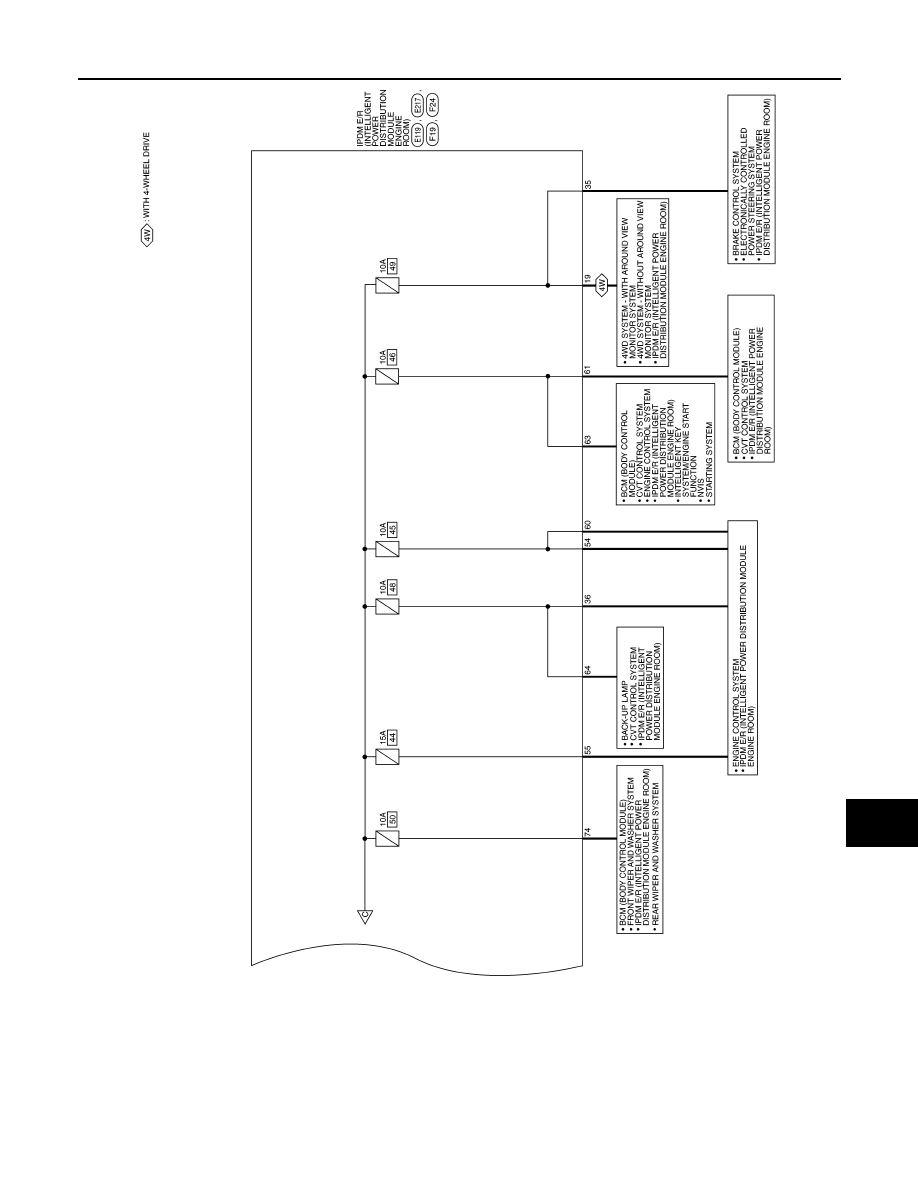

ABMIA4886GB
