POWER SUPPLY ROUTING CIRCUIT

PG-19

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

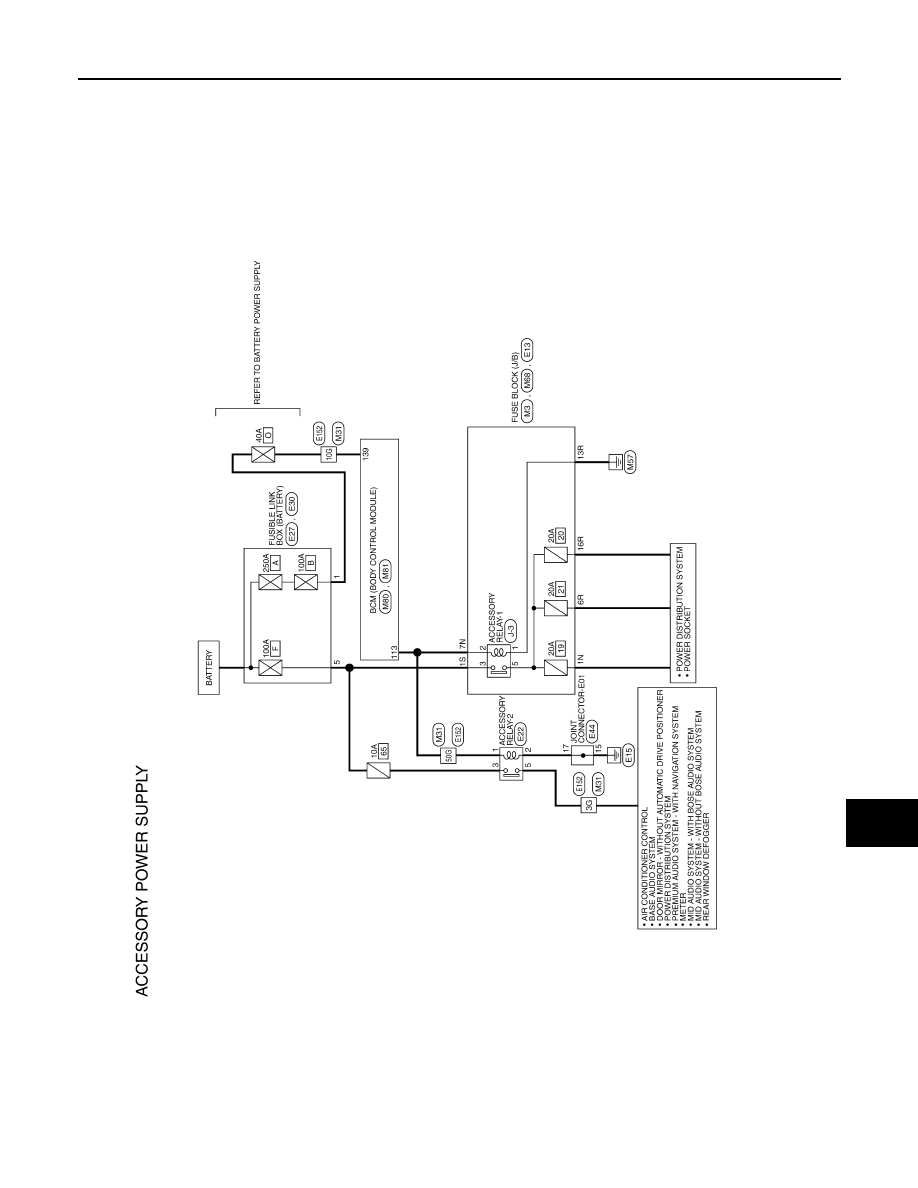

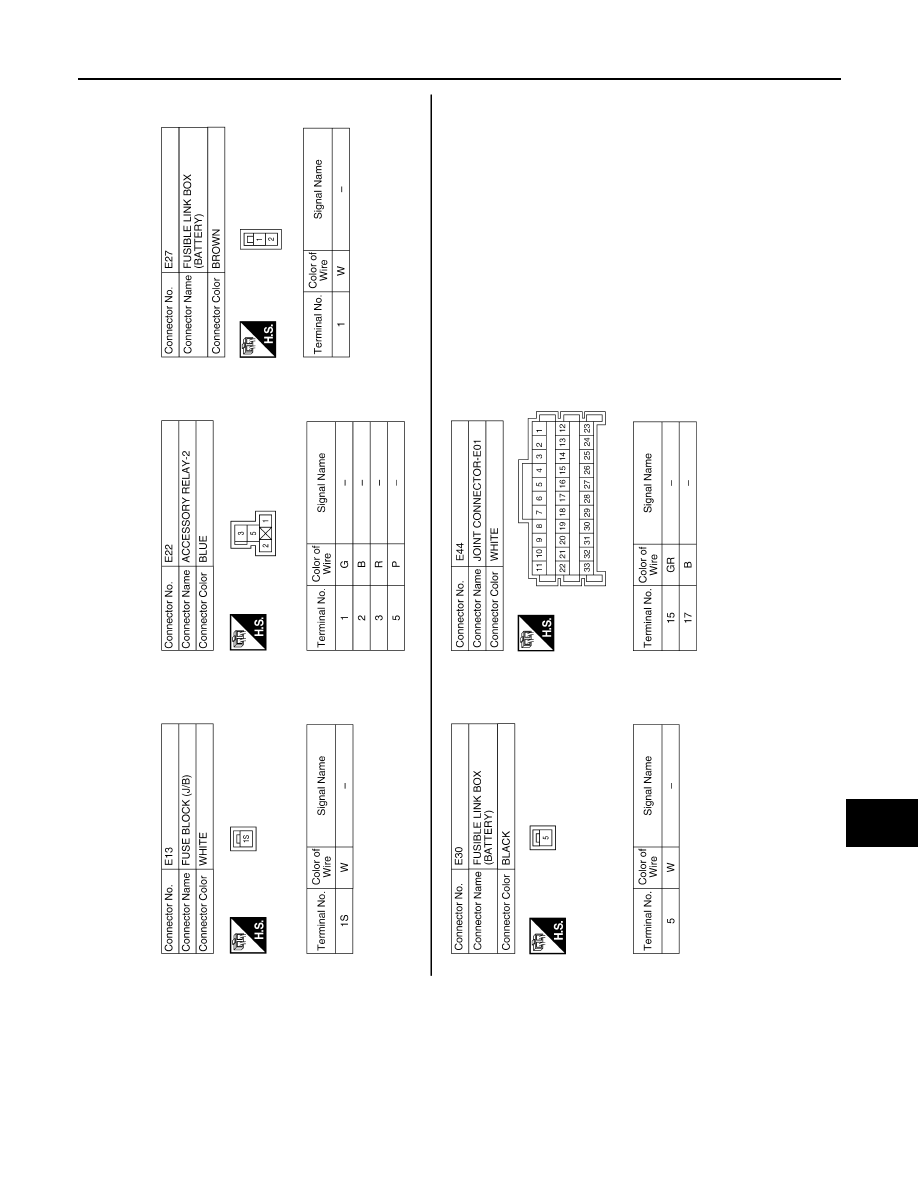

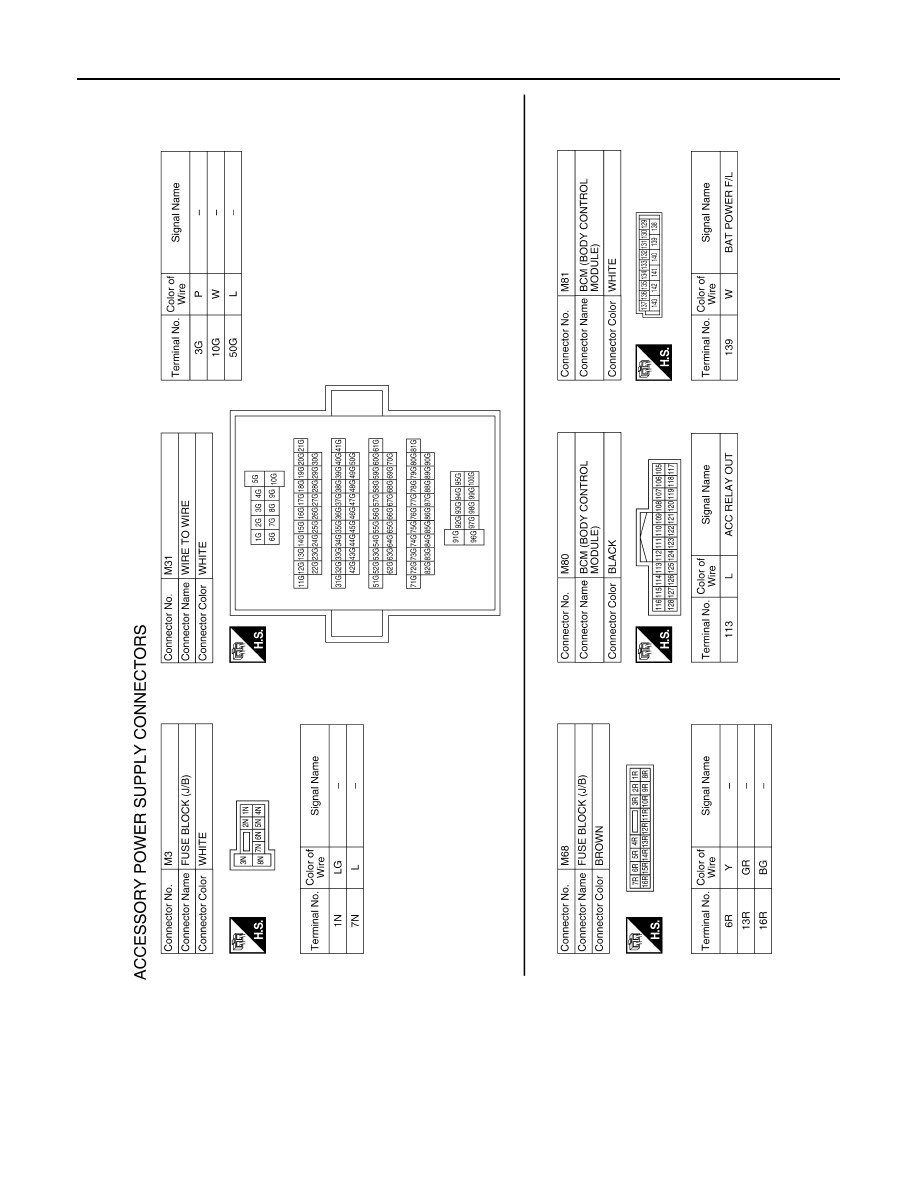

Wiring Diagram - ACCESSORY POWER SUPPLY -

INFOID:0000000009175291

AAMWA0657GB

PG-20

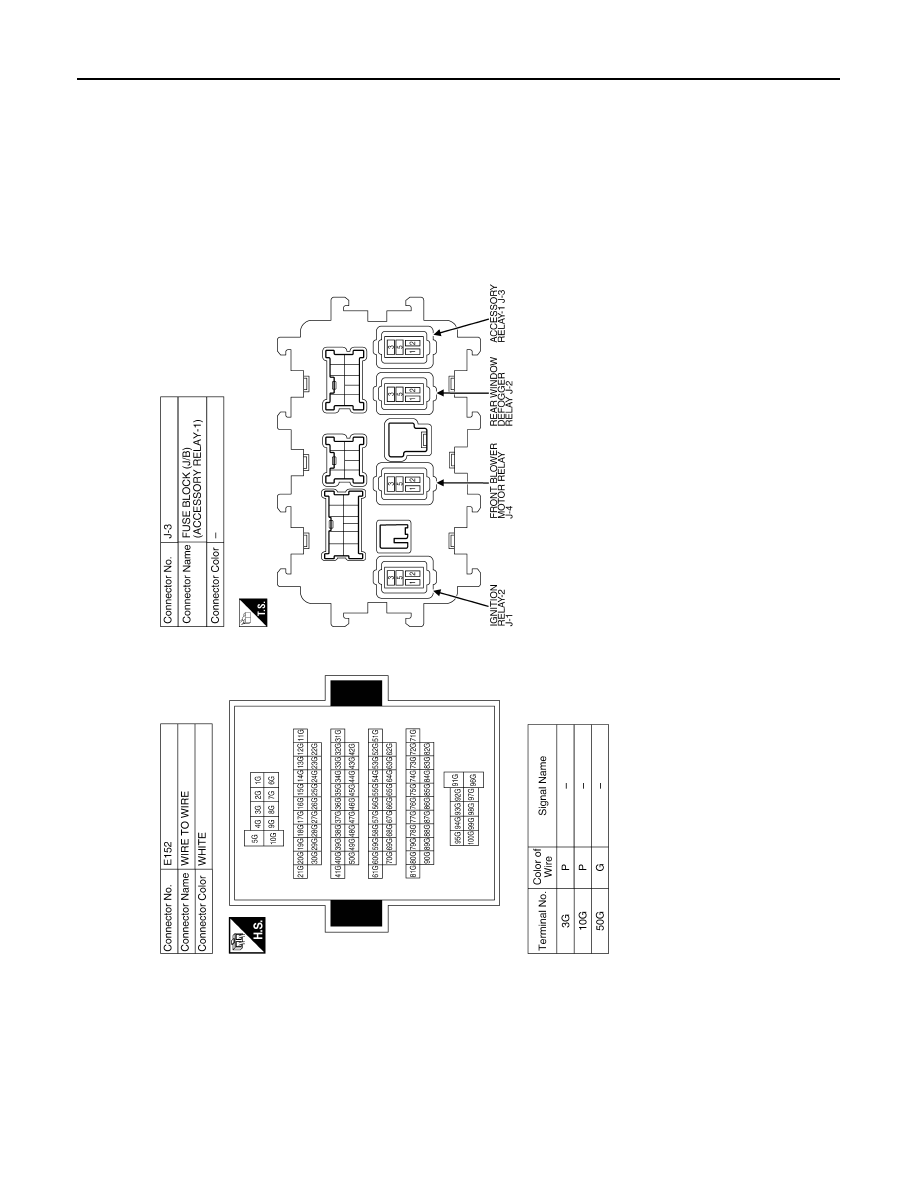

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

AAMIA1314GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-21

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA4884GB

PG-22

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

ABMIA4885GB
