MWI-28

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

1: With base audio
2: Except base audio

Fail-Safe

INFOID:0000000009174243

FAIL-SAFE

The combination meter activates the fail-safe control if CAN communication with each unit is malfunctioning.

34

(GR)

Ground

Vehicle speed signal
(8-pulse)

Output

Ignition
switch
ON

Speedometer operated
[When vehicle speed is ap-
prox. 25 MPH (40 km/h)]

NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).

38

(P)

Ground CAN-L

39

(L)

Ground CAN-H

41

(LG)

Ground Trip/Reset signal

Input

Ignition
switch
ON

Trip/Reset switch is pressed

0 V

Other than the above

5 V

42

(Y)

Ground

Illumination down switch
signal

Input

Ignition
switch
ON

Illumination switch down is
pressed

0 V

Other than the above

5 V

47

(BR)

Ground

Illumination up switch sig-
nal

Input

Ignition
switch
ON

Illumination switch up is
pressed

0 V

Other than the above

5 V

48

(G)

Ground Switch ground

49

(P)

Ground

Washer fluid level switch
signal

Input

Ignition
switch
ON

Washer fluid level switch ON

0 V

Washer fluid level switch OFF

5 V

52

(P)

Ground O/D OFF switch signal

Input

Ignition
switch
ON

O/D OFF switch is pressed

0 V

O/D OFF switch is released

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

Signal name

Input/

Output

JSNIA0012GB

Function

Specifications

Speedometer

Reset to zero by suspending communication.

Tachometer

Engine coolant temperature gauge

Illumination control

When suspending communication, changes to nighttime mode.

Information display

Odo/trip meter

An indicated value is maintained at communications blackout.

Shift position indicator

The display turns OFF by suspending communication.

Warning messages

The display turns OFF by suspending communication.

Buzzer

The buzzer turns OFF by suspending communication.

MWI

COMBINATION METER

MWI-29

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DTC Index

INFOID:0000000009174244

Warning lamp/indicator lamp

ABS warning lamp

The lamp turns ON by suspending communication.

Slip indicator lamp

Brake warning lamp

O/D OFF indicator lamp

Malfunction indicator lamp

VDC OFF indicator lamp

EPS warning lamp

Low tire pressure warning lamp

The lamp blinking caused by suspending communication.

High beam indicator lamp

The lamp turns OFF by suspending communication.

Turn signal indicator lamp

Master warning lamp

Front lamp indicator lamp

Tow indicator lamp

Tail lamp indicator lamp

Air bag warning lamp

The lamp turns off when disconnected.

Charge warning lamp

Seat belt warning lamp

Security indicator lamp

Function

Specifications

Display contents of CONSULT

Diagnostic item is detected when...

Refer to

CAN COMM CIRCUIT
[U1000]

When combination meter is not transmitting or receiving CAN communication signal for 2
seconds or more.

MWI-54

CONTROL UNIT (CAN)
[U1010]

When detecting error during the initial diagnosis of the CAN controller of combination
meter.

MWI-55

VEHICLE SPEED CIRC
[B2205]

The abnormal vehicle speed signal is input from the ABS actuator and electric unit (control
unit) for 2 seconds or more.

MWI-56

TACHO METER
[B2267]

If ECM continuously transmits abnormal engine speed signals for 2 seconds or more.

MWI-57

WATER TEMP METER
[B2268]

If ECM continuously transmits abnormal engine coolant temperature signals for 60 sec-
onds or more.

MWI-58

MWI-30

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

BCM (BODY CONTROL MODULE)

List of ECU Reference

INFOID:0000000009174245

ECU

Reference

BCM

BCS-30, "Reference Value"

BCS-55, "Wiring Diagram"

BCS-50, "Fail Safe"

BCS-50, "DTC Inspection Priority Chart"

BCS-52, "DTC Index"

MWI

METER SYSTEM

MWI-31

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

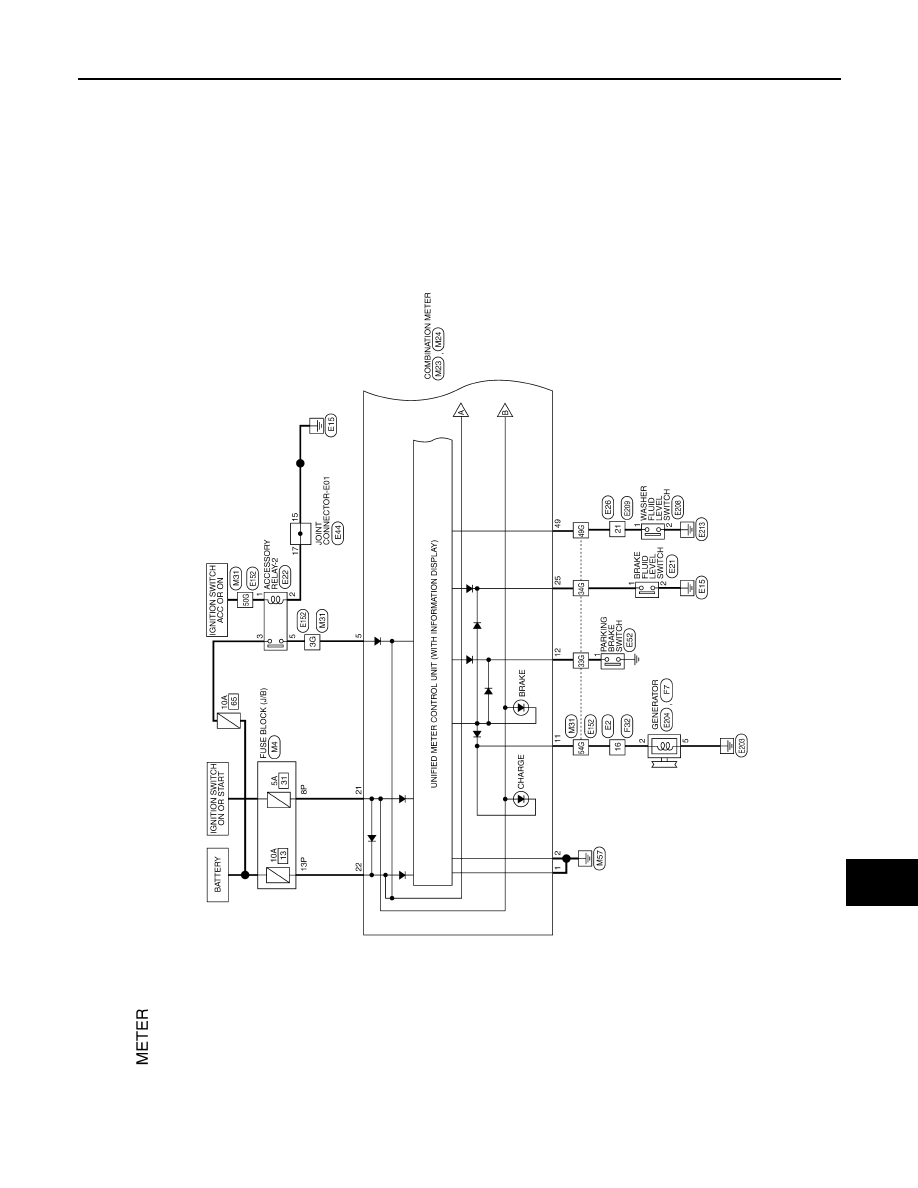

WIRING DIAGRAM

METER SYSTEM

Wiring Diagram

INFOID:0000000009174246
