COMBINATION METER

ECU DIAGNOSIS INFORMATION

COMBINATION METER

Reference Value

INFOID:0000000009174242

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

SPEED METER
[mph or km/h]

Ignition switch ON

While driving

Input value of vehicle speed signal
(CAN communication signal)

SPEED OUTPUT
[mph or km/h]

Ignition switch ON

While driving

Output value of vehicle speed sig-
nal (CAN communication signal)

ODO OUTPUT
[mi or km]

Ignition switch ON

—

Output value of odometer signal
(CAN communication signal)

TACHO METER
[rpm]

Ignition switch ON

Engine running

Input value of engine speed signal
(CAN communication signal)

FUEL METER
[L]

Ignition switch ON

—

Input value of fuel level sensor sig-
nal

W TEMP METER
[

°F] or [°C]

Ignition switch ON

—

Input value of engine coolant tem-
perature signal (CAN communica-
tion signal)

ABS W/L

Ignition switch ON

ABS warning lamp ON

On

ABS warning lamp OFF

Off

VDC/TCS IND

Ignition switch ON

VDC OFF indicator lamp ON

On

VDC OFF indicator lamp OFF

Off

SLIP IND

Ignition switch ON

VDC warning lamp ON

On

VDC warning lamp OFF

Off

BRAKE W/L

Ignition switch ON

Brake warning lamp ON

On

Brake warning lamp OFF

Off

DOOR W/L

Ignition switch ON

Door open warning ON

On

Other than the above

Off

HI-BEAM IND

Ignition switch ON

High beam indicator lamp ON

On

High beam indicator lamp OFF

Off

TURN IND

Ignition switch ON

Turn signal indicator lamp ON

On

Turn signal indicator lamp OFF

Off

FR FOG IND

Ignition switch ON

Front fog lamp indicator lamp ON

On

Front fog lamp indicator lamp OFF

Off

LIGHT IND

Ignition switch ON

Tail lamp indicator lamp ON

On

Tail lamp indicator lamp OFF

Off

OIL W/L

Ignition switch ON

Oil pressure warning

On

Oil pressure warning

Off

MIL

Ignition switch ON

Malfunction indicator lamp ON

On

Malfunction indicator lamp OFF

Off

CRUISE IND

Ignition switch ON

CRUISE indicator ON

On

CRUISE indicator OFF

Off

SET IND

Ignition switch ON

SET indicator ON

On

SET indicator OFF

Off

MWI

COMBINATION METER

MWI-25

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

O/D OFF IND

Ignition switch ON

O/D OFF indicator ON

On

O/D OFF indicator OFF

Off

CVT IND

Ignition switch ON

CVT indicator ON

On

CVT indicator OFF

Off

4WD W/L

Ignition switch ON

4WD warning lamp ON

On

4WD warning lamp OFF

Off

FUEL W/L

Ignition switch ON

During low fuel level indication

On

Except during low fuel level indication

Off

WASHER W/L

Ignition switch ON

Low washer fluid warning indication

On

Except during low washer fluid warning in-
dication

Off

KEY G/Y W/L

Ignition switch ON

KEY warning lamp (Green/Yellow) ON

On

KEY warning lamp (Green/Yellow) OFF

Off

EPS W/L

Ignition switch ON

EPS warning lamp ON

On

EPS warning lamp OFF

Off

LCD

Ignition switch ON

Shift selector button pressed

Off

Shift selector button released

B&P

SHIFT IND

Ignition switch ON

Shift position in park

P

Shift position in neutral

N

Shift position in drive

D

Shift position in low

L

4WD IND

Engine running

4WD switch in AUTO position

AUTO

4WD switch in LOCK position

LOCK

TOW MODE IND

Ignition switch ON

TOW mode indicator lamp ON

On

TOW mode indicator lamp OFF

Off

FUEL CAP W/L

Ignition switch ON

Fuel filler cap warning display ON

On

Fuel filler cap warning display OFF

Off

O/D OFF SW

Ignition switch ON

Overdrive control switch ON

On

Overdrive control switch OFF

Off

PKB SW

Ignition switch ON

Parking brake switch ON

On

Parking brake switch OFF

Off

BUCKLE SW

Ignition switch ON

Driver seat belt not fastened

On

Driver seat belt fastened

Off

BRAKE OIL SW

Ignition switch ON

Brake fluid level switch ON

On

Brake fluid level switch OFF

Off

PASS BUCKLE SW

Ignition switch ON

Passenger seat belt not fastened

On

Passenger seat belt fastened

Off

TOW MODE SW

Ignition switch ON

TOW mode switch ON

On

TOW mode switch OFF

Off

DISTANCE
[mph or km/h]

Ignition switch ON

—

Distance to empty

OUTSIDE TEMP
[

°F] or [°C]

Ignition switch ON

—

Displays the ambient air tempera-
ture which is input from the ambient
sensor

FUEL LOW SIG

Ignition switch ON

During low fuel warning indication

On

Except during low fuel warning indication

Off

Monitor Item

Condition

Value/Status

MWI-26

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

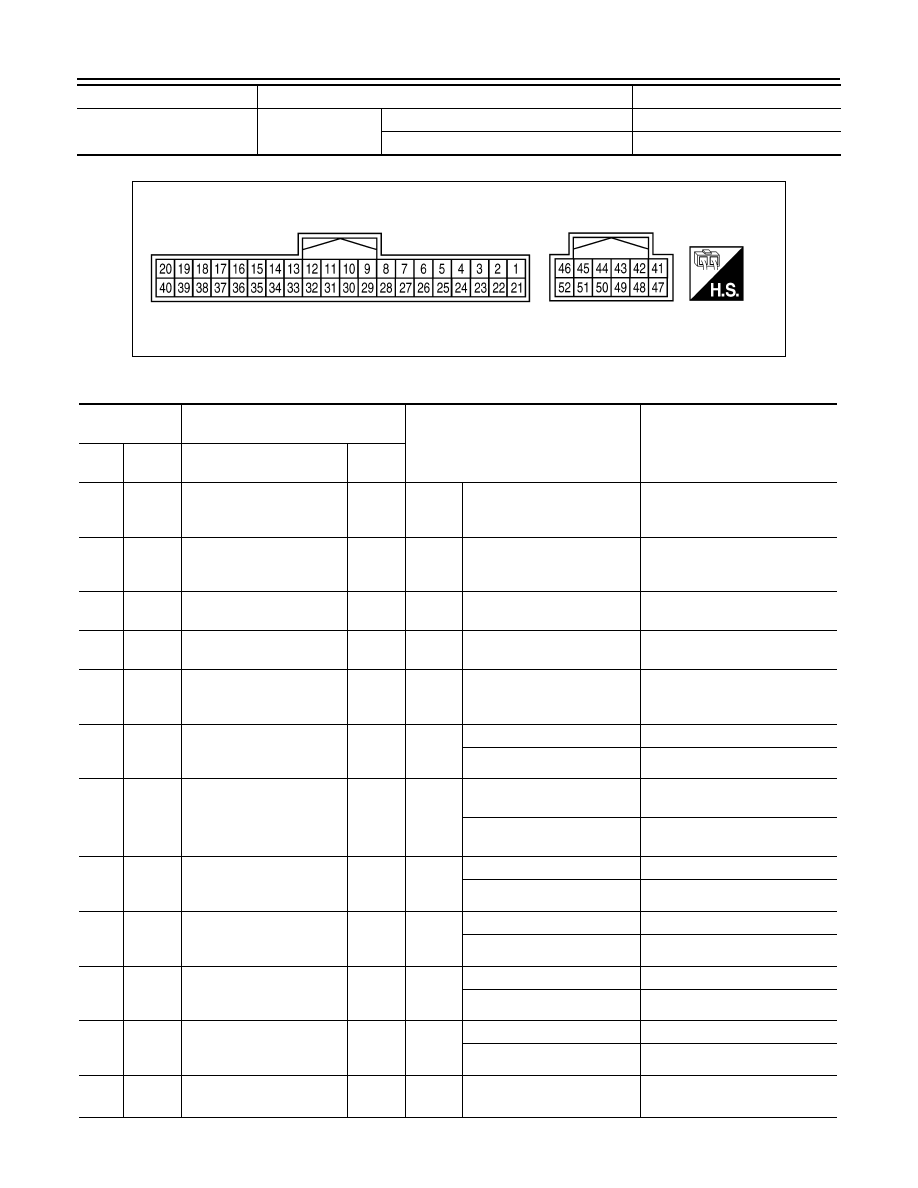

TERMINAL LAYOUT

PHYSICAL VALUES

BUZZER

Ignition switch ON

Buzzer ON

On

Buzzer OFF

Off

Monitor Item

Condition

Value/Status

WKIA5724E

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

1

(B)

Ground

Ground

Input

Ignition
switch
OFF

—

Battery voltage

2

(B)

Ground

Ground

Input

Ignition
switch
ON

—

Battery voltage

3

(P)

Ground

Steering switch input 1

—

—

—

—

4

(BG)

Ground Steering switch input 2

—

—

—

—

5

(P)

Ground ACC —

Ignition
switch
ON

Ignition switch ACC or ON
power supply

Battery voltage

6

(V)

Ground Security signal

Input

Ignition
switch
ON

Security indicator ON

0 V

Security indicator OFF

Battery voltage

7

(R)

Ground Air bag signal

Input

Ignition
switch
ON

Air bag warning lamp
ON

—

Air bag warning lamp
OFF

—

8

(G)

Ground

Passenger seat belt warn-
ing signal

Input

Ignition
switch
ON

Fastened

Battery voltage

Unfastened

0 V

9

(Y)

Ground

Seat belt buckle switch sig-
nal (driver seat)

Input

Ignition
switch
ON

Fastened

Battery voltage

Unfastened

0 V

11

(BG)

Ground

Alternator signal

Input

Ignition
switch
ON

Charge warning lamp ON

2 V

Charge warning lamp OFF

Battery voltage

12

(G)

Ground Parking brake switch signal

Input

Ignition
switch
ON

Parking brake applied

0 V

Parking brake released

Battery voltage

14

1

(Y)

Ground Steering switch output 1

—

—

—

—

MWI

COMBINATION METER

MWI-27

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

14

2

(G)

Ground Steering switch output 1

—

—

—

—

15

1

(BR)

Ground Steering switch output 2

—

—

—

—

15

2

(W)

Ground Steering switch output 2

—

—

—

—

16

1

(G)

—

Steering switch output
ground

—

—

—

0  V

16

2

(B)

—

Steering switch output
ground

—

—

—

0  V

19

(SB)

Ground

Tow mode switch signal

Input

Ignition
switch
ON

Tow mode switch is pressed

0 V

Tow mode switch is released

Battery voltage

21

(BG)

—

Ignition signal

—

Ignition
switch
ON or
START

—

Battery  voltage

22

(W)

—

Battery power supply

—

Ignition
switch
OFF

—

Battery  voltage

23

(B)

Ground

Illumination control output
signal

—

Ignition
switch
ON

—

0  V

24

(R)

Ground

Steering switch ground

—

Ignition
switch
ON

—

0  V

25

(G)

Ground Brake fluid level switch

Input

Ignition
switch
ON

Brake fluid level low

0 V

Brake fluid level normal

Battery voltage

26

(R)

Ground

Fuel level sensor ground

—

Ignition
switch
ON

—

0  V

27

(W)

Ground Fuel level sensor signal

—

—

—

—

33

(BR)

Ground

Vehicle speed signal
(2-pulse)

Output

Ignition
switch
ON

Speedometer operated
[When vehicle speed is ap-
prox. 25 MPH (40 km/h)]

NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).
