MWI-12

< SYSTEM DESCRIPTION >

SYSTEM

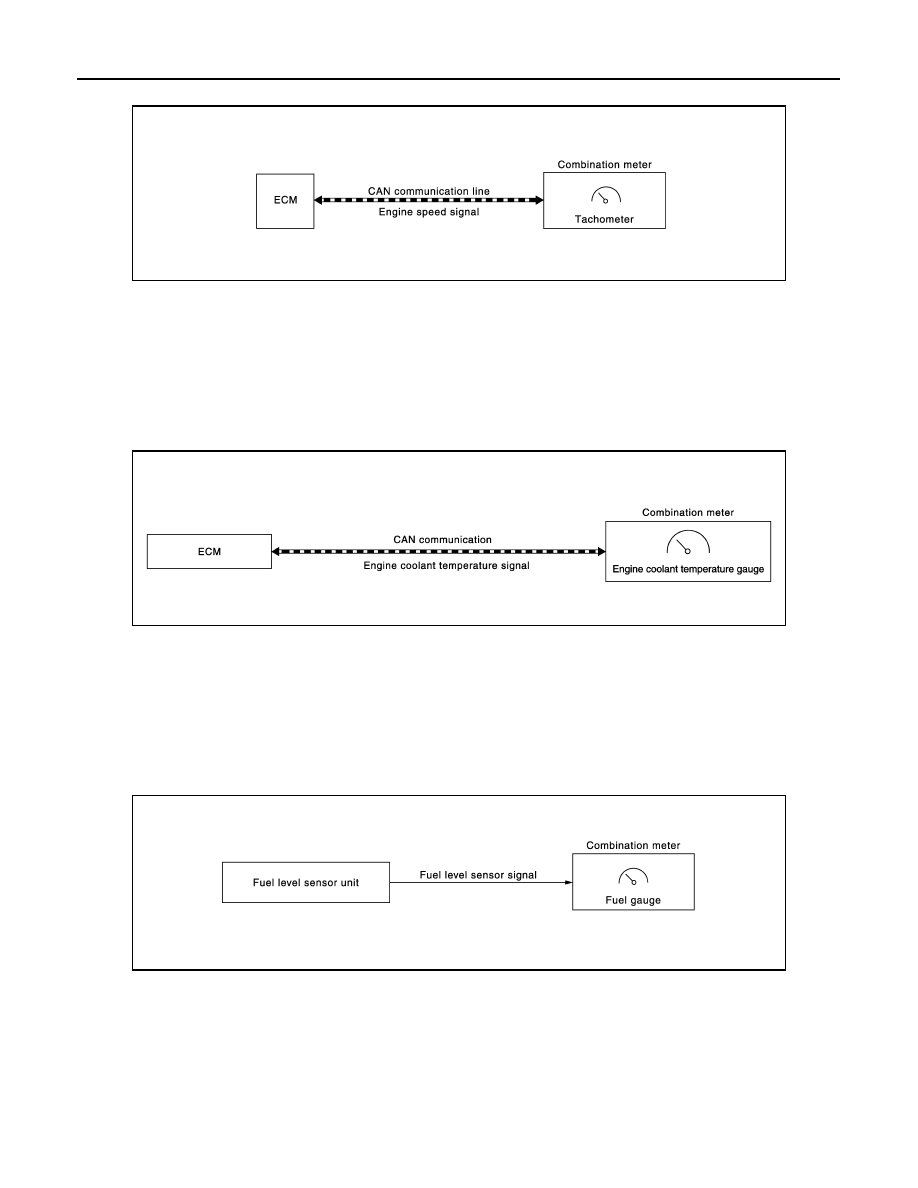

TACHOMETER : System Diagram

INFOID:0000000009174225

TACHOMETER : System Description

INFOID:0000000009174226

The crank position sensor sends a crankshaft position signal to the ECM. The ECM provides an engine speed

signal to the combination meter via CAN communication lines. The tachometer indicates engine speed in rev-

olutions per minute (rpm).

ENGINE COOLANT TEMPERATURE GAUGE
ENGINE COOLANT TEMPERATURE GAUGE : System Diagram

INFOID:0000000009174227

ENGINE COOLANT TEMPERATURE GAUGE : System Description

INFOID:0000000009174228

The engine coolant temperature sensor sends an engine coolant temperature signal to the ECM. The ECM

provides an engine coolant temperature signal to the combination meter via CAN communication lines. The

engine coolant temperature gauge indicates the engine coolant temperature.

FUEL GAUGE
FUEL GAUGE : System Diagram

INFOID:0000000009174229

FUEL GAUGE : System Description

INFOID:0000000009174230

The fuel level sensor unit sends a variable resistor signal to the combination meter. The fuel gauge indicates

the approximate fuel level in the fuel tank.

MASTER WARNING LAMP

JSNIA2462GB

AWNIA2579GB

JSNIA3000GB

MWI

SYSTEM

MWI-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

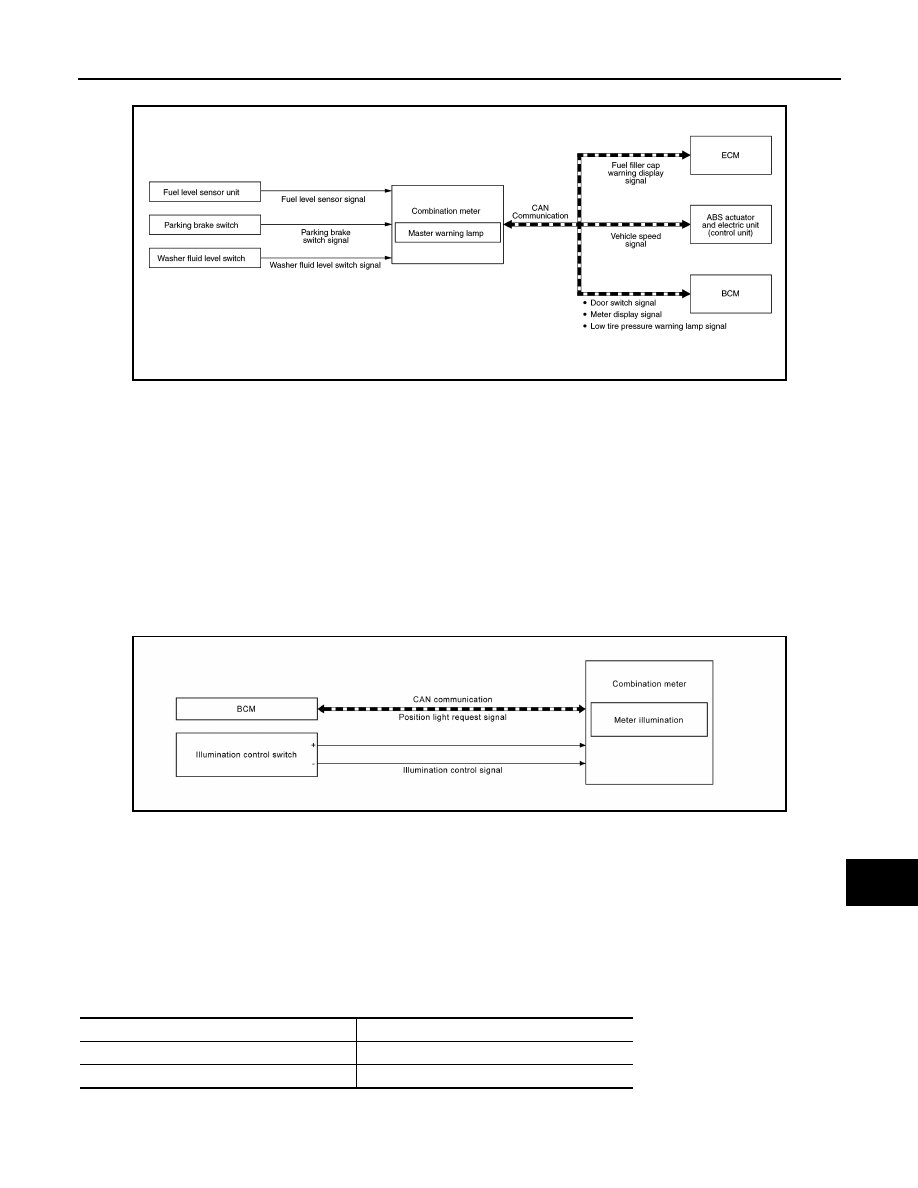

MASTER WARNING LAMP : System Diagram

INFOID:0000000009174231

MASTER WARNING LAMP : System Description

INFOID:0000000009174232

When receiving a signal from each unit, switch, or sensor, the combination meter turns ON/OFF the master

warning lamp in synchronization with the following warnings on the information display:

• Door open warning

• Parking brake release warning

• Low fuel warning

• Low washer fluid warning

• Low tire pressure warning

• Fuel filler cap warning

METER ILLUMINATION CONTROL
METER ILLUMINATION CONTROL : System Diagram

INFOID:0000000009174233

METER ILLUMINATION CONTROL : System Description

INFOID:0000000009174234

METER ILLUMINATION ON/OFF CONTROL FUNCTION

Meter illumination control is enabled when the meter receives a signal from the BCM that the combination

switch is in the AUTO (if equipped and activated) or parking lamp position and the meter switches from Day-

time mode to Nighttime mode.

METER ILLUMINATION CONTROL FUNCTION

The operation of the illumination control switch changes brightness of the meter illumination.

METER EFFECT FUNCTION

AWNIA2975GB

AWNIA2794GB

Meter illumination

The number of adjustable steps

Daytime

22 steps

Nighttime

22 steps

MWI-14

< SYSTEM DESCRIPTION >

SYSTEM

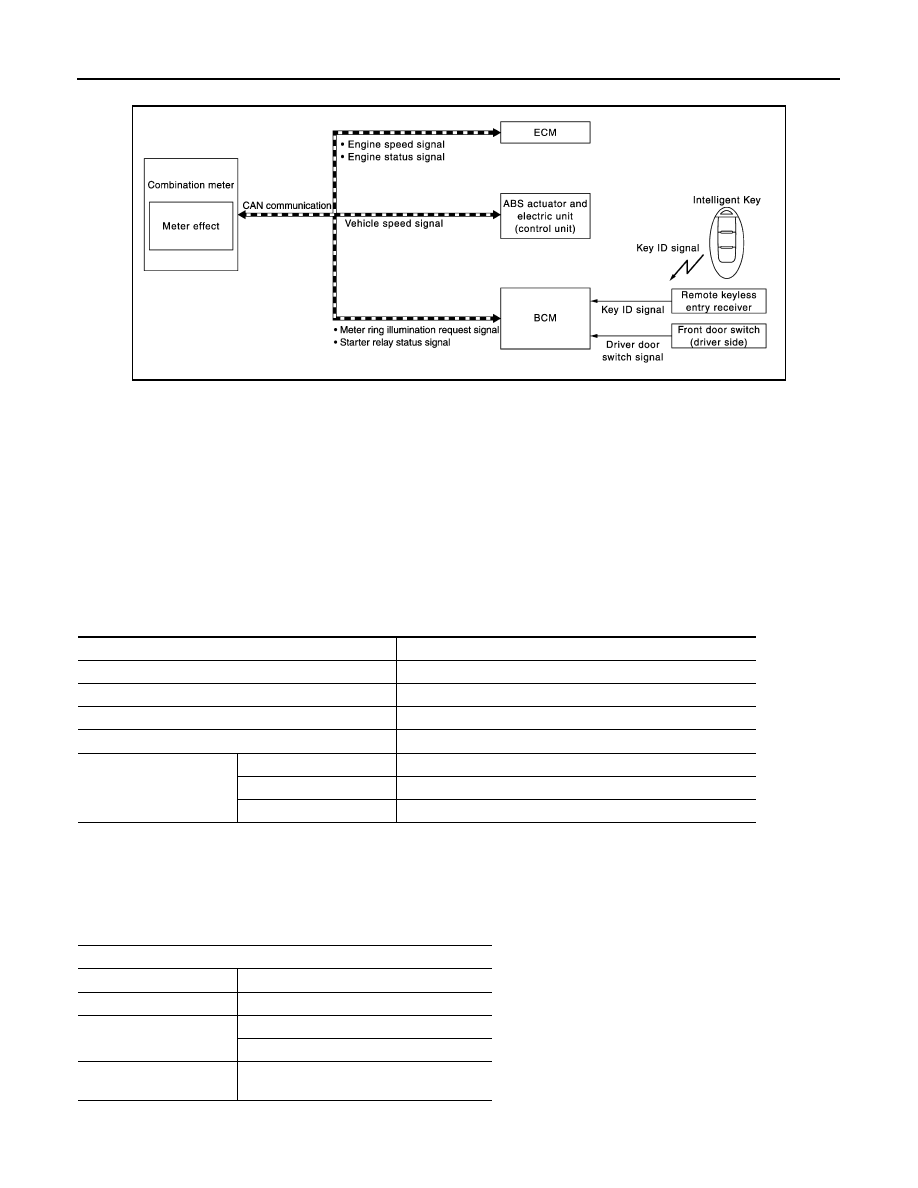

METER EFFECT FUNCTION : System Diagram

INFOID:0000000009174235

METER EFFECT FUNCTION : System Description

INFOID:0000000009174236

ENGINE-START EFFECT FUNCTION

When recognizing an engine start, the combination meter controls the following items for producing the effect:

• Speedometer

• Tachometer

• Engine coolant temperature gauge

• Fuel gauge

• Meter illumination

Meter and Illumination Operations During Engine-start Effect

The combination meter controls the following items during the engine-start effect.

NOTE:

The pointers are stopped and illumination is turned off while cranking the engine.

Engine Start Judgement

The combination meter judges “engine-start” and activates the engine-start effect only once when the follow-

ing operational conditions are all satisfied.

NOTE:

AWNIA2581GB

Control item

Operation

Speedometer

Sweeps the pointer.

Tachometer

Sweeps the pointer.

Engine coolant temperature gauge

Stops the pointer.

Fuel gauge

Stops the pointer.

Meter illumination

Pointers

Turns on the illumination at the effect level.

Information display

Turns on the illumination at the normal brightness level.

Other than those above

Increases the brightness to the effect level in stages.

Condition

Ignition switch

ON position

Vehicle speed

Less than 0.6 MPH (1 km/h)

Engine state

Other than the time of cranking the engine

500 rpm or more

Information display
(SETTING)

The setting of “EFFECT” is “ON.”

MWI

SYSTEM

MWI-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Engine-start effect exits when any of the above operational conditions is cancelled during the engine-start

effect.

INFORMATION DISPLAY

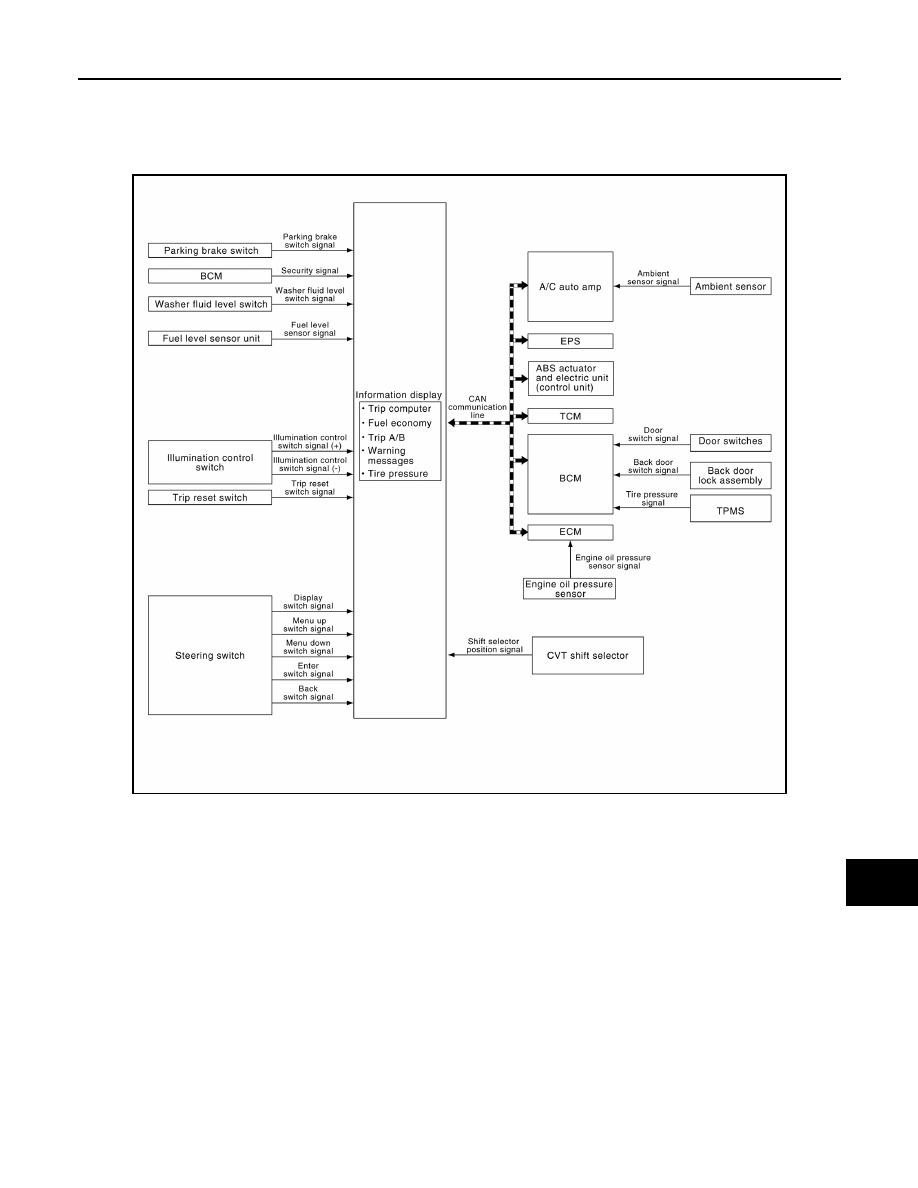

INFORMATION DISPLAY : System Diagram

INFOID:0000000009174237

INFORMATION DISPLAY : System Description

INFOID:0000000009174238

FUNCTION

The information display can indicate the following items:

• Outside air temperature

• Trip computer

• Intelligent Key operation information

• CVT shift position indicator

• Odometer

• Warning/Indication messages (door open, liftgate open, low oil pressure, CVT, 4WD, I-Key, low fuel, low

washer fluid, release parking brake, low tire pressure and loose fuel cap).

OUTSIDE AIR TEMPERATURE INDICATION

The ambient temperature sensor sends the ambient sensor signal to the A/C auto amp. The a/c auto amp,

then sends the signal to the combination meter via CAN communication lines.

LOOSE FUEL CAP MESSAGE

AWNIA2795GB
