MWI-4

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009745915

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

MWI

PREPARATION

MWI-5

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000009174216

Tool name

Description

Power tool

Loosening nuts, screws and bolts

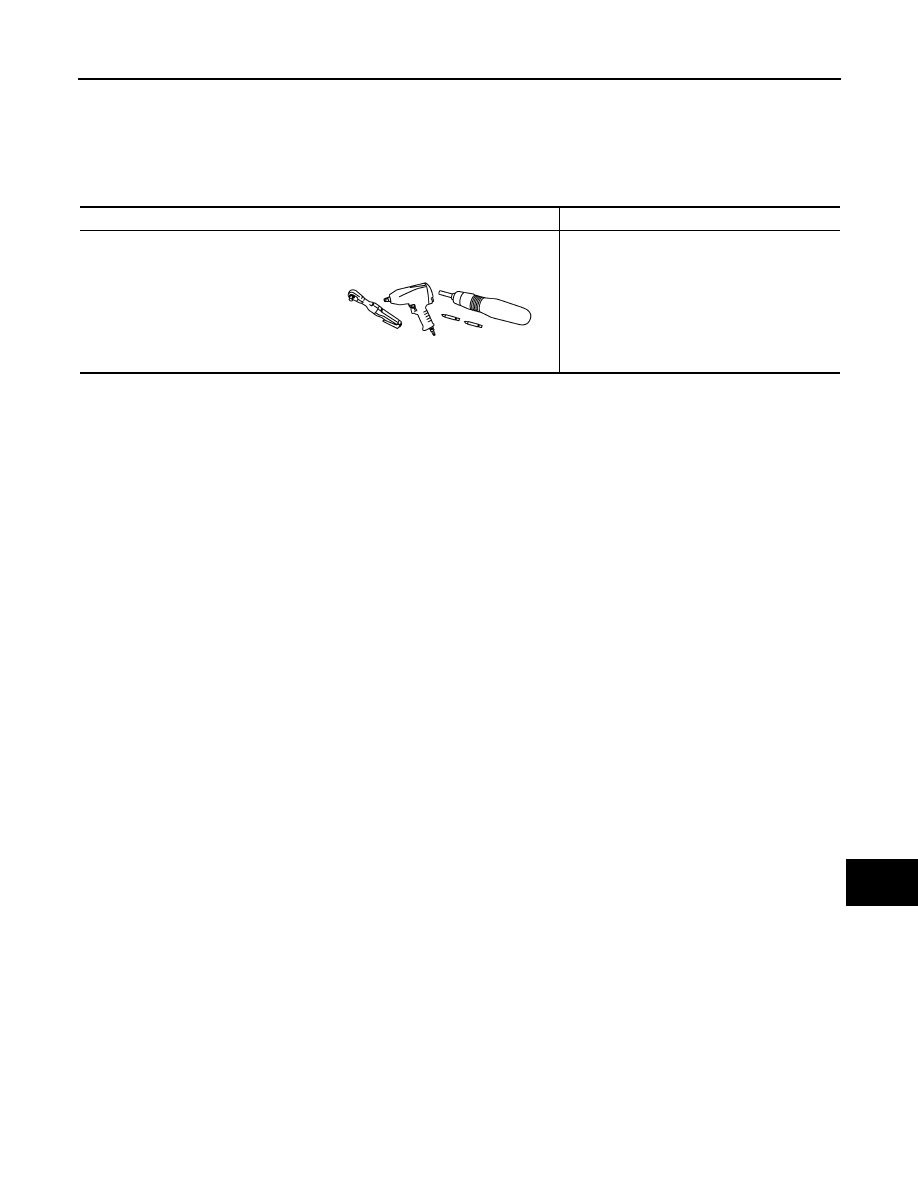

PIIB1407E

MWI-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

METER SYSTEM
METER SYSTEM : Component Parts Location

INFOID:0000000009174217

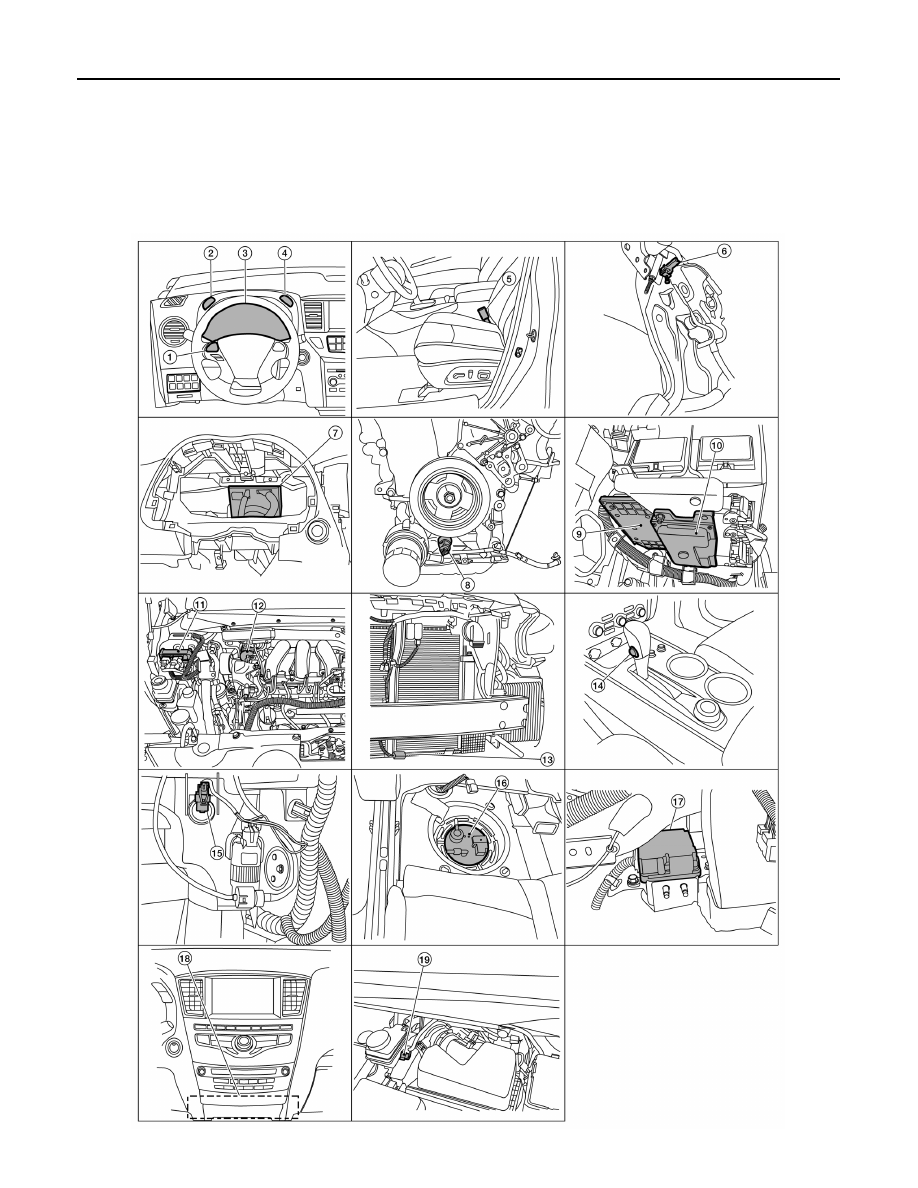

AWNIA2792ZZ

MWI

COMPONENT PARTS

MWI-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

METER SYSTEM : Component Description

INFOID:0000000009174218

1.

Steering switch

2.

Illumination control switch

3.

Combination meter

4.

Trip reset switch

5.

Seat belt buckle switch (Driver seat)
 (passenger similar)

6.

Parking brake switch

7.

BCM
(view with combination meter re-
moved)

8.

Engine oil pressure sensor

9.

ECM

10. TCM

11. Power steering control module

12. ABS actuator and electric unit (control

unit)

13. Ambient sensor

(view with front fascia removed)

14. CVT shift selector

(O/D OFF switch)

15 Washer fluid level switch

(view with front fascia removed)

16. Fuel level sensor unit and fuel pump

(view with fuel pump inspection cover
removed)

17 Air bag diagnosis sensor unit

(view with center console assembly re-
moved)

18. A/C auto amp

19. Brake fluid level switch

Unit

Description

Combination meter

Controls the following with the signals received from each unit via CAN communication and the sig-
nals from switches and sensors:
• Speedometer
• Tachometer
• Engine coolant temperature gauge
• Fuel gauge
• Warning lamps
• Indicator lamps
• Meter illumination control
• Meter effect function
• Information display

Illumination control switch

Transmits the following signals to the combination meter:
• Illumination control switch signal (+)
• Illumination control switch signal (

−)

Trip reset switch

Transmits the trip reset switch signal to the combination meter.

ECM

Transmits the following signals to the combination meter via CAN communication:
• Engine speed signal
• Engine coolant temperature signal
• Engine oil pressure warning signal
• Fuel consumption monitor signal

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.

Power steering control module

Transmits the EPS signal to the combination meter via CAN communication.

BCM

Transmits the following signals to the combination meter via CAN communication:
• Tire pressure information
• Position light request signal
• Low tire pressure warning lamp signal
• Door switch signal
• Back door switch signal

TCM

Transmits the shift selector position signal to the combination meter via CAN communication.

CVT shift selector
(O/D OFF switch)

Transmits the O/D OFF switch signal to the combination meter.

Fuel level sensor unit

Transmits the fuel level sensor signal to the combination meter.

Seat belt buckle switch (driver
seat)

Transmits the seat belt buckle switch (driver seat) signal to the combination meter.

Air bag diagnosis sensor unit

Transmits the seat belt buckle switch (passenger seat) signal to the combination meter.

Engine oil pressure sensor

Transmits the engine oil pressure sensor signal to the ECM.

Ambient sensor

Transmits the ambient sensor signal to the A/C auto amp.
