MIR-18

< REMOVAL AND INSTALLATION >

DOOR MIRROR GLASS

DOOR MIRROR GLASS

Removal and Installation

INFOID:0000000009175323

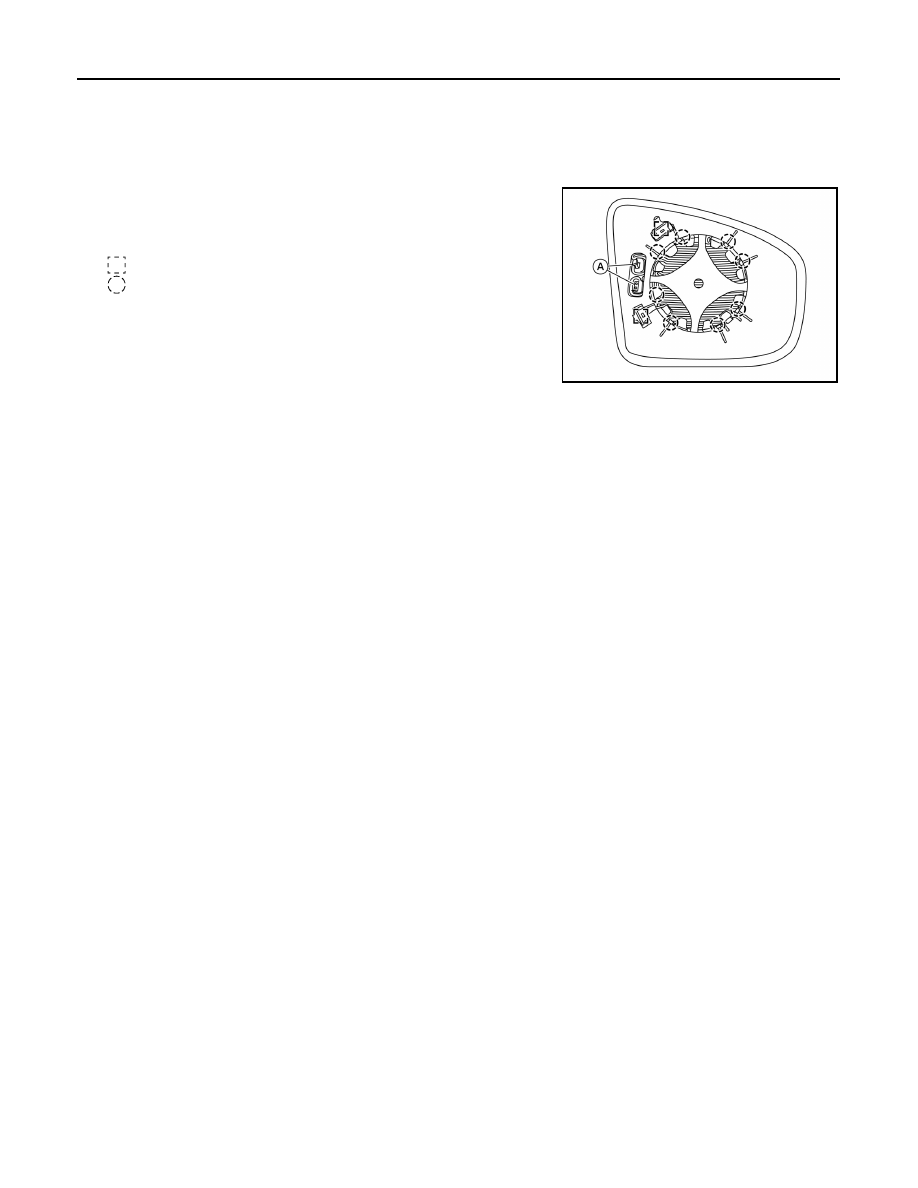

REMOVAL

1. Release the metal clips and pawls that retain the door mirror

glass using a suitable tool, disconnect the harness connectors

(A) from the door mirror glass, then remove the door mirror

glass.

: Metal clip
: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, visually inspect that metal clips and pawls are securely engaged.

ALLIA1119ZZ

DOOR MIRROR REAR FINISHER

MIR-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR REAR FINISHER

Removal and Installation

INFOID:0000000009175324

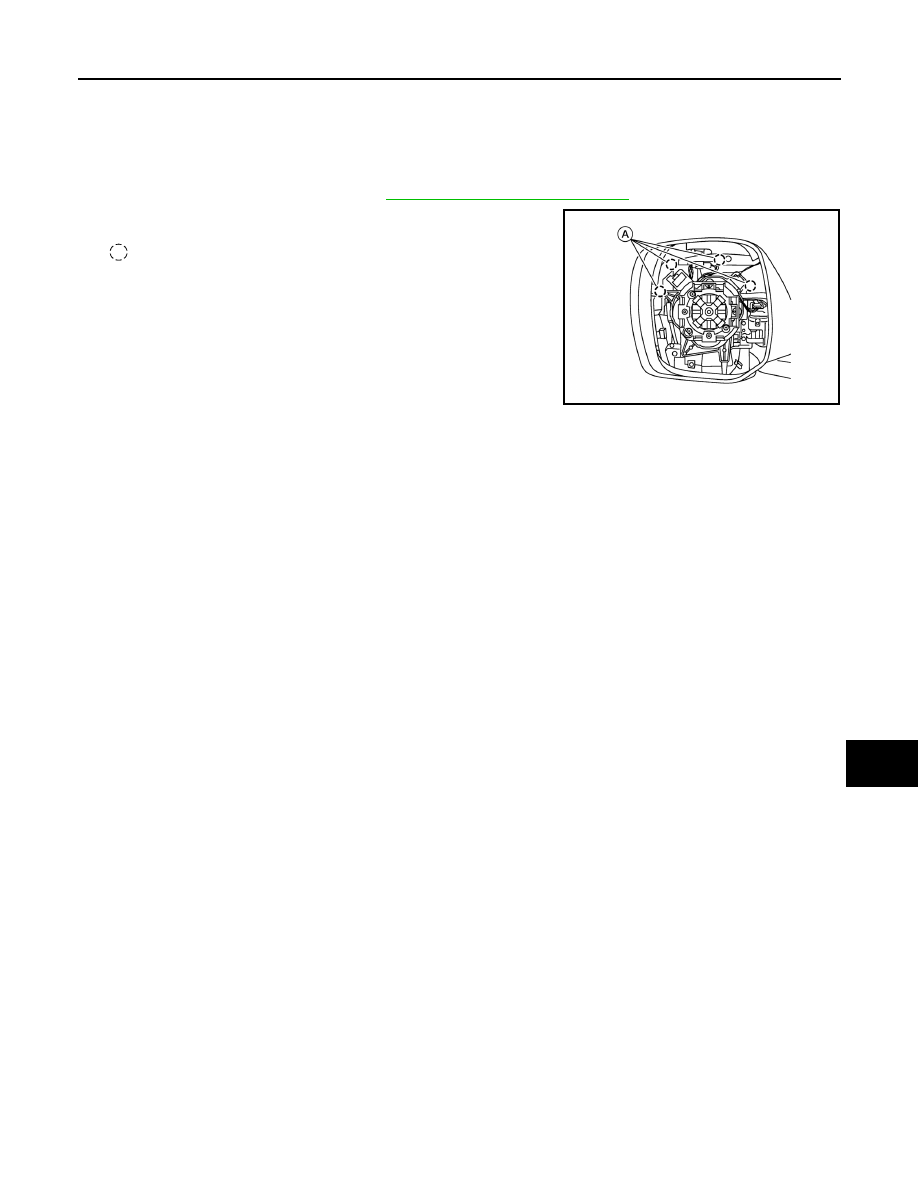

REMOVAL

1. Remove the door mirror glass. Refer to

MIR-18, "Removal and Installation"

.

2. Release the pawls (A) using suitable tool, then remove door mir-

ror rear finisher.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, visually inspect that all pawls are securely engaged.

AWLIA1940ZZ

MIR-20

< REMOVAL AND INSTALLATION >

DOOR MIRROR ACTUATOR

DOOR MIRROR ACTUATOR

Removal and Installation

INFOID:0000000009175325

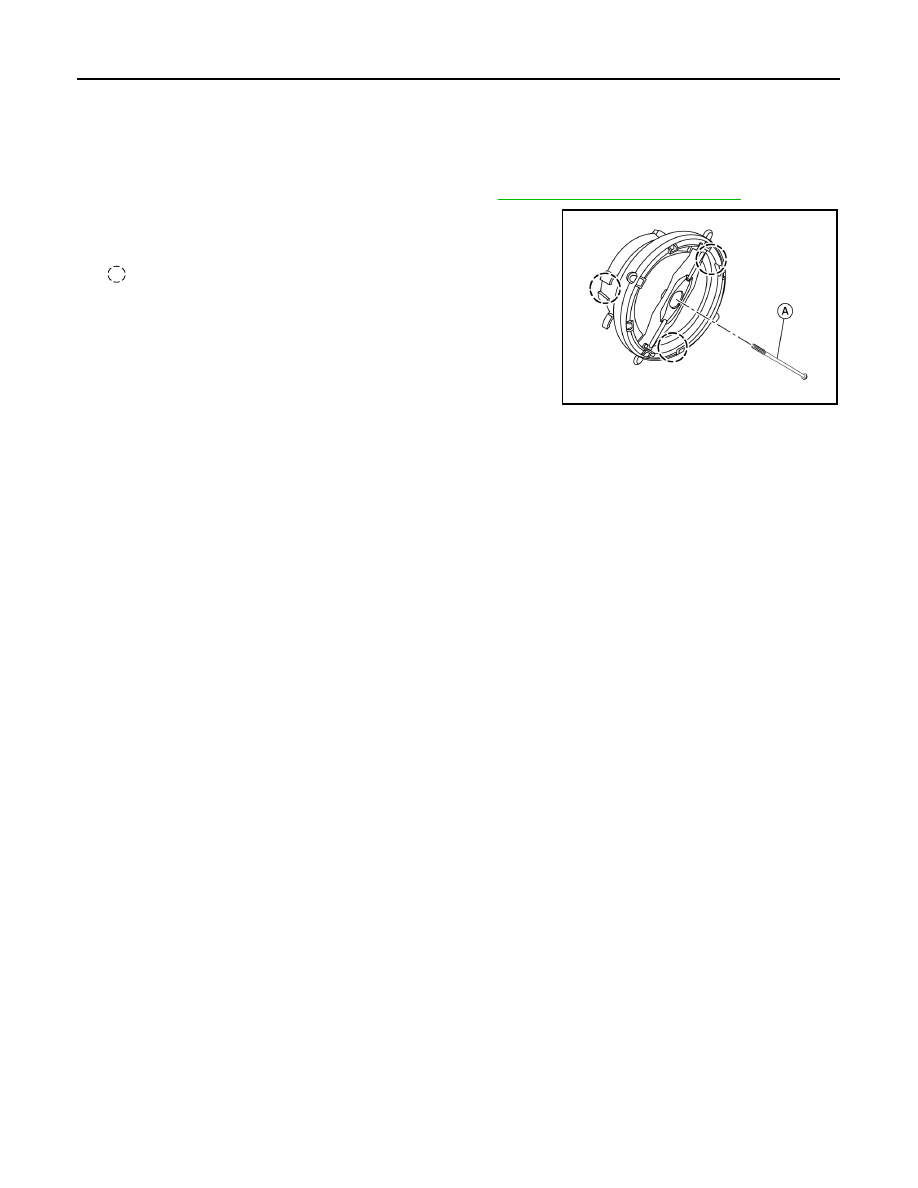

REMOVAL

1. Remove the side camera finisher (if equipped). Refer to

MIR-21, "Removal and Installation"

.

2. Remove the door mirror actuator screw (A).
3. Release the pawls using a suitable tool, then remove the door

mirror actuator.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

ALLIA1120ZZ

SIDE CAMERA FINISHER

MIR-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

SIDE CAMERA FINISHER

Removal and Installation

INFOID:0000000009175326

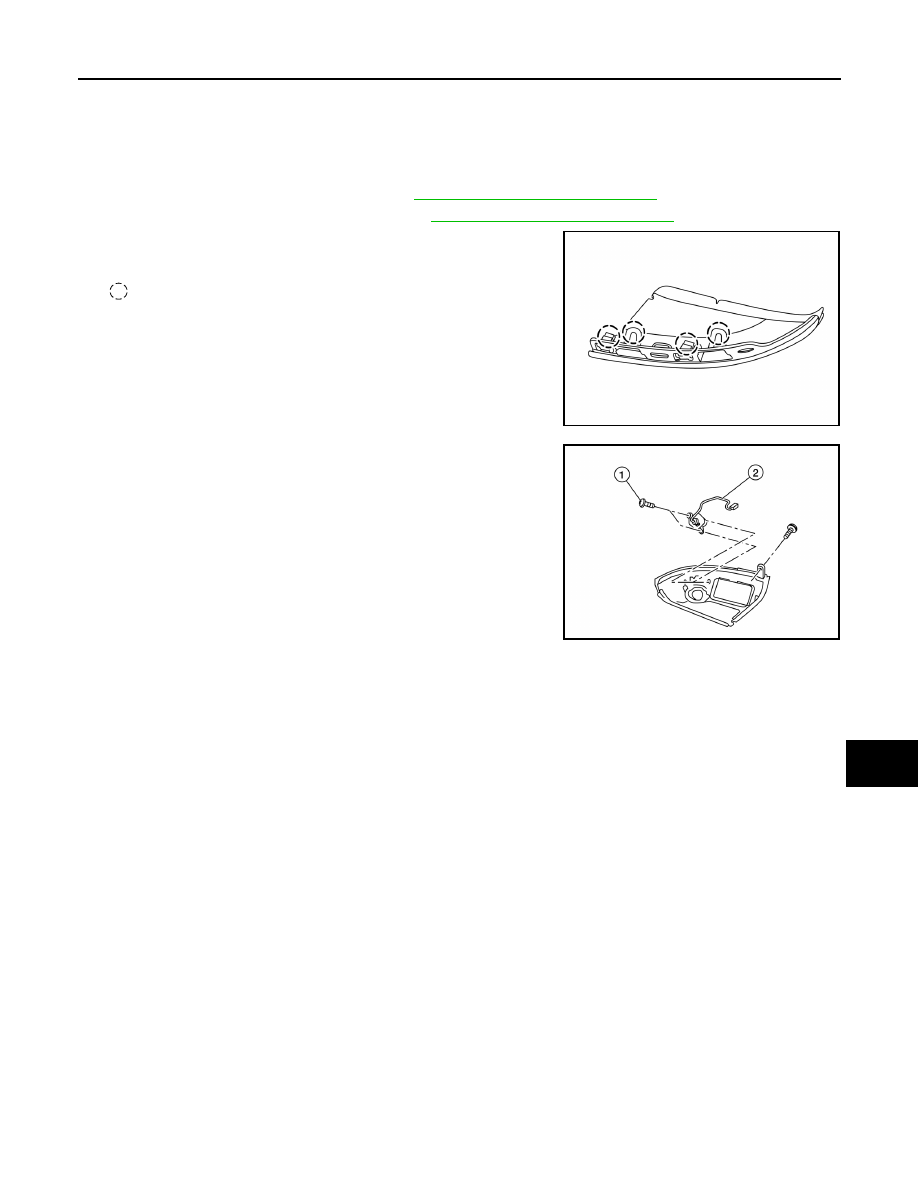

REMOVAL

1. Remove the door mirror assembly. Refer to

MIR-17, "Removal and Installation"

.

2. Remove the door mirror rear finisher. Refer to

MIR-19, "Removal and Installation"

.

3. Release the side camera finisher pawls using a suitable tool,

disconnect the harness connector from the side camera, then

remove the side camera finisher.

: Pawl

4. Remove the screws (1) and the side camera (2).

INSTALLATION

Installation is in the reverse order of removal.

ALLIA1121ZZ

AWNIA2558ZZ
