MIR-14

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

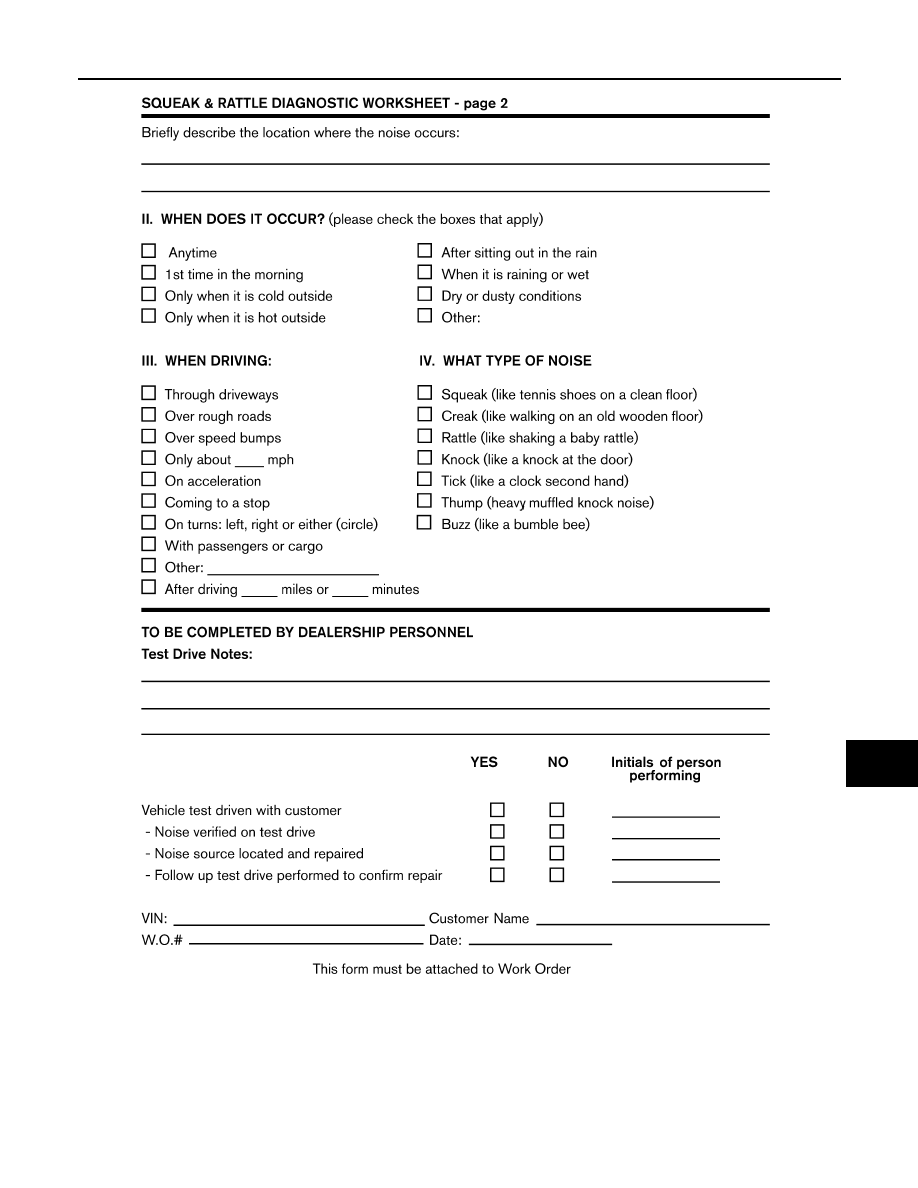

Diagnostic Worksheet

INFOID:0000000009175318

LAIA0072E

SQUEAK AND RATTLE TROUBLE DIAGNOSES

MIR-15

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

LAIA0071E

MIR-16

< REMOVAL AND INSTALLATION >

INSIDE MIRROR

REMOVAL AND INSTALLATION

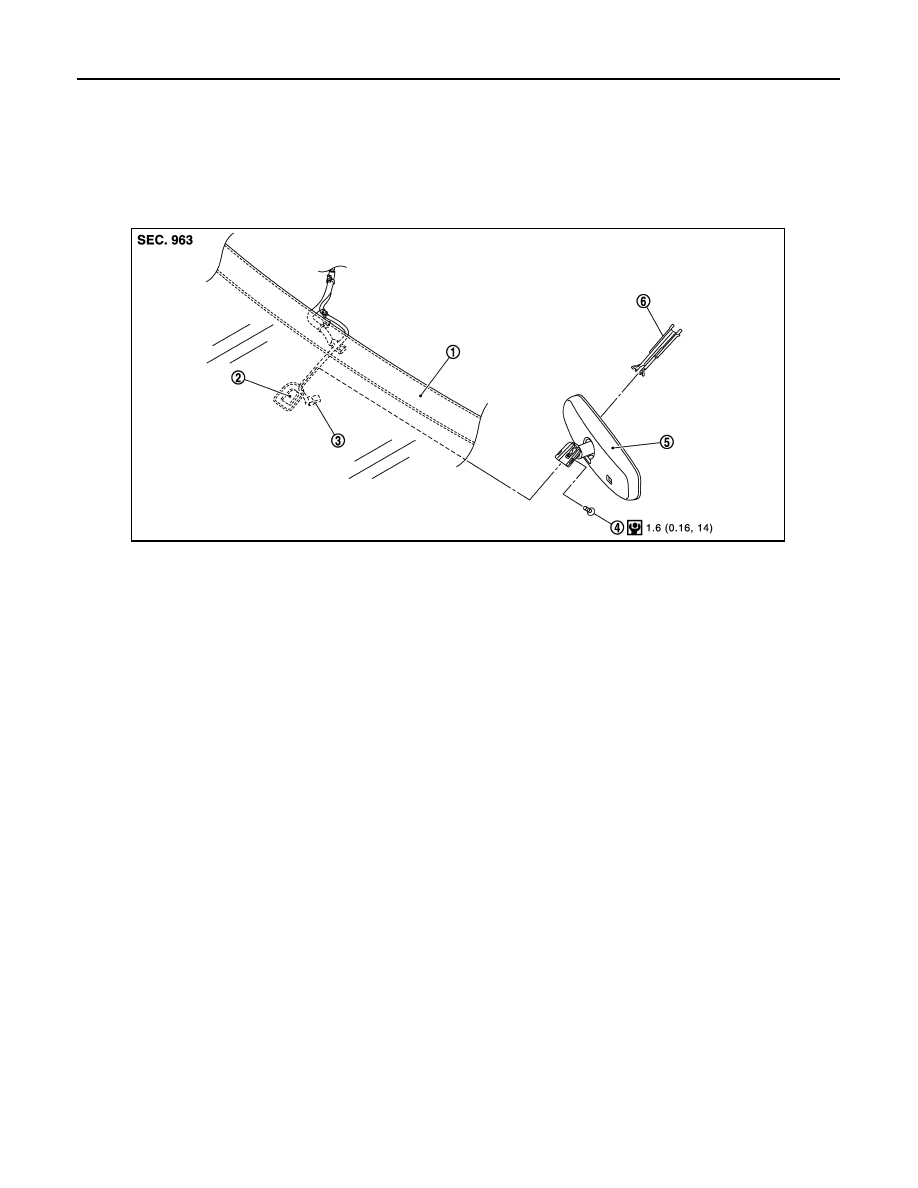

INSIDE MIRROR

Exploded View

INFOID:0000000009175319

Removal and Installation

INFOID:0000000009175320

REMOVAL

1. Remove the inside mirror finisher.
2. Disconnect the harness connector from the inside mirror.
3. Loosen the bolt and slide the inside mirror upward to remove.

INSTALLATION

Installation is in the reverse order of removal.

1.

Windshield glass

2.

Mirror base

3.

Harness connector

4.

Bolt

5.

Inside mirror

6.

Inside mirror finisher

JMLIA0906GB

DOOR MIRROR

MIR-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

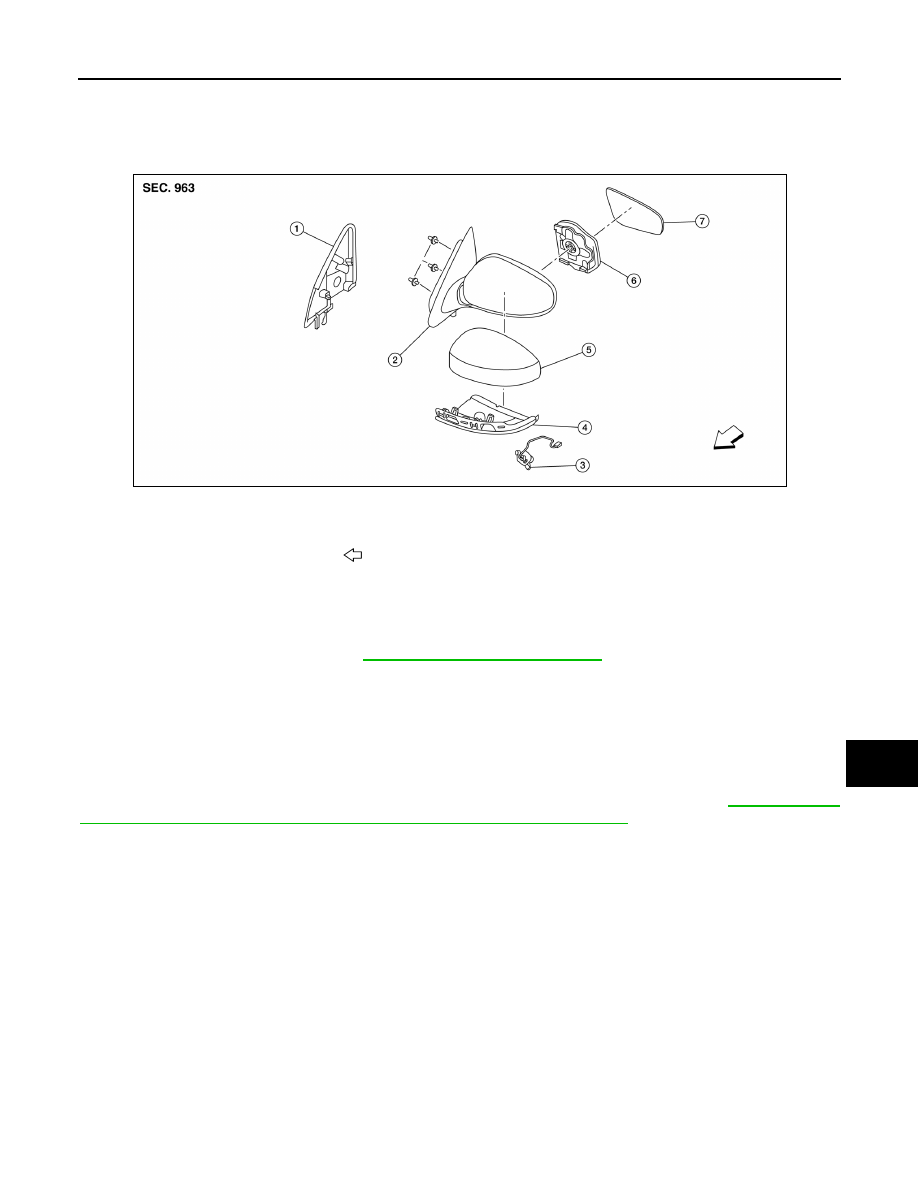

DOOR MIRROR

Exploded View

INFOID:0000000009175321

Removal and Installation

INFOID:0000000009175322

REMOVAL

1. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove the door mirror corner finisher.
3. Disconnect the harness connector from the door mirror.
4. Remove door mirror nuts and the door mirror.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Perform camera image calibration (if equipped with around view camera). Refer to

AV-494, "CALI-

BRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure"

.

1.

Door mirror corner finisher

2.

Door mirror housing

3.

Side camera (if equipped)

4.

Side camera finisher (if equipped)

5.

Door mirror rear finisher

6.

Door mirror actuator

7.

Door mirror glass

Front

ALLIA1118ZZ
