CHASSIS AND BODY MAINTENANCE
MA-43
< PERIODIC MAINTENANCE >
C
D
E
F
G
H
I
J
K
L
M
B
MA
N
O
A

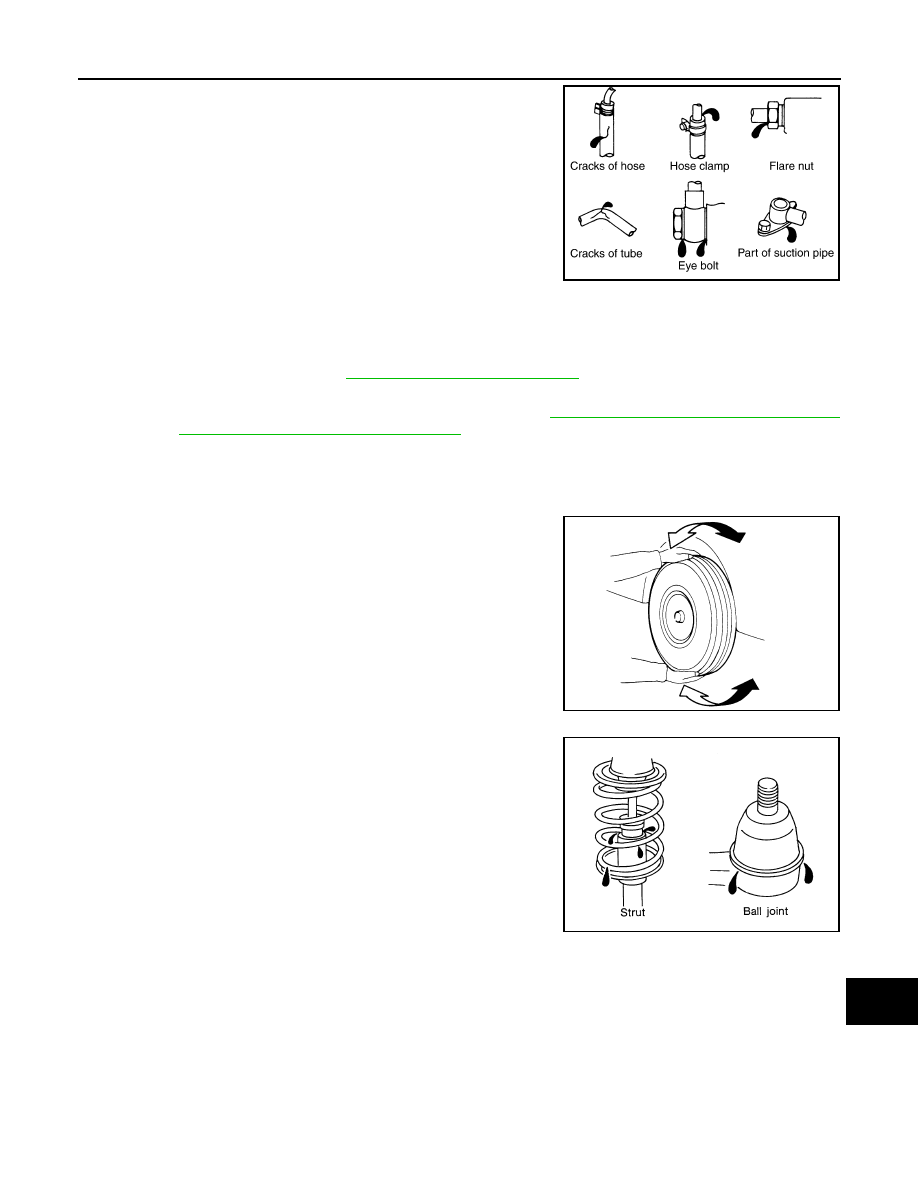

Check the power steering hydraulic system for leaks, cracks, dam-
age, loose connections, chafing or deterioration. Repair or replace
as necessary.
1. Start engine and allow engine to idle.
2. Turn steering wheel right-to-left several times.
3. Hold steering wheel at each “lock” position for five seconds to
check fluid leakage.
CAUTION:
Do not hold steering wheel in a locked position for more
than 10 seconds. Damage to power steering oil pump may
occur.
4. If power steering fluid leakage at connections is noticed, loosen flare nut and retighten.
CAUTION:
Do not over tighten flare nut as damage to O-ring and connection can occur.
5. If power steering fluid leakage from the power steering oil pump is noticed, repair connection or replace
power steering oil pump. Refer to
ST-52, "Removal and Installation"
6. Check steering gear boots for accumulation of power steering fluid. Power steering fluid indicates a leak
from the power steering gear, replace as necessary. Refer to
ST-48, "Removal and Installation - 2WD"
(FWD) or
ST-49, "Removal and Installation - 4WD"
(AWD).
AXLE AND SUSPENSION PARTS
AXLE AND SUSPENSION PARTS : Inspection
INFOID:0000000009174209
Check front and rear axle and suspension parts for excessive play,
cracks, wear or other damage.
• Shake each wheel to check for excessive play.
• Check wheel bearings for smooth operation.
• Check axle and suspension nuts and bolts for looseness.
• Check strut (shock absorber) for oil leakage or other damage.
• Check suspension ball joint for grease leakage and ball joint dust
cover for cracks or other damage.
DRIVE SHAFT
SGIA0506E
SMA525A
SFA392B
