ILLUMINATION

INL-43

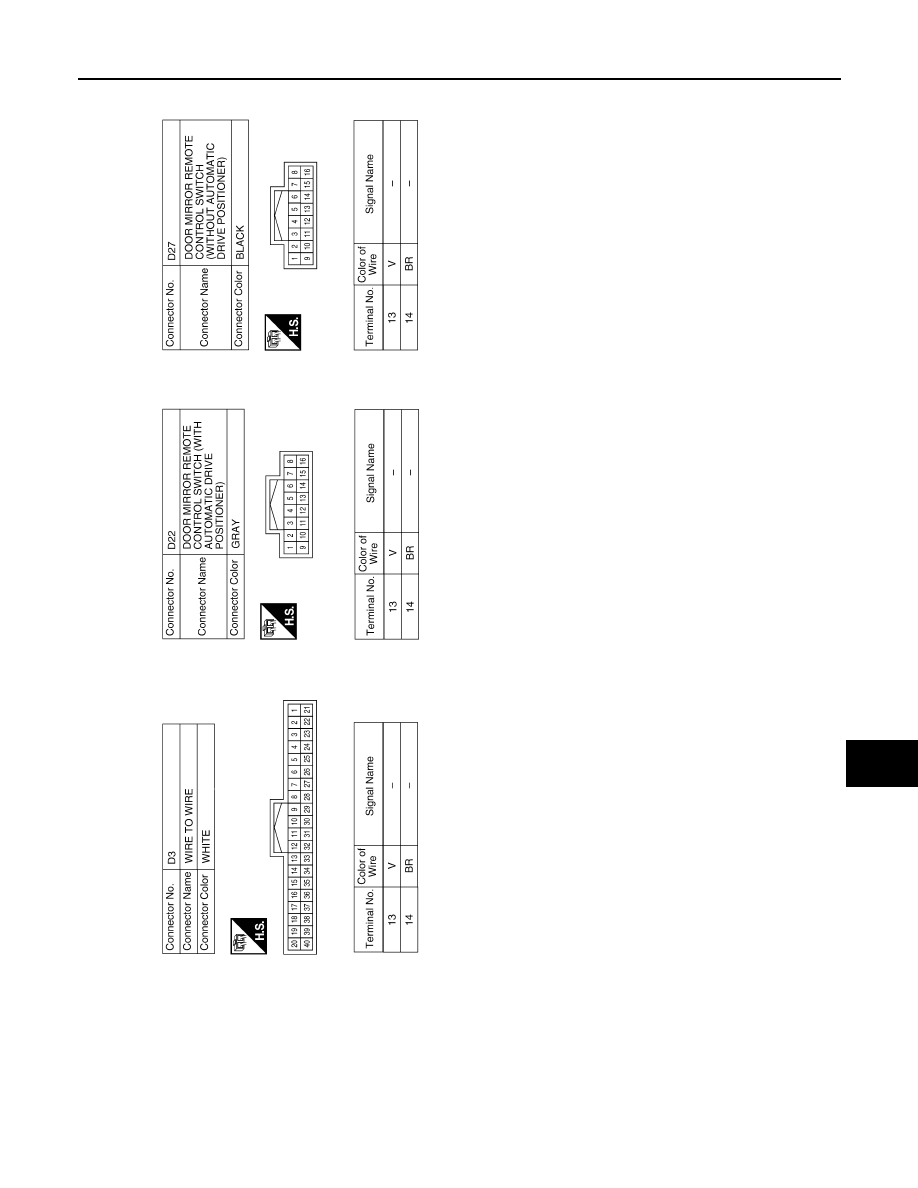

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ABLIA5081GB

INL-44

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009175438

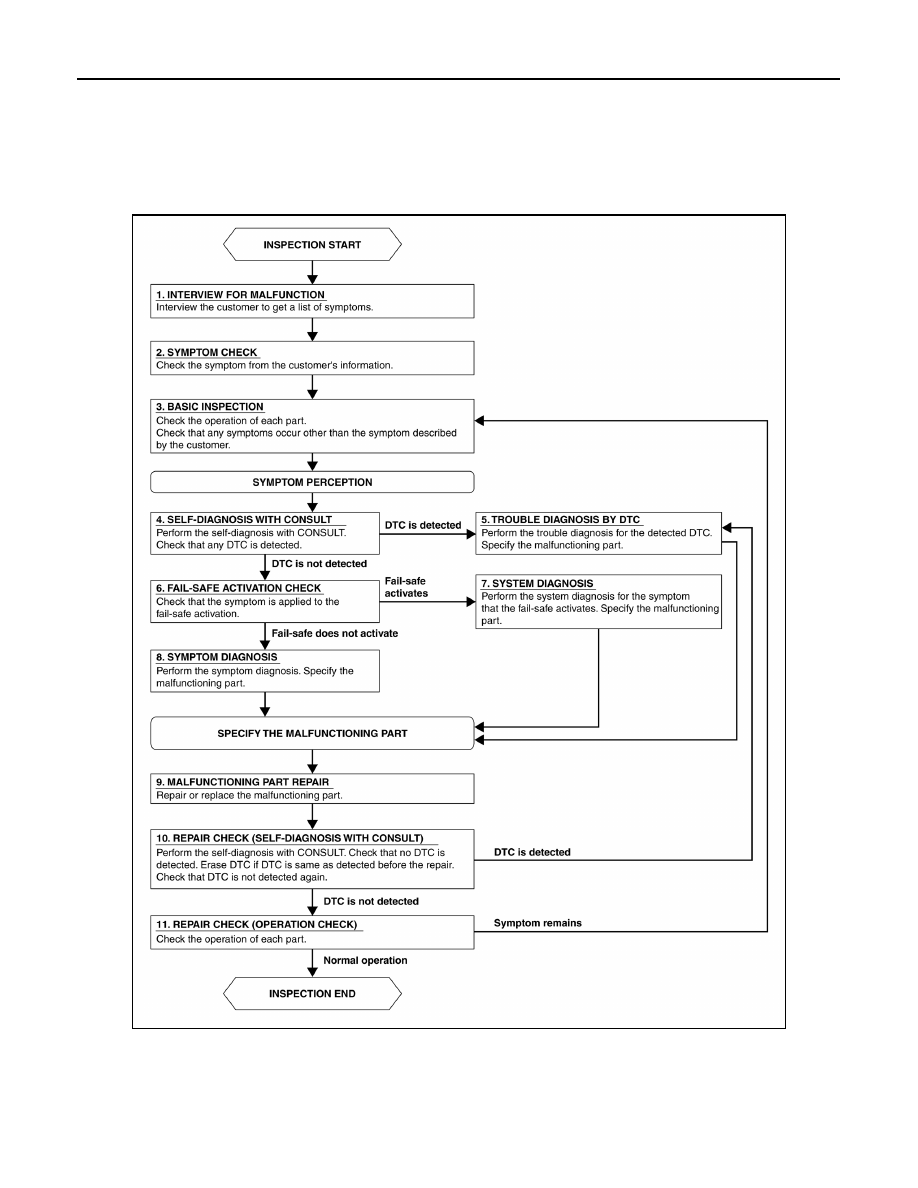

OVERALL SEQUENCE

AWLIA1844GB

DIAGNOSIS AND REPAIR WORKFLOW

INL-45

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Find out what the customer's concerns are.

>> GO TO 2.

2.

SYMPTOM CHECK

Verify the symptom from the customer's information.

>> GO TO 3.

3.

BASIC INSPECTION

Check the operation of each part. Check that any concerns occur other than those mentioned in the customer

interview.

>> GO TO 4.

4.

SELF-DIAGNOSIS WITH CONSULT

Perform the self-diagnosis with CONSULT. Check that any DTC is detected.
Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 6.

5.

TROUBLE DIAGNOSIS BY DTC

Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.

>> GO TO 9.

6.

FAIL-SAFE ACTIVATION CHECK

Determine if the customer's concern is related to fail-safe activation.
Does the fail-safe activate?

YES

>> GO TO 7.

NO

>> GO TO 8.

7.

SYSTEM DIAGNOSIS

Perform the system diagnosis for the system in which the fail-safe activates. Specify the malfunctioning part.

>> GO TO 9.

8.

SYMPTOM DIAGNOSIS

Perform the symptom diagnosis, refer to

INL-57, "Symptom Table"

. Specify the malfunctioning part.

>> GO TO 9.

9.

MALFUNCTION PART REPAIR

Repair or replace the malfunctioning part.

>> GO TO 10.

10.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT)

Perform the self-diagnosis with CONSULT. Verify that no DTCs are detected. Erase all DTCs detected prior to

the repair. Verify that DTC is not detected again.
Is any DTC detected?

YES

>> GO TO 5.

INL-46

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

NO

>> GO TO 11.

11.

REPAIR CHECK (OPERATION CHECK)

Check the operation of each part.
Does it operate normally?

YES

>> Inspection End.

NO

>> GO TO 3.
