PRECAUTIONS

INL-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009175423

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Work

INFOID:0000000009175424

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

- Water soluble dirt:

• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

• Then rub with a soft, dry cloth.

- Oily  dirt:

• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty

area.

• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

• Then rub with a soft, dry cloth.

- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

- For genuine leather seats, use a genuine leather seat cleaner.

INL-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009175425

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

COMPONENT PARTS

INL-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

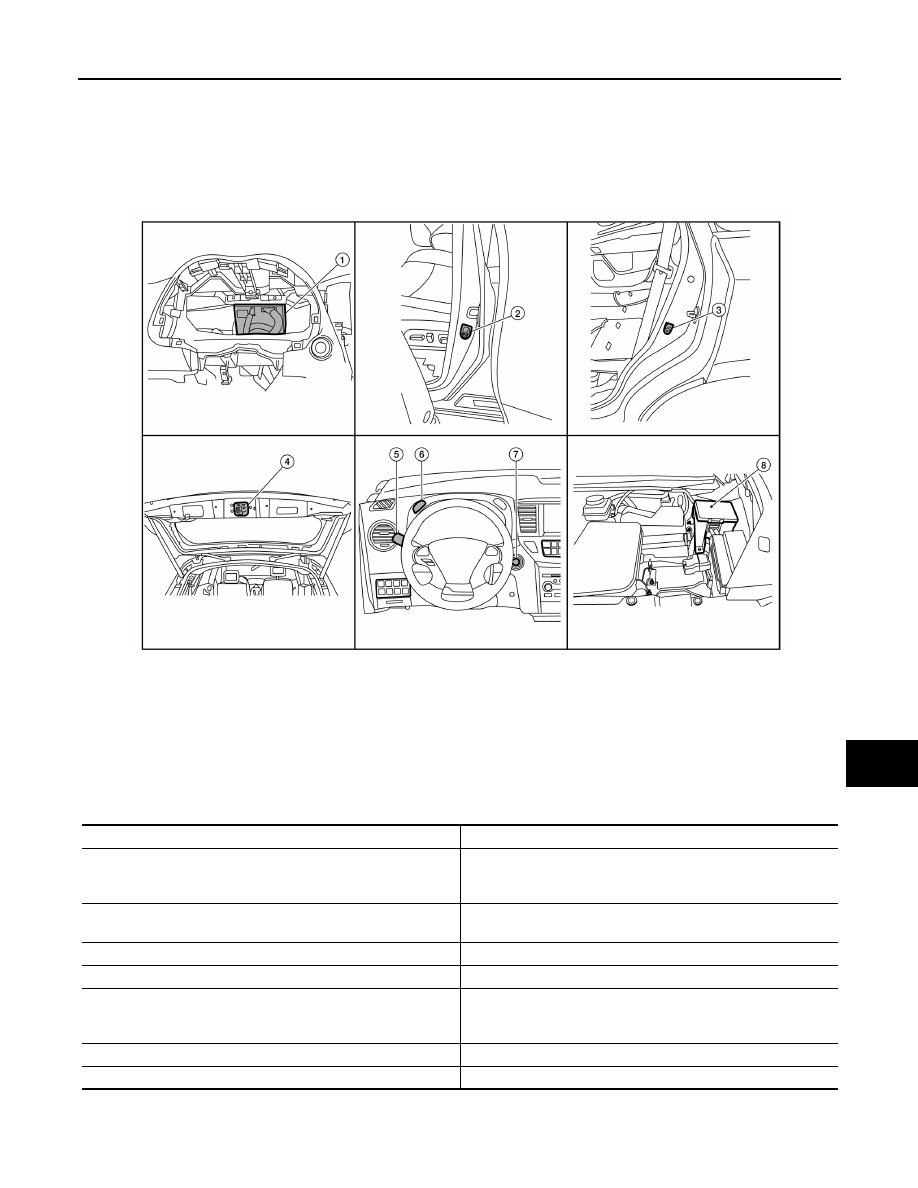

Component Parts Location

INFOID:0000000009175426

Component Description

INFOID:0000000009175427

1.

BCM  (view with combination meter re-
moved)

2.

Front door switch LH
 (RH similar)

3.

Rear door switch LH
(RH similar)

4.

Back door lock assembly
(door ajar switch)

5.

Combination switch
(lighting and turn signal switch)

6.

 Illumination control switch

7.

 Push-button ignition switch

8.

IPDM E/R

AWLIA2020ZZ

Part name

Description

BCM

The BCM monitors the combination switch (lighting and turn signal
switch) position. The BCM requests via CAN communication that
the IPDM E/R activate the tail lamp relay.

IPDM E/R

The IPDM E/R activates the tail lamp relay based on inputs re-
ceived from the BCM via the CAN communication.

Push button ignition switch

Provides ignition status to the BCM.

Door switches

Provides door OPEN/CLOSED status to the BCM.

Combination switch (lighting and turn signal switch)

The combination switch (lighting and turn signal switch) provides
input to the BCM about the combination switch (lighting and turn
signal switch) position.

Back door lock assembly (door ajar switch)

Provides back door OPEN/CLOSED status to the BCM.

Illumination control switch

Controls the meter and illumination system brightness.

INL-6

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

INTERIOR ROOM LAMP CONTROL SYSTEM

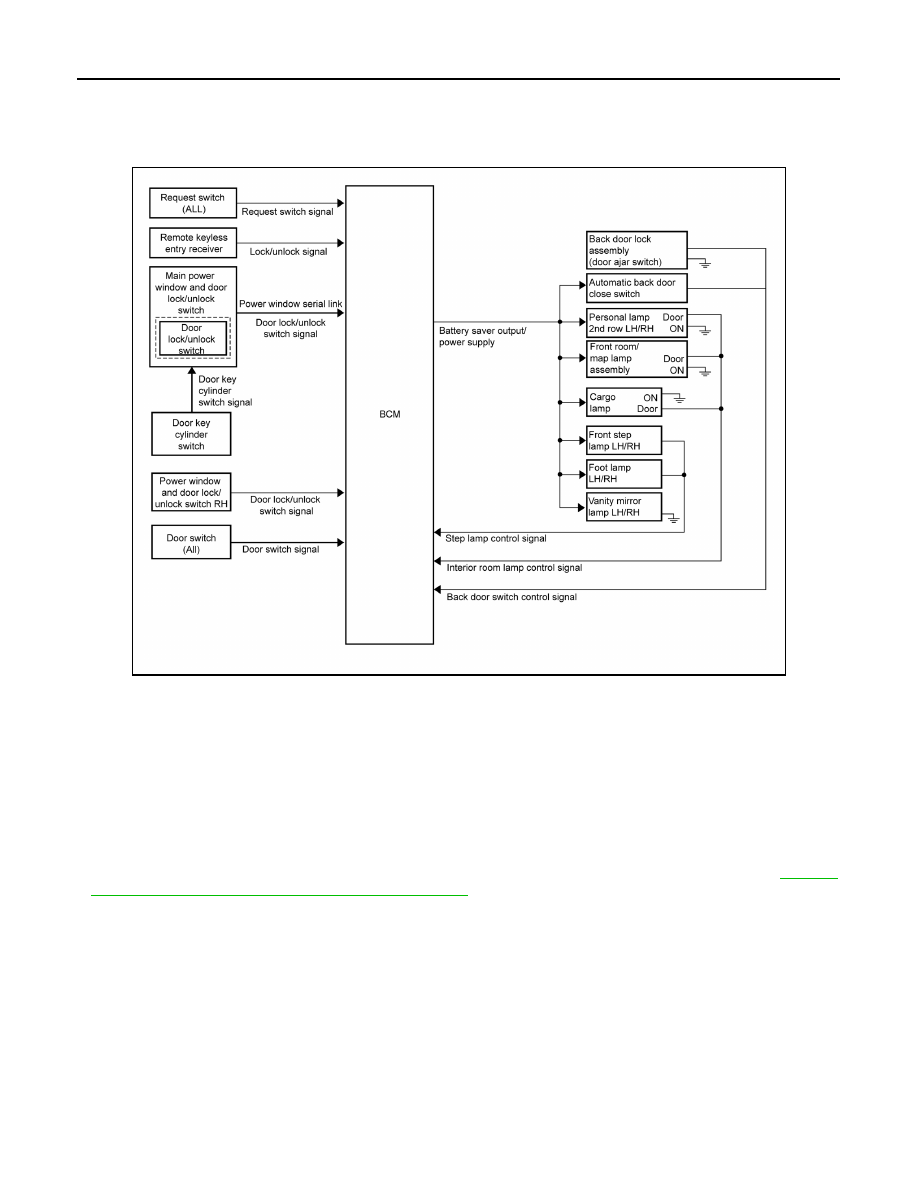

INTERIOR ROOM LAMP CONTROL SYSTEM : System Diagram

INFOID:0000000009175428

INTERIOR ROOM LAMP CONTROL SYSTEM : System Description

INFOID:0000000009175429

OUTLINE

• Front room/map lamp, personal lamp 2nd row and cargo lamp are controlled by the interior room lamp timer

control function of the BCM when the lamp switch is in the DOOR  position.

• Step lamps (if equipped) and foot lamps (if equipped) are controlled by the step lamp control function of the

BCM.

• Push-button ignition switch illumination is controlled by the push-button ignition switch illumination control

function of BCM.

• Interior room lamps are illuminated by the welcome light function of Intelligent Key system. Refer to

DLK-33,

"WELCOME LIGHT FUNCTION : System Description"

ROOM LAMP TIMER OPERATION

When the interior room lamp switch is in the DOOR position and when all conditions below are met, the BCM

begins timer control (maximum 30 seconds) for interior room lamp ON/OFF.

• When the front door LH is unlocked [with Intelligent Key, main power window and door lock/unlock switch,

power window and door lock/unlock switch RH or front door lock assembly LH (key cylinder switch)].

• When a door opens

→ closes.

Timer control is cancelled under the following conditions:

• When the front door LH is locked [with Intelligent Key, main power window and door lock/unlock switch,

power window and door lock/unlock switch RH or front door lock assembly LH (key cylinder switch)].

• A door is opened (door switch turns ON).

• Ignition switch is turned ON.

INTERIOR LAMP BATTERY SAVER CONTROL

AWLIA2018GB
