HRN-6

< WIRING DIAGRAM >

HORN

ABLIA5053GB

HORN

HRN-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

HRN

N

O

P

REMOVAL AND INSTALLATION

HORN

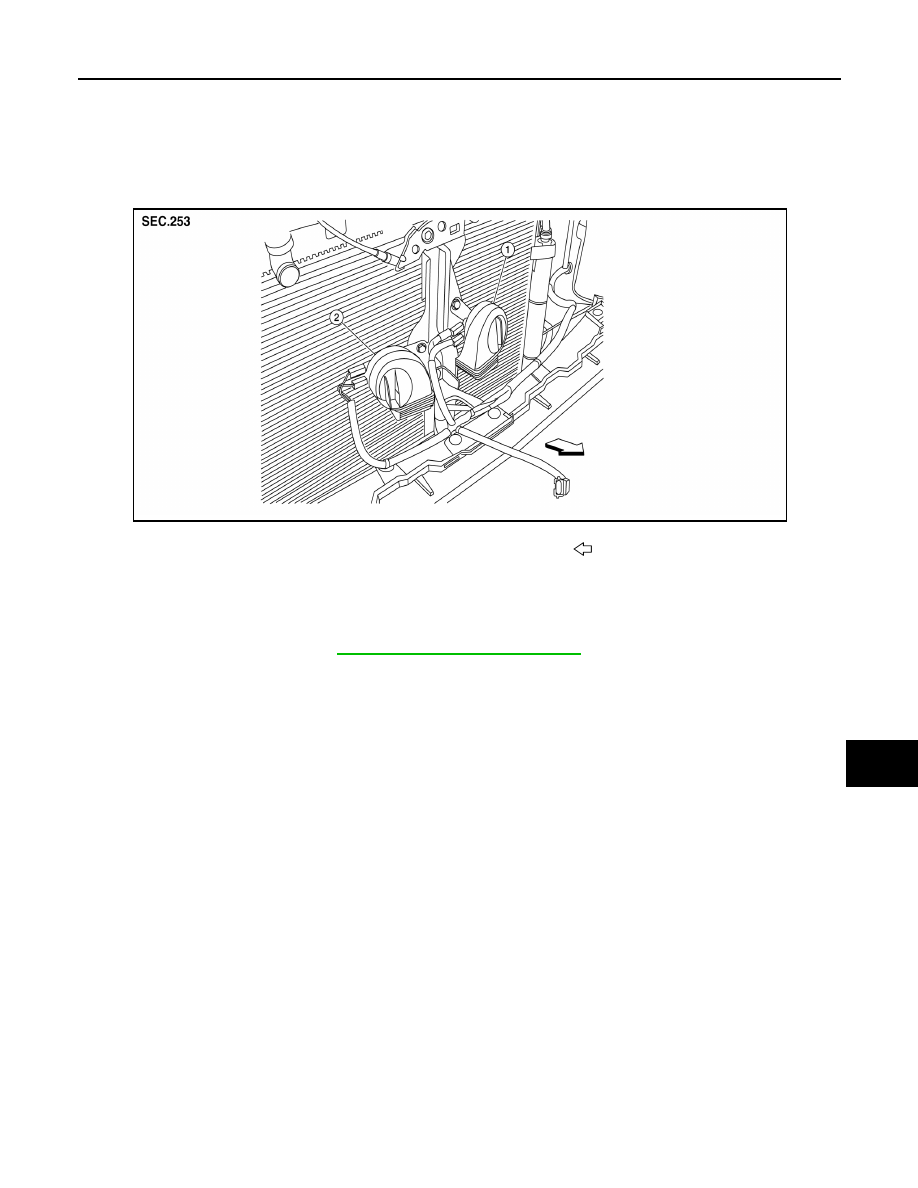

Exploded View

INFOID:0000000009175593

Removal and Installation

INFOID:0000000009175594

REMOVAL

1. Remove the front grille. Refer to

EXT-23, "Removal and Installation"

.

2. Disconnect the harness connectors from the horns (LOW, HIGH).
3. Remove the horn bolts and the horns (LOW, HIGH).

INSTALLATION

Installation is in the reverse order of removal.

1. Horn (HIGH)

2. Horn (LOW)

Front

ALLIA1197ZZ

INL-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

INL

A

B

INL

N

O

P

CONTENTS

INTERIOR LIGHTING SYSTEM

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Precaution for Work  ..................................................

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tool  .................................................

4

SYSTEM DESCRIPTION  ..............................

5

COMPONENT PARTS  ........................................

5

Component Parts Location ........................................

5

Component Description .............................................

5

SYSTEM ..............................................................

6

INTERIOR ROOM LAMP CONTROL SYSTEM  ..........

6

INTERIOR ROOM LAMP CONTROL SYSTEM :
System Diagram ........................................................

6

INTERIOR ROOM LAMP CONTROL SYSTEM :
System Description  ...................................................

6

ILLUMINATION CONTROL SYSTEM .........................

7

ILLUMINATION CONTROL SYSTEM : System
Diagram .....................................................................

7

ILLUMINATION CONTROL SYSTEM : System
Description ................................................................

7

DIAGNOSIS SYSTEM (BCM)  .............................

8

COMMON ITEM ...........................................................

8

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) .......................................................

8

INT LAMP  ....................................................................

9

INT LAMP : CONSULT Function (BCM - INT
LAMP) .......................................................................

9

BATTERY SAVER  .....................................................

10

BATTERY SAVER : CONSULT Function (BCM -
BATTERY SAVER) ..................................................

10

ECU DIAGNOSIS INFORMATION ..............

11

BCM ...................................................................

11

List of ECU Reference .............................................

11

WIRING DIAGRAM ......................................

12

INTERIOR ROOM LAMP CONTROL SYSTEM

...

12

Wiring Diagram ........................................................

12

ILLUMINATION .................................................

26

Wiring Diagram ........................................................

26

BASIC INSPECTION  ...................................

44

DIAGNOSIS AND REPAIR WORKFLOW  ........

44

Work Flow ................................................................

44

DTC/CIRCUIT DIAGNOSIS  .........................

47

POWER SUPPLY AND GROUND CIRCUIT  ....

47

BCM ...........................................................................

47

BCM : Diagnosis Procedure  ....................................

47

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM)  ..............................

47

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) : Diagnosis Pro-
cedure ......................................................................

47

BATTERY SAVER OUTPUT/POWER SUP-
PLY CIRCUIT  ....................................................

49

Description ...............................................................

49

Component Function Check  ....................................

49

Diagnosis Procedure  ...............................................

49

INL-2

INTERIOR ROOM LAMP CONTROL CIRCUIT

...

51

Description ..............................................................

51

Component Function Check  ...................................

51

Diagnosis Procedure  ..............................................

51

STEP LAMP CIRCUIT  .......................................

53

Description ..............................................................

53

Component Function Check  ...................................

53

Diagnosis Procedure  ..............................................

53

PUSH-BUTTON IGNITION SWITCH ILLUMI-
NATION CIRCUIT  ..............................................

55

Description ..............................................................

55

Component Function Check  ...................................

55

Diagnosis Procedure  ..............................................

55

SYMPTOM DIAGNOSIS  .............................

57

INTERIOR LIGHTING SYSTEM SYMPTOMS ...

57

Symptom Table  ......................................................

57

REMOVAL AND INSTALLATION ...............

58

FRONT ROOM/MAP LAMP ASSEMBLY ..........

58

Exploded View ........................................................

58

Removal and Installation  ........................................

58

Bulb or Lens Replacement  .....................................

59

VANITY LAMP  ...................................................

60

Exploded View ........................................................

60

Removal and Installation  ........................................

60

Bulb or Lens Replacement  .....................................

60

GLOVE BOX LAMP ...........................................

61

Exploded View ........................................................

61

Bulb Replacement ...................................................

61

FOOT LAMP  ......................................................

62

DRIVER SIDE  ............................................................

62

DRIVER SIDE : Exploded View  ..............................

62

DRIVER SIDE : Removal and Installation ...............

62

DRIVER SIDE : Bulb Replacement .........................

62

PASSENGER SIDE  ...................................................

62

PASSENGER SIDE : Exploded View  .....................

63

PASSENGER SIDE : Bulb Replacement ................

63

FRONT STEP LAMP  .........................................

64

Exploded View  ........................................................

64

Removal and Installation .........................................

64

Bulb or Lens Replacement ......................................

64

PERSONAL LAMP  ............................................

65

Removal and Installation .........................................

65

Bulb or Lens Replacement ......................................

65

CARGO LAMP ...................................................

66

Exploded View  ........................................................

66

Removal and Installation .........................................

66

Bulb or Lens Replacement ......................................

66

ILLUMINATION CONTROL SWITCH  ...............

67

Removal and Installation .........................................

67

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

68

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

68

Bulb Specifications ..................................................

68
