Nissan Pathfinder. Manual - part 725

INTAKE SENSOR

HAC-161

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

INTAKE SENSOR

Removal and Installation

INFOID:0000000009176901

The intake sensor is not serviced separately. Refer to

HA-45, "EVAPORATOR : Removal and Installation -

Front Evaporator"

.

HAC-162

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

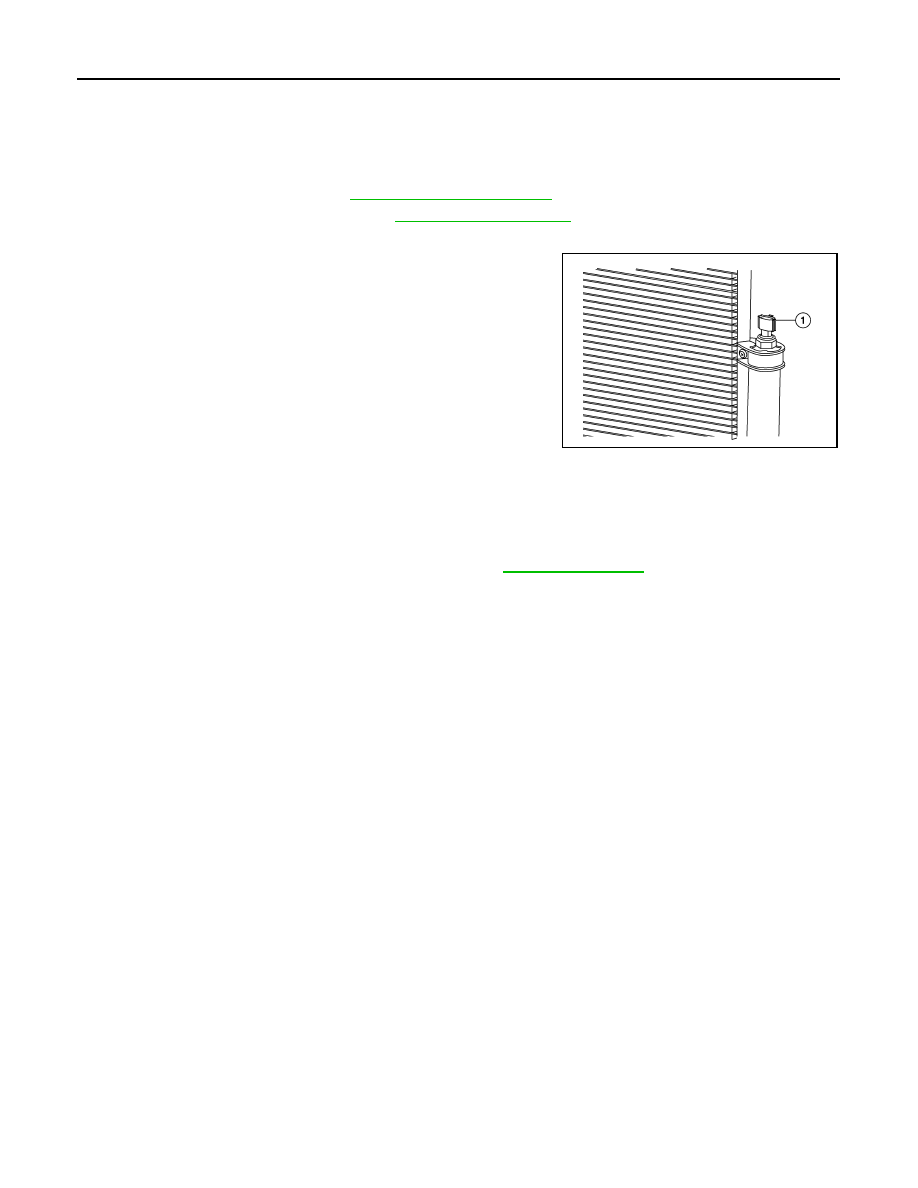

REFRIGERANT PRESSURE SENSOR

REFRIGERANT PRESSURE SENSOR

Removal and Installation

INFOID:0000000009176902

REMOVAL

1. Discharge the refrigerant. Refer to

HA-23, "Recycle Refrigerant"

.

2. Remove the core support cover. Refer to

EXT-16, "Exploded View"

.

3. Disconnect the harness connector from the refrigerant pressure sensor.
4. Remove the refrigerant pressure sensor (1).

CAUTION:

Cap or wrap the opening of the refrigerant pressure sensor

with suitable material such as vinyl tape to avoid the entry

of air.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply A/C oil to the O-ring of the refrigerant pressure sensor for installation.

• After charging the refrigerant, check for leaks. Refer to

HA-21, "Leak Test"

.

ALIIA0698ZZ

DOOR MOTOR

HAC-163

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

DOOR MOTOR

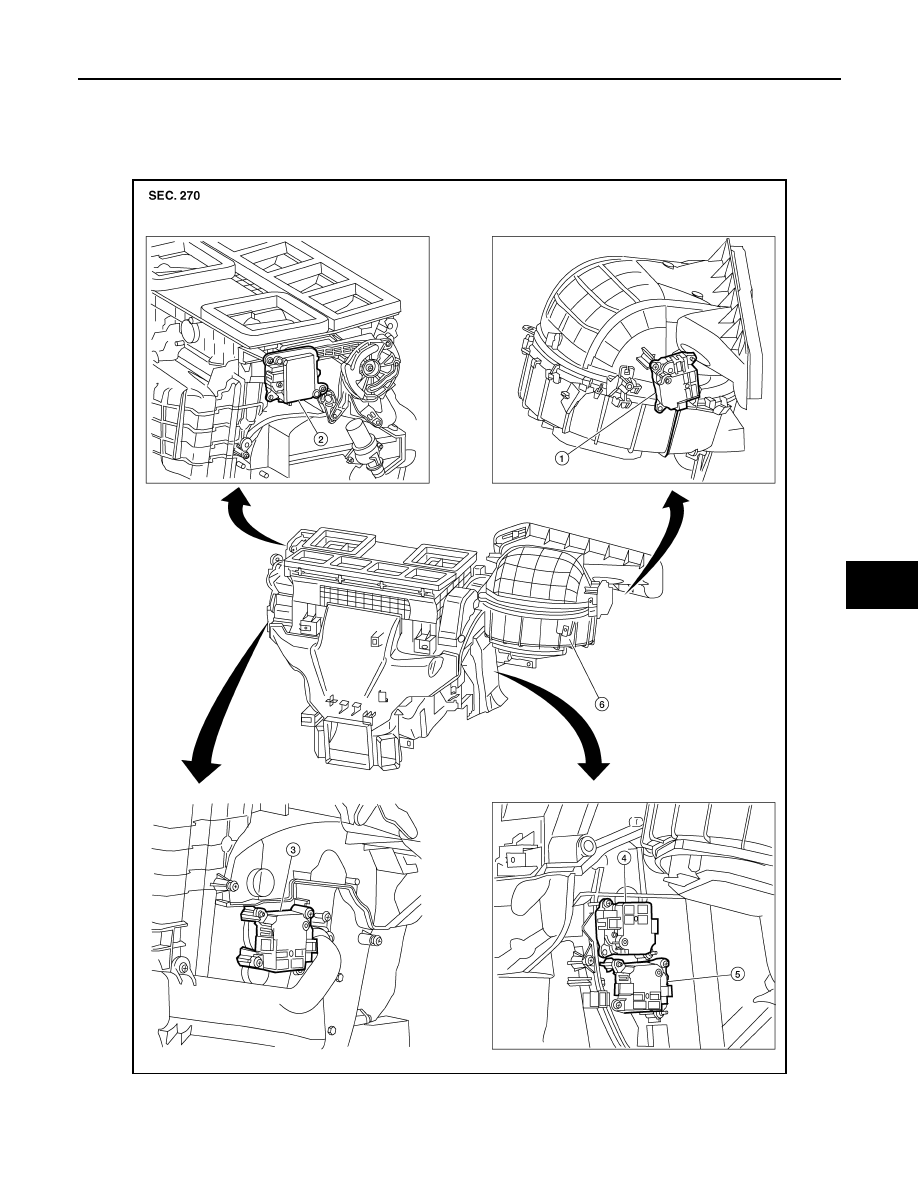

Exploded View

INFOID:0000000009176903

Front Door Motors

AWIIA1700ZZ

1. Intake door motor

2. Mode door motor (front)

3. Air mix door motor (driver side)

4. Air mix door motor (passenger side)

5. Air mix door motor (rear)

6. Front heating and cooling unit assembly

HAC-164

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

DOOR MOTOR

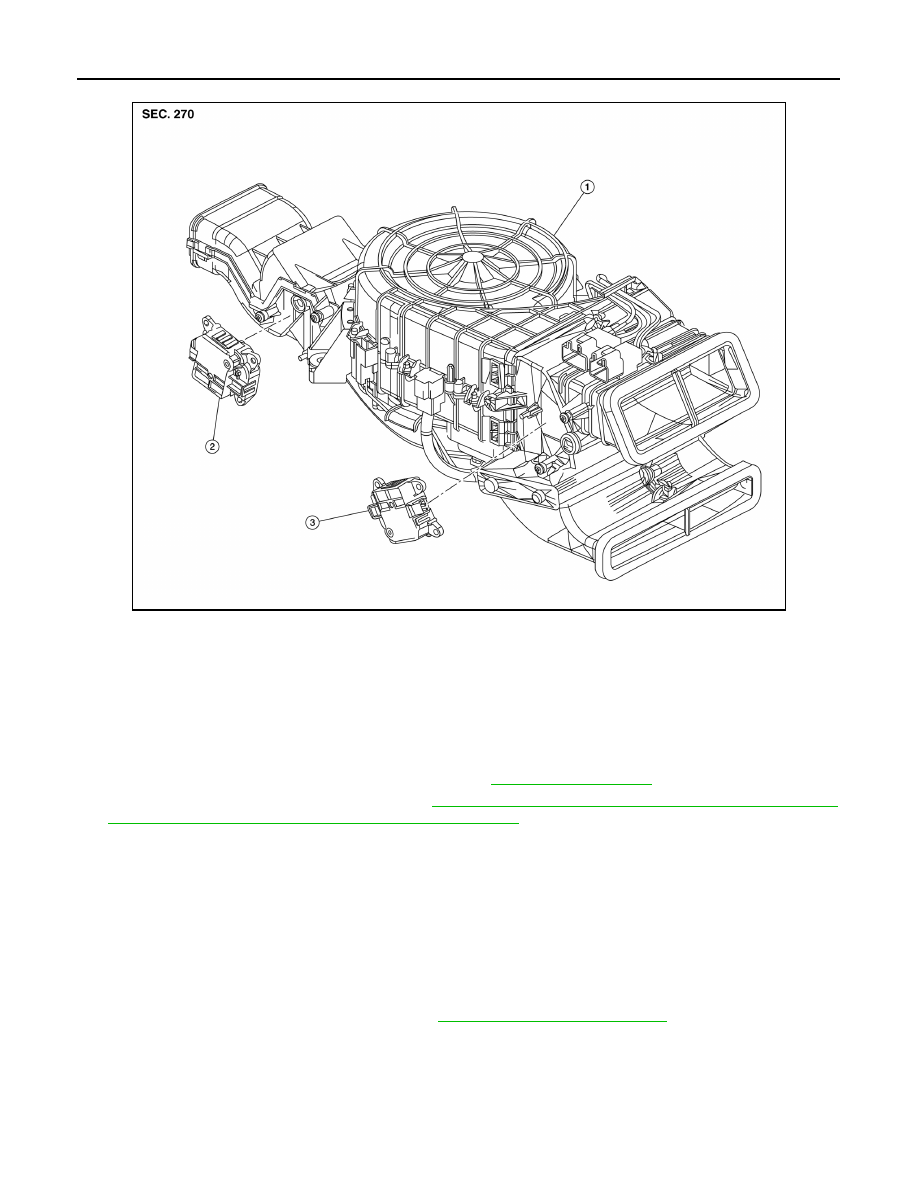

Rear Door Motors

MODE DOOR MOTOR
MODE DOOR MOTOR : Removal and Installation - Mode Door Motor (Front)

INFOID:0000000009176904

REMOVAL

1. Remove the center console side finisher (LH). Refer to

IP-18, "Exploded View"

.

2. Remove the front foot duct (LH). Refer to

HA-41, "HEATING AND COOLING UNIT ASSEMBLY :

Exploded View - Front Heating and Cooling Unit Assembly"

.

3. Remove the mode door motor (front) screws.
4. Disconnect the harness connector from the mode door motor (front) and remove.

INSTALLATION

Installation is in the reverse order of removal.

MODE DOOR MOTOR : Removal and Installation - Mode Door Motor (Rear)

INFOID:0000000009176905

REMOVAL

1. Remove the center console assembly. Refer to

IP-18, "Removal and Installation"

.

2. Disconnect the harness connectors from the PTC heater.
3. Remove the screws from the mode door motor (rear).
4. Disconnect the harness connector from the mode door motor (rear) and remove.

INSTALLATION

Installation is in the reverse order of removal.

AWIIA1623ZZ

1. Rear blower motor 1 unit assembly

2. Rear shut-off door motor

3. Mode door motor (rear)
