A/C AUTO AMP.

HAC-157

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

A/C AUTO AMP.

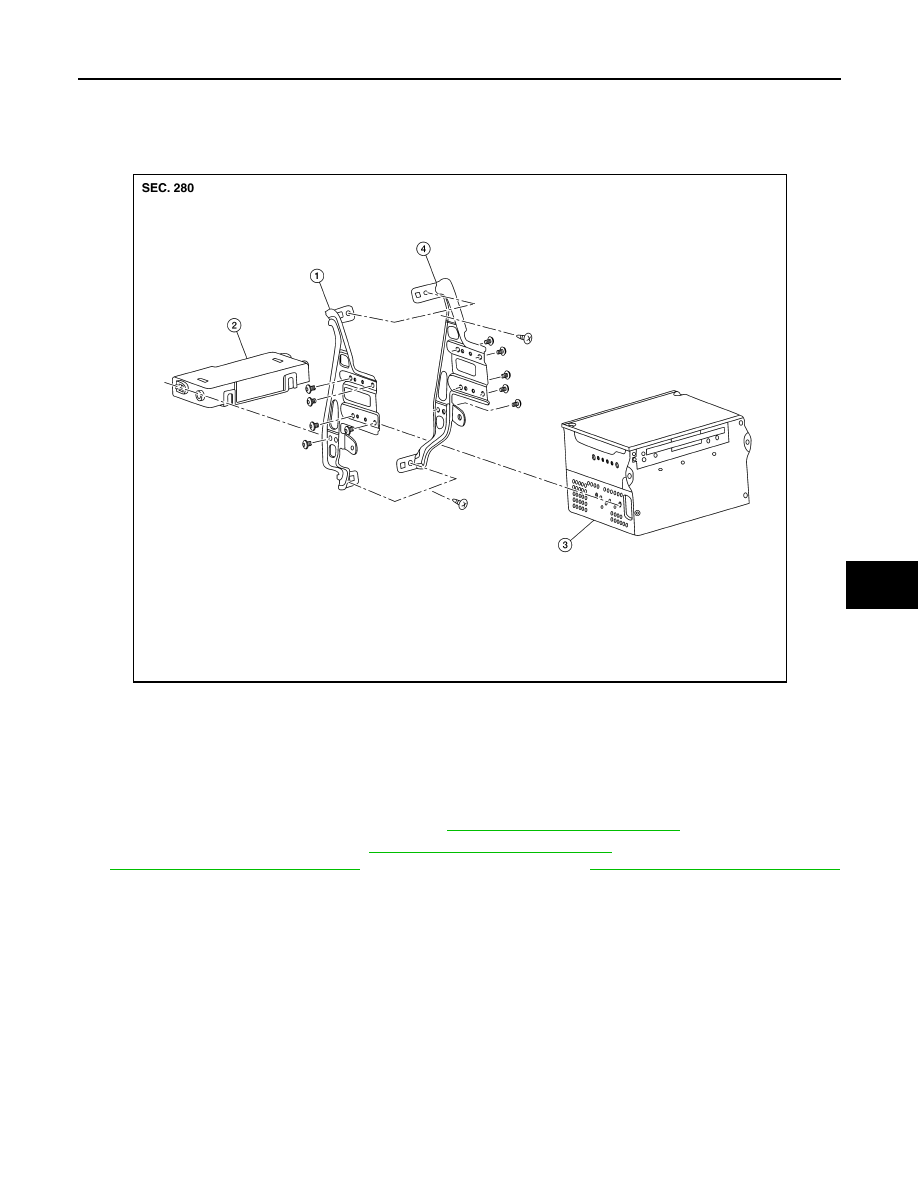

Exploded View

INFOID:0000000009176896

Removal and Installation

INFOID:0000000009176897

REMOVAL

1. Remove the audio unit (BASE AUDIO). Refer to

AV-46, "Removal and Installation"

2. Remove the AV control unit. Refer to

AV-187, "Removal and Installation"

 (MID AUDIO WITHOUT BOSE),

AV-365, "Removal and Installation"

 (MID AUDIO WITH BOSE) or

AV-611, "Removal and Installation"

(PREMIUM AUDIO WITH NAVIGATION).

3. Remove the screws and one of the AV control unit brackets (LH or RH).
4. Remove the A/C auto amp.

INSTALLATION

Installation is in the reverse order of removal.

1.

AV control unit bracket (LH)

2.

A/C auto amp.

3.

AV control unit

4.

AV control unit bracket (RH)

ALNIA1436ZZ

HAC-158

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

AMBIENT SENSOR

AMBIENT SENSOR

Removal and Installation

INFOID:0000000009176898

REMOVAL

1. Remove the core support cover. Refer to

EXT-16, "Exploded View"

.

2. Disconnect the harness connector from the ambient sensor.

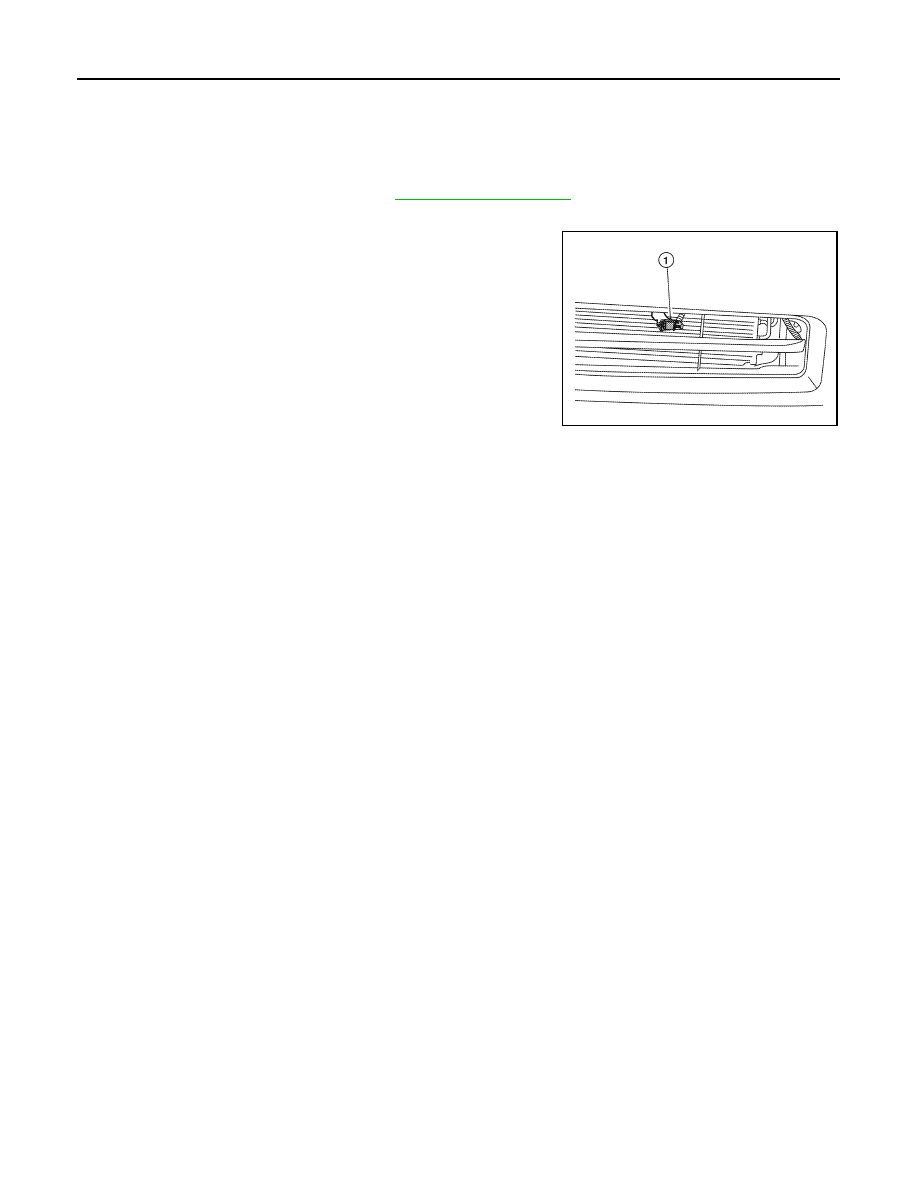

3. Release the ambient sensor clip, then remove the ambient sen-

sor (1).

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0314ZZ

IN-VEHICLE SENSOR

HAC-159

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

IN-VEHICLE SENSOR

Removal and Installation

INFOID:0000000009176899

REMOVAL

1. Remove instrument lower panel LH. Refer to

IP-25, "Removal and Installation"

.

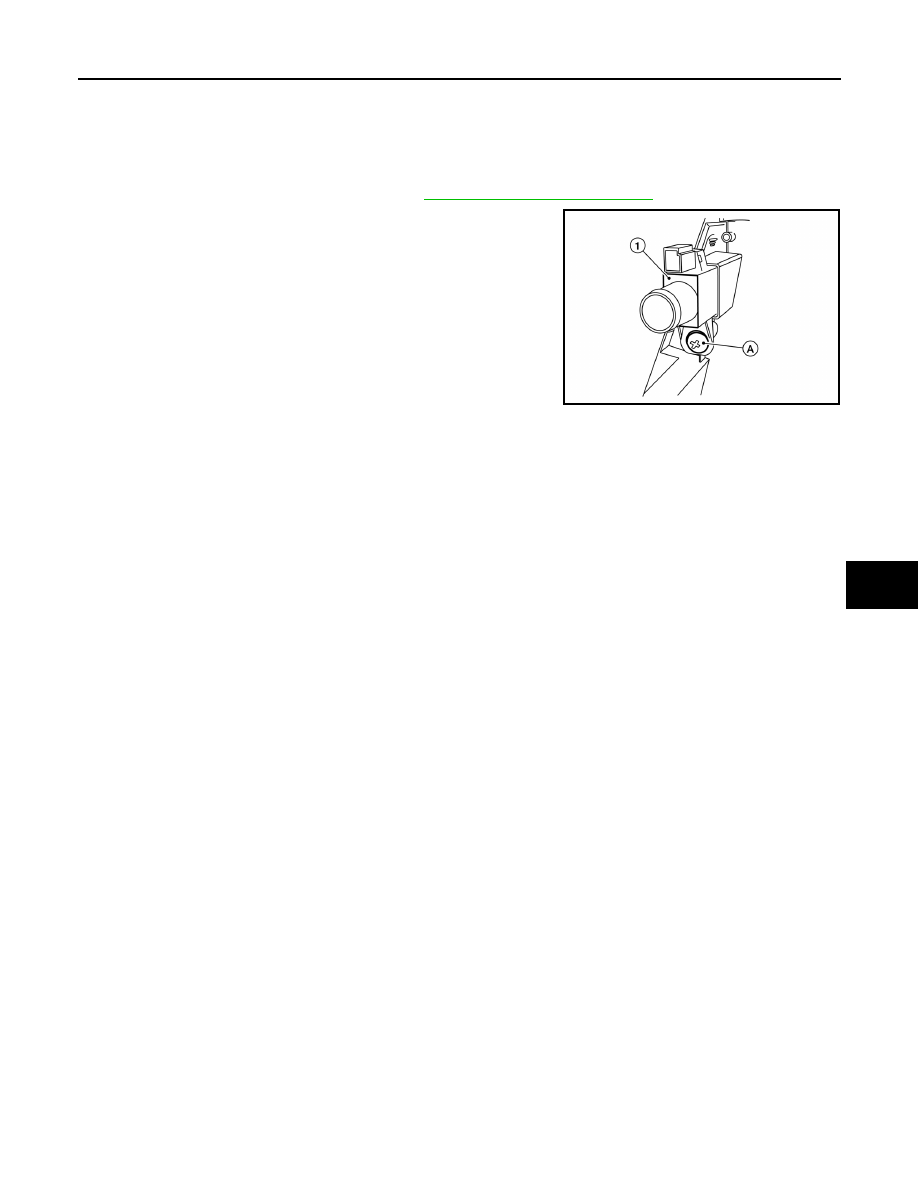

2. Remove the screw (A), and in-vehicle sensor (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Make sure that the aspirator hose is securely attached to the in-vehicle sensor when installing the

instrument lower panel LH.

ALIIA0570ZZ

HAC-160

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

SUNLOAD SENSOR

SUNLOAD SENSOR

Removal and Installation

INFOID:0000000009176900

REMOVAL

1. Remove the instrument panel tweeter grille LH. Refer to

IP-14, "Exploded View"

.

2. Disconnect the harness connector from the sunload sensor.

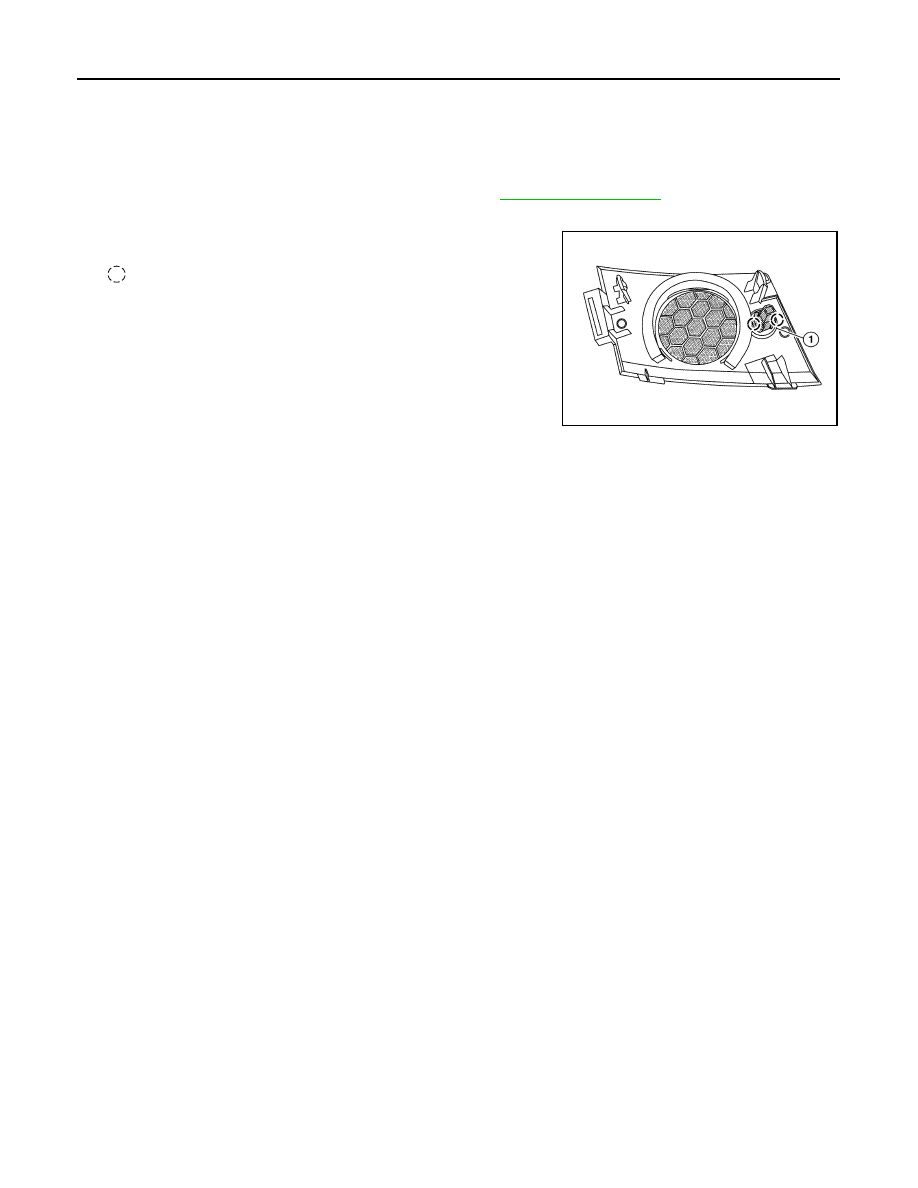

3. Release the pawls, then remove sunload sensor (1) from the

instrument panel tweeter grille LH.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

AWIIA1622ZZ
