Nissan Pathfinder. Manual - part 623

FRONT GRILLE

EXT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

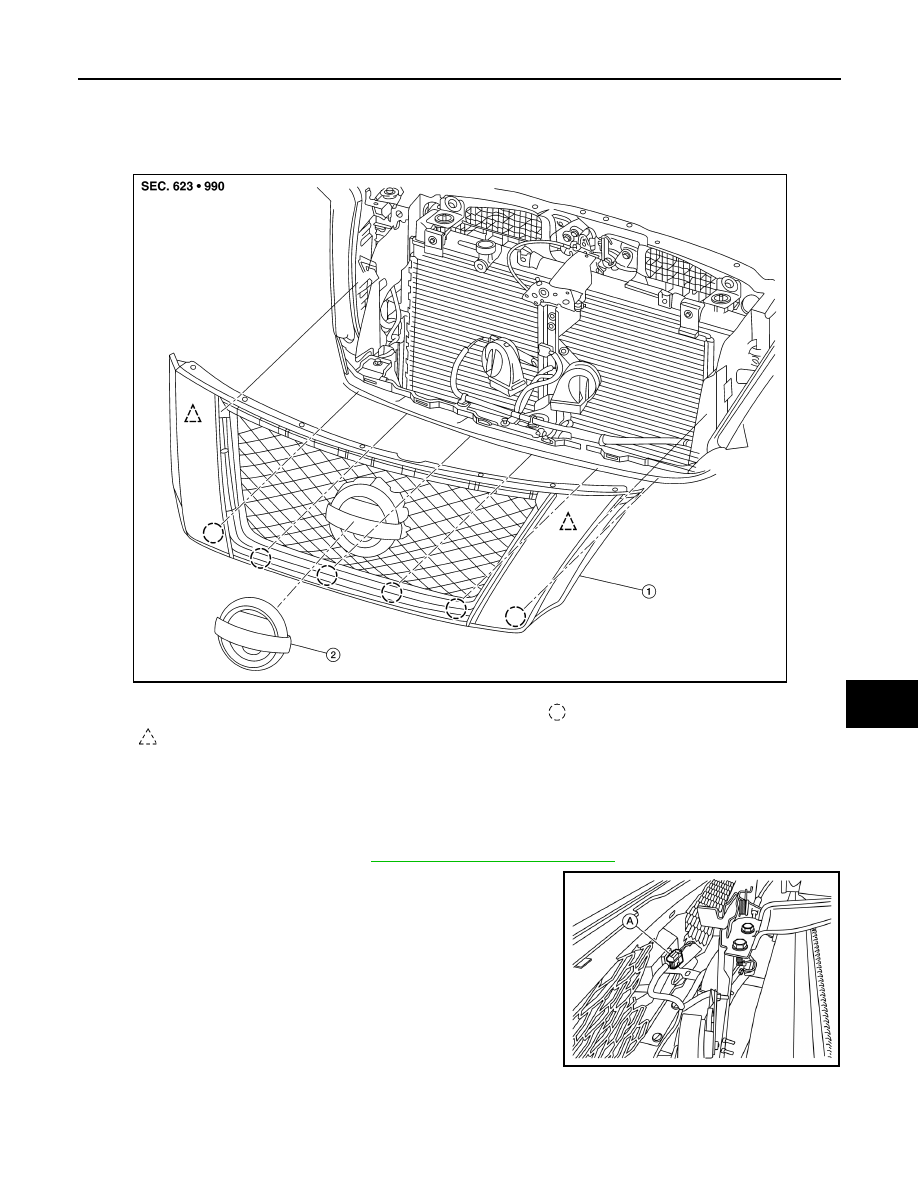

FRONT GRILLE

Exploded View

INFOID:0000000009176338

Removal and Installation

INFOID:0000000009176339

REMOVAL

1. Open hood.
2. Remove core support cover. Refer to

EXT-17, "Removal and Installation"

.

3. Disconnect the harness connector (A) from front camera (if

equipped).

1. Front grille

2. Front emblem

Pawl

Clip

AWKIA2131ZZ

ALKIA2900ZZ

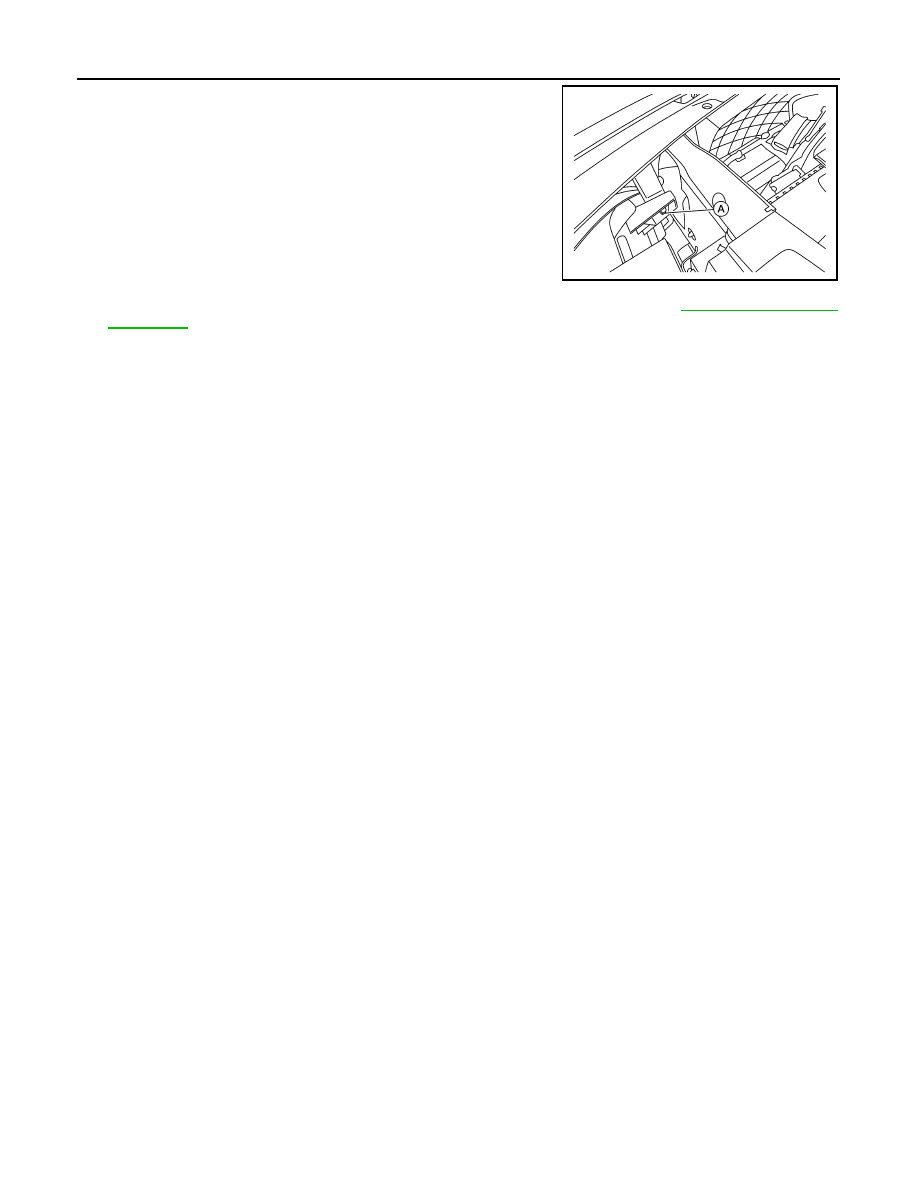

EXT-24

< REMOVAL AND INSTALLATION >

FRONT GRILLE

4. Release the front grille clip (A) (LH/RH).
5. Release the pawls and remove the front grille.

6. Remove the front emblem and front camera (if equipped) from front grille. Refer to

AV-630, "Removal and

Installation"

.

INSTALLATION

Installation is in the reverse order of removal.

ALKIA2901ZZ

COWL TOP

EXT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

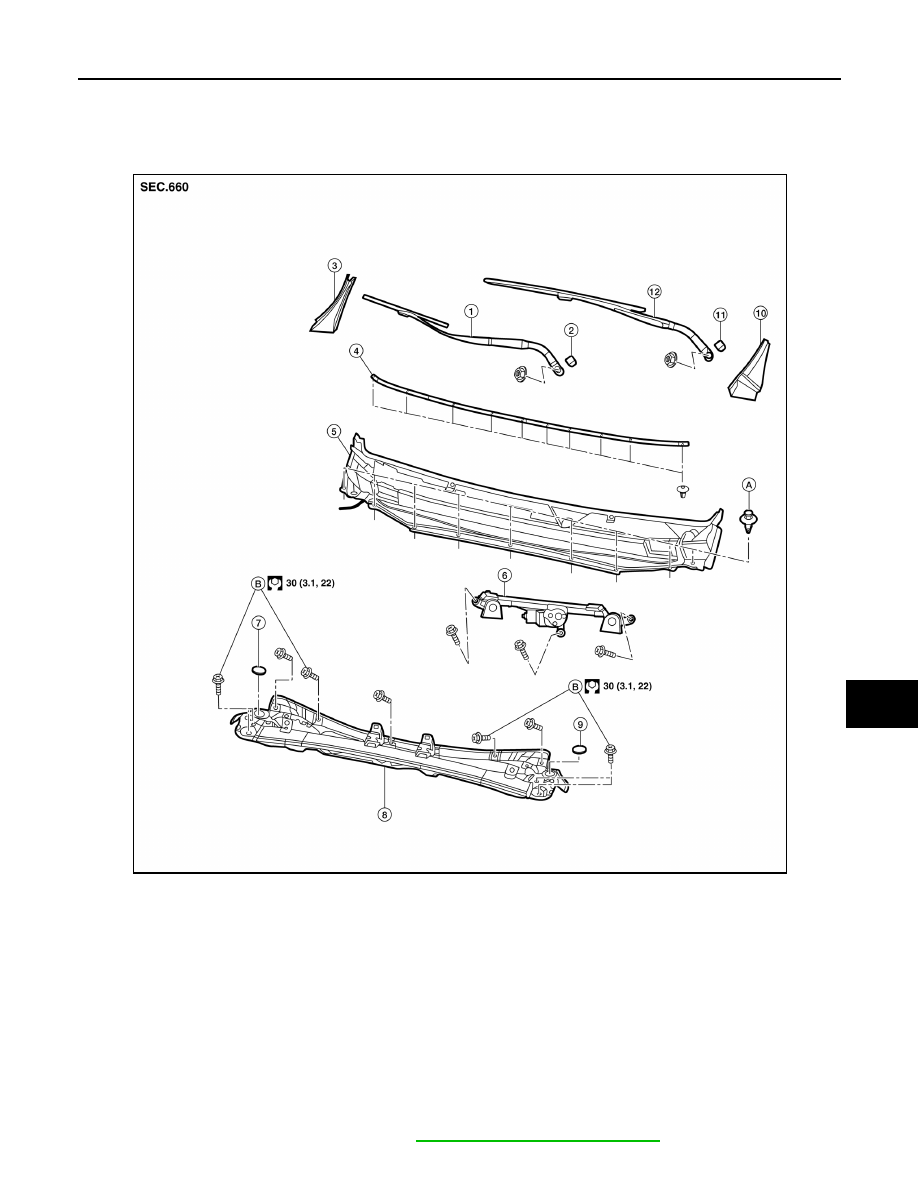

COWL TOP

Exploded View

INFOID:0000000009176340

Removal and Installation

INFOID:0000000009176341

COWL TOP COVER

Removal

1. Remove front wiper arms (LH/RH). Refer to

WW-62, "Removal and Installation"

.

1.

Wiper arm and blade assembly
(RH)

2.

Wiper arm cap (RH)

3.

Cowl top side trim cover (RH)

4.

Cowl top seal

5.

Cowl top cover

6.

Front wiper drive assembly

7.

Rubber plug (RH)

8.

Cowl top extension

9.

Rubber plug (LH)

10. Cowl top side trim cover (LH)

11. Wiper arm cap (LH)

12 Wiper arm and blade assembly

(LH)

A.

Clip

B.

Refer to installation

AWKIA2907ZZ

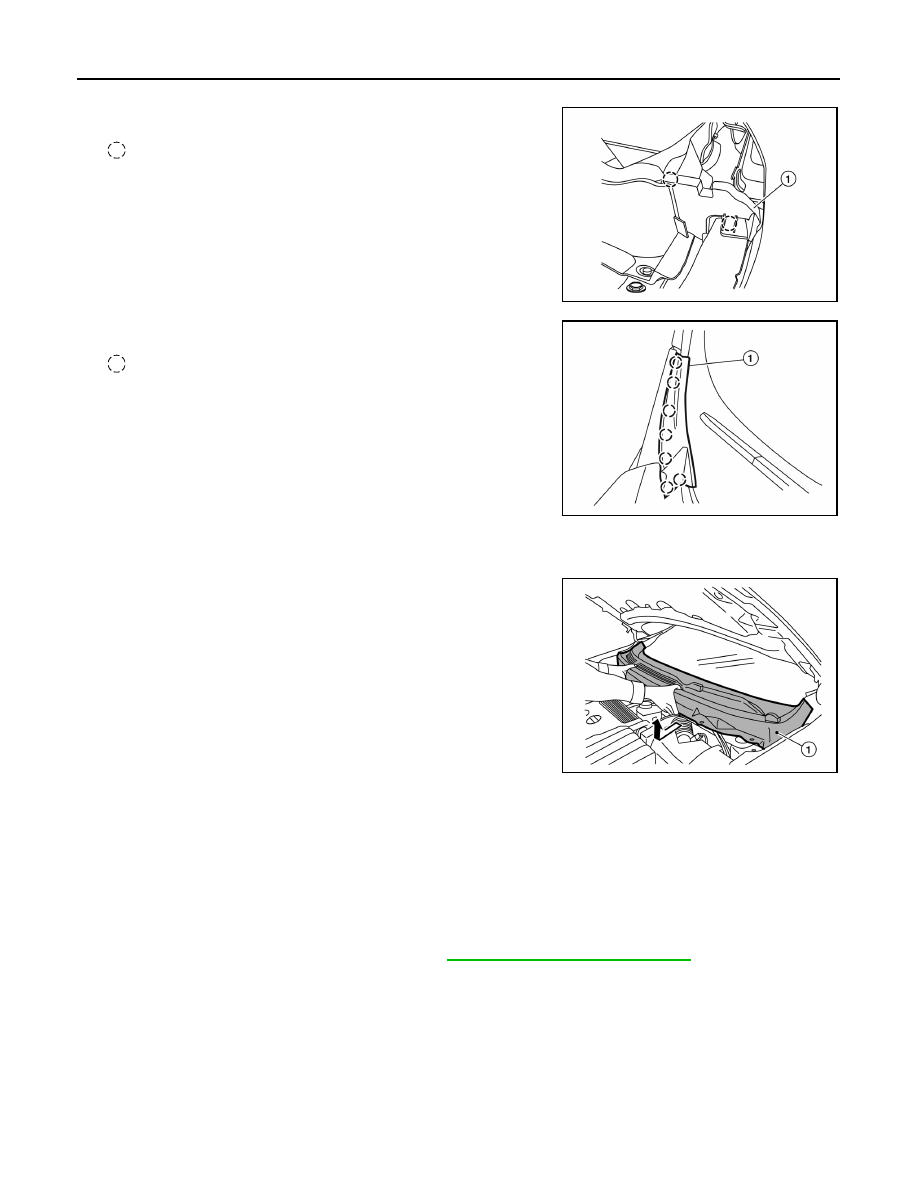

EXT-26

< REMOVAL AND INSTALLATION >

COWL TOP

2. Release the cowl top seal clips and remove.
3. Release pawls using a suitable tool and remove hood ledge fin-

isher (1).

: Pawl

4. Release the pawls, then remove cowl top side trim covers (1)

(LH/RH).

: Pawl

5. Disconnect front washer tube connector.
6. Remove cowl top cover clips.
7. Pull forward to release cowl top cover (1) and remove.

8. Remove the following parts after removing cowl top cover.

• Front washer nozzle (LH/RH)

• Front washer tube

Installation

Installation is in the reverse order of removal.

COWL TOP EXTENSION

Removal

1. Remove the front wiper drive assembly. Refer to

WW-65, "Removal and Installation"

.

CAUTION:

When performing any procedure after removing cowl top cover, cover the lower end of windshield

glass with urethane etc.

ALKIA2909ZZ

ALKIA2444ZZ

AWKIA2095ZZ
