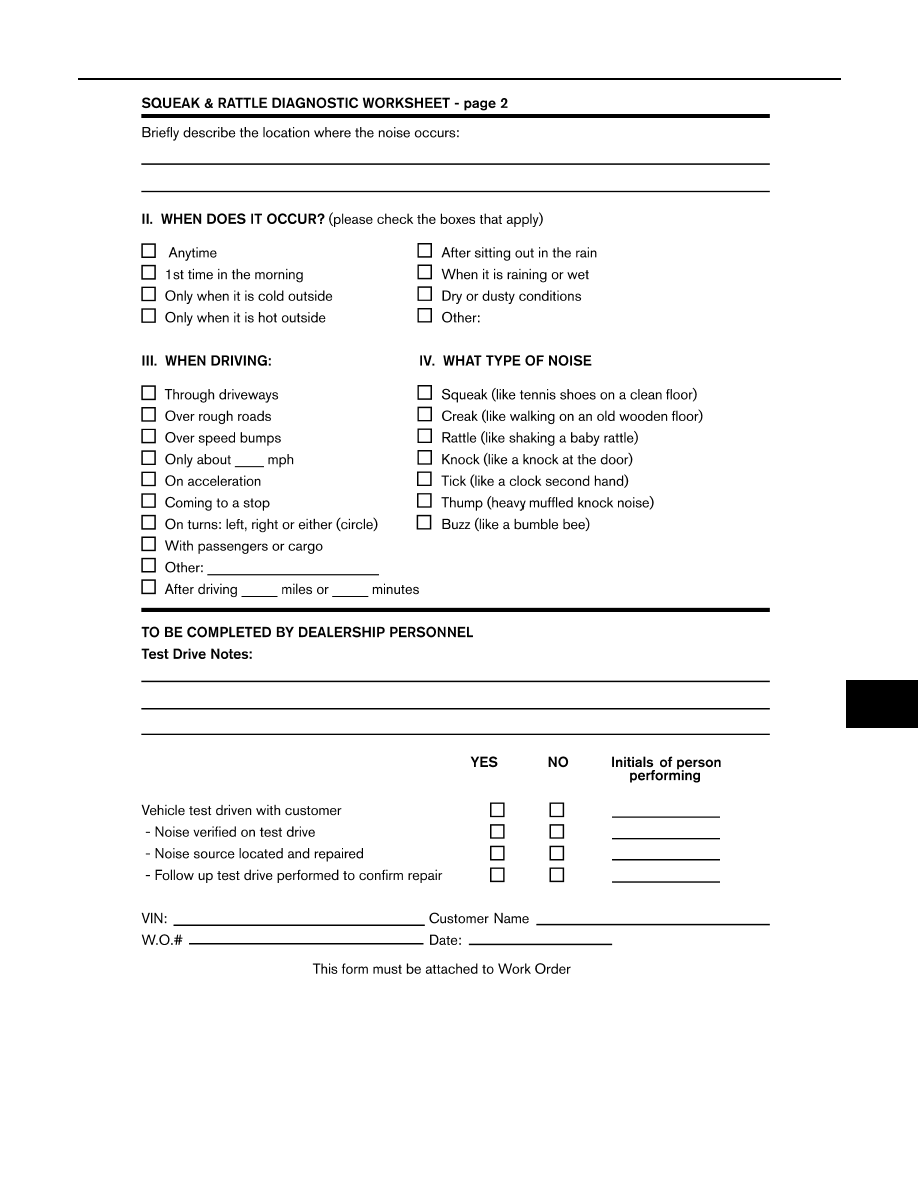

SQUEAK AND RATTLE TROUBLE DIAGNOSES

EXT-15

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

LAIA0071E

EXT-16

< REMOVAL AND INSTALLATION >

FRONT BUMPER

REMOVAL AND INSTALLATION

FRONT BUMPER

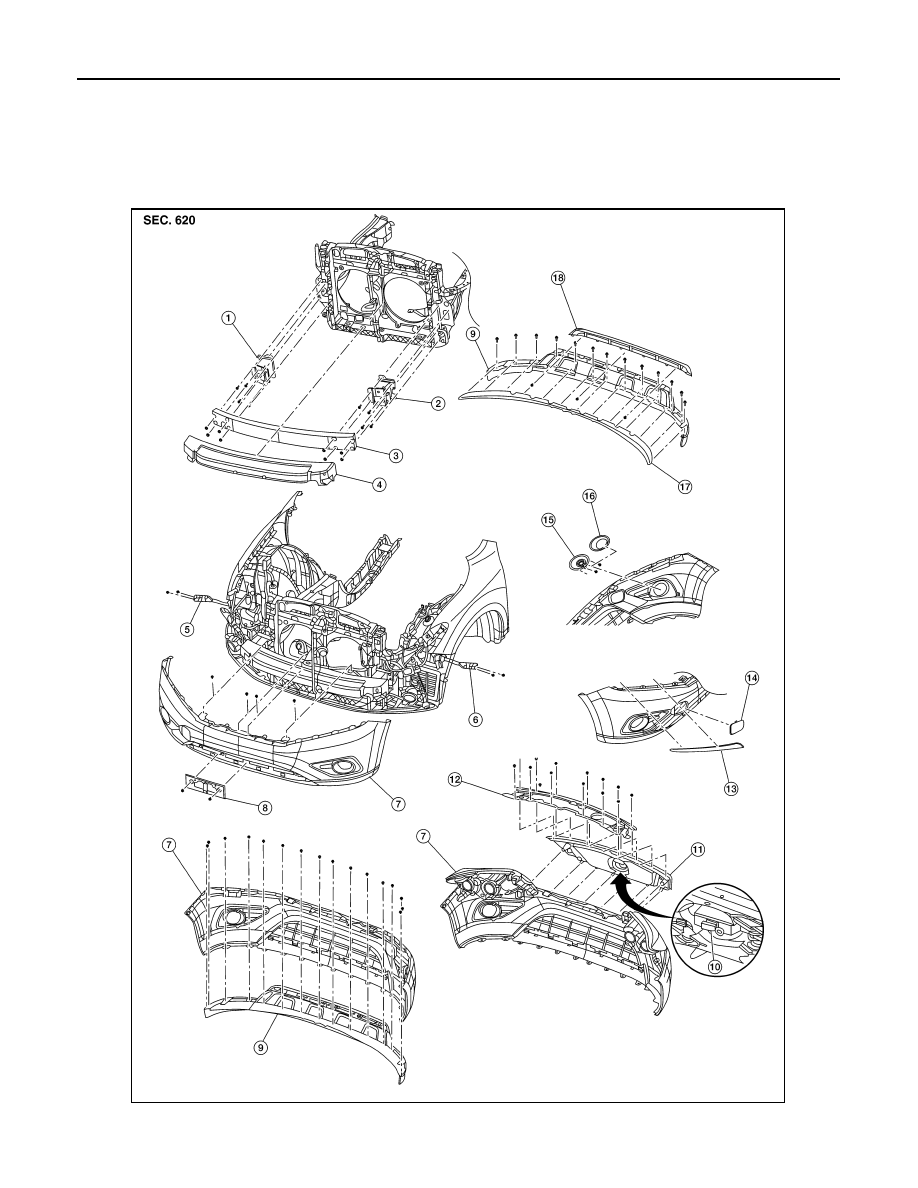

Exploded View

INFOID:0000000009176334

AWKIA2642ZZ

FRONT BUMPER

EXT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

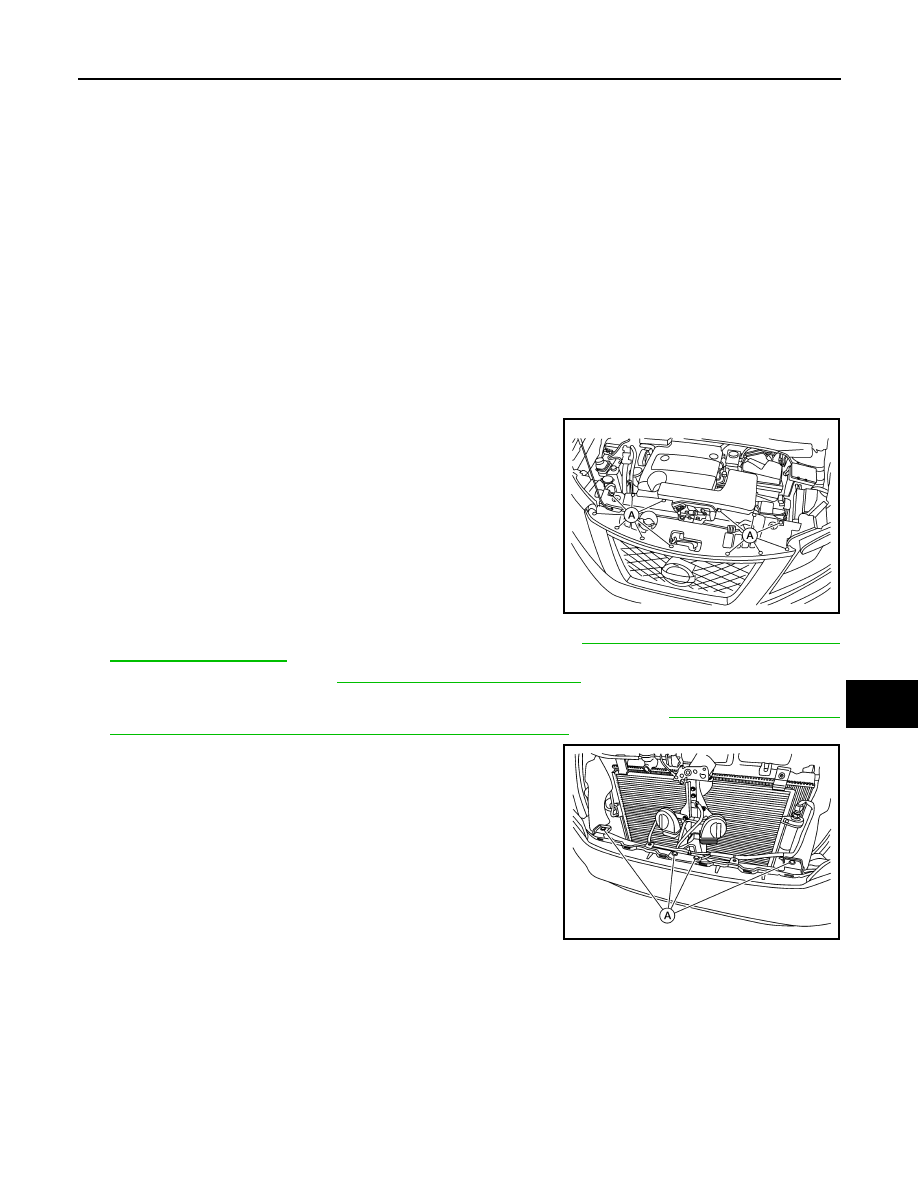

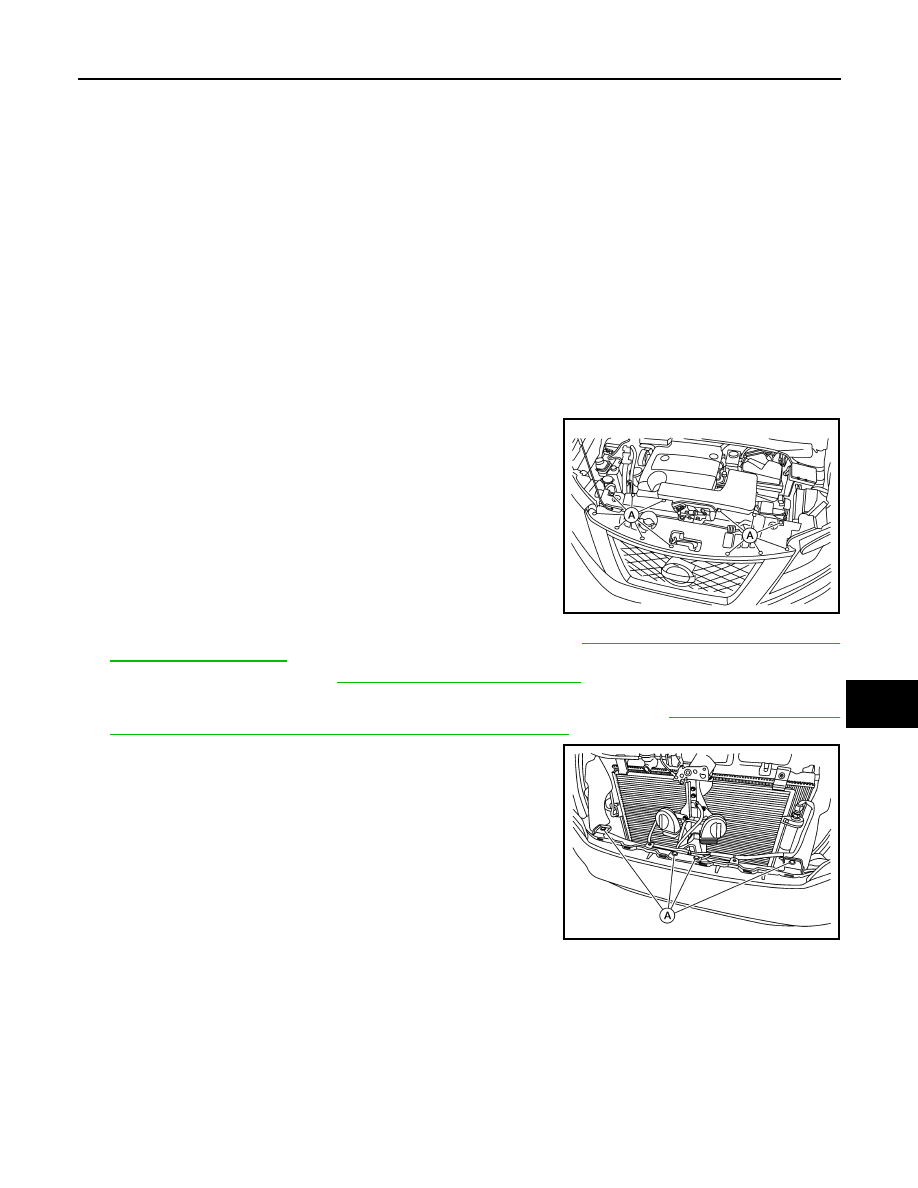

Removal and Installation

INFOID:0000000009176335

REMOVAL

CAUTION:

Bumper fascia is made of resin. Use care when handling to prevent damage. Avoid contact with oily

substances.
1. Open hood.
2. Remove the core support cover clips (A) and the core support

cover.

3. Partially remove the front fender protectors (LH/RH). Refer to

EXT-28, "FENDER PROTECTOR :

Removal and Installation"

.

4. Remove the front grille. Refer to

EXT-23, "Removal and Installation"

.

NOTE:

Calibration must be performed after removing/replacing the camera. Refer to

AV-494, "CALIBRATING

CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure"

5. Remove the front bumper fascia clips (A).

1.

Front bumper reinforcement
support (RH)

2.

Front bumper reinforcement
support (LH)

3.

Front bumper reinforcement

4.

Front energy absorber

5.

Front bumper side bracket
(RH)

6.

Front bumper side bracket (LH)

7.

Front bumper fascia

8.

Front license plate bracket

9.

Front air spoiler (upper)

10. Front camera (if equipped)

11. Front grille

12. Core support cover

13. Front fascia (side) molding

14. Tow cover

15. Front fascia finisher

16. Front fog lamp finisher (if

equipped)

17. Front air spoiler (lower

18. Front fascia (center) molding

ALKIA2902ZZ

ALKIA2899ZZ

EXT-18

< REMOVAL AND INSTALLATION >

FRONT BUMPER

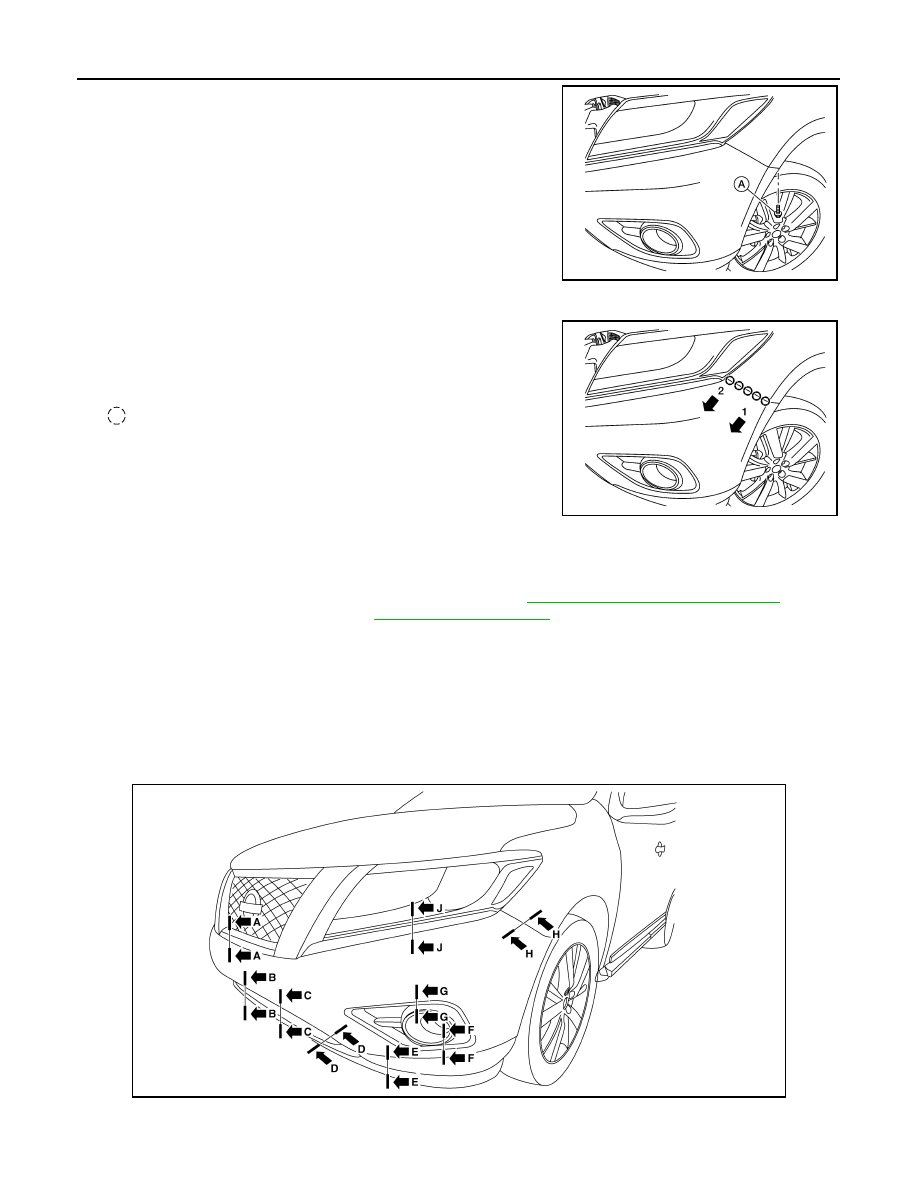

6. Remove the front bumper fascia to fender screw (A) (LH/RH).

7. Disconnect the harness connectors from the fog lamps (LH/RH) (if equipped).
8. Release the front bumper fascia pawls from the side brackets

(LH/RH) as shown.

CAUTION:

When removing front bumper fascia, two people are

required to avoid damaging.

: Pawl

9. Remove the front bumper fascia.
10. Remove the following parts (if necessary) after removing front bumper fascia.

• Front air spoiler.

• Front fog lamp assemblies (LH/RH) (if equipped). Refer to

EXL-144, "Removal and Installation"

.

• Front license plate bracket. Refer to

EXT-16, "Exploded View"

11. Remove the front bumper fascia upper retainer bracket and remove front bumper fascia .

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

• The following table shows the specified values for checking normal installation status.

• Fitting adjustment cannot be performed.

Unit: mm (in)

ALKIA3030ZZ

AWKIA2130ZZ

ALKIA2960ZZ
