EXL-152

< REMOVAL AND INSTALLATION >

BACK-UP LAMP

BACK-UP LAMP

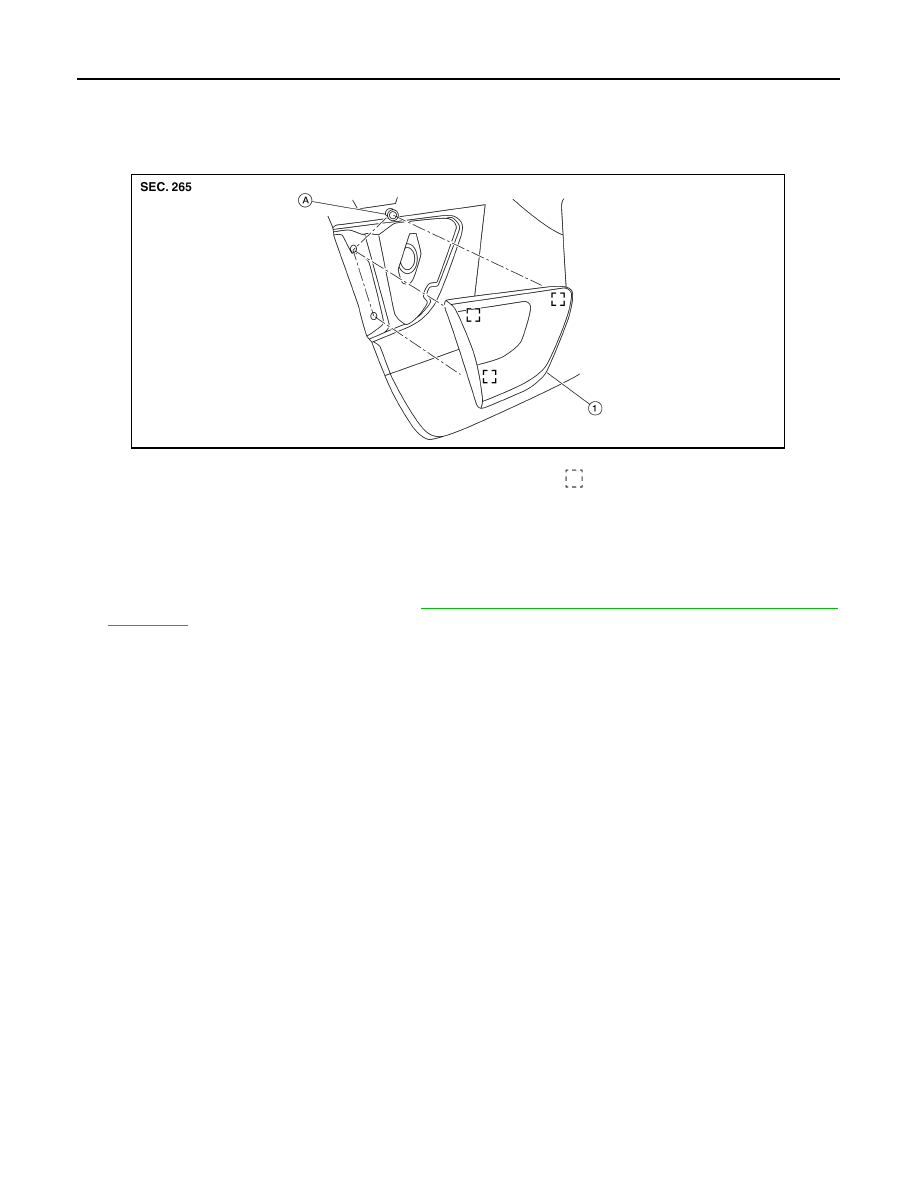

Exploded View

INFOID:0000000009175414

Removal and Installation

INFOID:0000000009175415

BACK-UP LAMP

Removal

1. Remove back door lower finisher. Refer to

INT-35, "BACK DOOR LOWER FINISHER : Removal and

Installation"

.

2. Disconnect the harness connector from the back-up lamp.
3. Remove back-up lamp nuts and remove.

Installation

Installation is in the reverse order of removal.

BACK-UP LAMP BULB

WARNING:

Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.

CAUTION:

• Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent

damage to bulb.

• Do not leave the bulb out of the lamp reflector for a long time because dust, moisture, smoke, etc.

may affect the performance of the lamp.

Removal

1. Remove back door trim access panel.
2. Rotate back-up lamp socket counterclockwise and remove.
3. Remove back-up lamp bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

1.

Back-up lamp

A. Nut

Stud

AWLIA2194ZZ

LICENSE PLATE LAMP

EXL-153

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LICENSE PLATE LAMP

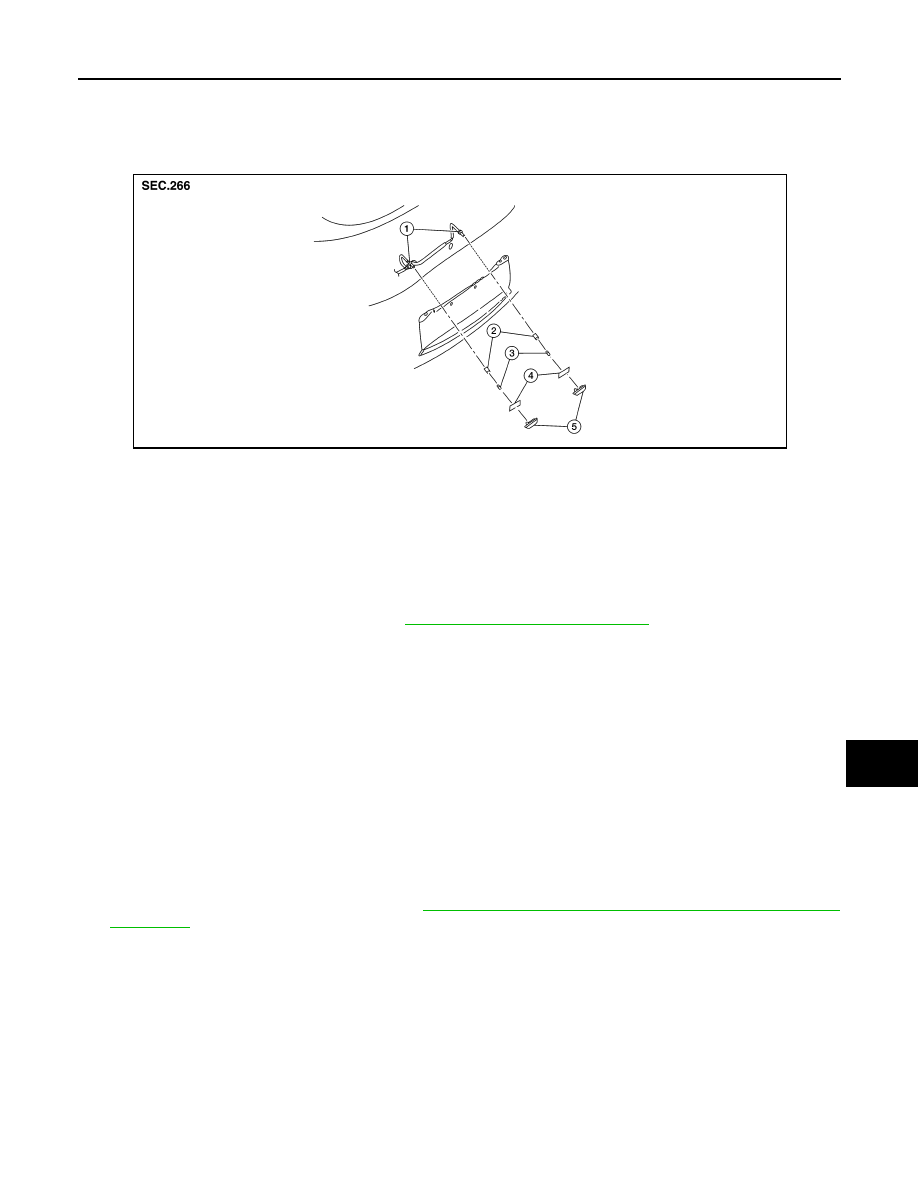

Exploded View

INFOID:0000000009175416

Removal and Installation

INFOID:0000000009175417

LICENSE PLATE LAMP

Removal

1. Remove back door outer finisher. Refer to

EXT-43, "Removal and Installation"

.

2. Release pawls using a suitable tool and remove license plate lamp.

Installation

Installation is in the reverse order of removal.

LICENSE PLATE LAMP BULB

Removal

WARNING:

Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.

CAUTION:

• Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent

damage to bulb.

• Do not leave the bulb out of the lamp reflector for a long time because dust, moisture, smoke, etc.

may affect the performance of the lamp.

1. Remove back door lower finisher. Refer to

INT-35, "BACK DOOR LOWER FINISHER : Removal and

Installation"

.

2. Disconnect the harness connector from the license plate lamp.

1.

License plate lamp harness

2.

License plate lamp socket

3.

License plate lamp bulb

4.

License plate lamp gasket

5.

License plate lamp

AWLIA2195ZZ

EXL-154

< REMOVAL AND INSTALLATION >

LICENSE PLATE LAMP

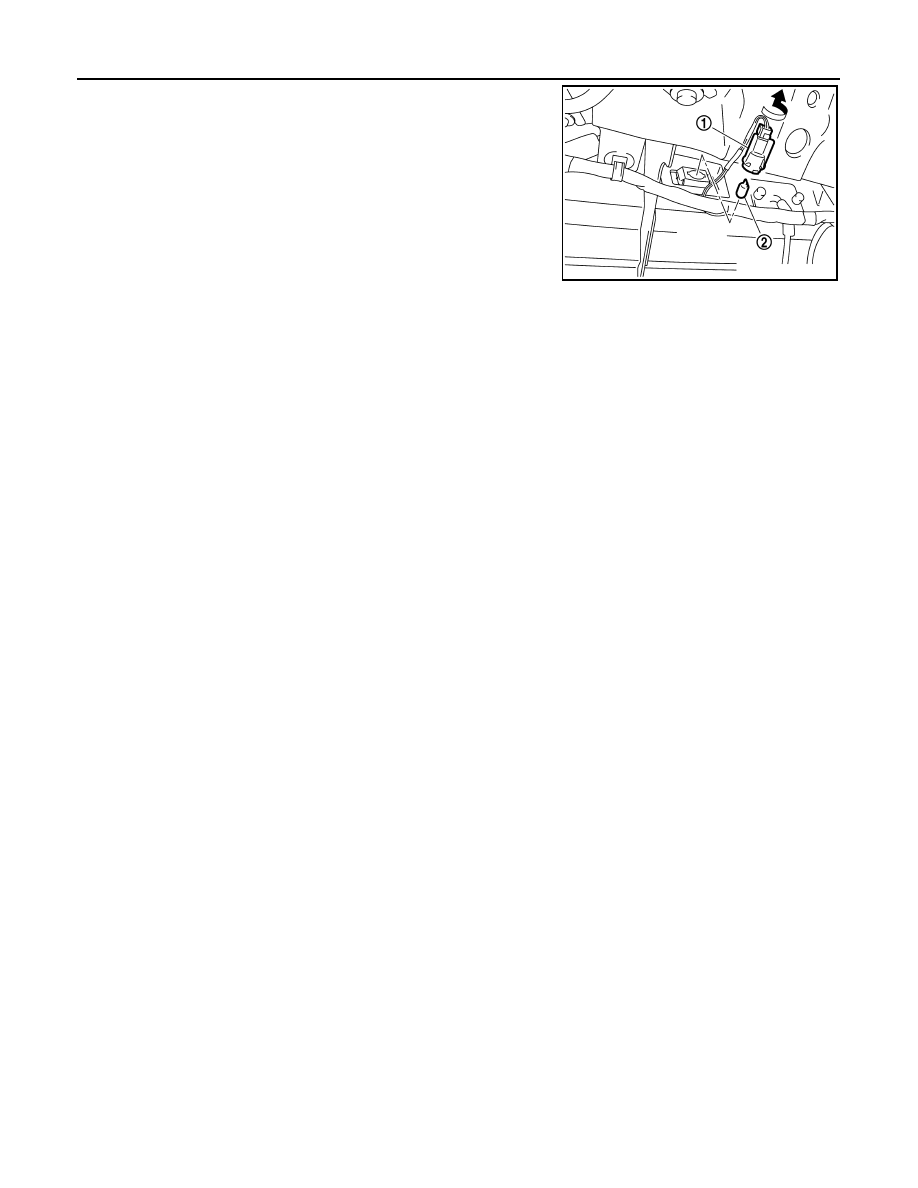

3. Rotate license plate lamp socket (1) counterclockwise and

remove.

4. Remove license plate lamp bulb (2) from bulb socket.

Installation

Installation is in the reverse order of removal.

JPLIA0930ZZ

FRONT COMBINATION LAMP

EXL-155

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

FRONT COMBINATION LAMP

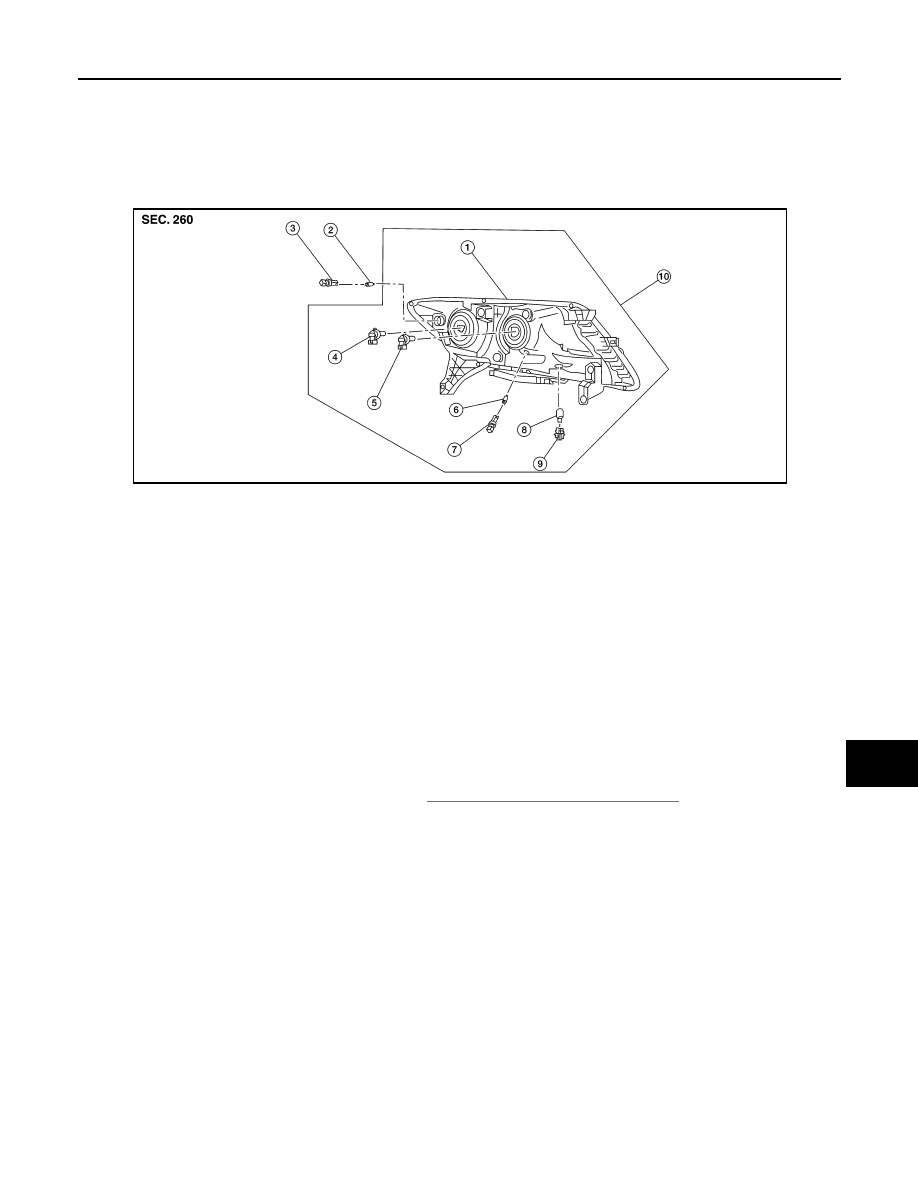

Exploded View

INFOID:0000000009175418

Disassembly and Assembly

INFOID:0000000009175419

WARNING:

Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.

CAUTION:

• Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent

damage to bulb.

• Do not leave the bulb out of the lamp reflector for a long time because dust, moisture, smoke, etc.

may affect the performance of the lamp.

DISASSEMBLY

1. Remove the front combination lamp. Refer to

EXL-141, "Removal and Installation"

.

2. Rotate the halogen lamp bulb (low beam) counterclockwise and remove.
3. Rotate the halogen lamp bulb (high beam) counterclockwise and remove.
4. Rotate parking lamp socket counterclockwise and remove.
5. Remove parking lamp bulb from parking bulb socket.
6. Rotate front turn signal lamp socket counterclockwise and remove.
7. Remove front turn signal lamp bulb from front turn signal bulb socket.
8. Rotate side marker lamp socket counterclockwise and remove.
9. Remove side marker lamp bulb from side marker bulb socket.

ASSEMBLY

Assembly is in the reverse order of disassembly.

1.

Front combination lamp

2. Side marker lamp bulb

3. Side marker bulb socket

4.

Halogen lamp bulb (low beam)

5. Halogen lamp bulb (high beam) 6. Front turn signal lamp bulb

7.

Parking lamp bulb socket

8. Parking lamp bulb

9. Front turn signal bulb socket

10. Front combination lamp assembly

ALLIA1192ZZ
